V2O5/hematite catalyst for low temperature selective catalytic reduction of NOx with NH3
Ping Zhang, Tianhu Chen*, Xuehua Zou, Chengzhu Zhu, Dong Chen, Haibo Liu
Laboratory of Nano Mineral and Environmental Material, School of Resource and Environmental Engineering, Hefei University of Technology, Hefei 230009, Anhui, China
Article history: Received 28 April 2013, Accepted 22 September 2013, Published 20 January 2014
* Corresponding author. Tel: +86-551-62903990; E-mail: chentianhu@hfut.edu.cn
This work was supported by the Specialized Research Fund for the Doctoral Program of Higher Education (20110111110003) and the National Natural Science Foundation of China (41130206).
DOI: 10.1016/S1872-2067(12)60719-0 | http://www.sciencedirect.com/science/journal/18722067 | Chin. J. Catal., Vol. 35, No. 1, January 2014
Abstract: A series of V2O5/hematite (V/H) catalysts were prepared by impregnation of goethite with NH4VO3 solution and used in the selective catalytic reduction (SCR) of NO with NH3. The catalysts were characterized by X-ray diffraction, transmission electron microscopy, N2 adsorption, H2 temperature-programmed reduction, and NH3 temperature-programmed desorption. The effects of V2O5 loading and calcination temperature on the SCR activity were investigated. The NO conversion over 3% V/H catalysts calcined at 300 °C exceeded 95% at 250-300 °C. Neither H2O nor SO2 (0.01%) had any adverse impact on the activity, but a decrease of SCR activity was observed after high concentrations (0.03% and 0.05%) of SO2 were introduced. Cutting off the SO2 supply resulted in activity restoration. The simultaneous addition of 5% H2O and 0.03% SO2 led to a synergistic poisoning effect, but when these gases were switched off, the activity was recovered. SO2 adsorption on the catalyst surface led to the decrease in SCR activity.
© 2014, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Iron oxide     Vanadic pentoxide     Nitrogen oxide     Selective catalytic reduction

1. Introduction

Fossil fuel combustion in thermal power plants, cement kilns, and automobiles generates nitrogen oxides (NOx), which have adverse effects, including photochemical smog, acid rain, greenhouse effects, ozone depletion, and causing respiratory diseases. The selective catalytic reduction of NOx with ammonia (NH3-SCR) is a key technology widely used to remove NOx [1]. Due to their high NOx conversion, high selectivity, and stable performance, V2O5/TiO2 and V2O5-WO3/TiO2 are the most common commercial catalysts [2]. However, the high reaction temperature, narrow reaction window of 300-400 °C, the catalysts that mainly have to be imported, and the barriers to use due to intellectual property rights are problems that have to be solved in China. There is a need to develop new SCR catalysts with excellent low temperature performance and wide reaction windows [3, 4].

Iron-based catalysts have attracted interest in flue gas denitration. Fe-ZSM has received much attention in recent years [5, 6, 7]. Brandenberger et al. [8] investigated the different iron species coexisting on Fe-ZSM-5 during NH3-SCR, such as isolated Fe3+ species, oligomeric FexOy clusters, and Fe2O3 particles, and proposed that below 300 °C, monomeric iron is the most active site for the SCR reaction while at higher temperatures, the contribution of dimeric iron species, oligomeric species, and Fe2O3 particles become important. Qi et al. [9] prepared a Pt/Fe-ZSM-5 catalyst and found that the noble metal improved the activity, as well as its tolerance for H2O and SO2. Other research has focused on iron oxides. Liu et al. [10] studied a FexTiOy catalyst prepared by co-precipitation and observed excellent activity, selectivity, and SO2/H2O tolerance in the medium temperature range (200-400 °C). Yang et al. [11] synthesized α-Fe2O3 samples with nanocube and nanorod morphology by a simple hydrothermal route. The results showed that the nanorods with exposed high energy faces had a much higher activity for NH3-SCR than the nanocube with exposed low energy faces. Apostolescu et al. [12] explored the effects of the Fe/W ratio in Fe2O3-WO3/ZrO2 catalyst and found that 1.4Fe/7.0W/Zr gave the best NH3-SCR performance and N2 selectivity.

Goethite is one of the most widespread iron oxide (hydroxide) in the soil [13], and it is found in concentrated form in ore deposits [14]. The ore reserves of pyrite associated with goethite in Xinqiao, Tongling, China, exceed 100 million tons [15]. Thus, due to the abundant resources and low cost, goethite is an attractive candidate for potential catalyst use. After dehydration at 225 °C, goethite transforms into hematite, which has more crystallization and a smaller nano-phase. Higher specific surface areas can be obtained with the proper dehydration condition [16, 17, 18]. Due to their particular nanopore structure and high specific surface areas, a series of V2O5/hematite (V/H) catalysts were prepared to investigate the effect of V2O5 loading and calcination temperature on SCR activity and H2O/SO2 tolerance.

2. Experimental
2.1. Preparation of V/H catalysts

Catalysts were prepared by the impregnation of goethite (G, synthesized by the hydrothermal method, Zhenjiang Fine Chemicals Factory) with a solution of ammonium metavanadate (NH4VO3, Tianjin Guangfu Fine Chemicals Research Institute) and oxalic acid. All chemicals were analytical grade. The details are as follows. NH4VO3 (0.232 g) was dissolved in 20 ml oxalic acid (0.48 mol/L). Then the solution was added into a 100 ml beaker containing 10 g of goethite with stirring for 30 min. The mixture was aged for one night before being dried at 105 °C. The sample was ground and sieved to 40-60 mesh. After the powder has cooled to air temperature, it was calcined at 300 °C for 2 h in air to get the 1%V/H(300) sample, where the 1% means the mass ratio of V/support in the catalyst, and the 300 means the calcination temperature. Other V/H samples with different V/support mass ratios and calcination temperatures were synthesized using the same procedure.

2.2. Characterization of the catalysts

X-ray diffraction (XRD) patterns were recorded between 15° and 80° (2θ) at steps of 4°/min using a Rigaku D/max diffractometer with Cu Kα radiation (50 kV and 100 mA). A JEM-2100 high resolution transmission electron microscope (TEM) was used to observe the morphology and pore structure of the catalysts. The BET specific surface area and pore volume of the catalysts were measured by N2 adsorption at liquid nitrogen temperature using a Quantachrome NOVA3000e analyzer. The samples were first degassed at 110 °C for 24 h.

Temperature-programmed reduction with H2 (H2-TPR) measurement was carried out with a quartz tube (d = 10 mm) containing 0.05 g catalyst. A 5% H2-95% Ar mixture with a flow rate of 50 ml/min was fed to the sample, which was heated from room temperature to 800 °C at a heating rate of 10 °C/min. The H2 content of the effluent gas was analyzed by an online mass spectrometer (MS, Hiden QIC-20).

Temperature-programmed desorption of NH3 (NH3-TPD) measurement used a quadrupole mass spectrometer (Hiden QIC-20). Catalyst (0.1 g) was heated at its calcination temperature for 2 h under Ar flow of 50 ml/min and then cooled to 50 °C. A 0.5% NH3-99.5% Ar mixture was fed in at 50 °C until saturation, after which the catalyst was swept with Ar and heated at an increasing temperature up to 700 °C at a heating rate of 10 °C/min. The m/e = 15 fragment was chosen as the NH3 signal to avoid the interference of H2O.

2.3. Catalytic activity of the catalysts

Catalyst activity tests for the SCR reaction were conducted in a homemade fixed-bed reactor. The gas flow rate was controlled using mass flow controllers (Sevenstar D08, Beijing). A feed gas consisting of 0.1% NO, 0.1% NH3, and 3% O2 with Ar as the balance at a total flow rate of 300 ml/min and gas hourly space velocity (GHSV) of 18000 h-1 was used. In the SO2 tolerance test, SO2/Ar was added into the model gas feed. In the H2O tolerance test, Ar was bubbled through distilled water to obtain water vapor. The NO concentrations were continuously monitored by a flue gas analyzer (Kane KM9106). The data for each test temperature was recorded after 1 h to avoid the effect of adsorption. NO conversion was used to evaluate catalytic activity.

3. Results and discussion
3.1. Characterization results

The XRD patterns of catalysts with different V2O5 contents and prepared with different calcination temperatures are shown in Fig. 1. In Fig. 1(a), the peaks of hematite decreased with increasing V2O5 loading. This was due to absorption of the diffracted ray, which decreased the peak intensity, with the increase of the coverage and thickness of V2O5 highly dispersed on the surface of hematite. In Fig. 1(b), the peak intensity of the sample increased, which was mainly due to the improvement of the crystallinity degree of the catalyst, after calcination at higher temperatures. This agreed with the result reported by Zou et al. [18] on the structural and chromatic evolution of goethite with thermal treatment. Furthermore, there was no peak related to V2O5 in the XRD patterns, suggesting that V2O5 was highly dispersed. This was accordance with the TEM results.

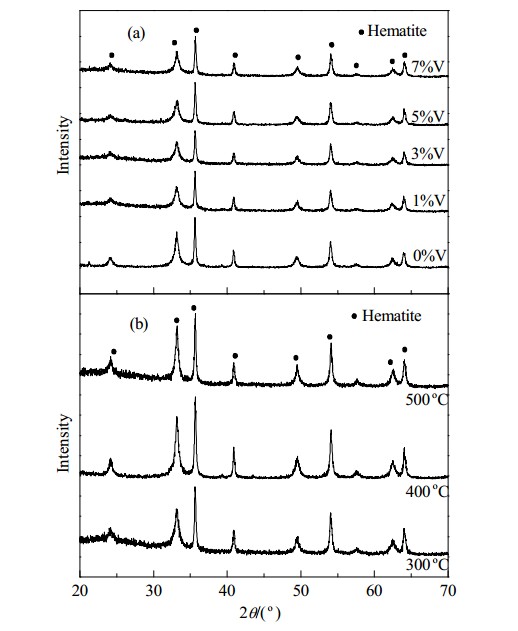

Fig. 1. XRD patterns of V/H catalysts with different V2O5 loadings calcined at 300 °C (a) and 3%V/H catalysts calcined at different temperatures (b).

The TEM images are shown in Fig. 2. The morphology and pore structure of 0%V/H(300) are shown in Fig. 2(a). In combination with the XRD analysis, we can see that although it has transformed into hematite, the acicular structure of goethite was preserved. Numerous nanopores were observed due to slit-shaped nanopores existing between polycrystalline hematite formed from the dehydroxylation of goethite. Figure 2(b) shows the morphology and pore structure of 0%V/H(500). Compared with 0%V/H(300), there still remained some goethite, but the slit-shaped micropores between hematite crystallites were due to the bigger hematite crystallites. Figure 2(c) shows the morphology and pore structure of 3%V/H(300). Despite the similarity with Fig. 2(a) and (b), the surface of hematite had small vanadium oxide patches dispersed uniformly on it. The inset in Fig. 2(c) shows the components of 3%V/H(300) detected by the energy dispersive spectrometer (EDS). The V content of the catalyst basically agreed with the nominal value. This indicated that V2O5 was dispersed well on the surface of hematite.

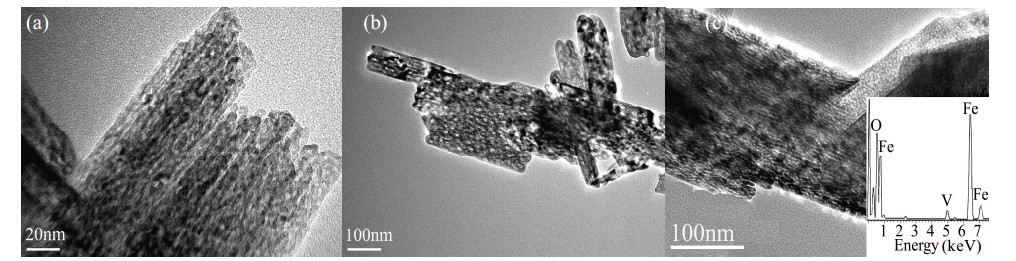

Fig. 2. TEM images of goethite calcined at 300 °C (a), goethite calcined at 500 °C (b), and 3%V/H(300) (c). The inset in (c) is EDS spectrum of 3%V/H(300).

Table 1 shows the specific surface area and pore volume of the V/H catalysts. Without any V loading, the BET surface area and pore volume of 0%V/H(300) and 0%V/H(500) were 92.8 m2/g, 0.072 cm3/g and 21.5 m2/g, 0.049 cm3/g, respectively. Both surface area and pore volume decreased with increasing calcination temperature. In addition, the pore size distribution showed that most of the pores of 0%V/H(300) were micropores, and only a small amount were mesopores, while 0%V/H(500) had the opposite distribution. Furthermore, the amount of micropores decreased and mesopores increased with increasing temperature. After V loading, the 1%V/H catalyst has the largest surface area. With increasing V loading, the surface area decreased dramatically, which was ascribed to the blockage of pores caused by V2O5 particles of nano-size. In the catalytic test, 1%V/H(300) with the largest surface area showed low activity, which means that the surface area was not the key factor for deNOx performance. The improvement of catalytic activity was probably due to the decrease of V2O5 dispersity and the increase of V2O5 clusters.

Table 1
BET specific surface area and pore volume of the V/H catalysts with different calcination temperatures.

H2-TPR profiles of the different catalysts are presented in Fig. 3. Three main reduction peaks of 0%V/H(300) at 330, 535, and 660 °C were present due to the reduction of the iron oxides: Fe2O3→Fe3O4→FeO→Fe. The main reduction peaks of V2O5 were at 536 and 700 °C. After V2O5 loading, both the temperature and reduction peaks area increased. It can be concluded that the iron oxides were easier to oxidize and the quantity of reducible species on the catalyst increased after loading V2O5, which was good for SCR activity.

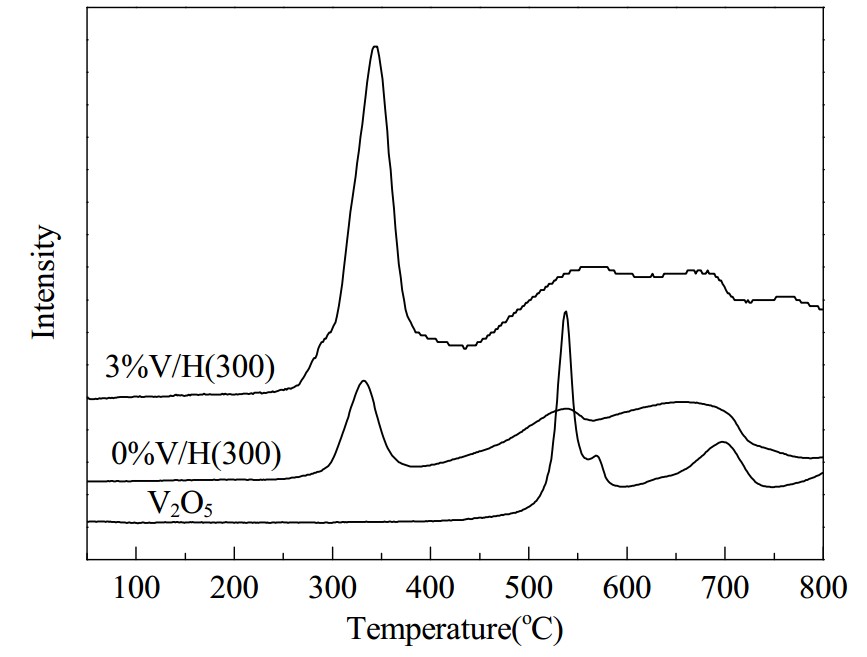

Fig. 3. H2-TPR profiles of 0%V/H(300), 3%V/H(300), and V2O5.

NH3 adsorption has a large impact on SCR activity. The NH3-TPD profiles are shown in Fig. 4. Both catalysts showed two obvious peaks corresponding to two acid sites. For 0%V/H(300), the area of the second peak (390 °C) was much larger than the first one (235 °C), meaning that there were more acid sites. After doping with V2O5, the area of the two peaks increased significantly, showing that there were more acid sites. The intensity of the first peak became higher. The overlap of the two peaks led to a broadened peak between 200 and 500 °C. This was in accord with the better performance of the V/H catalysts.

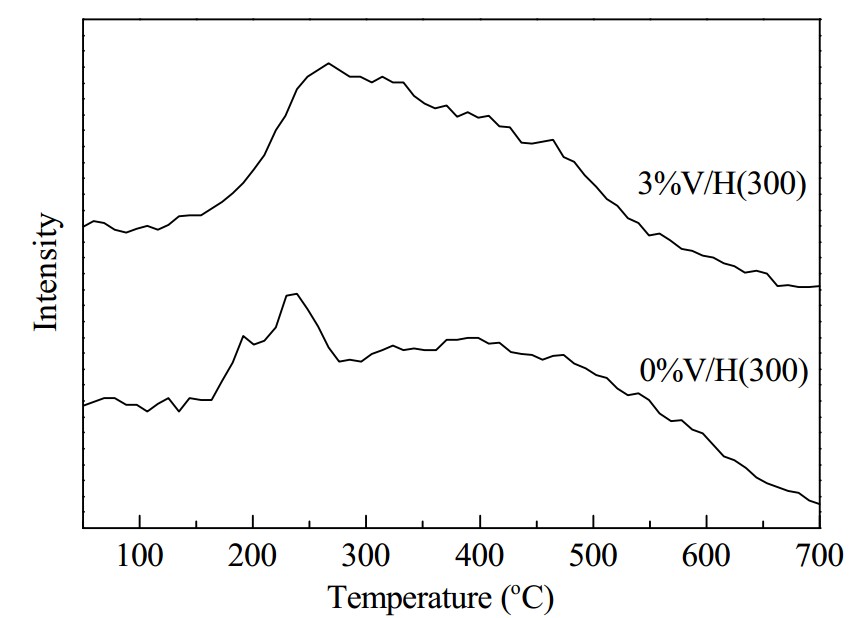

Fig. 4. NH3-TPD profiles of 0%V/H(300) and 3%V/H(300).
3.2. Effect of V2O5 loading and calcination temperature on
catalytic performance

Figure 5(a) shows the SCR activity of the catalysts calcined at 300 °C. It can be seen that the support alone (0%V/H(300)) has some catalytic performance. With increasing temperature, the NO conversion increased first and then decreased. With the support, the highest conversion reached 83.6% at 300 °C, and it exceeded 80% in the range of 250-300 °C, but the reaction window was quite narrow. With the addition of V2O5, the catalytic activity improved significantly, and the reaction window was enlarged too. Meanwhile, the increasing V loading had a significant promotion on the catalysts, e.g., the NO conversion of all the catalysts was > 95% at 250 °C, and excellent activity was obtained in the temperature range of 200-300 °C.

The SCR activity of catalysts with different V loading calcined at 400 and 500 °C is shown in Fig. 5(b) and (c), respectively. The trends of the curves in Fig. 5(a), (b), and (c) were similar. In Fig. 5(b), catalytic activity increased with the increase of V loading before 350 °C. In the range of 100-250 °C, the NO conversion over the catalysts calcined at 500 °C with the same V loading was slightly lower than in Fig. 5(a) and (b) except for the 7%V/H(500), which indicated that when the temperature reached 400 °C, some NO was generated. The V/H catalysts calcined at 300 and 400 °C had better catalytic performance than that calcined at 500 °C. By considering both the preparation and the activity, the 3%V/H(300) sample was judged to have the best catalytic performance in the low temperature window (250-400 °C).

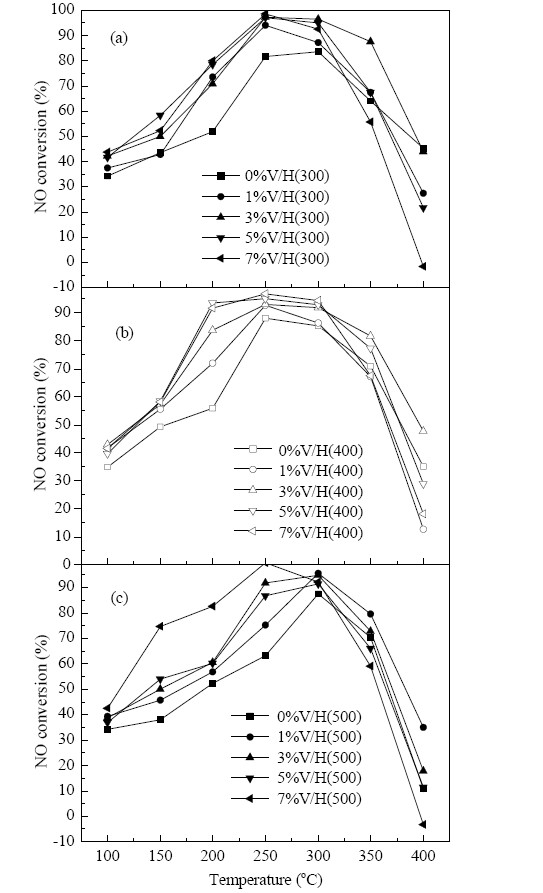

Fig. 5. NO conversion over V/H catalysts calcined at 300 °C (a), 400 °C (b), and 500 °C (c).
3.3. SO2 and H2O tolerance test

Because a combustion exhaust usually contains SO2 and H2O vapor, the 3%V/H(300) catalyst was further studied at 300 °C to investigate its SO2/H2O tolerance. As shown in Fig. 6, H2O was added to the feed gases after 1 h of steady reaction. The addition of H2O did not cause any obvious effect, which might be due to the high dispersion, large surface area, and special pore structure of the catalyst. The effect of SO2 on SCR activity was related to SO2 concentration. When 0.01% SO2 was added to the reaction gas, NO conversion was still maintained at 99.6%. As the concentration of SO2 was increased to 0.03% and 0.05%, the NO conversion decreased to 92% and 90%, respectively. Cutting off the SO2 supply resulted in an instantaneous recovery of the original level. The NO conversion decreased to 83% in the presence of H2O and 0.03% SO2, and after cutting off the addition of H2O and SO2, the activity was restored quickly to its original level. As can be seen in Fig. 6, the coexistence of H2O and SO2 led to more catalyst deactivation than the addition of a single gas, indicating that they had synergistic inhibition on SCR performance.

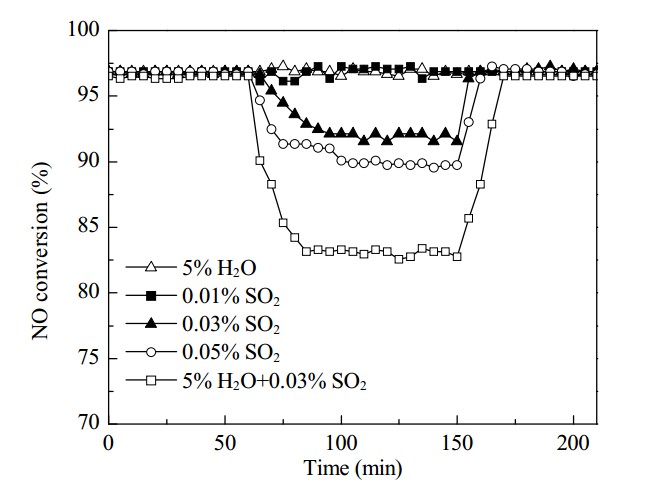

Fig. 6. Effect of H2O and SO2 on SCR activity.

The decreased activity with high SO2 concentration may be due to three reasons [19, 20, 21]: (1) formation of iron sulfate; (2) ammonium bisulfate or ammonium sulfate on the catalyst surface; (3) adsorbed SO2 on the active site of the catalyst. Although iron sulfate decomposes at 480 °C, which is higher than the test temperature 300 °C, however, no diffraction line of the sulfate was observed in the XRD pattern of the sample, and reason (1) can be excluded, which agrees with Tang et al. [20]. If SO2 was oxidized to SO3 and this eventually formed (NH4)2SO4 by reacting with NH3 and H2O, the (NH4)2SO4 would decompose because the reaction temperature was higher than its decomposition temperature. Therefore, deposition would not occur on the catalyst and reason (2) can be excluded too. As a consequence, reason (3) was probably the cause of the deactivation, which was due to SO2 adsorption competing with NH3 and NO. The occupation of active sites by SO2 would decrease SCR activity. This effect would disappear when SO2 was removed, as was observed.

4. Conclusions

A series of V2O5/hematite (V/H) catalysts were prepared by impregnation. They exhibited excellent low temperature SCR performance. Vanadium oxide was highly dispersed on the surface of the support. The NO conversion over the 3%V/H(300) catalyst exceeded 95% between 250 and 300 °C. Neither the presence of H2O nor SO2 (0.01%) had an adverse effect on the activity, while SCR activity decreased when a high SO2 concentration (0.03% and 0.05%) was introduced into the system. Cutting off the SO2 supply resulted in a restoration of activity. The simultaneous introduction of 5%H2O and 0.03% SO2 led to a synergistic poisoning effect; when they were switched off, the activity was recovered. The mechanism of deNOx and the effects caused by some other experiment parameter need further study.
