The performance of Pt/ZrxTixAl1-2xO2 as Kerosene cracking catalysts
Yi Jiaoa, Jianli Wanga , Quan Zhub, Xiangyuan Lib, Yaoqiang Chena
a Key Laboratory of Green Chemistry and Technology of the Ministry of Education, College of Chemistry, Sichuan University, Chengdu 610064, Sichuan, China;
b College of Chemical Engineering, Sichuan University, Chengdu 610064, Sichuan, China
Abstract: ZrxTixAl1-2xO2 composite oxides for use as supports were prepared by coprecipitation and assessed with regard to their catalytic performance during the kerosene cracking reaction. The catalysts were characterized by N2 adsorption-desorption, scanning electron microscopy-energy dispersive spectrometry, X-ray diffraction, and temperature-programmed desorption (NH3-TPD). The results showed that a support composed of ZrO2:TiO2:Al2O3 in the ratio of 1:1:3 exhibited the highest surface area and pore volume, and had the strongest surface acidity and highest acidic density. Energy dispersive spectroscopy results showed that catalysts from which carbon deposits were removed by heating under oxygen changed very little, and additional experimental data confirmed that these catalysts are readily regenerated while retaining their functionality. The gaseous reaction products produced over ZrO2:TiO2:Al2O3 (1:1:3)-supported Pt catalyst generated during catalytic cracking was 2.1 times and 1.4 times higher than that obtained with thermal cracking at 650 ℃ and 700 ℃, respectively. An examination of the catalytic performance of Pt catalyst supported on composite oxides calcined at 1000 ℃ for 5 h indicated that these materials lost much of their catalytic activity.
© 2014, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: ZrxTixAl1-2xO2 composite oxides     Pipe coating     Catalytic cracking     Endothermic fuel     Acidity

1. Introduction

The so-called "thermal barrier" is currently the greatest challenge associated with hypersonic flight. This phenomenon occurs when high-speed aircraft is in flight and the large amount of heat generated by air friction causes the temperature of the fuselage and power equipment to rise sharply, potentially leading to significant damage to these components [1, 2]. In recent years, new endothermic hydrocarbon fuels have become very important. These represent excellent high- performance fuels for propulsion in hypersonic flight while simultaneously working as good coolants for the vehicles [3, 4, 5]. The cooling process is based primarily on the endothermic nature of cracking reactions associated with the hydrocarbon fuel, which may include both thermal and catalytic cracking. Thermal cracking reactions require higher temperatures and are readily subject to coking and so catalytic cracking has become the main research focus in this field. The addition of catalysts reduces the initial reaction temperature, improves the rate and selectivity of the endothermic reactions, and generates a large number of olefins, which increases the heat absorption ability of the fuel. The catalytic cracking of endothermic hydrocarbon fuels is therefore becoming an attractive option [6, 7].

In the 1990s, the rapid development of catalytic technology established the foundations for future study of the catalytic cracking of endothermic hydrocarbon fuels, led by researchers in the United States. The main cracking catalysts are precious metals, zeolites, and composite oxide catalysts. Among these, precious metal catalysts were the first to be used in catalytic dehydrogenation, because catalytic dehydrogenation over these materials is simple and produces stable reaction products. The precious metal catalysts, however, have obvious shortcomings, such as a susceptibility to poisoning, short lifetimes, high prices, and deactivation by carbon deposition [8]. Although the zeolite catalysts exhibit high catalytic activities, produce little coke, and are cheap and provide better heat sinks, porous zeolites tend to collapse under high temperature, which makes their high-temperature performance relatively poor. Zhang et al. [9] investigated the cracking reaction of the endothermic fuel NNJ-150 over USHY, HZSM-5, SAPO-34, and USHY + HZSM-5 (75:25) catalysts. The results showed that the USHY catalyst had the highest selectivity for low carbon olefins, but deactivated quickly. In contrast, the deactivation rate of the HZSM-5 catalyst was relatively slow, but its selectivity for low carbon olefins was poor. Compared with these two catalysts, SAPO-34 exhibited a lower cracking conversion rate and lower selectivity for low carbon olefins.

The support has an important effect on the performance of supported catalysts. TiO2 and ZrO2 have been widely used as catalyst supports due to their superior performance [10, 11]. Pure TiO2 and ZrO2, however, have relatively low surface area and poor thermal stability and can readily undergo phase changes during use, which will have an effect on the performance of the catalyst. These problems can be mitigated through the use of composite oxides, which usually have larger surface area, better thermal stability and mechanical strength as well greater surface acidity, and often lead to better catalytic performance [12, 13, 14]. ZrO2-TiO2 composite oxides not only maintain the unique properties of the original TiO2 and ZrO2 but also minimize the respective defects of the pure materials. For this reason, these composite oxides have attracted a great deal of attention in recent years and have been applied widely, such as in the esterification of n-butyl alcohol with acetic acid [15], the photo-oxidation of salicylic acid, the photo-reduction of Cr (VI) [16] and the oxidative removal of diesel exhaust particulate matter [17], as well as in NSR catalysts [18] where they serve as supports capable of resisting sulfur poisoning. According to the literatures [19, 20], La2O3 and Y2O3 can be added to ZrO2-TiO2, and it is also possible to form ZrO2-TiO2-SiO2 ternary composite oxides by introducing SiO2. These modifications produce ZrO2-TiO2-MOx composite oxide supports that show excellent physical and chemical properties and exhibit higher catalytic activity for specific reactions. Al2O3 has the advantages of larger surface area, better thermal stability and lack of crystallization at high temperatures, so Al2O3 h as also been added to ZrO2-TiO2 composite oxide supports to improve their high-temperature stability. While previous studies [21] have shown that Al2O3 and ZrO2-TiO2 may be used to produce a two-component support system with superior catalytic properties during water vapor transformation, the application of ZrO2-TiO2-Al2O3 supports to kerosene (RP-3) cracking and the petroleum chemical industry has seldom been reported. However, our long-term research concerning the application of Pt/CA (CeO2-Al2O3) in the kerosene cracking reaction resulted in some useful findings [22], and this paper reports the preparation of a series of ZrO2-TiO2-Al2O3 composite oxides (ZTA) with varying Al contents by coprecipitation. The structure and surface morphology of these composite oxides may be tuned, along with their surface acidity and high temperature stability, by adding different levels of Al2O3 into the support. The resulting materials may be used as catalyst supports in conjunction with Pt (the Pt/ZTA series) in the RP-3 cracking reaction and we have assessed their catalytic performance in this regard. The results show that the Pt/ZTA series exhibit exceptional catalytic effects.

2. Experimental
2.1. Preparation of ZrxTixAl1-2xO2 composite oxides andcatalysts

ZrxTixAl1-2xO2 composite oxides were prepared by coprecipitation method [23, 24]. Zr(NO3)4·3H2O, TiOSO4·2H2O, and Al(NO3)3·9H2O were dissolved in high-purity water in the desired ratio (mass ratio of ZrO2:TiO2:Al2O3 = 1:1:x, where x = 1, 2, 3, 4, 5) and precipitation was induced by the addition of a pH 10 buffer solution composed of NH3·H2O and (NH4)2CO3. The resulting precipitate was aged, dried for 2 h at 120 °C and calcined for 3 h at either 600 or 1000 °C to produce the support materials, denoted as ZTA600x and ZTA1000x respectively, where x = 1, 2, 3, 4, 5.

The two series of as-prepared materials (ZTA600xand ZTA1000x) were used as the supports and chloroplatinic acid was used as the Pt precursor. The Pt-loaded catalysts (Pt content 0.70%) were prepared by impregnation, following which the impregnated supports were calcined for 2 h at 550 °C and dried to obtain powdered catalysts. The catalysts were subsequently ball-milled with water and then coated on the inner walls of stainless steel pipes (15 cm, ɸ 3 mm × 0.5 mm, 0.471 cm3), following which the coated pipes were dried at 110 °C and heated for 2 h at 500 °C. The catalysts produced from the ZTA600x (x = 1-5) material are denoted as Cat1 through Cat5 while those made from the ZTA1000x (x = 1-5) are termed as Cat6 through Cat10. The loading of all catalysts is 0.035 g/15 cm.

2.2. Catalytic activity evaluation

RP-3 was chosen as the raw material for assessing kerosene cracking in our laboratory-made experimental device. The experimental apparatus included components for fuel feeding, temperature control, heating, reaction, product condensation and data analysis, as shown in Fig. 1. A stainless-steel tube (15 cm, ɸ 3 mm × 0.5 mm) was used as the reaction tube, divided into a 250 mm preheating section and a 150 mm reaction section. The temperatures of these two sections were controlled using a programmed temperature control device. The preheating section was held at 300 °C while the reaction section was heated to 600, 650, 700 or 750 °C during the reaction trials. The reactant flow was accurately controlled using a mass flow meter, generating a residence time in the reaction section of 0.3 s. The gaseous products resulting from kerosene cracking were analyzed by gas chromatography (GC2000 III, Shanghai Institute of Computing Technology, Shanghai, China). A 50 m HP-Al/S capillary column coupled with a flame ionization detector was used to detect small organic hydrocarbons while a 2 m column assembled and packed in our laboratory (stationary phase TDX-101) in conjunction with a thermal conductivity detector was used to measure hydrogen, based on an external standard method.

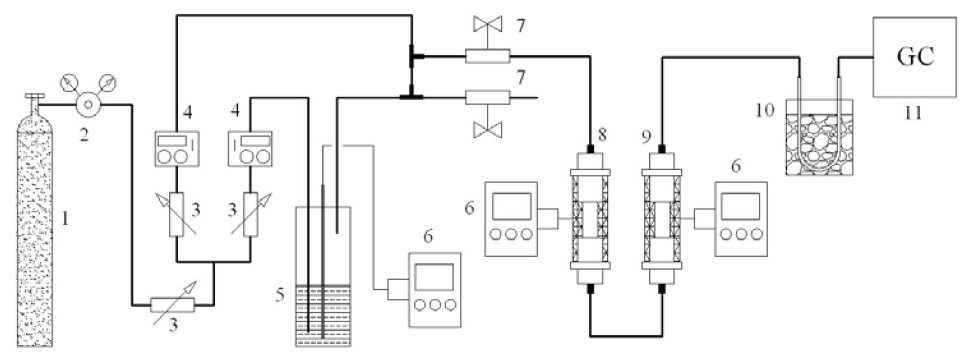

Fig. 1. Schematic diagram of the experimental apparatus. 1. Nitrogen; 2. Valve; 3. Needle valve; 4. Mass flow meter; 5. Feed tank; 6. Temperature controller; 7. Shut off valve; 8. Pre-heater; 9. Heater; 10. Cold trap; 11. Gas chromatograph.

2.3. Catalyst characterization

The textural properties of the catalysts were assessed using a Quadrasorb specific surface area analyzer (Quantachrome Instruments, USA). Samples were initially held under vacuum for 1 h at 300 °C, then cooled to -196 °C using liquid N2, at which point their N2 adsorption was measured. The micro-morphological characteristics of the catalyst coatings were observed using a Hitachi-S-4800 scanning electron microscope (SEM). Qualitative and quantitative analyses of elemental distributions in microscopic regions of the catalyst powders were performed using an Oxford-IE-250 energy dispersive spectrometer (EDS). X-ray diffraction (XRD) patterns of the as-prepared materials were obtained using a DX-2500 X-ray diffractometer (China Dandong Fangyuan Instrument Co., Ltd.) with a graphite monochromator and Ni filter with Cu Kα radiation, operated at 40 kV and 25 mA. The samples were scanned over a 2θ range of 10°-80° at a step rate of 0.03°/s.

The surface acidity of each catalyst was measured by NH3-temperature programmed desorption (NH3-TPD) using a TP-5076 TPD instrument. During these measurements, a sample of 100 mg was heated to 400 °C at a rate of 8 °C/min in a flow of N2, maintained at 400 °C for 45 min and then cooled to room temperature. The gas was then switched to 2% NH3 in N2 (20 mL/min) for absorption for 60 min and then over the temperature was increased from ambient to 850 °C at a heating rate of 8 °C/min, employing a thermal conductivity detector.

3. Results and discussion
3.1. Catalytic activity evaluation

Table 1 presents the data obtained from thermal and catalytic cracking trials at 650 and 700 °C. These results indicate that the total gas quantities over Cat1 through Cat5 materials during catalytic cracking were much greater than these from thermal cracking. The addition of the catalysts thus reduces the cracking reaction temperature while increasing the reaction rate, generating an increased quantity of numerous low molecular weight reaction products. Cat3 exhibited the best catalytic activity, generating gases rate at 650 and 700 °C were 10.41 and 17.43 mmol/g respectively, which were 2.1 and 1.4 times higher than the results of thermal cracking (3.31 and 7.24 mmol/g). The Pt/ZTA600x series catalysts have large surface area, which is advantageous during the catalytic cracking reaction. Cat3 demonstrates that superior catalytic activity is associated with the largest surface area, which is not unexpected because a large surface area is conducive to contact between the reactant molecules and the catalyst, thus increasing the probability of interactions and improving the catalytic efficiency. The Pt/ZTA1000x series of catalysts does not exhibit efficient catalytic activity at 700 °C, because their total gas production are less than that obtained from thermal cracking. The total gas production obtained from Cat8 is the largest in the group and the closest to the results from thermal cracking. Because the Pt/ZTA1000x supports were calcined at 1000 °C, their surface area and acid contents were decreased dramatically, such that the catalytic activities of the Cat6 to Cat10 materials are very low. It is possible that the stainless steel pipe itself may also play a catalytic role; however, the Cat6 to Cat10 catalysts were coated on the inner surface of the pipe, which should prevent contact between reactant molecules and the stainless steel.

Table 1
Gaseous reaction products resulting from catalytic cracking of RP-3 at 650 and 700 °C.

Carbon deposition on used Cat3 was removed by oxygen-enriched heating, and the performance of this regenerated Cat3 was assessed by again in the reaction vessel. The total product amounts obtained with the reused catalysts were 10.47 and 17.38 mmol/g at 650 and 700 °C, respectively, which are quite close to the results obtained with the fresh material. The Cat3 catalyst is therefore capable of regeneration.

Figure 2 plots the quantities of different gases produced by cracking at several temperatures when using Cat3. These data show that the gas phase products are primarily methane, ethane, ethylene, propane, propylene, butene, butane and butadiene. The cracking reaction evidently proceeds slowly below 650 °C. With increases in temperature, the reactant molecular motion is accelerated, and thus it is expected that the rate of the cracking reaction increases. Methane, ethylene and propylene are produced in greater amounts than ethane, propane, butane and butene during the catalytic reaction. This occurs because the reactant molecules initially adsorb on the catalyst surface and then move into pore channels where they react with active sites. During this stage of the reaction process, secondary cracking of C4 products takes place to generate increased quantities of C1 and C2 products [25].

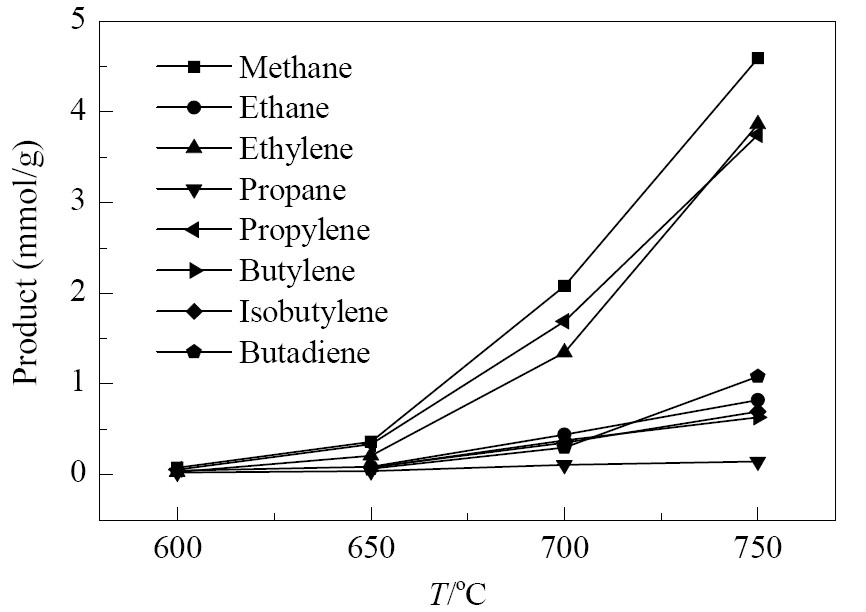

Fig. 2. Gaseous product distributions resulting from catalytic cracking over Cat3.

3.2. Textural properties of catalysts

Table 2 summarizes the specific surface area, pore volume, and average pore diameter of the ZTA600x and ZTA1000x materials. It can be seen that the surface area of the Pt/ ZTA600x series initially decreases with increase in the Al2O3 content after which they begin to increase, with maximized surface area and pore volume (336.8 m2/g and 0.73 ml/g) obtained at an Al2O3 content of 60%. The surface area of Cat8 and Cat10 drop to 38.1 and 33.5 m2/g after calcination at 1000 °C. A larger surface area is beneficial with regard to uniform dispersion of active sites and thus plays a positive role by reducing the sizes of the active centers, preventing active sites from agglomerating during sintering. In contrast, small surface area reduces the dispersion of active sites and can lead to agglomeration, affecting the catalytic activity. As noted above, the larger surface area of Cat3 correlates with its superior catalytic activity. N2 adsorption data show that the ZTA600x and ZTA1000x support materials exhibit typical type IV adsorption isotherms as well as a hysteresis loop during H2 adsorption (as per the IUPAC classification), showing that both slit and bottle-type pore shapes are present. The pore size distribution as calculated by the BJH method shows that only pores with openings of less than 6 nm exist [26, 27].

Table 2
Textural properties of different catalysts.

3.3. SEM results

Figure 3(a) shows the internal morphologies of the reaction pipes following thermal oxidation at high temperatures. The pipe walls are evidently coated with 4 to 6 μm particles following the high-temperature oxidation process. As the pipe walls become increasingly coarse, the growth of the catalysts along the wall will become more pronounced. Fig. 3(b) shows the pipe wall morphology following the application of a coating of catalyst, from which it is evident that the catalyst is uniformly deposited on the inner pipe wall, and that the catalyst particles are 2 to 4 μm in size. Fig. 3(c) shows the pipe wall after it has been subjected to carbon deposition during the cracking reaction; the carbon deposits cover the surface of the catalyst and block the pore channels. Fig. 3(d) shows the pipe wall after carbon has been dislodged from the catalyst by high- temperature oxidation. It can be seen that the catalyst is once more exposed and that the catalyst structure has not been degraded. EDS analyses (Table 3) were conducted to elucidate the changes in the catalyst before and after carbon deposition and removal. The results show that fresh and regenerated Cat3 materials both have the same atom percentages. Taken together with the SEM images, which indicate that the structure of the catalyst does not change, these results explain why the regenerated catalyst functions as well as it does after regeneration. Scanning the reaction pipe inner wall after carbon deposition shows that the carbon content of the catalyst following reaction is 63.9%. As noted, this level of carbon deposition on the surface of the catalyst blocks the catalyst pores and hinders contact between the catalyst and reactant, thus slowing the cracking reaction. For this reason, carbon deposition is one of the primary causes of cracking catalyst deactivation [28].

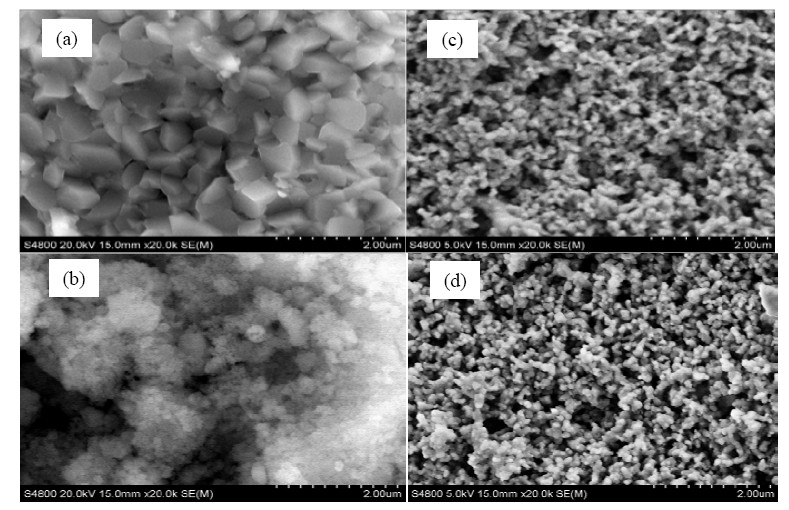

Fig. 3. SEM micrographs of the inner walls of the catalyst-loaded tubes. (a) Inner wall of the reaction pipes; (b) Catalyst coating; (c) Carbon deposition of the catalyst surface; (d) Regenerative catalyst coating.

Table 3
EDS data for Cat3 and deposited coke.

3.4. XRD results

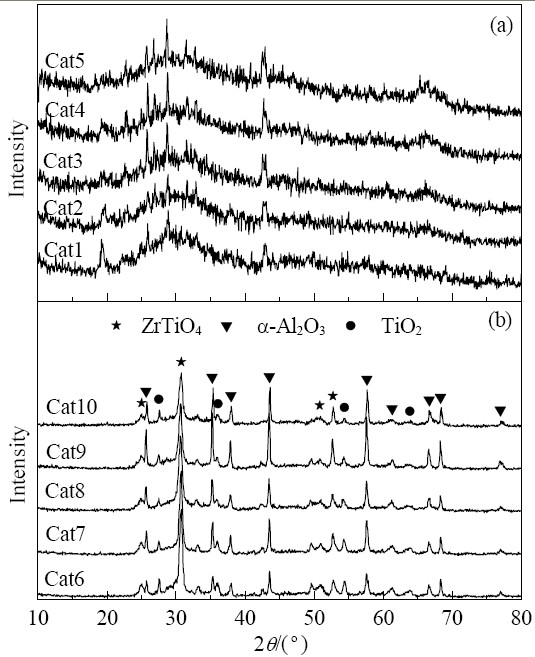

Figure 4 presents the XRD patterns of the as-prepared catalysts, showing that Pt/ZTA600x catalysts exist as basic amorphous structures. Neither the anatase TiO2 crystal phase nor ZrTiO4 were observed. This may be due to the addition of Al3+, which may transfer a portion of the Ti4+ and Zr4+ into the interior of the material during the precipitation process, preventing the formation of ZrTiO4 crystals and the anatase crystal phase [29]. Crystallization of the composite oxide will decrease both the surface area and surface acidity with concurrent lessening of the catalytic activity. The addition of Al2O3 shifts the crystallization temperature of the TiO2 and ZrTiO4 crystal phases, however, preventing this degradation of the surface area and surface acidity and thus improving the activity of the catalysts. Fig. 4(b) indicates that the crystal structures of Cat6 to Cat10 have been altered such that their XRD patterns present diffraction peaks attributed to a ZrTiO4 (PDF = 07-0290) phase at 30.5° [30], an alpha Al2O3 (PDF = 05-0712) phase at 25.7°, 35.3°, 37.9°, 43.5°, 57.7°, 66.5°, and 68.4° [31] and an anatase TiO2 (PDF = 65-0190) phase at 27.5°, 36.3°, 54.3°, and 63.8° [32]. The diffraction peaks associated with the alpha Al2O3 crystal phase increase in intensity with increasing Al2O3 content, while the peaks attributed to ZrTiO4 weaken.

Fig. 4. XRD patterns of Pt/ZTA600x (a) and Pt/ZTA1000x (b).

3.5. NH3-TPD

Figure 5 shows the NH3-TPD profiles of Pt/ZTA600x catalysts. Adsorbed NH3 was continuously stripped from the catalyst surfaces, showing that the acidic surface sites of these catalysts have a homogeneous, continuous distribution and that there is many types of surface acidity [33]. It can also be seen that each catalyst has a strong desorption peak in the low temperature region (100 to 400 °C), interpreted as the desorption peak of a weak-medium acid. The Cat3 desorption peak area is the largest in this region. In the 400 to 700 °C region, strong acid desorption peaks are observed and the peak area of Cat3 and Cat4 are much larger than those of the other three materials. The weak-medium acid and strong acid peaks of Cat3 are also much sharper than the peaks of the other catalysts, demonstrating relatively high acidic center density in Cat3.

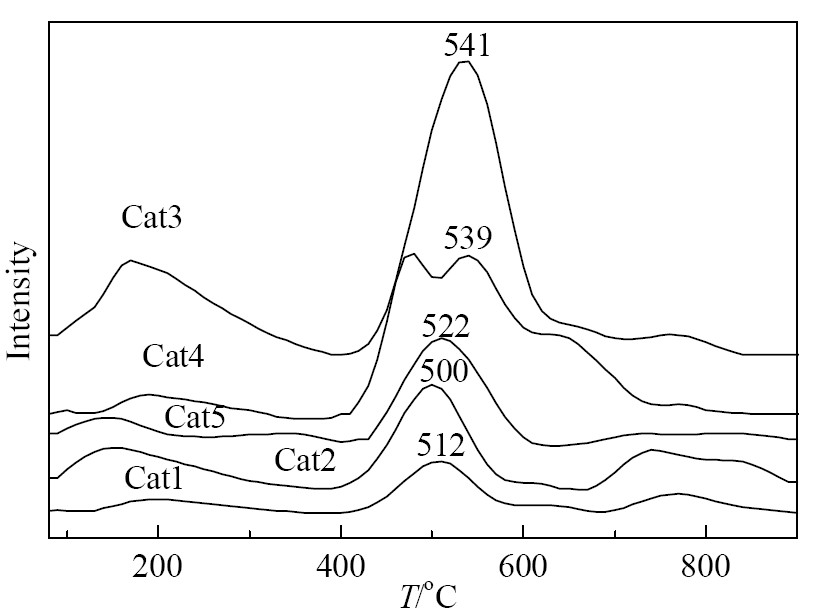

Fig. 5. NH3-TPD profiles for different Pt/ZTA600x catalysts.

Table 4 summarizes the acid distributions of these catalysts and shows that the total amount of acid decreases in the order of Cat3 > Cat4 > Cat2 > Cat5 > Cat1 and that Cat3 has the greatest concentration of strong acid (1.050 mmol/g). Catalyst acidity appears to first decrease and then increase with increasing levels of Al2O3, and the most acidic catalyst is associated with an Al2O3 content of 60%. The NH3-TPD plots, along with the above data concerning acid distributions, explain why Cat3 has the greatest surface acidity and the most concentrated acid center density. Reports [34, 35] have stated that C-C bond rupture occurs at strongly acidic sites on the catalyst while hydrogen transfer reactions proceed at different acidic centers. Therefore, increasing the surface acidity of the catalysts increases the ratio of C-C fractures to hydrogen transfer reactions, thus improving the olefin selectivity and reducing carbon deposition. The acidic centers of Cat1, Cat2, and Cat5 are primarily of the strongly acidic types and, while these strongly acidic centers are concentrated, their overall quantity is low. The quantity of strongly acidic sites in Cat4 is larger but diffuse, and this material does not show high acidic center density. In contrast, Cat3 exhibits strong surface acidity, concentrated acid centers and a large quantity of strongly acidic sites, all of which are beneficial to the cracking reaction.

Table 4
Acidity of different catalysts.

4. Conclusions

We investigated the catalytic cracking of RP-3 kerosene over a series of Pt/ZrxTixAl1-2xO2 catalysts. The results show that employing these catalysts leads to obvious improvements in the production of gaseous products from the cracking reaction. The total amounts of gaseous products are increased by factors of 2.1 and 1.4 at 650 and 700 °C compared with thermal cracking. The total amount of gaseous products obtained from Cat1, Cat2, Cat4 and Cat5 catalysts also increased when differing amounts of catalyst were used. However, the Pt/ZTA1000x catalysts series did not demonstrate suitable catalytic activity. The Cat3 has the highest surface area, pore volume, the greatest degree of surface acidity, the greatest concentration of strongly acidic sites, and change very little after carbon deposits are baked off, and other experimental results verify that Cat3 catalyst is readily regenerated.
