Multicomponent reactions (MCRs) are powerful, versatile, and popular tools for the synthesis of novel and complex molecular structures that have advantages over a conventional multistep synthesis ^{[1, 2, 3]}. The major advantages of MCRs include lower cost, shorter reaction time, high atom economy, energy saving, and avoidance of time consuming and expensive purification ^{[4, 5, 6]}. MCRs are generally much more environmentally friendly, provide synthetic access to large compound libraries with diverse functionalities, and do not need protection and deprotection steps ^[7].

One of the most important MCRs is the Biginelli reaction. This reaction allows the synthesis of dihydropyrimidinones (DHPMs), which are compounds with anti-viral, anti-tumor, anti-bacterial, cytotoxic, and anti-flammatory properties ^[8]. DHPMs possess remarkable pharmacological efficiency, which is demonstrated by their utility as the integral backbones of calcium channel blockers ^{[9, 10]}. The anti-cancer agent monastrol is the only cell-permeable molecule currently known to specifically inhibit mitotic kinesin Eg5 ^[11].

DHPMs are also prominent in SQ32547 and SWO2, which have been identified as potent oral active anti-hypertensive agents ^[12]. In addition, several alkaloids isolated from marine sources that contain the dihydropyrimidine core unit have shown interesting biological properties ^[13]. In particular, Batzelladine alkaloids have been found to be potent HIV gp-120-CD4 inhibitors ^[14]. Therefore, the synthesis of DHPM derivatives has gained prominence in synthetic organic as well as medicinal chemistry.

The Biginelli reaction, first described by the Italian chemist Pietro Biginelli ^[15] in 1893, involves the one-pot condensation of an aldehyde, a β-ketoester, and urea or thiourea under strongly acidic conditions. The harsh reaction conditions, long reaction time, and low yields when using substituted aromatic and aliphatic aldehydes are its main drawbacks. Hence the original Biginelli condensation was not suitable for compounds with sensitive functional groups.

Over the past few years, significant efforts have been made to find new procedures to produce DHPMs in good yields. However, most of the reported procedures have low reaction yields ^[16]. A large number of optimized procedures have been reported where most of the protocols employ catalytic methods in order to synthesize DHPMs ^{[17, 18, 19, 20, 21, 22]}. These protocols utilize Lewis acids or metal-based catalysts such as NiCl₂·6H₂O, p-TsOH, LaCl₃·7H₂O, BF₃·OEt₂, InBr₃, LiClO₄, FeCl₃, InCl₃, and metal triflates ^{[23, 24, 25, 26, 27, 28, 29, 30, 31]}. However, these often require relatively harsh reaction conditions such as high reaction temperature, expensive or highly acidic catalysts, and prolonged reaction time. In most cases, a stoichiometric amount of the catalyst is required to achieve good yields. In addition, most of the reactions require tedious work-up procedures and column purification, which ultimately result in diminished yields. Hence, the development of a new method that gives substituted DHPMs by an efficient and convenient procedure is of interest.

All the reagents used were general reagent grade. The IR spectra were obtained with potassium bromide pellets or solvent in the range of 400-4000 cm^-1 on a Shimadzu Model 460 pectrometer. The ¹H NMR spectra were recorded on a Brucker BRX 400 AVANCE spectrometer. The elemental analyses were performed on a Thermo Finnigan Flash EA microanalyzer. Powder X-ray diffraction (XRD) was carried out on a Philips PW1800 diffractometer.

In this continuation of our studies on the synthesis of heterocyclic compounds ^{[35, 36, 37, 38]} and its methodology ^{[39, 40, 41, 42]}, we investigated the synthesis of DHPMs and thiones by the use of a solid catalyst under thermal or microwave and solvent-free conditions. Here, we report a mild and efficient one-pot protocol for the synthesis of substituted 3,4-dihydropyrimidin-2- (1H)- one and thione derivatives by a multicomponent reaction involving a 1,3-dicarbonyl compound, an aldehyde, and urea or thiourea using boehmite nanoparticles as the catalyst under solvent-free conditions (Scheme 1).

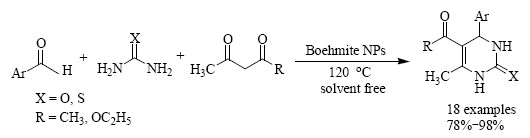

Scheme 1. Synthesis of substituted 3,4-dihydropyrimidin-2(1H)-ones or thions by a multicomponent reaction of aldehydes, 1,3-dicarbonyl compounds, and urea or thiourea in the presence of boehmite nanoparticles under solvent-free conditions.

Boehmite is an aluminum oxide hydroxide (γ-AlOOH) mineral. It is a component of the aluminium ore bauxite and contains extra hydroxyl groups on its surface. Among the different methods used for the preparation of boehmite nanoparticles, the hydrothermal sol-gel technique has the advantages of preparation in a one-pot process and low temperature processing. The most promising property of this hydrothermally produced nanoboehmite is the formation of it as a highly crystalline single phase product with no organic residue ^{[32, 33, 34]}. This was shown by its IR spectrum and XRD pattern, shown in Figs. 1 and 2, respectively.

Fig. 1.IR spectrum of the boehmite nanoparticles prepared by a hydrothermal sol-gel process at 100 °C.

Fig. 2.XRD pattern of the boehmite nanoparticles prepared by a hydrothermal sol-gel process at 100 °C.

The acidic sites of boehmite are shown in Fig. 3. The bridged and terminal surface hydroxyl groups of boehmite give two different stretching vibrations at 3280 and 3075 cm^-1 in the IR spectrum. Boehmite also has some Al-O related vibrations at 1150, 1075, 740, 610, and 480 cm^-1.

Fig. 3.Bridged and terminal hydroxyl groups of boehmite.

The XRD pattern of the catalyst prepared also confirmed the crystallization as a single phase boehmite. The calculation of the particle size from the XRD pattern using the Scherer equation showed 10 nm particles. The surface area of the boehmite nanoparticles was 326 m²/g.

In order to optimize the reaction conditions for the synthesis of DHPMs and thiones, the reaction of benzaldehydes with ethyl acetoacetate and urea was used as a model reaction. Reactions in different solvents, at different temperatures, and with various amounts of catalyst revealed that the best conditions were solvent-free at 120 °C and 10 mol% of boehmite nanoparticles (enry 8, Table 1).

Table 1 Condensation of benzaldehyde, ethylacetoacetate, and urea using different amounts of boehmite nanoparticles and solvents under thermal or microwave conditions. Entry Solvent Catalyst loading (mol%) Time (min) Temperature (°C) Condition Yeild a (%) 1 EtOH 10 300 80 Thermal 10 2 EtOH 20 300 80 Thermal 8 3 CH3CN 10 300 80 Thermal 21 4 CH3CN 20 300 80 Thermal 17 5 H2O 10 300 100 Thermal 5 6 H2O 20 300 100 Thermal 7 7 Neat 10 20 100 Thermal 71 8 Neat 10 5 120 Thermal 94 9 Neat 10 5 140 Thermal 90 10 Neat 5 5 120 Thermal 75 11 Neat 3 5 120 Thermal 70 11 Neat 20 3 120 Thermal 65 12 Neat 10 4 — Microwave (400 W) 42 13 Neat 10 6 — Microwave (600 W) 75 14 Neat 10 8 — Microwave (700 W) 53 Reaction conditions: aldehyde (1.0 mmol), 1,3-dicarbonyl compound (1.0 mmol), urea/thiourea (1.5 mmol), catalyst and solvent (10 mL).

Table 1 Condensation of benzaldehyde, ethylacetoacetate, and urea using different amounts of boehmite nanoparticles and solvents under thermal or microwave conditions.

To study the scope of the method, the reactions of a variety of aldehydes with ethyl acetoacetate and urea were performed, and a library of substituted DHPMs was obtained (Table 2).

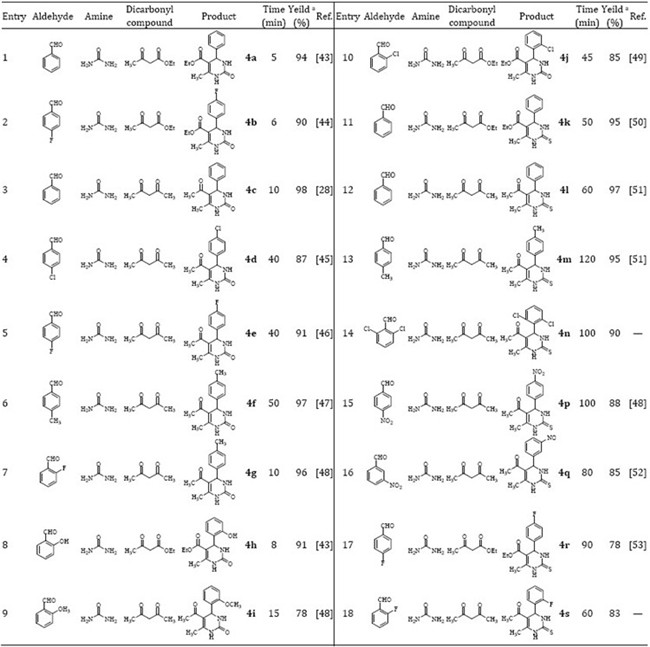

Table 2 Synthesis of 3,4-dihydropyrimidin-2-(1H)-ones and thiones under solvent-free conditions catalyzed by boehmite nanoparticles. Reaction conditions: aldehyde (1.0 mmol), 1,3-dicarbonyl compound (1.0 mmol), urea/thiourea (1.5 mmol), boehmite NPs (10 mol%), 120 °C. a Isolated yield.

Table 2 Synthesis of 3,4-dihydropyrimidin-2-(1H)-ones and thiones under solvent-free conditions catalyzed by boehmite nanoparticles.

Both electron-withdrawing and electron-donating substituents on the aldehyde aryl ring were tolerated well. Methyl-, methoxy-, nitro-, fluoro-, chloro-, and dichlorobenzaldehydes produced the desired products in high yields. The position of the substituent had no significant effect on the yield.

Next we replaced ethyl acetoacetate with acetylacetone, and we were pleased to find that the boehmite nanoparticles also catalyzed these reactions and afforded the DHPMs in quantitative yield. When we used thiourea instead of urea, 3,4- dihydropyrimidin-2-(1H)-thiones were formed in high yields although the reaction time was prolonged.

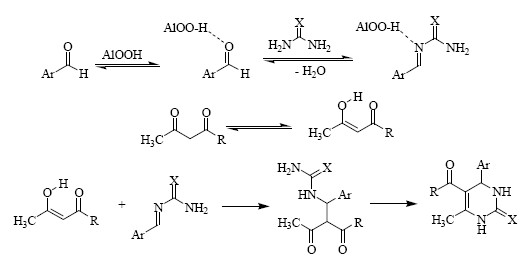

The mechanism for the synthesis of DHPMs in the presence of the boehmite nanoparticle catalyst is shown in Scheme 2. The reaction proceeds via the acyl imine intermediate, which is formed by the reaction of aromatic aldehyde with urea or thiourea, with the aldehydic carbonyl group being activated by the acidic hydroxyl groups on the surface of boehmite nanoparticles by intermolecular hydrogen bonding. The reaction of this imine intermediate with ethyl acetoacetate produces an open chain ureide ^[30], which subsequently cyclizes to form the desired product.

Scheme 2. Mechanism for the formation of 3,4-dihydropyrimidin-2(1H)-ones/thions by a multicomponent reaction of aldehydes, 1,3-dicarbonyl compounds, and urea or thiourea in the presence of boehmite nanoparticles.

Each compound can be isolated by crystallization, which avoids tedious work-up and column purification. The products were characterized by spectroscopic data and elemental analysis.

The reusability of the catalyst was also examined (Table 3). After each run, DMF was added, and the product was filtered. The residue (catalyst) was washed with CHCl₃ and reused. The treatment with CHCl₃ removed tars more efficiently from the catalyst surface. This catalyst was reusable, although a gradual decline in its activity was observed.

We developed an efficient, clean, and environmentally friendly procedure to produce DHPMs and thiones in good to high yields using MCRs. The protocol utilizes boehmite nanoparticles as the catalyst, uses mild reaction conditions, and does not require work-up or column purification. This green methodology can synthesize new substituted DHPM and thione scaffolds with biological applications.
