Dopamine (DA), one of the three naturally occurring catecholamines, plays an important role as a neurotransmitter in the renal, hormonal, cardiovascular, and central nervous systems. Low levels of DA may cause brain disorders such as schizophrenia and Parkinson’s disease [1, 2, 3]. Uric acid (2,6,8-trihydroxypurine, UA) is the main final product of purine metabolism in the human body. It has been shown that extreme abnormalities of UA levels are symptoms of several diseases including gout, hyperuricemia, and Lesch-Nyhan disease [4, 5, 6]. Therefore, a simple, sensitive, and accurate analytical method to quantify both DA and UA would be useful for physiological investigation as well as early diagnosis of disease [7]. Voltammetric techniques are powerful analytical tools for simultaneous determination of DA and UA in buffered solutions [8, 9, 10]. However, oxidation of DA and UA occurs at nearly the same potential, which results in an overlapping voltammetric response. It is thus impossible to discriminate between DA and UA by electrochemical methods at a bare electrode [11, 12, 13]. It is well known that chemically modified electrodes can offer better selectivity, sensitivity, time efficiency, and stability than bare ones. Therefore, many materials such as polymers [14, 15, 16, 17], DNA-doped polymers [18], dye-doped sol-gels [19], metal oxides [20], carbon nanotubes (CNTs) [21, 22, 23], and metal nanoparticles (MNPs) [24, 25, 26] have been used to fabricate chemically modified electrodes. Among them, MNP-modified electrodes have received particular attention because of their high surface area, effective mass transport, high electrocatalytic activity, and control over local microenvironment [27, 28]. However, MNPs at the electrode surface can be fragile in the absence of a stabilizing conductive material. To solve this problem, the electrode surface should first be modified with a conductive stabilizing material such as ligands, CNTs, or polymers [29, 30]. Then, the MNPs are attached to the modified electrode surface. The porous structure of conducting polymers allows the MNPs to disperse into the polymer matrix and generates additional active sites [31, 32, 33].
Gold nanoparticles (nano-Au) can bind strongly to the surface of some polymers through covalent bonding to functional groups such as CN, NH2, and SH [34, 35, 36]. Polymers including 3-methylthiophene, thiophene, and methionine possess S atoms in their structure, which can readily form strong chemical bonds with nano-Au [37, 38]. Therefore, it is expected that the surface of conducting polymer films containing S atoms will interact strongly with nano-Au to form good contacts via chemical bonding.
In the present study, a novel modified electrode is prepared by electrochemical deposition of nano-Au on the surface of a poly(L-methionine) (PMT)-modified glassy carbon electrode (GCE). Scanning electron microscopy (SEM) and electrochemical impedance spectroscopy (EIS) measurements indicate that nano-Au are uniformly bound onto the PMT film. The resulting nano-Au/PMT/GCE is used as a novel sensor for the simultaneous determination of DA and UA at nanomolar levels.
L-Methionine, DA, and UA were purchased from Fluka and used without further purification. HAuCl4·4H2O was purchased from Merck (Germany). Other reagents were of analytical grade and used without further purification. Aqueous solutions were prepared in double-distilled water, and experiments were carried out at room temperature.
Voltammetric measurements were performed using an Autolab PGSTAT 30 electrochemical analysis system equipped with the GPES 4.9 and FRA software package (Eco Chemic, the Netherlands). An electrochemical three-electrode system was used with a bare or modified GCE (3 mm in diameter) as the working electrode, a Pt wire as auxiliary electrode and saturated calomel electrode (SCE) as reference electrode. All pH measurements were performed by a 780 Metrohm pH meter.
Prior to surface modification, a bare GCE was polished successively with different grades of Al2O3 slurry (0.05-3 micron) on synthetic cloth to obtain a mirror-like surface. The GCE was then thoroughly rinsed with pure water and sonicated in a mixture of double-distilled water and ethanol (1:1) for 5 min. Polymerization of L-methionine on the GCE was performed using cyclic voltammetry in an aqueous solution of L-methionine (2.5 × 10-3 mol/L) and phosphate buffer solution (0.1 mol/L). For this purpose, six successive cycles were applied in a potential range of −0.6 to 2 V vs SCE at a scan rate of 100 mV/s [39]. In the first potential scan, an irreversible oxidation peak related to monomer oxidation was observed at a potential of 1.75 V vs SCE (data not shown). As the number of scans increased from the second cycle to the sixth, a PMT film was formed with a peak at a potential of 1.4 V vs SCE. Moreover, the oxidation peak current of PMT increased with the number of scans. The polymeric electrode was then rinsed thoroughly with double-distilled water. The obtained modified electrode is denoted PMT/GCE.
Nano-Au was electrochemically deposited on the PMT/GCE surface by applying a cathodic potential of -0.23 V for 300 s in HAuCl4 solution (0.5 mmol/L) [40]. The obtained nano-Au- modified PMT film electrode was washed with double-distilled water and is denoted nano-Au/PMT/GCE.
SEM images of the GCE, electropolymerized PMT film, and nano-Au/PMT composite film are shown in Fig. 1. The morphology of the bare GCE is uniform and smooth without any cracks or pits in its surface. In contrast, after electropolymerization, the GCE is covered by a thin and compact granular PMT film. Following deposition of nano-Au, uniform structures of nano-Au are homogeneously distributed on the surface of PMT/GCE. Nano-Au with an average size of 80 nm are separated from each other, so they are almost fully exposed. It should be noted that chemical bonding is the predominant process during the deposition of nano-Au onto the PMT film although physical adsorption cannot be completely ruled out [41].

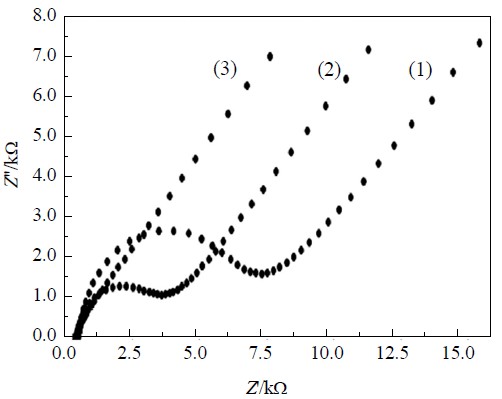

EIS is an efficient tool for studying the interface properties of surface-modified electrodes [42]. The electron transfer resistance (Rct) at the electrode surface is equal to the diameter of the semicircle obtained in EIS and can be used to describe the interface properties of the electrode. Figure 2 depicts the Nyquist diagrams of the bare GCE, PMT/GCE, and nano-Au/ PMT/GCE measured in the presence of 10 mmol/L K3[Fe(CN)6]/K4[Fe(CN)6] (1:1) + 0.1 mol/L KCl at the formal potential of Fe(CN)4-/3-. A large semicircle diameter (Rct = 6.7 kΩ) with an almost straight tail line is observed for the bare GCE. The large semicircle demonstrates the high electron transfer resistance of the GCE to the redox probe dissolved in the electrolyte solution. In the case of PMT/GCE, it can be seen that a much smaller semicircle diameter (Rct = 3.7 kΩ) appeared. This suggests that the resistance to the redox reaction was lower at PMT/GCE than that at the bare GCE. Interestingly, Rct for the nano-Au/PMT/GCE showed a marked decrease to about 1.9 kΩ, which should be because the composite film of nano-Au/PMT/GCE has good conductivity. From the decrease of Rct, it can also be concluded that the nano-Au particles are distributed within the PMT film as tiny conduction centers and the resulting nano-Au/PMT composite can accelerate electron transfer between the objective molecules and electrode surface.
To achieve optimal conditions for voltammetric determination of DA and UA, the main parameters related to the film formation and solution characteristics were evaluated. These parameters were the L-methionine concentration, electrodeposition time of nano-Au and pH of the supporting electrolyte solution. Optimal conditions were elucidated by measuring the peak currents of both compounds with one variable at a time. We determined that the optimum conditions were as follows: 2.5 × 10-3 mol/L L-methionine, electrodeposition of nano-Au for 300 s and an electrolyte medium with a pH of 7.

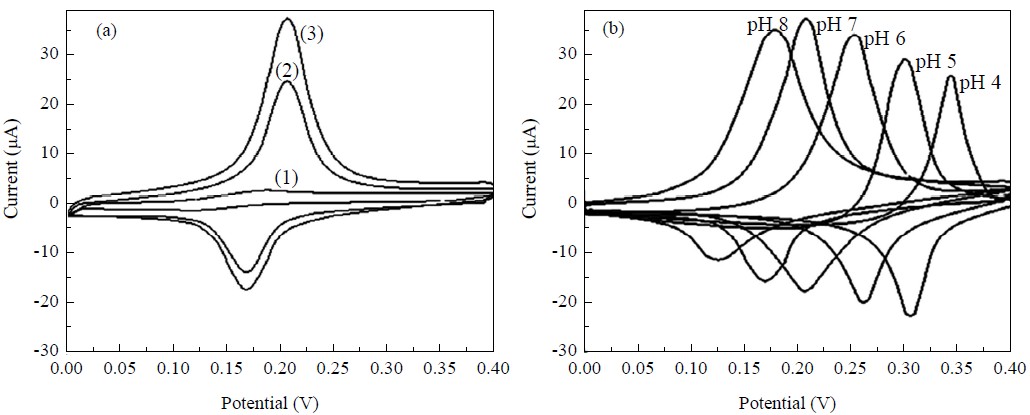

Figure 3(a) shows cyclic voltammograms (CVs) of the bare GCE, PMT/GCE, and nano-Au/PMT GCE in phosphate buffer solution (PBS, pH = 7.00) containing 1 × 10-5 mol/L DA. At the bare GCE, DA exhibited very poor current response, indicating a slow electron transfer kinetics. Oxidation and subsequent reduction peaks at PMT/GCE appeared at 0.21 and 0.17 V, respectively, indicating a quasi-reversible electrode process probably caused by the diffusion barrier of the polymeric film. Similar peak potentials were obtained with the nano-Au/PMT/ GCE electrode with higher peak currents. It seems tht the electrochemical reaction kinetics was improved by the nano-Au inserted into the polymeric film matrix. As a result, nano-Au/ PMT/GCE exhibited a small peak-to-peak separation (∆Ep = 0.04) with almost reversible electrochemical behavior. The peak current was also five times higher than that of the bare GCE and twice that of PMT/GCE. The peak characteristics clearly indicated electrocatalytic oxidation of DA at the modified electrodes because of its more active surface than that of the bare GCE. This marked enhancement of peak current at the surface of the modified electrodes confirms that both PMT and nano-Au facilitate the electrochemical reactions. The influence of solution pH on the electrochemistry of DA oxidation was also studied (Fig. 3(b)). The anodic peak potential shifted linearly with increasing solution pH with a slope of about 0.052 V/pH. The magnitude of the slope for DA oxidation suggests that two protons were involved in the electrode reaction.

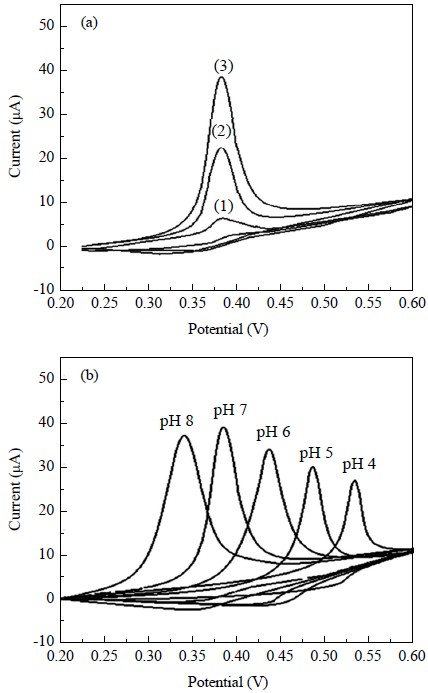

CVs of UA in PBS at the bare GCE, PMT/GCE, and nano-Au/ PMT/GCE are presented in Fig. 4(a). UA shows quasi-reversible electrochemical behavior with an anodic peak potential of about 0.37 V. All three voltammograms display a small cathodic peak at 0.34 V, indicating slow cathodic electron transfer. Under identical conditions, both PMT/GCE and nano-Au/PMT/ GCE show a marked increase of peak current to UA oxidation compared with that of the bare GCE. This suggests more efficient oxidation of UA at nano-Au/PMT/GCE than at the bare GCE, probably because of the larger effective surface area supplied by both the polymeric film and nano-Au on the GCE. Solution pH has a pronounced effect on the electrochemical response of UA (Fig. 4(b)). The oxidation peak of UA shifted to more negative potential as pH increased. The slope of about 0.051 V/pH for UA oxidation showed that two protons were involved in the electrode reaction at nano-Au/PMT/GCE. The highest oxidation current was obtained at pH = 7.00; the oxidation peak current was decreased at both lower and higher pH because of the instability of UA under both acidic and alkaline solutions.

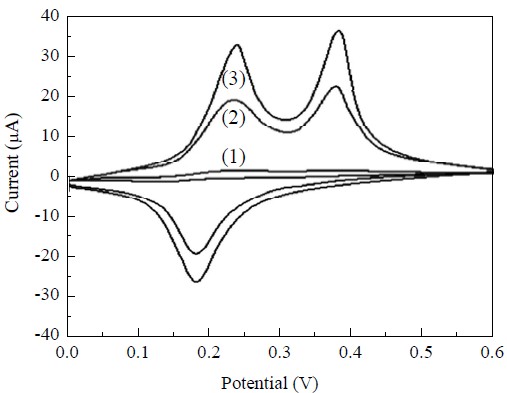

Figure 5 shows CVs measured for a mixture of 1 × 10-5 mol/L DA and 1 × 10-5 mol/L UA at the bare GCE, PMT/GCE, and nano-Au/ PMT/GCE. Two separate broad peaks were obtained in forward scans for PMT/GCE and nano-Au/PMT/GCE. In contrast, convolution of the oxidation peaks limited the selectivity and sensitivity of simultaneous determination of DA and UA at the bare GCE. Modification of the GCE surface with a PMT film and deposition of nano-Au resolved the merged voltammetric peaks into two well-defined oxidation peaks at 0.23 and 0.37 V for DA and UA, respectively. The separation of the two oxidation peaks allows the simultaneous determination of DA and UA in a mixed solution. Deposition of nano-Au also enhanced the catalytic activity of PMT/GCE for oxidation of a mixture of DA and UA in terms of both oxidation potential and peak current. In fact, the presence of nano-Au improved both the mass and electronic transportation rates of the reaction, which lowers overpotential and enhances the oxidation currents of DA and UA.
Differential pulse voltammetry (DPV) can discriminate against background noise and offer much higher current sensitivity and better peak separation than cyclic voltammetry. DPV and calibration curves for various concentrations of DA and UA in PBS at pH = 7.00 are displayed in Figs. 6 and 7, respectively. A linear response was obtained between the peak current and concentration of DA (Fig. 6(b)) in the range of 5.0 × 10-8 to 1 × 10-6 mol/L with a detection limit of 3.7 × 10-8 (s/n =3). With regard to UA (Fig. 7(b)), the linear range was from 7.0 × 10-8 to 1 × 10-6 mol/L with an equation of ipa (µA) = 19.55 + 1.332 (µmol/L) (R2 = 0.999). The detection limit for UA was 4.5 × 10-8 mol/L (s/n = 3).

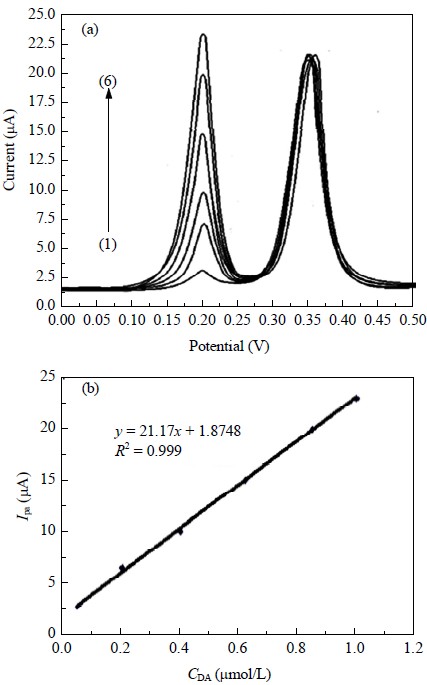

Figure 6 displays DPVs that were obtained for different concentrations of DA in the presence of 1 × 10-6 mol/L UA at nano-Au/PMT/GCE. Oxidation peaks with adequate resolution for both compounds were obtained at 0.2 V for DA and 0.36 V for UA using nano-Au/PMT/GCE. The oxidation peak current of DA increased linearity (R2 = 0.999) with increasing concentration in the range of 5.0 × 10-8 to 1 × 10-6 mol/L, whereas the voltammetric peak current of UA remained the same. Similarly, voltammetric determination of UA was carried out in the presence of DA at a fixed concentration of 1 × 10-6 mol/L. As shown in Fig. 7, an increase in the concentration of UA did not cause an obvious change in the oxidation current of DA. The peak current of UA increased linearly with UA concentration (7.0 × 10-8 to 1 × 10-6 mol/L).
Table 1 summarizes the analytical performance of nano-Au/ PMT/GCE and some previously reported modified electrodes in terms of linearity and detection limit. Improved or comparable performance for the simultaneous determination of UA and DA can be achieved using the nano-Au/PMT/GCE compared with other modified electrodes.
We checked the reproducibility and stability of nano-Au/ PMT/GCE over time. The performance of nano-Au/PMT/GCE for the detection of DA was tested in PBS (pH = 7.00) for a long period. Over the first 2 days, the signal showed a 2% decrease compared with its initial response. After 8 days, the current response decreased by about 5% and in the following 2 weeks, the decrease was 12%. Nano-Au/PMT/GCE retained 88% of its original activity after 2 weeks and continued to exhibit excellent response to both UA and DA. Therefore, nano-Au/PMT/ GCE is not readily fouled by the oxidation products of UA and DA and exhibits high stability for the simultaneous determination of UA and DA. The experiments were repeated for DA and UA mixtures and similar stable signals were obtained. These results confirm that nano-Au/PMT/GCE is stable and can be used in voltammetric studies for the selective and sensitive determination of DA and UA.
A new modified electrode, nano-Au/PMT/GCE, was fabricated by electrodeposition of nano-Au into a PMT matrix formed on a GCE and used for the simultaneous determination of DA and UA. The electrochemical activity of the modified electrode towards DA and UA oxidation was improved by the formation of a uniform PMT film containing nano-Au on the electrode surface. DPV measurements revealed the detection limits of DA and UA on nano-Au/PMT/GCE were 3.7 × 10-8 and 4.5 × 10-8 mol/L, respectively. The modified electrode showed excellent sensitivity, selectivity, and anti-fouling properties for the voltammetric determination of DA and UA individually or simultaneously. This electrode can be used for DA and UA determination in real samples with satisfactory results.
