The increasing focus on environmental protection over the last few decades has led both academic and industrial researchers to develop chemical processes which maximize yield and minimum cost while using non-toxic reagents,solvents and catalysts or solvent-free conditions [1,2]. One of the tools used to attain both economic and environmental goals is the multicomponent reaction (MCR) strategy. MCRs have attracted much interest and are highly regarded in modern organic synthesis and medicinal chemistry because they are one-pot processes that bring together three or more components and show high atom economy and high selectivity [3, 4, 5]. MCRs have been widely used in the convergent synthesis of complex and important organic molecules from simple and readily available starting materials,and have emerged as powerful tools for drug discovery [6,7]. The development of new MCRs and improvement of known MCRs are therefore areas of considerable current interest. One such reaction is the synthesis of amidoalkyl naphthols. These compounds are generally synthesized via the three-component reaction of an aldehyde,an amide,and β-naphthol in the presence of various catalysts,such as iodine [8,9],K5CoW12O40·3H2O [10],sulfamic acid [11],thiamine hydrochloride [12],Yb(OTf)3 in [bmim][BF4] [13],molybdophosphoric acid [14],copper p-toluenesulfonate [15],silica supported methanesulfonic acid [16],Fe(HSO4)3 [17],HClO4-SiO2 [18],nano-sulfated zirconia [19],montmorillonite K10 [20],and Al(H2PO4)3 [21]. Although some of these methods have convenient protocols with good to high yields,the majority suffer from at least one of the following disadvantages: unsatisfactory yields,the use of toxic halogenated solvents or catalysts,long reaction time,or the use of expensive catalysts. To avoid these limitations and to improve the reaction con ditions available for the synthesis of amidoalkyl naphthols,the exploration of novel methodologies using new heterogeneous and reusable catalysts is still ongoing.
The development of heterogeneous catalysts and the analysis of their effects on specific transformations in chemical synthesis have become a major area of research. The potential advantages of these materials over homogeneous systems,in terms of their simplified recovery and reusability,could potentially allow for the development of environmentally benign chemical procedures in both academic and industrial settings. Catalysts of this type have the potential to make the processes to which they are applied cleaner,safer,higher-yielding,and relatively inexpensive [22, 23, 24, 25]. The toxicity and volatile nature of many organic solvents have posed a serious threat to the environment and thus the design of solvent-free catalytic reactions has received significant attention in the area of green synthesis. In addition,reactions performed in the absence of a solvent typically require shorter reaction time and simpler work-up procedures [26,27].
During the course of our recent studies directed towards the development of practical and environmentally friendly procedures for the synthesis of organic compounds using reusable catalysts [28, 29, 30, 31, 32, 33, 34, 35, 36, 37],we investigated the application of a carbon-based solid acid (CBSA). This material is easily prepared by heating naphthalene and concentrated sulfuric acid [38] and represents a potential catalyst for a series of organic transformations. This reusable heterogeneous catalyst performed well and showed a high level of catalytic activity in the Mannich [39] and Biginelli [40] reactions,as well as in the synthesis of tetrasubstituted imidazoles [41]. These findings prompted us to investigate the catalytic activity of this material in the synthesis of amidoalkyl naphthols (Scheme 1).
Naphthalene (20 g) was heated in concentrated sulfuric acid (> 96%,200 ml) at 250 °C under a flow of N2. After heating for 15 h,excess sulfuric acid was removed from the dark brown tar by vacuum distillation at 250 °C for 5 h,resulting in a black solid. The dry solid was subsequently ground to powder and was washed repeatedly in boiling water until impurities such as sulfate ions were no longer detected in the wash water. The density of SO3H groups in the product was determined by acid-base potentiometric titration with NaOH (0.01 mol/L) and the concentration of SO3H groups attached to the polycyclic aromatic carbon product was found to be 2.81 mmol/g. The resulting black powder was insoluble in common solvents such as water,methanol,ethanol,benzene,and hexane even at their boiling temperatures [38].
A mixture of β-naphthol 1 (2 mmol),an aromatic aldehyde 2a-2j (2 mmol),acetamide 3 (2 mmol),and CBSA (0.07 g) was heated in an oil bath at 130 °C for 2-20 min while monitoring the reaction process by TLC. Upon completion of the transformation,the reaction mixture was cooled to room temperature and hot ethanol was added. This resulted in the precipitation of the catalyst,which was collected by filtration. The product was collected from the filtrate after cooling to room temperature and subsequently recrystallized from ethanol to give compounds 4a-4j (Scheme 1). The melting points of the products were determined using a Stuart SMP3 melting point apparatus. The Fourier transform infrared (FT-IR) spectra of the products were obtained in the form of KBr disks with a Tensor 27 Bruker spectrophotometer while 1H NMR (500 MHz) spectra were acquired on a Bruker 500 spectrometer,with the following results.
N-[(2-Hydroxynaphthalen-1-yl)(phenyl)methyl]acetamide (4a). 1H NMR (500 MHz,DMSO-d6): d 1.95 (s,3H),7.05-7.25 (m,8H),7.32 (t,1H,J = 7.2 Hz),7.73 (d,1H,J = 8.8 Hz),7.77 (d,1H,J = 7.9 Hz),7.81 (br.,1H),8.40 (d,1H,J = 8.3 Hz),9.95 (s,1H); FT-IR (KBr,cm-1): υ 3408,3245,3064,1639,1517,1438,1370,1338,1275,810,745.
N-[(4-Bromophenyl)(2-hydroxynaphthalen-1-yl)methyl]acetamide (4b). 1H NMR (500 MHz,DMSO-d6): d 1.97 (s,3H),7.04 (s,1H),7.10 (d,2H,J = 8.3 Hz),7.19 (d,1H,J = 8.8 Hz),7.24 (t,1H,J = 7.4 Hz),7.37 (t,1H,J = 7.2 Hz),7.43 (d,2H,J = 8.5 Hz),7.74 (d,1H,J = 8.8 Hz),7.79 (d,2H,J = 7.8 Hz),8.55 (br.,1H),10.44 (br.,1H); FT-IR (KBr,cm-1): υ 3387,3064,2973,1638,1516,1487,1438,1370,1329,1277,1072,1010,816,745.
N-[(2-Chlorophenyl)(2-hydroxynaphthalen-1-yl)methyl]acetamide (4c). 1H NMR (500 MHz,DMSO-d6): d 1.88 (s,3H),7.03 (d,1H,J = 8.0 Hz),7.08 (d,1H,J = 8.8 Hz),7.17-7.32 (m,4H),7.36 (t,1H,J = 7.2 Hz),7.52 (d,1H,J = 7.6 Hz),7.70 (d,1H,J = 8.8 Hz),7.75 (d,1H,J = 7.8 Hz),7.94 (d,1H,J = 8.6 Hz),8.51 (d,1H,J = 8.0 Hz),9.75 (s,1H); FT-IR (KBr,cm-1): υ 3428,3062,1650,1515,1471,1438,1371,1328,1269,809,753.
N-[(4-Chlorophenyl)(2-hydroxynaphthalen-1-yl)methyl]acetamide (4d). 1H NMR (500 MHz,DMSO-d6): d 1.99 (s,3H),7.10 (d,1H,J = 8.2 Hz),7.16 (d,2H,J = 8.3 Hz),7.22 (d,1H,J = 8.8 Hz),7.25-7.35 (m,3H),7.38 (t,1H,J = 7.3 Hz),7.78 (d,1H,J = 8.8 Hz),7.81 (a doublet overlapped with a broad signal,2H,J = 7.5 Hz),8.46 (d,1H,J = 8.2 Hz),10.03 (s,1H); FT-IR (KBr,cm-1): υ 3392,3053,2966,1638,1515,1439,1374,1332,1279,1244,1092,820,748.
N-[(2,4-Dichlorophenyl)(2-hydroxynaphthalen-1-yl)methyl]acetamide (4e). 1H NMR (500 MHz,DMSO-d6): d 1.89 (s,3H),6.96 (d,1H,J = 7.9 Hz),7.06 (d,1H,J = 8.8 Hz),7.23 (t,1H,J = 7.4 Hz),7.35-7.45 (m,3H),7.55 (d,1H,J = 8.5 Hz),7.70 (d,1H,J = 8.8 Hz),7.76 (d,1H,J = 7.8 Hz),7.92 (d,1H,J = 8.7 Hz),8.56 (d,1H,J = 7.9 Hz),9.76 (s,1H); FT-IR (KBr,cm-1): υ 3405,3118,1650,1579,1518,1471,1439,1370,1321,1298,1279,870,816,750.
N-[(4-Fluorophenyl)(2-hydroxynaphthalen-1-yl)methyl]acetamide (4f). 1H NMR (500 MHz,DMSO-d6): d 1.97 (s,3H),7.03-7.10 (m,3H),7.13-7.19 (m,2H),7.20 (d,1H,J = 8.8 Hz),7.26 (t,1H,J = 7.5 Hz),7.37 (t,1H,J = 7.1 Hz),7.76 (d,1H,J = 8.8 Hz),7.80 (a doublet overlapped with a broad signal,2H,J = 7.9 Hz),8.44 (d,1H,J = 8.2 Hz),10.00 (s,1H); FT-IR (KBr,cm-1): υ 3393,2975,1628,1509,1439,1377,1335,1279,1226,1159,1064,824,749.
N-[(2-Hydroxynaphthalen-1-yl)(4-methoxyphenyl)methyl]acetamide (4g). 1H NMR (500 MHz,DMSO-d6): d 1.92 (s,3H),3.64 (s,3H),6.77 (d,2H,J = 8.8 Hz),7.00-7.06 (m,3H),7.17 (d,1H,J = 8.8 Hz),7.22 (t,1H,J = 7.4 Hz),7.32 (t,1H,J = 7.6 Hz),7.71 (d,1H,J = 8.8 Hz),7.75 (d,1H,J = 7.8 Hz),7.80 (br.,1H),8.36 (d,1H,J = 8.5 Hz),9.91 (s,1H); FT-IR (KBr,cm-1): υ 3396,3055,2974,1627,1581,1514,1438,1379,1334,1278,1254,1177,1043,813,745.
N-[(2-Hydroxynaphthalen-1-yl)(4-methylphenyl)methyl]acetamide (4h). 1H NMR (500 MHz,DMSO-d6): d 1.97 (s,3H),2.25 (s,3H),7.02-7.07 (m,4H),7.09 (d,1H,J = 8.4 Hz),7.21 (d,1H,J = 8.8 Hz),7.25 (t,1H,J = 7.4 Hz),7.35 (t,1H,J = 7.0 Hz),7.75 (d,1H,J = 8.8 Hz),7.79 (d,1H,J = 8.0 Hz),7.83 (br.,1H),8.39 (d,1H,J = 8.4 Hz),9.94 (s,1H); FT-IR (KBr,cm-1): υ 3397,3056,2970,1626,1516,1438,1375,1334,1277,1245,1064,814,745.
N-[(2-Hydroxynaphthalen-1-yl)(3-nitrophenyl)methyl]acetamide (4i). 1H NMR (500 MHz,DMSO-d6): d 1.99 (s,3H),7.16 (d,1H,J = 8.0 Hz),7.19 (d,1H,J = 8.8 Hz),7.25 (t,1H,J = 7.6 Hz),7.38 (t,1H,J = 7.4 Hz),7.48-7.58 (m,2H),7.75-7.82 (m,2H),7.84 (br.,1H),7.99 (s,1H),8.01 (d,1H,J = 7.9 Hz),8.58 (d,1H,J = 8.0 Hz),10.09 (s,1H); FT-IR (KBr,cm-1): υ 3374,3198,3090,1648,1578,1523,1437,1372,1350,1297,1278,806,747,734,713.
N-[(2-Hydroxynaphthalen-1-yl)(4-nitrophenyl)methyl]acetamide (4j). 1H NMR (500 MHz,DMSO-d6): d 1.98 (s,3H),7.14 (d,1H,J = 7.9 Hz),7.19 (d,1H,J = 8.8 Hz),7.25 (t,1H,J = 7.5 Hz),7.33-7.40 (m,3H),7.74-7.82 (m,3H),8.10 (d,2H,J = 8.8 Hz),8.53 (d,1H,J = 7.9 Hz),10.07 (s,1H); FT-IR (KBr,cm-1): υ 3391,3050,2955,1641,1523,1439,1351,1281,1246,853,826,752.

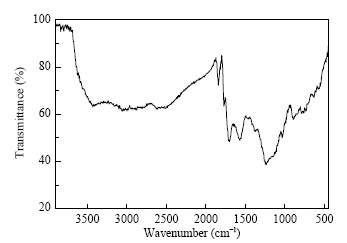

The FT-IR spectrum of the catalyst exhibits the SO2 symmetric and asymmetric stretching modes between 1100 and 1250 cm-1 and a broad OH stretching absorption at 2500-3600 cm-1 (Fig. 1).
Its XRD pattern exhibits a broad and a weak diffraction peaks (2θ = 10°-30°,35°-50°) attributable to amorphous carbon (Fig. 2).

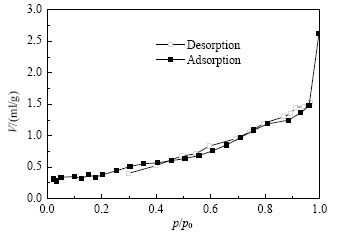

The N2 adsorption-desorption isotherm of the catalyst is shown in Fig. 3. The isotherm of CBSA catalyst is type II [42],normally obtained with non-porous or macroporous adsorbents. The average pore diameter in the catalyst is 10.1 nm.
The CBSA catalyst is an amorphous carbon material composed of polycyclic aromatic carbon sheets with attached SO3H groups. It functions as a strong solid acid with a high density of acid sites and therefore is able to promote various reactions. Our efforts to develop an efficient and environmentally benign methodology for the synthesis of amidoalkyl naphthols initially focused on the three-component condensation of β-naphthol 1 (2 mmol),4-chlorobenzaldehyde 2d (2 mmol),and acetamide 3 (2 mmol) as a model reaction. At first,screening trials were performed to optimize various reaction parameters,including catalyst amount,solvent,and temperature,with the results summarized in Table 1. The reaction was initially carried out without any catalyst at high temperature under solvent-free conditions,following which no product was observed even after prolonged reaction time (Table 1,entry 1). Next,the reaction was performed in the presence of CBSA in different solvents as well as under solvent-free conditions. Among the solvents tested,those being ethanol,methanol,H2O,CH3CN,CH2Cl2,CHCl3,and THF,the reaction proceeded most readily to give the highest yield of the product 4d under solvent-free conditions. The best result was obtained when the reaction was conducted at 130 °C in the presence of 0.07 g of the catalyst under solvent-free conditions (Table 1,entry 9). A further increase in temperature and catalyst amount did not improve the product yield.
Encouraged by the remarkable results obtained with the above reaction conditions,and to show the generality and scope of this new protocol,a range of amidoalkyl naphthols were prepared in the presence of CBSA under optimized conditions,with the results shown in Table 2. Most of the reactions proceeded very efficiently and no side-products were observed. As can be seen from Table 2,aromatic aldehydes bearing either electron-donating or electron-withdrawing substituents reacted successfully with β-naphthol and acetamide to give the corresponding amidoalkyl naphthol products in high yields over short reaction time. The results also show that the aromatic aldehydes with electron-withdrawing groups react more quickly and produce higher yields compared to the aromatic aldehydes with electron-donating groups.
To further evaluate the overall utility of the current methodology,we compared our results with those obtained using other techniques previously reported for the synthesis of amidoalkyl naphthols. As shown in Table 3,it is clear that our method both reduces the requiredreaction time and generates higher yields of the products.

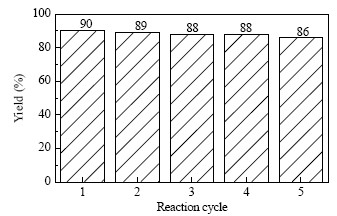

The principle advantage of employing heterogeneous solid catalysts in organic transformations is their reusability. The CBSA catalyst was readily recovered from the reaction mixture using the procedure outlined in the experimental section. In this catalyst,SO3H groups have been covalently bound to the polycyclic aromatic carbon sheets and,as a result,the catalyst is highly stable and represents a recyclable solid catalyst that does not exhibit the leaching observed with most supported catalysts. The separated catalyst was washed with hot ethanol and then dried at 60 °C under vacuum for 1 h before being reused in a similar reaction. We found that the catalyst could be used at least five times with only a slight reduction in activity (Fig. 4).
The CBSA catalyst is easily prepared from commercially available starting materials,and efficiently catalyzes the synthesis of amidoalkyl naphthols through the condensation of β-naphthol and aryl aldehydes with acetamide. The advantages of this method include short reaction time,high yields,and easy purification as well as the reusability and economic viability of the catalyst.
