Tyramine was used as received from Sigma Aldrich. All other reagents were of analytical grade and were used without further purification; doubly distilled water was used in the preparation of all solutions.

Electrochemical studies were performed at room temperature using an electrochemical system comprising an Autolab PGSTAT30 potentiostat/galvanostat with pilot integration controlled by GPES 4.9 software in a three-compartment cell. Electrochemical impedance spectroscopy (EIS) was carried out at frequencies between 100 kHz and 0.1 Hz using the same equipment as that described above. A dual Ag-AgCl saturated KCl electrode, stainless steel (SS) flag, and a copper rod were used as the reference, counter, and working electrodes, respectively. The morphology of the deposits was determined using a Philips XL30 low vacuum scanning electron microscope. Fourier transform infrared (FT-IR) transmission spectra were recorded in horizontally attenuated total reflectance (HATR) mode in the spectral range 4000-500 cm⁻¹ using a Thermonicolet (Nexus 670) FT-IR spectrometer.

The working electrode was made of a copper rod covered with Teflon tape with a disk diameter of 3 mm. Before use, the electrode was polished with a series of emery papers, followed by thorough rinsing in acetone and double distilled water, and dried in air. The copper working electrode was passivated in 0.3 mol/L oxalic acid solution through five potential scans between −0.3 and +1.4 V at a scan rate of 4 mV/s. After passivation, electropolymerization was performed using consecutive cyclic voltammetry (for 10 cycles) between −0.3 and 1.3 V at potential scan rate of 10 mV/s in a solution containing 0.3 mol/L oxalic acid and 0.01 mol/L tyramine. The modified copper electrode was rinsed with distilled water and dried with nitrogen gas prior to any experiment.

Our preliminary studies on the polymerization of tyramine on a copper electrode showed that the synthesized polytyramine (PT) is not a uniform and stable layer. Therefore, the electropolymerization process was performed on a passivated copper electrode. Figure 1 shows the recorded five consecutive cyclic voltammograms on the pristine copper electrode in the presence of 0.3 mol/L oxalic acid solution at potential scan rate of 4 mV/s. In the first cycle, an intensive anodic peak appears about 0.112 V vs Ag/AgCl, which is probably related to the dissolution of copper. A clear decrease in the intensity of the obtained anodic peak currents in the subsequent cycles confirms a decrease in copper dissolution as well as formation of a good passive layer on the copper electrode. The passivation of copper electrodes in oxalic acid medium has previously been reported in the literature ^{[36, 37]}. Herrasti et al. ^[38] explained the composition and mechanism of copper passivation in oxalic acid solutions through the formation of Cu(Ox) and [Cu(Ox)₂]²⁻ complexes on the surface of copper electrodes.

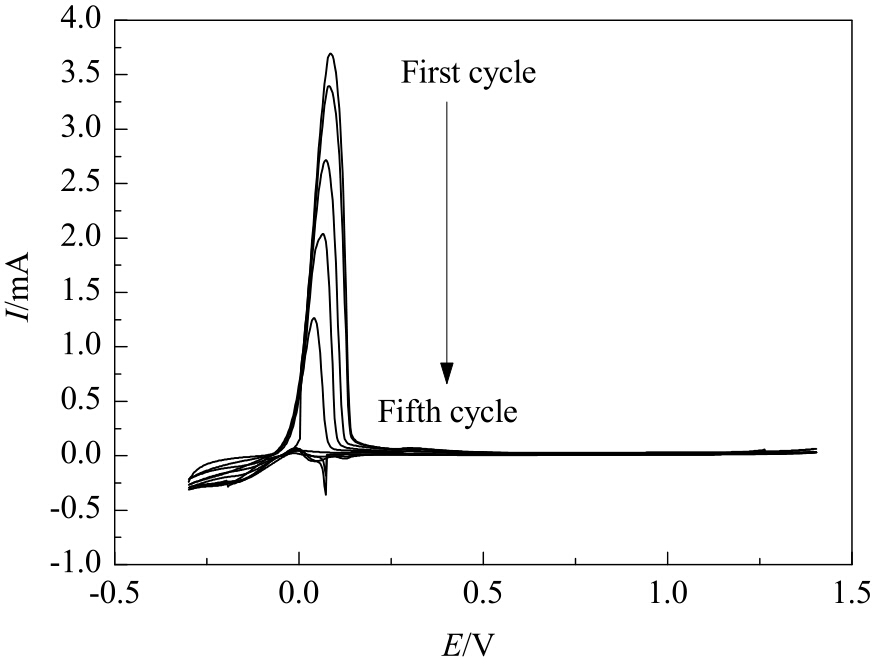

Fig. 1. Cyclic voltammograms recorded in 0.3 mol/L oxalic acid for the copper working electrode (five cycles). Scan rate: 4 mV/s.

After the passivation of copper electrode, the electropolymerization of tyramine in solution is possible with negligible change in conditions. Figure 2 shows the 10 consecutive cyclic voltammograms obtained during the electropolymerization of tyramine on the passivated copper electrode between −0.3 and 1.3 V vs Ag-AgCl reference electrode at potential scan rate of 10 mV/s. In the first forward scan, the irreversible peak at approximately 0.29 V is associated with the electrodissolution of copper, but in subsequent cycles, dissolution at this potential is inhibited. Also, a well-defined redox pairs peaks at around +0.14 V is related to oxidation/reduction of the monomer. As the polymer film thickness increases with the number of cycles, the surface becomes more protected, and the oxidation peak becomes smaller and shifts to more negative potential than the previous one.

Fig. 2. Cyclic voltammograms recorded in 0.3 mol/L oxalic acid + 0.1 mol/L tyramine at scan rate 10 mV/s.

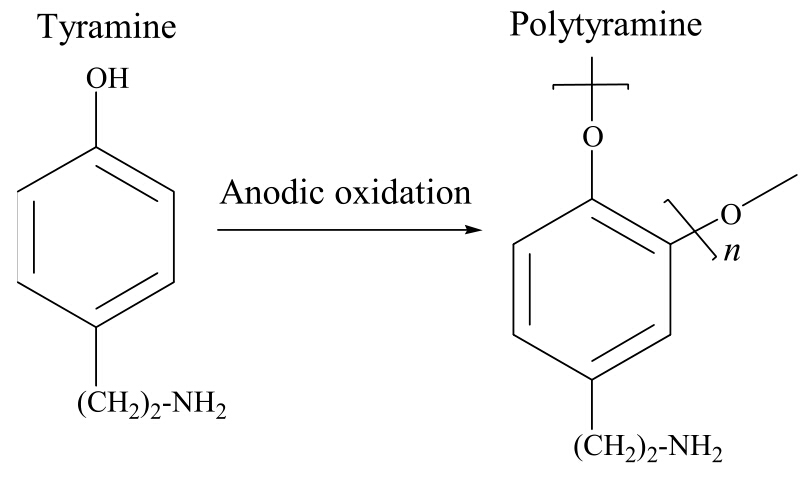

Scheme 1 describes a pathway for the polymerization of tyramine via anodic oxidation. Because the amino function in the tyramine structure is separated from the phenolic ring by two methylene groups, it is expected that, similar to other phenols, only the phenol moiety in ortho position is oxidized to perform the polymerization ^[39].

Comparison of the FT-IR spectra of bare, passivated, and PT coated copper electrodes showed the presence of carboxylate functional groups on the passivated and PT modified copper electrodes at 1584 and 1466 cm⁻¹. Also, the bands displayed in the spectrum of the PT coated copper electrodes at 3433, 3401, 1362, and 817 cm⁻¹ proved the presence of N-H and C-N groups, which is characteristic of para-di-substituted aromatic rings and confirms the formation of PT on the copper electrode.

Figure 3(a-c) shows the scanning electron micrographs of the bare, passivated, and PT coated copper electrodes, respectively. As seen, after passivation, the striations caused by grinding are covered by compacted spherical oxalate grains with an average size of approximately 35.16 nm (Fig. 3(b)). Electropolymerization of tyramine forms a homogenous and defect-free thin layer on the copper oxalate grains (Fig. 3(c)), which indicates the Cu/Ox/PT arrangement nanoparticles are stable and have average size of approximately 39.84 nm.

Fig. 3. SEM images of bare Cu (a), passivated Cu (Cu/Ox) (b), and PT coated copper (Cu/Ox/PT) (c) electrodes.

Figure 4 shows the voltammograms of bare, oxalate passivated, and polytyramine-copper oxalate nanocomposite modified copper electrodes recorded in 0.1 mol/L NaOH solution containing 0.1 mol/L methanol in the potential range −0.2 to 1 V at a scan rate of 20 mV/s. In the absence of methanol and at the bare copper electrode, because of restriction on the negative limit of potential sweep, the background current markedly decreases, and no significant peak except the one due to the oxidation of Cu^II to Cu^III is observed ^[2]. In the presence of methanol (Fig. 4(1)), the oxidation of Cu^II to Cu^III shifts to a more negative potential (0.70 V), which is completely in accordance with an electrochemical-chemical (EC') mechanism and is in agreement with those reported in the literature ^{[2, 40, 41, 42]}. According to this electrocatalytic oxidation mechanism, Cu^III acts as a redox mediator for the chemical oxidation of adsorbed methanol in alkaline solutions:

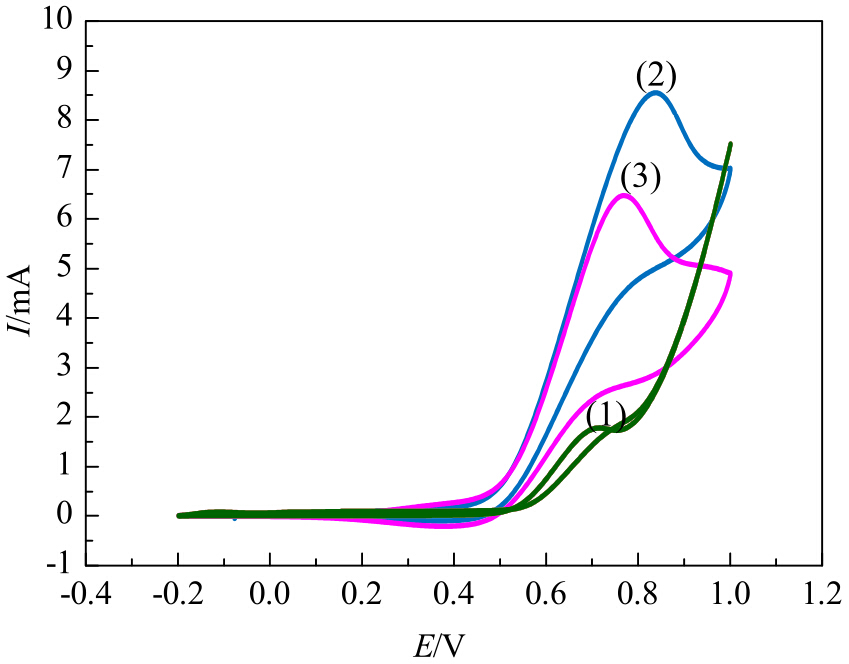

Fig. 4. Cyclic voltammetric responses of various copper electrodes in 0.1 mol/L NaOH solution containing 0.1 mol/L methanol at scan rate 20 mV/s. (1) Bare electrode; (2) Oxalate passivated electrode; (3) PTCOxNMC.

It should be noted that methanol is not an electroactive species at copper electrodes at low potentials, and methanol chemically adsorbed on copper electrodes is oxidized at more positive potentials ^[43]. Figure 4(2) illustrates the electrocatalytic oxidation of methanol at the oxalate passivated copper electrode. As seen, the electrocatalytic process with oxalate salts of Cu^III/Cu^II mediator occurs with high intensity at more positive potentials (about 0.8 V) in comparison with the copper oxide mediators formed on the bare copper electrode, probably due to high adsorption tendency of methanol toward oxalate salts. After deposition of the PT layer on the copper oxalate nanoparticles (Fig. 4(3)), the intensity of the mediator peak decreases in comparison with that for the copper oxalate passivated electrode but appears at a more negative potential of about 0.72 V. Further experiments indicated that the electrocatalytic peak current intensity increases with accumulation time at a low concentration of methanol. These results confirm the existence of a specific adsorption between methanol and the polytyramine-copper oxalate nanocomposite. Moreover, to assess more reasons for such a claim, the relationship between the oxidation peak current and concentration of methanol on a PTCOxNMC electrode was studied (cyclic voltammograms not shown here). The obtained results are shown in Fig. 5. As seen, the peak height increases linearly with methanol concentration up to 0.07 mol/L, and no significant increase in peak intensity is observed at higher concentrations of methanol. This result once more is completely in accordance with a specific adsorption between methanol and the polytyramine-copper oxalate nanocomposite particles. On the other hand, it can also be assumed that the increase is due to the presence of a diffusion controlled process that appears to play an important role at low methanol concentrations. While the methanol concentration exceeds this limit, the rate of the whole oxidation process seems to be limited by that of the catalytic process ^{[44, 45]}, indicating that only adsorbed methanol is electrooxidized. Similar behavior has been observed on other modified electrodes ^{[46, 47]}. As an overall conclusion, the increased activity is probably related to a more favorable or specific adsorption of reactant or of intermediates leading to a higher surface concentration of electroactive molecules ready to be oxidized, or is due to the partial delocalization of the electronic density of methanol into the solid with possible consequent bond pre-dissociations, which facilitates the oxidation, or both. Furthermore, the great improvement in the oxidation of methanol can be attributed to the large area and number of active sites for adsorption and electrocatalytic oxidation of methanol on the PTCOxNMC electrode in comparison with the bare copper electrode. This proves that the polymer layer formed on the surface of the copper oxalate reduces the specific adsorption tendency of methanol molecules towards copper oxalate nanoparticles and has a main role in the electrocatalytic oxidation of methanol on the surface of the PTCOxNMC electrode.

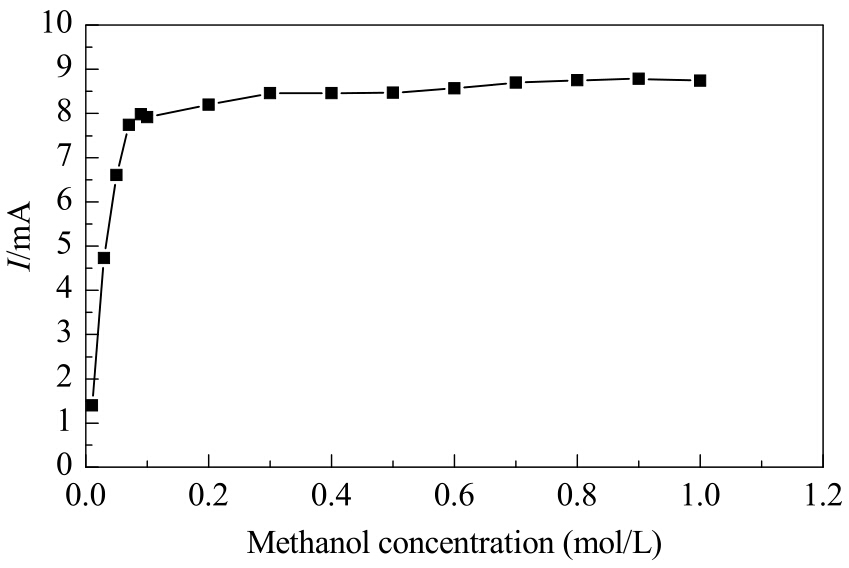

Fig. 5. Plot of anodic peak current as a function of methanol concentration.

The stability of the polytyramine layer was very high, so that the proposed electrode showed reproducible responses in terms of both current and potential after the recording of more than 100 cyclic voltammograms. Moreover, the response of the electrode showed negligible changes in potential and current after two months kept dry at room temperature in air.

Cyclic voltammograms of the PTCOxNMC electrode in 0.1 mol/L methanol solution in a range of 2-100 mV/s are illustrated in Fig. 6(a). As it can be seen, the anodic peak potential shifted to more positive potential with increasing scan rate, suggesting a kinetic limitation in the reaction between the redox sites of the PTCOxNMC electrode and methanol. However, the electrocatalytic oxidation current of methanol linearly increased with the square root of the potential scan rate (Fig. 6(b)), which demonstrates that the reaction is diffusion controlled. Moreover, plotting the current function against the potential sweep rate revealed a negative slope, confirming the electrocatalytic nature of the process (Fig. 7(a)), and a plot of the scan rate-normalized current (I/v^1/2) with respect to scan rate (Fig. 7(b)) exhibited the typical shape of an electrochemical-chemical (EC') catalytic processe ^[48].

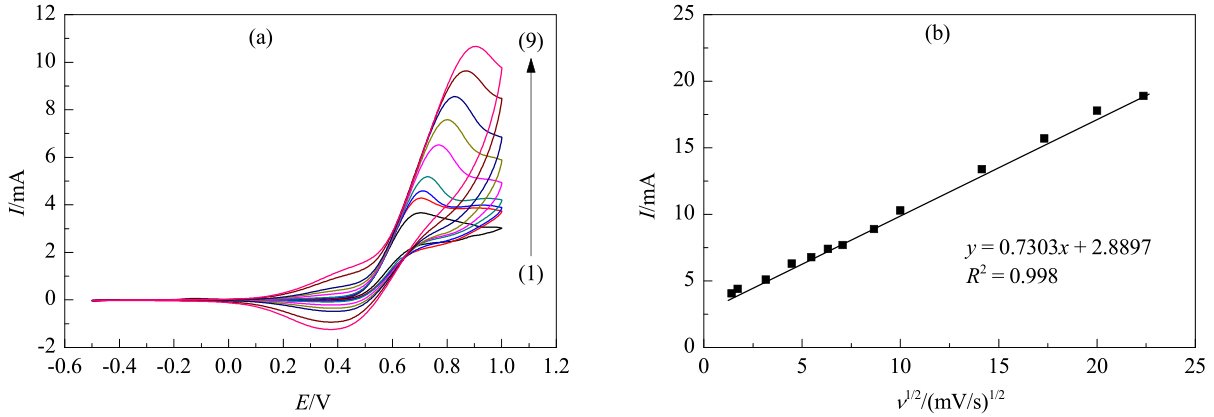

Fig. 6. (a) Dependence of the cyclic voltammetric response at the PTCOxNMC electrode on sweep rate in 0.1 mol/L NaOH containing 0.1 mol/L methanol. (1-9) Scan rate: 2, 5, 7, 10, 20, 30, 40, 75, 100 mV/s. (b) Variation of catalytic current with the square root of the sweep rate for scan rates of 2-500 mV/s.

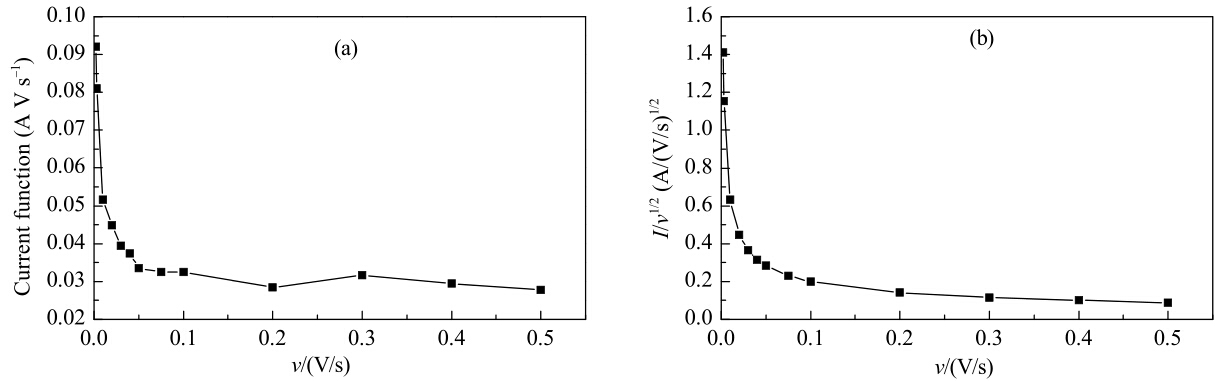

Fig. 7. Current function (a) and anodic current function (I/v1/2) (b) vs potential sweep rate (v) for 0.1 mol/L NaOH solution in the presence of 0.1 mol/L methanol.

Figure 8 shows the Nyquist plots of the copper and PTCOxNMC electrodes recorded in the 0.1 mol/L NaOH + 0.1 mol/L CH₃OH solution at 0.75 V. As seen from Fig. 8, the diameter of the impedance arc (DIA) decreases in order to Cu and PTCOxNMC electrodes. This indicates that the value of the charge transfer resistance (R_ct) of the PTCOxNMC electrode was much smaller than that of the copper electrode, confirming a faster electron transfer process on the polymeric modified electrode than that on the bare copper electrode. This result may be related to the higher real surface of the PTCOxNMC electrode surface and also to the better electron conductivity of the PTN-copper oxalate support, which probably releases oxalate ions during the electrocatalytic process. Thus, the polymeric modified electrode shows a much higher catalytic activity for methanol oxidation than the bare electrode.

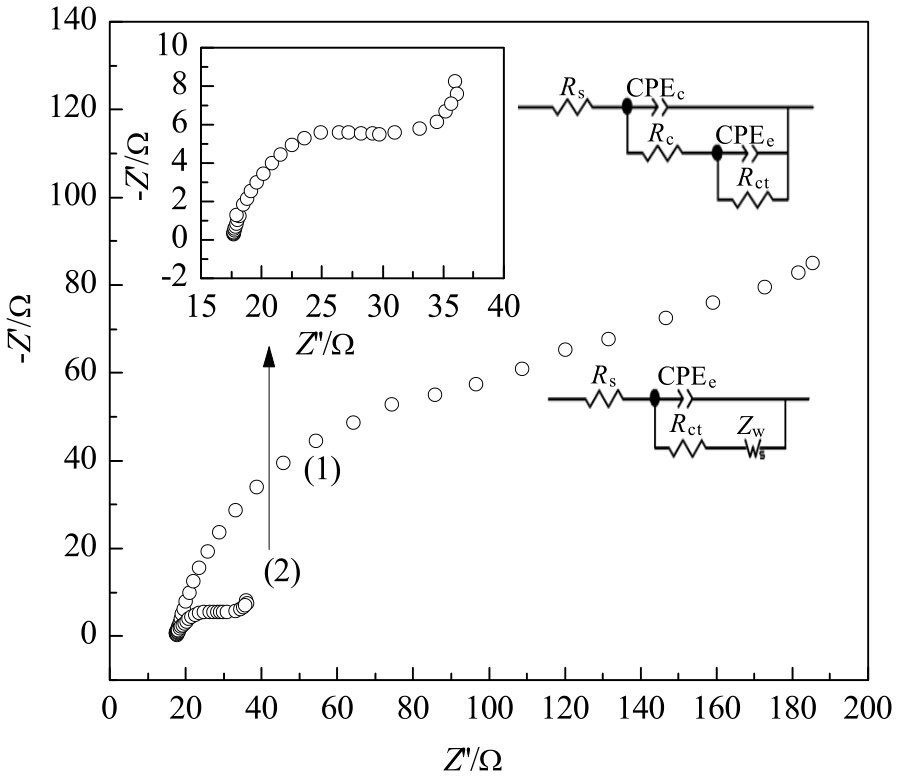

Fig. 8. Nyquist plots of EIS for methanol electrooxidation on copper electrode (1) and PTCOxNMC (2) electrode in 0.1 mol/L NaOH + 0.1 mol/L CH3OH solution at 0.75 V.

For further study, the proposed equivalent circuits of the EIS data are shown as insets of Fig. 8. Here, R_s, R_c, and R_ct are the solution, coating, and charge transfer resistances, respectively. A constant phase element (CPE) is attributed to a charge transfer process replacing the double layer capacity (C_dl). In equivalent circuits, CPEe and CPEc are the constant phase elements of the electrode and coating, respectively. The experimental EIS data for the bare copper electrode are completely fitted by Randles circuit ^[49]. In this circuit, the impedance of a Faradaic reaction consists of an active charge transfer resistance R_ct and a specific electrochemical element of diffusion Z_w (Warburg element). It must be noted that no Warburg impedance was observed in the EIS data of the coated copper electrode. The log(R_ct/Ω) of methanol oxidation on copper and PTCOxNMC electrodes at 0.75 V vs Ag/AgCl were obtained as 3.2 and 2.5, respectively, from the fitting with the equivalent circuits. As seen, the R_ct on the PTCOxNMC electrode is smaller than that on the bare copper electrode, indicating that the electron transfer kinetics for the electrooxidation of methanol are much better facilitated on the present polymeric modified copper electrode.
