Biodiesel has received much attention and has a rapid annual increase in its worldwide production [1] because it is environmentally benign and renewable. It is a promising alternative resource for diesel [2]. However, the production of biodiesel leads to 10% glycerol byproduct, and hence, to increase the capacity for biodiesel, the glycerol market will need to expand. Thus, the question arises for a cost-effective and efficient use of a glycerol surplus. Unfortunately, raw glycerol is not usable in conventional energy production plants [3]. Therefore, using glycerol for the synthesis of value-added chemicals, such as acrolein, hydroxyacetone, 1,3-propylene glycol, lactic acid, and dihydroxyacetone, is of great industrial importance.

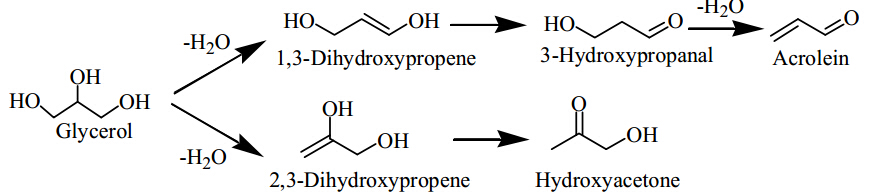

Acrolein, which is an important intermediate used for the production of acrylic acid esters, adhesive, polymers, and detergents, is produced by the oxidation of propylene over a Bi/Mo mixed oxide catalyst in the current commercial catalytic petrochemical process [4]. It is apparent that catalytic dehydration of glycerol to acrolein can provide a more cost-effective and sustainable alternative route (Scheme 1), and it has become a research hotspot in recent years [5]. Someresearch has been devoted to glycerol dehydration in near and supercritical water [6, 7, 8]. Taking into account catalyst separation, recovery, and apparatus corrosion, it is preferable to carry out the dehydration reactions in the gas phase over a solid acid catalyst. In the last decade, supported heteropolyacids [9, 10, 11, 12, 13], supported WO3 [14, 15], Zr-Nb mixed oxides [16], zeolites [17, 18], sulfonic acid-functionalized SBA-15 [19], and metal phosphates [20, 21, 22, 23, 24] have been shown to exhibit high catalytic activities. High acrolein selectivity (90-100 mol%) along with complete glycerol conversion was reported for rubidium- and caesium-doped silicotungstic acid catalysts supported on alumina [25]. Moreover, it was found that the catalytic efficiency for the formation of acrolein was enhanced at medium acidity strength (-8.2 < H0 ≤ -3.0) [26], while strong acid sites (H0 ≤ -8.2) resulted in a lower acrolein selectivity (40-50 mol%) due to severe coke deposition in the reaction, and weak acid sites on the catalyst surface (-3.0 ˂ H0 ≤ +6.8) were not selective for acrolein production. Another work pointed out that Brönsted acid sites were more active and selective than Lewis acid sites [6]. The generation of acrolein was initiated by the protonation of the secondary hydroxyl group of the glycerol molecule by a proton of a Brönsted acid site. Subsequent steps involve the elimination of H3O+ to give 1,3-dihydroxypropene and its tautomerization to 3-hydroxypropanal. The latter underwent further acid-catalyzed dehydration to yield acrolein. Lewis acid sites were more prone to interact with a terminal hydroxyl group rather than the internal one, and then concerted transfer of the terminal OH group of glycerol to the M sites (Lewis acid sites) and migration of the H+ from the internal carbon atom to the bridging O atom of the oxide gives 2,3-dihydroxypropene together with the hydrated active site on the catalyst [27].
Nevertheless, the production of acrolein from glycerol has not been commercialized because the present catalysts have the disadvantages of low thermal stability, low sedimentation ability, less water tolerant ability, and low catalytic stability. Thus the search for a more cost-effective catalyst for the dehydration of glycerol and the development of better process alternatives still attract attention. As is known, only a few solid acids exhibit acceptable activity and stability when water participates as a reactant or product. Here, metal phosphate is one class of the most important heterogeneous solid acid catalyst that is attractive for esterifcation, dehydration, and hydrolysis reactions [28, 29]. The majority of these catalysts have high sedimentation ability, and this property can prevent the solid acid from dissolving in water, which otherwise would cause catalyst loss or contamination of the reaction mixture. Among the metal phosphate catalysts used for glycerol dehydration, although the complete conversion of glycerol can be achieved easily, the selectivity to acrolein and the stability of the catalyst still remain a challenge. Zirconium phosphate is a very important metal phosphate that has extremely high thermal stability and water-tolerant ability, and it has been utilized for oxidation reaction [30] and glucose dehydration in the presence of excess water [31, 32], but it has not been well investigated in the dehydration of glycerol. In this work, we performed a systematic characterization of a series of zirconium phosphates prepared by precipitation, hydrothermal synthesis, and impregnation methods. Subsequently, the zirconium phosphates were utilized for the gas phase dehydration of glycerol in a fixed-bed reactor. From the catalyst characterization and evaluation of catalytic activity, the effects of catalyst texture and acidic sites on catalytic performance were discussed.
Zirconium oxychloride, ammonium dihydrogen phosphate, glycerol, silver nitrate, phosphoric acid, n-butylamine, anthraquinone (pKa = -8.2), and neutral red (pKa = +6.8) were purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). Dicinnamalacetone (pKa = -3.0) was supplied by Aldrich. High purity N2 was supplied by Shangnong Gas Factory. Distilled water used in this work was produced by our own laboratory. All other chemicals (analytical grade) were from Sinopharm Chemical Reagent Co. Ltd. and used as received without any further purification.
The zirconium phosphates were prepared by three different methods. First, a precipitation method was used to obtain zirconium phosphate. Briefly, an aqueous solution of NH4H2PO4 (1.0 mol/L, 64 ml) was added dropwise to an aqueous solution of ZrOCl2·8H2O (1.0 mol/L, 32 ml) at a molar ratio of P/Zr = 2. The mixture was stirred overnight at room temperature, then fltered, and washed with deionized water until the pH of the filtrate reached 6 and no Cl- was detected by an acidic AgNO3 solution. The material obtained was dried for 12 h at 100 °C, followed by calcination at different temperatures for 4 h in a muffle furnace prior to reaction. The resulting material was named as ZrP-T, where T represented thecalcination temperature. The elemental analysis demonstrated that the molar ratio of phosphate to zirconia was 1.54.
Second, a hydrothermalmethod was carried out to prepare zirconium phosphate. A solution of zirconyl chloride (1 mol/L, 20 ml), which had been previously prepared by dissolving zirconyl chloride powder in 1 mol/L HCl, was added to a H3PO4 aqueous solution (4 mol/L, 10 ml), and then the mixture was stirred overnight at room temperature. The white precipitate was collected by filtration, washed with deionized water, then reslurried with 12 mol/L H3PO4, and heated to 150 °C in an autoclave for 3 d. The resulting product was collected by stirring vigorous the product with deionized water and centrifuging until the pH of the supernatant reached 5 to remove excess H3PO4. After drying for 12 h at 100 °C, the product was calcined at 400 °C for 4 h. This was named as ZrP-HT. The elemental analysis by inductively coupled plasma-Auger electron spectroscopy demonstrated that the molar ratio of phosphate to zirconia was 2.06.
Third, for the catalyst prepared by impregnation, ZrO2 was prepared at room temperature by a simple process [33]. Zirconyl chloride (0.035 mol) was dissolved in 35 ml of deionized water and stirred magnetically for 5 min, and then aqueous ammonia (25 wt%) was slowly added in with rigorous stirring until the pH was 7. The resulting precipitate was filtered and washed repeatedly with deionized water until no Cl- was present (detection by acidic AgNO3 solution). The white precipitate was dried at 110 °C for 12 h, and then calcined at 400 °C for 4 h to obtain ZrO2. Then ZrO2 was impregnated with a solution of H3PO4 by an incipient wetness method at a molar ratio of P/Zr = 2:1. The mixture was stirred overnight at room temperature, which was followed by drying at 100 °C for 12 h. The product was calcined at 400 °C for 4 h. This was named as P/ZrO2. The calcined catalysts were pressed, crushed, and sieved to 20-40 mesh prior to reaction.
X-ray diffraction (XRD) analysis of the fresh and used catalysts were performed in the 2θ range of 10°-80° on an Rigaku D/MAX 2550 VB/PC instrument using a graphite crystal as monochromator. The textural properties from N2 adsorption isotherms were obtained on a Quantachrome NOVA 2200e equipment. The surface area was obtained from the isotherms in the relative pressure range of 0.0-0.35. Pore volume was determined at p/p0 of 0.99. The inductively coupled plasma-Auger electron spectroscopy (ICP-AES) analysis was performed on a Varian ICP-710ES instrument. The sample was first treated with a hydrofluoric acid and nitric acid solution, and then was heated to 60 °C in an oil bath to remove hydrofluoric acid, followed by dissolving with water. Fourier transform infrared (FT-IR) spectra of the samples were obtained on a Nicolet Fourier transform infrared spectrometer (Magna 550) in the range of 4000-400 cm-1. Thermal analysis of the catalysts was conducted on a Netzsch STA 449C thermal analyzer. The sample was placed in an Al2O3 crucible and heated in flowing air (200 ml/min) from 50 to 800 °C at a rate of 10 °C/min. The sample was dried overnight at 100 °C prior to the measurement. The determination of the acidic properties of the solid acid catalysts used the n-butylamine titration method using various Hammett indicators, including anthraquinone (pKa = -8.2), dicinnamalacetone (pKa = -3.0) and neutral red (pKa = +6.8). The acid strength was expressed by the Hammett acidity function (H0) scaled by the pKa values of the indicators. Before the measurement, the sample was grinded to 100-120 mesh.
The dehydration of glycerol was carried out in a vertical fixed-bed stainless steel reactor (1.1 mm i.d., length 55 cm). A constant weight (0.5 g) of catalyst was sandwiched in the middle of the reactor with quartz wool and quartz sand for supportingthe catalyst and evaporation of the reactants. The temperature was controlled by a thermocouple placed in the middle of the catalyst bed. Prior to the reaction, catalyst was pretreated at the reaction temperature (315 °C) for 1.5 h with high purity N2 (0.1 MPa, 30 ml/min). The feedstock, an aqueous solution containing 10 wt% glycerol, was then pumped into the reactor (0.04 ml/min) and driven through the catalyst bed by nitrogen. The reaction products were condensed in a cryogeniccooling system and collected every two hours for offline analysis using a GC 112A gas chromatograph equipped with an FFAP capillary column (30 m long, 0.32 mm i.d., 0.33 μm flm thickness) and an Agilent 6890/5973 GC-MS System equipped with a HP-5MS column (30 m long, 0.25 mm i.d., 0.25 μm flm thickness) and flame ionization detector (FID). Volatile compounds that were not retained in the cold trap were absorbed in ethanol and also analyzed by offline GC. For quantitative measurements, n-propanol was used as the internal standard. The conversion of glycerol and yield towards products were calculated as follows: Conversion = (n1/n0) × 100% and Yield = (np/n0)×100%, where n0 is the mole of carbon in the glycerol fed, n1 is the mole of carbon in glycerol converted, and np is the mole of carbon in an identified product. The carbon balance was estimated as the percentage of the reacted carbon atoms found in the organic products.

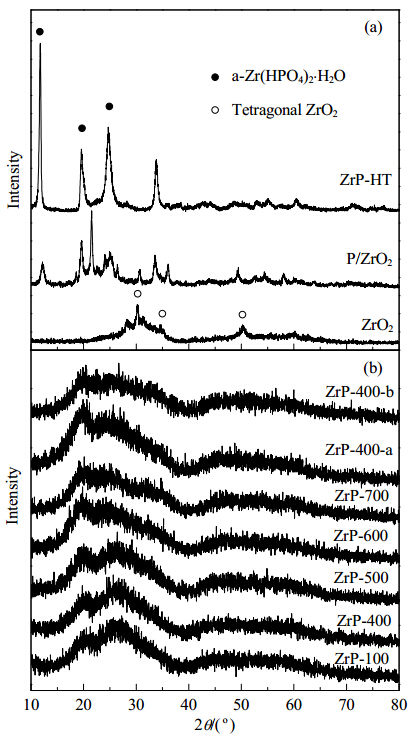

Figure 1(a) shows the XRD patterns of the ZrO2, P/ZrO2, and ZrP-HT catalysts. The diffraction peaks of ZrO2 were observed at 30.3°, 35° and 50.2° which were attributed to the (111), (200), and (220) lattice planes, respectively, which represented the structure of the tetragonal ZrO2 phase. The hydrothermally synthesized ZrP-HT showed typical diffraction peaks of zirconium phosphate, and the peaks were sharp and narrow, indicating that the sample was highly crystalline. The three main strong diffraction peaks at 11.7°, 19.7°, and 24.9° corresponded to the characteristic diffraction peaks of α-Zr(HPO4)2·H2O at (002), (110), and (112), respectively [34]. In addition, P/ZrO2 showed the characteristic diffraction peaks of both zirconium phosphate and zirconia, indicating that this material contained the two phases of zirconia and zirconium phosphate. The XRD patterns of the calcined ZrP-T samples are shown in Fig. 1(b). No distinct diffraction pattern was detected for the samples even after calcination at 700 °C, confirming the high thermal stability of synthesized ZrP [35]. The presence of two broad peaks in the ranges of 10°-40° and 40°-70° indicated their amorphous nature [36].
The textural properties of the samples are shown in Table 1. Obviously, the surface area and pore volume were significantly decreased after ZrO2 was impregnated withphosphoric acid (P/ZrO2). The loss of surface area and pore volume can be ascribed to the formation of polymeric phosphates species inside the ZrO2 channels and on its outer surface [37]. ZrP-HT also had a very low BET surface area, which was only 20 m2/g. In contrast, ZrP-T had a high BET surface area at a low calcination temperature (122 m2/g) and showed a clear trend where the BET surface area decreased from 122 m2/gto 44 m2/g as the calcination temperature increased from 100 to 700 °C. Thus, the specific surface area of the zirconium phosphates synthesized by the precipitation method was considerably larger than that of the samples obtained from the impregnation and hydrothermal methods.

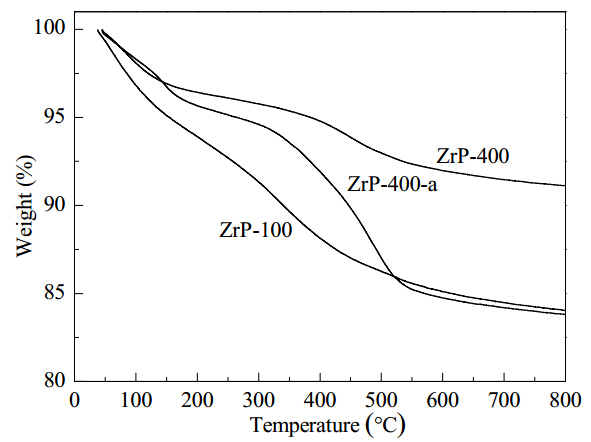

The TG patterns of ZrP-100 and ZrP-400 from 50 to 800 °C were obtained (Fig. 2). Dehydration led to a weight loss of ZrP-100 of 15.5% due to water removal from the catalyst. However, after calcination at 400 °C for 4 h, it still exhibited a weight loss of 8%, indicating that the ZrP-T catalysts were hydrophilic.

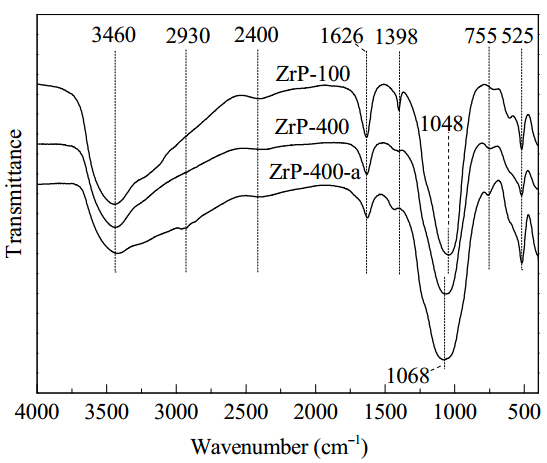

The FT-IR spectra of ZrP-100 and ZrP-400 in Fig. 3 showed a weak peak at 755 cm-1 which was assigned to the P-O-P deforming vibration (poly phosphate), indicating the existence of the P-O-P bond. The transmission bands at 1000-1100 cm-1 corresponded to the P-O stretching vibration, while the bands at 2400 and 525 cm-1 were due to the (P)-O-H stretching vibration and deformation vibration [38]. The bands at 3460 and 1626 cm-1 were attributed to the OH asymmetric stretching vibration, and the band at 1398 cm-1corresponded to the bending mode of OH groups. These results were in agreement with those reported earlier [39]. These three bands became weaker after calcining at 400 °C, demonstrating significant dehydration of the sample, which was in agreement with the TG results. Simultaneously, the bands of the P-O stretching region (1000-1100 cm-1) were shifted towards higher wavenumbers by 20 cm-1 as the calcination temperature was increased from 100 to 400 °C, which indicated that the P-O bonds in the tetrahedra became more covalent [36].
In addition, the acidity of the catalysts was determined by titration with a solution of n-butylamine in cyclohexane using Hammett indicators [40]. All of the present samples did not show strong acid sites (H0 ≤ -8.2). As shown in Table 2, ZrP-HT, ZrO2, and P/ZrO2 had only weak acid sites although the amounts of acid sites were quite different. For example, the total amount of acid sites in ZrP-HT was 0.93 mmol/g, while ZrO2 has the least amount of acid sites, which was only 0.046 mmol/g. After impregnating of ZrO2 with H3PO4, the number of weak acid sites on the P/ZrO2 catalyst increased greatly. However, the acid strength of the catalyst was still very weak. A reasonable explanation for this finding was that the doped phosphate acid condensed on the residual zirconiumOH groups [41, 42], resulting in no obvious changes in acid strength as compared with that of ZrO2. In contrast, it can be observed from Table 2 that all the ZrP-T samples showed both medium acidity strength (-8.2 < H0 ≤ -3.0) and weak acid sites (-3.0 < H0 ≤ +6.8). The fractional acidities of ZrP-T at -8.2 < H0 ≤ -3.0 are also shown in the last column. Obviously, the total acidity decreased with the calcination temperatures (T). However, the fractional medium acidity increased with T up to 400 °C and then decreased on further increase in T. The ZrP-400 sample exhibited the largest medium strength acidratio (44%). The acidity enhancement could be due to an increased loss of weakly bonded water molecules during the calcination below 400 °C, while the decline in acidity for the samples calcined at the higher T (i.e., T ≥ 400 °C) could be due to surface dehydroxylation. This T-dependent surface acidity for these ZrP-T samples was similar to that of niobium oxide samples obtained by calcining Nb2O5·mH2O [26] and Ta2O5·nH2O [43]. The significantly higher fractional medium acidity at -8.2 < H0 ≤ -3.0 for the non-crystalline samples would indicate that the amorphous structure is important for the medium acidity distribution. The density of acid sites are also shown in the last column in Table 2. The acid densities of P/ZrO2 and ZrP-HT were very high, and ZrO2 has the lowest acid density, while the density of acid sites of ZrP-T was relatively moderate and decreased with the increase of calcination temperature.
The catalytic activities for the gas phase dehydration of glycerol are given in Table 3. Acrolein and hydroxyacetone were the main products, while acetaldehyde, propanaldehyde, ethanol, and allyl alcohol were detected as minor side products. Other unidentifed products also shown in Table 3 were possibly formed by secondary reactions of the products or the intermolecular condensation of glycerol, together with a very small amount of gaseous products such as CO, which possibly resulted from the decomposition of glycerol. Despite these unidentifed products, the carbon balance was always over 70% except when ZrO2 was used as the catalyst. According to the results (Table 3), the ZrO2, P/ZrO2, and ZrP-HT catalysts resulted in low and similar conversion of glycerol at 9-10 h time-on-stream, which were all less than 65%. Combining these results with the acid properties of the catalyst surface (Table 2) revealed that a high total amount of acid was not necessarily favorable for achieving a high conversion of glycerol. For these three catalysts, the obvious difference was the selectivity to acrolein, which decreased in the order ZrP-HT > P/ZrO2 > ZrO2. This order was consistent with the amounts of weak acidic sites (Table 2). In addition, previous studies [44, 45] have also shown that bulk ZrO2 gave a low selectivity to acrolein (< 10%) and also a commercial zirconia catalyst gave a glycerol conversion of 59% after 90 min TOS with an acrolein selectivity of 5% and hydroxyacetone selectivity of 25% [46]. Nevertheless, the complete conversion of glycerol was accomplished over the ZrP-T catalysts within the frst 10 h of reaction (Table 3). On the basis of these results, it can be deduced that amorphous zirconium phosphates gave a higher activity than the crystalline catalysts. This can be attributed to the defects on amorphous materials (ZrP-T), which provided more active sites (Fig. 1). In addition, it was found that the catalytic performance was closely correlated with the acid density. The ZrO2 catalyst with very low acid density (Table 2) showed very poor yield of acrolein at 9-10 h time-on-stream (Table 3). Although the P/ZrO2 and ZrP-HT catalysts had very high acid densities (Table 2), they exhibited only a slightly higher yield of acrolein than ZrO2 (Table 3). In contrast, the ZrP-T catalysts with a moderate acid density (Table 2) afforded a higher yield of acrolein (Table 3), and furthermore the acid density of the ZrP-T catalysts decreased with the calcination temperature. Interestingly, ZrP-400 gave the highest yield of acrolein of all these catalysts. Thus these results indicated that both too high a density of acid sites and too low an acidity density were not favorable for a good performance by the catalyst. Obviously, a large specific surface area with an appropriate acidity density contributed to high catalytic efficiency. A large amount of water was adsorbed on ZrP-T, indicating that the surface of this catalyst was hydrophilic. Although a previous study has suggested that hydrophobicity of the catalyst surface is one of the main factors in the catalytic activity of acid-catalyzed reactions in the presence of water because the acid sites of most solid acids on a hydrophilic surface tended to be poisoned by water [47], the ZrP-T catalysts showed excellect activity for the reaction where water was present. This feature revealed that the relatively high surface area zirconium phosphate was highly water-tolerant, which may have resulted from that only limited acid sites were surrounded by a locally hydrophobic surface, or the acid sites of the zirconium phosphate had a specific structure that could avoid excessive attacks of water [48].

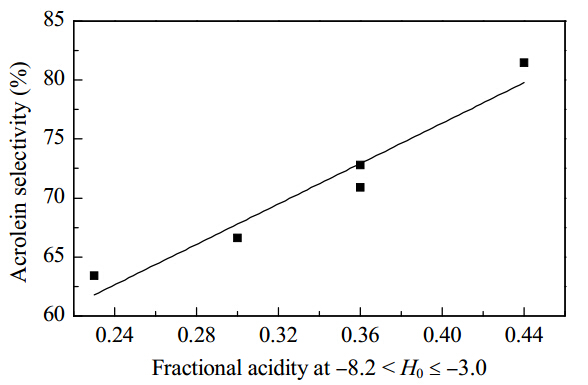

On the other hand, the weak acid catalysts with acid strength at -3.0 < H0 ≤ +6.8 (Table 2, ZrO2, P/ZrO2, and ZrP-HT), showed a low conversion of glycerol and low selectivity for the production of acrolein, while the catalysts which have a medium acid strength at -8.2 < H0 ≤ -3.0 (Table 2, ZrP-T) generally showed a high glycerol conversion and high acrolein selectivity. This implied that the most effective acid strength for the dehydration of glycerol to form acrolein was -8.2 < H0 ≤ -3.0. The selectivity to the main byproduct acetol was not affected by the amount of acid or the acid strength of the catalyst. An attempt was carried out to correlate the selectivity to acrolein at TOS = 9-10 h over the ZrP-T catalysts with the fractional acidity at -8.2 < H0 ≤ -3.0. The correlation of acrolein selectivity and fractional acidity at -8.2 < H0 ≤ -3.0 is presented in Fig. 4. It can be seen clearly that the selectivity to acrolein increased with the increasing of the fractional medium strength acidity at -8.2 < H0 ≤ -3.0.
The ZrP-400 catalyst afforded 81% yield of acrolein, which was slightly better than the catalysts calcined at other temperatures when the TOS was 9-10 h (Table 3). In addition, it was found that the ZrP-T catalysts only showed slight deactivation when the TOS was prolonged to 24 h, which could be due to the fact that phosphate stabilized the amorphous zirconia phase, which gave the ZrP-T catalyst a relatively stablecatalytic activity [49]. Because ZrP-400 exhibited the best activity, the used ZrP-T catalyst was characterized to understand the reason for deactivation because catalyst deactivation is an important factor for most catalysts in the glycerol dehydration reaction. As shown in Fig. 1(b), after ZrP-400 was subjected to reaction for 24 h, the catalyst still remained amorphous. However, the BET surface area was decreased sharply from 101 to 28 m2/g, and the weight loss of ZrP-400 was significantly increased (Fig. 2). The weight loss may result from carbonaceous sediments as well as the incorporation of a small amount of water during the reaction. In the IR spectra in Fig. 3, a new peak appeared at 2930 cm-1 with the used ZrP-400 catalyst, which was assigned to -CH2-asymmetry stretching vibration, indicating that the oligomerization of glycerol or nonsaturated products like acrolein was a possible route for these deposits. From the comparison of fresh ZrP-400 and used ZrP-400 above, we can infer that the carbonaceous material deposited on the catalyst surface caused the decrease inthe specific surface area and reduced the contact of the substrate with active sites, which led to a decrease in catalyst activity. It should be noted that although ZrP-T calcined at 500, 600, and 700 °C maintained a glycerol conversion of 100% at long reaction time (TOS = 23-24 h), their selectivities to acrolein were lower than 70%. ZrP-400 was still the most selective catalyst for acrolein with a value of 81.7%.

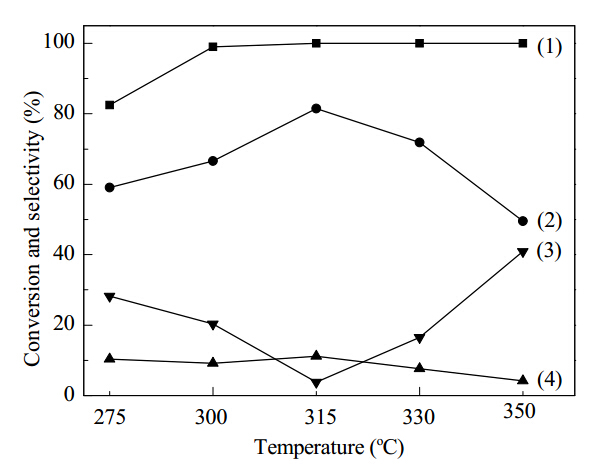

Next, the ZrP-400 catalyst was used to examine the effect of temperature on catalytic performance. As shown in Fig. 5, the glycerol conversion increased with reaction temperatures, and this was maintained at 100% at above 300 °C. Previous studies [50] have stated that temperatures lower than 280 °C favored the intermolecular dehydration of glycerol (b.p. 290 °C) on the catalyst surface, which led to glycerol oligomers instead of to acrolein. Therefore, the formation of oligomers was responsible for the low acrolein selectivity at lower temperatures. The acrolein yield increased with the reaction temperatures in the range from 275 °C to 315 °C, and the maximum yield reached 81 mol% at 315 °C. However, the yield of acrolein decreased sharply above 315 °C, which can be attributed to the deposition ofcarbonaceous materialand the condensation of reactionproducts at higher temperature [51].

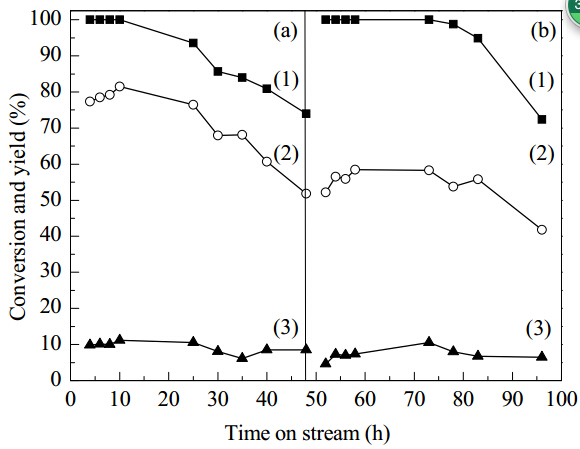

The ZrP-400 catalyst was also checked for long-term performance to evaluate its deactivation. The conversion and selectivity versus time are shown in Fig. 6(a). The initial conversion of glycerol was 100%, but this decreased rapidly to 74% within 48 h on stream. The stability and selectivity to acrolein over the present zirconium phosphate catalysts were still comparable to the previously reported metal phosphates [20, 21, 22, 23, 24]. Actually, the product distribution did not show any significant change during the 48 h. The used catalyst showed a dark color, indicating the presence of a considerable amount of carbonaceous deposits on the surface of catalyst. This behavior pointed to a deactivation mechanism due to carbonaceous deposits blocking the catalytically active sites. At the same time, a slight decrease of acrolein selectivity was observed. The catalyst after reaction for 48 h was dried in situ under a carrier gas stream, and then taken out and calcined at 500 °C in a muffle furnace for 4 h. After that, it was subjected to the determination ofits specific surface area and n-butylamine titration. The specific surface area of the regenerated catalyst was 82 m2/g, which was close to that of the fresh ZrP-500 (92 m2/g). The determination of acidity by n-butylamine titration showed that the medium strength acid sites have decreased dramatically (Table 2, ZrP-400-b), which led to the decrease of the total amount of acid as compared with the fresh catalyst. In addition, the elemental analysis by AES-ICP demonstrated that the mass contents of P and Zr did not show any obvious change after the catalyst had reacted for 48 h, indicating that the leaching of P and Zr was not a cause of the catalyst deactivation. We can infer that on one hand the carbonaceous deposits on the surface of catalyst reduced the number of accessible active sites, and on the other hand the medium strength acid sites on the catalyst surface were reduced considerably during the reaction, and both of these led to a decrease in the yield of acrolein. A regenerated catalyst from the calcining of the used catalyst (after 48 h reaction) at 500 °C for 4 h was reused in the reaction in the fixed-bed reactor under the same reaction condition as before. The conversion was recovered to 100% and the selectivity to acrolein reached 58% during the initial 10 h (Fig. 6(b)). After reaction for 48 h, the conversion of glycerol was reduced to 72%. This experiment indicated that the recovery of catalytic activity is possible by calcining the spent catalyst in air.
Zirconium phosphate catalysts prepared by different methods have differences not only in texture but also in the surface acidity of the catalyst. The catalytic performance for the dehydration of glycerol was significantly affected by the preparation method and calcination temperature. Amorphous zirconium phosphates obtained by the precipitation method have medium strength and weak acidity, and they were highly selective catalysts for acrolein production (yield 62%-82%) in the gas phase dehydration of glycerol. The amorphouscatalyst obtained by calcination at 400 °C (ZrP-400) exhibited the largest fraction of medium strength acid sites at -8.2 < H0 ≤ -3.0 and had the best catalytic efficiency for the formation of acrolein, which indicated that an appropriate amount of acid sites and acid strength was favorable for catalyst stability. A simple regeneration procedure by calcining the used catalyst in air was sufficient to regenerate the deactivated catalysts to its original activity, although there was a slight decrease in the production of acrolein.
