Acidity characterization of rare-earth-exchanged Y zeolite using 31P MAS NMR
Shanqing Yu , Huiping Tian
Research Institute of Petroleum Processing, SINOPEC, Beijing 100083, China
Received 30 March 2014. Accepted 13 May 2014. Published 20 August 2014.
* Corresponding author. Tel: +86-10-82368972; Fax: +86-10-62311290; E-mail: yusq.ripp@sinopec.com
Foundation Item:This work was supported by the National Basic Research Program of China (973 Program, 2003CB615804), the National Natural Science Foundation of China (20673054), and the National Key Technology R&D Program (2012BAE05B00).
Abstract: Detailed qualitative and quantitative information on the effects of rare-earth (RE) cations on the types (Brönsted and Lewis), strengths, and distributions of acid sites on Y zeolite was studied by solid-state 31P magic-angle spinning nuclear magnetic resonance (MAS NMR) spectroscopy, using adsorbed trimethylphosphine oxide (TMPO) and tributylphosphine oxide (TBPO) as probe molecules. A total of seven 31P resonance peaks, with 31P NMR/TMPO chemical shifts at δ = 78, 70, 65, 62, 58, 55, and 53, corresponding to sites with different acid strengths, were identified. The peaks at δ = 78 and 70 arose from external and internal acid sites, the peaks at δ = 65, 62, 58, and 53 were from internal Brönsted acid sites, and the peak at δ = 55 was from internal Lewis acid sites. With increasing RE content, the number of medium strength Brönsted acid sites (δ = 62 and 58) increased significantly, whereas those of strong Brönsted acid sites (δ = 65) and weak Lewis acid sites (δ = 55) decreased. These experimental results were explained in terms of the influence of framework Al, extra-framework Al, and RE cations on the Y zeolite acidity.
Key words: Y zeolite     Rare earth     Acid site     Solid-state 31P NMR

1. Introduction

Rare-earth-cation-exchanged Y zeolites (REHY) are important because they are fluid catalytic cracking catalysts with superior catalytic properties such as high stability and activity [1, 2, 3]. It has been reported that the stability of zeolite can be improved by the addition of RE cations, principally those from the light group (La, Ce, Nd, Sm, and Pr) [3, 4]. This effect has been attributed to the formation of hydroxy RE cationic species within zeolite channels. Another important role of RE cations is the modification of Y zeolite acidity. Richardson [5] investigated the high catalytic activity of a cation-exchanged zeolite and observed that the bond strength of Brönsted (B) OH groups was perturbed by the polarizing effect of neighboring cations. Ward [6] explained the generation of B acidity based on the dissociation of adsorbed water molecules by electrostatic fields around RE cations. It is therefore necessary to obtain detailed information on the types, strengths, concentrations, and locations of acid sites on REHY zeolites to understand the detailed reaction mechanisms and related catalytic features of the catalysts.

The acidity of REHY zeolites has been widely investigated using conventional methods such as temperature-programmed desorption (TPD), infrared spectroscopy (IR), and nuclear magnetic resonance (1H NMR) spectroscopy of adsorbed basic probe molecules [7, 8, 9]. Although these conventional methods are useful in providing qualitative and quantitative information (e.g., acid types and amounts) on acid sites, most techniques cannot provide detailed acidity information.

Recently, a novel solid-state 31P NMR technique was used for simultaneous qualitative and quantitative investigation of acidic properties using trimethylphosphine oxide (TMPO) and tributylphosphine oxide (TBPO) [10]. Unlike TBPO (kinetic diameter ca. 0.82 nm), which can only be adsorbed on the external surfaces of Y zeolite, TMPO (ca. 0.55 nm) can enter the zeolite channels, enabling simultaneous detection of internal and external acid sites. In addition, quantitative information on the acid sites (i.e., the acid concentration) can be obtained when 31P NMR experiments are performed in conjunction with elemental analysis by inductively coupled plasma-mass spectrometry (ICP-MS).

In this study, the properties of acid sites, namely their types, locations, concentrations, and strengths on a REHY zeolite, were investigated in detail using solid-state 31P magic-angle spinning (MAS) NMR spectroscopy of adsorbed TMPO and TBPO, in conjunction with elemental analysis.

2. Experimental
2.1. Sample preparation

The zeolite samples were prepared from a commercial NaY-type zeolite with a Si/Al ratio of 2.5 using an ion-exchange method. The NaY zeolite was converted to NH4Y with NH4Cl; NH4Y was treated in a chloride solution (RECl3, RE = La, Ce) at 90 °C for 2 h to give the NH4REY zeolite. The RE content in the zeolite was varied by changing the concentration of the chloride solution. The NH4REY zeolite was calcined at 500 °C for 5 h, thoroughly washed with demineralized water, dried overnight, and calcined at 400 °C for 2 h. The zeolite samples obtained were denoted by REHY-x, where x indicates the RE2O3 mass content (%).

2.2. Sample characterization

All solid-state NMR experiments were carried out using a Bruker MSL-500P spectrometer at room temperature. 31P MAS NMR spectra were acquired at a Larmor frequency of 202.46 MHz using a single-pulse sequence with a pulse width of 1.8 μs, a recycle delay of 10 s, and a typical sample-spinning frequency of 12 kHz. A single-pulse sequence was also used for 27Al MAS NMR experiments, with a sample-spinning rate of 12 kHz, pulse-width of 1.0 µs, and recycling delay of 500 ms at a resonance frequency of 130.32 MHz. Aqueous 85% H3PO4 and Al(H2O)63+ solutions (1 mol/L) were used as external references for the 31P and 27Al NMR chemical shifts, respectively.

Prior to the 31P MAS NMR experiments, each sample was dehydrated at 350 °C for 24 h under vacuum (133.32 × 10−5 Pa). Details of the procedures for introducing the phosphine oxide (TMPO or TBPO) probe molecule into the sample can be found elsewhere [11]. In brief, a known amount of TMPO (100%, Alfa) or TBPO (98%, Acros) dissolved in anhydrous CH2Cl2 was added (using a gas-tight syringe) in a N2 glove box to a vessel containing a dehydrated sample; the loaded sample was agitated in an ultrasonic shaker for 30 min for thorough mixing, and then the CH2Cl2 solvent was removed by extraction (under liquid N2) and then evacuation for 12 h. To ensure uniform adsorption of the probe molecules on the sample, the sealed sample vessel was subjected to thermal treatment at 140 °C for 1 h. Finally, the sample vessel was placed in the N2 glove box, where the sample was transferred into a ZrO2 MAS rotor (4 mm o.d.), which was sealed with a gas-tight Kel-F cap.

For quantitative determination of the acid sites, each adsorbate-loaded sample was subjected to elemental analysis using ICP-MS (Jarrell-Ash, ICAP 9000). Typically, the adsorbate-loaded sample (ca. 0.1 g) was dissolved in a mixture of HF, HNO3, and HCl (10 mL), and the solution was added to a saturated boric acid solution (60 mL) at room temperature. The amounts of P, Al, and Si were then determined using the respective commercial standards.

Adsorbed pyridine Fourier transform infrared spectroscopy (Py-IR) was also used to determine the acidity. Prior to each Py-IR experiment (Thermo Nicolet NEXUS 750), a compressed sample (in the form of a self-supporting wafer, ca. 6 mg/cm2) was placed in the IR cell (with ZnSe windows) and evacuated at 450 °C for 2 h, followed by saturation adsorption of pyridine at room temperature and subsequent removal of the physisorbed pyridine under vacuum. Pyridine desorption took place at 200 °C. Each Py-IR spectrum was acquired by scanning from 4000 to 900 cm−1. The numbers of Brönsted (B) acid sites and Lewis (L) acid sites were determined from the IR absorption bands of pyridine at 1545 and 1450 cm−1, respectively [12].

The crystallinity of the zeolite samples was determined using a Philips X'Pert X-ray diffractometer with copper Kα radiation. Nitrogen physisorption measurements were performed at liquid-nitrogen temperature with a Micrometritics ASAP 2405N V1.01 apparatus. The surface area was determined by the BET method, and the micropore volum was determined from the intercept of the liner part of the t-plot.

3. Results and discussion
3.1. Identification of 31P NMR chemical shifts and REHY zeolite acid sites

The structural features of the samples were determined using powder X-ray diffraction (XRD). The crystallinity, cell parameter α0, molar Si/Al ratio, BET surface area, and pore volume were determined using XRD, 29Si MAS NMR spectroscopy, and N2 adsorption/desorption measurements. The characteristics of these samples are listed in Table 1.

Table 1
Physical properties of the zeolite samples.

The 31P MAS NMR spectra of TMPO and TBPO adsorbed on REHY-8 are shown in Figure 1. The 31P NMR spectra of the REHY zeolite samples with various RE contents were similar, so REHY-8 was taken as an example. The dashed curves represent the results of spectral simulation by Gaussian deconvolution. A Win-NMR software program (Bruker Biospin) enabled curve fitting through appropriate choice of 31P NMR peaks, based on the observed resonance line-shape. A simulated spectrum nearly identical to the observed spectrum was considered to be a good fit. The simulation results for REHY-8/TMPO had nine resonance peaks at δ = 78, 70, 65, 62, 58, 55, 53, 49, and 41. The two peaks at δ < 50 can be unambiguously assigned to physisorbed TMPO and are therefore irrelevant in terms of the acidic properties of the sample being examined [13]. The assignments of the peaks at higher chemical shifts remains controversial; for example, Zhao et al. [14] concluded that the 31P resonances at δ = 60-65 were associated with TMPO adsorbed on L acid sites, whereas Mueller's group [15] suggested that the peak at δ = 63 arose from interactions between TMPO and B acid sites.

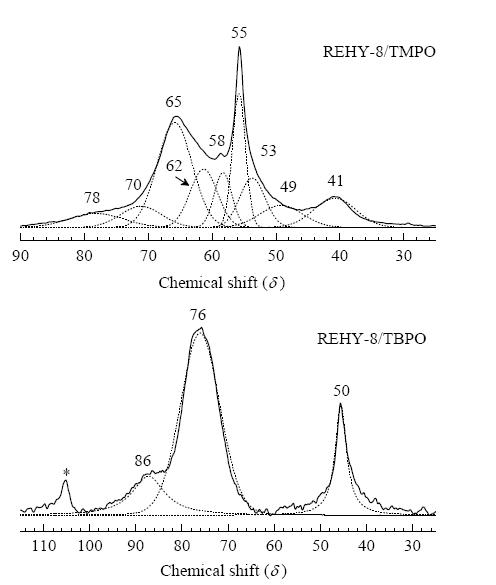

Fig. 1. 31P MAS NMR spectra of TMPO and TBPO adsorbed on the REHY-8 sample. The dashed curves indicate the results of spectroscopic analyses by Gaussian deconvolution.

Additional experiments were performed to confirm the resonance assignments. The TMPO-loaded sample was exposed to humidity, and the specific chemical shifts and corresponding integrated areas in each spectrum are given in Figure 2(a) and Table 2. It is known that L acid sites can react easily with water to form B acid sites [16]. However, the strong hydrogen bonds between the adsorbed TMPO molecules and B acid sites are unlikely to be dissociated in the presence of water. Consequently, only the 31P resonances associated with L acid sites will decrease when the sample is hydrated. The data in Table 2 and Figure 2 show that the peaks at δ = 78 and 55 can be ascribed to interactions of TMPO with L acid sites, and the peaks at δ = 70, 65, 62, 58, and 53 can be ascribed to interactions of TMPO with B acid sites.

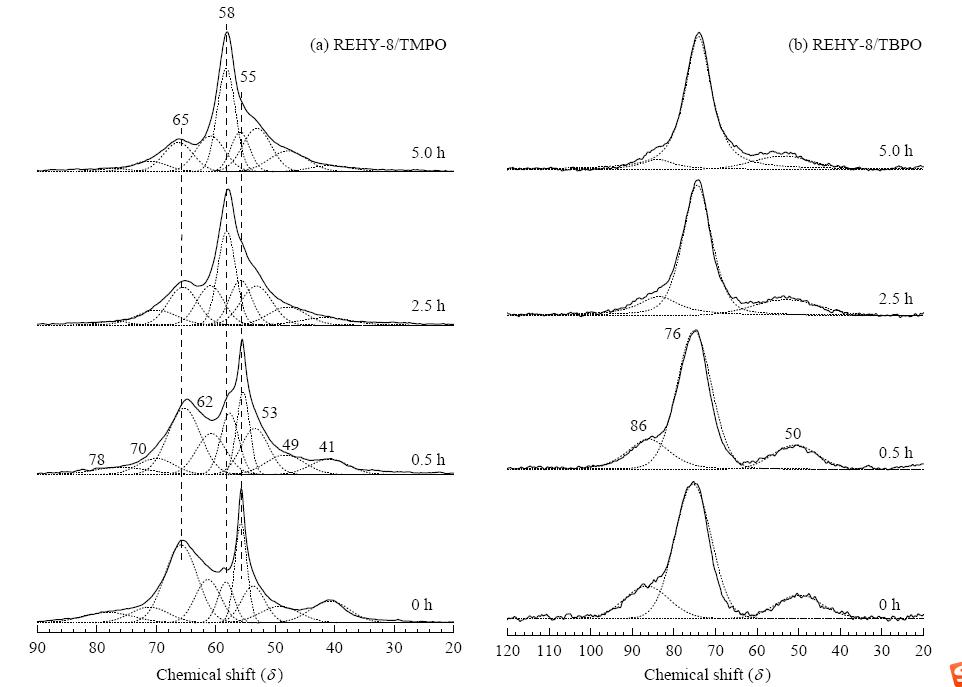

Fig. 2. 31P MAS NMR spectra of TMPO (a) and TBPO (b) adsorbed on REHY-8 sample before (0 h) and after partial hydration by exposure of adsorbed samples to humidity for 0.5, 2.5, and 5.0 h.

Table 2
31P NMR chemical shifts and relative peak areas (%) for REHY-8/TMPO samples exposed to humidity for various times.

In the case of adsorbed TBPO, only three peaks were observed for REHY-8/TBPO at δ = 86, 76, and 50 (Figure 1). The resonance with the lowest chemical shift (δ = 50) can be assigned to physisorbed TBPO. On exposure of the adsorbate sample to humidity, the peak intensity at δ = 86 decreased, and that of the peak at δ = 76 increased, with increasing water content (see Figure 2(b) and Table 3). The peaks at δ = 86 and 76 were therefore associated with L acid sites and B acid sites, respectively.

Table 3
31P NMR chemical shifts and relative peak areas (%) for REHY-8/TBPO samples exposed to humidity for various times.

31P NMR results obtained for TMPO adsorbed on REHY zeolite provide information on both internal and external acid sites, whereas TBPO systems exclusively provided information on acid sites located on the external surface [11]. Before performing further experiments, it was therefore necessary to clarify the distributions and locations of the acid sites. It was important to combine the results obtained separately using the homologous probe molecules, TMPO and TBPO, to identify the internal and external acid sites.

An earlier study [16] showed that the respective 31P resonances observed for TMPO and TBPO adsorbed on acid sites with the same acid strength can be correlated based on the differences (∆δ ± 3) between the observed chemical shifts and those of their crystalline bulks, namely δ = 39 for TMPO and δ = 47 for TBPO. For example, for REHY-8, up to seven peaks can be resolved from the 31P NMR of adsorbed TMPO, at δ = 78, 70, 65, 62, 58, 55, and 53 (in order of decreasing acid strength), whereas only two resonances can be identified in the case of adsorbed TBPO (i.e., δ = 86 and 76). The resonances at δ = 86 and 76, with respective ∆δ values of 39 and 29, can therefore be correlated with the resonances at δ = 78 and 70, obtained from TMPO, which were found to have similar respective ∆δ values. It can therefore be concluded that the peaks at δ = 78 and 70 observed for the REHY-8/TMPO system represented internal and external acid sites. Furthermore, for the same system (REHY-8/TMPO), the other peaks at δ = 65, 62, 58, 55, and 53, which corresponded to respective ∆δ values of 26, 23, 19, 16, and 14, were not visible in the spectrum obtained from REHY-8/TBPO. These peaks can therefore be attributed to TMPO adsorbed on acid sites located in the internal channels of the REHY-8 sample.

3.2. Quantitative determination of acid sites on REHY zeolite

Figure 3 shows the 31P MAS NMR spectra of TMPO and TBPO adsorbed on REHY zeolite. It was found that no new resonance peaks emerged as the RE content of the Y zeolite increased. However, the relative concentrations of acid sites with the same acid strength clearly changed.

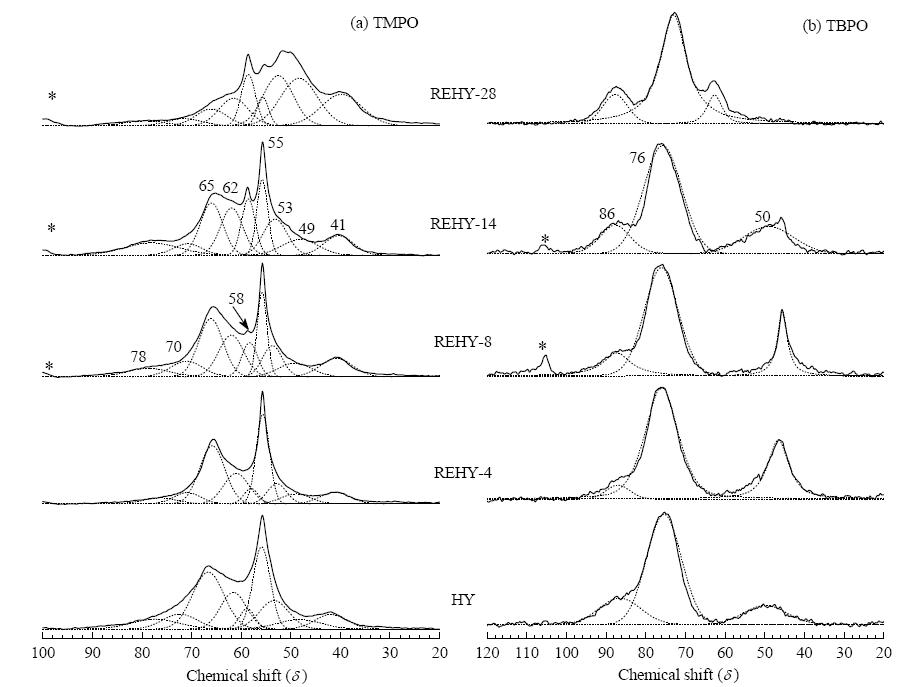

Fig. 3. 31P MAS NMR spectra of REHY zeolite with TMPO (a) and TBPO (b). The asterisks denote spin side-bands.

To clarify the effects of RE cations on Y zeolite acidity further, additional quantitative information on the acid sites is needed; this can be obtained from ICP-MS analysis for Si, Al, and P; the results are listed in Tables 4 and 5. The amounts (mmol/g) of B acid and L acid sites can then be derived using the renormalized (i.e., after excluding contributions from physisorbed TMPO or TBPO) relative concentrations obtained from spectral simulation by Gaussian deconvolution, based on the assumption that each TMPO or TBPO molecule can only be adsorbed on either one B or L acid site [14], i.e., TMPO or TBPO was adsorbed on the acid sites on a 1:1 basis.

The conclusions drawn from a comparison of the results shown in Table 4 are summarized below and are clearly shown in Table 6.

Table 4
31P MAS NMR chemical shift assignments and distributions of acid sites of samples loaded with TMPO probe molecules.

Table 5
31P MAS NMR chemical shift assignments and distributions of acid sites of samples loaded with TBPO probe molecules.

Table 6
Acid site distributions on REHY zeolites.

In terms of the overall (internal and external) acidity, the total number of acid sites on REHY zeolite decreased with increasing RE2O3 content; for example, the number of acid sites on REHY-4, REHY-8, REHY-14, and REHY-28 were 2.09, 2.04, 1.93, and 0.99 mmol/g, respectively. In particular, the number of L acid sites decreased significantly when the RE2O3 content was increased from 4% to 28%, but a large decrease in the number of B acid sites was only observed when the RE2O3 content was very high (28%). The ratio of B to L acid sites therefore increased on incorporation of RE into Y zeolite.

In terms of acid strength, when the RE2O3 content was 14% or less, the incorporation of RE into the Y zeolite resulted in a clear increase in the number of medium strength (δ = 62 and 58) B acid sites, and significant decreases in the numbers of weak (δ = 55) L acid sites and strong (δ = 65) B acid sites. When the content of RE2O3 was very high (28%), the number of B acid sites decreased greatly.

In terms of the distribution of acid sites, the acid sites (B and L) were mainly located inside the Y zeolite cages, i.e., internal acid sites, and these consisted of B acid sites of various strength and weak L acid sites; only 5%-10% of the total acidity was contributed by acid sites located on the external surfaces of the Y zeolite.

To confirm the results from 31P MAS NMR, Py-IR was used to characterize the acidic properties of various samples. Py-IR is a useful technique and is commonly used for the identification of B acid and L acid sites. The adsorbed pyridine probe molecules couple with L acid and/or B acid sites through the nitrogen lone-pair electrons and can therefore be monitored using their ring vibrations. The numbers and distributions of acid sites (B and L) determined from IR spectra after the adsorption and desorption of pyridine at 200 °C are shown in Figure 4. In general, the total number of acid sites, particularly L acid sites, decreased with increasing RE2O3 content. The number of B acid sites did not change significantly when the RE2O3 content increased from 4% to 14%, but decreased greatly when the RE2O3 content was about 28%. These results were mostly in agreement with those obtained using 31P MAS NMR. However, acidity characterization using Py-IR was limited because it cannot provide information on the distributions of sites with different acid strengths and the locations of acid sites. In contrast, the combination of 31P MAS NMR and ICP-MS used in this study enabled detailed qualitative and quantitative information on acid sites to be obtained simultaneously, and also enabled monitoring of changes in the strengths and concentrations of acid sites on the samples.

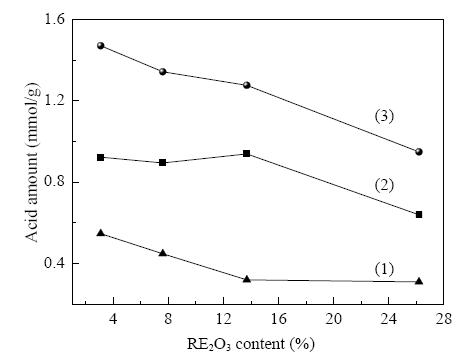

Fig. 4. Py-IR data for REHY samples with various RE2O3 contents. (1) L acid; (2) B acid; (3) Total acid. The number of B acid and L acid sites was determined based on the pyridine absorption bands at 1545 and 1450 cm−1, respectively.
3.3. Effects of RE cations on Y zeolite acidity

The XRD and 29Si MAS NMR results show that the unit cell size (α0) increased with increasing RE content, as did the number of framework Al atoms; this indicates that the introduction of RE cations prevented shrinkage of the unit cell and formation of extra-framework Al. Previous theoretical research [17] showed, using density functional theory, that the RE species and Y zeolite clusters interact strongly, and this strengthens the interactions between framework Al and neighboring O atoms, inhibits framework dealumination and formation of extra-framework Al, and significantly enhances the Y zeolite stability.

The influences of framework and extra-framework Al species and RE cations on the Y zeolite acidity can be explained by the following model (Figure 5). (1) When the REHY zeolite is prepared from NaY using an ion-exchange method, the polarization effect of RE3+ on water results in the formation of RE(OH)2+ [18]. Under heat treatment conditions, RE(OH)2+ can move from the supercage to the sodalite cage I' sites of the Y zeolite, and then bond strongly with O3 and O2, leading to enhanced stability of the Y zeolite [17]. (2) With regard to B acid strength, it is accepted that heat treatment can cause the release of Al atoms from the Y zeolite framework, leading to the formation of extra-framework Al species. It has been shown that a decrease in the framework Al content [19] and the presence of extra-framework Al species [20] both lead to formation of strong B acid sites on dealuminated HY (USY) zeolite. The enhanced stability of the REHY zeolite suppresses the release of framework Al and the formation of extra-framework Al, leading to weaker B acid sites on REHY zeolite than on USY zeolite. RE(OH)2+ species located in the sodalite cage I' sites of Y zeolite result in stronger B acid sites on REHY zeolite than on HY zeolite. The order of the B acid site strength is therefore USY > REHY> HY. (3) In terms of the number of B acid sites, the HY zeolite, which is prepared from NaY by NH4+ exchange with Na+ and NH3 release, has the most B acid sites. The USY zeolite, which is obtained by dealumination of HY under heat treatment conditions, has the fewest B acid sites. REHY zeolites are obtained from NaY by RE(OH)2+ exchange with two Na+ ions in the sodalite cage, followed by NH4+ exchange with the remaining Na+; H+ is produced by hydrolysis exchange with Na+ in the supercage, so REHY zeolites have fewer B acid sites tha n HY zeolite [21]. The higher stability of REHY zeolite compared with HY zeolite suppresses zeolite dealumination, so REHY zeolite has larger numbers of B acid sites than USY zeolite. The order of the numbers of B acid sites is therefore HY > REHY > USY.

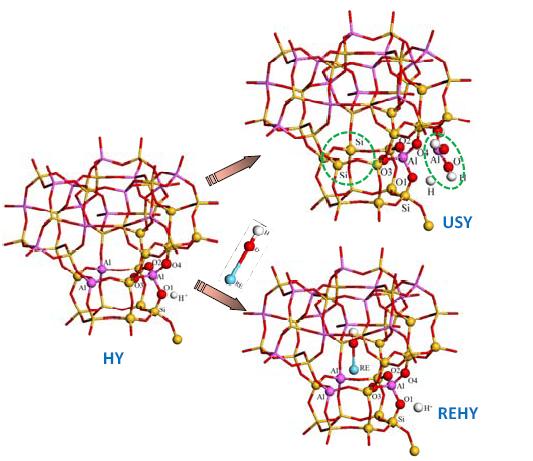

Fig. 5. Mechanism model for effects of RE on Y zeolite acidity.

The number of medium strength B acid sites (with 31P NMR/TMPO at δ = 62 and 58) increases significantly with increasing RE content, whereas the numbers of strong B acid sites (with 31P NMR/TMPO at δ = 65) and weak L acid sites both decrease.

4. Conclusions

The acidic properties (i.e., types, locations, concentrations, and strengths of acid sites) of REHY zeolite were characterized using solid-state 31P MAS NMR of adsorbed phosphine oxide probe molecules (TMPO and TBPO). In particular, the distributions and concentrations of internal and external acid sites were differentiated using a combination of elemental analysis and 31P MAS NMR of adsorbed phosphorus probe molecules. Five B acid sites and two L acid sites of various acid strengths were identified for Y zeolite. Among these, four of the five B acid sites, with different acid strengths, and one of the L acid sites, which was weak, were found to be internal sites, and one B acid site and one L acid site were associated with external sites. The concentration of internal B acid sites of medium strength increased significantly with increasing RE2O3 content, and that of L acid sites decreased accordingly, when the RE2O3 content was 14% or less. The total number of acid sites on the REHY zeolite, especially the number of L acid sites, decreased with increasing RE2O3 content.
