Green sources of energy are continually being investigated as alternatives to fossil fuels, and among these, biogas, which is derived from the anaerobic digestion of biomass, is interesting from both a financial and environmental point of view. Biogas is a secondary energy carrier that can be manufactured from a range of organic materials resulting in the production of methane that can be cleaned and transported or, as is more commonly the case, used for the generation of on-site energy [1, 2]. The main components of biogas are methane (55%-70% in volume) and carbon dioxide (30%-45% in volume) with ppm levels of other light gases and water [3]. This mixture of CO2 and CH4 makes biogas interesting for the dry reforming of methane (DRM) reaction (CH4 + CO2 ↔ 2CO + 2H2, ΔH0 = 247 kJ mol-1). Producing syngas using this method is considered cost effective [4, 5] relative to the separation of CO2 and the steam reforming of methane. However, there are difficulties in producing commercial catalysts with both high activity and stability and a resistance to carbon accumulation [6]. Many catalysts have been studied to date, and while metals from groups 8, 9, and 10 can be used, Ni is often studied because of a combination of availability and price [7].
Perovskite structures containing Ni and a complex of mixed metallic oxides have been reported for steam reforming, partial oxidation, and dry reforming. It has been shown that perovskite type oxides fulfil the requirements of high metal dispersion and thermal stability [8]. The use of ABO3 perovskite oxides, where the A-site cation is a rare earth and/or alkaline earth, and the B-site cation is a transition metal, has increased recently [9]. A common DRM structure is LaNiO3 where it has been found that the addition of alkali metals or rare earth elements helps to reduce carbon deposition [10, 11] while the dilution of Ni in the metallic particles by a second metal such as Mn, Fe, Cu, or Al helps to prevent sintering[12]. For example, Na0.5La0.5Ni0.3- Al0.7O2.5 is a catalyst that has shown very good performance [13].
While sintering is a common form of deactivation, carbon accumulation cannot be completely avoided and can occur rapidly under certain operating conditions. Given its importance, carbon formation in reactions involving methane has been widely investigated over the past few decades. The degree of coking is dependent on the balance between the formation and the removal of coke; and this is why the term “coke accumulation” is suggested to be more accurate than coke formation [14]. Even after many investigations, all the aspects of carbon formation/accumulation have not been fully explained because of its complexity.
One way to avoid carbon formation during the reforming of hydrocarbons is through the use of a high oxygen mobility co-catalyst such as CeO2 or ZrO2, which helps in the gasification of carbon in the same time frame as its production, i.e., the production of a self-cleaning surface. Such materials have been used successfully in solid oxide fuel cells (SOFCs), and their success in that field suggests that they can also find application in DRM [15].
The materials that are of most interest for DRM are those that are used as electrolytes in the SOFC. The requirements for an efficient electrolyte are high ionic conductivity, low electronic conductivity, stability in both oxidizing and reducing environments, good mechanical properties, and long-term stability. Three systems are widely used for SOFCs, and these are YSZ, strontium- and magnesium-doped lanthanum gallate (LSGM), and gadolinium- or samarium-doped ceria (CGO or CSO). The lowest temperature at which these systems can work depends on a combination of ionic conductivity and the minimum film thickness used in the fuel cell [16].
Oxygen ion electrolytes can be divided into several groups: fluorite-based systems (doped bismuth oxide, zirconia, ceria, pyrochlore); perovskites and related structures (lanthanum gallate, brownmillerities, BiMeVOX); La-MOX and apatites. All these have limitations, and the search for the best system is still ongoing [16].
A recent review by Wang et al. [14] in 2013 discussed SOFCs using methane as a fuel and an anode based on nickel. In this application it was found that the Ni needed to be doped to increase its stability and to reduce carbon deposition. The dopants most commonly used are scandium, YSZ, ceria, perovskites, and even carbon materials [17, 18]. In fact, most of the materials used were very similar to those that have already been used for DRM. Herein, the reduction of coke by the introduction of another metal oxide to the surface of the original catalyst e.g. ceria, zirconia, or YSZ to reduce coking will be demonstrated.
A sol-gel method was used to prepare the mixed oxideNa0.5La0.5Ni0.3Al0.7O2.5 [13]. Initially, precursor solutions were prepared by dissolving the raw materials into previously heated propionic acid. The precursor reagents (La(NO3)3·6H2O, Al(NO3)3·9H2O, Ni(NO3)2·6H2O, and NaNO3) were separately dissolved in the minimum volume of hot propionic acid at atmospheric pressure and 90 °C. All reagents had a purity of > 99% and were supplied by Sigma-Aldrich Ltd. After dissolution, each solution was mixed and stirred at atmospheric pressure and 130 °C for 120 min. The propionic acid was then distilled in a reflux process until the formation of a gel was observed, which was dried at 90 °C overnight and then calcined in a static air atmosphere at 725 °C for 4 h. After calcination, the catalyst was characterized.
A modification of the original perovskite catalysts was performed by adding small amounts of high oxygen mobility compounds. These compounds are summarized in Table 1. All of these were in a stable powder state and were supplied by Beijing Institute of Technology, China.
These compounds were added to the original perovskite type catalyst in different ways to investigate their impact on coke accumulation rates. The first method employed was the impregnation of the perovskite gel obtained before the drying step with the powder of each compound. Here, the gel of the perovskite precursor obtained after stirring the sample at 120 °C was mixed with a powder of CeO2 or ZrO2 or YSZ. The mixture was then allowed to dry and was then calcined in a static air atmosphere at 725 °C for 4 h. The second method blended the overnight dried perovskites gel with the powder of each compound, and the resulting mixture was calcined in a static air atmosphere at 725 °C for 4 h. Another method consisted of ball milling the powder of perovskite, which had previously been calcined at 725 °C and was mixed with a corresponding amount of high oxygen mobility compound in powder form. Post-ball milling, the samples were recalcined at 1200 °C for 4 h. For the ball milling of the samples, a 500 cm3 sintered aluminium oxide grinding jar was used with seven 10 mm diameter sintered alumina grinding balls. Milling was performed in a Retsch PM 100 Planetary Ball Mill at a rotation speed of 150 rpm for 4 h.
Initially, powders of a mixture of CeO2 and ZrO2 with different portions of each oxide were mixed with the Na-perovskites to create a catalyst with higher resistance to carbon formation.
The powders were mixed with the Na-perovskites in two different ways: the first was mixing the powder with the gel of the perovskites before the drying step while the second method was after overnight drying, as explained in Sections 2.1.1 and 2.1.2. The samples were then calcined at 725 °C. These two different methods were used to study the interaction between zirconia and ceria oxide with the perovskite and their effect on DRM.
In this case, four different samples were obtained, and these were tested at three temperatures and at atmospheric pressure for 6 h. Temperature-programmed oxidation (TPO) experiments were performed after each catalytic test to quantify the carbon produced during the experiment. In general, very stable activity in the absence of a pressure drop was observed. The feed flow was adjusted to the amount of perovskite catalyst in each sample.
Table 2 summarises the nomenclature and the ratio of perovskite to the mixture of ZrO2CeO2. Four different catalysts were obtained from the two mixtures of ZrO2CeO2 (48.5% ZrO2 and 80.9% ZrO2). The mixing techniques applied were the mixing of the gel of the perovskite before calcination (GP) or mixing with the dried gel (DGP).
The gel of the perovskite catalyst obtained before the drying step was also blended with SDC, GDC, YDC, and YSZ powders. These mixtures were then allowed to dry and calcined again in a static air atmosphere at 725 °C for 4 h. Other mixtures of CZ2, YSZ, and CZ2 plus starch were mixed with the powder of a previoulsy calcined (725 °C) perovskite and ball milled, as previously described, before a further calcination at 1200 °C for 4 h.
X-ray diffraction (XRD) analysis was carried out using a PANalytical X’pert Pro, which operates at 40 kV and 40 mA using Cu Kα radiation (λ = 0.154 nm). Xpert data viewer software was used in conjunction with the instrument.
Scanning electron microscopy (SEM) analyses were performed using two different instruments. The first one was a Zeiss ultra 55 field emission electron microscope equipped with in-lens secondary electron and backscattered detectors. The accelerating voltage was 20 kV, and an aperture of 30-60 μm was used. The working distance was 7-8 mm. The second system used was a FEI Quanta 250 FEG MKII with a high resolution environmental microscope (ESEM) with XT microscope control software. This was linked to an EDX detector. The EDX was a 10 mm2 SDD Detector-x-act from Oxford Instruments with Aztec® EDS analysis software. The SEM and EDX systems used the same chamber.
N2 adsorption measurements were conducted using a Micromeritics ASAP 2010 system. The sample was placed under vacuum for 3 h to remove adsorbed species such as water, followed by flushing with He for 2 min. The dry sample was then weighed and placed under vacuum to complete the purification process. The sample was then subjected to varying N2 gas pressures at the liquid nitrogen temperature, and the adsorption of N2 at these pressures was recorded to obtain an adsorption isotherm. The specific surface area was measured using the BET equation.
A post reaction TPO was performed using a quadrupole MS Hiden™ HPR-20 operated by MASsoft software. The TPO was conducted from room temperature to a maximum of 800 °C using a heating ramp up of 5 °C min-1. The feed had a total flow of 50 mL min-1 with a ratio of 20% O2/Ar:5% Kr/Ar:He = 2.5:1: 1.5, which is 25 mL min-1 of 20% O2/Ar, and 10 mL min-1 of 5% Kr/Ar (using Kr as an internal standard for the TPO) balanced with He (15 mL min-1).
The dry reforming tests were carried out with a mixture of CH4:CO2:Ne in a ratio of 9.5:9.5:1. This was considered to be a suitable approximation of natural biogas while allowing for an inert gas (Neon) to be used for calibration. A GHSV of 30000 cm3 gcat-1 h-1 and a total flow of 50 mL min-1 were used. The activity tests were carried out under the following conditions: temperatures of 610, 800, and 880 °C at atmospheric pressure. All the gases were supplied by BOC and had a purity greater than 99%.

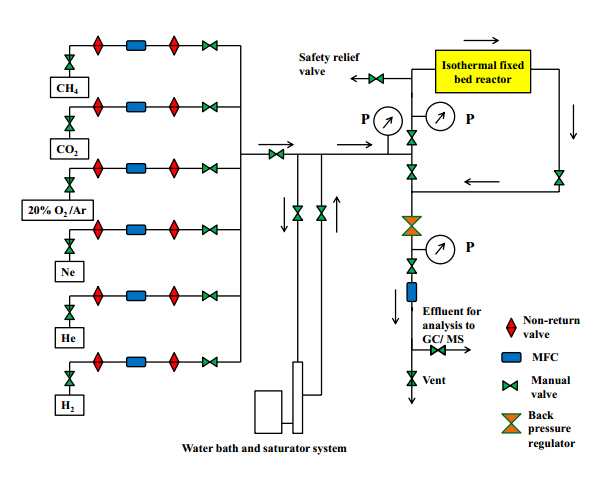

The catalyst bed contained 0.1 g of the catalyst in the form of 250-425 μm diameter pellets. This was placed in the centre of an isothermal fixed-bed reactor made of stainless steel with a ¼ inch outside diameter, and it was secured with quartz wool on both sides to prevent catalyst movement during the reaction. The bed temperature was measured using K-type thermocouples supplied by Omega UK, and these were connected to a PicoLog data acquisition unit. A schematic diagram of the system is shown in Fig. 1. The GC used was a Perkin Elmer Clarus 500 with a Hayesep DB column, and it was equipped with FID and TCD detectors.
The perovskite type catalysts were characterised by XRD, SEM, and TEM. The result of the ICP-OES for Na0.5La0.5Ni0.3- Al0.7O2.5 is shown in Table 3. The metal content of the perovskite catalyst and dopant mixtures were verified using EDX.
BET characterisation of the perovskite catalyst resulted in a surface area of 4.90 m2 g-1, which is typical of these materials [13]. The samples prepared using the other compounds (ceria, zirconia, YSZ, etc.) were of insufficient quantity for this characterisation.

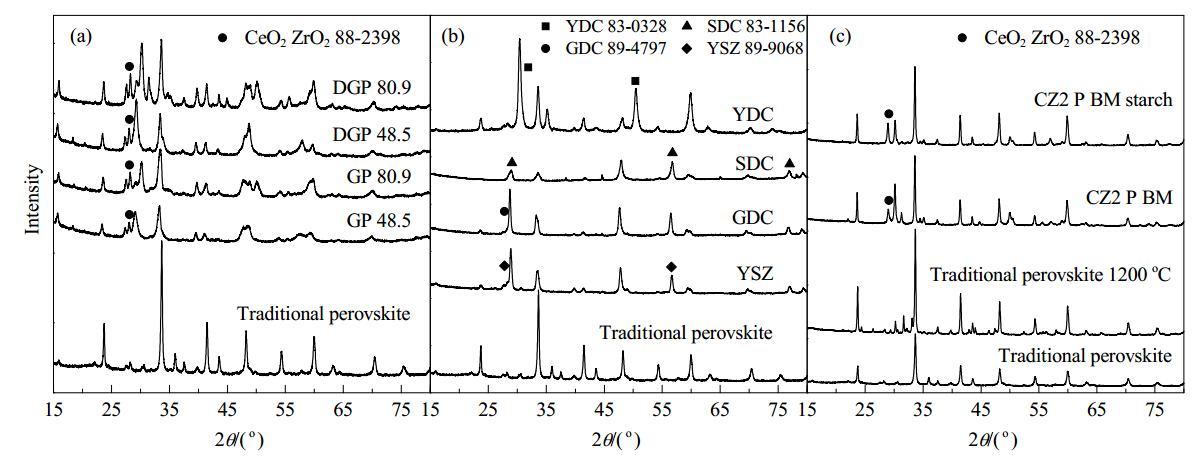

XRD analyses of all the fresh samples were performed (Fig. 2). The same structure was found for all the mixtures calcined at 725 or 1200 °C.
As observed in Fig. 2(a), the addition of CeO2 and ZrO2 resulted in a decrease in the crystallinity of the structure of the perovskites, which is clearly manifested in the main peak of the samples. It is believed that an interaction between the new oxides and the previous oxides caused this change. Apart from the species previously identified in the perovskites, the CeO2 ZrO2 species was mainly found at 29°. The known peaks for the CeO2 and ZrO2 mixture in the pure compound are at 29°, 34°, 49°, 58°, 61°, 71°, and 79° (spectra not shown), but when mixed with the perovskites these were attenuated. Here, the CeO2 and ZrO2 mixture was identified as the 88-2398 type using PCPDFWIN software.
The addition of YSZ and YDC etc. also influenced the crystallinity of the perovskite samples. YDC peaks were identified at 30° and 50°, SDC at 28°, 56°, and 76°, GDC at 28°, and finally YSZ at 28° and 56°, as shown in Fig. 2(b).
The perovskites calcined at 1200 °C gave a similar structure with less crystallinity, as shown in Fig. 2(c). The addition of CeO2 and ZrO2 had the same effect as when the calcination was performed at 725 °C.
XRD patterns of all the used samples revealed similar results to those obtained above. The particle sizes of all the samples were calculated and are summarised in Table 4. It is clear that the particle size of the perovskites increased with temperature although this did not affect the activity and carbon formation was reduced.
The impregnation of the gel seems to give smaller particle sizes (crystallite sizes) than the impregnation of the dried gel except for the SDC mixture (53 nm), which also gave the highest amount of carbon formation (shown later). In general, the mixtures containing CeO2 and ZrO2 produced materials with a particle size around 21 nm while the YSZ, GDC, and YDC mixtures had smaller particles sizes (around 15 nm); however, these had lower stability. No relation was found between particle size and resistance to carbon formation.
It is important to note that the samples prepared do not correspond to a single pure perovskite. It is clear from the XRD pattern that the materials are perovskite type mixed metal oxide structures.

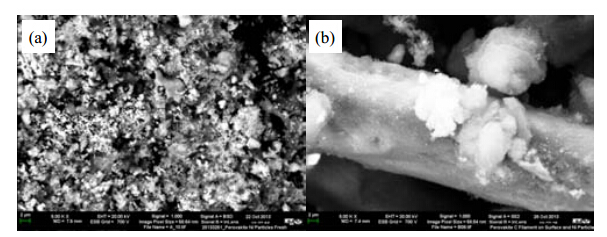

SEM micrographs of Na0.5La0.5Ni0.3Al0.7O2.5 were used to analyse the surface homogeneity of the powdered materials. The analysis results for the two samples, before and after the reaction, revealed the presence of carbon deposits as determined by EDX. A change in the apparent structure of the catalyst occurred, as shown in Fig. 3.
The fresh sample in Fig. 3(a) shows the formation of a porous structure, likely during the calcination step, which comes from the decomposition of nitrates where NO2 is eliminated. This means that the nitrates present in the initial salt are responsible for the generation of a porous structure [13]. The particles in the used sample in Fig. 3(b) show signs of sintering.
Figure 4(a) shows the fresh perovskite structure and this is similar to materials in the literature [13]. As shown in Fig. 4(b) the used perovskites suggest that some sintering has occurred as previously discussed.

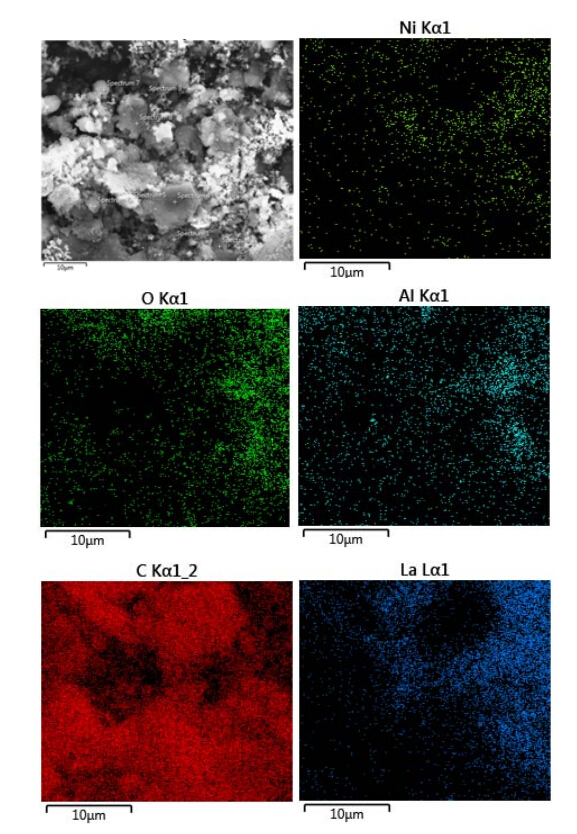

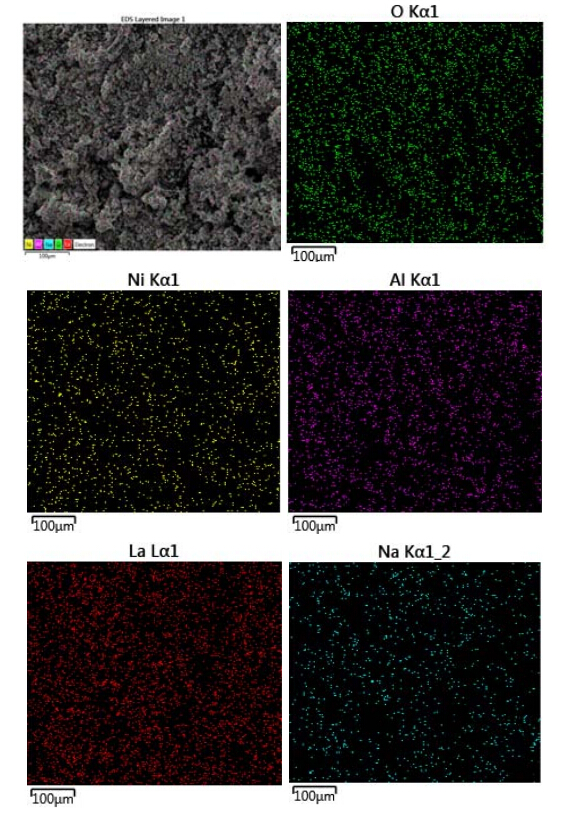

EDX was used to map the fresh and used perovskite sample. The fresh sample (Fig. 5) shows how Ni is well distributed over the whole surface of the analysed sample while in the used perovskite (Fig. 6) agglomerates are observed in addition to carbon formation. The same analysis was performed on samples containing CeO2 and ZrO2 where the distribution of Ce and Zr was not as good as was the case for Ni.

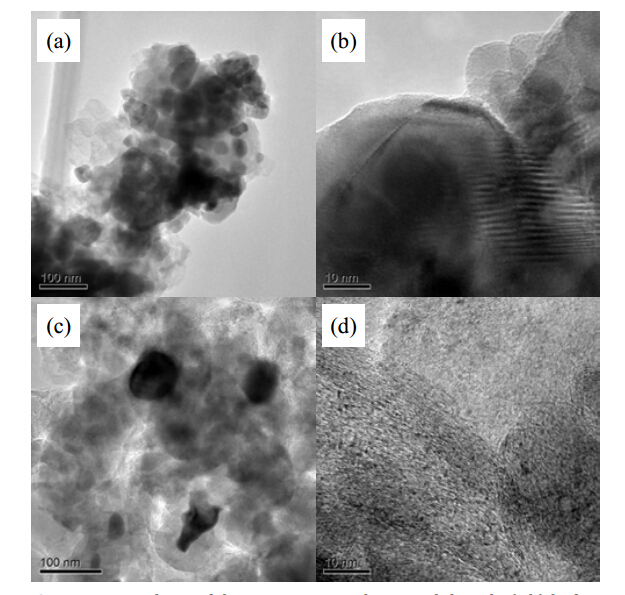

TEM analysis was performed on fresh and used (800 °C reaction) perovskite catalysts. These two samples demonstrate that Ni particles are easily found in the used catalyst.
Figure 7 shows a TEM analysis of the fresh and used samples. The TEM of the fresh sample revealed spherical particles while the used samples seem to be agglomerated showing that even if Ni is present, its ratio is much lower. The absence of La and Al in some cases could mean that after the reaction the surface of the perovskite catalyst was modified. In this case, Ni seems to have migrated to the surface of the catalyst and agglomerated. In Fig. 7(b) lattice fringes were observed in the fresh perovskites and these are separated by 0.75 nm. Here, the fresh catalyst had a range of particle sizes from 30 to 100 nm, as determined by XRD. The used perovskite showed an increase in particle size from 36 nm to more than 100 nm.
The different materials used in the SOFC were used to study the impact on activity in the dry reforming reaction and to determine if these mixtures offered higher resistance to carbon formation.
ZrO2 and CeO2 were selected for mixing with the perovskite because of their oxygen storage/release capacity, which is known to promote the carbon removal mechanisms at the metal support interfacial perimeter [19]. Some authors have reported higher CH4 and CO2 conversions because of the high CO2 adsorption capacity. This is likely responsible for the resistance of the catalyst toward carbon formation [19] although in the particular case of this study, this only occurred at 800 °C. All the results are summarised in Table 5, and these include CH4 and CO2 conversions, the H2/CO ratio, and the rate of carbon formation. Results for the perovskite catalyst without ceria/zirconia are also presented in Table 5 for a comparison of all the catalytic tests.
Commencing with the tests at 610 °C, the best catalyst for this case is GP 80.9, and this is the perovskite with the 80.9 ZrO2 and 15.2 CeO2 mixture made before the gel was dried. In this case, the conversions of CH4 and CO2 were the highest at 24% and 36%, respectively, with a H2/CO ratio of 0.55, and the lowest carbon formation rate was 0.0036 gcarbon gperovsk-1 h-1. None of the catalysts were close to equilibrium conversion (in brackets). In decreasing order, the rates of carbon formation were: GP 80.9 < GP 48.5 < DGP 80.9 < perovskite < DGP 48.5. This shows that at least three of the catalysts prepared improved the resistance to carbon formation when operating at 610 °C and at atmospheric pressure.
Table 5 shows that after the operation at 800 °C all the mixtures had higher CH4 and CO2 conversions and the H2/CO ratio was maintained at close to equilibrium, suggesting less carbon formation. After each TPO, all the samples had higher resistance to carbon formation compared to the standard perovskite catalyst. The rates of carbon formation decreased as follows: DGP 48.5 < GP 80.9 < DGP 80.9 < GP 48.5 < perovskites.
On the other hand, at 880 °C, the standard perovskite catalyst had the highest resistance to carbon formation while all the activities were very similar and close to equilibrium. In this case the rates of carbon formation decreased as follows: perovskites < GP 80.9 < GP 48.5 < DGP 80.9 < DGP 48.5.

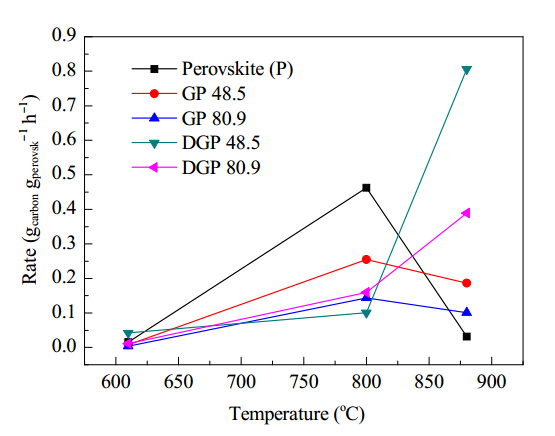

Figure 8 shows the rate of carbon formation for these four samples and the perovskite catalyst for each reaction temperature. The CO2 profiles from the TPO experiments were obtained at similar temperatures to those of the non-doped perovskites. An example is shown in Fig. 9.
The operation at 800 °C, which is the closest to industrial conditions, was undertaken under optimum test conditions, and we found that ceria and zirconia improved the carbon resistance.
The addition of CeO2 has also been reported to prevent metal sintering because of strong metal support interactions and an improvement in the thermal stability of the catalyst [20] at 800 °C. The oxygen reservoir of CeO2 is believed to originate from the metal-ceria interaction because of the Ce4+/Ce3+ redox couple and because of metal electronic effects [20].
On the other hand, the addition of ZrO2 has resulted in an improvement of the resistance to carbon formation for Ni catalysts [21]. It is thus likely that Ni was not deposited directly onto the support but close to the ZrO2, which enhances CO2 dissociation and causes the gasification of the coke deposits because of the oxygen intermediates that form close to the contact between Ni and ZrO2.
We found that the technique of mixing the gel of perovskite before the drying step produced a more stable catalyst over a wider range of temperatures where GP 80.9 was most suitable for operation at 800 °C.
Tests at 800 °C and at atmospheric pressure still resulted in carbon formation and, therefore, alternative materials were mixed with the perovskites to study their effect. The materials used as electrolytes for the SOFC were evaluated. All of these were mixed with the perovskite gel before drying, and they were then dried and calcined at 725 °C. The materials used were YSZ, YDC, GDC, and SDC, and details and results are summarised in Table 6. The standard perovskites-type catalyst is also listed in the table for comparison.
In this case none of the samples improved the resistance of the perovskites to carbon formation. Only YSZ gave a similar resistance. Additionally, all the samples had slightly higher activity than the perovskites but this does not explain the higher coking rates.
There was a pressure drop (0.25 bar) only for the YDC perovskite sample and it did not give a higher amount of carbon after the TPO. This is related to the different types of carbon produced by the activity test. Figure 9 shows the TPO profiles of the experiments performed after the activity tests at 800 °C. The TPOs of the four samples are shown and compared with the standard catalyst. As shown in Fig. 9, both peaks appear at the same temperature for all cases. There is no difference among the four doped perovskites and the standard catalyst. Looking at the CO2 profile the first peak evolved around 530 °C and the second at 730 °C, corresponding to the graphitic carbons, Cβ and Cγ. It is generally accepted that hydrocarbons, which include methane, dissociate to produce monoatomic carbon (Cα) that can be further gasified to produce CO by an oxidation reaction. Upon the excessive formation of Cα it can polymerise to Cβ, which is less reactive. This carbon, Cβ, tends to accumulate on the surface or dissolve into the bulk of active catalyst particles [14, 22].
Literature contains many examples of the application of these types of materials to reforming. According to Jacobson[16] each type offers advantages and disadvantages. For YSZ, the electrical requirements at high temperature are met, and they have good mechanical properties at high temperatures. Problems occur because of reactivity with perovskite oxide electrodes that contain lanthanum, which results in La2Zr2O7 resistive layers at high temperature. Other materials such as LSGM have higher ionic conductivity than YSZ and have shown higher compatibility with lanthanum transition metal oxides perovskite cathodes. On the other hand, the electrolytes on the anode side composed of LSGM-NiO are less compatible than the Ni-YSZ combination because of the higher reactivity of NiO than Ni-YSZ with YSZ [15].
Because of the small improvement when using YSZ and several mixtures of ceria and zirconia, the best catalysts from the CZ2 and YSZ tests were mixed with the perovskites and calcined at 1200 °C. Table 7 summarises the catalytic results at several temperatures and the carbon obtained in the post reaction TPO experiments. The sample consisting of perovskite mixed with YSZ was only evaluated at 800 °C, which was the most interesting case as it is closer to industrial conditions.
At 600 °C the activity was very low while at high temperature the catalysts gave very stable performance, giving similar activity results although the YSZ mixture gave a slightly higher conversion and also higher carbon formation. Of all the samples, the best activity/carbon formation at 600 °C was obtained for the CZ2 mixture while at 800 °C the perovskite and CZ2 gave similar activity, which was slightly lower for the perovskite but this also resulted in more resistance to carbon formation. At 880 °C the CZ2 mixture was also much better. All the activities were very close to equilibrium. A pressure drop was only found for the starch sample tested at 800 °C (1.2 bar) and with YSZ at a pressure of 1 bar.

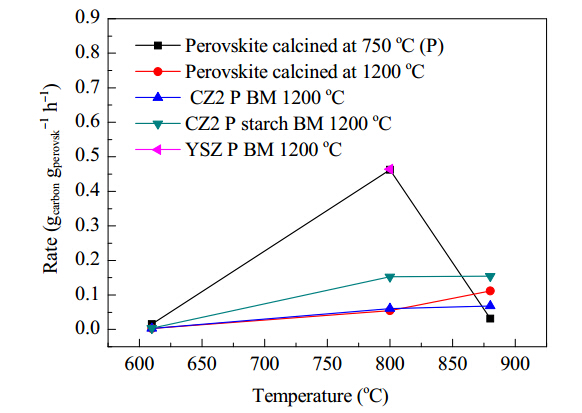

Figure 10 shows the carbon formation rate for the samples calcined at 1200 °C, and these were evaluated at several temperatures under DRM conditions.

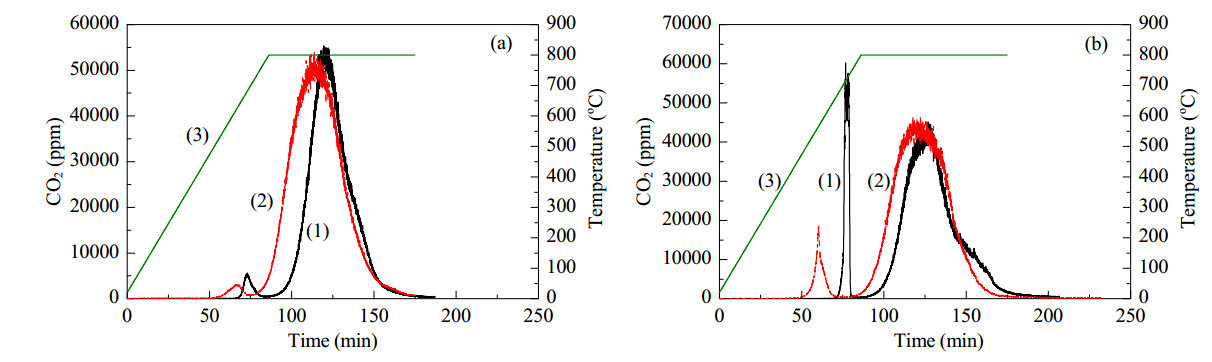

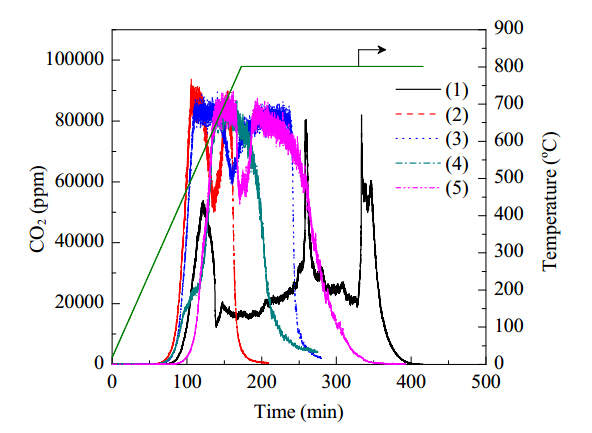

To determine the origin of the carbon in the dry reforming system several experiments were performed with the best O2 mobility material CZ2 (80.9 ZrO2 15.2 CeO2) and one that did not perform very well, YSZ.
These experiments were performed under pure CH4 or CO and were followed by TPO. This was done to determine if the carbon came from methane thermolysis or from CO disproportionation. Under CO the reaction responsible for carbon accumulation should be CO disproportionation (or the Boudouard reaction) while with a CH4 feed, the carbon should come from CH4 thermolysis. The results obtained are shown in Table 8 and in Fig. 11. YSZ produced more carbon from CO. For the 80.9 ZrO2 15.2 CeO2 sample the amount of carbon formed from CO was lower than that for YSZ. It was also higher than the carbon from CH4 for YSZ.
As the carbon from CH4 for 80.9 ZrO2 15.2 CeO2 was still lower than the carbon from CO for YSZ, it can be concluded that YSZ is more prone to producing carbon than 80.9 ZrO2 15.2 CeO2 and that the CO disproportionation reaction is mainly responsible.
Shamsi et al. [23] studied carbon formation over several different catalysts at low and high pressure. They found that when working at atmospheric pressure, for all the samples, the source of carbon was CO2 and when the pressure of the experiment was increased to 14 bar, both CH4 and CO2 contributed almost equally to carbon formation. In their study they found that a Rh-doped catalyst was most resistant to carbon deposition while a Ni catalyst was more prone to coking.
The Na0.5La0.5Ni0.3Al0.7O2.5 perovskite catalyst was evaluated at 610-880 °C. The variation in temperature was found to strongly influence carbon formation. The catalyst gave the highest rate of carbon formation at 800 °C and at atmospheric pressure, and this was suppressed when working at 880 °C because of the reverse Boudouard reaction. The types of carbon formed in the samples could only be completely removed in TPO experiments when operating at high temperatures, and this demonstrates the graphitic nature of the deposition.
The addition of several O2 mobility particles was performed using a range of preparation techniques. This study clearly shows that CeO2 and ZrO2 have the ability to decrease carbon formation without impacting the activity of the catalyst in the dry reforming reaction. All samples had higher resistance to carbon formation compared to the standard perovskite catalyst. The catalyst GP 80.9 (i.e., the sample prepared by mixing the perovskite gel before drying with a powder consisting of 80.9 ZrO2 15.2 CeO2) gave the lowest carbon formation at 800 °C. DGP 48.5 also resulted in lower carbon formation at 800 °C, but at 880 °C it accelerated the laydown relative to the non-doped catalyst. At 880 °C, the perovskite without a modifier provided the best resistance to carbon formation followed by GP 80.9.
Other mixtures with YSZ, YDC, GDC, and SDC were also used but with no significant improvements found. It is suggested that problems can originate from the reactivity of the perovskite, mainly the La compound, with the doping elements producing resistive layers. Further studies at higher calcination temperatures for the 80.9 ZrO2 15.2 CeO2 mixtures did not show a clear improvement.
Overall, a carbon formation study of perovskite catalysts was undertaken using different dopants and preparation techniques. This work further demonstrates the complexity of carbon formation reactions in the DRM and the design of self-cleaning surfaces to operate under conditions that would normally result in rapid coke accumulation.
The authors would like to thank the EPSRC for funding the work.
