¹⁸O isotopic study of photo-induced formation of peroxide species on cubic Nd₂O₃

Xiaolian Jing, Wenyu She, Weizheng Weng , Jianmei Li, Wensheng Xia, Huilin Wan

State Key Laboratory of Physical Chemistry of Solid Surfaces, National Engineering Laboratory for Green Chemical Productions of Alcohols, Ethers and Esters and Department of Chemistry, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen 361005, Fujian, China

Received: 2014-3-28. Accepted: 2014-5-14. Published: 20 August 2014.

* Corresponding author. Tel/Fax: +86-592-2185192; E-mail: wzweng@xmu.edu.cn
Tel: +86-592-2186569; Fax: +86-592-2185192; E-mail: hlwan@xmu.edu.cn

Foundation Item:This work was supported by the National Basic Research Program of China (973 Program, 2010CB732303), the National Natural Science Foundation of China (21173173, 21033006, 21373169), and the Program for Changjiang Scholars and Innovative Research Team in University (IRT1036).

Abstract: Photo-induced formation of peroxide species on cubic Nd₂O₃ was studied by in situ microprobe Raman spectroscopy using ¹⁸O as a tracer and a 325-nm laser as an excitation source. The results confirmed that the peroxide ions were formed through photooxidation of the lattice oxygen species in neodymium sesquioxide by molecular oxygen species. Under UV excitation (λ = 325 nm), the reaction between O₂ and O^2- could take place at room temperature. A fast oxygen exchange between the peroxide ions and the lattice oxygen species in Nd₂O₃ took place under the experimental conditions studied. Also, bulk lattice oxygen species in Nd₂O₃ could migrate to the surface layer and participate in the formation of peroxide ions. The migration of lattice oxygen species and the oxygen exchange between lattice oxygen and peroxide ions were promoted by UV laser irradiation.

Key words: Oxygen activation Peroxide Neodymium sesquioxide Photo-induced reaction ¹⁸O isotopic study Raman spectroscopy

1. Introduction

Owing to their excellent electronic characteristics and chemical and thermal stabilities, lanthanide oxides have been widely used as catalysts in the catalytic oxidation of light alkanes such as oxidative coupling of methane and oxidative dehydrogenation of ethane ^{[1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12]}. Understanding the role of activated forms of oxygen species and pathways of O₂ activation on the lanthanide oxides is therefore of fundamental importance to the above-mentioned reactions ^{[13, 14, 15, 16, 17, 18, 19]}. Our study of Ln₂O₃ (Ln = La, Nd, Sm, Gd) under O₂ by microprobe laser Raman spectroscopy revealed that laser excitation could induce the formation of peroxide species on the Ln₂O₃ surface ^{[20, 21]}. Thus, a new pathway towards molecular oxygen activation under mild conditions was discovered that presents potential application in photocatalytic reactions. Additionally, the study provided new insights in the mechanism of O₂ activation on the surface of metal oxides with stable cationic valence. In continuation of the previous research, here we examine the formation of peroxide on cubic Nd₂O₃ using ¹⁸O as tracer, aiming at further understanding the mechanisms of the photo-induced formation of peroxide ions on lanthanide sesquioxides with stable cationic valence.

2. Experimental

2.1. Sample preparation

Cubic Nd₂O₃ was prepared from Nd(OH)₃ according to reported procedures ^{[22, 23]}. First, commercial Nd₂O₃ (99.99%, Alfa Aesar) was treated at 100 °C for 100 h with a 21% O₂/N₂ flow containing water vapor (by bubbling 21% O₂/N₂ through H₂O at room temperature) to form Nd(OH)₃. Then, Nd(OH)₃ was heated at 650 °C in a flow of 21% O₂/N₂ (50 mL/min) for 3 h to produce Nd₂O₃.

2.2. Sample characterization

The crystalline structure of the sample was confirmed by X-ray powder diffraction (XRD) analysis to be cubic Nd₂O₃ (Fig. 1). The experiment was carried out on a PANalytical X’pert PRO diffractometer using Cu K_α radiation, operating at 40 kV and 30 mA. The Brunauer-Emmett-Teller (BET) surface area of Nd₂O₃ is 6.9 m²/g as measured by N₂ adsorption-desorption analysis at -196 °C on a Micromeritics TriStar II 3020. Before the measurement, the sample was degassed at 200 °C for 3 h. The scanning electron microscopy (SEM) image of the sample (Fig. 2) was obtained on a Hitachi S-4800 scanning electron microscope operating at an accelerating voltage of 15 kV. Sample preparation consists of depositing a drop of Nd₂O₃/ethanol suspension on a clean silicon substrate.

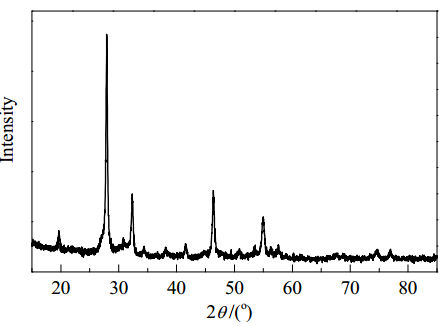

Fig. 1. XRD pattern of the prepared cubic Nd₂O₃.

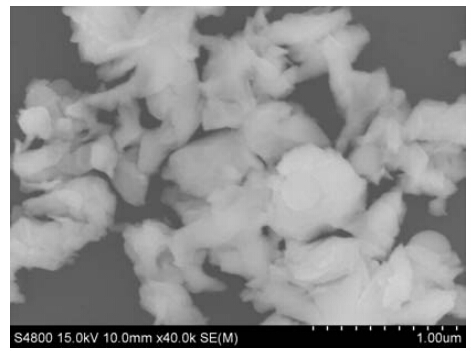

Fig. 2. SEM image of the prepared cubic Nd₂O₃.

2.3. Raman spectroscopy characterization

Raman spectra were recorded on a Renishaw R1000 microprobe Raman spectrometer equipped with a charge-coupled device (CCD) detector using a 325-nm He-Cd laser as the excitation source and an in-house-built high-temperature in situ Raman cell specifically designed for the spectrometer. A diagram of the Raman cell is available elsewhere ^[24]. The microscope attachment for the spectrometer was based on a Leica DMLM system equipped with an OFR LMU-15×-NUV objective. The spectra acquisition time was varied according to the different experiments; an acquisition time of 50 s was typically used. The laser spot on the sample was about 3 μm in diameter, and the spectral resolution was ~6 cm¹. The maximum laser power of the spectrometer measured at the analysis spots was about 3 mW. However, a laser power of 0.75 mW was used in most experiments.

For the experiments performed on cubic Nd₂¹⁶O₃, the sample was first heated under flowing ¹⁶O₂ (50 mL/min, 99.995%, Linde) at 650 °C for 180-360 min to remove carbonate species and moisture. The treated Nd₂¹⁶O₃ was then cooled in the dark to 25 °C under ¹⁶O₂ before it was exposed to a focused 325-nm laser beam from the Raman spectrometer to induce formation of peroxide ions, and the resulting spectra were recorded under either ¹⁸O₂ or ¹⁶O₂ atmosphere.

The ¹⁸O-labeled Nd₂O₃ was obtained by treating cubic Nd₂¹⁶O₃ with a flow of ¹⁸O₂ (5 mL/min, 97%, CIL) at 650 °C for 6 h. The sample was then cooled in the dark under ¹⁸O₂ to 25 °C. The treated sample (¹⁸O-labeled Nd₂O₃) was then exposed to a focused 325-nm laser beam to induce formation of peroxide ions, and the resulting spectra were recorded under ¹⁸O₂ atmosphere.

3. Results and discussion

3.1. Photo-induced formation of peroxide species on Nd₂¹⁶O₃ under ¹⁶O₂ and ¹⁸O₂ atmospheres

Fig. 3(a) shows the changes in the Raman spectra when cubic Nd₂¹⁶O₃ was irradiated at varying times under ¹⁶O₂ atmosphere with a focused 325-nm laser beam at 25 °C. As observed, the Raman band at 833 cm¹, which represents the O-O stretching mode (ν_O-O) of the ¹⁶O₂² peroxide species [20,21, 25-27], began to grow at the expense of the Nd³⁺-¹⁶O^2- band at 331 cm¹. Following irradiation with the laser at 25 °C for more than 60 min, the Raman spectrum of the sample was recorded in the frequency range of 1300-1800 cm¹ and shown in Fig. 3(b). Two bands at 1554 and 1646 cm¹ could be clearly identified. The broad band at 1646 cm¹ could be assigned to the overtone of the O-O stretching vibration of the ¹⁶O₂² peroxide species because its wavenumber was almost twice that of the band at 833 cm¹. The narrow band at 1554 cm¹ could be assigned to molecular oxygen species; the O-O stretching vibration of the gas phase ¹⁶O₂ molecule could be observed at a comparable wavenumber (Fig. 4). Considering that the wavenumber of the molecular oxygen band in Fig. 3(b) shifts by ~2 cm¹ towards lower frequencies when compared with that of the gas phase ¹⁶O₂, the band at 1554 cm¹ can be attributed to a ¹⁶O₂ species adsorbed on the surface of Nd₂O₃. This band may be due to the decomposition of the peroxide species. Further evidence of the origin of the 1554 cm¹ Raman band is presented in Section 3.2.

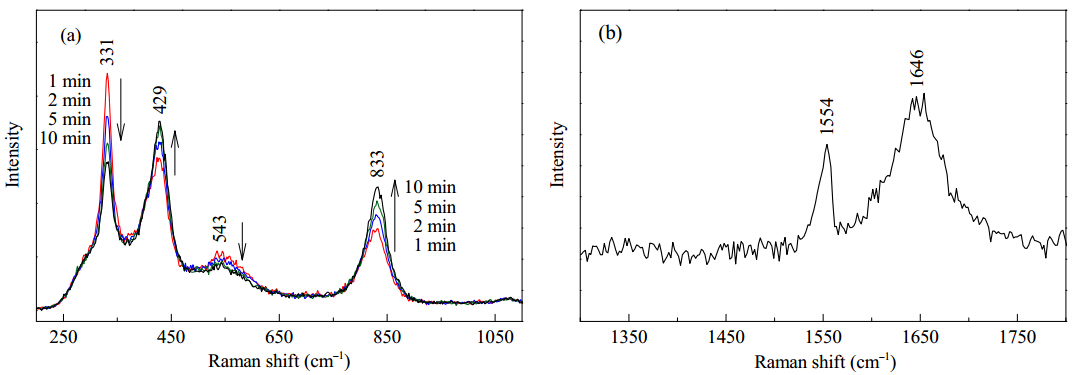

Fig. 3. (a) In situ Raman spectra of cubic Nd₂¹⁶O₃ irradiated at varying times with a focused 325-nm laser beam under ¹⁶O₂ at 25 °C. (b) Raman spectrum (frequency range of 1300-1800 cm¹) of cubic Nd₂¹⁶O₃ following irradiation with a 325-nm laser under ¹⁶O₂ at 25 °C for more than 60 min. The laser power used to induce formation of the peroxide species was 0.75 mW.

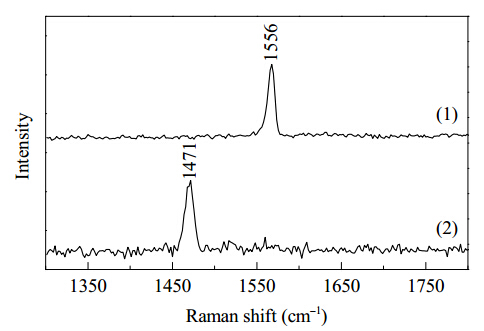

Fig. 4. Raman spectra of gas phase ¹⁶O₂ (1) and ¹⁸O₂ (2) recorded with a 325-nm laser at 25 °C.

Fig. 5(a) shows the changes in the Raman spectra of cubic Nd₂¹⁶O₃ under ¹⁸O₂ upon continuous irradiation with a focused 325-nm laser beam at 25 °C. The spectra are very similar to those shown in Fig. 3(a). The onset of a peroxide Raman band corresponding to ¹⁶O₂² was observed at the expense of the Nd³⁺-¹⁶O² stretching band at 335 cm¹. This observation clearly indicates that lattice oxygen (¹⁶O²) species in Nd₂O₃ are involved in the formation of peroxide ions. Fig. 5(b) shows the Raman spectrum in the frequency range of 1300-1800 cm¹ of the Nd₂¹⁶O₃ sample following irradiation with a 325-nm laser beam at 25 °C under ¹⁸O₂ for more than 30 min. In addition to the O-O stretching vibration of the ¹⁶O₂ molecule at 1554 cm¹ and the overtone of the O-O stretching vibration of the ¹⁶O₂² peroxide ions at ~1640 cm¹, a new band at 1471 cm¹ corresponding to the O-O stretching vibration of gas phase ¹⁸O₂ (Fig. 4) was observed. Considering that ¹⁸O₂ is the major component (isotope purity >97%) in the gas phase, and that the Raman peak intensity of ¹⁶O₂ in Fig. 5(b) is much higher than that of the gas phase ¹⁸O₂, the peak at 1554 cm¹ can be rationally assigned to surface ¹⁶O₂ species. Because the 1554 cm¹ band could only be detected after the formation of peroxide species, its appearance was attributed to the decomposition of the ¹⁶O₂² peroxide ions, probably through a photo- decomposition reaction induced by irradiation with the 325-nm laser. Decomposition of Nd₂O₂(O₂) was reportedly observed following long exposure with a 488-nm Ar⁺ laser ^[28].

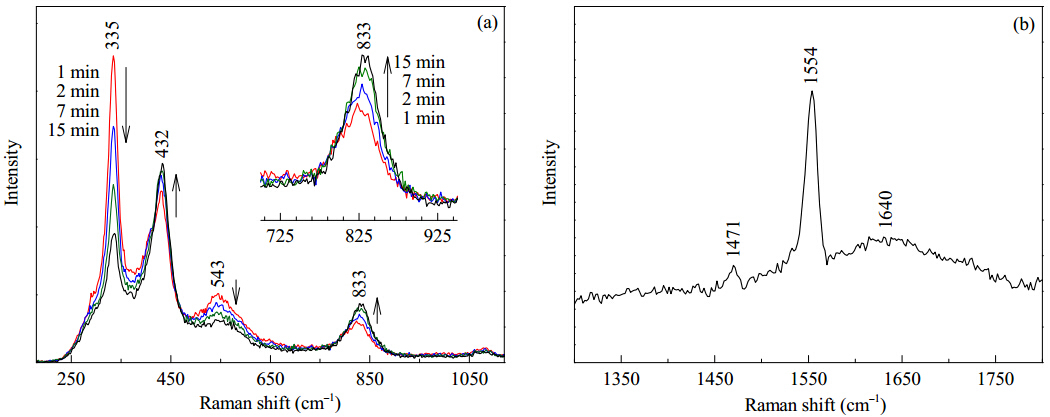

Fig. 5. (a) In situ Raman spectra of cubic Nd₂¹⁶O₃ irradiated at varying times with a focused 325-nm laser beam under ¹⁸O₂ at 25 °C. (b) Raman spectrum (frequency range of 1300-1800 cm¹) of cubic Nd₂¹⁶O₃ following irradiation with a 325-nm laser under ¹⁸O₂ at 25 °C for more than 30 min. The laser power used to induce formation of the peroxide species was 0.75 mW.

As suggested in the previous studies ^{[20, 21]}, the peroxide ions on lanthanide sesquioxides are generated by a photo-induced oxidation of lattice oxygen species by molecular oxygen because molecular oxygen species are always required in the formation of peroxide ions. Thus, for a reaction using ¹⁸O₂ and ¹⁶O² as reactants, the peroxide ions should be labeled with ¹⁸O atoms. However, in the Raman spectra shown in Fig. 5(a), only the peroxide ions containing ¹⁶O atoms were detected. This phenomenon may have resulted from a fast oxygen isotope exchange between lattice oxygen and the peroxide species under the experimental conditions studied. Because ¹⁶O² ions are the most abundant isotope oxygen species on the Nd₂O₃ surface, a fast isotope exchange between ¹⁶O² and ¹⁸O-labeled peroxide ions will lead to the formation of ¹⁶O₂² on the Nd₂O₃ surface. Owing to the fast isotope exchange between lattice oxygen and surface dioxygen (peroxide and molecular oxygen) species, the isotope oxygen atoms in the peroxide ions (833 cm¹) were identical to the isotope oxygen atoms in the surface molecular oxygen species (1554 cm¹), resulting from the decomposition of the peroxide ions. This is also evidenced by the absence of Raman bands corresponding to molecular oxygen species with mixed isotope oxygen atoms (¹⁸O¹⁶O) (Fig. 5(b)). These results suggest that the Raman signals of the isotope-labeled surface molecular oxygen species can be used to identify the isotope-labeled peroxide ions formed on the surface of Nd₂O₃ using ¹⁸O as a tracer. The advantage of using Raman peaks corresponding to surface molecular oxygen species towards the identification of isotope-labeled peroxide ions is that the Raman peaks associated with surface molecular oxygen species are significantly narrower than that associated with peroxide ions. Hence, a better resolution can be achieved.

3.2. Photo-induced formation of peroxide species on ¹⁸O-labeled Nd₂O₃ under ¹⁸O₂

To gain further insights into the mechanisms of the photo-induced formation of peroxide ions on Nd₂O₃, the experiments were performed with cubic Nd₂O₃ partially labeled with ¹⁸O. The sample was prepared by treating cubic Nd₂¹⁶O₃ with a flow of ¹⁸O₂ at 650 °C for 6 h followed by cooling under ¹⁸O₂ to 25 °C. After the treatment, the characteristic metal-oxygen vibration band of neodymium sesquioxide shifted from 336 to 320 cm¹. The position of the latter band is comparable with the band position of Nd³⁺-¹⁸O² (319 cm¹), as calculated based on the wavenumber of Nd³⁺¹⁶O² at 336 cm¹ by assuming a simple harmonic oscillator model. This result also indicates that almost all of the ¹⁶O² atoms on the surface of Nd₂O₃ microcrystal (at least those within the detection depth of the Raman spectrometer) are replaced by ¹⁸O². Fig. 6(a) shows the changes in the Raman spectra of an ¹⁸O-labeled Nd₂O₃ sample upon irradiation at varying times with a focused 325-nm laser beam under ¹⁸O₂ at 25 °C. The spectrum recorded after 1 min irradiation revealed a band with maximum at 789 cm¹. With increasing photo irradiation time, a shoulder band at 811 cm¹ appeared. This band became noticeable after the sample was irradiated for 15 min. Following irradiation of the ¹⁸O-labeled Nd₂O₃ sample under ¹⁸O₂ with a 325-nm laser for more than 30 min, the Raman spectrum of the sample was recorded in the frequency range of 1300-1800 cm¹, and the result is shown in Fig. 6(b). Three sharp peaks at 1468, 1510, and 1554 cm¹ were observed. A simple calculation based on the diatomic harmonic oscillator model using the ν_O-O band of a ¹⁶O₂² peroxide ion at 833 cm¹ gave band positions at 786 and 810 cm¹ for the ¹⁸O₂² and (¹⁸O¹⁶O)² peroxide ions, respectively. Similarly, the calculation using the ν_O-O band of a ¹⁶O₂molecule at 1556 cm¹ gave band positions at 1467 and 1512 cm¹ for ¹⁸O₂ and ¹⁸O¹⁶O, respectively. As observed, the calculated band positions for the ¹⁸O-labeled peroxide ions and molecular oxygen species are in good agreement with the experimental results shown in Fig. 6. Because the experiment was performed under flowing ¹⁸O₂ with isotope purity higher than 97%, the 1510 and 1554 cm¹ peaks observed in Fig. 6(b) can be solely attributed to molecular oxygen species (¹⁸O¹⁶O and ¹⁶O₂) on the surface of the ¹⁸O-labeled Nd₂O₃ sample. Considering that the intensity ratio of the ¹⁸O₂ and ¹⁶O₂ peaks in Fig. 6(b) is much higher than that in Fig. 5(b), and that the wavenumber of the ¹⁸O₂ peak in Fig. 6(b) shifts by ~3 cm¹ towards lower frequencies when compared with that of the gas phase ¹⁸O₂ (Fig. 4), the peak at 1468 cm¹ can also be rationally assigned to surface ¹⁸O₂ species. Based on the results and the analysis given in Section 3.1, it can be concluded that three isotope-labeled peroxide ions (i.e., ¹⁸O₂², (¹⁸O¹⁶O)², and ¹⁶O₂²) are formed under the experimental conditions studied. Because the experiment was performed under ¹⁸O₂ atmosphere, the ¹⁶O atoms detected in the peroxide ions and molecular oxygen species can only originate from the ¹⁸O-labeled Nd₂O₃ prepared by treating Nd₂¹⁶O₃ with ¹⁸O₂. The observed Raman bands corresponding to ¹⁶O-labeled peroxide ions (at 811 cm¹) and surface molecular oxygen species (at 1510 and 1554 cm¹) provided further evidence of the involvement of lattice oxygen species in the formation of peroxide ions. These results also indicated that even though the Nd₂¹⁶O₃ sample was treated with ¹⁸O₂ at 650 °C for 6 h, lattice oxygen species in the bulk phase of Nd₂O₃ microcrystals were not fully replaced by ¹⁸O².

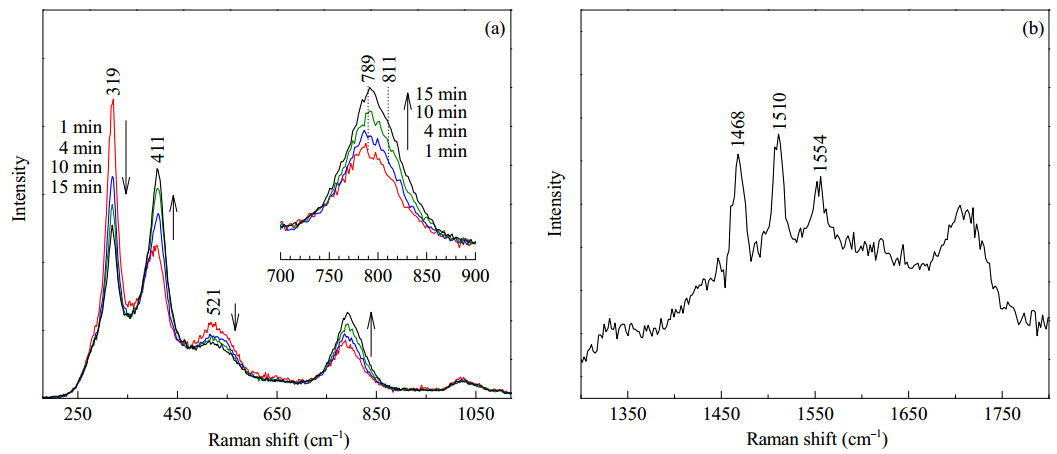

Fig. 6. (a) In situ Raman spectra of ¹⁸O-labeled cubic Nd₂O₃ irradiated at varying times with a focused 325-nm laser beam under ¹⁸O₂ at 25 °C. (b) Raman spectrum (frequency range of 1300-1800 cm¹) of the ¹⁸O-labeled cubic Nd₂O₃ sample following irradiation with a 325-nm laser under ¹⁸O₂ at 25 °C for more than 30 min. The laser power used to induce formation of the peroxide species was 0.75 mW.

Based on the changes in the Raman spectra shown in Fig. 6, it can be deduced that molecular ¹⁸O₂ first reacts with the ¹⁸O² species on the surface of the ¹⁸O-labeled Nd₂O₃ microcrystals because most of the surface lattice oxygen species have been replaced by ¹⁸O², leading to the formation of ¹⁸O₂² peroxide ions (789 cm¹). With increasing laser irradiation time, the ¹⁶O² species in the bulk phase also participated in the formation of peroxide ions, as evidenced by the presence of (¹⁸O¹⁶O)² peroxide ion (811 cm¹), and ¹⁸O¹⁶O (1510 cm¹) and ¹⁶O₂ (1554 cm¹) molecular oxygen species on the surface of the sample. The (¹⁸O¹⁶O)² peroxide ions could have resulted from either the migration of the ¹⁶O² species from the bulk phase of the ¹⁸O-labeled Nd₂O₃ microcrystals to the surface layer followed by isotope exchange with the ¹⁸O₂² peroxide ions or direct photo-induced reaction between ¹⁶O² and ¹⁸O₂. The (¹⁸O¹⁶O)² peroxide ions can then transform to ¹⁶O₂² through isotopic exchange with ¹⁶O². The migration of lattice ¹⁶O² species from bulk to surface layer and the isotope exchange between ¹⁶O² and ¹⁸O₂² could be induced (or promoted) by the UV (λ = 325 nm) laser irradiation. To obtain experimental evidence, the effect of photo irradiation power on the formation of peroxide ions was studied. The experiments were performed by irradiating an ¹⁸O-labeled cubic Nd₂O₃ sample under ¹⁸O₂ with laser powers of 0.3 and 3 mW at 25 °C. As shown in Fig. 7(a), the Raman spectra obtained with a laser power of 0.3 mW only revealed a peroxide band, corresponding to ¹⁸O₂² (790 cm¹), within 14 min of photo irradiation, indicating that only the lattice oxygen species from the surface layer of the sample (¹⁸O²) participated in the reaction with ¹⁸O₂. This observation further indicates that migration of ¹⁶O² from the bulk phase to the surface layer and the isotope exchange between ¹⁶O² and ¹⁸O₂² can be neglected under the experimental conditions studied.However, when the laser power was raised to 3 mW (Fig. 7(b)), the band width of the peroxide Raman peak increased, and both the Raman bands corresponding to ¹⁸O₂² (790 cm¹) and (¹⁸O¹⁶O)² (811 cm¹) peroxide ions could be identified after the sample was irradiated for 5-20 min. This result clearly indicates that UV laser irradiation has an impact on the migration of lattice oxygen species and the oxygen exchange between lattice oxygen and peroxide ions. The photo-induced isotopic exchange between ¹⁸O₂ and lattice oxygen on TiO₂ at room temperature was previously reported in the literature ^{[29, 30]}.

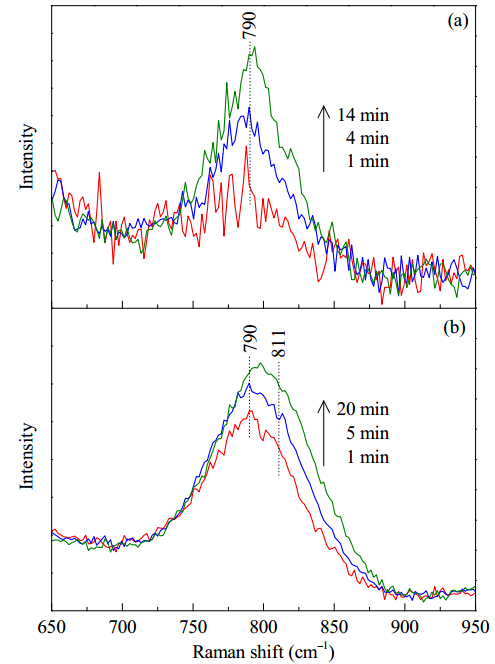

Fig. 7. Peroxide Raman bands formed upon irradiation of ¹⁸O-labeled cubic Nd₂O₃ with a focused 325-nm laser beam, operating at a power of 0.3 (a) and 3 mW (b) under ¹⁸O₂ at 25 °C.

4. Conclusions

Molecular oxygen can be transformed to peroxide ions by a photo-induced reaction with lattice oxygen species of neodymium sesquioxide. Under UV excitation (λ = 325 nm), the reaction between O₂ and O² can take place at room temperature. The experimental studies involving ¹⁸O as tracer indicated that fast oxygen exchange between peroxide ions and lattice oxygen species in Nd₂O₃ took place under the conditions studied, and that bulk lattice oxygen species in Nd₂O₃ could migrate to the surface layer and participate in the formation of peroxide species. The migration of lattice oxygen species and the oxygen exchange between lattice oxygen and peroxide ions were promoted by UV laser irradiation.
