PVP-NiB amorphous catalyst for selective hydrogenation of phenol and its derivatives
Qinsheng Zhanga, Haifeng Lia, Ping Gaob , Lailai Wanga
a State Key Laboratory for Oxo Synthesis and Selective Oxidation, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, Gansu, China;
b State Key Laboratory of Solid Lubrication, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, Gansu, China
Received: 2014-6-25. Accepted: 2014-7-24. Published: 2014-11-20.
* Corresponding author. Tel: +86‐931‐4968161; Fax: +86‐931‐4968129; E-mail: wll@licp.cas.cn
Tel: +86‐931‐4968177; Fax: +86‐931‐4968163; E-mail: gaoping@licp.cas.cn
Foundation Item: This work was supported by the National Natural Science Foundation of China (21174115) and the Youth Foundation of Gansu Province (1308RJYA036).
Abstract: PVP-NiB amorphous catalysts were prepared by the chemical reduction of nickel chloride with sodium borohydride, and characterized by infrared, X-ray diffraction, transmission election microscopy, and inductively coupled plasma. The relationship between the catalytic activity and nature of the active sites was discussed. PVP is a protective agent for preparing PVP-stabilized NiB catalysts, which improved the dispersion of the catalyst and stabilized its amorphous structure. The catalysis of phenol and its derivatives was evaluated in the aqueous phase. 99.9% conversion of phenol and 99.9% selectivity to cyclohexanol were obtained at 30 ℃ and 0.2 MPa H2 after 18 h over PVP-NiB. The generality of the PVP-NiB catalyst for this reaction was demonstrated by the selective hydrogenation of other phenol derivatives, which showed that the PVP-NiB catalyst was selective for the formation of cyclohexanol.
© 2014, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Nickel     Phenol     Catalytic hydrogenation     Amorphous catalyst

Phenol is a byproduct of the petrochemical industry and can cause much damage to the environment. The hydrogenation of phenol is of commercial and environmental significance because the cyclohexanone and cyclohexanol produced are the intermediates for caprolactame and adipic acid used to manufacture nylon 6 and nylon 66, respectively. Cyclohexanone and cyclohexanol are also important intermediates for medicine, dyes and other chemicals. Therefore, the hydrogenation of phenol for the synthesis of cyclohexanone and cyclohexanol is an important chemical process that has been extensively studied [1, 2, 3].

Traditionally, the hydrogenation of phenol has been carried out in the gas phase at 120-300 °C over supported Pd catalysts. However, high temperatures cause catalyst deactivation due to coking during the reaction. The products from the hydrogenation of phenol are highly dependent on the properties of the support [4]. Liquid phase hydrogenation of phenol saves cost and energy because the reaction can be performed at relatively low temperatures and pressure. Many researchers have contributed to this area, and a number of catalysts have been screened. However, important drawbacks of liquid phase hydrogenation are the use of more sophisticated conditions (supercritical CO2 as solvent which requires high H2 and CO2 pressures > 7.0 MPa) and need of a cocatalyst [5, 6, 7, 8, 9]. Recently, Wang and co-workers achieved both excellent conversion and selectivity in the hydrogenation of phenol in an aqueous media by using a heterogeneous catalyst. A conversion and selectivity higher than 96% was obtained. Nevertheless, the preparation of the mpg-C3N4 support involved the use of aqueous ammonium bifluoride (NH4HF2) and/or hydrogen fluoride (HF) which are hazardous and not environmentally friendly [10]. Rode et al. [11] used supercritical CO2 as a solvent, which requires high H2 and CO2 pressures > 7.0 MPa. Liu et al. [12] achieved both excellent conversion and selectivity in the hydrogenation of phenol using a dual-supported Pd Lewis acid catalyst. However, the catalyst contains Lewis acids such as AlCl3, ph osphotungstic acid, which imposes severe limitations on their use in hydrogenation applications in general and adds a chemical sensitivity that restricts substrates, purity, and reaction conditions. Therefore, the design and preparation of a novel catalyst with high activity and selectivity is still a challenge.

As is well known, nanoscale amorphous alloy catalysts with long range disorder and short range order usually exhibit higher activity and better selectivity in hydrogenation. Their unique structure and high concentration of coordinatively unsaturated sites lead to catalytic activity and selectivity superior to those of their crystalline counterparts [13, 14]. For example, Li et al. [15, 16] synthesized a novel mesoporous Ce-doped Pd catalyst with a hollow chamber. This catalyst exhibited a higher activity and selectivity to cyclohexanone in the liquid phase hydrogenation of phenol. The hydrogenation of bio-oil model compounds was carried out using Ni-B amorphous catalysts. The results showed that the conversion of model compounds (acetone, furfural and phenol) and the selectivity of saturated alcohols reached 99.9% and 95% at 110 °C, 4 MPa H2 for 4 h [17]. Poly(N-vinyl-2-pyrrolidone) (PVP) is a water-soluble polymer, and is applied as a protective agent for preparing nanoscale catalysts [18]. In this paper, we present a new method for the synthesis of cyclohexanol by the aqueous phase selective hydrogenation of phenol using a PVP-NiB amorphous catalyst for the first time.

The PVP-NiB amorphous catalyst was prepared by the reduction of nickel chloride with NaBH4 [18]. The water-soluble polymer served as both a protective reagent and support. Before the reduction, PVP (0.3 g, 0.027 mol) and nickel chloride (2.0 g, 0.008 mol) were dissolved in methanol (20 mL) at 80 °C for 3 h. NaBH4 (1.0 g) was slowly added to the solution. The resulting black precipitate was separated with a high speed centrifuge, and thoroughly washed three times with distilled water. The fresh wet catalyst was dried at 45 °C overnight in a vacuum oven. In a similar way, other catalysts of the different molar ratios of Ni to PVP monomer were synthesized, respectively. The PVP-NiB amorphous catalysts were characterized by their infrared spectra (IR), X-ray diffraction (XRD), transmission electron microscopy (TEM), X-ray photoelectron spectra (XPS) and inductively coupled plasma analysis (ICP).

A typical procedure for the hydrogenation of phenol was as follows. PVP-NiB (0.5 g), phenol (0.1 g) and water (6 mL) were placed in a 20 mL reactor. The reactor system was purged with N2 three times followed by H2 three times. The reaction was started under 0.2 MPa H2. The reaction mixture was stirred vigorously at the reaction temperature. The products were separated from the water. First, the catalyst was removed from the liquid by filtration. Then the organic phase was extracted and analyzed by a GC 112A equipped with a FID detector and an SE-54 column (30 m × 0.25 mm × 0.25 µm film thickness), column temperature 140 °C, detector 230 °C, sample injector 220 °C.

The IR spectra of PVP and the PVP-NiB amorphous catalyst were recorded using a Nicolet iS10 FTIR spectrometer. The results are shown in Fig. 1. It was found that the peak positions from 3000 to 400 cm-1and the intensity of the absorption peak were changed. This may be due to the coordinative bond between the oxygen atom and nitrogen atom of the PVP molecule with the surficial Ni atom [19]. For example, there were absorption intensity weakening and a blue-shift of the C=O stretch vibrational band (1662 cm-1) for PVP-NiB compared with pure PVP [20]. In addition, the peak was broadened and there were blue shifts of the bending vibration at 1463 cm-1 (-CH2-) and stretch vibrational band at 1291 cm-1 (-C-C-). These were due to the coordination of the lone pair electrons of N and O with the empty orbitals of Ni [21]. The results showed that PVP molecules existed on the surface of the catalyst, and the N and O of PVP coordinated with the metal Ni atom.

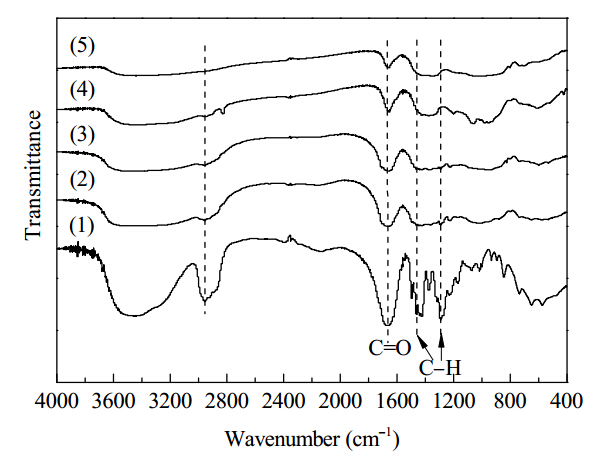

Fig. 1. IR spectra of PVP (1) and PVP-NiB catalyst with different molar ratios of Ni:PVP. (2) 2:27; (3) 4:27; (4) 8:27; (5) 16:27.

Selected PVP-NiB catalysts were synthesized with the molar ratio of Ni to PVP monomer of 8:27. According to the ICP analysis, the compositions of the Ni and B were 47.9% and 11.4% (weight percent), respectively and the ratio of Ni to B (molar/molar) was 1:1.4. Figure 2 shows the XRD patterns of the PVP-NiB catalysts. As can be seen, catalysts with different proportions of n(Ni):n(PVP) have similar XRD patterns. Only one broad diffraction peak was observed at around 45°, which is indicative of a typical Ni-B amorphous structure [22]. When PVP-NiB (n(Ni):n(PVP) = 8:27) was applied in the hydrogenation of phenol at 30 °C, 0.2 MPa H2, and 18 h, one broad diffraction peak was observed at around 45° in the obtained sampe, the same as the fresh one. The results showed the high stability of the catalyst, which can be reused.

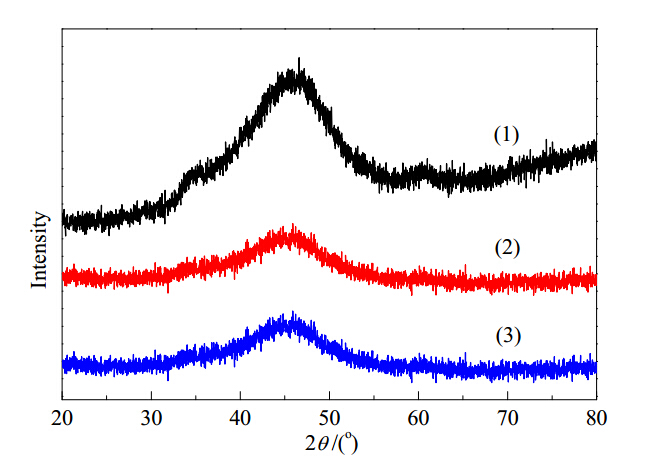

Fig. 2. XRD patterns of PVP-NiB with different molar ratios of Ni:PVP. (1) 8:27; (2) Used (1); (3) 16:27.

Figure 3 shows the TEM micrographs and corresponding particle size distribution of the PVP-NiB samples. The images revealed well dispersed particles with a mean size of 3 nm, a narrow size distribution, and no aggregation. The corresponding mean particle diameters were measured and calculated by counting 190 particles from the enlarged photographs.

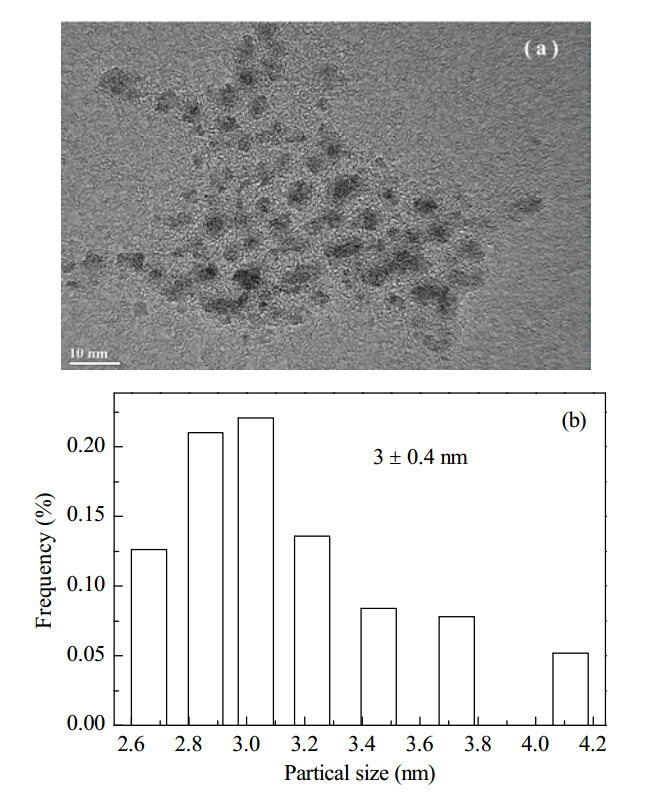

Fig. 3. TEM micrograph (a) and corresponding particle size distribution (b) of PVP-NiB with molar ratio of Ni:PVP = 8:27.

The PVP-NiB amorphous catalysts were characterized by XPS. The results are shown in Fig. 4. From the energy levels of Ni 2p3/2 of the PVP-NiB samples, there were Ni atoms in the PVP-NiB samples in the metallic Ni state with the binding energy (BE) of 852.1 eV, and Ni atoms in the oxide state with the BE of 855.3 eV. From the energy levels of B 1s, the boron alloyed state (BE, 188.6 eV) and the boron oxide state (BE, 191.7 eV) were detected on the PVP-NiB samples. One can conclude that the presence of these species was not due to the surface oxidation of the Ni-B amorphous alloy. Perhaps they resulted from the hydrolysis of NaBH4, since the reduction of nickel ions by NaBH4 was performed in solution [22]. We think that the boron on the catalytic surface can be oxidized, but it was not confirmed. The BE of boron in the alloyed state (188.6 eV) displayed a positive shift of 1.4 eV with respect to the BE of amorphous boron (187.2 eV), and the BE of Ni decreased by 0.7 eV. This suggested that partial electron transfer occurred from elemental B to Ni, making the metal Ni a rich electronic state, and B a deficient electronic state [23].

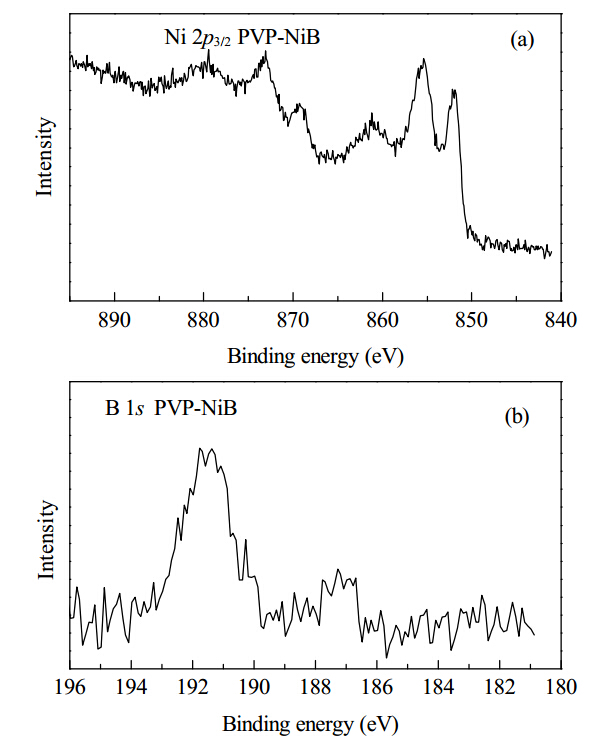

Fig. 4. XPS spectra of Ni 2p (a) and B ls (b) of PVP-NiB sample.

Table 1 presents the results of phenol hydrogenation under different conditions over the PVP-NiB catalysts. The activity and selectivity of the reaction using four kinds of catalysts synthesized with the molar ratios of Ni to PVP monomer (molar /molar) of 2:27, 4:27, 8:27, 16:27 were evaluated. The conversion of phenol was 43.2%, 66.1%, 86.2%, 83.1% at 30 °C, 0.2 MPa for 12 h with the cyclohexanol selectivity above 99.9% (Table 1, entries 1-4), when the n(Ni): n(PVP) ratios increased. The conversion of phenol was gradually increased when the ratioes of Ni to PVP monomer (molar/molar) were from 2:27 to 8:27. But with more increase in the amount of Ni to PVP monomer, the conversion began to decline. We selected catalyst PVP-NiB synthesized with the ratio of Ni to PVP monomer (molar/molar) of 8:27, and investigated the effect of reaction time, dosage of catalyst, and temperature on the activity and selectivity of the reaction. With increasing dosage of the catalyst, the conversion of phenol was obviously elevated (entries 5, 6, and 7). When the dosage of the catalyst was 0.25 g, the conversion of phenol reached 99.9% at the elevated temperature and 3 MPa H2 in 4 h (entry 8). On prolonging the reaction time to 18, 22, and 60 h, the conversion of phenol and the selectivity of cyclohexanol still exceeded 99.9% (entries 9-11). The reaction was accelerated at higher temperature. For example, a high conversion of 99.9% in 12 h was obtained at 60 °C (entry 12), at 100 °C in 10 h, 99.9% conversion could be reached (entry 13). The conversion and selectivity of up to 99.9% were achieved by increasing the hydrogen pressure to 1.0 and 2.0 MPa at 100 °C for 10 and 8 h (entries 14 and 15). Therefore, the reaction temperature had a considerable effect on the conversion of phenol and selectivity of the reaction. The product of the hydrogenation of phenol was cyclohexanol over the PVP-NiB amorphous catalyst at a lower temperature and pressure. It was found that the selectivity did not change on extending the reaction time. We increased the reaction time to 60 h, and the selectivity to cyclohexanol did not decrease.

The PVP-NiB amorphous catalyst exhibited high activity and selectivity to cyclohexanol in the liquid phase phenol hydrogenation. These results are related to the morphology of the catalyst. TEM image revealed well dispersed particles with a mean size of 3 nm, a narrow size distribution, and no aggregation. XPS analysis indicated that partial electron transfer occurred from elemental B to Ni metal, making the metal Ni a rich electronic state, and B a deficient electronic state. The electronic effect greatly promoted the hydrogenation activity of the catalysts [23]. XRD results of samples indicated the catalyst had an amorphous structure. The amorphous alloy catalysts with long range disorder and short range order usually exhibit higher activity and better selectivity during the hydrogenation. A high concentration of coordinatively unsaturated sites led to catalytic activity and selectivity superior to other catalysts in the hydrogenation of phenol [24].

Table 1
Hydrogenation of phenol using PVP-NiB catalyst in water under various conditions.

To illustrate the general applicability of PVP-NiB, other phenol derivatives were tested. Table 2 shows the results of the hydrogenation. As can be seen, the conversions of the phenol derivatives were lower than phenol. The selectivity to cyclohexanol was similar to the phenol. The conversion of p-cresol and o-cresol were 88.3% and 90.1% at 120 °C, 1 MPa H2 and 16 h. However, the conversion of p-tert-butylphenol and guaiacol were only 20.1% and 20.0% at 120 °C, 2 MPa H2 for 24 h. When the substitution of the aromatic ring was varied, the conversion and selectivity of the reaction were different. This may be due to the lower aqueous solubility of the phenol derivatives compared with phenol [7].

Table 2
Hydrogenation of phenol derivatives using PVP-NiB catalyst in water under the optimization conditions.

In conclusion, PVP-NiB catalysts were prepared by the chemical reduction method and successfully applied in the hydrogenation of phenol and its derivatives. PVP-NiB exhibited high activity for the hydrogenation of phenol to the corresponding alcohols with water as solvent under mild conditions. The reaction was accelerated at higher temperature. PVP-NiB showed low activity and high selectivity to alcohols for the hydrogenation of p-cresol and o-cresol. The selectivity to the corresponding alcohols was up to 99.9%. However, the conversion was lower in the hydrogenation of p-tert-butylphenol and guaiacol. How to improve the catalytic activity for the hydrogenation of phenol derivatives, and the reusability of the PVP-NiB catalysts will be the subject of future studies.

References
[1] Chary K V R, Naresh D, Vishwanathan V, Sadakane M, Ueda W. Catal Commun, 2007, 8: 471
[2] Shore S G, Ding E, Park C, Keane M A. Catal Commun, 2002, 3: 77
[3] Mahata N, Vishwanathan V. Ind J Chem A, 1998, 37: 652
[4] Scirè S, Minicò S, Crisafulli C. Appl Catal A, 2002, 235, 21
[5] Chen A B, Zhao G Y, Chen J Z, Chen L M, Yu Y F. RSC Adv, 2013, 3: 4171
[6] Cheng H Y, Liu R X, Wang Q, Wu C Y, Yu Y C, Zhao F Y. New J Chem, 2012, 36: 1085
[7] Xiang Y Z, Ma L, Lu C S, Zhang Q F, Li X N. Green Chem, 2008, 10: 939
[8] Park H W, Kim J K, Hong U G, Lee Y J, Song J H, Song I K. Appl Catal A, 2013, 453: 287
[9] Yu Y X, Xu Y, Wang T J, Ma L L, Zhang Q, Zhang X H, Zhang X. J Fuel Chem Technol (于玉肖, 徐莹, 王铁军, 马隆龙, 张琦, 张兴华, 张雪. 燃料化学学报), 2013, 41: 443
[10] Wang Y, Yao J, Li H R, Su D S, Antonietti M. J Am Chem Soc, 2011, 133: 2362
[11] Rode C V, Joshi U D, Sato O, Shirai M. Chem Commun, 2003: 1960
[12] Liu H Z, Jiang T, Han B X, Liang S G, Zhou Y X. Science, 2009, 326: 1250
[13] Wang W Y, Yang Y Q, Luo H, Peng H Z, He B, Liu W Y. Catal Commun, 2011, 12: 1275
[14] Li H, Liu J, Xie S H, Qiao M H, Dai W L, Li H X. J Catal, 2008, 259: 104
[15] Zhuang L, Li H X, Dai W L, Qiao M H. Chem Lett, 2003, 32: 1072
[16] Li H, Liu J L, Li H X. Mater Lett, 2008, 62: 297
[17] Yu Y X, Zhang X H, Wang T J, Xu Y, Ma L L, Zhang Q, Zhang L M. Chem J Chin Univ, 2013, 34: 2178
[18] Liaw B J, Chiang S J, Tsai C H, Chen Y Z. Appl Catal A, 2005, 284: 239
[19] Zhang Z T, Zhao B, Hu L M. J Solid State Chem, 1996, 121: 105
[20] Koo C M, Ham H T, Choi M H, Kim S O, Chung I J. Polymer, 2003, 44: 681
[21] Roucoux A, Schulz J, Patin H. Chem Rev, 2002, 102: 3757
[22] Dai W L, Li H X, Cao Y, Qiao M H, Fan K N, Deng J F. Langmuir, 2002, 18: 9605
[23] Chen Y Z, Liaw B J, Chiang S J. Appl Catal A, 2005, 284: 97
[24] Deng J F, Li H, Wang W. Catal Today, 1999, 51: 113
PVP-NiB非晶态催化剂的制备和催化苯酚及其衍生物加氢反应性能
张勤生a, 李海峰a, 高平b, 王来来a
a 中国科学院兰州化学物理研究所, 羰基合成与选择氧化国家重点实验室, 甘肃兰州730000;
b 中国科学院兰州化学物理研究所, 固体润滑国家重点实验室, 甘肃兰州730000
收稿日期: 2014-6-25. 接受日期: 2014-7-24. 出版日期: 2014-11-20.
基金来源：国家自然科学基金(21174115);甘肃省青年基金(1308RJYA036).
*通讯联系人.王来来,电话: (0931)4968161; 传真: (0931)4968129; 电子信箱: wll@licp.cas.cn
高平,电话: (0931)4968177; 传真: (0931)4968163; 电子信箱: gaoping@licp.cas.cn
摘要：以聚乙烯吡咯烷酮(PVP)为稳定剂, 采用化学还原法制备了PVP-NiB非晶态催化剂, 通过红外光谱、X射线衍射、透射电子显微镜和电感耦合等离子体光谱对催化剂进行了表征. 结果表明, PVP不仅能够提高NiB纳米颗粒的分散度, 而且对其起到稳定作用; 将该催化剂首次应用于苯酚及其衍生物的催化加氢反应, 在水相体系中, 30 ℃及氢气压力0.2 MPa时, 苯酚的转化率和环己醇的选择性都能够达到99.9%; 酚类衍生物加氢反应结果发现, 该催化剂有利于环己醇类物质的生成, 初步考察了PVP-NiB非晶态催化剂的构效关系.
关键词： 镍     苯酚     催化加氢     非晶态催化剂

苯酚是石油化工的副产物, 也是环境有害物质, 因此, 苯酚催化加氢制备环己酮和环己醇在近年来引起广泛关注[1, 2, 3]. 而环己酮和环己醇(KA油)是合成己内酰胺和己二酸的重要原料, 后者分别是合成功能高分子纤维尼龙6及尼龙66的单体; 环己酮和环己醇也是医药、染料等精细化学品的重要中间体. 传统的苯酚加氢以负载Pd为催化剂, 在高温、气相下进行, 容易形成积炭, 导致催化剂失活, 且加氢产物对载体有一定的依赖性[4]. 液相加氢可在较低的温度和压力下进行, 降低成本与节省能源, 但大多数情况下反应条件苛刻, 如在超临界CO2中进行, 或需要加入助催化剂[5, 6, 7, 8, 9]. Wang等[10]道采用Pd@mpg-C3N4催化剂, 苯酚转化率和环己酮选择性>96%, 但催化剂合成过程复杂, 且会产生强腐蚀性物质(HF); Rode等[11]在超临界CO2中进行苯酚加氢反应, H2和CO2压力>7 MPa才可发生反应; Han等[12]在苯酚加氢反应中加入助催化剂如磷钨酸、AlCl3, 反应活性和选择性增加, 但产物的分离和纯化比较困难, 且受限于设备和反应条件. 因此, 高活性和高选择性的催化剂仍然是苯酚及其衍生物加氢合成环己醇需要解决的关键科学问题.

非晶态催化剂具有长程无序, 短程有序的独特结构, 其表面存在大量配位不饱和的活性位, 在加氢反应中表现出较高活性[13, 14]. 李和兴等[15, 16]将Ce掺杂的Pd-B非晶态催化剂应用于苯酚加氢合成环己酮, 催化剂显示高活性、高选择性和高稳定性; 王铁军等[17]利用Ni-B(Ni/B摩尔比为1:0.365)非晶态催化剂对生物油模型化合物苯酚、糠醛、丙酮进行加氢反应研究, 在110 °C, 4 MPa下反应4 h, 转化率均达到99.9%,其相应醇类的选择性达到95%以上. 聚乙烯吡咯烷酮(PVP)作为一种防止纳米粒子团聚的水溶性有机高分子聚合物, 在负载型纳米粒子的制备中经常用作保护剂[18]. 而PVP-NiB非晶态催化剂在苯酚加氢反应中的应用尚未见报道. 本文以PVP为稳定剂, 采用化学还原法制备PVP-NiB非晶态催化剂, 首次将其应用于水中苯酚及其他衍生物催化加氢反应中.

PVP-NiB非晶态催化剂通过化学还原法制备[18]. 制备过程如下: 向三颈烧瓶中加入NiCl2∙6H2O (2.0 g, 8 mmol), PVP (0.3 g, 27 mmol)和20 mL甲醇, 于80 °C下反应3 h, 溶液呈绿色. 将1.0 g NaBH4粉末分多次加入上述溶液中, 溶液由绿色立即变为黑色, 伴有气体放出; 待加完NaBH4后, 反应1 h, 将黑色溶液离心分离, 用去离子水洗涤3次, 45 °C下真空干燥过夜, 即得PVP-NiB非晶态合金催化剂.

采用红外光谱(IR), X射线衍射仪(XRD), 和透射电子显微镜(TEM)分析催化剂的结构和表面形貌, 表面电子态则由X射线光电子能谱(XPS)测定. 催化剂的组成和负载量采用电感耦合等离子体光谱(ICP)测定.

苯酚及其衍生物加氢过程如下: 将0.5 g PVP-NiB非晶态催化剂、0.1 g苯酚、6 mL蒸馏水依次加到20 mL高压反应釜中, 封闭, 通入N2置换3次, 再通入H2置换3次后, 将H2压力升至0.2 MPa, 开始搅拌, 加热至设定反应温度, 反应至设定时间. 反应结束后, 冷却至室温, 萃取分离有机相和水相, 将有机相干燥. 采用气相色谱仪GC112A分析反应产物, 确定反应的转化率和产物的选择性, 色谱条件为: 氢火焰检测器, SE-54毛细管柱(30 m × 0.25 mm × 0.25 µm), 柱温140 °C, 检测器230 °C, 进样口220 °C.

图1为PVP及PVP-NiB非晶态催化剂的IR谱. 可见随着n(Ni):n(PVP)比的增加, 在3000-400 cm-1区域内的IR峰的位置和强度均发生明显变化. 这可能是由于PVP中的N, O原子与金属离子Ni形成配位键, 从而影响了PVP-NiB非晶态催化剂中PVP分子上某些官能团的IR峰[19]: 如PVP-NiB非晶态催化剂中归属于PVP中C=O伸缩振动峰(1662 cm-1)[20]明显减弱, 并发生小的蓝移, 这是由于金属Ni与羰基氧配位, 削弱了C=O所致; 催化剂在1500-1200 cm-1区域的吸收峰相对于纯PVP变宽并发生蓝移, 如CH2的弯曲振动吸收峰(1463 cm-1)和C-C单键伸缩振动吸收峰(1291 cm-1), 这是由于PVP分子中N, O上的孤对电子与Ni的空的d轨道配位, 使C=O与C-N之间的耦合作用增强所致[21]. 由此可见, 在催化剂表面存在PVP分子, Ni原子与PVP分子之间存在配位作用, 而不仅仅是简单的物理吸附.

对于n(Ni):n(PVP) = 8:27的PVP-NiB催化剂, ICP结果显示其中Ni和B的含量分别为47.89%和11.36%, Ni/B摩尔比为1:1.4. 图2为各PVP-NiB非晶态合金催化剂的XRD谱, 由图可见不同n(Ni):n(PVP)的催化剂谱相似, 均在2θ = 45°附近出现一个宽的非晶态合金的特征弥散峰, 表明 所制催化剂均为非晶态结构, 与文献[18]报道的结果一致. 对于使用后的催化剂, 其非晶态合金的特征弥散峰基本不变, 说明该催化剂结构稳定, 可以重复使用.

图3为催化剂的TEM照片和粒径分布图, 由图可见, 催化剂颗粒分散均匀, 无团聚现象, 平均粒径在3 nm左右, 颗粒物周围灰色阴影是高分子稳定剂PVP.

图4为催化剂样品的XPS谱. 可以看出, 样品中的Ni以金属单质Ni (结合能852.1 eV)和氧化态Ni (结合能855.3 eV)两种形式存在, 氧化态Ni可能源于制备过程中形成NiO和Ni(OH)2副产物. 样品中的B也以单质(结合能为188.6 eV)和氧化态(结合能为191.7 eV)形式存在. 研究发现[22], B2O3并不是来自Ni-B催化剂表面被氧化, 而是在NaBH4还原Ni物种过程中, 可能伴随着NaBH4水解生成得到的; 但我们不排除第一种可能. 与纯Ni(852.8 eV)和B(187.2 eV)的标准结合能相比, Ni-B中单质B的增加约1.4 eV, Ni的减小了0.7 eV, 这表明在Ni-B中B将部分电子供给Ni, 使得金属Ni为富电子状态, 而B为缺电子态[23].

采用化学还原法制备不同n(Ni):n(PVP)比的催化剂, 它们在苯酚加氢反应结果见表1. 可以看出, 随着n(Ni):n (PVP)逐渐增加, 在30 °C, 0.2 MPa下反应12 h时, 苯酚的转化率从43.2%逐渐增加至86.2%, 至16:27时又降为83.1%, 但环己醇选择性均大于99.9% (表1, 实验1-4). 因此, 选择以n(Ni):n(PVP) = 8:27的PVP-NiB催化剂来考察催化剂的用量、反应时间和温度的影响. 由表1可见随着催化剂用量的增加, 苯酚的转化率逐渐增加(实验5-7), 当催化剂用量为0.25 g时, 升高温度和压力, 反应时间为4 h时, 转化率达到99.9%(实验8); 将反应时间延至18, 22和60 h, 苯酚的转化率均大于99.9%, 环己醇选择性仍然大于99.9% (实验9-11); 当温度升至60 °C反应12 h或100 °C反应10 h, 苯酚的转化率均为99.9% (实验12, 13); 当将H2压力升至1.0和2.0 MPa, 在100 °C反应10或8 h, 苯酚转化率和环己醇的选择性均大于99.9% (实验14和15).

综上可见, PVP-NiB非晶态催化剂对苯酚加氢反应表现出高催化活性和选择性. 无疑, 这与催化剂的形貌特征有关. 表征结果显示, 催化剂呈纳米颗粒, 分散均匀, 无团聚现象, 粒径较小; 催化剂中Ni原子和B原子存在明显的相互作用, 使得Ni呈富电子状态, 而B呈缺电子状态, 这种电子效应极大地提高了催化剂的活性[23]. 该非晶态合金催化剂具有长程无序, 短程有序的结构特征, 有利于催化剂对苯酚的吸附, 且具有高度配位不饱和的活性位, 活性位相互间有较强的协同作用, 从而有利于提高表面Ni原子的催化活性[24].

表2为该催化剂上苯酚衍生物加氢反应结果. 由表可见, 酚类衍生物加氢活性均低于苯酚, 取代醇类选择性与苯酚的相似, 在120 °C和1 MPa下反应16 h, 对甲基苯酚和邻甲基苯酚的转化率分别为88.3%和90.1%, 而在120 °C, 2 MPa下反应24 h, 对叔丁基苯酚和愈创木酚的转化率只有20.1%和20.0%.   ;苯环上取代基不同, 活性和选择性明显不同. 活性的降低可能是由于苯环上含有取代基不同和酚类衍生物在水中的溶解性不同所致, 如对叔丁基苯酚和愈创木酚的溶解性在水中最小, 相应的转化率明显低[7].

总之, 首次将非晶态催化剂PVP-NiB用于水相苯酚及其他衍生物加氢反应中, 在低温低压下, 苯酚的转化率和环己醇的选择性都能够达到99.9%. 升高温度, 苯酚的转化率加快, 环己醇的选择性未发生变化; 将底物拓展为对甲基苯酚和邻甲基苯酚时, 催化剂显示高活性和高选择性; 当底物为愈创木酚和对叔丁基苯酚时, 催化效率比较低, 但是产物取代醇类选择性均达99.9%. 因此, 如何提高该催化剂对愈创木酚和对叔丁基苯酚等其它苯酚衍生物的加氢活性, 以及考察催化剂的循环使用性能正在进行中.
