Pd-catalyzed intramolecular aminofluorination of allylic sulfamides
Jiashun Cheng, Pinhong Chen, Guosheng Liu
State Key Laboratory of Organometallic Chemistry, Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences, Shanghai 200032, China
Received: 2014-05-19. Accepted: 2014-06-09. Published: 2015-01-20.
* Corresponding author. Tel: +86-21-54925346; Fax: +86-21- 64166128; E-mail: gliu@mail.sioc.ac.cn
Foundation Item:This work was supported by the National Basic Research Program of China (973 program, 2011CB808700), the National Natural Science Foundation of China (21225210, 20923005 and 21121062), the Science and Technology Commission of Shanghai Municipality (11JC1415000), and the CAS/SAFEA International Partnership Program for Creative Research Teams.
Abstract: A facile Pd-catalyzed intramolecular aminofluorination reaction of allylic sulfamides was developed that can be used to prepare fluorinated 1,3-diamine derivatives. Acetic acid was essential for regulation to give the major 6-endo cyclization products.
© 2014, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Palladium-catalyzed     Aminofluorination     Alkene     Fluorinated 1,3-diamine     6-Endo cyclization

1. Introduction

The introduction of fluorine into organic molecules frequently leads to dramatic changes of their properties, such as solubility, metabolic stability, and bioavailability [1, 2]. Among these organofluorine molecules, fluorinated heterocycles are extensively used as important building blocks for the synthesis of anticholinergic, antiemetic, and antispastic drugs as well as enzyme inhibitors [3]. Thus, the efficient synthesis of these fluorinated heterocycles has attracted much attention [4, 5, 6, 7, 8, 9, 10, 11, 12, 13].

Palladium-catalyzed difunctionalization reactions are a powerful strategy for the direct synthesis of vicinal substituted molecules from simple olefin feedstock. Among these reactions, oxidation of the alkyl-Pd intermediate generated from the initial nucleopalladation of alkenes is essential for this difunctionalization, in which a hypervalent palladium complex has been proposed to respond to the C-X bond formation [14, 15]. In 2009, our group reported the first palladium-catalyzed intramolecular aminofluorination of unactivated alkenes, and C-F bond formation was obtained through the oxidative cleavage of the alkyl-Pd bond with a AgF/PhI(OPiv)2 system. The reaction gave a series of fluorinated piperidine products with high regioselectivity [15]. Recently, we found that the regioselectivity of the reaction could be completely switched by changing the protection group of nitrogen, and a range of tetrahydropyrroles containing the monofluoromethyl group were efficiently synthesized [17]. Intermolecular aminofluorination of styrene was also achieved using a similar catalytic system [18]. In addition, our group also demonstrated that the intermolecular aminofluorination of styenes can be achieved using N-fluorobenze nesulfonimide (NFSI) as the source of nitrogen and fluorine in the presence of a palladium catalyst [19, 20]. Since then, aminofluorination of alkenes has been extensively studied [21, 22, 23, 24]. For example, Li et al. [25] reported silver-catalyzed radical aminofluorination of unactivated alkenes with Selectfluor as the fluorination reagent. Li et al. [26], Wang et al. [27], and Zhang et al. [28] separately reported intramolecular aminofluorination reactions of alkenes under metal-free conditions, and the related asymme tric aminofluorination reaction was described by Nevado et al. [29] and Toste et al. [30]. Because of the value of cyclic sulfamides in medicinal chemistry [31, 32], we are interested in the construction of fluorinated heterocycles. We believe that palladium-catalyzed aminofluorination of N-alkenylsulfamide might be an efficient way to synthesize those compounds. Herein, we report the results of our study on the intramolecular aminofluorination of allylic sulfamides.

2. Experimental
2.1. General

All commercially available compounds were used as received. 1H and 13C NMR spectra were recorded on an Agilent-400 MHz NMR spectrometer (400 MHz for 1H; 376 MHz for 19F; 100 MHz for 13C), and CDCl3 was purchased from J&K (99.8 atom % D, Shanghai, China). The chemical shifts (δ) are given in parts per million relative to the internal standards TMS (0 ppm for 1H) and CDCl3 (77.0 ppm for 13C). Flash column chromatography was performed on silica gel 60 (particle size 200-400 mesh ASTM, purchased from Yantai, China) and eluted with petroleum ether/ethyl acetate. All solvents were dried and purified according to the procedure in the “Purification of Laboratory Chemicals” [33]. AgF was purchased from Aldrich (>99.9%, Shanghai, China). 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP) was purchased from TCI (>99.0%, Shanghai, China). Substrates 1a-1n were synthesized according to literature procedures [34].

2.2. General procedure for aminofluorination of alkenes

In a dry glass tube, Pd(OAc)2 (2.2 mg, 0.01 mmol), AgF (76.2 mg, 0.6 mmol), PhI(OPiv)2 (121.8 mg, 0.3 mmol), and alkene (0.2 mmol) were dissolved in toluene (1.0 mL), and then HOAc (120 µL, 1 mol/L in toluene, 0.12 mmol) was added. The reaction mixture was stirred at room temperature for 24 h. The mixture was then filtered and the solid was washed with ethyl acetate. The combined filtrate was concentrated under vacuum. The residue was purified by column chromatography on silica gel with a gradient eluant of petroleum ether (or hexane) and ethyl acetate to give the products.

2.3. Analytical data of the products

2,6-Dibenzyl-4-fluoro-1,2,6-thiadiazinane 1,1-dioxide (2a). 1H NMR (400 MHz, CDCl3): δ 7.30-7.41 (m, 10H), 4.55 (d, J = 13.8 Hz, 2H), 4.54 (dt, J = 45.2, 2.0 Hz, 1H), 4.41 (d, J = 13.8 Hz, 2H), 3.59 (dd, J = 40.8, 15.2 Hz, 1H), 3.43 (dd, J = 15.2, 13.2 Hz, 2H); 13C NMR (100 MHz, CDCl3): δ 135.1, 128.8, 128.6, 127.9, 84.4 (d, J = 180.8 Hz), 53.2 (d, J = 1.9 Hz), 51.4 (d, J = 20.6 Hz); 19F NMR (376 MHz, CDCl3): δ −180.9 (dtt, J = 44.0, 44.0, 13.5 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 335.1230, found: 335.1239.

2-Benzyl-4-fluoro-6-(4-methylbenzyl)-1,2,6-thiadiazinane 1,1-dioxide (2b). 1H NMR (400 MHz, CDCl3): δ 7.27-7.41 (m, 5H), 7.28 (d, J = 8.0 Hz, 2H), 7.18 (d, J = 7.6 Hz, 2H), 4.53 (dt, J = 45.2, 2.0 Hz, 1H), 4.48-4.55 (m, 2H), 4.35-4.42 (m, 2H), 3.60-3.65 (m, 1H), 3.49-3.55 (m, 1H), 3.38-3.47 (m, 2H), 2.36 (s, 3H); 13C NMR (100 MHz, CDCl3): δ 137.7, 135.2, 132.0, 129.3, 128.9, 128.8, 128.6, 127.9, 84.4 (d, J = 182.7 Hz), 53.3 (d, J = 2.2 Hz), 53.1 (d, J = 2.1 Hz), 51.4 (d, J = 20.6 Hz), 51.2 (d, J = 20.6 Hz), 21.2; 19F NMR (376 MHz, CDCl3): δ −180.9 (dtt, J = 41.4, 41.4, 13.2 Hz);. HRMS: m/z (ESI) calcd. [M + H]+: 349.1386, found: 349.1367.

2-Benzyl-4-fluoro-6-(4-fluorobenzyl)-1,2,6-thiadiazinane 1,1-dioxide (2c). 1H NMR (400 MHz, CDCl3): δ 7.31-7.40 (m, 7H), 7.04-7.08 (m, 2H), 4.56 (dt, J = 45.2, 2.0 Hz, 1H), 4.51 (d, J = 13.6 Hz, 1H), 4.49 (d, J = 13.6 Hz, 1H), 4.38 (d, J = 13.6 Hz, 2H), 3.64 (ddd, J = 15.2, 5.6, 2.0 Hz, 1H), 3.54 (ddd, J = 15.2, 5.6, 2.0 Hz, 1H), 3.37-3.47 (m, 2H); 13C NMR (100 MHz, CDCl3): δ 162.5 (d, J = 246.5 Hz), 135.1, 130.9 (d, J = 3.2 Hz), 130.5 (d, J = 8.2 Hz), 128.8, 128.7, 128.0, 115.6 (d, J = 21.5 Hz), 84.5 (d, J = 180.8 Hz), 53.2 (d, J = 2.1 Hz), 52.7 (d, J = 2.3 Hz), 51.4 (d, J = 20.5 Hz), 51.4 (d, J = 20.5 Hz); 19F NMR (376 MHz, CDCl3): δ −114.1 (m), −180.9 (dtt, J = 41.3, 41.3, 13.5 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 353.1135, found: 353.1145.

2-Benzyl-6-butyl-4-fluoro-1,2,6-thiadiazinane 1,1-dioxide (2d). 1H NMR (400 MHz, CDCl3): δ 7.25-7.36 (m, 5H), 4.58 (dt, J = 45.2, 2.4 Hz, 1H), 4.42 (d, J = 13.6 Hz, 1H), 4.34 (d, J = 13.6 Hz, 1H), 3.74 (ddd, J = 40.0, 14.8, 2.0 Hz, 1H), 3.49-3.64 (m, 2H), 3.23-3.42 (m, 3H), 1.60 (m, 2H), 1.40 (m, 2H), 0.96 (t, J = 7.2 Hz, 3H); 13C NMR (100 MHz, CDCl3): δ 135.2, 128.8, 128.5, 127.8, 84.3 (d, J = 180.9 Hz), 53.3 (d, J = 2.4 Hz), 52.8 (d, J = 20.6 Hz), 51.1 (d, J = 20.4 Hz), 49.8, 29.9, 19.6, 13.6; 19F NMR (376 MHz, CDCl3): δ −181.6 (dtt, J = 41.4, 41.4, 13.5 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 301.1386, found: 301.1379.

2-Benzyl-4-fluoro-6-neopentyl-1,2,6-thiadiazinane 1,1- dioxide (2f). 1H NMR (400 MHz, CDCl3): δ 7.25-7.36 (m, 5H), 4.55 (d, J = 45.2 Hz, 1H), 4.46 (d, J = 14.0 Hz, 1H), 4.34 (d, J = 14.0 Hz, 1H), 3.92 (dd, J = 40.0, 14.8 Hz, 1H), 3.62-3.70 (m, 1H), 3.53 (dd, J = 40.8, 14.8 Hz, 1H), 3.34-3.42 (m, 1H), 3.19 (d, J = 14.4 Hz, 1H), 2.99 (d, J = 14.8 Hz, 1H), 0.98 (d, J = 1.2 Hz, 9H); 13C NMR (100 MHz, CDCl3): δ 135.2, 128.8, 128.6, 127.9, 84.5 (d, J = 180.5 Hz), 61.4 (d, J = 1.6 Hz), 56.2 (d, J = 19.9 Hz), 53.3 (d, J = 2.2 Hz), 51.3 (d, J = 20.5 Hz), 33.2, 27.3; 19F NMR (376 MHz, CDCl3): δ −182.6 (dtt, J = 41.4, 41.4, 12.5 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 315.1543, found: 315.1551.

2-Benzyl-4-fluoro-6-methyl-1,2,6-thiadiazinane 1,1-dioxide (2g). 1H NMR (400 MHz, CDCl3): δ 7.29-7.39 (m, 5H), 4.60 (dt, J = 45.2, 2.0 Hz, 1H), 4.47 (d, J = 13.6 Hz, 1H), 4.33 (d, J = 14.0 Hz, 1H), 3.79 (ddd, J = 41.2, 15.2, 2.4 Hz, 1H), 3.36-3.63 (m, 3H), 2.97 (d, J = 1.2 Hz, 3H); 13C NMR (100 MHz, CDCl3): δ 135.2, 128.8, 128.6, 127.9, 84.4 (d, J = 181.0 Hz), 56.1 (d, J = 20.6 Hz), 53.1 (d, J = 2.1 Hz), 51.4 (d, J = 20.6 Hz), 38.5 (d, J = 1.9 Hz); 19F NMR (376 MHz, CDCl3): δ −180.6 (dtt, J = 42.1, 42.1, 12.8 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 259.0917, found: 259.0913.

2-Benzyl-4-fluoro-6-phenyl-1,2,6-thiadiazinane 1,1-dioxide (2h). 1H NMR (400 MHz, CDCl3): δ 7.28-7.45 (m, 10H), 4.70 (dt, J = 44.8, 2.0 Hz, 1H), 4.76 (d, J = 13.6 Hz, 1H), 4.42 (dd, J = 13.6, 1.6 Hz, 1H), 4.22 (ddd, J = 39.6, 14.0, 2.0 Hz, 1H), 3.76-3.91 (m, 2H), 3.48-3.56 (m, 1H); 13C NMR (100 MHz, CDCl3): δ 141.1, 135.1, 129.2, 129.1, 128.6, 128.0, 127.5, 126.5 (d, J = 0.7 Hz), 84.3 (d, J = 181.9 Hz), 56.9 (d, J = 21.7 Hz), 54.4 (d, J = 3.9 Hz), 50.4 (d, J = 19.8 Hz); 19F NMR (376 MHz, CDCl3): δ −180.9 (dtt, J = 42.8, 42.8, 13.2 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 321.1073, found: 321.1068.

tert-Butyl 2-(6-benzyl-4-fluoro-1,1-dioxido-1,2,6- thiadiazinan-2-yl)acetate (2i). 1H NMR (400 MHz, CDCl3): δ 7.29-7.38 (m, 5H), 4.61 (dt, J = 44.8, 2.4 Hz, 1H), 4.48 (d, J = 14.0 Hz, 1H), 4.32 (d, J = 13.6 Hz, 1H), 4.05 (d, J = 17.2 Hz, 1H), 3.97 (d, J = 17.6 Hz, 1H), 3.88-3.99 (m, 1H), 3.71-3.79 (m, 1H), 3.52-3.66 (m, 1H), 3.37-3.46 (m, 1H), 1.50 (s, 9H); 13C NMR (100 MHz, CDCl3): δ 167.4, 134.9, 128.8, 128.6, 127.9, 84.3 (d, J = 180.5 Hz), 82.3, 53.8 (d, J = 20.5 Hz), 53.2 (d, J = 2.2 Hz), 51.5, 51.21, 27.9; 19F NMR (376 MHz, CDCl3): δ −181.2 (dtt,J = 41.0, 41.0, 13.5 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 359.1441, found: 359.1433.

2,6-Dibenzyl-4-fluoro-4-methyl-1,2,6-thiadiazinane 1,1- dioxide (2j). 1H NMR (400 MHz, CDCl3): δ 7.31-7.38 (m, 10H), 4.57 (d, J = 13.6 Hz, 2H), 4.42 (d, J = 13.6 Hz, 2H), 3.48 (dd, J = 38.4, 14.8 Hz, 2H), 3.23 (dd, J = 13.6, 12.0 Hz, 2H), 1.16 (d, J = 20.4 Hz, 3H); 13C NMR (100 MHz, CDCl3): δ 135.5, 128.7, 128.6, 127.8, 90.2 (d, J = 177.2 Hz), 55.7 (d, J = 21.3 Hz), 53.0 (d, J = 2.6 Hz), 21.8 (d, J = 22.4 Hz); 19F NMR (376 MHz, CDCl3): δ −148.6 (m); HRMS: m/z (ESI) calcd. [M + H]+: 349.1386, found: 349.1380.

2,6-Dibenzyl-4-fluoro-3-methyl-1,2,6-thiadiazinane 1,1- dioxide (2k). 1H NMR (400 MHz, CDCl3): δ 7.29-7.42 (m, 10H), 4.59 (d, J = 14.8 Hz, 1H), 4.54 (d, J = 14.4 Hz, 1H), 4.50 (d, J = 14.0 Hz, 1H), 4.42 (d, J = 14.0 Hz, 1H), 4.35 (ddd, J = 44.8, 5.2, 3.2 Hz, 1H), 3.75-3.82 (m, 1H), 3.66 (ddd, J = 37.2, 14.8, 2.0 Hz, 1H), 3.33-3.41 (m, 1H), 1.34 (dd, J = 7.6, 0.8 Hz, 1H); 13C NMR (100 MHz, CDCl3): δ 136.2, 135.2, 128.9, 128.6, 128.3, 127.9, 127.8, 87.67 (d, J = 180.7 Hz), 57.99 (d, J = 21.1 Hz), 53.14 (d, J = 2.4 Hz), 52.46 (d, J = 1.7 Hz), 48.13 (d, J = 21.5 Hz), 15.58 (d, J = 9.1 Hz); 19F NMR (376 MHz, CDCl3): δ −176.9 (m). HRMS: m/z (ESI) calcd. [M + H]+: 349.1386, found: 349.1379.

6-Benzyl-4-fluoro-2-neopentyl-3-phenyl-1,2,6-thiadiazinane 1,1-dioxide (2l). 1H NMR (400 MHz, CDCl3): δ 7.55 (d, J = 7.6 Hz, 2H), 7.30-7.40 (m, 8H), 5.11-5.14 (m, 1H), 5.07 (d, J = 38.0 Hz, 1H), 4.40 (d, J = 13.6 Hz, 1H), 4.39 (d, J = 13.6 Hz, 1H), 3.47-3.58 (ddd, J = 30.0, 14.0, 2.4 Hz, 1H), 3.35-3.42 (m, 1H), 3.34 (d, J = 14.8 Hz, 1H), 3.22 (d, J = 14.8 Hz, 1H), 0.86 (s, 9H); 13C NMR (100 MHz, CDCl3): δ 135.1, 134.70 (d, J = 7.9 Hz), 128.8, 128.6, 128.4, 128.2, 128.2, 128.0, 86.3 (d, J = 179.9 Hz), 69.6 (d, J = 22.6 Hz), 61.4, 52.9 (d, J = 1.9 Hz), 48.8 (d, J = 23.5 Hz), 33.1, 27.7; 19F NMR (376 MHz, CDCl3): δ −180.5 (m); HRMS: m/z (ESI) calcd. [M + H]+: 391.1856, found: 391.1847.

2,6-Dibenzyl-4-fluoro-3-phenyl-1,2,6-thiadiazinane 1,1- dioxide (2m). 1H NMR (400 MHz, CDCl3): δ 7.33-7.42 (m, 5H), 7.17-7.28 (m, 8H), 7.02-7.05 (m, 2H), 4.91 (ddt, J = 45.2, 8.4, 4.8 Hz, 1H), 4.76 (dd, J = 14.8, 10.4 Hz, 1H), 4.50 (d, J = 15.2 Hz, 1H), 4.46 (d, J = 15.2 Hz, 1H), 4.31 (d, J = 15.2 Hz, 1H), 4.26 (d, J = 15.2 Hz, 1H), 3.60-3.67 (m, 1H), 3.48-3.55 (m, 1H); 13C NMR (100 MHz, CDCl3): δ 136.4, 134.9, 134.40 (d, J = 2.5 Hz), 128.87, 128.79, 128.77, 128.71, 128.5, 128.3, 128.0, 127.4, 84.9 (d, J = 181.1 Hz), 66.6 (d, J = 25.5 Hz), 53.3, 50.7, 48.8 (d, J = 28.2 Hz); 19F NMR (376 MHz, CDCl3): δ −180.5 (ddt, J = 48.4, 11.2, 11.2 Hz); HRMS: m/z (ESI) calcd. [M + H]+: 411.1543, found: 411.1537.

2.4. Analytical data for the substrates

N-allylic-N,N′-dibenzylsulfamide (1a). 1H NMR (400 MHz, CDCl3): δ 7.23-7.34 (m, 10H), 5.73-5.83 (m, 1H), 5.13-5.22 (m, 2H), 4.6 (br, 1H), 4.37 (s, 2H), 4.15 (d, J = 6.0 Hz, 2H), 3.72 (d, J = 6.4 Hz, 2H); 13C NMR (100 MHz, CDCl3): δ 136.7, 136.3, 132.7, 128.7, 128.6, 128.4, 127.9, 127.8, 127.7, 119.5, 50.5, 49.8, 47.2; HRMS: m/z (ESI) calcd. [M + H]+: 317.1324, found: 317.1330.

N-allylic-N-benzyl-N′-(p-tolylmethyl)sulfamide (1b). 1H NMR (400 MHz, CDCl3): δ 7.26-7.34 (m, 5H), 7.10-7.17 (m, 4H), 5.74-5.84 (m, 1H), 5.12-5.22 (m, 2H), 4.60 (br, 1H), 4.35 (s, 2H), 4.11 (d, J = 6.0 Hz, 2H), 3.71 (d, J = 6.4 Hz, 2H), 2.31 (s, 3H); 13C NMR (100 MHz, CDCl3): δ 137.5, 136.2, 133.6, 132.7, 129.3, 128.52, 128.49, 127.8, 127.7, 119.4, 50.3, 49.6, 46.9, 21.0; HRMS: m/z (ESI) calcd. [M + H]+: 331.1480, found: 331.1491.

N-allylic-N-benzyl-N′-(p-fluorophenyl)methylsulfamide (1c). 1H NMR (400 MHz, CDCl3): δ 7.27-7.36 (m, 5H), 7.21-7.27 (m, 2H), 6.97-7.03 (m, 2H), 5.75-5.85 (m, 1H), 5.13-5.24 (m, 2H), 4.59 (br, 1H), 4.36 (s, 2H), 4.11 (d, J = 6.0 Hz, 2H), 3.73 (d, J = 6.4 Hz, 2H); 13C NMR (100 MHz, CDCl3): δ 162.3 (d, J = 245.2 Hz), 136.1, 132.6, 132.5 (d, J = 3.1 Hz), 129.6 (d, J = 8.0 Hz), 128.6, 128.5, 127.8, 119.6, 115.5 (d, J = 21.7 Hz), 50.4, 49.8, 46.5; 19F NMR (376M, CDCl3): δ −114.25 (m); HRMS: m/z (ESI) calcd. [M + H]+: 335.1230, found: 335.1240.

N-allylic-N-benzyl-N′-butylsulfamide (1d). 1H NMR (400 MHz, CDCl3): δ 7.25-7.34 (m, 5H), 5.78-5.88 (m, 1H), 5.12-5.22 (m, 2H), 4.74 (br, 1H), 4.36 (s, 2H), 3.71 (d, J = 6.4 Hz, 2H), 2.95-3.00 (m, 2H), 1.44-1.51 (m, 2H), 1.28-1.37 (m, 2H), 0.90 (t, J = 7.6 Hz, 3H); 13C NMR (100 MHz, CDCl3): δ 136.3, 132.7, 128.4, 127.5, 119.1, 50.2, 49.5, 42.7, 31.4, 19.7, 13.5; HRMS: m/z (ESI) calcd. [M + H]+: 283.1480, found: 283.1485.

N-allylic-N-benzyl-N′-phenylsulfamide (1e). 1H NMR (400 MHz, CDCl3): δ 7.23-7.28 (m, 2H), 7.16-7.19 (m, 5H), 7.06-7.10 (m, 3H), 5.46-5.56 (m, 1H), 4.96-5.06 (m, 2H), 4.34 (s, 2H), 3.69 (d, J = 6.8 Hz, 2H); 13C NMR (100 MHz, CDCl3): δ 137.4, 135.7, 132.3, 129.4, 128.62, 128.61, 127.8, 124.5, 120.2, 119.7, 50.6, 49.8; HRMS: m/z (ESI) calcd. [M + H]+: 303.1167, found: 303.1177.

N-allylic-N-neopentyl-N′-benzylsulfamide (1f). 1H NMR (400 MHz, CDCl3): δ 7.25-7.36 (m, 5H), 5.88-5.99 (m, 1H), 5.21-5.25 (m, 2H), 4.45 (br, 1H), 4.20 (d, J = 6.0 Hz, 2H), 3.89 (d, J = 6.8 Hz, 2H). 3.03 (s, 2H), 0.96 (s, 9H); 13C NMR (100 MHz, CDCl3): δ 136.8, 133.4, 128.7, 127.9, 127.9, 119.4, 58.5, 53.3, 47.5, 33.5, 28.2; HRMS: m/z (ESI) calcd. [M + H]+: 297.1637, found: 297.1630.

N-allylic-N-methyl-N′-benzylsulfamide (1g). 1H NMR (400 MHz, CDCl3): δ 7.25-7.35 (m, 5H), 5.69-5.79 (m, 1H), 5.18-5.24 (m, 2H), 4.89 (br, 1H), 4.16 (d, J = 6.0 Hz, 2H), 3.67 (d, J = 6.4 Hz, 2H). 2.69 (s, 3H); 13C NMR (100 MHz, CDCl3): δ 136.9, 132.8, 128.6, 127.8, 127.7, 118.7, 53.0, 47.2, 34.2; HRMS: m/z (ESI) calcd. [M + H]+: 241.1011, found: 241.1011.

N-allylic-N-phenyl-N′-benzylsulfamide (1h). 1H NMR (400 MHz, CDCl3): δ 7.23-7.33 (m, 10H), 5.74-5.84 (m, 1H), 5.06-5.11 (m, 2H), 4.69 (br, 1H), 4.18-4.21 (m, 4H); 13C NMR (100 MHz, CDCl3): δ 140.2, 136.6, 133.2, 129.2, 128.7, 128.3, 127.9, 127.8, 127.6, 118.7, 54.6, 47.5; HRMS: m/z (ESI) calcd. [M + H]+: 303.1167, found: 303.1168.

tert-Butyl N-allylic-(benzylaminosulfonyl)aminoacetate (1i). 1H NMR (400 MHz, CDCl3): δ 7.26-7.38 (m, 5H), 5.76-5.86 (m, 1H), 5.22-5.27 (m, 2H), 5.11 (br, 1H), 4.33 (d, J = 6.0 Hz, 2H), 3.91 (s, 2H), 3.88 (d, J = 6.4 Hz, 2H), 1.45 (s, 9H); 13C NMR (100 MHz, CDCl3): δ 169.6, 137.3, 132.7, 128.6, 127.9, 127.7, 119.5, 82.5, 51.3, 49.1, 47.1, 27.9; HRMS: m/z (ESI) calcd. [M + Na]+: 363.1354, measured: 363.1364.

N-(2-methylprop-2-en-1)-N,N′-dibenzylsulfamide (1j). 1H NMR (400 MHz, CDCl3): δ 7.21-7.36 (m, 10H), 4.97 (s, 1H), 4.92 (s, 1H), 4.37 (s, 2H), 4.27 (t, J = 5.6 Hz, 1H), 4.10 (d, J = 6.0 Hz, 2H), 3.74 (s, 2H), 1.73 (s, 3H); 13C NMR (100 MHz, CDCl3): δ 140.2, 136.6, 136.2, 128.9, 128.7, 128.6, 127.9, 127.8, 114.7, 53.5, 50.6, 47.3, 20.1; HRMS: m/z (ESI) calcd. [M + H]+: 331.1480, found: 331.1478.

N-(1-methylprop-2-en-1)-N,N′-dibenzylsulfamide (1k). 1H NMR (400 MHz, CDCl3): δ 7.38 (d, J = 7.2 Hz, 2H), 7.22-7.32 (m, 6H), 7.16 (d, J = 6.4 Hz, 2H), 5.93-6.01 (m, 1H), 5.17-5.23 (m, 2H), 4.50 (m, 1H), 4.35 (d, J = 16.0 Hz, 1H), 4.19-4.23 (m, 2H), 3.94-4.03 (m, 2H), 1.28 (d, J = 6.8 Hz, 3H); 13C NMR (100 MHz, CDCl3): δ 138.3, 138.2, 136.4, 128.5, 128.4, 128.2, 127.8, 127.7, 127.4, 117.0, 56.2, 47.9, 47.1, 17.6; HRMS: m/z (ESI) calcd. [M + H]+: 331.1480, found: 331.1469.

N-(2-phenylprop-2-en-1)-N-neopentyl-N′-benzylsulfamide (1l). 1H NMR (400 MHz, CDCl3): δ 7.54 (d, J = 7.6 Hz, 2H), 7.23-7.33 (m, 6H), 7.12-7.14 (m, 2H), 6.51-6.60 (m, 1H), 5.43 (dd, J = 10.0 Hz, J = 0.8 Hz, 1H), 5.30 (d, J = 17.2 Hz, 1H), 4.97 (d, J = 8.4 Hz, 1H), 4.11 (dd, J = 13.6, 7.2 Hz, 1H), 3.92 (dd, J = 13.2 Hz, J = 5.2 Hz, 1H), 3.51 (br, 1H), 3.26 (d, J = 15.2 Hz, 1H), 3.12 (d, J = 14.8 Hz, 1H), 1.00 (s, 9H); 13C NMR (100 MHz, CDCl3): δ 139.4, 136.7, 135.9, 128.5, 128.4, 128.3, 127.9, 127.8, 127.7, 119.6, 68.6, 60.8, 47.6, 33.3, 28.5; HRMS: m/z (ESI) calcd. [M + H]+: 373.1950, found: 373.1933.

N-(2-phenylprop-2-en-1)-N,N′-dibenzylsulfamide (1m). 1H NMR (400 MHz, CDCl3): δ 7.06-7.43 (m, 15H), 6.21-6.30 (m, 1H), 5.57 (d, J = 6.8 Hz,, 1H), 5.41 (d, J = 10.0 Hz, 1H), 5.38 (d, J = 16.8 Hz, 1H), 4.38 (d, J = 15.2 Hz, 1H), 4.28 (d, J = 15.2 Hz, 1H), 3.94-3.99 (m, 1H), 3.82-3.84 (m, 2H); 13C NMR (100 MHz, CDCl3): δ 138.7, 137.4, 136.3, 134.9, 128.7, 128.6, 128.55, 128.50, 128.45, 128.03, 127.9, 127.7, 127.6, 119.5, 65.1, 49.5, 47.1; HRMS: m/z (ESI) calcd. [M + H]+: 393.1637, found: 393.1617.

N-((E)-2-methylbut-2-en-1)-N,N′-dibenzylsulfamide (1n). 1H NMR (400 MHz, CDCl3): δ 7.20-7.33 (m, 10H), 5.35 (q, J = 5.2 Hz, 1H), 4.47 (br, 1H), 4.28 (s, 2H), 4.07 (d, J = 6.4 Hz, 2H), 3.69 (s, 2H), 1.58 (d, J = 5.6 Hz, 3H), 1.57 (s, 3H); 13C NMR (100 MHz, CDCl3): δ 136.6, 136.5, 130.6, 128.7, 128.5, 128.3, 127.8, 127.7, 127.5, 124.5, 55.7, 50.3, 47.1, 13.7, 13.3; HRMS: m/z (ESI) calcd. [M + H]+: 345.1637, found: 345.1639.

3. Results and discussion

The initial study focused on the reaction of N- alkenylsulfamide 1a. When the reaction was carried out under our previous conditions [17], the aminofluorinated product 2a was obtained in 45% yield with high regioselectivity (Table 1, entry 1). In our previous study, addition of acidic additives, such as (CF3)2CHOH (HFIP), was helpful to improve aminofluorination with good mass balance [17]. Thus, HFIP was used as an additive, and the yield of 2a increased from 45% to 62% by addition of HFIP (5 equiv). However, a small amount of the 5-exo product 2a′ was obtained (less than 10%, entries 2-4). Furthermore, solvent screening showed that toluene was the best solvent, CH2Cl2 and (CH2Cl)2 also gave the desired product in moderate yields, acetonitrile was less effective, and dimethylformamide (DMF) was ineffective (entries 5-8). Inspired by the results of HFIP, a more acidic additive HOAc was tested. We found that HOAc exhibited similar behavior to HFIP, and the reaction gave product 2a in 64% yield. The amount of HOAc affected the yield of product 2a, and 0.6 equiv of HOAc was the best concentration (entries 9-14). Again, the reaction also gave the 5-exo product 2a′ in around 5% yield. It is worth noting that no reaction occurred in the absence of the palladium catalyst (entry 15).

Table 1
Optimization of the reaction conditions.

With the optimized reaction conditions, the substrate scope was investigated (Table 2). As with the reaction of 1a (2a 55% yield, entry 1), the reactions of other substrates with different substituents on the nitrogen also proceeded smoothly. For instance, substrates 1b and 1c with p-methylbenzyl and p-fluorobenzyl substituents gave the corresponding products 2b and 2c in moderate yields (55% and 63% yield, respectively, entries 2 and 3). Substrate 1d with the n-butyl group gave product 2d in 51% yield (entry 4).

Table 2

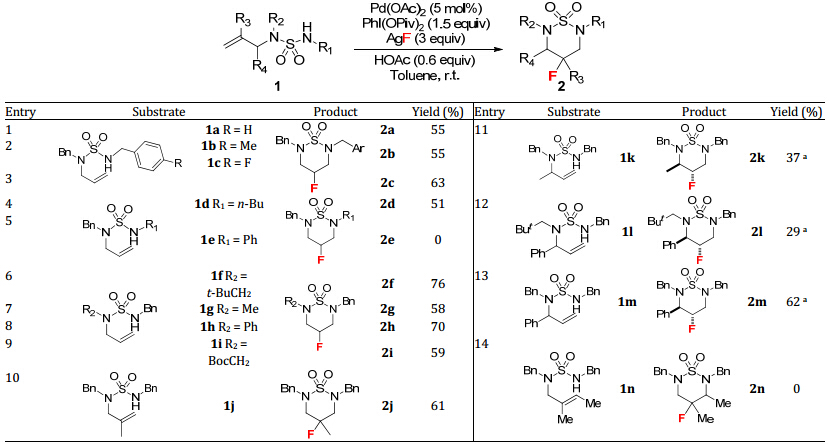

Substrate scope.

However, substrate 1e with the phenyl group failed to give the desired product (entry 5). Substrates synthesized from various N-substituted allylamines were also investigated. The reactions also gave the products in moderate yields. For example, substrates 1f with neopentyl and 1g with methyl proceeded smoothly to give 2f and 2g in 76% and 58% yields (entries 6 and 7). Substrate 1h with a phenyl group gave 2h in 70% yield (entry 8). Substrate 1i witha tert-butyl acetate group was also compatible with this transformation to give 2i in 59% yield (entry 9). For the 1,1-disubstituted substrates, the reaction of 1j gave product 2j in 61% yield (entry 10). Furthermore, for substrates with substituents in the allylic position, the reaction exhibited excellent diastereoselectivity to give a single trans-isomer albeit in low yield. The reactions of 1k and1l selectively produced 2k and 2l in 37% and 29% yields, and the reaction of 1m generated product 2m with excellent selectivity and moderate yield (entries 11-13). However, for the trisubstituted alkene substrate 1n, the reaction did not give the desired product 2n under the current conditions (entry 14).

Based on our previous results, a plausible mechanism is shown in Scheme 1. The reaction is initiated by nucleopalladation of the alkene to give alkyl-Pd(II) intermediates I and II, which can be oxidized by PhI(OPiv)2/AgF to form hypervalent alkyl-Pd-F intermediates [16, 17], and the subsequent reductive elimination could address the formation of the C-F bond. Similar to previously reported aminochlorination of alkenes [35], the reaction might involve reversible aminopalladation, and the oxidation of electron-rich intermediate I is faster than that of intermediate II, resulting in the favorable product being 2a.

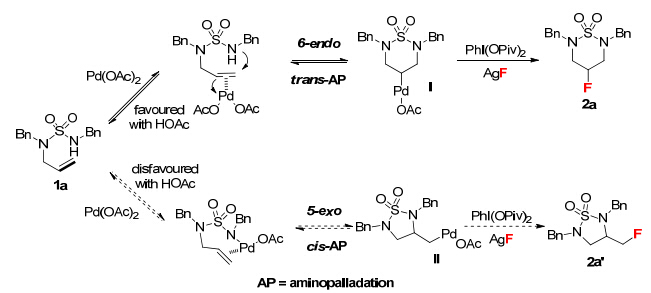

Scheme 1. Proposed mechanism for Pd-catalyzed aminofluorination of unactivated alkenes containing the sulfamide group.
4. Conclusions

In summary, we have developed a novel Pd-catalyzed aminofluorination reaction of unactivated alkenes containing the sulfamide group. The method provides a new approach to synthesize a variety of fluorinated cyclic sulfamide derivatives. HOAc played a crucial role in improving the reactivity to give reasonable yields.

References
[1] Filler R, Kobayashi Y. Biomedicinal Aspects of Fluorine Chemistry. Amsterdam: Elsevier, 1982. 1
[2] Welch J T, Eswarakrishman S. Fluorine in Bioorganic Chemistry. New York: Wiley, 1991. 1
[3] Miyake H. In: Banks R E, Smart B E, Tatlow J C ed. Organofluorine Chemistry: Principles and Commercial Applications. New York: Plenum Press, 1994. 555
[4] Nyffeler P T, Duron S G, Burkart M D, Vincent S P, Wong C H. Angew Chem Int Ed, 2005, 44: 192
[5] Shimizu M, Hiyama T. Angew Chem Int Ed, 2005, 44: 214
[6] Pihko P M. Angew Chem Int Ed, 2006, 45: 544
[7] Petrov V A. Fluorinated Heterocyclic Compounds: Synthesis, Chemistry, and Applications. Hoboken, NJ: John Wiley & Sons, Inc, 2009
[8] Nosova E V, Lipunova G N, Charushin V N, Chupakhin O N. J Fluorine Chem, 2010, 131: 1267
[9] Zhu S Z, Wang Y L, Peng W M, Song L P, Jin G F. Curr Org Chem, 2002, 6: 1057
[10] Silvester M J. Aldrich Acta, 1991, 24: 31
[11] Kwiatkowski P, Beeson T D, Conrad J C, MacMillan D W C. J Am Chem Soc, 2011, 133: 1738
[12] Kishi Y, Nagura H, Inagi S, Fuchigami T. Chem Commun, 2008: 3876
[13] Fustero S, Catalan S, Sanchez-Rosello M, Simon-Fuentes A, del Pozo C. Org Lett, 2010, 12: 3484
[14] Jensen K H, Sigman M S. Org Biomol Chem, 2008, 6: 4083
[15] Kotov V, Scarborough C C, Stahl S S. Inorg Chem, 2007, 46: 1910
[16] Wu T, Yin G Y, Liu G S. J Am Chem Soc, 2009, 131: 16354
[17] Wu T, Cheng J S, Chen P H, Liu G S. Chem Commun, 2013, 49: 8707
[18] Zhu H T, Liu G S. Acta Chim Sinica (朱海涛, 刘国生. 化学学报), 2012, 70: 2404
[19] Qiu S F, Xu T, Zhou J, Guo Y L, Liu G S. J Am Chem Soc, 2010, 132: 2856
[20] Xu T, Qiu S F, Liu G S. Chin J Chem (徐涛, 邱水发, 刘国生. 中国化学), 2011, 29: 2785
[21] Xu T, Mu X, Peng H H, Liu G S. Angew Chem Int Ed, 2011, 50: 8176
[22] Xu T, Liu G S. Org Lett, 2012, 14: 5416;
[23] Liu Q L, Wu Y C, Chen P H, Liu G S. Org Lett, 2013, 15: 6210
[24] Qian J Q, Liu Y K, Zhu J, Jiang B, Xu Z Y. Org Lett, 2011, 13: 4220
[25] Li Z D, Song L Y, Li C Z. J Am Chem Soc, 2013, 135: 4640
[26] Wang Q, Zhong W H, Wei X, Ning M H, Meng X B, Li Z J. Org Biomol Chem, 2012, 10: 8566
[27] Huang H T, Lacy T C, Blachut B, Ortiz Jr G X, Wang Q. Org Lett, 2013, 15: 1818
[28] Cui J, Jia Q, Feng R Z, Liu S S, He T, Zhang C. Org Lett, 2014, 16: 1442
[29] Kong W Q, Feige P, de Haro T, Nevado C. Angew Chem Int Ed, 2013, 52: 2469
[30] Shuntona H P, Früeh N, Wang Y M, Rauniyar V, Toste F D. Angew Chem Int Ed, 2013, 52: 7724
[31] Eickmeier C, Peters S, Fuchs K, Heine N, Handschuh S, Dorner- Ciossek C, Klinder K, Kostka, M. US Patent 5 006 939. 2006
[32] Martinez A, Castro A, Gil C, Miralpeix M, Segarra V, Domenech T, Beleta J, Palacios J M, Ryder H, Miro X, Bonet C, Casacuberta J M, Azorin F, Pina B, Puigdomenech P. J Med Chem, 2000, 43: 683
[33] Armarego W L F. Purification of Laboratory Chemicals. Amsterdam: Elsevier, 1997
[34] McDonald R I, Stahl S S. Angew Chem Int Ed, 2010, 49: 5529
[35] Yin G Y, Wu T, Liu G S. Chem Eur J, 2012, 18: 451
