The hydrogenation of 4-carboxybenzaldehyde (4-CBA) is an important reaction in the purification of crude terephthalic acid (CTA) ^[1]. Pd-based catalysts have been widely used for this reaction. As the support, most metal oxides, such as Al₂O₃ and SiO₂, are not suitable for this system due to the acidic property of the CTA solution, which would dissolve the metal oxide. In recent years, a carbon supported Pd catalyst has gained increasing attraction because of the improved stability ^{[2, 3]}. However, the Pd catalyst still faces several challenges. The most important is the aggregation of Pd particles under the industrial reaction conditions (7 MPa, 250 °C) ^[4].

In general, there are two main strategies to reduce the aggregation of Pd particles. One is to add a second component, such as a metal, Ru ^{[5, 6]} or Pt ^{[7, 8]}, or metal oxides, TiO₂ ^{[9, 10]} and In₂O₃ ^[11], which can form an alloy or form a strong interaction with Pd. However, for the alloyed Pd, the improved stability is often accompanied by decreased activity. For metal oxides, the deposition process must be prudently performed to ensure their high dispersion. The other alternative is to utilize space confinement, for example, encapsulation of Pd particles by porous silica oxide ^[12] or filling the inner space by CNTs ^[13]. Therefore, if there is a semi-open surrounding, for instance, a grass-like surface built for the Pd particles, not only Pd particle stabilization but also a high efficiency of mass transfer will be ensured. In this work, we designed a structured catalyst in which Pd nanoparticles were dispersed and stabilized in grass-like graphene layers on monolithic cordierite. This gave high stability and activity to the catalyst for the hydrogenation of 4-CBA.

Graphene (Gr) is an extensively explored carbon material as a catalyst support ^{[14, 15]}. It can spread over a monolithic cordierite through hydrogen bond or electrostatic interaction with the assistance of a polyelectrolyte ^{[16, 17]}. In this study, we spread NH₂-ion liquid (C₇H₁₄ClN₃, denoted as NH₂-IL) functionalized Gr layers on cordierite and further loaded it with Pd. It was found that most Pd particles entered the interlayers of the immobilized Gr layers, denoted as Pd/Gr-N/cordierite. More interestingly, when the Pd/Gr-N/cordierite catalyst was aged under a severe reaction condition similar to the industrial operation, the Gr layers were erected and interconnected to form a grass-like arrangement which generated a space confinement for the Pd particles loaded there. The resulting catalyst, named as aged Pd/Gr-N/cordierite, exhibited a much higher stability for the hydrogenation of 4-CBA than a commercial Pd/C catalyst. The possible mechanism of the formation of the grass-like Gr sheets is shown in Fig. 1.

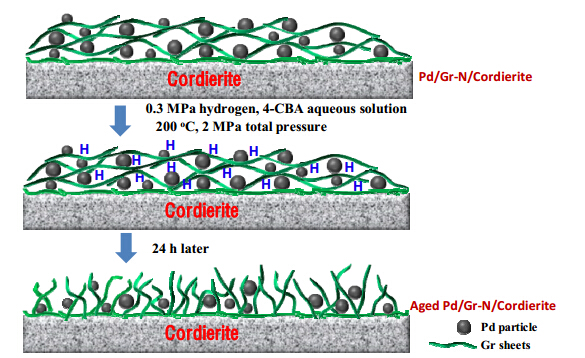

Fig. 1. Preparation of aged Pd/Gr-N/cordierite with grass-like Gr sheets.

In a typical experiment, GO (graphene oxide) prepared by the modified Hummers method was reduced by ascorbic acid to obtain Gr ^[18]. Then the NH₂-IL modified Gr (denoted as Gr-N) was prepared by keeping NH₂-IL and the Gr sheets mixture under sonication for a period of time.

Introducing NH₂-IL led to the improved dispersion of Gr in water (Fig. 2(a)). The reduction of GO to Gr and subsequent modification of Gr with NH₂-IL was confirmed by FT-IR and UV-Vis (Fig. 2(b), (c)). The characteristic peaks of NH₂-IL at 2874 cm^-1(stretching vibration of NH₂ forming strong hydrogen bond), 862 cm^-1 (NH₂ twisting vibration), 1561, 1460, and 1075 cm^-1 (imidazole ring) were observed for Gr-N, which confirmed the presence of NH₂-IL on Gr. The UV-Vis spectra showed that a red shift of the Gr peak occurred from 246 to 266 nm after it was modified by NH₂-IL. This indicated that there was π-π non-covalent bonding between the imidazole ring and Gr ^[19]. The amount of NH₂-IL connected to the Gr was evaluated by TGA (Fig. 2(d)). NH₂-IL showed an obvious mass loss of 20% between 100 and 200 °C due to water loss. Then the NH₂-IL started to decompose at 250 °C, and was completely decomposed at 500 °C, with a total mass loss of 65%. Similarly, two mass loss peaks were observed for Gr-N. The mass loss of 6% below 250 °C was ascribed to the removal of adsorbed water. From the mass loss between 250 and 500 °C caused by the decomposition of NH₂-IL, the mass percentage of NH₂-IL in Gr-N can be estimated to be 8%.

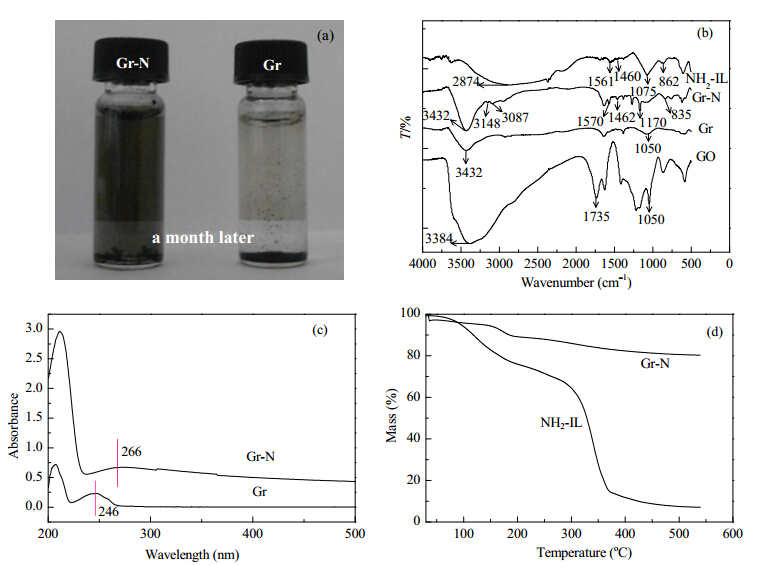

Fig. 2. Digital photos (a), FT-IR spectra (b), UV-Vis spectra (c) and TGA curves (d) of NH2-IL, Gr, Gr-N, and GO.

TEM images with different intensity of the Pd/Gr-N/ cordierite and aged Pd/Gr-N/cordierite catalysts are shown in Fig. 3. As shown in Fig. 3(a) and (b), after aging, the Pd particle size was increased from 2 to 8 nm to 4 to 12 nm. In addition, a morphology change can be easily observed for the Gr coating. The outer layers of Gr have been erected and were interlocked to form a grass-like surface. Figure 4 shows the Raman spectra of the Pd/Gr-N/cordierite catalyst before and after aging. Because there is an interference of fluorescence at the wavelength of 532 nm, the measuring wavelength was changed to 785 nm. Normally, the positions of the D band and G band at 532 nm for Gr are at 1360 and 1600 cm^{-1 [20]}. However, they are shifted to 1375 and 1520 cm^-1 at 785 nm. It is known that the D band is related to a disordered and defective carbon structure, while the G band corresponds to a well-ordered graphite structure ^[21]. The intensity ratio of the D and G bands (I_D/I_G) for the aged Pd/Gr-N/cordierite catalyst was 1.77, and I_D/I_G of Pd/Gr-N/cordierite was 1.47. The increase of I_D/I_G may be due to the increase of disorder of the Gr sheets.

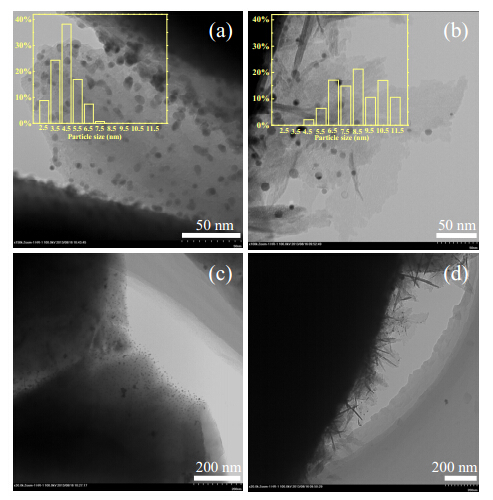

Fig. 3. TEM images of Pd/Gr-N/cordierite catalyst before ((a) and (c)) and after aging ((b) and (d)).

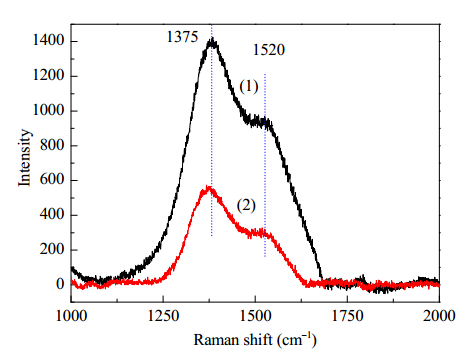

Fig. 4. Raman spectra of the Pd/Gr-N/cordierite (1) and aged Pd/Gr-N/cordierite (2) catalysts.

The structural change of the Gr coating was probably induced by the dissociation of hydrogen on the Pd particles and its spreading over the interlayers. The large amount of hydrogen atoms absorbed in Pd can result in swelling, erecting, and finally interconnecting of the Gr sheets to form the grass-like surface. To further understand the role of hydrogen, in a conditioning experiment, only the substrate Gr-N/cordierite was aged under the same condition. No structural change was observed for the Gr coating. In addition, most Pd particles were loaded into the interlayers, which was shown by the XPS and ICP data shown in Table 1. The surface content of Pd in Pd/Gr- N/cordierite was much lower than that of Pd/Gr/cordierite, which was shown by XPS, but it had a higher overall Pd loading. This contrast revealed that most Pd particles in the Pd/Gr-N/ cordierite catalyst were spread over the interlayers of the Gr coating, and cannot be detected by XPS. Although the loading of Pd particles into the interlayers of GO sheets was previously reported by Mastalir et al. ^[22], this is the first time of a report of Pd particles introduced into the interlayers of immobilized Gr sheets.

Table 1 Surface Pd atoms percentage and overall Pd loading. Catalyst Surface Pd atoms percentage (%) Overall Pd loading (mg) Pd/Gr-N/cordierite 0.07 3.5 Pd/Gr/cordierite a 0.53 1.9 a The Pd catalyst was prepared by another route with poly (diallyldimethylammonium) chloride to modify GO sheets [17].

Table 1 Surface Pd atoms percentage and overall Pd loading.

The initial activity and stability of the Pd/Gr-N/cordierite and Pd/C catalysts in 4-CBA hydrogenation are shown in Fig. 5. The experimental details are given in the supporting information. Figure 5 shows that Pd/Gr-N/cordierite exhibited much higher stability than the Pd/C catalyst, although its initial activity was not as high. As for Pd/Gr-N/cordierite, the reaction rate constant k was decreased by only 30%. However, the value of k dropped by almost 92% for the Pd/C catalyst. As we know, Pd leaching is an important reason for activity loss that is in addition to Pd aggregation. To illustrate the two aspects, the contrast of Pd loading before and after aging is shown in Table 2. For Pd/Gr-N/cordierite, the Pd leaching percentage was obviously reduced from 36% to 5%, as compared with Pd/C. So, the contribution of Pd aggregation to activity loss for Pd/Gr-N/cordierite and Pd/C can be calculated to be 25% and 56%, respectively.

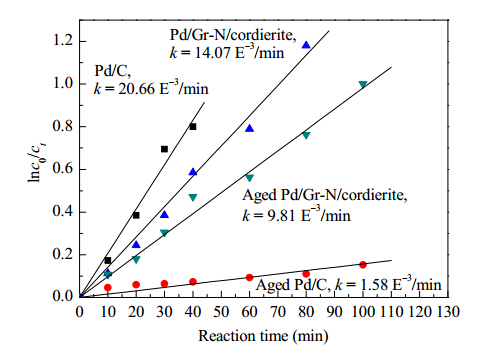

Fig. 5. Initial activity and stability of the Pd/Gr-N/cordierite and Pd/C catalysts.

Table 2 Pd loading before and after aging of Pd/Gr-N/cordierite and Pd/C catalysts. Catalyst Pd loading (%) Pd leaching (%) Before aging After aging Pd/Gr-N/cordierite 0.0219 0.0208 5 Pd/C 0.550 0.350 36

Table 2 Pd loading before and after aging of Pd/Gr-N/cordierite and Pd/C catalysts.

In summary, a novel monolithic Pd/Gr-N/cordierite catalyst was developed by utilizing NH₂-IL modified Gr sheets. The catalyst showed excellent stability for 4-CBA hydrogenation as compared to a commercial Pd/C catalyst. The grass-like surface structure of the Gr sheets on cordierite was achieved after aging under 4-CBA hydrogenation condition. The grass-like surface structure prevented Pd leaching and aggregation, which led to improved stability. In addition, the monolithic cordierite with the Gr coating possessed high mechanical strength and acid corrosion resistance. Therefore, Pd/Gr-N/cordierite is a promising catalyst for CTA purification in industry.
