α-Zirconium phosphate (ZP) is one of the most important compounds in inorganic chemistry, and the layered structure of this material has led to its use in a variety of different fields [1, 2, 3]. ZP behaves as a unique ion exchanger because of its exceptionally poor aqueous solubility, high thermal stability, resistance to radiation and abrasive properties [4, 5]. The H+ of the P-OH moiety in ZP can be exchanged for various other ions, resulting in an enlargement of the interlayer distance [6, 7, 8, 9]. Several studies pertaining to the successful exchange of this proton with various divalent and trivalent cations, including Mn2+, Co2+, Ni2+, Cu2+, Fe2+, Fe3+, and Zn2+, have been presented in the literature [10, 11, 12, 13, 14]. It has also been reported that ZP possesses excellent selectivity towards Pb2+, Zn2+, and Fe3+ as an ion exchanger [15, 16, 17]. Furthermore, ZP has been shown to exhibit antibacterial activity when loaded with Cu2+, Zn2+, or Ce3+ [5, 6, 13, 14]. There have also been several reports concerning the catalytic activities of ion-exchanged materials of this type, including the use of zinc zirconium phosphate (ZPZn) as a catalyst in the acetylation of alcohols and phenols and the use of copper zirconium phosphate (ZPCu) as a catalyst during the selective oxidation of alcohols [18, 19, 20, 21, 22, 23, 24].
The protection and deprotection of organic functional groups are important during multi-step organic syntheses. The particular functional group transformation chose is based on considering the simplicity of the reaction, as well as the ability to obtain high yields of the desired products and short reaction times, and to achieve a low cost process with an easy work-up [25, 26]. The acetylation of alcohols, phenols, thiols, and amines is one of the most important and frequently used transformations in organic synthesis, especially in the synthesis of natural compounds, biologically active compounds, and polyfunctional molecules such as nucleosides, carbohydrates, chalcones, flavanones, naphthoquinones, pesticides, and steroids. Acetylated groups are also commonly found in cosmetics and food stuffs, as well as in solvents, perfumes, plasticizers, flavors, polymers, and pharmaceuticals [25, 26, 27]. One of the most common examples of a compound containing an acetylated group is acetylsalicylic acid (trademarked as Aspirin), which is produced by the acetylation of salicylic acid with acetic anhydride (AA) in the presence of an acid catalyst [28]. The acetyl group is one of the most inexpensive and commonly used protecting groups for -OH, -SH, and -NH2 moieties because the res ulting acetylated compounds are stable under a variety of reaction conditions and in contact with a wide range of reagents. Furthermore, the acetyl group can be readily introduced using inexpensive reagents and is easily removed by mild alkaline hydrolysis [29, 30, 31].
A number of different procedures have been developed for the acetylation of alcohols, phenols, amines, and thiols using both homogeneous and heterogeneous catalysts. These have included VIV(TPP)(OTf)2 [27], La(NO3)3·6H2O [29], B(C6F5)3 [30], NSPVPHS [31], ZnCl2 [32], borated zirconia [33], ZnO2 [34], Ce(OTf)3 [35], SiO2-ZnCl2 [36], H3PW12O40 [37], DMAP·HCl [38], Cu(BF4)2 [39], silica-bonded sulfamic acid [40], Cp2ZrCl2 [41], [TMBSA][HSO4] [42], [bmim][OTs] [43], [MMPPA][HSO4] [44], SaSA [45], SBNPSA [46], SuSA [47], P(4-VPT) [48], acylimidazolium acetate [49], polyvinylpolypyrrolidoniume tribromide [50], ZnAl2O4@SiO2 [51], P2O5/Al2O3 [52], [Hmim]HSO4 [53], yttria-zirconia [54], CoCl2 [55], MWCNTs-C-PO3H2 [56], NiCl2 [57], Ni/SiO2 [58], DBSA [59], rice husk [60], anhydrous NiCl2 [61], LaFeO3/SiO2 [62], and Fe/SBA-15 [63]. However, most of these catalysts have both advantages and limitations. Despite extensive interest in the development of new methods of acetylation, there is still a requirement to develop simple, efficient, inexpensive, widely applicable, reusable, and environmentally benign catalysts and procedures capable of promoting the acetylation process. With growing environmental concerns, one of the most promising ways to achieve these goals appears to be the use of environmentally friendly insoluble catalysts and/or solvent-free conditions. An insoluble catalyst may be readily recovered from the post-reaction mixture by simple filtration and potentially recycled and reused several times, making the process more economically and environmentally viable. Furthermore, reported examples have demonstrated that heterogeneous catalysts typically require less labor-intensive work-up procedures. Solvent-free synthetic methods are also valuable for both environmental and economic reasons [22, 24]. With this in mind, and as part of ongoing work towards the development of efficient green catalysts for organic transformations [64, 65] with a particular emphasis on the acetylation and acylation of aromatic compounds [52, 53], we report herein the use of iron zirconium phosphate (ZPFe) as an efficient catalyst for the mild, simple acetylation of alcohols and phenols under solvent-free conditions. This new ZPFe catalyst was characterized by inductively coupled plasma-optical emission spectroscopy (ICP-OES), X-ray diffraction (XRD), N2 adsorption-desorption, scanning electron microscopy (SEM), and transmission electron microscopy (TEM).

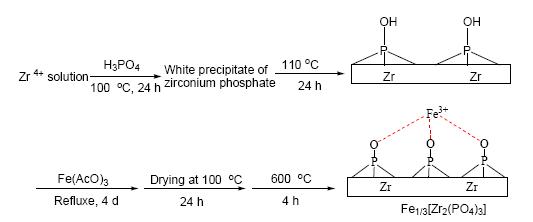

All the reagents and solvents used in the current study were purchased from the Merck Chemical Company and used without further purification. The catalyst was prepared according to previously published procedures, with minor modifications [2, 8, 9, 10]. As an initial step, ZP was synthesized according to the following procedure. ZrOCl2·8H2O (5 g) was heated under reflux conditions in a solution of H3PO4 (50 mL, 12 mol/L) for 24 h. The resulting mixture was cooled to ambient temperature to give a suspension. After filtration, the filter cake was washed with a solution of H3PO4 (0.1 mol/L) until the filtrate was free of chloride ions. The filter cake was then washed several times with distilled water until the pH of the filtrate was neutral. The remaining solid was dried in an oven at 110 °C for 24 h [2]. ZPFe was prepared through an ion-exchange reaction [8, 9, 10]. Briefly, ZP (3 g) was dispersed in deionized water (50 mL) at 50 °C, and the resulting suspension was treated with a solution of Fe(OAc)3 (100 mL, 0.1 mol/L) in water (providing an excess of Fe3+). This mixture was the n heated under reflux for 4 d. It is noteworthy that the acetate ion performed effectively as a base to keep the hydrogen ion concentration in the solution sufficiently low so as to achieve high loadings of the catalyst [8]. A complete exchange between the cations and the hydrogen ions of the P-OH groups could not be achieved in less than 3 d or below 80 °C [13]. The resulting slurry was filtered while hot to give a light yellow solid that was washed with distilled water until no Fe3+ ions could be detected in the filtrate (that is, until the filtrate was colorless). The solid product was then dried at 100 °C for 24 h before being calcined at 600 °C for 4 h to give the final product, Fe1/3[Zr2(PO4)3], as a pale yellow solid (Scheme 1).
The chemical composition of the ZPFe catalyst was evaluated both before and after the catalytic reaction by ICP-OES using an Optima 7300 V ICP-OES spectrometer (PerkinElmer). Catalyst samples were also ground into fine powders and analyzed by XRD on a Philips X’pert X-ray diffractometer. The specific surface areas of the samples were determined from their N2 adsorption-desorption isotherms, using the BET method, on a Quantachrome ChemBET 3000 instrument. Each sample was degassed at 400 °C for 2 h before being analyzed to remove any adsorbed species from the surface. The surface morphologies of the ZP and ZPFe materials were determined by SEM observations employing a Philips XL microscope. TEM images of ZPFe were obtained on a CENTRA 100 TEM system (Zeiss).
ZPFe (1 mol%) was added to a mixture of alcohol (1 mmol) and AA (2 mmol), and the resulting mixture was stirred at 40 °C for a specified time (Scheme 2). Upon completion of the reaction (as determined by gas chromatography), the catalyst was separated from the reaction mixture by centrifuge, after which the supernatant was collected and diluted with a 10% NaHCO3 solution (10 mL) before being extracted with Et2O (2 × 10 mL). The combined organic extracts were washed and then dried over anhydrous CaCl2 before being evaporated to dryness under vacuum to give the desired product. In some cases, it was necessary to purify the product by column chromatography on a silica gel column with elution by a mixture of cyclohexane and ethyl acetate.
To examine the recyclability of the catalyst, the ZPFe was recovered from the reaction media and re-used. Following each use, the catalyst was separated from the reaction mixture by centrifugation, washed sequentially with ethanol and water, dried at 110 °C for 2 h, and then activated at 450 °C for 2 h.
The data resulting from ICP-OES analyses of the ZP and ZPFe are shown in Table 1. The results obtained in the current study for ZPFe were compared with those reported previously in the literature [8, 9, 10]. These results also demonstrate that there was negligible leaching of iron ions into the reaction media during the initial use of the catalyst.

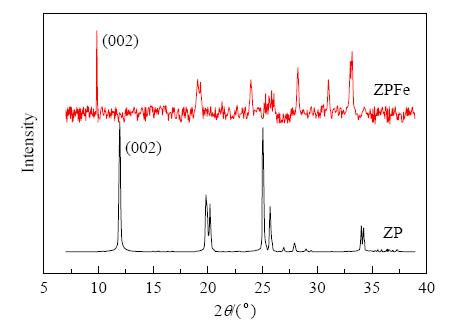

Figure 1 presents the powder XRD patterns of the ZP and ZPFe materials, indicating characteristic reflections in the 2θ range of 5°-40°. The diffraction peak generated by ZP at a 2θ of approximately 12° was assigned to a d002 basal spacing of 7.5 Å between planes, in good agreement with the patterns previously reported for ZP and its derivatives having a hexagonal crystal system [2].
The ZPFe pattern indicates that the d-spacing of the (002) plane in this material was increased, demonstrating that Fe3+ ions intercalated into the ZP interlayers and thus increased the d002 basal interlamellar spacing from the original value of 7.5 Å to 9.3 Å. It is well known that the radii of the Fe3+ ion (0.64 Å) and the hydrated Fe3+ ion (3.9 Å) are smaller than the basal spacing of ZP (7.5 Å) [66, 67]. These results therefore provide evidence that Fe3+ ions were inserted into the ZP interlayers and increased the basal spacing of the modified ZP during the ion exchange process [4, 9, 10, 17]. Taken together, the above characterization data show that ZPFe had been successfully synthesized. The XRD pattern of the ZPFe catalyst after the 7th run demonstrates that the basal spacing of the ZP was approximately 10.5 Å, a value only slightly larger than that of the fresh ZPFe catalyst. This increase may have occurred because of the presence of a reduced quantity of Fe3+ ions on the ZP surface together with an increase in the number of water molecules between the layers, meaning that Fe3+ ions may have been washed off during the regeneration of the catalyst during the process described in Section 2.4 (Table 1).

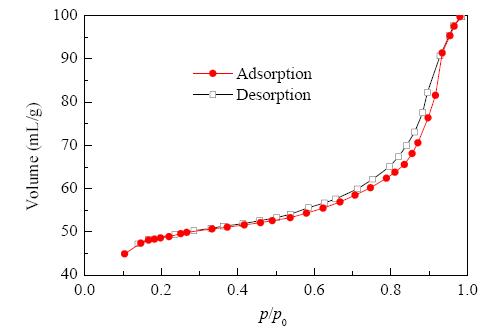

Figure 2 shows a representative N2 adsorption-desorption isotherm of ZPFe over the relative pressure range (p/p0) of 0.1-1.0. From these data, the ZPFe surface area was determined to be 107.1 m2/g. The isotherm exhibits three adsorption stages at p/p0 < 0.36, 0.36 < p/p0 < 0.92 and p/p0 > 0.92. The isotherm also shows a typical type IV shape with a distinct hysteresis loop, characteristic of a mesoporous material [68]. The hysteresis loop (type H3) is associated with the occurrence of capillary condensation in the mesopores, indicating the presence of a mesoporous structure in the ZPFe catalyst. The observed increase in adsorption at higher p/p0 values shows the presence of larger mesopores in the sample [9, 10]. The surface area of the ZPFe following the 7th run was found to be 82.3 m2/g.

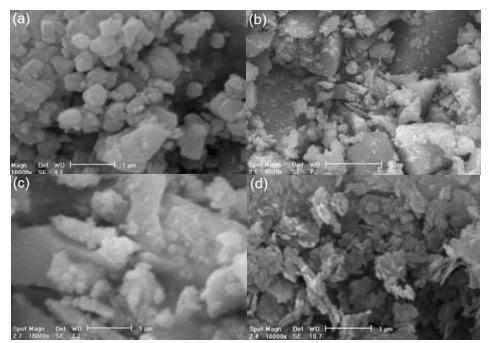

SEM images of ZP (Fig. 3(a)) demonstrate the presence of hexagonal plates with well-defined shapes and very smooth surfaces. Figures 3(b) and (c) present SEM images of ZPFe, from which it is evident that the structure of ZPFe was much less ordered than that of ZP, and that the ZPFe particles had aggregated to form both sheets and spheres of different shapes and sizes [4, 10].

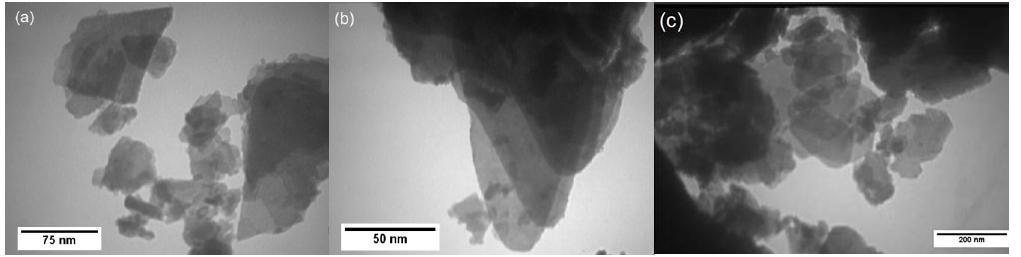

Figure 4 shows TEM images of ZPFe. In these images, the ZPFe catalyst can be seen to have retained the original morphology of ZP (a layered structure) and to consist of particles approximately 150 nm in size. These images also show nanoparticles of different sizes on the smooth surface of the ZP.
The conversion of phenol (1 mmol) to phenyl acetate was selected as a model reaction to optimize the reaction conditions. The conversion was performed in the presence of ZPFe (1 mol%) and AA (2 mmol) in various solvents, as well as under solvent-free conditions. As shown in Table 2, the use of ZPFe as a catalyst under solvent-free conditions provided higher yields and shorter reaction times than those achieved under conventional conditions.
Having determined the optimized conditions, we proceeded to evaluate the scope and generality of the method using various alcohols and phenols (Table 3). The hydroxyl groups of each alcohol and phenol were converted to the corresponding acetate in good yields following short reaction times when using three or four equivalents of AA (Table 3, entries 8-10 and 20). Furthermore, the products were readily isolated from the reaction mixtures by a simple filtration followed by a standard work-up procedure. Phenols reacted smoothly under the optimized conditions (Table 3, entries 1-15), with the corresponding acetates being formed in yields of 80%-95%. Furthermore, no by-products (such as those resulting from a Fries rearrangement) were observed when reacting substituted phenols. The presence of the electron-donating substituents -CH3, -OCH3 and -OH on the phenol ring significantly increased the rate of the acetylation reaction (Table 3, entries 2-10), with shorter reaction times being observed in these cases. In contrast, the presence of electron withdrawing groups (carboxyl and nitro groups and halogens) on the phenol ring decreased the reaction rate (Table 3, entries 11-15). The optimized reaction conditions were also successfully applied to obtain the acetylation of benzylic alcohols bearing either electron- withdrawing or electron-donating groups, without the formation of any by-products resulting from oxidation reactions (Table 3, entries 17-22). In the case of deactivated aromatic rings (Table 3, entries 21 and 22), the acetylated products were obtained in much lower yields and required longer reaction times than the corresponding activated aromatic systems (Table 3, entries 18-20). It was also observed that the reaction times required for the acetylation of the phenols were longer than those required for the benzylic alcohols.
This difference in the reaction times was attributed to the lower nucleophilicity of phenols compared with benzylic alcohols because of the delocalization of the lone pairs of electrons on the phenolic oxygen throughout the benzene ring [43, 49, 51]. To further extend the scope of the ZPFe catalyst, we also investigated the acetylation of several aliphatic alcohols, including 1-hexanol, cyclohexanol, 3-methyl-1-butanol and tert-butanol, under the optimized conditions (Table 3, entries 23-26).

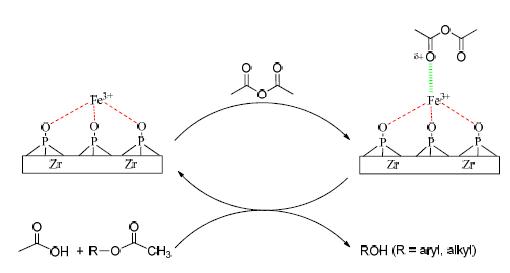

The acetylation reactions of 1-hexanol cyclohexanol and 3-methyl-1-butanol proceeded much more rapidly than the acetylation of tert-butanol, most likely because of the steric hindrance provided by the tert-butyl group. A schematic representation of the ZPFe-mediated acetylation process is provided in Scheme 3. To develop a better understanding of the role of the ZPFe catalyst in the acetylation reaction, we also investigated the acetylation of phenol, 4-hydroxyphenol and benzyl alcohol in the absence of the catalyst. As expected, no products were formed in any of these reactions, demonstrating the importance of the catalyst in the acetylation process. All the acetylated products formed in the current study were characterized by gas chromatography-mass spectrometry (GC-MS, Agilent 5975C), Fourier transform infrared spectroscopy (FT-IR, JASCO FT-IR 680 plus) and 1H nuclear magnetic resonance (NMR, Bruker-Avance AQS 400 MHz spectrometer). The resulting spectra were compared with data obtained from standard samples or data from the literature [28, 44, 45, 47, 48, 49, 50, 51, 52, 53].
The reusability of the ZPFe catalyst was investigated under the optimum reaction conditions for the acetylation of phenol, and the results are shown in Table 4. The elemental composition of the catalyst remained largely unchanged following its 7th use, although the amount of iron in the catalyst was reduced by almost 50% compared with the first run (Table 1). The recycled ZPFe catalyst gave a similar product yield to the freshly prepared catalyst up until the 6th cycle.
The catalytic efficiency of ZPFe was compared with those reported for several catalysts and reaction protocols, and the results are summarized in Table 5. Using the current method, phenol was converted to acetyl phenol in 91% yield following a reaction time of less than 15 min at 40 °C (Table 5, entry 18). Although some of the other catalysts performed well for the same reaction (Table 5, entries 2, 6, and 10), they invariably needed longer reaction times to generate suitable yields (Table 5, entries 3, 6, 7, 9, 11, 13, and 14) or required the use of a solvent (Table 5, entries 4, 6, 7, 9, and 12). It is noteworthy that the more reactive compound acetyl chloride was required in one case, involving reaction at room temperature (Table 5, entry 5). Furthermore, this reaction required a longer reaction time to afford a similar yield of the acetylated product to the current protocol. Some of the previously reported protocols used acetic acid as the acetylating agent, which is a much greener reagent than acetyl chloride (Table 5, entries 4, 8, and 15). However, these reactions also required longer reaction times (3-15 h), high temperatures (70-110 °C) and a large excess of acid acetic in almost all cases. The acetylation of phenol was also investigated using ZrOCl2·8H2O and ZP under our optimized reaction conditions (Table 5, entries 19 and 20). ZrOCl2·8H2O gave an excellent yield of the desired product, but was much more difficult to recover and reuse than the ZPFe catalyst. ZP gave a lower yield (70%) than ZPFe. The use of ZPZn as a catalyst, however, provided a similar result to that obtained when using ZPFe (Table 5, entry 1), with a 20 mol% loading of ZPZn providing the acetyl phenol product in 89% yield following a reaction time of 45 min [22].
Based on this comparison process, ZPFe was identified as the best catalyst for this transformation in terms of the reaction time and the loading of the catalyst. Benzyl alcohol was also acetylated under the optimized conditions to give the acetylated product in 91% yield following a reaction time of 15 min at 40 °C (Table 5, entry 35). This protocol was also compared with a variety of different previously reported procedures for the same transformation, and the results are shown in Table 5. When the reaction was conducted at room temperature in the presence of a different catalyst, longer reaction times were generally required to reach completion (Table 5, entries 23, 27-29, and 33). The use of ZPZn, ZrOCl2·8H2O or ZP as a catalyst under the optimized conditions provided the desired product in yields of 91%, 90% and 75%, respectively (Table 5, entries 21, 36, and 37). However, large excesses of the catalyst were required in all three cases, and significant difficulties were encountered during the recovery of these catalysts. These reactions also resulted in lower yields of the product. There were some benefits to using these catalysts, in that they used acetic acid as the acetylating agent rather than AA, even though all required longer reaction times, higher temperatures and a large excess of acetic acid to reach completion (Table 5, entries 24 and 32). 1H NMR and FT-IR spectral data for selected compounds from Table 3 are provided below.
C6H5OAc (Table 3, entry 1). 1H NMR (400 MHz, CDCl3): δ = 7.2 (t, J = 7.9 Hz, 2H), 7.1 (t, J = 7.5 Hz, 1H), 7.0 (t, J = 7.9 Hz, 2H), 2.3 (s, 3H); IR (KBr): 3055, 2915, 1753, 1581, 1485, 1364, 1179, 1014, 916, 876, 804, 739, 675 cm-1.
4-Me-C6H4OAc (Table 3, entry 3). 1H NMR (400 MHz, CDCl3): δ = 7.04 (d, J = 7.9 Hz, 2H), 6.82 (d, J = 7.9 Hz, 2H), 2.35 (s, 3H), 2.27 (s, 3H); IR (KBr): 3045, 2936, 1773, 1608, 1515, 1442, 1378, 1207, 1187, 1173, 1014, 947, 915, 832, 816 cm-1.
4-(CH3)3C-C6H4OAc (Table 3, entry 6). 1H NMR (400 MHz, CDCl3): δ = 7.37 (d, J = 8.25 Hz, 2H), 7.18 (d, J = 8.25 Hz, 2H), 2.27 (s, 3H), 1.24 (s, 9H); IR (KBr): 3052, 2971, 2918, 1759, 1600, 1517, 1448, 1373, 1279, 1211, 1116, 1026, 924, 841, 686 cm-1.
4-Cl-C6H4OAc (Table 3, entry 9). 1H NMR (400 MHz, CDCl3): δ = 7.43 (d, J = 8.4 Hz, 2H) 6.75 (d, J = 8.4 Hz, 2H), 2.24 (s, 3H); IR (KBr): 3075, 2939, 1765, 1641, 1591, 1488, 1370, 1200, 1163, 1014, 941, 845, 798, 720 cm-1.
2-AcO-C6H4CO2H (Table 3, entry 12). 1H NMR (400 MHz, CDCl3): δ = 10.4 (s, 1H), 7.95-7.12 (m, 4H), 2.35 (s, 3H); IR (KBr): 3426-2996, 2872, 1752, 1687, 1607, 1458, 1306, 1188, 917, 753, 706 cm-1.
4-MeO-C6H4CH2OAc (Table 3, entry 17). 1H NMR (400 MHz, CDCl3):δ = 7.15 (d, J = 8.5 Hz, 2H), 6.78 (d, J = 8.5 Hz, 2H), 5.0 (s, 2H), 3.65 (s, 3H), 2.2 (s, 3H); IR (KBr): 3011, 2943, 2826, 1729, 1613, 1518, 1460, 1363, 1243, 1176, 1120, 1031, 960, 823 cm-1.
3-Methylbutyl acetate(Table 3, entry 23). 1H NMR (400 MHz, CDCl3): δ = 4.18 (t, J = 6.6 Hz, 2H), 2.1 (s, 3H), 1.58-1.67 (m, 1H), 1.43-1.5 (m, 2H), 0.96 (d, J = 3.4, 6H); IR (KBr): 2962, 2935, 1743, 1465, 1430, 1249, 1172, 1136, 1065, 962, 857 cm-1.
ZPFe is an inexpensive, noncorrosive and environmentally benign catalyst that can be readily prepared from simple starting materials. This catalyst was characterized using various analytical methods and the results were in agreement with those reported previously in the literature. In this study, we have developed a simple and efficient procedure for the acetylation of a variety of different alcohols in good yields over short reaction times. There are several notable advantages to this methodology, including a broad substrate scope, the use of AA as an acetylating agent, excellent product yields and a simple work-up procedure resulting from the heterogeneous conditions.
