Zeolite-catalyzed methanol-to-olefins (MTO) conversion has attracted much interest from academic and industrial communities because it provides an alternative route to produce ethene and propene from non-crude oil resources, such as coal, natural gas and biomass ^{[1, 2]}. Silicoaluminophosphate-34 zeotype (H-SAPO-34) has proven to be one of the most promising catalysts for MTO conversion because the total selectivity to ethene and propene is greater than 80% ^{[3, 4]}. To increase selectivity towards desired products and tailor the selectivity ratio of propene to ethene, it is essential to rationally design catalysts from knowledge of the reaction mechanism.

It is very challenging to understand the reaction mechanism of MTO conversion, and which has been still disputed since the discovery of MTO conversion three decades ago ^[9]. This is because the distribution of products and reaction intermediates in MTO conversion are complex. The current consensus is that MTO conversion proceeds through an indirect hydrocarbon pool mechanism ^{[17, 18]}, and both inorganic zeolites and organic hydrocarbon pool species act as co-catalytic active components. Methanol reacts with hydrocarbon pool species to build alkyl chains and the latter split off to produce light olefins. Polymethylbenzenes (MBs) and olefins were previously proposed to be hydrocarbon pool species for MTO conversion, which evolve into two different reaction cycles, aromatic-based and olefin-based cycles ^[12]. It is believed that the product distribution of MTO conversion highly depends on the relative contribution of each cycle, which is related to catalyst structures and reaction conditions ^[26]. In H-ZSM-5 catalyzed MTO conversion, Svelle et al. ^{[27, 28]} proposed that ethene was exclusively produced from the aromatic-based cycle, while propene and higher olefins were produced from the olefin-based cycle. It has been proposed that aromatic-based cycle may evolve from side chain or paring routes ^[32]. Our previous theoretical kinetic calculations indicated that the paring route plays a minor role in MTO conversion ^{[36, 37]}.

Besides H-SAPO-34 and H-ZSM-5, many other zeolites or zeotypes have been systematically explored to understand structure-performance relationship and reaction mechanism of MTO conversion ^[38]. H-SAPO-18, a three-dimensional interconnected zeotype with the same size of pore openings as H-SAPO-34 (0.38 nm × 0.38 nm), exhibits good activity and selectivity for MTO conversion ^{[39, 40]}. The primary products using H-SAPO-18 were also propene and ethene. H-SAPO-18 can also intergrow with H-SAPO-34 during catalyst preparation ^[41]. To gain a better understanding of the MTO reaction mechanism and the effect of framework topology, we theoretically studied the aromatic-based hydrocarbon pool mechanism in H-SAPO-18 using the static density functional theory (DFT) method. The ab initio molecular dynamics (AIMD) method has recently been employed to study the adsorption of hydrocarbons and simple chemical reactions in zeolites, taking the temperature and surroundings explicitly into account ^[42]. Although larger spaces can be sampled on potential energy surfaces, it is currently still challenging to deal with reactions involving complex networks using the advanced AIMD method.

All DFT calculations applying periodic boundary conditions were carried out using the Vienna Ab initio Simulation Package (VASP 5.3.5) ^[43]. Electron-ion interactions were described using the projector augmented wave (PAW) method ^[44]. The Bayesian error estimation functional with van der Waals (vdW) correlation (BEEF-vdW) was used ^[45]. The plane wave basis set kinetic energy cutoff was 400 eV. Sampling of the Brillouin zone only used the Г point. The dimer method was used to locate transition states ^[44]. A force threshold of 0.1 eV/nm was used for the optimization of all structures. The harmonic frequency calculations employed a partial Hessian vibrational analysis (PHVA), including the H atom of acidic site and organic species of involved states ^[24]. The zero point energies (ZPE), enthalpies, entropies and Gibbs free energies were then calculated from harmonic frequencies.

The H-SAPO-18 zeotype exhibiting an AEI framework topology was modeled by a periodic 48T cell ^[23]. The Brønsted acid site was located between T2 and T1 sites in H-SAPO-18 because it was the most stable site (see Fig. 1) ^[46]. The lattice constants were optimized using an 800 eV energy cutoff and 0.1 eV/nm force threshold (1.391, 1.287, 1.879 nm for AlPO-18), which was similar to the experimental lattice constants (1.371, 1.273, 1.857 nm) ^{[24, 47]}. The positions of all atoms were allowed to relax in the calculations while the lattice constants were fixed at the optimized values.

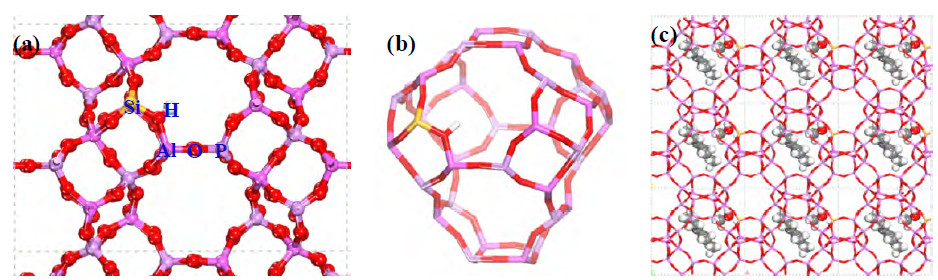

Fig. 1. Structure of H-SAPO-18 zeotype using periodic 48T model (a).The cavity is highlighted for clarity (b).There are no spurious interactions between organic species in periodically repeated unit cells (c).

A simplified picture of the aromatic-based cycle following a side chain hydrocarbon pool mechanism to produce ethene is shown in Scheme 1. The complete cycle consists of alkyl side chain propagation and elimination, as extensively addressed in previous theoretical work ^[24]. The gem-methylation (TS1-2) of aromatics like MBs leads to the formation of polymethylbenzenium ions (polyMB⁺, M2). These ions then undergo deprotonation to form polymethylmethylenecyclohexadiene (PMMC) intermediates with an exocyclic double bond (M3). The ethyl side chain grows through the methylation of the exocyclic double bond (TS3-4). The elimination of the ethyl side chain produces ethene as a product and closes one catalytic cycle. As shown previously, the subsequent deprotonation of M4 and methylation of the corresponding PMMC leads to the propagation of higher alkyl chains ^[24]. A more facile process involving simultaneous C-C bond breaking and deprotonation of the terminal methyl group of the side chain was proposed to eliminate ethyl or iso-propyl side chains ^[24].

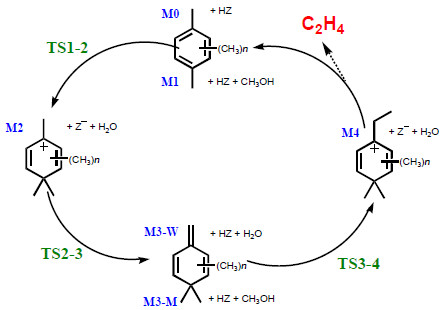

Scheme 1. Abbreviated MB-based hydrocarbon pool mechanism in zeolites (HZ) for MTO conversion.

For reactions involving complex networks, it is challenging to rationalize the calculated kinetics. The energetic span model was proposed by Shaik et al. ^{[22, 24]} to conceptualize catalytic cycles. They demonstrated that there were no rate-determining steps, but rate-determining states in catalytic cycles. Based on this concept, we confirmed in H-SAPO-34 that the methylation for ethyl side chain growth (TS3-4) was the rate-determining transition state and that ethene was selectively favored over propene in the aromatic-based cycle ^{[15, 47]}. In this work, two methylation steps (TS1-2, TS3-4) and some relevant important intermediates (M0, M1, M2, and M3-M) were studied. The deprotonation step of polyMB⁺ ions to PMMC intermediates (TS2-3) is usually endothermic and was not included in the study.

Understanding the static adsorption energy and interconversion thermodynamics of aromatics such as MBs in zeolite cavities is important for estimating the distribution of MBs as hydrocarbon pool species or coking precursors. For these kinds of non-bonding host-guest interactions, vdW interactions are very important and need to be taken into account explicitly. Table 1 summarizes the calculated adsorption energies and enthalpies of 11 MBs in H-SAPO-18 and AlPO-18. The adsorption of a hydrocarbon in zeolites usually depends on two opposite effects, stabilization from vdW interactions and destabilization from steric repulsion interactions with the frameworks.

Table 1 Structures,adsorption energies (Eads(MB),without ZPE correction),and adsorption enthalpies (Hads(MB),with ZPE correction) of investigated MBs in H-SAPO-18 and AlPO-18.All values are in kJ/mol. MB Structure Hads(MB) inH-SAPO-18 Eads(MB) inH-SAPO-18 Eads(MB) inAlPO-18 MB Structure Hads(MB) inH-SAPO-18 Eads(MB) inH-SAPO-18 Eads(MB) inAlPO-18 Benzene -67 -67 -63 1,2,4-TriMB -96 -99 -97 Toluene -83 -84 -82 1,2,3,5-TMB -85 -90 -89 o-xylene -93 -93 -93 1,2,4,5-TMB -106 -110 -108 m-xylene -91 -92 -88 PMB -92 -98 -95 p-xylene -90 -91 -88 HMB -69 -77 -74 1,3,5-TriMB -93 -96 -93

Table 1 Structures,adsorption energies (Eads(MB),without ZPE correction),and adsorption enthalpies (Hads(MB),with ZPE correction) of investigated MBs in H-SAPO-18 and AlPO-18.All values are in kJ/mol.

Generally the adsorption of MBs in AlPO-18 was slightly weaker than those in H-SAPO-18 (< 4 kJ/mol), indicating that the adsorption energy of MBs was dominated by non-localized vdW and steric interactions. The adsorption enthalpies of benzene and toluene in H-SAPO-18 were calculated to be −67 and −83 kJ/mol, respectively. There was almost no difference in adsorption enthalpies of three xylenes (−90 to −93 kJ/mol). Steric confinement effects began to appear on the adsorption of tetramethylbenzene (TMB). The adsorption enthalpy of 1,2,3,5-TMB was lower than that of 1,2,4,5-TMB (−85 vs. −106 kJ/mol). From toluene to 1,2,4,5-TMB, the adsorption enthalpy increased in H-SAPO-18 with the addition of methyl groups because of vdW interactions. However, the adsorption enthalpies of pentamethylbenzene (PMB) and hexamethylbenzene (HMB) were −92 and −69 kJ/mol, respectively, which were lower than that of 1,2,4,5-TMB. This indicated that the H-SAPO-18 framework was not spacious enough to accommodate higher MBs (PMB and HMB) as restricted free hydrocarbon pool species.

The interconversion of MBs with different numbers of methyl groups usually proceeds through a methylation reaction with methanol or methoxide in zeolites during MTO conversion. We calculated Gibbs free reaction energies at different temperatures for the transformation of benzene to different MBs to understand the interconversion thermodynamics of MBs in H-SAPO-18 (see Fig. 2). For MBs with same number of methyl groups we considered the structure with the highest adsorption energy. Methanol and water in the gaseous phase were included for energy reference. The primary component of MBs entrapped in zeolites was the one exhibiting the highest exothermicity.

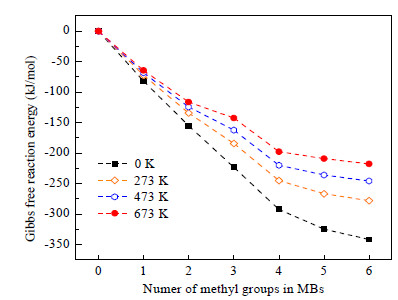

Fig. 2. Gibbs free reaction energies of MBs with different number of methyl groups from benzene via repeated methanol methylation in H-SAPO-18.All energies are relative to gaseous methanol and water.

As shown in Fig. 2, the Gibbs free reaction energy from benzene to toluene was −82 kJ/mol at 0 K, and which decreased by approximately −70 kJ/mol by adding one additional methyl group from toluene to 1,2,4,5-TMB. The interconversions from 1,2,4,5-TMB to PMB and from PMB to HMB were also exothermic by −32 and −17 kJ/mol, respectively at 0 K, although steric repulsion interactions were prominent for both MBs. The Gibbs reaction free energies from benzene to higher MBs increased monotonously in absolute value in H-SAPO-18, which peaked at 340 kJ/mol for HMB at 0 K. With increasing temperature, we found that the Gibbs free reaction energies decreased in absolute value and the reaction free energies towards higher MBs were more sensitive to temperature than those of lower MBs. This indicated that the reaction temperature influenced the distribution of MBs. At the MTO reaction temperature (673 K), the Gibbs reaction free energies to PMB and HMB were still approximately −10 kJ/mol for adding one methyl group.

Analysis of the distribution of MBs in zeolites using static adsorption energies or interconversion thermodynamics is not always consistent. In H-SAPO-18, it was 1,2,4,5-TMB that adsorbed the strongest, while HMB had the highest exothermicity during the interconversion. This is understandable because the vdW interactions for stabilization still outweighed the steric confinement effects for destabilization in the adsorption of PMB and HMB in H-SAPO-18. The interconversion thermodynamics analysis offers a more accurate possibility for assessing the distribution of MBs in zeolites.

Fig. 3 presents the calculated enthalpy, entropy and Gibbs free energy diagrams of MB-based cycles in H-SAPO-18 for the propagation of ethyl side chain at 673 K. The calculated adsorption enthalpies of methanol in H-SAPO-18 were approximately −91 to −95 kJ/mol in the presence of MBs, which was similar to those in H-SAPO-34 (−83 to −92 kJ/mol) ^[24]. The enthalpy barriers for gem-methylation in H-SAPO-18 were 119, 130, 123 and 130 kJ/mol for 1,2,3,5-TMB, 1,2,4,5-TMB, PMB and HMB, respectively. It should be mentioned that the energy barriers without ZPE correction in H-SAPO-34 were 115 and 105 kJ/mol for 1,2,3,5-TMB and HMB, respectively ^[24]. The enthalpy barriers of PMMC methylation in 1,2,3,5-TMB-, 1,2,4,5-TMB-, PMB- and HMB-based cycles were 104, 112, 99 and 126 kJ/mol, respectively. Both methylation steps (TS1-2, and TS3-4) in the HMB-based cycle needed to overcome higher enthalpy barriers than in the PMB- and TMB-based cycles. The transition state structures for both methylation steps in H-SAPO-18 are shown in Fig. 4. In the transition states of the gem-methylation step, the distances of the breaking O-H bond and forming C-C bond were approximately 0.22 nm. During the methylation step of PMMC, the distances of the breaking O-H bond and forming C-C bond were approximately 0.20 and 0.23 nm, respectively. Because the methylation of intermediates with exocyclic double bonds is rate-determining, the overall enthalpy barriers (M1 à TS3-4) were 171, 177, 165 and 181 kJ/mol for 1,2,3,5-TMB-, 1,2,4,5-TMB-, PMB- and HMB-based cycles, respectively. These barriers were larger than the overall energy barriers in H-SAPO-34 (~ 150 kJ/mol for 1,2,3,5-TMB- and HMB-based cycles, respectively) ^[24].

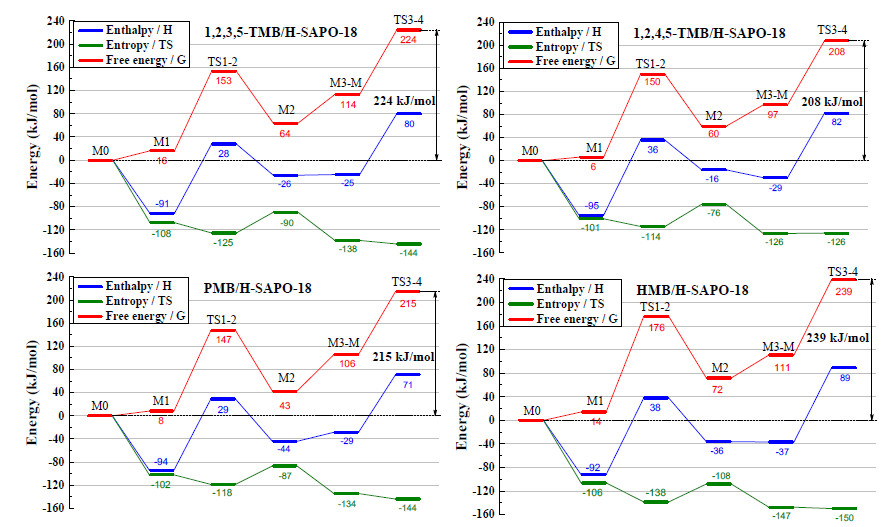

Fig. 3. Schematic enthalpy, entropy, and Gibbs free energy diagrams of abbreviated MB-based cycle in H-SAPO-18 at 673 K.

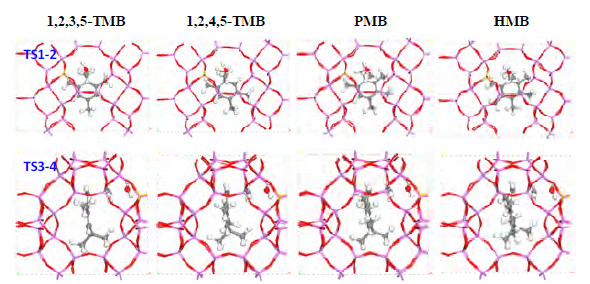

Fig. 4. Transition state structures for the gem-methylation (TS1-2) and methylation of PMMC (TS3-4) in MB-based cycle in H-SAPO-18. The imaginary frequencies relating to the reaction coordinates in TS1-2 and TS3-4 are around –380 and –440 cm–1, respectively.

The overall Gibbs free energy barriers at 673 K (M0→ TS3-4) were 224, 208, 215 and 239 kJ/mol in 1,2,3,5-TMB-, 1,2,4,5-TMB-, PMB- and HMB-based cycles, respectively, with the inclusion of entropy effects. The stronger steric constraint of the H-SAPO-18 framework on the transition state (TS3-4) in HMB-, PMB- and 1,2,3,5-TMB-based cycles resulted in relatively higher entropy loss (144-150 kJ/mol) compared with that for the 1,2,4,5-TMB-based cycle (126 kJ/mol). From these results it is evident that HMB is not more reactive than PMB and TMB because of the confinement effect of the H-SAPO-18 framework on HMB and reaction intermediates, which is similar to our previous work in H-SAPO-34 ^[22,24]. Furthermore, because HMB was the primary MBs component in H-SAPO-18, the MTO conversion needed to overcome a higher Gibbs free energy barrier if the reaction only followed the aromatic-based cycle in H-SAPO-18. In H-SAPO-34, we theoretically demonstrated that olefins other than MBs were the dominating hydrocarbon pool species for MTO conversion ^[15,47]. Because the overall energy barriers of the aromatic-based cycle in H-SAPO-18 were even higher than those in H-SAPO-34, we believe that the olefin-based cycle in H-SAPO-18 cannot be ignored. A comprehensive investigation on the olefin-based cycle in H-SAPO-18 is underway.

Using periodic DFT calculations with a vdW interactions corrected XC functional, we systematically investigated the aromatic-based cycle for MTO conversion in H-SAPO-18. We found that HMB was the primary MBs component in H-SAPO-18 from static adsorption and dynamic interconversion analysis. However, it was 1,2,4,5-TMB that adsorbed the strongest in H-SAPO-18. The overall Gibbs free energy barriers for 1,2,4,5-TMB-, PMB- and HMB-based cycles in H-SAPO-18 were calculated to be 208, 215 and 239 kJ/mol, respectively. HMB was not more reactive than PMB and TMB. The confinement effect of the zeolite framework was prominent in the aromatic-based cycle, in particular when bulky aromatics acted as hydrocarbon pool species. The kinetics of the aromatic-based cycle would help to address the MTO reaction mechanism when compared to the kinetics of the olefin-based cycle.
