Metazachlor belongs to the organochlorine pesticide group and was the fifth most used herbicide in the Czech Republic in 2010, with a consumption of nearly 200000kg [1]. Generally, residues of various pesticides and herbicides are able to leach from agricultural soil to deeper ground or to ground water, where they can remain for long time owing to their nondegradable properties. Consequently, such species can cause different serious problems even at very low doses of nanograms per cubic decimeter [2]. Metazachlor has been found to be moderately toxic to different aqueous organisms, especially daphnia, carp, and bluegill sunfish. The highest sensitivity was discovered in trout, where it can cause damage to liver or kidneys [3]. Because of its toxicity, metazachlor, as with many other pesticides, belongs to large group of endocrine disrupting chemicals (EDCs) [4]. Many of these compounds pass through wastewater treatment plants [5, 6] that are not designed for removing such contaminants [7], and therefore many of them reach the surface water unchanged [8].
Many different techniques have been studied in the effort to remove micropollutants from water, from physical processes, such as sorption or membrane filtration, to biological processes, using bacteria or enzymes [9]. Nowadays, one very promising group of treatment techniques is that based on advanced oxidation processes, particularly heterogeneous photocatalysis. The main feature of this method is the production of hydroxyl radicals, which initiate subsequent reactions that lead to the decomposition and removal of organic compounds [10]. This technology is also non-selective and versatile, which are useful and necessary in wastewater treatment [11]. Titanium dioxide is one of the most commonly used photocatalysts because of its high activity, biological and chemical inertness, high photostability, excellent optical and electrical properties, and nontoxicity. However, its absorption only in the UV region and quite narrow band gap energy, which brings about fast back recombination of the electron-hole pair, are its main disadvantages. Many authors have attempted either to shift the absorption edge of titania towards higher wavelength, or to suppress the recombination process, which may be achieved by doping the titania [12]. Nevertheless, most studies concentrate their photocatalytic investigations on model compounds [13, 14] such as phenol or dyes [15, 16].
In this work we successfully prepared lanthanide-doped titanium dioxide, which has been reported to exhibit better photocatalytic activity in comparison with that of pure titania [17], and investigated its suitability for the photocatalytic decomposition of metazachlor because of the current need to remove this species from wastewater. Furthermore, we investigated the effects of different process conditions and compared the photocatalytic activity of doped and undoped samples with commercial titania P25.
Preparation of lanthanide-doped titanium dioxide was performed by sol-gel synthesis using titanium propoxide as the precursor. The titanium propoxide (0.125mol) was added dropwise under continuous stirring to isopropanol (0.5mol), which was used as a solvent. Afterwards, acetylacetone (0.06mol) was added to the mixture as a stabilization agent. Dysprosium (Dy) and praseodymium (Pr) doped TiO2 (0.3mol% [18]) samples were synthesized by first dissolving the oxides of the corresponding elements in nitric acid (20cm3), and the obtained solutions were poured into the propoxide dispersions. The sols were left to age at room temperature for 7 d to form a gel structure, after which they were heated at 120°C until xerogels were formed. The xerogels were then subjected to solid state reaction at various temperatures (T = 450, 550, and 650 °C) for different time periods (t = 4, 8, and 12 h). The obtained lanthanide-doped TiO2 samples were denoted as Dy-TiO2 T/t and Pr-TiO2 T/t.
Thermogravimetric analysis (TGA) was carried out on the heat-treated powders using a thermoanalyzer (Seiko Instruments 6300 TG-DTA) in an atmosphere of argon-air (volume ratio 1:1). The analysis was performed over the temperature range 35-1000 °C, with a gas flow rate of 400 cm3/min and a temperature ramp rate of 20 °C/min. The crystalline phase of the prepared powders was examined using X-ray diffraction (XRD; X-ray diffractometer SmartLab, Rigaku), using a Cu Kβ radiation source and a 2q scan range of 20°-60°. The results of the XRD measurements were confirmed by Raman analysis (Renishaw inVia), which was carried out using a 633 nm laser at an output power of 30mW and measured range of 0-1600cm−1. Crystallite size was calculated from the XRD results using the Scherrer equation d = Bλ/(βcosq), where d is the size of the crystallites in the direction vertical to the corresponding lattice plane, B is a constant equal to 0.94, λ is the wavelength, equal to 0.157 nm, and β is the width of the selected peak at half of its height.
The structure of the prepared powders, as well as their particle size, was investigated using scanning electron microscopy (SEM; Carl Zeiss Ultra Plus). The influence of synthesis conditions on the band gap energy was examined from diffuse reflectance measurements (UV-Vis spectrometer Avaspec-2048). Nitrogen adsorption/desorption analysis was carried out to determine the specific surface area of the samples (BET).

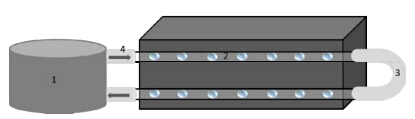

The aim of this study was to determine optimal solid state reaction for the preparation of photocatalytically active nanopowders that could be useful for decomposition of pesticides in water. The photocatalytic experiments were performed on metazachlor. All experiments were carried out in a flow reactor (Fig. 1), which was composed of a borosilicate glass tube with inner diameter of 0.6cm placed at a distance of 1cm from the light source. The decomposition reaction was performed using UV-LED (370nm) irradiation with an optical power density of 22 mW/cm2. The flow rate in the reactor was 2.5 cm3/s. Before each experiment, the Dy-TiO2 or Pr-TiO2 sample (1 g/L) was dispersed in 70 cm3 of an aqueous solution of metazachlor (10 mg/L), and the resulting suspension was kept in darkness for 6min under continuous stirring to reach adsorption/desorption equilibrium. 1cm3-aliquots of the reaction solution were sampled at certain intervals, and the concentration of remaining metazachlor was determined by HPLC (Shimadzu LC-20) after filtration (pore size 0.45mm). The HPLC conditions were as follows: Luna 5u C18 (2) 100A (250 mm x 4.6 mm) column, the eluent was a mixture of water-acetonitrile (volume ratio 1:1) with a flow rate of 1.8 cm3/min, column temperature 40°C, injection volume 0.25 μL, and detector wavelength 210nm.

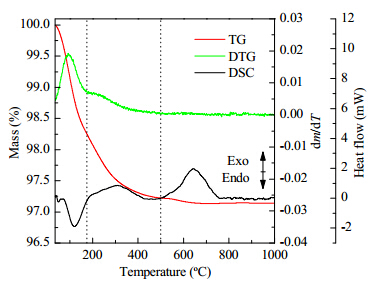

TGA experiments on the heat treated powders revealed a mass loss no higher than 3% for all samples. An example TGA/DSC trace is given in Fig. 2. The mass loss in the first temperature interval (35-175 °C) was caused by desorption of water physically adsorbed by the sample from humid air. The mass loss in the second temperature range (175-500°C) may be a result of oxidation of organic residues, mainly acetylacetone, remaining in the powder owing to slow oxygen diffusion through titania layers during the solid state reaction. A lesser loss of mass was observed in the third temperature interval (500-700°C), attributed to removal of the last organic residues that had formed a donor-acceptor bond between Ti atoms and the carbonyl group of acetylacetone. The exothermic peak around 650°C is ascribed to the phase transformation of anatase to rutile.

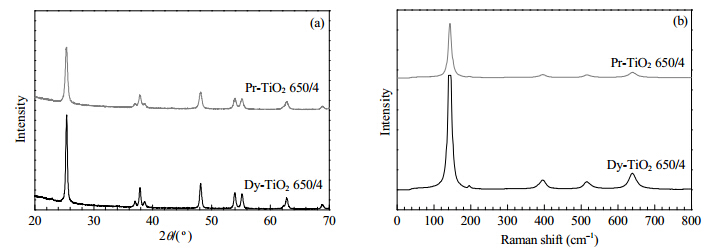

The influence of process conditions on the crystalline phase of the obtained samples was evaluated by XRD analysis, as shown in Fig. 3. All the prepared samples were found to be pure anatase, which implies that the Pr and Dy doping suppressed the creation of the rutile phase, which is expected to occur at 650°C. This result is in good agreement with the literature [19, 20]. The crystallite size of the samples was calculated using the Scherrer equation and was found to increase with the temperature of the solid state reaction. In contrast, no influence of synthesis time on crystallite size was observed. Subsequently, the phase composition was studied by Raman analysis, which confirmed the results from XRD. All of the obtained results are summarized in Table 1.

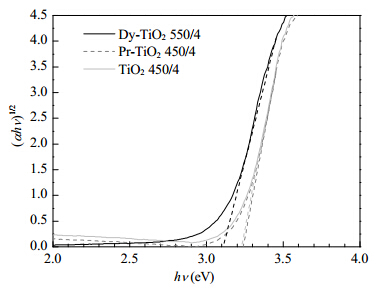

The optical properties, especially the band gap energy, of the samples were investigated using UV-Vis spectroscopy by diffuse reflectance measurements. The band gap energy was calculated according to the Kubelka-Munk theory [21] using function f(R∞) = (1 − R∞)2/2R∞, where R∞ = Rsam/Rst. The diffusion reflectance of barium sulfate was used as a standard (Rst); Rsam is the diffused reflectance of the samples. The relationship between the band gap energy Eg and the absorption coefficient, which can be obtained from the reflectance measurements, is: αhν = C(hν − Eg)2, where C is a proportionality constant. If the material scatters perfectly, the equation becomes: [f(R∞)hν]1/2 = C(hν − Eg) [22]. The band gap energy for each sample was evaluated from relation (αhν)1/2 = f(hν) by extrapolation of the linear part of the curve in Fig. 4. The calculated Eg are summarized in Table 1. Values around 3.2eV correspond to the anatase crystalline phase. These results confirm the results of the XRD and Raman analyses.
The changes in the morphology of the prepared powders were examined by scanning electron microscopy, which revealed a difference between the Dy- and Pr-doped titania samples (Fig. 5). The particle size and consequently the size of the aggregates were larger in the samples doped with dysprosium. Although the particle size did not seem to be much affected by the synthesis conditions, the conditions significantly influenced the aggregate size (Table 2 and Fig. 5). The smallest aggregates were formed at a solid state reaction temperature of 550 °C and time of 8h for both lanthanides. The results of the specific surface area measurements from BET analysis are summarized in Table 2. It can be seen that the specific surface area decreased with increasing aggregate size.

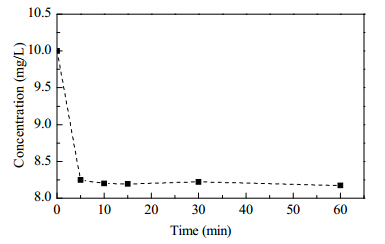

Before the photocatalytic experiments, an adsorption was carried out to determine the time needed to achieve adsorption/desorption equilibrium. The results are shown in Fig. 6 and indicate that the required time was 5min. Within this time, the concentration of metazachlor in the solution decreased from 10 to 8.2 mg/L and then remained nearly constant.
The photocatalytic experiments were performed in a flow reactor. Each experiment lasted 60min, which corresponded to 10min of contact time (where the photocatalyst was exposed to the LED source). The decrease in metazachlor concentration determined by HPLC was used to calculate the initial rate of metazachlor decomposition. Metazachlor belongs to the chloroacetamide herbicides, which undergo dechlorination in the first step of photodegradation. This process is subsequently followed by mono- or multi-hydroxylation and cyclization.

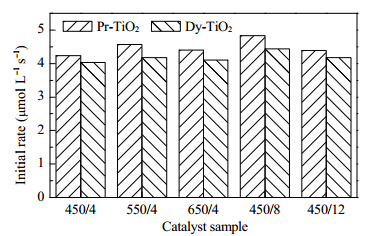

The contribution of direct photolysis was subtracted from the observed rate of decomposition. The influence of the solid state reaction temperature and time was examined, and the best performing materials for the decomposition were found to be those prepared at 550 °C and 8h, both the dysprosium and the praseodymium doped samples. The results are shown in Fig. 7. We conclude that the increased rates were a result of the creation of smaller aggregates (as shown by the SEM results), because smaller particles (or more precisely, smaller aggregates) should have higher specific surface area and hence, more specific sites where reactions can occur. The Pr-doped TiO2 samples exhibited higher activity than Dy-doped samples prepared under the same synthesis conditions. Moreover, we compared the initial degradation rate of the doped TiO2 (450/4 and 550/4) with that of undoped TiO2 prepared under the same conditions and commercial titania Degussa P25, and found that doping increased the photocatalytic activity (Table 3). This can be explained by the fact that the rate of back recombination (e−/h+) in pure TiO2 is quite fast, and consequently its activity is limited. Generally, the transitions of 4f electrons of rare earth elements are responsible for the optical absorption of a doped catalyst and support the separation of photo-generated e−/h+ pairs. Lanthanide ions behave as a scavenger of excited electrons from the titania conduction band [23].

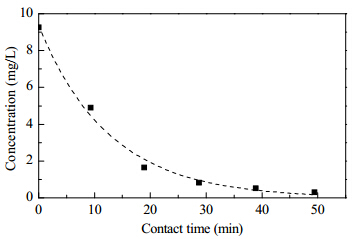

Dy-doped TiO2 450/4, the least photocatalytically active sample, was used in further experiments to investigate the time required for total decomposition of metazachlor. We found that 5 h, which corresponded to 50 min of contact time, was sufficient to lower the metazachlor concentration nearly to zero (as shown in Fig. 8). Complete photocatalytic decomposition of mezatachlor in water after 1 h of irradiation total is a comparable time to that reported in the literature [24], which indicates that the photocatalysts prepared in this work were efficient and suitable for this purpose. Furthermore, our results indicate that increasing the amount of lanthanides in the sample could lead to lower band gap energy owing to a shift of the absorption edge towards the visible range.
Dysprosium and praseodymium doped titania powders were prepared by sol-gel synthesis and subsequent solid state reaction treatment. All prepared samples were found to be suitable for photocatalytic decomposition of metazachlor in water; the best photocatalyst for this purpose was Pr-TiO2 treated at 450 °C for 8 h. All the prepared photocatalysts were more active than or comparable in activity with commercial titanium dioxide P25. The aggregate size and consequently, the specific surface area, of the photocatalysts very significantly affected their final activity. Moreover, the lower activity of pure TiO2 prepared under the same conditions confirmed that the Dy and Pr dopants enhanced photocatalytic activity.
The authors thank the Ministry of Education, Youth and Sport of the Czech Republic for support through project CZ.1.07/2.3.00/30.0005, as well as the Central European Institute of Technology (CEITEC). The authors also appreciate the work of Zdenek Spotz, who performed the XRD analysis, Zorka Cihlarova, who performed the BET analysis, Jan Cupera, who performed the SEM imaging, and Dusan Hemzal, who performed Raman analysis.
