Friedel-Crafts acylation of aromatics is an important reaction for manufacturing aromatic ketones, which are key intermediates in many chemical industrial processes for the production of fine chemicals, agrochemicals, pharmaceuticals and fragrances [1, 2, 3, 4, 5]. The traditional catalysts, such as AlCl3 and H2SO4, have limitations when used in Friedel-Crafts acylation because of environmental pollution, reactor corrosion and product isolation, so replacing the traditional catalysts with a zeolite has attracted research interest and attention [2, 3, 4, 5, 6, 7, 8]. An MWW zeolite showed interesting activity for the acetylation of aromatics due to the acid sites located on its external surface and it exhibited good resistance to deactivation [6]. Many researchers have paid attention to Friedel-Crafts acylation using MWW zeolite catalysts.
The micropores in the MWW zeolite lead to diffusion limitation for the transport of reactant molecules to the active sites, especially in reactions involving big molecules, which severely restricts its catalytic application. The post-treatment of an MWW zeolite to improve its catalytic performance has been extensively studied, and desilication by an alkali treatment has received attention because it is easy to manipulate [9, 10]. However, there is a conflict between preserving acidity and the creation of extra porosity, and desilication and re-assembly of dissolved species can occur when treating the zeolite with alkali in the presence of a long chain alkylammonium surfactant, such as cetyltrimethylammonium bromide (CTAB) [9, 11, 12, 13, 14]. Xu’s group [15, 16, 17, 18] have studied the alkali treatment of MWW zeolite with and without CTAB, and found that a mild alkali treatment can clean off amorphous particles on the MCM-49 crystal surface, but a severe alkali treatment would result in significant destruction of the zeolite structure and introduce extra mesopores regardless of whether there was CTAB in the NaOH solution.
In addition, CTAB can be applied as an additive to the alkaline solution in the preparation of hierarchical zeolites by desilication. CTAB was previously used for the swelling of MWW layered zeolite precursors in the presence of a base followed by delamination. Corma et al. [19, 20] investigated the delamination of a layered MCM-22(P) (precursor of MCM-22 zeolite) by swelling it with CTAB and tetrapropylammonium hydroxide (TPAOH), followed successively by various treatments with an ultrasound bath, hydrochloric acid and calcination. They found that the material obtained (ITQ-2) exhibited better activity than MCM-22 for vacuum gasoil cracking. Many research works [21, 22, 23, 24] were carried out to produce MCM-36 zeolite by swelling MCM-22(P) with cetyltrimethyl ammonium cations (CTA+) in the presence of a base (e.g. TPAOH), and then pillaring it with tetraethoxysilane (TEOS) derived silica.
Our group has investigated NaOH and CTAB co-modification of MCM-49 zeolite with different hexamethyleneimine (HMI) template contents, and found that NaOH can destroy the framework of the zeolite by attacking the HMI-free regions, and that the dissolved species can be transformed into OMMs by the directing of CTAB micelles [15]. We have also studied the alkali treatment of MCM-49 zeolite in the presence of different surfactants, such as dodecyltrimethyl ammonium bromide, tetradecyltrimethyl ammonium bromide and octadecyltrimethyl ammonium bromide, and found that the samples modified with NaOH and different surfactants showed similar textural properties and acidity. Thus we can ask about what would happen if only the surfactant, e.g., CTAB, was used to modify MCM-49, which is a 3D zeolite. Based on this background, in this work, a detailed study of the partial de-templating of MCM-49 zeolite by calcination followed by CTAB modification was carried out. The materials were characterized by many techniques, including XRD, N2 adsorption, NH3-TPD, Py-IR and DRIFTS, and 29Si and 27Al MAS NMR. Their catalytic activity in the acylation of anisole (AN) with acetic anhydride (AA) was studied to shed light on the nature of the acid sites involved in the reaction.
The MCM-49 zeolite (supplied by Tieling Deshijie Chemical Limited Company, molar ratio of Si/Al = 11.0) containing the HMI template, labelled as MCM-49S, was calcined at 550 °C for 4 h, and transformed into the H form (named as HMCM-49) by ion exchange [25]. MCM-49S was calcined at different temperatures (250, 350, 450 or 550 °C) for 4 h (labelled as CT, T was the calcination temperature), then treated in CTAB solution (0.27 mol/L) with the desired amount of 10 mL/g at 70 °C for 1 h (pH = 5-7). It was then cooled down to room temperature in a cold bath. The solid product was recovered by centrifugal separation, dried at 110 °C overnight and calcined at 550 °C for 4 h. The H form products (denoted as HMCM-T-CTAB) were obtained by ion exchange. The sample obtained by treating MCM-49S with CTAB solution directly was named as HMCM-S-CTAB.
Samples with pre-coked supercages were prepared by m-xylene reaction according to the procedure reported in Ref. [26, 27, 28] and were denoted as Z-xy (Z: HMCM-49, HMCM-T-CTAB or HMCM-S-CTAB). All Z materials were first pretreated at 500 °C for 1 h with a N2 flow and cooled to 350 °C. Then, m-xylene was pumped into the reactor, and the reaction conditions were set as: atmospheric pressure, 350 °C, m-xylene weight hourly space velocity (WHSV) of 13 h−1 with N2 flow rate of 32.5 mL/min, and time on stream of 10 h. Samples with only sinusoidal pores accessible, named as Z-xy-DMQ, were prepared by poisoning the external surface of Z-xy by 2,4-dimethylquinoline (2,4-DMQ) adsorption. All the samples were crushed and sieved into 0.38-0.85 mm particles for further use.
N2 adsorption isotherms were measured at −196 °C with a Micromeritics ASAP-2020 apparatus. Prior to the measurement, the fresh sample was degassed at 350 °C under a vacuum of 1 mPa for 10 h. The pre-coked samples were pretreated only at 100 °C for 2 h to prevent the coke from being removed. The BET equation was used to calculate the surface area and the micropore volume was estimated by the t-plot method.
X-ray diffraction (XRD) patterns were collected on an X’ Pert PRO X-ray diffractometer operated at 40 kV and 40 mA using Cu Kα radiation. The relative crystallinity (RC) was estimated by comparing the sum of the peak heights of 2θ = 10.0°, 14.3°, 16.0°, 22.7° and 26.0° of the sample with that of HMCM-350-CTAB whose RC was assumed as 100%. The chemical compositions of the samples were analyzed on a Philip Magix 601X X-ray fluorescene (XRF) spectrometer.
29Si MAS NMR experiments were carried out on a Bruker DRX-400 spectrometer using 4 mm ZrO2 rotors. The spectra were recorded at 99.4 MHz with the magic angle spinning rate of 5 kHz. 27Al MAS NMR spectra were recorded at 104.2 MHz using a 0.5 μs pulse with a 2 s recycle delay and 1024 scans.
NH3 temperature programmed desorption (NH3-TPD) was carried out with a U-shaped quartz microreactor (i.d. = 4 mm) connected to an online gas chromatograph (Shimadzu GC-8A) equipped with a thermal conductivity detector (TCD). The TCD response was calibrated by doses containing known amounts of NH3. In a typical experiment, the sample (140 mg) was first pretreated at 600 °C for 0.5 h under a He flow rate of 25 mL/min to remove adsorbed organic species and moisture, then cooled down to 150 °C and saturated with NH3. After a stable baseline was obtained, the sample was heated from 150 to 600 °C at a heating rate of 19.6 °C/min.
Brönsted and Lewis acid concentrations of the samples were determined by pyridine adsorption followed by infrared (Py-IR) measurement on a Vertex 70 IR spectrometer. The sample was pressed into a self-supported wafer (ca. 10 mg) followed by evacuation at 250 °C for 1 h in the IR cell. A spectrum was recorded as the background after the wafer has cooled down to room temperature. Subsequently, the wafer was exposed to pyridine vapour for 20 min at 0 °C and then outgassed at 150 °C for 30 min. Finally, the Py-IR spectra of the sample were collected at room temperature.
Diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) was measured with a Thermo Nicolet Nexos 470 instrument (resolution 4 cm−1, integration over 20 scans) equipped with a Harrick diffuse reflectance attachment. The sample powder (30 mg) was placed in a DRIFT cell with a KBr window and pretreated in flowing dry N2 flow (> 99.99%, 30 mL/min) at 350 °C for 30 min. After the pretreatment, the sample was cooled, and IR spectra were acquired at 30 °C.
The acylation of AN with AA was carried out in a continuous flow stainless steel fixed bed reactor. In a typical run, 1 g of catalyst was loaded into the central part of the reactor and pretreated at 500 °C for 1 h with a flow of N2. Then, the catalyst was cooled down to 110 °C and the reactants were pumped into the reactor. The reaction conditions were set as: 1.0 MPa, 110 °C, the weight hourly space velocity (WHSV) of 10.2 h−1 with an AN/AA molar ratio of 5.
The catalysts Z-xy were washed with AN (300 mL/(h·g)) for 30 min to remove carbon on the surface of catalysts before the reactants were introduced. Z-xy-DMQ was obtained by poisoning the external surface of Z-xy with 2,4-DMQ. When the acylation of AN with AA was carried out, some 2,4-DMQ (flow rate of 207 μmol/(g·h)) [26, 28] was added into the reactant stream. The products were collected and analyzed by an Agilent 7890A gas chromatograph with a HP PONA column and FID detector.
a Si/Al molar ratio measured by XRF.
b Data in parentheses were the values of the corresponding pre-coked samples.
The thermogravimetric analysis and textural properties of MCM-49S and CT samples had been discussed in Section 3.1 of Ref. [15]. Then the samples were treated with CTAB (0.27 mol/L) at 70 °C for 1 h, and transformed into the H form. It should be emphasized that no Br was detected on the samples by XRF, showing that all CTAB species were fully ion exchanged. The yields of the whole process were in the range of 84%-89%, as listed in Table 1. Fig. 1 shows the XRD patterns of HMCM-49 and the partial de-templated samples after CTAB modification. All the samples after CTAB modification maintained the crystalline structure of MCM-49 zeolite [29], and their RCs remained in the range of 92%-100%, showing that there was no framework destruction during the process of partial de-templation and CTAB modification under our experiment conditions. Furthermore, the RCs of the samples after CTAB modification, especially for HMCM-350-CTAB and HMCM-450-CTAB, were higher than that of HMCM-49, meaning that some amorphous particles were cleaned off from the zeolite during the modification, which is similar to what happened in the case of a mild alkali treatment [17].

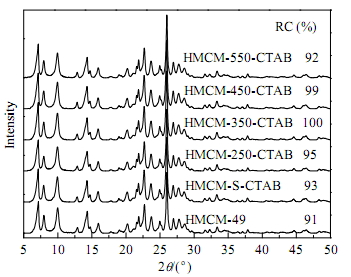

Many works [21, 22, 23] have reported that treating MCM-22(P) with CTA+ under a pH value as high as 13.8 would cause severe swelling. The relevant low angle XRD pattern of the swollen MCM-22(P) showed a reflection at 2θ ≤ 2°. However, in our present case, no reflection was detected in the low angle XRD patterns of all the samples (data not given). Obviously, the unique characteristic of the process of CTAB modification is that no swelling of the treated material was involved.
The textural properties of HMCM-49 and the partially de-templated MCM-49 samples after CTAB modification are presented in Table 1. As shown, compared with HMCM-49, the BET surface area, external surface area, micropore volume, and total pore volume of all the samples after CTAB modification changed little, showing that no framework destruction happened during the modification process. In fact, the micropore surface areas of the samples after CTAB modification were higher than that of HMCM-49, implying that a small amount of amorphous particles were cleaned off from the zeolite, which was consistent with the conclusion from the XRD result. It is reasonable to postulate that no mesopores, either intracrystalline or intercrystalline mesopores, were introduced during the process of CTAB modification. Clearly, this is quite different from the situation of a severe alkali treatment [17, 30, 31].
Combining the results of Fig. 1 with Table 1, we deduced that there was no condensation of siliceous species, which would result in the formation of mesoporous fragments (e.g. MCM-41-type materials), in this process, although this was usually observed when the zeolite was treated with an alkaline solution in the presence of CTA+ [11, 15, 32, 33, 34]. The Si/Al molar ratio of the samples after CTAB modification were in the range of 11.4-11.8, which was a little larger than that of HMCM-49 (11.0), implying that a small amount of amorphous Al on the MCM-49 crystal surface was cleaned off during the CTAB treatment process.
The textural properties of the corresponding pre-coked samples are listed in parenthesis in Table 1. After the HMCM-49 sample was pre-coked by m-xylene reaction, the micropore volume decreased by 29% (from 0.17 to 0.05 cm3/g), which is in good agreement with the data reported in Ref. [26]. This suggested that the supercages were successfully blocked by the coke generated in the reaction while the sinusoidal channels were preserved. The external surface area was slightly decreased (from 118 to 75 m2/g), indicating that most coke was located in the micropores. The textural properties of the pre-coked HMCM-S-CTAB and HMCM-T-CTAB samples were similar to that of pre-coked HMCM-49, implying that the supercages of all the samples were successfully blocked.
29Si MAS NMR was employed to investigate the chemical environment of the framework Si atoms in the samples before and after CTAB modification. Due to the similar chemical shifts of Si atoms on different T sites, the 29Si MAS NMR spectrum of HMCM-49 is not sharp. Fig. 2(a) shows the Gaussian fitted spectra of HMCM-49 (using the method reported in Ref. [35]). There were five resonance peaks in the range from -120 to -105 (accuracy ± 0.2) for the non-equivalent framework T sites of the zeolite, which correspond to the Si(0Al) units (Q4 type Si) and are the characteristic peaks for MCM-22 or MCM-49 [36, 37]. The assignments of the resonance peaks were the same as those in Ref. [15, 16].

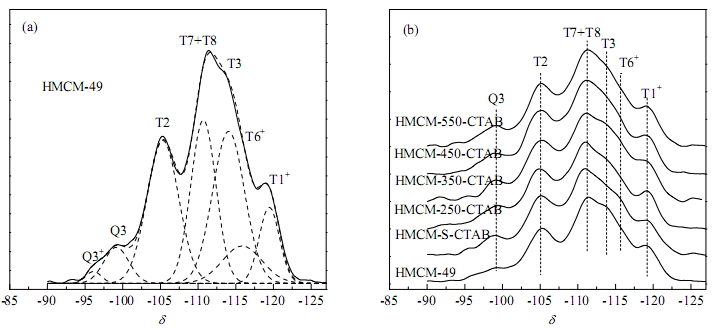

Figure 2(b) shows the 29Si MAS NMR spectra of the HMCM-49, HMCM-S-CTAB and HMCM-T-CTAB samples. The distribution of Si atoms on different T sites was calculated by the peak area normalization method, and is listed in Table 2. For the HMCM-49 sample, the peak area percentage of Si atoms on the T3 site was 27.6%, while after CTAB modification, it was reduced to 21.6%-24.5%. Simultaneously, the peak area percentage of Q3 type Si increased from 5.1% (HMCM-49) to 6.1%-9.2% (HMCM-S-CTAB or HMCM-T-CTAB). It is reasonable to assume that Si atoms on the T3 site were selectively extracted during CTAB modification, and that some Si atoms which were adjacent to the T3 site existed in the form of Si(OSi)3OH (Q3). The peak area percentage for Si atoms on the T7 and T8 sites increased from 24.3% (HMCM-49) to 25.9%-29.7% (HMCM-S-CTAB or HMCM-T-CTAB), implying that some amorphous Si or Si atoms extracted from the T3 site were reinserted into the defects of the T7 or T8 sites during the process of CTAB modification.

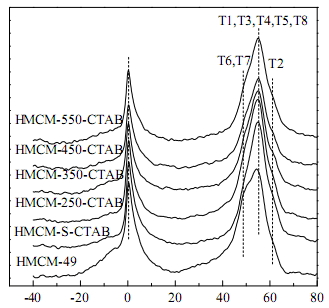

Figure 3 shows the 27Al MAS NMR spectra of HMCM-49 and the samples after CTAB modification. Two groups of peaks centered at δ = 0 and δ ≈ 55 were observed in these spectra. The first peak is related to extraframework octahedral Al species resulting from incomplete crystallization or calcination, while the latter one was assigned to 4-coordinated framework Al [35, 38]. The percent of extraframework Al of the samples after CTAB modification (27%-34%) was lower than that for HMCM-49 (40%). In contrast, the amount of framework Al became higher. Since there was no extra Al species introduced into the solution, there were two possible reasons for this: one was the removal of amorphous Al from the MCM-49 zeolite and the other was the reinsertion of some extraframework Al atoms into the framework during the CTAB treatment. We have discussed the first possibility in the discussion of the XRD and XRF data, and we will now analyze the latter possibility.
The chemical shift of Al atoms on different T sites varies due to their different chemical environment. The peak at δ = 55 can be simulated with three overlapping Gaussian peaks at δ = 49, 55, and 61 [36, 39]. Specifically, the peak at δ = 49 is related to Al atoms on T6 and T7 sites, the peak at δ = 55 is assigned to Al atoms on T1, T3, T4, T5, and T8 sites, and the peak at δ = 61 is attributed to Al atoms on the T2 site [36, 39]. The proportions of the different peaks were also calculated by the area normalization method. The results are listed in Table 2. For all the CTAB modified samples, the peak area percentage for framework Al atoms on the T1, T3, T4, T5, and T8 sites were 54.3%-59.3%, while that of HMCM-49 was only 44.6%. Simultaneously, the peak area percentage for Al atoms on the T2 site increased from 8.3% (HMCM-49) to 15.0%-19.5% (HMCM-S-CTAB or HMCM-T-CTAB). Obviously, the change of the peak area percentage for Al atoms on the different T sites support the explanation that some extraframework Al atoms were reinserted into the framework during the CTAB treatment. Combining the 29Si MAS NMR and 27Al MAS NMR results, it can be deduced that extraframework Al atoms were inserted into the framework of the zeolite by selectively substituting Si atoms on the T3 site and by directly filling in the defects on the T2 or T3 sites. Although we cannot be sure about what happened between CTAB and the Si or Al atoms in the MCM-49 zeolite, we were certain that something else happened in addition to the removal of amorphous particles. Guo’s group [40] have studied the TPAOH modification of nanocrystalline ZSM-5 zeolite, and suggested that the modification led to desilication, dealumination, and secondary crystallization of the zeolite, resulting in the migration of non-framework Si and non-framework Al to the zeolite surface.
From Ref. [15], we know that the MCM-49S and CT materials contained HMI in different pore systems. If it is assumed that the HMI-containing region is inert to CTAB modification (extension of the assumption from Ref. [41]), then we can deduce that for the HMCM-250-CTAB sample, the Si extraction or Al reinsertion mainly occurred on the surface pockets, and for the HMCM-350-CTAB sample, the CTAB modification occurred not only on the surface pockets but also in the supercages, while for HMCM-450-CTAB and HMCM-550-CTAB, almost all the pore systems were accessible to CTAB. However, for the HMCM-S-CTAB sample, though nominally there were no HMI-free regions, part of the HMI on the surface pockets would be eluted during the CTAB treatment, i.e., the Si extraction or Al reinsertion mainly occurred on the surface pockets of the HMCM-S-CTAB sample. Furthermore, considering the amount of HMI-free regions (HMCM-S-CTAB ≈ HMCM-250-CTAB < HMCM-350-CTAB < HMCM-450-CTAB ≈ HMCM-550-CTAB), the ratio of available CTAB to the volume of “attackable” zeolite [41] showed an inverse sequence as follows: HMCM-S-CTAB ≈ HMCM-250-CTAB > HMCM-350-CTAB > HMCM-450-CTAB ≈ HMCM-550-CTAB. The degree of CTAB modification seemed related to the amount of HMI-free regions accessible to CTAB and the available concentration of CTAB.
The above results suggested that during the CTAB treatment process, there existed the cleaning off of amorphous Al and extraframework Al atoms were inserted into the framework of the zeolite, although there was no obvious trend among the HMCM-49, HMCM-S-CTAB and HMCM-T-CTAB samples. The reason may be that the two processes existed in competition when the CTAB modified the MCM-49S and CT samples with different HMI contents. The mechanism is not yet clear.

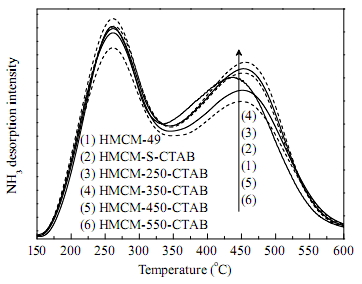

The acidity of HMCM-49 and the samples modified by CTAB were measured by NH3-TPD. The results are presented in Fig. 4. The concentration of the acid sites was determined by the amount of desorbed NH3, while the NH3 desorption peak temperature was related to the strength of the acid sites [42]. The NH3-TPD profiles were fitted with three Gaussian peaks, and the acid concentrations of the different samples were calculated and listed in Table 3. The desorption peaks of HMCM-49 centered at 253, 338 and 443 °C, were due to the weak, medium and strong acid sites, respectively. For the HMCM-S-CTAB, HMCM-250-CTAB and HMCM-350-CTAB samples, the total acid concentrations showed a slight increase compared with that of HMCM-49 (0.87 mmol/g). For the HMCM-450-CTAB and HMCM-550-CTAB samples, the total acid concentrations decreased gradually and were less than that of HMCM-49. The HMCM-350-CTAB sample has the highest total acid concentration (0.96 mmol/g).
a Data in parentheses were the peak temperatures (°C) in the NH3-TPD profiles.

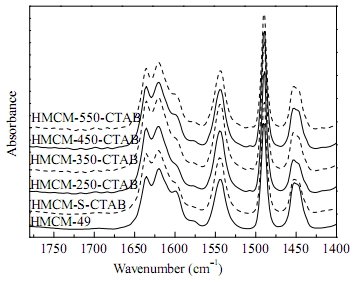

The acidity of the samples was further characterized by Py-IR. The Py-IR spectra are presented in Fig. 5. The band at 1454 cm−1 was attributed to adsorbed pyridine bonded to Lewis acid sites, while the absorption band at 1545 cm−1 was assigned to pyridine interacting with Brönsted acid sites, and the band at 1490 cm−1 was due to pyridine interacting with both Brönsted acid sites and Lewis acid sites [43]. The band areas for the Brönsted acid sites for the samples after CTAB modification were larger than that of HMCM-49, while the band areas for the Lewis acid sites were smaller. With the increase of HMI-free regions, the band areas corresponding to the Brönsted acid sites increased first, and then decreased, which was similar to the trend of the total acid concentration determined by NH3-TPD.
To calculate the acid concentration, 1.67 and 2.22 cm/μmol were taken as the integrated molar extinction coefficient of the Brönsted and Lewis acid sites, respectively, as suggested in Ref. [44]. The calculated concentration of Brönsted and Lewis acid sites are listed in Table 3. The Brönsted acid concentrations of all the samples after CTAB treatment were higher than that of HMCM-49, while the Lewis acid concentrations of the formers were lower than that of the latter. Both the Brönsted acid concentration and concentration ratio of Brönsted to Lewis acid sites (B/L) increased first, and then decreased with the decrease of HMI content before the CTAB modification, and reached the highest values (0.40 mmol/g and 2.5) for the HMCM-350-CTAB sample.

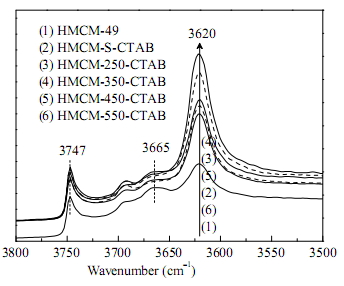

The DRIFTS spectra of the HMCM-49, HMCM-S-CTAB and HMCM-T-CTAB samples are given in Fig. 6. It was obvious that the intensity of the band at 3620 cm−1, associated with bridging OH groups [26, 45, 46, 47], increased markedly after the CTAB modification. Specifically, with the decrease of HMI retained in the sample, the intensity of the band at 3620 cm−1 increased first, and then decreased. The HMCM-350-CTAB sample showed the highest intensity for this band. This reflected the trend of Brönsted acid concentration [26, 46], which was in accordance with the Py-IR results. The band at 3747 cm−1, assigned to surface silanol groups [26, 45, 46, 47], was of almost the same intensity for all the samples. The intensity of the band at 3665 cm−1, attributed to Al-OH groups where Al is connected with the zeolite framework by one or two chemical bonds [26, 45], decreased slightly after the CTAB modification, indicating the decrease of extraframework Al species, which was in line with the 27Al MAS NMR result.
In the previous section, we deduced that the extraframework Al atoms insert into the framework by selectively substituting Si atoms on the T3 site or directly filling in the defects on the T2 or T3 sites during the CTAB modification. This was further supported by the Py-IR and DRIFTS results, which showed the increase of Brönsted acid sites and the decrease of Lewis acid sites. In addition, the acidity of the samples was also related to the cleaning off of amorphous particles during the CTAB treatment process. These two factors resulted into the change of Brönsted acid concentration for the HMCM-49, HMCM-S-CTAB and HMCM-T-CTAB samples shown in Table 3, although we could not estimate the proportion of the separate contribution from these two factors. The HMCM-250-CTAB and HMCM-350-CTAB samples had higher concentrations of Brönsted acid than the other samples, implying that there were more extra-framework Al species inserted into the framework or cleaned off from the crystals for these two samples.

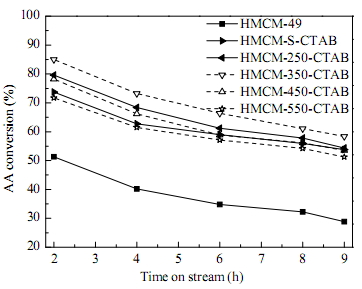

The acylation of AN with AA was used as the probe reaction to investigate the catalytic performance of the HMCM-49, HMCM-S-CTAB and HMCM-T-CTAB samples. The AA conversions versus time on stream (TOS) over the different samples are shown in Fig. 7. When HMCM-49 was used as catalyst, the initial conversion of AA (at TOS of 2 h) was 51.4%, and the detected products were acetic acid (AC) and methoxyacetophenone (MAP), with the selectively of 52.7% and 47.3%, respectively. Most of the MAP was in the para form (the selectivity to p-MAP > 98%), which was consistent with the results reported in Ref. [48] After 9 h of TOS, the AA conversion decreased to 28.9%, while the selectivity to p-MAP showed almost no change.

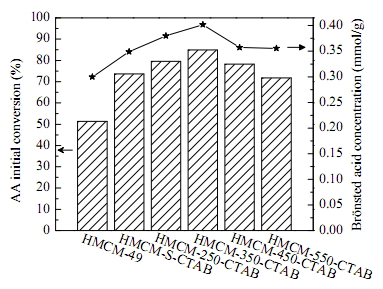

Compared with HMCM-49, the AA initial conversion for the samples after CTAB modification increased obviously, and the selectivity to the products showed almost no change. In particular, for the HMCM-S-CTAB catalyst, the AA initial conversion was 73.7%, which decreased to 53.8% after reaction for 9 h, showing a similar decline (19.9%) with that of HMCM-49 (22.5%). For the other catalysts, with the decrease of HMI content before the CTAB modification, the AA initial conversions increased first, and then decreased. Simultaneously, the decline of AA conversion for the series of catalysts modified with CTAB was comparable with that for HMCM-49. For the HMCM-350-CTAB catalyst, the AA initial conversion increased to the highest value of 85.0%, about 34% higher than that of HMCM-49. On the other hand, the AA initial conversion on the HMCM-550-CTAB catalyst decreased to 71.8%. In conclusion, the CTAB treatment obviously increased the initial conversion of AA, but had no effect on product selectivity.
The main factors influencing the catalytic behavior of AN acylation with AA on zeolite catalysts are the acidity and textural properties [1]. Since the textural properties of the samples after CTAB modification were quite similar to that of HMCM-49, the difference in their catalytic performance can be attributed to the variation of acidity. The AA initial conversion and Brönsted acid concentrations of HMCM-49, HMCM-S-CTAB and HMCM-T-CTAB samples are shown in Fig. 8. It is obvious that the AA initial conversion was positively correlated with the Brönsted acid concentration since both increased first and then decreased with the decrease of HMI content before the CTAB modification. This result is consistent with our previous work [48], in which it was shown that strong Brönsted acid sites were involved in the acylation of AN with AA when Beta zeolite was used as catalyst.
In order to further confirm the nature of acid sites interacting with CTAB, we investigated the catalytic performances of different pore systems over the tested zeolite catalysts for the acylation of AN with AA (according to the method of Xu’s group [26]). The relation between AA conversions in the different pore systems with TOS for the different samples is shown in Fig. 9. The catalytic role of the different pore systems was estimated based on the following postulates. Taking HMCM-49 as an example, we suppose that when HMCM-49 and HMCM-49-xy were used as the catalyst, the difference between their AA conversions can be attributed to the contribution of supercages. When HMCM-49-xy and HMCM-49-xy-DMQ were used as the catalyst, the difference between their AA conversions can be assigned to the contribution of surface pockets.

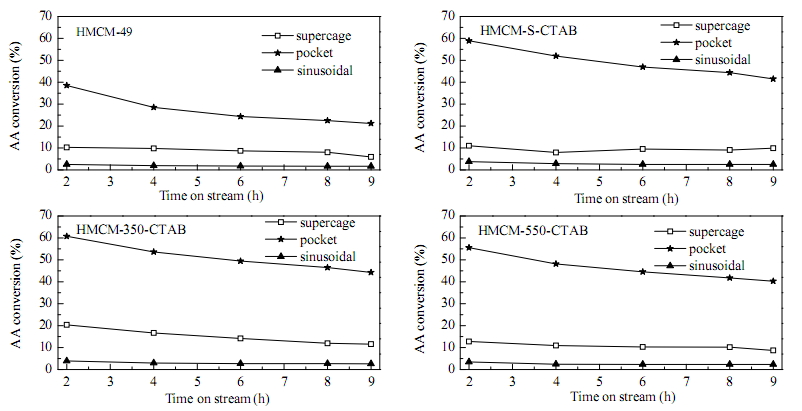

When HMCM-49 was used to catalyze the acylation reaction, the AA initial conversion in the surface pockets was 38.5%, corresponding to 75% of the activity (51.4%), while the AA initial conversion in the supercages was only 10.3%, corresponding to 20% of the activity. The AA initial conversion in the sinusoidal channels was only 2.6%, and can be ignored in the following discussion. It was obvious that for the HMCM-49 sample, the surface pockets were the main contributors to the activity for the acylation of AN with AA. This was consistent with the result reported by Guidotti et al. [6]. They concluded that the acylation was mainly carried out on the accessible acid sites which were located on the external hemicages of the MWW zeolite, but they did not quantify the catalytic performance of the three pore systems. With the progress of reaction, both the activity of the surface pockets and supercages decreased gradually. When the reaction time on stream was 9 h, the AA conversion on the surface pockets decreased to 21.2%, while that in the supercages decreased to 6.0%.
When HMCM-S-CTAB was used as catalyst, the AA conversion on its surface pockets was 58.9% at the initial reaction stage, which was 20.4% higher than that of HMCM-49 (38.5%), and this decreased to 41.4% at the reaction time of 9 h. It is interesting to notice that this decline percentage of AA conversion in the surface pockets (17.5%) was comparable with that of HMCM-49 (17.3%). The AA conversion in the supercages at a TOS of 2 h was 11.0%, which was similar to that of HMCM-49 (10.3%), and there was nearly no change to the TOS of 9 h. The result clearly indicated that the CTAB modification used in this work mainly happened on the surface pockets of the zeolite, which is in good agreement with our discussion above.
For the HMCM-350-CTAB catalyst, the AA initial conversion in the surface pockets and its decline were similar to that of HMCM-S-CTAB. The AA initial conversion in the supercages was 20.3%, nearly twice as high as that of HMCM-S-CTAB (11.0%), and it decreased to 11.6% at the TOS of 9 h. This indicated that for the HMCM-350-CTAB catalyst, deactivation happened both in the supercages and in the surface pockets. Compared to the corresponding data of the HMCM-S-CTAB catalyst, we can say that the CTAB modification of the C350 sample occurred not only in the surface pockets, but also in the supercages, which was also in accordance with our above discussion.
When the HMCM-550-CTAB catalyst was used, the AA initial conversion on the surface pockets was 55.6%, which was 17.1% higher than that of HMCM-49 (38.5%). The AA initial conversion on the supercages was 12.7%, a little higher than that of HMCM-49 (10.3%), indicating that the CTAB modification of this sample occurred on both the surface pockets and the supercages. Because the acylation of AN with AA is nearly forbidden in the sinusoidal channels of MCM-49 zeolite, there was no way to see if the CTAB modification occurred in the sinusoidal channels. However, the increases of AA initial conversion in the surface pockets and supercages of HMCM-550-CTAB were both lower than that of HMCM-350-CTAB, implying that the degree of CTAB modification was closely related to the available concentration of CTAB in the process (HMCM-350-CTAB > HMCM-550-CTAB), as discussed above.
In conclusion, compared with the HMCM-49 catalyst, the increase of initial activity on HMCM-S-CTAB was attributed to the increase in activity on the surface pockets, while for HMCM-350-CTAB and HMCM-550-CTAB, it was related to the increase of activity in both surface pockets and supercages. This further confirmed that CTAB interacted with different sites for different samples, which is in accordance with characterization results. However, it is worth noting that we do not know if CTAB modification can occur in the sinusoidal channels of HMCM-550-CTAB.
The partially de-templated MCM-49 zeolite contained residual HMI in different pore systems. CTAB treatment cleaned off some amorphous particles from the zeolite and attacked HMI-free regions whereby extraframework Al species selectively substituted Si atoms on the T3 site and directly filled in the defects on T2 or T3 sites. The Brönsted acid concentration of the samples after CTAB modification was all higher than the HMCM-49 sample. Samples modified with CTAB used to catalyze the acylation of AN with AA had catalytic activity that displayed a positive correlation with the Brönsted acid concentration. The acylation of AN with AA was mainly carried out on the acid sites located on the surface pockets of the MCM-49 zeolite, and not as much on the acid sites located in the supercages.
