Contamination of water systems by organic chemicals poses a serious environmental threat. The severity of this threat originates from the toxicity of organic chemicals to animals and humans. To meet the increasing demands to protect the environment, highly effective, inexpensive and stable photocatalysts for degradation of organic chemicals are strongly desired. Over the past decades, semiconductor photocatalysis has attracted extensive attention because it has a great potential to solve such environmental issues ^{[1, 2, 3, 4]}. To date, various metal oxide semiconductors with different structures, morphologies and sizes, such as titanium dioxide ^[5], tin dioxide ^[6], cuprous oxide ^[7] and ferric oxide ^[8], have been extensively developed for photocatalytic applications. Among semiconductor materials, zinc oxide (ZnO) is a promising candidate as a photocatalyst because of its low cost, non-toxicity and high efficiency in the photocatalytic degradation of organic pollutants ^{[9, 10]}. Unfortunately, because of its wide band gap of 3.24 eV at 27 °C ^[11], electron-hole pairs can only be effectively generated by ultraviolet (UV) light, which composes only about 4% of the solar spectrum. As a result, considerable effort has been devoted to improving the photoactivity of ZnO and extending its light absorption into the visible region using approaches such as doping ^[12], semiconductor coupling ^{[13, 14]}, and deposition of metals ^[15].

An effective method to realize visible-light excitation is to introduce intermediate energy levels between the conduction band (CB) and valence band (VB) by doping semiconductors with metal or nonmetal elements. However, traditional impurity incorporation will lead to an increased content of recombination centers for the electron-hole pairs. Because it does not introduce any impurity elements, the introduction of oxygen vacancies is considered an effective way to preserve the intrinsic crystal structure of ZnO while extending its visible-light absorption, which leads to enhanced photocatalytic performance under visible-light irradiation ^{[16, 17]}. Despite these efforts, the low separation efficiency of electron-hole pairs and serious photocorrosion in long-term photocatalytic processes still limit the practical application of ZnO-based catalysts ^[18]. To improve the photocatalytic efficiency of ZnO-based catalysts, it is important to overcome the drawbacks of ZnO, which may be achieved by using a molecular electron-relay semiconductor or efficient electron transport matrix, such as polyaniline or graphene ^{[19, 20]}. These delocalized conjugated materials match well with the ZnO photocatalyst in terms of energy levels, and a strong interfacial hybrid effect emerged between the materials, resulting in rapid charge separation and slow charge recombination in the electron-transfer process.

The metal-free polymeric semiconductor material graphitic carbon nitride (g-C₃N₄) has attracted considerable attention since its photocatalytic performance was first reported by Wang et al. ^{[21, 22]}. Research has shown that g-C₃N₄ has good thermal and chemical stability ^{[23, 24]}, as well as excellent photoelectric properties ^[25]. However, the high recombination rate of photogenerated carriers currently limits the practical application of g-C₃N₄ ^{[26, 27]}. To enhance its photocatalytic capability, it was proposed that hybridizing g-C₃N₄ as a π-conjugated material with inorganic semiconductors could effectively promote photocatalytic activity and visible-light response ^{[28, 29]}. The unique electronic properties, high specific surface area and locally conjugated aromatic system of g-C₃N₄ make it an ideal candidate as a visible-light photocatalyst. Therefore, the combination of ZnO and g-C₃N₄ may be an ideal system to minimize the recombination of photogenerated electron-hole pairs in electron-transfer process and enhance photocatalytic activity.

In this work, we report oxygen-deficient ZnO modified with g-C₃N₄ (denoted as g-C₃N₄/V_o-ZnO), which was fabricated by annealing Zn(OH)F and melamine precursors in N₂. The photocatalytic properties of the as-prepared g-C₃N₄/V_o-ZnO composites under visible-light irradiation were examined.

Zinc acetate dihydrate (Zn(AC)₂·2H₂O), hexamethylenetetramine (HMT), hydrofluoric acid (HF, 40 wt%), melamine, methyl orange (MO), terephthalic acid (TA), sodium hydroxide (NaOH) and humic acid (HA) were purchased from Sinopharm Chemical Reagent Co. Ltd (Shanghai, China). All reagents were of analytical grade and used as received without any further treatment.

Zn(OH)F was prepared according to our previous report ^[30]. In a typical procedure, Zn(AC)₂·2H₂O (5 mmol) was dissolved in deionized water (30 mL), and then HMT (5 mmol) was added under stirring. The resulting mixture was subjected to vigorous magnetic stirring at room temperature for 10 min. Then an aqueous solution of HF (40 wt%, 300 μL) was gradually added under constant stirring. The mixture was transferred into a Teflon-lined stainless steel autoclave with a capacity of 50 mL, and maintained at 160 °C for 6 h. After cooling to room temperature naturally, the white product Zn(OH)F was collected by centrifugation, washed with deionized water and ethanol several times and then dried at 60 °C overnight in a vacuum oven.

Appropriate amounts of melamine and Zn(OH)F were ground in a mortar for 20 min. The mixture was then heated to 550 °C at a heating rate of 5 °C/min and kept at this temperature for 3 h under N₂. The nominal contents of g-C₃N₄ to V_o-ZnO investigated were 0.5, 1 and 2 wt%, and the obtained samples are denoted as 0.5 wt% g-C₃N₄/V_o-ZnO, 1 wt% g-C₃N₄/Vo-ZnO and 2 wt% g-C₃N₄/V_o-ZnO, respectively. Pure V_o-ZnO was prepared by calcination of Zn(OH)F in the absence of melamine, and g-C₃N₄ was obtained by annealing melamine following a similar procedure.

X-ray diffraction (XRD) patterns were obtained on a Rigaku/Max-3A X-ray diffractometer with Cu K_α radiation (λ = 1.54178 Å) using an operation voltage and current of 40 kV and 200 mA, respectively. Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) were conducted using a JEOL-2010 microscope at an accelerating voltage of 200 kV. Room-temperature ultraviolet-visible (UV-vis) absorption spectra were recorded on a Shimadzu spectrophotometer (2501PC). Fourier transform infrared (FT-IR) spectra were measured on a Bruker Vector 22 FT-IR spectrometer at room temperature. X-ray photoelectron spectroscopy (XPS) was performed using a Perkin-Elmer RBD upgraded PHI-5000C ESCA system. Electron paramagnetic resonance (EPR) spectra were obtained using a Bruker EMX plus spectrometer operating at X-band frequencies (9.4 GHz) at 130 K. A spectrofluorometer (F-4600, Hitachi, Japan) with a xenon discharge lamp excitation was used to measure the fluorescence signal of 2-hydroxyterephthalic acid (TAOH).

The photocatalytic activities of the samples were measured by degradation of MO and HA under visible-light irradiation at room temperature. The light source was a 300-W Xe lamp (PLS-SXE300/300UV, Trusttech Co., Ltd., Beijing). A 150-mL double-layer beaker with a diameter of 6 cm was used as the reaction vessel. First, photocatalyst (50 mg) was dispersed in an aqueous solution of MO or HA (10 mg/L, 50 mL) in the reactor, which was cooled by running water to keep the temperature constant. Prior to light irradiation, the suspension was magnetically stirred in the dark for 30 min to reach adsorption-desorption equilibrium between the photocatalyst and MO/HA. Then, the stirred suspension was irradiated with a Xe lamp through a UV-cutoff filter (λ ≥ 400 nm). The distance between the light source and reactor was 10 cm. Aliquots (4 mL) of the solution were taken at given time intervals that were subsequently centrifuged and then filtered through a 0.22-μm membrane filter to remove the remaining photocatalyst particles. The degradation of MO/HA was analyzed with a UV 1800PC spectrophotometer (Shanghai Mapada Instruments). Additionally, to test photocatalyst durability, recycling experiments for five consecutive cycles were performed. After each cycle, the catalyst was centrifuged, washed thoroughly with distilled water and ethanol several times to remove residual pollutant impurities, and then dried at 60 °C before reuse.

Photoluminescence (PL) spectra with TA as a probe molecule were used to examine the formation of hydroxyl radicals (^•OH) on the surface of the photocatalysts under visible-light irradiation. The experiments were performed as follows: photocatalyst (50 mg) was suspended in an aqueous solution (50 mL) containing of NaOH (0.15 g) and TA (3 mmol/L) at room temperature. After irradiation for 15 min, a 4.0 mL aliquot of solution was taken out and centrifuged. The fluorescence spectrum of the sample was measured using an excitation wavelength of 320 nm. During the photoreactions, oxygen was not bubbled into the suspension.

The crystal structures of the Zn(OH)F precursor and g-C₃N₄/V_o-ZnO products were determined by XRD. The XRD profile for Zn(OH)F is given in Fig. 1(a); all diffraction peaks can be indexed to orthorhombic-phase Zn(OH)F (JCPDS 32-1469). The XRD patterns of g-C₃N₄, oxygen vacancy-rich ZnO (denoted V_o-ZnO) and g-C₃N₄/V_o-ZnO composites with different nominal contents of g-C₃N₄ are shown in Fig. 1(b). Two pronounced peaks are observed for pure g-C₃N₄. The first peak at 13.10° is associated with the in-plane structural packing motif, and the second at 27.39° originates from interlayer stacking of the conjugated aromatic system ^[31]. The obtained ZnO nanoparticles (NPs) exhibit strong, sharp diffraction peaks, indicating they are highly crystalline. The diffraction peaks within the angular range (2θ) of 10°-70° can be indexed to the hexagonal phase of ZnO (JCPDS 65-3411). No obvious characteristic peaks of g-C₃N₄ are detected in the diffraction patterns of the three g-C₃N₄/V_o-ZnO hybrid photocatalysts, which is attributed to the relatively low content of g-C₃N₄ in the final catalysts (0.5-2 wt%).

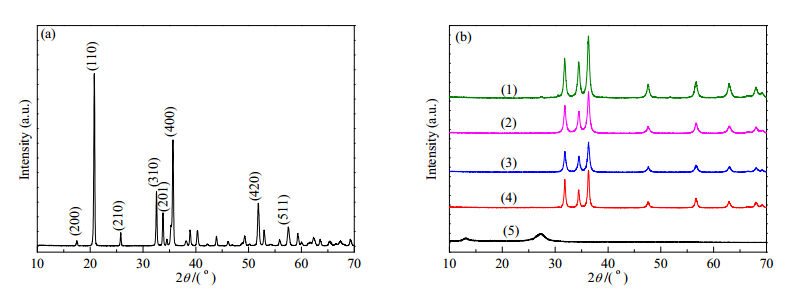

Fig. 1. XRD patterns of Zn(OH)F (a) and the catalysts (b). (1) 0.5 wt% g-C3N4/Vo-ZnO; (2) 1 wt% g-C3N4/Vo-ZnO; (3) 2 wt% g-C3N4/Vo-ZnO; (4) Vo-ZnO; (5) g-C3N4.

The microstructure of the 1 wt% g-C₃N₄/V_o-ZnO sample was characterized by TEM and HRTEM. Fig. 2(a) reveals that g-C₃N₄ nanosheets are hybridized with V_o-ZnO NPs. A clear interface boundary is formed between g-C₃N₄ nanosheets and V_o-ZnO NPs upon calcination. This intimate contact should aid the transfer of photogenerated carriers between g-C₃N₄ and V_o-ZnO and thereby promote the separation of photogenerated electron-hole pairs. The inset image in Fig. 2(a) shows a g-C₃N₄ nanosheet. The HRTEM image in Fig. 2(b) clearly shows the lattice structure of V_o-ZnO, indicating it is highly crystalline. The measured interplanar spacing of V_o-ZnO is 0.281 nm, which corresponds to the ZnO(100) plane.

Fig. 2. TEM (a) and HRTEM (b) images of 1 wt% g-C3N4/Vo-ZnO.

XPS measurements were carried out to characterize the elemental chemical states of 1 wt% g-C₃N₄/V_o-ZnO; high-resolution spectra of Zn 2p, O 1s, C 1s and N 1s are presented in Fig. 3(a)-(d), respectively. In the Zn 2p spectrum, the major peak at 1021.75 eV for 2p_3/2 indicates that Zn²⁺ is present in V_o-ZnO ^[32]. The peak at 530.40 eV in the O 1s spectrum can be assigned to lattice oxygen present in ZnO ^[33]. Meanwhile, the peak at 531.65 eV is consistent with the presence of O^2- in the oxygen-deficient regions in the ZnO matrix ^[34], indicating the formation of oxygen vacancies. The high-binding-energy component located at 532.55 eV is attributed to the presence of loosely bound oxygen on the surface of ZnO ^[35]. XPS analysis revealed that the O content of 1 wt% g-C₃N₄/V_o-ZnO (38.2%) was lower than that of V_o-ZnO (41.8%). That is, the concentration of oxygen vacancies is increased after hybridization with g-C₃N₄, which may affect the optical properties of the material.

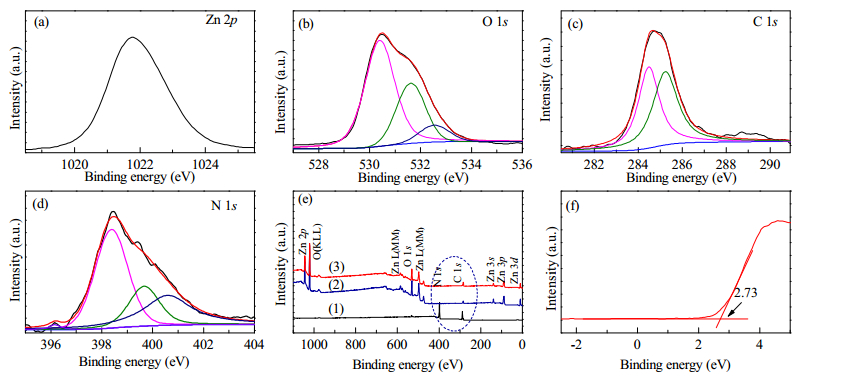

Fig. 3. Zn 2p (a), O 1s (b), C 1s (c), and N 1s (d) spectra measured for 1 wt% g-C3N4/Vo-ZnO. (e) XPS survey spectra for g-C3N4 (1), Vo-ZnO (2) and 1 wt% g-C3N4/Vo-ZnO (3). (f) Valence-band XPS measurement for Vo-ZnO.

The C 1s spectrum of 1 wt% g-C₃N₄/V_o-ZnO (Fig. 3(c)) can be deconvoluted into two peaks at 284.50 and 285.40 eV. The peak at 284.50 eV is attributed to adventitious carbon on the surface of 1 wt% g-C₃N₄/V_o-ZnO, while that at 285.40 eV is assigned to C=N-C coordination. Fig. 3(e) reveals that no signals from N species were observed for pure V_o-ZnO. After hybridization with g-C₃N₄, a weak, broad asymmetric peak corresponding to N 1s was observed (Fig. 3(d)), suggesting that more than one chemical state of N exists. The broad peak of N 1s was deconvoluted into four peaks with binding energies of 396.10, 398.40, 399.40 and 400.30 eV. The peak at 396.10 eV corresponds to the substitution of a few N atoms in the O sublattice, which behave as an acceptor. The peak at 398.40 eV was attributed to aromatic N bonded to two C (C=N-C) in the triazine or heptazine rings, while those at 399.40 and 400.30 eV correspond to tertiary nitrogen N-(C)₃ and Zn-O-N, respectively. The peak consistent with Zn-O-N indicates that g-C₃N₄ and V_o-ZnO interact strongly in the photocatalyst because of calcination. The C 1s and N 1s binding energies of the photocatalyst are consistent with previously reported XPS data ^{[36, 37, 38, 39, 40]}. Moreover, C 1s and N 1s peaks originating from the g-C₃N₄ phase are observed in the hybrid composite photocatalysts (Fig. 3(e)), confirming the presence of g-C₃N₄. The XPS results are in good accordance with the TEM measurements. To investigate the energy band structure of V_o-ZnO, VB XPS near the Fermi level was measured, as shown in Fig. 3(f). The VB edge determined for V_o-ZnO was 2.73 eV, which is higher than the redox potential of OH^•/OH^- (+1.99 eV). This implies that the VB of V_o-ZnO has strong water oxidation capability to generate active species such as OH^• by reaction with H₂O/OH^{- [41, 42]}.

To characterize the optical responses of g-C₃N₄, V_o-ZnO and g-C₃N₄/V_o-ZnO samples, UV-vis absorption spectra were measured at room temperature. As depicted in Fig. 4(a), the g-C₃N₄/V_o-ZnO hybrid photocatalysts displayed a long absorption tail extending from the visible to near-infrared (NIR) regions compared with that of pure V_o-ZnO, indicating that the g-C₃N₄/V_o-ZnO samples contain a high concentration of oxygen vacancies because of the doping of O sites of ZnO with N atoms ^[43]. It is noted that only a small proportion of g-C₃N₄ nanosheets in V_o-ZnO leads to a large extension of the optical absorption of g-C₃N₄/V_o-ZnO to the visible region. Moreover, the UV-vis-NIR absorption of 1 wt% g-C₃N₄/V_o-ZnO is stronger than that of the other samples, suggesting that 1 wt% g-C₃N₄/V_o-ZnO may exhibit higher photocatalytic activity. Because ZnO is a direct semiconductor, a plot of (αE_photon)² versus the energy of the absorbed light provides the band gap of V_o-ZnO (where α and E_photon are the absorption coefficient and discrete photon energy, respectively). Fig. 4(b) shows the calculated band gap of V_o-ZnO NPs is ~3.09 eV, which is smaller than that of defect-free ZnO (3.24 eV) ^[11]. This band-gap narrowing can be attributed to the presence of oxygen vacancies in the V_o-ZnO NPs.

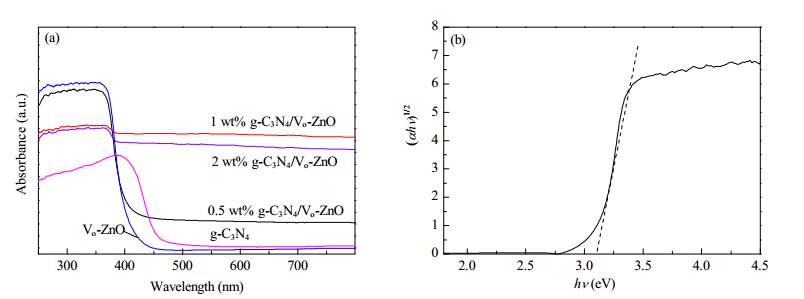

Fig. 4. (a) UV-vis DRS of pure g-C3N4, Vo-ZnO and g-C3N4/Vo-ZnO composite photocatalysts. (b) Calculation of the band gap of Vo-ZnO.

Figure 5(a) depicts FT-IR spectra of g-C₃N₄, V_o-ZnO and 1 wt% g-C₃N₄/V_o-ZnO. For g-C₃N₄, the peak at 808 cm^-1 corresponds to the s-triazine ring system ^[44]. The peaks at 1243 and 1637 cm^-1 are assigned to the C-N and C=N stretching vibrations, respectively ^[45]. The peak located near 900 cm^-1 in the spectrum of ZnO can be attributed to the Zn-O stretching mode. Meanwhile, the peaks at 1632 and 3200-3600 cm^-1 originate from the presence of hydroxyl groups and water bound to the ZnO surface ^[46]. In addition, the absorption peak in the range of 600-900 cm^-1 for 1 wt% g-C₃N₄/V_o-ZnO shift to lower wavenumber compared with that of V_o-ZnO (Fig. 5(b)). This indicates that the C-N and C=N bonds are weakened and the conjugated system of g-C₃N₄ is stretched to form a more widely conjugated system containing V_o-ZnO and g-C₃N₄ in the hybrid photocatalyst. This is clear evidence that a covalent bond is formed between g-C₃N₄ and V_o-ZnO ^{[36, 44, 47]}, which agrees well with the XPS results and further confirms that the as-prepared hybrid photocatalysts contain g-C₃N₄. This strong coupling may facilitate efficient charge transfer and promoting photocatalytic activity.

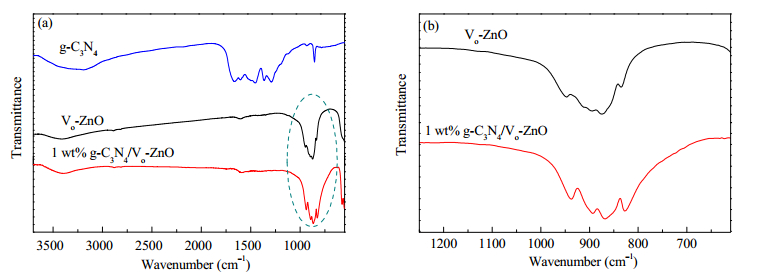

Fig. 5. (a) FT-IR spectra of as-prepared g-C3N4, Vo-ZnO and 1 wt% g-C3N4/Vo-ZnO. (b) Magnification of the area in the ellipse in (a).

To examine the paramagnetic characteristics of 1 wt% g-C₃N₄/V_o-ZnO and V_o-ZnO, EPR spectra were obtained at -143 °C. Fig. 6 reveals that V_o-ZnO exhibited a weak EPR signal with a g factor of 2.00, which is characteristic of single-electron-trapped (paramagnetic) oxygen vacancies ^[48]. Compared with V_o-ZnO, 1 wt% g-C₃N₄/V_o-ZnO exhibits a more intense EPR signal at a similar position. The hybrid photocatalysts has a higher number of resonance peaks than V_o-ZnO. This indicates that there are more ^•O₂^- superoxide ions generated from oxygen or -OH groups and more oxygen vacancies in 1 wt% g-C₃N₄/V_o-ZnO than in V_o-ZnO ^[49]. This observation is in good agreement with the results of XPS analysis.

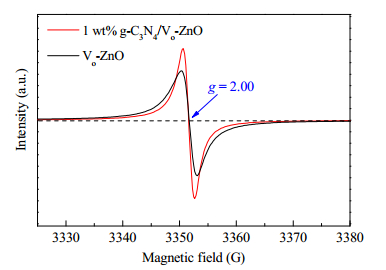

Fig. 6. X-band EPR spectra of 1 wt% g-C3N4/Vo-ZnO and Vo-ZnO samples recorded at -143 °C.

The photocatalytic activity and stability of the g-C₃N₄/V_o-ZnO photocatalysts were evaluated by photodegradation of MO dye in aqueous solution under visible-light irradiation. For comparison, the photocatalytic activities of pure V_o-ZnO and g-C₃N₄ were also investigated under the same experimental conditions. Total concentrations of MO aqueous solutions were determined from UV-vis absorption measurements (l = 464 nm). c/c₀ was used to describe the degradation efficiency, where c is the concentration of MO at time t and c₀ is the concentration of MO at adsorption equilibrium. Fig. 7(a) clearly shows that the g-C₃N₄/V_o-ZnO samples exhibited higher photocatalytic activities for MO degradation than V_o-ZnO and g-C₃N₄. Among the g-C₃N₄/V_o-ZnO photocatalysts, that containing 1 wt% g-C₃N₄ showed the highest photocatalytic activity, photodegrading 93% of the MO in the aqueous solution after 60 min of visible-light irradiation. In contrast, V_o-ZnO displayed moderate photocatalytic MO degradation, and g-C₃N₄ showed negligible photocatalytic activity. These results demonstrate that g-C₃N₄ can effectively modify ZnO to improve its visible-light photocatalytic performance.

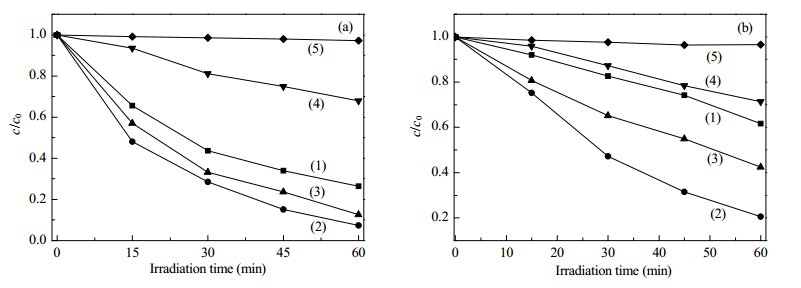

Fig. 7. Photodegradation of MO (a) and HA (b) over different samples under visible-light irradiation. (1) 0.5 wt% g-C3N4/Vo-ZnO; (2) 1 wt% g-C3N4/Vo-ZnO; (3) 2 wt% g-C3N4/Vo-ZnO; (4) Vo-ZnO; (5) g-C3N4.

The photocatalytic degradation of HA by the same catalysts was also investigated (Fig. 7(b)). HA is a model compound for natural organic matter, and among the humic substances formed by the environmental breakdown of animal and vegetable matter. Total concentrations of HA were determined by UV-vis absorption measurements using the characteristic absorption wavelength of HA of 254 nm. The 1 wt% g-C₃N₄/V_o-ZnO photocatalyst showed good photocatalytic activity for HA, photodegrading 80% of the HA in the aqueous solution after 60 min of visible-light irradiation. Comparison of the photocatalytic activity of 1 wt% g-C₃N₄/V_o-ZnO with reported catalysts ^{[43, 50, 51, 52]} (Table 1) revealed that it exhibits high photocatalytic activity for dye degradation and shows potential for application in wastewater treatment.

Table 1 Photocatalytic activities of different g-C3N4/ZnO photocatalysts under visible-light irradiation. Photocatalyst Dye cphotocatalyst (mg/mL) c dye (mg/L) Time (min) Degradation efficiency (%) Ref. 5.0 wt% g-C 3N 4/ZnO RhB 2 4.5 100 97 [43] g-C 3N 4/ZnO 15.0 wt% RhB 2 10 150 98 [50] g-C 3N 4/ZnO 15.6% MO 3 4 80 97 [51] 6.0% g-C 3N 4/ZnO RhB 1 7 150 75 [52] 1.0 wt% g-C 3N 4/V o-ZnO MO 1 10 60 93 this work

Table 1 Photocatalytic activities of different g-C3N4/ZnO photocatalysts under visible-light irradiation.

After photoexcitation, holes with sufficient oxidation power in localized states within the band gap or VB can be either directly involved in the photocatalytic degradation reactions or generate active species. The reaction between TA and ^•OH species in basic solution can generate TAOH, which emits a unique PL signal with maximal intensity centered at 425 nm ^[53]. There is a linear relation between the fluorescence intensity of this peak and content of ^•OH in a solution containing TA. Fig. 8(a) reveals that the fluorescence intensity of a solution of TA containing 1 wt% g-C₃N₄/V_o-ZnO enhanced gradually with lengthening irradiation time, indicating an increase in the content of ^•OH. Fig. 8(b) shows plots of PL intensity at 425 nm against irradiation time for solutions containing TA and V_o-ZnO, g-C₃N₄ and g-C₃N₄/V_o-ZnO with different contents of g-C₃N₄. For each sample, the PL intensity increased linearly with irradiation time. At a fixed time, 1 wt% g-C₃N₄/V_o-ZnO showed the highest content of ^•OH among the five samples, which is consistent with results for photodegradation of MO over the photocatalysts. Therefore, the excellent visible-light-driven photocatalytic activity of the g-C₃N₄/V_o-ZnO photocatalyst might be ascribed to the presence of a suitable amount of g-C₃N₄, which leads to a high concentration of oxygen vacancies in ZnO, and facilitates the separation of photogenerated electrons and holes.

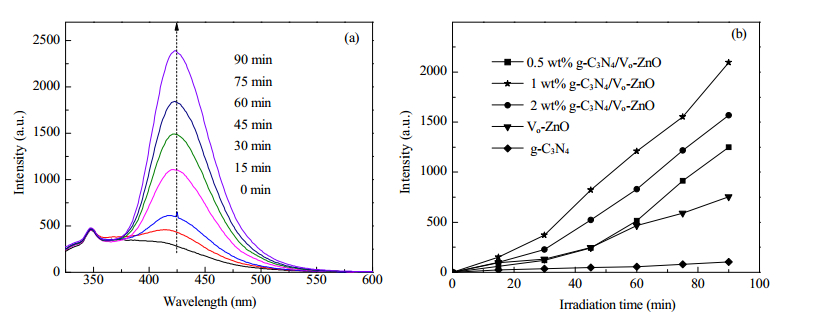

Fig. 8. (a) Photoluminescence spectra of 2-hydroxy terephthalic acid generated in the presence of 1 wt% g-C3N4/Vo-ZnO under visible-light irradiation. (b) Fluorescence intensity of solutions of terephthalic acid containing Vo-ZnO, g-C3N4 and g-C3N4/Vo-ZnO with different contents of g-C3N4 under visible-light irradiation.

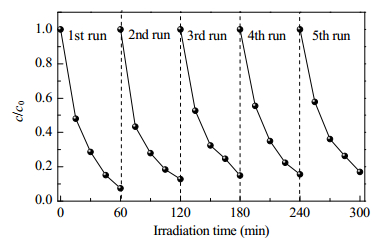

The stability of photocatalysts is another important factor for their practical application. To verify the stability and reusability of g-C₃N₄/V_o-ZnO, the photocatalytic degradation of MO in the presence of 1 wt% g-C₃N₄/V_o-ZnO was performed under the same reaction conditions using recycled catalyst. As displayed in Fig. 9, after five MO photodegradation cycles, the catalyst did not exhibit any substantial loss of activity. Even after five degradation cycles, about 83.1% of the MO was degraded, confirming that the g-C₃N₄/V_o-ZnO photocatalyst is highly stable and not corroded during repeated photocatalytic degradation cycles.

Fig. 9. Illustration of the working principle of multi-wavelength Raman spectroscopy of supported metal oxide. λRR and λNR refer to excitations resulting in resonance and non-resonance Raman, respectively.

To elucidate the role of oxygen vacancies in photocatalysis, the effect of oxygen vacancy concentration on the band structure of V_o-ZnO was determined, as illustrated in Scheme 1 ^{[54, 55]}. The oxygen vacancy (V_o^••) defect energy levels used in Scheme 1 were calculated by Zheng et al. ^[56]. Scheme 1(a) reveals that the oxygen vacancy level is below the CB edge and has no obvious effect on the band gap of ZnO when the oxygen vacancy concentration is low. When numerous oxygen vacancies exist in ZnO, the oxygen vacancy level becomes more delocalized and overlaps with the CB edge (Scheme 1(b)). As a result, the band gap of V_o-ZnO is narrowed to 3.09 eV, which allows ZnO to harvest visible light more efficiently. These considerations help to explain why 1 wt% g-C₃N₄/V_o-ZnO has the strongest UV-vis-NIR absorption among the five samples in Fig. 4(a).

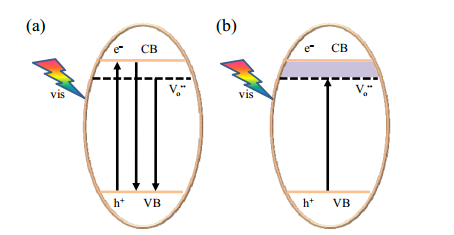

Scheme 1. Influence of oxygen vacancy concentration on the band structures of ZnO. Low (a) and high concentration (b) of oxygen vacancies.

According to the VB XPS measurements for V_o-ZnO, the photoexcited holes in the VB of V_o-ZnO (+2.73 eV) can oxidize OH^- or H₂O to ^•OH. The CB and VB edge potentials of g-C₃N₄ are -1.12 and +1.57 eV vs. NHE, respectively ^[57]. The CB potential of g-C₃N₄ is more negative than E⁰ (O₂/^•O₂^- = -0.046 eV vs. NHE) ^[58], so the accumulated electrons in the CB of g-C₃N₄ can reduce O₂ to yield ^•O₂^-. The VB position of g-C₃N₄ is more negative than the standard redox potential of E⁰ (^•OH/OH^-) (+1.99 eV vs. NHE) ^{[41, 42]}, which suggests that the photogenerated holes on the surface of g-C₃N₄ cannot react with OH^-/H₂O to form ^•OH. However, under the experimental conditions, the results in Fig. 8(b) show that g-C₃N₄/V_o-ZnO produces a higher content of ^•OH than pure V_o-ZnO.

Based on the above information, to explain why incorporation of g-C₃N₄ in V_o-ZnO enhances its photocatalytic activity, we suggest a Z-scheme mechanism for the g-C₃N₄/V_o-ZnO hybrid photocatalyst (Scheme 2) ^[59]. Under visible-light irradiation, both V_o-ZnO and g-C₃N₄ are excited. The photoexcited electrons in the CB of V_o-ZnO quickly transfer to the VB of g-C₃N₄, resulting in the recombination of the electrons in the CB of V_o-ZnO and photoexcited holes in the VB of g-C₃N₄. Meanwhile, the photogenerated holes in the VB of V_o-ZnO oxidize OH^- to ^•OH, while the electrons on the CB of g-C₃N₄ are captured by O₂ to form ^•O₂^-, which transforms into ^•OH, promoting the degradation of pollutants. Our results clearly demonstrate that the presence of g-C₃N₄ in the g-C₃N₄/V_o-ZnO nanocomposites can increase the efficiency of photogenerated electron-hole separation. Remarkably, the 1 wt% g-C₃N₄/V_o-ZnO catalyst showed little decrease in activity even after five cycles of use (Fig. 9), implying that g-C₃N₄/V_o-ZnO is stable and not photocorroded easily. Thus, charge carrier transfer is improved and recombination of photogenerated electron-hole pairs is effectively inhibited after g-C₃N₄ loading. This dramatically promotes the photodegradation efficiency of g-C₃N₄/V_o-ZnO under visible-light irradiation.

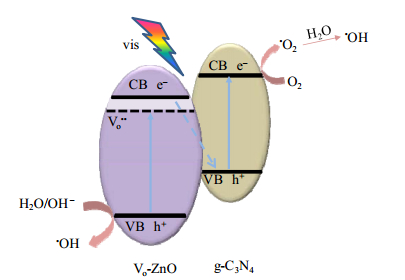

Scheme 2. Schematic illustration of the photocatalytic reaction mechanism of the g-C3N4/Vo-ZnO nanocomposite in the degradation of MO and HA in aqueous solution under visible-light irradiation.

We fabricated g-C₃N₄/V_o-ZnO photocatalysts using a scalable, economical and simple method. Compared with pure V_o-ZnO and g-C₃N₄, the g-C₃N₄/V_o-ZnO photocatalysts exhibit enhanced photocatalytic activity for degradation of organic contaminants under visible-light irradiation. On the basis of the experimental and characterization results, the introduction of g-C₃N₄ into V_o-ZnO results in a high concentration of oxygen vacancies, which promotes visible-light absorption. Additionally, the formation of a strong coupling interface between g-C₃N₄ and V_o-ZnO greatly improves the separation efficiency of photogenerated electron-hole pairs, resulting in high visible-light photocatalytic activity. The 1 wt% g-C₃N₄/V_o-ZnO sample showed the best catalytic activity among the five tested samples, and exhibited high photostability even after being recycled five times. Overall, our results indicate that the combination of V_o-ZnO and g-C₃N₄ could be an ideal system to enhance electron-hole separation, resulting in potential applications in environmental pollutant removal. The present approach can also be extended to design other highly efficient visible-light photocatalysts.

Support from the Chinese Academy of Science (2015SRG-HSC048) is gratefully acknowledged.
