Functional composites have attracted much recent interest in various areas. This is because they often behave differently from bulk materials, and exhibit improved properties compared with their single-component counterparts. For example, precious metal seeds encapsulated by metal and metal oxides, such as Pt@CoO ^[1], Au@ZrO₂ ^[2], and Pd@Au ^[3], exhibit higher stability, activity, and selectivity than their bare metal nanoparticles. This is because of the local effect and synergistic interactions between the core metal particles and shell metal oxides. Various carbon-based composites, such as SnO₂/graphene ^[4], Fe₃O₄/C ^[5], and Co₃O₄/graphene ^[6], have been investigated for use in lithium-ion batteries (LIBs), in which they exhibit better electrochemical performance than their single metal oxide components. Carbon-based composites have been much studied as catalysts or catalyst supports, and favorable catalytic performance have been reported ^{[7, 8, 9, 10]}. Bao’s group ^[7] reported that reduced graphene oxide could be used as a catalyst for the hydrogenation of nitrobenzene at room temperature, and high catalytic activity and stability were obtained. Wang’s group ^[8] prepared ultrafine Pd nanoparticle monolayers on graphene oxide, which exhibited high electrocatalytic ability in the oxidation of formic acid and ethanol. Liu′ group ^[9] deposited Pt nanoparticles on multi-walled carbon nanotubes, which exhibited a turn-over frequency (TOF) of 69900 h^‒1 in the hydrogenation of nitrobenzene.

Synthesizing these composites usually requires uniformly coating or dispersing metal and metal oxides onto the core particles. Cao′ group ^[11] reported that Ni-graphene nanocomposites with uniformly distributed nickel particles significantly lowered the decomposition temperature of ammonium perchlorate (AP). This was because of the reduced activation energy of the decomposition of AP, which enhanced the rate of decomposition of deprotonated HClO₄ gas. Balaya ^[12] reported that reducing the size of nanocrystals, which increases their surface-to-volume ratio, could reduce the scale of transport lengths for mass and charge transport. Nanoscale effects promoted the thermodynamic properties, because of excess surface contributions enhancing the cell voltage in LIBs. Controlling the loading of active materials is important, because it significantly influences the performance of the resulting composite. For example, Lee and co-workers ^[13] reported that Fe₃O₄ nanocrystals confined in mesocellular carbon foam (MSU-F-C) exhibited excellent rate performance compared with micro-Fe₃O₄. The higher Fe₃O₄ loading (61%) decreased the rate performance, which was attributed largely to the lower pore volume.

Several approaches have been reported for impregnating or attaching active metal and metal oxide nanoparticles into the cavities or on the external walls of supports. Incorporating metals or metal precursors and a carbon source for carbon nanotube (CNT) growth is one approach for impregnating metals into the hollow interior of CNTs. However, harsh conditions such as high temperatures or arc evaporation are usually required, and impurities are produced as encapsulated carbon clusters and soot. Capillary drawing of low-melting point metals into CNTs is a simple approach. However, CNTs are not wetted by liquids with surface tensions higher than 0.1‒0.2 N/m, which excludes most common metal catalysts ^[14]. The most promising and flexible approach is to deposit metals into the cavities or onto the external walls of CNTs through reactions such as chemical vapor deposition (CVD) or wet chemical processing. The small inner diameter and extremely high aspect ratio of CNTs means these approaches require high temperatures or long reaction time to fill metals into the inner cavities. As a consequence, the filling percentage of the CNTs is often low. Pristine CNT surfaces are rather inert and poorly hydrophilic, so this approach also results in unsatisfactory adhesion, and poor control of the coverage of the metal nanoparticles on the CNT outer walls. Most catalysis application prefers catalyst particles loaded onto the exteriors of CNTs, where they are more accessible to reactant molecules than those on interior surfaces. To obtain specific nucleation of metals on the outer surface with good adhesion and dispersion, CNTs are usually functionalized by chemical treatment with oxidants such as HNO₃, KMnO₄, HNO₃/H₂SO₄ and RuO₄. This generates ‒COOH, ‒OH and other functional groups on the external walls of the CNTs. The conventional wet chemical decoration processes usually involve tedious and time-consuming treatments of the CNTs, which generates significant aqueous waste.

An effective and green approach for uniformly dispersing metal and metal oxides or composites nanoparticles on carbon-based matrices has recently been developed. This approach involves assistance by CO₂-expanded ethanol, and the carbon-based matrix can be used directly without tedious pretreatment. Several metal oxides have been deposited on the outer surfaces of CNTs, such as Co₃O₄/CNT ^[15], Eu₂O₃/CNT ^[16], Al₂O₃/CNT ^[17], Fe₂O₃/CNT ^[18], ZrO₂/CNT ^[19], and La₂O₃/CNT ^[20], in a solution of supercritical CO₂ (scCO₂)-modified ethanol. The coating thickness could be tailored by tuning the ratio of the initial mass of precursors to CNTs. The metal or metal oxides nanocrystals or nanoalloys, and complex metal oxide nanoparticles were dispersed on carbon-based matrices with different dimensions, in scCO₂-expanded ethanol without using precipitants. Matrices have included zero-dimensional (0D) carbon colloids (C@Ni, CoO/C, C@Ni&Co, C@Ni&Pd ^[21], Pd/C ^[22]), one-dimensional (1D) CNTs (Co₃O₄/CNTs ^[23], CoFe₂O₄/CNTs ^[24]), two-dimensional (2D) graphene (NiO@GNS ^[25], Fe₃O₄@GNS ^[26], CoFe₂O₄@GNS ^[27]), and three-dimensional (3D) hierarchical porous carbon (Fe₃O₄/3DHPC ^[28], NiO/3DHPC, Co₃O₄/3DHPC, NiCo₂O₄/3DHPC ^[29]). These nanocomposites have exhibited good performance in catalytic hydrogenation, or good electrochemical performance in LIBs.

scCO₂ deposition is a green and sustainable technique for efficiently synthesizing and processing nanomaterials. scCO₂ is an attractive alternative to organic solvents, because it is nontoxic, nonflammable, inexpensive, naturally abundant and chemically inert. Its physical properties such as density and solvent power can be tuned via the operating temperature and pressure ^[28]. Its low viscosity, near-zero surface tension and high diffusivity are favorable for synthesizing ultrafine uniform nanomaterials, and for enhancing reaction rates ^[30]. scCO₂ deposition also has advantages for processing cellular materials, because it can mitigate mass transfer limitations, facilitate the infiltration of precursors into complex geometries, and maintain a porous nanostructure without collapse. scCO₂ as a reaction medium could also reduce the solvent strength caused by hydroxyl groups originating from ethanol and water, and thus suppress aggregation of the final particles ^[20]. Polar organic solvents are usually used as cosolvents to enhance the solvent strength of scCO₂, resulting in scCO₂-based solutions. For example, metal nitrates (e.g. cobalt, iron, and aluminum nitrates) are insoluble in scCO₂, but are soluble in scCO₂/ethanol under the appropriate conditions. These nitrates can decompose into their respective metal oxides at relatively low temperatures in the presence of scCO₂ ^[31].

In the general procedure, a nitrate ethanol solution containing carbon-based supports is loaded into a high-pressure stainless-steel vessel, as the vessel is preheated to a certain temperature. CO₂ is then introduced until the solution reaches a homogeneous state. The vessel is then heated to the desired temperature (100‒200 °C), which depends on the metal nitrate. This causes the metal nitrate to decompose and deposit onto the carbon matrix. Subsequent calcination yields the final metal oxide-carbon nanocomposite.

The behavior of hydrous inorganic metal nitrates during the deposition of metal composites in scCO₂-expanded ethanol at 50‒200 °C has been investigated ^[31]. This study investigated the phase behavior, deposition mechanism, reaction rate, and effect of the template on deposition. A suitable temperature ensures that reaction of metal precursor occurs in the expanded fluid. A temperature range of 80‒100 °C is suitable for Fe(NO₃)₃·9H₂O to form a stable homogenous scCO₂-expanded ethanol solution of Fe(NO₃)₃·9H₂O. Cobalt, nickel and chromium nitrates are all stable at 150 °C. Their phase behavior demonstrates that hydrous inorganic metal salts have a specific solubility in scCO₂-expanded solution. To form a homogeneous fluid, the concentration of most hydrous metal nitrate salts should be < 0.13 mol/L, depending on the type of metal compound ^[31].

The deposition of hydrous inorganic metal salts in scCO₂-expanded ethanol has been shown in Fig. 1 to proceed through precipitation and decomposition reactions ^[31]. First, the hydrous inorganic metal salt dissociates in ethanol, forming a solution containing M²⁺, NO₃⁻, and H₂O. Introducing CO₂ causes H₂O to react with CO₂, generating CO₃²⁻ and HCO₃⁻. Before deposition, free NO₃⁻ and CO₃²⁻ interact with M²⁺, through electronic interaction in the expanded homogeneous fluid. At reaction temperature, dissociated anions (e.g. NO₃^- and CO₃²⁻) and molecules (H₂O) coordinate directly to the matrix M²⁺ by bridging oxygen groups, forming a solid compound. The high strength of the coordinate bonds results in a stable compound, which precipitates from the fluid. Thus, the metal oxide is formed from the decomposition of the solid compound, rather than the simple decomposition of primary precursors as reported before ^[20]. This coordination-decomposition mechanism suggests that chlorides could also act as precursors, except for some special situations limited to nitrates. This is because CO₃^2‒ resulting from CO₂ coordinates strongly with metal ions, while Cl^‒ coordinates more weakly.

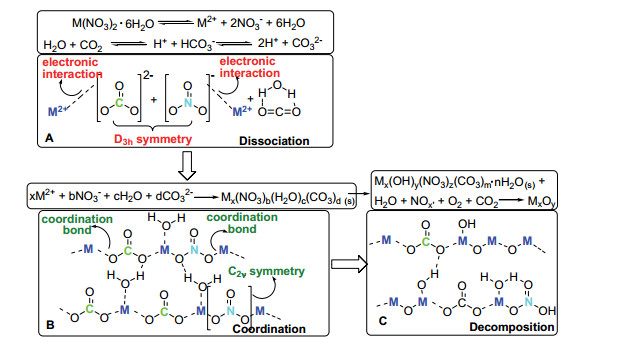

Fig. 1. Proposed deposition mechanism of a hydrous metal salt in scCO2-expanded ethanol. (A) Behavior of dissociated ions and molecules; (B) Coordination of ions and molecules to form a solid compound; (C) Further decomposition of the solid compound [31].

Preparing metal colloid particles with controllable size, shape and composition has received much recent attention, because of their wide application. Supported colloidal metal particles are generally prepared by the adsorption of colloidal nanoparticles, or the grafting of colloids on solid supports by evaporation or electrodeless deposition. These procedures require a complex support modification step, and a surfactant or stabilizer is necessary to stabilize the metal particles. The modifier or stabilizer can hinder the deposition of nanoparticles, and lower their activity because of geometry restrictions. Therefore, surfactants or stabilizers should be removed when preparing supported metal colloid catalysts, but this can then lead to growth of the colloidal particles and/or large amounts of waste. An effective and simple green process is desirable, especially one that does not involve stabilizers.

A simple and green method for removing the stabilizer using scCO₂ has been developed. Monodisperse Pd colloidal nanoparticles protected with polyvinylpyrrolidone (PVP) were uniformly coated on carbon colloidal spheres. PVP was removed using the phase-switch function of scCO₂, without resulting in particle conglomeration. This process is shown in Fig. 2. Pd/C or Pd/SiO₂ prepared in the presence of CO₂ (8.0 MPa) exhibited higher activity in the hydrogenation of maleic anhydride than highly dispersed Pd colloidal particles. The catalyst also exhibited good stability during the reaction, because a PVP monolayer remained on the Pd particle surface. This monolayer suppressed leaching and aggregation of the Pd particles during reaction ^[22].

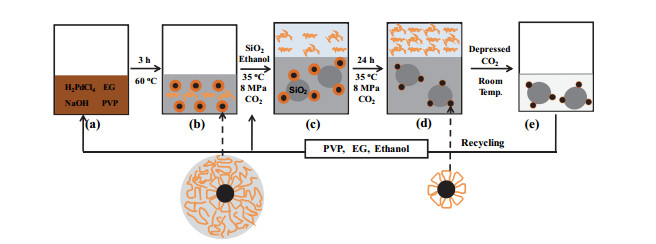

Fig. 2. Process for forming Pd/SiO2 in scCO2-expanded ethanol. Reproduced from Ref. [22] with permission from the Royal Society of Chemistry.

Various core-shell particles containing shells of dispersed metal (oxides) nanocrystals or nanoalloys have been prepared, such as C@Ni, CoO/C, C@Ni&Co and C@Ni&Pd particles, through the in situ reaction of precursors in scCO₂-expanded ethanol without using precipitants ^[21]. This avoided forming free metal or metal oxide and naked cores, and allowed individual particles to disperse without aggregating. The composition, thickness, uniformity, and structure of the metal and metal oxide shell could be controlled. For example, perfect core-shell C@Ni and supported CoO/C particles have been produced. Individual particles were well dispersed over a wide area without aggregation. Each particle contained a uniform coating, as shown in Fig. 3. The dispersed nanocrystals as building blocks of the shell had a narrow size distribution, with a particle size of < 5 nm. Uniform and dispersed SiO₂@NiO and SiO₂@Fe₂O₃ core-shell particles were obtained when silica gel was used as a core particle. The shell could be controlled by varying the precursor concentration. C@Ni exhibited high activity in the hydrogenation of nitrobenzene. It gave a conversion of 95%, which was nearly double that of the Ni/Al₂O₃ catalyst ^[21].

Fig. 3. SEM and TEM images of (a, b) C@Ni and (c, d) supported CoO/C particles. Reproduced from Ref. [21] with permission from the Royal Society of Chemistry.

Similar procedures have yielded core-shell C@Ni&Co and C@Ni&Pd, with tunable molar ratios of metals. The shell composition could be controlled by varying the concentration and type of precursor. scCO₂-expanded ethanol-assisted deposition is a flexible and straightforward method for precisely coating multi-component shells on particles, while maintaining the individual particle dispersion. Carbon-based composites with dispersed metal nanoalloys or metal colloidal particles are likely to have applications in catalysis, magnetism and electronics.

CNTs have received much recent attention because of their mechanical and electronic properties, and widespread potential application. Their small size, high chemical stability and large surface-to-volume ratio make them attractive as supports for metal catalysts and energy storage and conversion materials. Active metal and metal oxide nanoparticles can be impregnated into cavities or attached to the external walls of CNTs. The inertness of CNT walls requires their pretreatment with harsh oxidants to generate functional groups, or their modification with surfactants to allow deposition on their sidewalls. The strategies are effective, but can change the p-electron structure and thus the CNT properties. New approaches have included physical evaporation, electrodeless deposition, electrodeposition, and atomic layer deposition. These methods usually involve complicated process control, multiple step activation procedures, harsh conditions such as high temperatures or arc evaporation, and time-consuming treatment of the CNTs.

Wai’s group ^[14] demonstrated that functionalized multi-walled carbon nanotubes (MWCNTs) could be homogeneously decorated with metal nanoparticles (Pd, Rh and Ru), through the hydrogen reduction of organometallic precursors in scCO₂. The Pd-MWCNT composite exhibited high catalytic activity for the hydrogenation of olefins in CO₂, and high electrocatalytic activity for oxygen reduction in fuel cells. Han′ group ^{[17, 19, 20]} demonstrated that scCO₂-expanded ethanol could disperse hydrous metal nitrates within and on CNTs, forming a uniform oxide coating on the CNTs via the in situ decomposition of precursors. Multi-functional composites including Al₂O₃/CNTs ^[17], CeO₂/CNTs ^[20] and ZrO₂/CNTs ^[19] have been prepared in scCO₂-expanded ethanol.

We recently reported functionalized porous CNTs (p-CNTs) as supports and deposited electroactive metal oxide materials, with the assistance of scCO₂-expanded ethanol. Porous CNTs were readily coated with uniform nanoparticle layers by controlling the reaction parameters. This is not easily achieved in pure ethanol. The resulting Co₃O₄/p-CNT composite exhibited good performance as a LIB anode material. It retained a reversible capacity of 776 mAh/g with a Coulombic efficiency of 99.1% after 100 cycles. It exhibited a rate performance of 600 mAh/g at a current density of 1 A/g ^[23]. Bimetallic composites such as nanosized CoFe₂O₄ were also uniformly coated on the surface of p-CNTs without aggregation. The average diameter of the CoFe₂O₄ particles was 12 nm, as shown in Fig. 4 ^[24]. Nanoparticles tend to agglomerate, because of the driving force to reduce their surface energy, yet agglomeration of CoFe₂O₄ was suppressed in this study. scCO₂-expanded ethanol was an important factor in controlling the morphology of the nanoparticles on the substrate. p-CNTs@CoFe₂O₄ exhibited excellent lithium storage properties in terms of cycling performance (1077 mAh/g after 100 cycles) and rate capability (694 mAh/g at 3 A/g), as shown in Fig. 5 ^[24].

Fig. 4. (a-c) TEM and (d) HRTEM images of the p-CNTs@CoFe2O4 composite [24].

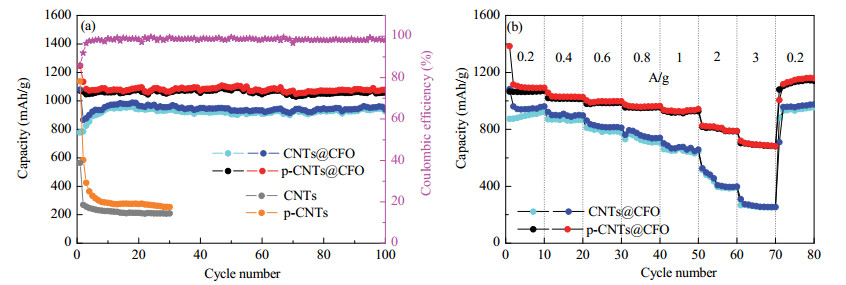

Fig. 5. (a) Cycle stability at 0.1 A/g and Coulombic efficiency of p-CNTs@CoFe2O4, and (b) rate performance [24].

Graphene nanosheets (GNSs) exhibit high electronic conductivity, favorable mechanical properties, and high surface area (theoretical maximum of 2630 m²/g). GNSs are attractive substrates for immobilizing functional materials for energy storage devices ^[32]. This application requires the mass production of graphene or their composites with controlled composition and microstructure. Metal oxide/GNS composites have been synthesized by coprecipitation ^[33], hydrothermal/solvothermal synthesis ^{[34, 35]}, and thermal decomposition ^{[36, 37]}. The resulting composites usually have no specific dimensionality with respect to the metal oxides, or are not well dispersed on the support. This results in their loss from the support, and therefore loss of function. Free particles tend to form in solution during coprecipitation, because of the instant, local, high supersaturation of precipitating agents such as NaOH. Nanosized transition metal oxides such as NiO/GNS ^{[32, 38]}, Co₃O₄/GNS ^{[39, 40]}, Mn₃O₄/GNS ^[41], Fe₃O₄/GNS ^{[26, 42, 43]}, Fe₂O₃/GNS ^[44], and CuO/GNS ^{[45, 46]} have all exhibited lithium storage capability. These nanomaterials agglomerate easily, because of their small size, large surface area, and high surface activity, which are detrimental to lithium storage. Agglomeration leads to an inhomogeneous dispersion of the active nanoparticles, and the electroactive materials cannot fully contact the electrolyte, which decreases the lithium storage performance.

We reported that nanosized Fe₃O₄ particles could be uniformly decorated on graphene surfaces without aggregation in scCO₂-expanded ethanol, as shown in Fig. 6 ^[26]. The formation of dissociative particles in solution could also be avoided. Most Fe₃O₄ particles aggregated into large units in the absence of scCO₂, with few particles loaded onto the graphene oxide. The control experiments indicated the importance of scCO₂ in forming nanocomposites. When used as a LIB anode material, Fe₃O₄/GNSs containing 20% Fe₃O₄ exhibited a charge capacity of 826 mAh/g after the 100^th cycle. At a current density of 5 A/g, the composite delivered a capacity of 460 mAh/g, which was higher than that of a sample synthesized in pure ethanol ^[26].

Fig. 6. SEM images of (a) Fe-salt@GO-CE-20 and (b) Fe3O4@GN-CE-20. (c) TEM image of Fe3O4@GN-CE-20. (d) HRTEM image of Fe3O4@GN-CE-20. Reproduced from Ref. [26] with permission from the Royal Society of Chemistry.

3D hierarchical porous carbons (3DHPCs) with well-defined macropores and interconnected meso- and micro-pores have also attracted much recent attention. Hierarchical porous architectures can exploit the structural advantages of macropores (improved mass transport) and micro-/mesopores (high surface area). Their high surface area, chemical inertness, and thermal stability make such porous carbons attractive as adsorbents ^{[47, 48]}, catalyst supports ^{[49, 50, 51]}, electrodes for batteries ^{[52, 53, 54]}, double-layer capacitors ^{[55, 56]}, and host sites for hydrogen storage ^[57]. Yildirim’s group ^[48] reported a 3DHPC with a surface area of 2734 m²/g and total pore volume of 5.53 cm³/g, by tailored carbonization of a metal-organic framework. The 3DHPC exhibited a CO₂ adsorption capability of > 27 mmol/g at 3 MPa and 27 °C. This is among the highest reported values for porous carbons. Stein and co-workers ^[54] reported uniform coatings of electrochemically active SnO₂ on 3D ordered macroporous (3DOM) carbon, via an aqueous salt-imbibition process. These composites exhibited good electrochemical performance in LIBs. The 3DOM carbon decreased the solid-state diffusion length for Li⁺ by a few tens of nanometers, provided numerous active sites for charge-transfer reactions, and gave reasonable electrical conductivity within the 3DHPC matrix.

scCO₂ can dissolve solutes like a liquid, but exhibits low viscosity, high diffusivity, and zero surface tension like a gas. These properties make scCO₂ an attractive medium for delivering reactants to areas with high aspect ratios, complicated surfaces, and poorly wettable substrates. This enables deposition to be controlled quantitatively and uniformly. The loading amount can be controlled by varying the precursor concentration. We reported a series of carbon-based composites of metal oxides and 3DHPC, including Fe₃O₄/3DHPC, NiO/3DHPC, Co₃O₄/3DHPC, and NiCo₂O₄/3DHPC ^{[28, 29]}. Fe₃O₄/3DHPC contained small uniform Fe₃O₄ nanoparticles distributed on a 3DHPC support. It was prepared by deposition assisted with a scCO₂-expanded ethanol solution, in which the support could be used without pretreatment or surfactants. The loading or thickness of the Fe₃O₄ layer could be controlled by changing the concentration of the ferric nitrate precursor. Fe₃O₄ nanoparticles of 11‒15 nm in diameter were coated on the surface of the interconnected porous 3DHPC network, and no free Fe₃O₄ particles were formed, even at high loading (86%), as shown in Fig. 7 ^[28]. In contrast, the composite of Fe₃O₄ and 3DHPC synthesized by the conventional solvothermal method resulted in many free Fe₃O₄ particles. These composites exhibited good performance as LIB anode materials. Fe₃O₄/3DHPC containing 79% Fe₃O₄ delivered a reversible capacity of 1462 mAh/g after 100 cycles at a current density of 100 mA/g, and maintained a rate performance of 728, 507 and 239 mAh/g at 1, 2, and 5 A/g, respectively. It exhibited excellent long-term cycling performance at current densities of 1 and 2 A/g, as shown in Fig. 8 ^[28]. We a lso prepared composites of metal oxides (NiO, Co₃O₄) and mixed metal oxides (NiCo₂O₄) with 3DHPC. NiCo₂O₄/3DHPC exhibited good electronic conductivity and electrochemical activity with a reversible capacity of 660 mAh/g, and a capacity retention of 92.3% for up to 500 cycles at a current density of 1 A/g. The excellent electrochemical performance was attributed to the uniform dispersion of NiCo₂O₄ nanoparticles on the 3DHPC, as a result of the scCO₂-expanded ethanol medium.

Fig. 7. SEM images of (a) Fe3O4/3DHPC-65, (b) Fe3O4/3DHPC-79, and (c) Fe3O4/3DHPC-86. (d-f) Elemental mapping, TEM, and HRTEM images of Fe3O4/3DHPC-79, respectively [28].

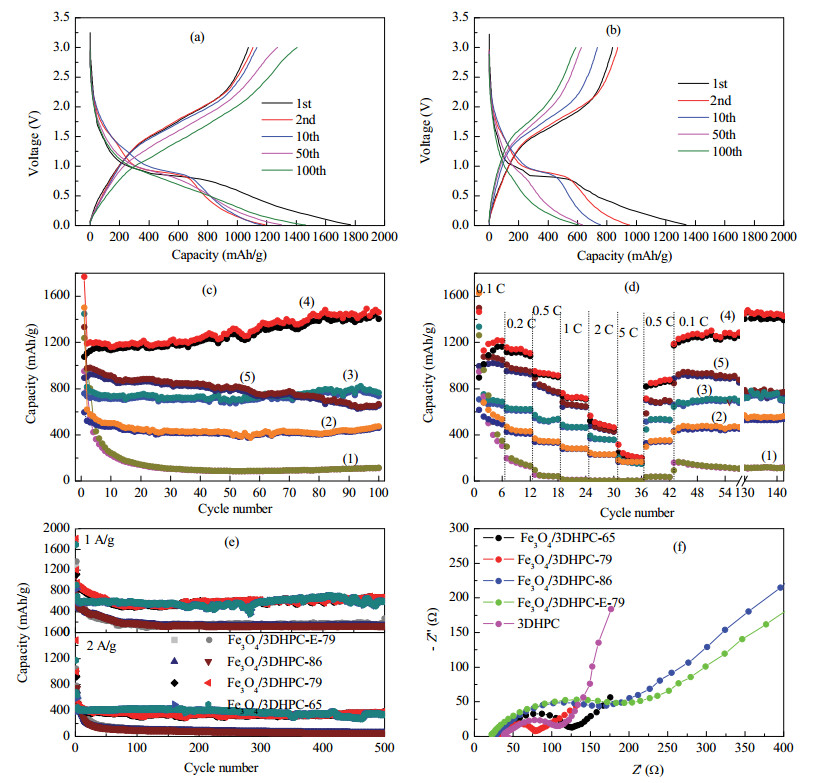

Fig. 8. Charge/discharge voltage profiles of (a) Fe3O4/3DHPC-79 and (b) Fe3O4/3DHPC-E-79 at 100 mA/g. (c) Cycling and (d) rate performances of (1) commercial Fe3O4, (2) bare 3DHPC, (3) Fe3O4/3DHPC-65, (4) Fe3O4/3DHPC-79, and (5) Fe3O4/3DHPC-86. (e) Cycling tests of the Fe3O4/3DHPC electrodes. (f) Nyquist plots of electrodes after 100 cycles at 100 mA/g at 100 kHz‒0.1 Hz [28].

scCO₂-expanded ethanol deposition is an efficient, versatile and green strategy for coating metal and metal oxide on carbon-based supports. It avoids the formation of free metal and metal oxide particles, and gives good individual particle dispersion. The composition, thickness, uniformity, and structure of the noble and non-noble metal and metal oxide shells can be precisely controlled. This strategy allows nanostructured materials to be prepared more easily and precisely than by conventional deposition. The resulting composites exhibit good catalytic activity and electrochemical performance in LIBs. It remains difficult to achieve large-scale production of the composites, because of the limited solubility of metal nitrates in the supercritical fluid and CO₂-expanded ethanol. Reaction vessels required a good seal, as reaction occurs at high pressure and temperature. It remains necessary to explore suitable cosolvents for forming CO₂-expanded media at lower pressure, and to improve the solubility of the metal precursors.
