Catalytic removal of organic pollutants has attracted considerable interest owing to the high toxicity and low detection limits of these compounds. However, highly toxic pollutants that have adverse effects on the environment are regulated by stringent environmental policies ^{[1, 2]}. However, some non-biodegradable substances are still a threat to ecosystems and human health. 1,4-Dioxane is an example of such a pollutant. 1,4-Dioxane is frequently used as an industrial solvent and as a solvent stabilizer ^[3] in many industrial processes, such as of the production of pulp, textiles, and electronics. In addition, it is an undesired byproduct in the production of surfactants and polyethylene terephthalate processes ^[4], and is widely used in consumer products like cosmetics and personal care products ^{[5, 6]}. Its widespread use in many industrial processes and high solubility in water leads to contamination of surface groundwater ^[7]. According to the United States Environmental Protection Agency (US EPA) 2003 report, around 1146641 pounds of dioxane is released into the atmosphere every year, of which 105484 pounds is released into the atmosphere and the rest is released into surface water, land, and off-site. 1,4-Dioxane is suspected to damage the central nervous system and cause liver and kidney failure. Furthermore, it is a potential carcinogen to animals and also a probable carcinogen to human beings ^[8]. 1,4-Dioxane is classified as a Group 2B carcinogen by the International Agency for Research on Cancer and it falls under the regulations of the US EPA, which has set a limit of 30 µg/L for drinking water at a 10⁻⁵ risk level. Therefore, dioxane is a hazardous waste and a priority pollutant for human health and ecosystems.

Conventional water treatment techniques have limited effectiveness for the treatment of dioxane-contaminated water because of its high solubility in water and low vapor pressure. Its high resistance to biotransformation ^{[9, 10]} also limits the effective application of biological processes. However, the use of enriched microbial cultures shows some level of dioxane biodegradation ^[11]. Furthermore, carbon adsorption and air stripping are not cost effective for the removal of dioxane from contaminated water. Therefore, development of new technologies for the treatment of dioxane in industrial wastewater and the atmosphere is required.

Advanced oxidation processes using ozone have been investigated for treating dioxane. Adams and co-workers ^[12] used the O₃/H₂O₂ process to enhance the biodegradability of 1,4-dioxane. Kwon et al. ^[13] developed double and triple systems (O₃, O₃/ultraviolet (UV), and O₃/UV/H₂O₂) for effective treatment of dioxane-contaminated water. Beckett et al. ^[14] reported improved biodegradation of dioxane using ultrasound sonication. More recent studies have focused on photocatalysis using titania nanoparticles for the degradation of dioxane in aqueous media ^{[15, 16, 17, 18, 19]}.

Industrial treatment before dioxane is released into water, land, and the atmosphere is the best way to prevent its hazardous effects. Thermal oxidation, catalytic oxidation, adsorption, and incineration are frequently used to treat volatile organic pollutants in many industrial processes. Among these methods, catalytic oxidation is a promising effluent treatment method to control the emission of toxic/hazardous substances. Many methods have been reported for catalytic oxidation using transition metals and metal oxide catalysts for gas-phase catalytic oxidation of hydrocarbons, methanol, acetone, and chlorobenzene with air as the oxidant ^{[20, 21, 22]}. Recently, supported metal oxide catalysts/nanocatalysts have gained considerable attention because of their better catalytic performance compared with the bulk metal oxide materials owing to their larger surface area, smaller particle size, and densely populated unsaturated surface coordination sites ^{[23, 24]}.

Industrial air emission treatment is the best choice for continuous elimination/reduction of the release of toxic/hazardous matter into the atmosphere. In the present study, we aimed to decompose 1,4-dioxane to carbon oxides using catalytic oxidation with air as the oxidant in a fixed-bed flow reactor to test the continuous removal efficiency. We chose zeolite-13X-supported iron oxide catalysts for dioxane treatment because of their low cost and ready availability. Furthermore, zeolite-13X materials are mesoporous with high specific surface area, and iron is a proven catalyst for many industrial processes, such as catalytic removal of ethyl benzene, cyclohexane, and hexadecane ^{[25, 26, 27, 28, 29, 30, 31]}.

Battin et al. ^[32] also investigated gas-phase oxidation of equimolecular mixtures of 1,4-dioxane and O₂ in a conventional static apparatus in the temperature range 200-400 °C at low pressure (10-300 Torr). They reported formation of CO, CO₂, HCHO, H₂, C₂H₄, and H₂O as the main thermal oxidation products, small amounts of acetaldehyde and acrolein, and trace amounts of CHO-CHO, CH₃O-CH₂-CHO, and CH₃-CH₂O-CH₂-CHOas the gas-phase oxidation products. However, their process was not catalytic and also suffers from many disadvantages, such as poor selectivity and autoinhibition of the reaction at longer residence times.

In the present study, we investigated the influence of various process parameters on the catalytic removal of dioxane using air as an oxidant, such as reaction temperature, metal loading, and gas hourly space velocity (GHSV). We focused on the long-term stability and effectiveness of the catalytic process for complete oxidation of dioxane, and propose a probable degradation pathway for the products identified by gas chromatography-mass spectroscopy (GC-MS) analysis.

Fe(NO₃)₃⋅9H₂O (purity 99%) and 1,4-dioxane (purity 99%) were purchased from Sigma-Aldrich India Pvt. Ltd. Zeolite 13X was purchased from Sorbead India Ltd. Nitrogen (purity 99.99%) and air (purity 99.99%, ~22% O₂ by volume) gas cylinders were supplied by Baruka Gases India Ltd. Mass flow controllers (MFCs, precision ±1%) were procured from Sierra, Switzerland. CO (range 1-2000 ppm, ±1 ppm) and CO₂ (range 10-20000 ppm, ±10 ppm) analyzers (Technovation Analytical Instruments Ltd. India) were used to measure the concentrations of carbon oxides. The temperature controller was purchased from West Control Solutions (West 6400, UK) and the infusion pump was purchased from KD Scientific 2000 India Ltd..

Zeolite-13X-supported iron (Fe/13X) catalysts of different compositions were prepared by the wet impregnation method. Impregnation was achieved by soaking the crushed zeolite-13X (sieved to BSS 18/25 mesh) support in 60 mL of an aqueous solution containing the requisite amount of Fe(NO₃)₃⋅9H₂O for 3 h and subsequent water evaporation in a microwave oven. The catalyst material was then dried in a vacuum oven at 120 °C for 10 h. The resulting catalyst was activated by calcination in air for 4 h at 400 °C. Fe/13X catalysts with 2, 4, 6, and 8 wt% Fe were prepared and activated.

N₂ adsorption-desorption isotherms of Fe/13X calcined catalysts were obtained using a Micromeritics ASAP-2010 unit at liquid nitrogen temperature (−196 °C). Prior to the analysis, all of the catalysts were degassed for 60 min at 120 °C. Brunauer-Emmett-Teller (BET) and Barrett-Joyner-Halenda (BJH) methods were used to estimate the specific surface areas and pore size distributions of the catalysts, respectively. X-ray diffraction (XRD) patterns of all of the catalysts were recorded on a Rigaku Miniflex diffractometer (Rigaku Corporation, Japan) using a Ni-filtered Cu K_α radiation (λ = 1.5406 Å) source. The scans were performed over the 2θ range 10°-80° with a scan speed of 2°/min at 30 kV and 50 mA. Temperature- programmed reduction (TPR) and temperature-programmed desorption (TPD) experiments were performed on a TPR/TPD Nuchrom Unit with a thermal conductivity detector. TPR studies were performed by loading 100 mg of the catalyst sample in a quartz reactor with 5% H₂-Ar mixture (50 mL/min) in the temperature range 40-750 °C with 10 °C/min heating rate. For the NH₃-TPD experiments, the catalyst samples were preheated for 1 h at 300 °C and then NH₃ gas was dosed by pulsing onto the catalyst at 100 °C until saturation. The samples were then allowed to cool at 40 °C until base line stabilization. After base line restoration, the samples were heated from 40-750 °C with a heating rate of 10 °C/min in He (50 mL/min). The surface morphologies of the catalysts were determined by scanning electron microscopy (SEM, JOEL, JAX-840) at 20 kV by gold sputtering on the samples.

Gas-phase catalytic oxidation of 1,4-dioxane was carried out at atmospheric pressure using a fixed-bed continuous flow reactor (20 mm inner diameter, 120 mm length) interfaced with an online gas chromatograph with flame-ionization and photoionization detectors (GC/FID/PID, Nucon Engineers Private Ltd., India). A schematic representation of the experimental setup is shown in Fig. 1.

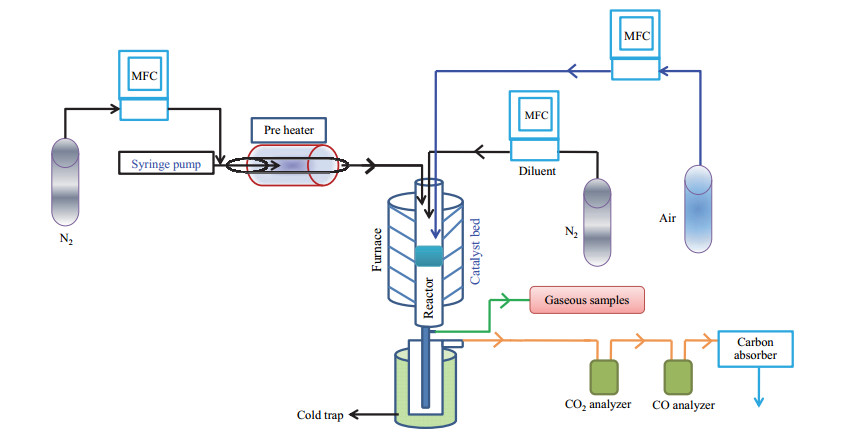

Fig. 1. Schematic diagram of the typical experimental set-up used for the complete oxidation of dioxane over Fe/13X catalysts.

1,4-Dioxane, nitrogen, and air were used in this study. The gas flow rates were maintained by MFCs. A precise infusion pump was used to control the dioxane flow rate (0.01 mL/min) into the preheating chamber. For the reaction studies, Fe/13X catalyst (2.5 g) diluted with glass beads was packed into a glass reactor with glass wool and mounted vertically in an electrically heated tubular furnace with profile controller. Another thermocouple was placed inside the reactor in contact with the catalyst bed to measure the temperature of the catalyst bed. Prior to the experiment, the catalyst was calcined at 400 °C in air for 1 h. Nitrogen-saturated dioxane (1300 ppm) vapor was passed through the reactor. The reaction was studied in the temperature range 100-400 °C with GHSVs from 24000 to 54000 h⁻¹. Analysis of the gaseous mixture exiting the catalyst bed was carried out using a GC/FID/PID equipped with a BP-10 capillary column (30 m × 0.25 mm) for partial oxidation products (POPs) and reactants. The CO and CO₂ concentrations were analyzed using calibrated CO (SR 94 electrochemical based detectors) and CO₂ (IR based detectors, P90, Technovation Analytical Instruments Ltd., India) analyzers, respectively. The product mixture of the condensable phase was trapped in acetonitrile solvent at −5 °C and analyzed by a GC equipped with a FID detector. Qualitative analysis was carried out by a GC-MS (Agilent 6890N) equipped with mass-selective detector using a HP-5 (30 m × 0.25 mm) column.

Catalytic oxidation of dioxane by air produces CO and CO₂ as the major products (complete oxidation products of dioxane) and trace amounts (< 3%) of acetaldehyde, ethylene glycol monoformate (EGMF), ethylene glycol diformate (EGDF), 1,4-dioxane-2-ol, 1,4-dioxane-2-one, 2-methoxy-1,3-dioxalane as POPs. Conversion is defined as the number of moles of product formed per mole of reactant per gram of catalyst. The catalytic activity results are expressed in term of dioxane conversion, and the calculation is based on the disappearance of dioxane from the flow. The outlet and inlet concentrations of dioxane are determined using the online GC/FID area. The percentage conversion of dioxane, selective oxidation to CO_x (CO_x selectivity) and POPs (POPs selectivity), and percentage CO_x yield (CO_x yield) are calculated as follows:

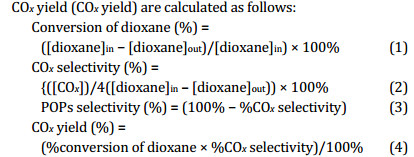

The selectivity of each POP is the ratio of the molar concentration of the POP to the total concentration of all products formed. The yield of each POP is calculated from the molar selectivity of the POP and the molar conversion of dioxane. The combined selectivity for CO and CO₂ is 100% − %POPs selectivity.

The BET surface area, Langmuir surface area, pore volume, and average pore diameter were calculated from N₂ adsorption-desorption isotherms measurements, and the results are shown in Table 1.

Table 1 Physicochemical properties of the Fe/13X catalysts. Catalyst Fe content (wt%) BET surface area (m2/g) Langmuir surface area (m2/g) Pore diameter (Å) Pore volume (cm3/g) TPR (°C) H2 uptake (mL/g) NH3-TPD total Acidity (mmol/g) T1max T2max Zeolite-13X 0 746 762 23 0.437 — — — 4.78 2 wt% Fe/13X 2 633 655 25 0.396 506 626 2.85 10.53 4 wt% Fe/13X 4 450 466 26 0.299 543 650 6.34 13.39 6 wt% Fe/13X 6 350 365 28 0.250 553 653 9.16 15.31 8 wt% Fe/13X 8 166 173 39 0.165 564 656 7.28 12.94

Table 1 Physicochemical properties of the Fe/13X catalysts.

The total surface area was calculated according to the BET and Langmuir methods ^[34]. All of the catalysts (2, 4, 6, and 8 wt% Fe/13X) exhibited type IV adsorption isotherms typical of mesoporous materials with H3 type hysteresis. The isotherms also indicated the presence of slit-type pores formed because of aggregation of iron oxide species. The surface areas of the Fe/13X catalysts are in the range 166 to 633 m²/g, and decrease with increasing Fe content. The decrease in the surface area is more pronounced between 6 and 8 wt% Fe. The pore size distributions of all of the Fe/13X catalysts are shown in Fig. 2. From the data, the pore size distributions have a narrow range and most of the pores are in mesoporous range (20-40 Å), which is ascribed to the zeolite-13X support. However, the mesoporous volume is higher at lower Fe loadings and it tends to decrease with increasing metal loading, as shown in Table 1. This can be attributed to iron oxide particles filling the macropores of zeolite 13X, and thus the number of mesopore is higher at lower metal content. The mesoporous volume is lower at higher Fe loading because of the formation of larger iron oxide species. As a result, there is a considerable decrease in the pore volume and surface area as well as an increase in pore size. From the N₂ adsorption-desorption studies, we conclude that the decreases of the surface area and pore volume of the catalysts with increasing Fe loading are because of impregnation of low surface area iron oxide in the porous zeolite-13X support ^[35].

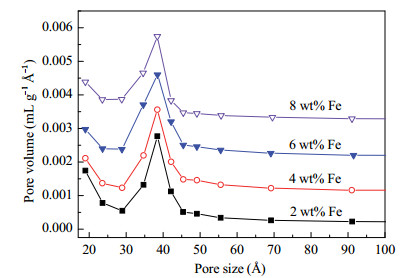

Fig. 2. Pore size distributions of Fe/13X catalysts with different Fe loadings.

XRD patterns of zeolite 13X along with the 2, 4, 6, and 8 wt% Fe/13X calcined catalysts are shown in Fig. 3. The diffraction signals at 2θ = 15.4°, 20.1°, 23.3°, 26.7°, and 31° corresponding to the (331), (440), (533), (642), and (662) planes and their d values of 5.742, 4.424, 3.817, 3.345, and 2.871, respectively, are only those of zeolite 13X ^[33]. No separate diffraction signals are observed for the iron oxide (Fe_xO_y) species, which indicates the high dispersion of Fe on the zeolite-13X support or the formation of an Fe_xO_y-zeolite-13X solid solution. However, the presence of iron oxide crystallites less than 5 nm in size cannot be ruled out, because this is below the detection limits of the powder XRD technique. The decrease in the intensity of all of the signals with increasing metal loading is attributed to iron absorption into the framework of the zeolite-13X support.

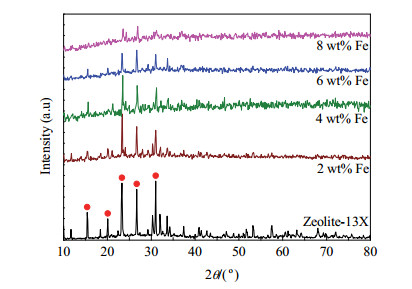

Fig. 3. XRD patterns of Fe/13X catalysts with different Fe loadings calcined at 400 °C.

SEM images of 2, 4, 6, and 8 wt% Fe/13X calcined catalysts are shown in Fig. 4. The images were taken at 5000 to 25000× magnification. From the SEM images, the iron distribution is uniform at lower loadings, that is, for 2 and 4 wt% iron loading, the distribution is uniform on the zeolite-13X support. Above 6 wt% loading, the iron distribution is not uniform and the pore morphology is also slightly rough. Furthermore, for the 8 wt% iron catalyst, particle aggregate to form compact irregular shapes and clusters on the surface of the zeolite-13X support. The SEM images are in agreement with the textural and physicochemical properties.

Fig. 4. SEM images of 2 (a, b), 4 (c, d), 6 (e, f), and 8 (g, h) wt% Fe/13X catalysts at different magnifications.

TPR experiments were performed on the calcined catalysts to determine the oxidation states of iron deposited on the zeolite-13X support and to relate these oxidation states to the activity of the catalysts. H₂-TPR profiles of 2, 4, 6, and 8 wt% Fe loaded on zeolite-13X supports are shown in Fig. 5. The reducibility of iron oxide catalysts depends on the morphological properties of the support material, because the support material determines the reactivity of the bridging Fe-O-support functionalities ^[36]. As well as the morphological properties of the support, impurity levels, preparation procedures, and the reduction conditions, such H₂ partial pressure and heating rate, also determine the reducibility of iron oxide catalysts. Therefore, the reduction temperatures obtained may be different from other reported values ^[37]. All of the iron oxide catalysts show multistep reduction patterns (Fig. 5) in the temperature range 300-750 °C, which indicates that the reduction of the iron oxide phase of these catalysts is similar to that of bulk iron oxide particles with weak interactions with the zeolite support.

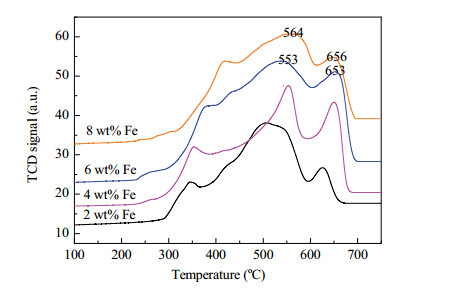

Fig. 5. H2-TPR profiles of the Fe/13X catalysts with different Fe loadings.

The broad peak (T_1max) between 300 and 600 °C (corresponding to consumption of hydrogen) is attributed to the reduction of Fe₂O₃ to Fe₃O₄. The broadening of the peak indicates that iron on the zeolite-13X support is present as highly dispersed clusters or isolated iron ions that can strongly interact with the support. In addition to broadening, a shoulder peak is present on the low temperature side of the first peak. This can be attributed to reduction of hydroxylated iron oxide species ^{[38, 39]}. The high temperature peak (T_2max) between 570 and 710 °C corresponds to the subsequent reduction of Fe₃O₄ to metallic Fe. With increasing Fe loading, the reduction peak area increases, indicating an increase of the active phase. The T_1max and T_2max values of these peaks shift to higher temperature with increasing Fe loading from 2 to 8 wt% (506 to 564 °C and 626 to 656 °C, respectively) and the intensity of the peak also proportionally increases with increasing Fe loading up to 6 wt%. The intensity of the peak slightly decreases from 6 to 8 wt% loading (decrease in hydrogen uptake, as shown in Table 1). This is attributed to the formation of large iron oxide species, which is verified by SEM, surface area, and pore size distribution analysis. The shifts of T_1max and T_2max are because of the weak interactions between iron oxide particles and the zeolite-13X support, absorption of iron oxide particles into the framework of the zeolite support, and the wide range of particle sizes of the iron oxide species. From the H₂-TPR studies, we determined the presence of Fe₂O₃ and hydroxylated iron oxide species, and also their interactions with the zeolite-13X support.

The performance of the catalyst depends on the quantity and strength of acidic sites on its surface. To determine the strengths of the acidic sites of the catalysts, NH₃-TPD experiments were performed for the zeolite-13X support and all of the Fe/13X catalysts in the temperature range 40-750 °C, and the results are shown in Fig. 6. The total acidities of the support and the catalysts are given in Table 1. For the zeolite-13X support, there is only one broad peak in the NH₃-TPD pattern in the region 250-730 °C, whereas two broad peaks are present in the all Fe/13X catalysts: one peak in the temperature range 180-450 °C and the other at 450-730 °C. The former represents NH₃ desorption from strong acid sites. It appears that these acidic sites are responsible for the activity of the catalyst in the temperature range 250-400 °C ^[40]. However, the zeolite-13X support contains very few relatively strong acid sites, which could contribute to the catalytic activity in this temperature range. The broad peak in the high temperature range 450-730 °C represents NH₃ desorption from very strong acid sites on the surface of the catalysts. However, these acidic sites may not contribute to the catalytic activity under the reaction temperatures investigated. The results shown in Table 1 reveal that with increasing metal loading, the total acidity increased for 2-6 wt% Fe/13X catalysts. In contrast, the total acidity for the 8 wt% Fe/13X catalyst decreased.

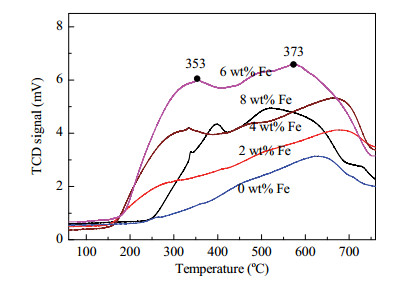

Fig. 6. NH3-TPD profiles of the Fe/13X catalysts with different Fe loadings.

The lower total acidity for the 8 wt% Fe/13X catalyst is attributed to aggregation of iron oxide species in the framework of the zeolite-13X support because of sintering at high metal loading. From the NH₃-TPD studies, it is concluded that iron oxide catalysts contain a wide range of strong acid sites, which are responsible for the high activity of the Fe/zeolite-13X catalysts ^{[41, 42]} under the operating reaction conditions. The NH₃-TPD results are in good agreement with the activity studies of the iron oxide catalysts. Furthermore, they supports the better performance of the 6 wt% Fe/13X catalyst than the other Fe/13X catalysts for the complete oxidation of dioxane because of the enhanced redox ability.

The effect of the reaction temperature on the catalytic oxidation of dioxane by air was investigated in the temperature range 100-400 °C, and the results are shown in Fig. 7. The data indicates that dioxane is thermally stable and no product formation occurs when heating dioxane to 400 °C in the absence of the catalyst. In the presence of only the zeolite-13X support, the catalytic activity is minimal up to 250 °C. From 250-300 °C, zeolite-13X exhibits slight activity for dioxane conversion. Above 300 °C, the catalytic activity increases with reaction temperature and reaches about 37% conversion at 400 °C. With the Fe/13X catalysts, dioxane conversion slowly increases up to 250 °C. With further increasing reaction temperature, dioxane conversion sharply increases and maximum conversion is achieved at 400 °C. This tendency is expected because turnover frequencies increase with increasing reaction temperature. The influence of metal loading on dioxane conversion is also shown in Fig. 7. With increasing metal loading from 2 to 6 wt%, the percentage conversion of dioxane increases in the temperature range 200-400 °C, and almost 97% dioxane conversion is achieved with 6% Fe catalyst at 400 °C. This is attributed to the increase of active metal oxide species and the high surface area of the zeolite-13X support. In contrast, the dioxane conversion values with the 8 wt% iron oxide catalyst are lower than those of the 6 wt% Fe catalyst at all temperatures. It appears that above 6% Fe loading, agglomeration of the catalyst occurs and large iron oxide species form, thereby decreasing the surface area and catalytic activity. The activity results agree well with the characterization data for all of the Fe/13X catalysts, as discussed in Section 3.1. The reduced performance of the 8 wt% Fe/13X catalyst is also in agreement with the textural and physicochemical characterization data, which shows considerable decrease in the surface area because of aggregation of iron oxide species at high Fe loading. From the structure activity results, it is concluded that 6 wt% Fe is optimum for conversion of dioxane, and this loading was used for further experiments.

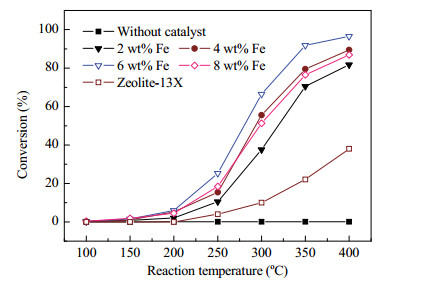

Fig. 7. Effect of reaction temperature and metal loading on steady-state oxidation of dioxane at GHSV of 24000 h−1 and O2:dioxane molar ratio of 8.

Because the aim of this study is to completely oxidize 1,4-dioxane and prevent the formation of POPs, the activity of the catalysts is described in terms of the selective formation of CO and CO₂. However, in the present study, the concentrations of all of the POPs (i.e., acetaldehyde, EGMF, EGDF, 1,4-dioxane-2-ol, 1,4-dioxane-2-one, 2-methoxy-1,3-dioxalane) are < 3% according to the GC area. The effect of reaction temperature on dioxane conversion and its product distribution over the 6 wt% Fe/13X catalyst is shown in Fig. 8. The results reveal that with increasing reaction temperature from 200-350 °C, the selectivity for the formation of CO₂ gradually increases from 28% to 70% and CO selectivity also increases from 8% to 12%. Above 350 °C, selectivity for CO₂ formation sharply increases and reaches ~82% at 400 °C, whereas the selectivity for CO formation slightly decreases to 10% at the same temperature. Similarly, the molar yields of both CO and CO₂ rapidly increase up to 350 °C and reach 68% and 12%, respectively. The corresponding molar yields of CO₂ and CO at 400 °C are 80% and 8%, as shown in the Fig. 8. This tendency is attributed to the complete oxidation of the POPs formed on the surface of the Fe/13X catalysts above 350 °C. Therefore, at higher temperatures, CO₂ formation is predominant over CO formation, although both CO and CO₂ formed at all of reaction temperatures studied.

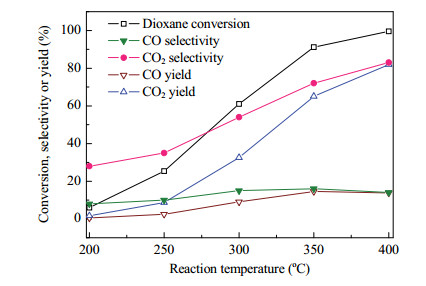

Fig. 8. Effect of reaction temperature on steady-state oxidation of dioxane and product selectivity over the 6 wt% Fe/13X catalyst at GHSV of 24000 h−1 and O2:dioxane molar ratio of 8.

The effect of the GHSV on dioxane conversion and the yields of the complete oxidation products over the 6 wt% Fe/13X catalyst was investigated at different reaction temperatures, and the results are shown in Fig. 9. With increasing GHSV from 24000 to 54000 h⁻¹, the percentage conversion of dioxane gradually decreases from 97% to 82% at 400 °C. At 350 and 300 °C, dioxane conversion decreases from 89% to 75% and 60% to 36% with increasing GHSV from 24000 to 54000 h⁻¹, respectively. This tendency is attributed to the decrease of the contact time between the reactant and the catalyst with increasing GHSV. The yields of the complete oxidation products also proportionally decrease with the conversion values at 400 and 350 °C. In contrast, the yields of the complete oxidation products at 300 °C sharply decrease from 57% to 15%. It is interesting that the influence of GHSV is more significant at lower reaction temperature (300 °C) than at higher reaction temperatures (350 and 400 °C). It appears that at higher reaction temperatures (350 and 400 °C), the POPs initially formed in the catalytic reaction are involved in further oxidation to produce the complete oxidation products, that is, thermal effects are more pronounced at higher reaction temperatures. At lower reaction temperature (300 °C), the surface oxidation potential of the catalyst may not be sufficient to convert the POPs to the complete oxidation products, that is, thermal effects are less significant at lower reaction temperatures.

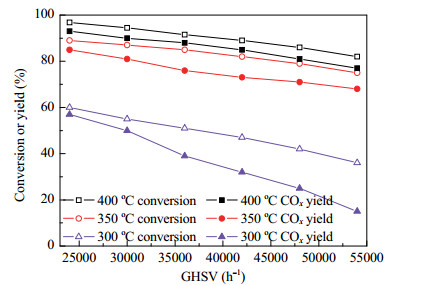

Fig. 9. Effect of GHSV on steady-state oxidation of dioxane and yield of complete oxidation products over the 6 wt% Fe/13X catalyst at various temperatures and an O2:dioxane molar ratio of 8.

Time-on-stream analysis of dioxane oxidation over the 6 wt% Fe/13X catalyst was carried out at 400 °C for 50 h, and the yields of the oxidation products as a function of time are shown in Fig. 10. Here, it is noteworthy that the catalyst exhibits constant activity for complete oxidation of dioxane (97% conversion) to CO and CO₂ for 5 h and the yields of carbon oxides are about 92%. However, the percentage conversion of dioxane gradually decreases to 80% after 50 h continuous operation at 400 °C. The yields of CO_x proportionally decrease to 65%. The decrease in the percentage conversion and CO_x yields is attributed to the formation of coke on the catalyst surface at higher reaction temperatures, thereby blocking of some of the active sites that are responsible for the catalytic activity. From these results, it is concluded that the iron oxide catalyst supported on zeolite 13X is sufficiently stable even after continuous usage for 50 h.

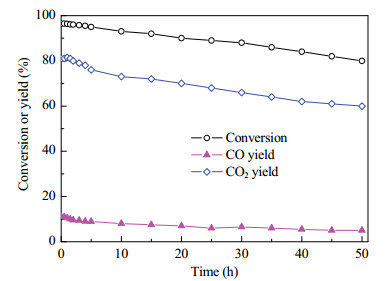

Fig. 10. Time-on-stream analysis over the 6 wt% Fe/13X catalyst at 400 °C with GHSV of 24000 h−1, dioxane concentration of 1300 ppm, catalyst weight of 2.5 g, and O2:dioxane molar ratio of 8.

Compared with other catalysts used for the oxidation of dioxane ^{[32, 47, 49]}, complete oxidation of dioxane over the Fe/13X catalyst is more efficient in terms of activity, stability of the catalyst, and selectivity for the formation of the complete oxidation products.

To ascertain the reaction products and track the degradation pathways of dioxane, GC-MS analyses were performed for both the condensable and noncondensable phases of the product mixture. The products identified by GC-MS analyses in both the condensable and noncondensable phase are carbon oxides, EGMF, EGDF, 1,4-dioxane-2-ol, 1,4-dioxane-2-one, and 2-methoxy-1,3-dioxalane. Formation of formic acid, acetic acid, formaldehyde, acetaldehyde, glycolic acid, and methoxyacetic acid has also been reported in photocatalytic degradation of dioxane in industrial wastewater ^{[43, 44]}. However, these compounds are not stable under certain reaction conditions, and these intermediates were not detected in the present study because of the high oxygen concentration and high oxidizing power of the Fe catalyst.

A plausible reaction mechanism for the degradation of dioxane over the Fe/13X catalyst based on the products identified by GC-MS analyses is shown in Scheme 1. Molecular oxygen may be involved in auto-oxidation processes in which the radical intermediates formed in volatile organic compound oxidation are oxidized by O₂ ^[45]. However, chain propagation may not occur when the concentrations of organic compounds are low. Initial adsorption of dioxane on the Fe/13X catalyst occurs, where interaction with the hydroxyl groups on the surface of the catalyst results in formation of the 1,4-dioxane-α-oxyl radical. Several studies of dioxane degradation in aqueous media have shown the formation of this radical on the surface of the catalyst material ^{[46, 47]}. The 1,4-dioxane-α-oxyl radical reacts with surface hydroxyl groups through path 1 to form 1,4- dioxane-2-ol, which is oxidized by O₂ to give 1,4-dioxane-2-one. Intramolecular rearrangement of 1,4-dioxane-2-one gives 2-methoxy-1,3-dioxalane. Quantitative analysis of these products by GC-MS reveals that only trace amounts of the products are formed by this route. Hence, it is not an effective pathway for oxidation of dioxane.

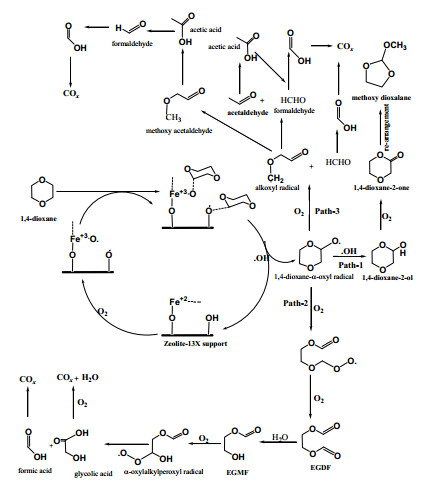

Scheme 1. Plausible degradation pathway for dioxane on the Fe/13X catalyst.

Oxidative degradation of the 1,4-dioxane-α-oxyl radical through ΔC-C scission at the α-C position by path 2 leads to the formation of EGDF. Hydrolysis of EGDF gives EGMF, which yields glycolic acid and formic acid by extended oxidative degradation. Several previous studies support the hydrolysis of EGDF and EGMF in the photocatalytic process ^{[47, 48, 49]}.

Path 3 proceeds through abstraction of the H atom from the α¹-C position followed by C-C scission to give formaldehyde and the alkoxyl radical. Formaldehyde is readily oxidized to formic acid and then to carbon oxides. The alkoxyl radical either produces methoxyacetaldehyde by reduction or acetaldehyde by β-cleavage ^{[46, 47, 50]}. It is important to note that Path 2 is the predominant path for degradation of dioxane to carbon oxides through EGDF and EGMF. A recent Fourier transform infrared spectroscopy study of oxidation of dioxane with ozone under acidic conditions also supports this argument ^{[46, 49]}. The small acids formed in Paths 2 and 3 are finally oxidized to carbon oxides, which achieves the complete oxidation of dioxane in a continuous flow reactor.

Among all of the Fe/13X catalysts, the 6 wt% Fe/13X catalyst exhibited the best catalytic performance of 97% dioxane conversion and 95% selectivity for CO and CO₂ formation at 400 °C with a GHSV of 24000 h⁻¹ and an O₂:dioxane molar ratio of 8. This catalyst also exhibited the highest stability over the temperature range 200-400 °C even after continuous use for more than 50 h. The TPR, NH₃-TPD, surface area, and SEM results reveal that upon increasing the Fe loading, the redox active site density increases with increasing Fe loading up to 6 wt%, which favors the complete oxidation of dioxane to carbon oxides. Above 6 wt% Fe, aggregation of iron oxide species occurs on the surface of the zeolite-13X support, thereby decreasing the activity of the catalyst. The process parameters, such as reaction temperature, metal loading, and GHSV, were optimized for complete oxidation of dioxane. This study demonstrates that 6 wt% Fe/13X is a promising catalyst for complete degradation of dioxane to carbon oxides.

The authors are grateful to Director DRDE for his keen in- terest and encouragement to carry out this study.
