Homogeneous gold catalysts continue to attract increasing levels of interest in organic chemistry because of the efficiency, mild nature and unique properties [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15]. Our collective understanding of gold catalysis has been facilitated by the theories of frontier molecular orbitals [16], relativistic effects [17, 18] and π-acidity [19]. The unusual reactivity of gold catalysts, namely the activation of C-C triple bonds, has led to the development of a wide range of powerful methods for the efficient construction of diverse structural frameworks and molecular architectures [20, 21]. The strong σ-donor and weak π-acceptor properties of alkynes render gold-complexed alkynes electrophilic and therefore opens the door for the discovery of new reactions [22, 23]. In contrast to the vast majority of transition metal-catalyzed processes, the high oxidation potential of Au(I) to Au(III) allows most Au(I)-catalyzed reactions to proceed without the requirement for an inert atmosphere. We have initiated a program to exploit the unique reactivity of alkyne precursors towards gold catalysis for the synthesis of carbo- and heterocyclic compounds [24, 25, 26, 27, 28, 29, 30]. Furans fused to cycloalkyl ring systems (e.g., cyclopentyl, cyclohexyl, cycloheptyl and cyclooctyl rings) have found numerous applications in a variety of different areas ranging from natural products to medicinal chemistry [31, 32, 33, 34, 35, 36, 37, 38]. Consequently, contemporary synthetic chemistry has witnessed the development of a plethora of highly efficient synthetic strategies for the construction of these sub-structures [39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56]. However, despite significant advances in this area, there are still some challenging substrates for this reaction, including cyclooctyl derivatives. As part of our ongoing interest in the development of transition-metal catalysts for the synthesis of carbo- and heterocyclic systems [24, 25, 26, 27, 28, 29, 30, 57, 58, 59, 60, 61, 62, 63], we recently reported the gold- catalyzed preparation of fused-furans containing five, six and seven member rings [24]. In a continuation of this work, it was envisaged that furans fused to an eight member ring could also be prepared in a similar manner. During our study towards the preparation of the requisite synthons, we found that the exposure of 2-bromocyclooct-2-enol to terminal acetylenes under Sonogashira conditions led to a sequential cross-coupling/ cycloisomerization process, which resulted in the formation of the fused furans. In other words, this process provided direct access to the desired cyclooctyl furans through a "gold-free" protocol. In this paper, we provide a detailed account of our work, including the synthetic elaboration of commercially available starting materials to give complex cyclooctyl furans, as well as the exploitation of tandem processes and the synthetic potential of these fused furan systems.
All of the commercially available solvents and reagents were used as supplied without further purification. Solutions in organic solvents were dried over anhydrous Na2SO4. Solvents were evaporated under reduced pressure. Melting points (MP) were obtained using open capillaries and have been reported as the uncorrected values. Infrared (IR) spectra were recorded on a Perkin-Elmer FTIR spectrophotometer (Hopkinton, MA, USA). The IR spectra were recorded as KBr pellets for solid compounds and neat sample for liquid compounds. 1H and 13C NMR spectra were recorded on a JEOL spectrometer (Peabody, MA, USA) at 500 and 125 MHz, respectively. The samples for NMR spectroscopy were prepared in DMSO-d6 and CDCl3. The chemical shifts (d) for the 1H NMR spectra have been reported relative to tetramethylsilane (TMS, d = 0.00), which was used as an internal reference standard, and expressed in parts per million (ppm). The number of protons (n) for a given resonance has been indicated as nH and the spin multiplicities have been given as follows: s (singlet), d (doublet), t (triplet), dd (doublet of doublets), dt (doublet of triplets), ddd (doublet of doublet of doublets) and m (multiplet). The coupling constants (J) have been given in hertz. GC-MS spectra were recorded on a Perkin-Elmer system. Elemental analyses were recorded on a Thermo Finnigan FLASH EA 1112CHN analyzer (Niulab Equipments, Mumbai, India). All of the compounds analyzed in the current study gave C, H and N results that were within ±0.5% of the theoretical values. Purifications by column chromatography were conducted over silica gel (100-200 mesh, SRL, Mumbai, India) using a mixture of petroleum ether and ethyl acetate (EtOAc) as the eluent. Analytical thin-layer chromatography (TLC) was performed on pre-coated plastic sheets of silica gel G/UV-254 of 0.2 mm in thickness (Macherey-Nagel, Düren, Germany) using analytical grade solvents. The TLC plates were visualized with iodine spray (10% w/w I2 in silica gel), UV light (λ = 254 and 365 nm) and alkaline KMnO4 solution.
Dry triethylamine (5 mL) was added to a mixture of iodo compound 3 (1.0 mmol), Pd(PPh3)2Cl2 (5 mol%) and CuI (5 mol%) in an oven-dried flask under N2, and the resulting suspension was magnetically stirred for 5 min. Terminal alkyne 4 (1.2 mmol) was then added to the reaction in a drop-wise manner, and the resulting mixture was stirred at room temperature until TLC analysis showed the disappearance of the 2-iodo-cycloalk-2-enol starting material (~6 h). The reaction mixture was diluted with water (50 mL) and extracted with ethyl acetate (4 × 15 mL). The combined organic extracts were dried over anhydrous Na2SO4 and the solvent was removed under reduced pressure to give the crude product as a residue. The residue was subsequently purified by column chromatography over silica gel eluting with a 9:1 (v/v) mixture of EtOAc and petroleum ether to afford the pure product ( 5a-5l ).
2-(Phenylethynyl)-cyclohept-2-enol ( 5a ). Brown oil; IR (CH2Cl2): 3395, 2923, 2354, 1595, 1438, 752 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.67-1.71 (m, 4H), 1.93-1.97 (m, 2H), 2.13-2.20 (m, 1H), 2.30-2.40 (m, 2H), 6.43 (t, 1H, J = 6.8 Hz), 7.29-7.30 (m, 4H), 7.42-7.44 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 25.7, 27.2, 28.6, 35.1, 71.3, 87.6, 91.2, 123.1, 128.3, 128.4, 131.2, 131.5, 138.9. GC-MS: m/z = 212. Anal. Calcd. for C15H16O: C, 84.87%; H, 7.60%. Found: C, 84.80%; H, 7.64%.
2-(4-Pentylphenylethynyl)-cyclohept-2-enol ( 5b ). Brown oil; IR (CH2Cl2): 3435, 2927, 1679, 1595, 1438, 838 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.87 (t, 3H, J = 6.9 Hz), 1.28-1.32 (m, 5H), 1.51-1.68 (m, 5H), 1.93-1.95 (m, 2H), 2.15-2.18 (m, 2H), 2.25-2.30 (m, 1H), 2.58 (t, 2H, J = 8.4 Hz), 4.43 (brs, 1H), 6.40 (t, 1H, J = 6.1 Hz), 7.10 (d, 2H, J = 7.6 Hz), 7.34 (d, 2H, J = 8.4 Hz). 13C NMR (125 MHz, CDCl3): δC 14.1, 22.6, 26.0, 27.3, 28.5, 31.0, 31.5, 35.1, 35.9, 71.3, 86.8, 91.6, 120.1, 123.2, 128.6, 131.4, 138.4, 143.5. GC-MS: m/z = 282. Anal. Calcd. for C20H26O: C, 85.06%; H, 9.28%. Found: C, 84.98%; H, 9.30%.
2-Thiophen-2-ylethynyl-cyclohept-2-enol ( 5c ). Brown oil; IR (CH2Cl2): 3421, 2925, 2842, 1654, 1444, 1079, 850, 698 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.35-1.40 (m, 1H), 1.58-1.72 (m, 3H), 1.77-1.83 (m, 1H), 1.90-1.98 (m, 2H), 2.28-2.40 (m, 2H), 4.43 (brs, 1H), 6.41 (t, 1H, J = 1.5 Hz), 6.94 (t, 1H, J = 5.3 Hz), 7.16 (d, 1H, J = 3.8 Hz), 7.23 (d, 1H, J = 5.3 Hz). 13C NMR (125 MHz, CDCl3): δC 25.7, 27.1, 28.6, 35.0, 71.4, 84.0, 91.6, 123.2, 127.1, 127.2, 131.0, 131.8, 139.4. GC-MS: m/z = 218. Anal. Calcd. for C13H14OS: C, 71.52%; H, 6.46%. Found: C, 71.40%; H, 6.50%.
2-Hex-1-ynyl-cyclohept-2-enol ( 5d ). Colorless oil; IR (CH2Cl2): 3368, 2928, 2851, 1707, 1447, 1065, 909, 732 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.96 (t, 3H, J = 6.8 Hz), 1.28-1.34 (m, 6H), 1.36-1.48 (m, 4H), 1.97-2.10 (m, 4H), 2.50 (m, 1H), 4.17 (brs, 1H), 6.07 (t, 1H, J = 3.8 Hz). 13C NMR (125 MHz, CDCl3): δC 13.5, 18.3, 19.1, 22.5, 24.7, 25.8, 29.8, 30.1, 69.4, 80.0, 92.0, 130.2, 137.5. GC-MS:m/z = 192. Anal. Calcd. for C13H20O: C, 81.20%; H, 10.48%. Found: C, 81.31%; H, 10.54%.
2-(1-Hydroxy-cyclohexylethynyl)-cyclohept-2-enol ( 5e ). Colorless oil; IR (CH2Cl2): 3500, 3450, 2930, 1640, 1435, 1199, 799 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.12-1.18 (m, 4H), 1.35-1.51 (m, 6H), 1.59-1.65 (m, 4H), 1.69-1.77 (m, 4H), 1.91-1.99 (m, 1H), 3.30 (brs, 1H), 4.20 (brs, 1H), 6.16 (t, 1H, J = 3.9 Hz). 13C NMR (125 MHz, CDCl3): δC 14.1, 18.2, 22.6, 24.6, 25.2, 25.6, 30.5, 39.0, 67.3, 69.4, 75.1, 82.9, 93.0, 124.4, 139.0. GC-MS: m/z = 234. Anal. Calcd. for C15H22O2: C, 76.88%; H, 9.46%. Found: C, 77.00%; H, 9.44%.
2-(Phenylethynyl)-cyclohex-2-enol ( 5f ). Brown oil; IR (CH2Cl2): 3383, 2928, 1592, 1053, 755 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.60-1.62 (m, 1H), 1.75-1.78 (m, 3H), 1.87-1.90 (m, 1H), 2.12-2.21 (m, 2H), 4.26 (brs, 1H), 6.30 (t, 1H, J = 4.6 Hz), 7.28-7.29 (m, 3H), 7.43-7.44 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 18.1, 26.0, 30.6, 66.9, 88.4, 89.3, 123.2, 124.2, 128.2, 128.3, 131.6, 137.8. GC-MS: m/z = 198. Anal. Calcd. for C14H14O: C, 84.81%; H, 7.12%. Found: C, 84.91%; H, 7.09%.
2-(4-Pentylphenylethynyl)-cyclohex-2-enol ( 5g ). Brown oil; IR (CH2Cl2): 3400, 2928, 2363, 1509, 1461, 1047, 980 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.87 (t, 3H, J = 6.9 Hz), 1.25-1.32 (m, 4H), 1.57-1.60 (m, 3H), 1.74-1.76 (m, 2H), 1.88-1.90 (m, 1H), 2.11-2.22 (m, 3H), 2.57 (t, 2H, J = 7.6 Hz), 4.22 (brs, 1H), 6.28 (t, 1H, J = 4.6 Hz), 7.11 (d, 2H, J = 8.4 Hz), 7.34 (d, 2H, J = 8.4 Hz). 13C NMR (125 MHz, CDCl3): δC 14.1, 18.2, 22.6, 26.0, 30.6, 31.0, 31.5, 35.9, 67.0, 87.5, 89.6, 120.2, 124.4, 128.5, 131.5, 137.3, 143.4. GC-MS: m/z = 268. Anal. Calcd. for C19H24O: C, 85.03%; H, 9.01%. Found: C, 85.18%; H, 8.96%.
2-Pyridin-2-ylethynyl-cyclohex-2-enol ( 5h ). Yellow oil; IR (CH2Cl2): 3450, 3398, 2929, 2369, 1500, 1450, 1055, 977 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.58-1.60 (m, 1H), 1.75-1.77 (m, 2H), 1.86-1.88 (m, 1H), 2.12-2.18 (m, 2H), 2.21-2.24 (m, 1H), 4.31 (brs, 1H), 6.41 (t, 1H, J = 4.6 Hz), 7.17 (t, 1H, J = 7.6 Hz), 7.39 (d, 1H, J = 6.8 Hz), 7.61 (t, 1H, J = 7.6 Hz), 8.53 (d, 1H, J = 5.3 Hz). 13C NMR (125 MHz, CDCl3): δC 18.1, 26.2, 30.7, 66.5, 88.3, 89.1, 122.6, 124.1, 127.0, 136.2, 139.6, 143.4, 149.8. GC-MS: m/z = 199. Anal. Calcd. for C13H13NO: C, 78.36%; H, 6.58%; N, 7.03%. Found: C, 78.47%; H, 6.56%; N, 7.00%.
2-Hex-1-ynyl-cyclohex-2-enol ( 5i ). Colorless oil; IR (CH2Cl2): 3430, 2930, 1501, 1455, 990, 803 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.96 (t, 3H, J = 6.8 Hz),, 1.32-1.44 (m, 4H), 1.60-1.79 (m, 4H), 1.90-2.15 (m, 5H), 4.09 (brs, 1H), 5.91 (t, 1H, J = 4.3 Hz). 13C NMR (125 MHz, CDCl3): δC 13.6, 19.2, 21.5, 25.0, 28.4, 31.2, 36.8, 69.9, 78.7, 90.3, 132.3, 137.8. GC-MS: m/z = 178. Anal. Calcd. for C12H18O: C, 80.85%; H, 10.18%. Found: C, 80.99%; H, 10.12%.
2-(1-Hydroxy-cyclohexylethynyl)-cyclohex-2-enol ( 5j ). Colorless oil; IR (CH2Cl2): 3505, 3451, 2929, 1513, 1219, 782 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.18-1.23 (m, 2H), 1.43-1.59 (m, 6H), 1.63-1.73 (m, 3H), 1.79-1.91 (m, 3H), 2.00-2.05 (m, 1H), 2.08-2.15 (m, 1H), 2.80-2.99 (m, 1H), 3.35 (brs, 1H), 4.14 (brs, 1H), 6.15 (t, 1H, J = 3.8 Hz). 13C NMR (125 MHz, CDCl3): δC 18.3, 23.5, 25.2, 25.7, 25.8, 30.7, 40.0, 68.9, 83.3, 92.9, 123.9, 129.9. GC-MS: m/z = 220. Anal. Calcd. for C14H20O2: C, 76.33%; H, 9.15%. Found: C, 76.44%; H, 9.12%.
2-(Phenylethynyl)-cyclopent-2-enol ( 5k ). Brown oil; IR (CH2Cl2): 3368, 2924, 2363, 1485, 1309, 1048, 756 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.82-1.84 (m, 1H), 2.14 (s, 1H), 2.34-2.37 (m, 2H), 2.58-2.60 (m, 1H), 4.87 (brs, 1H), 6.29 (t, 1H, J = 3.05 Hz), 7.29-7.31 (m, 2H), 7.45-7.46 (m, 3H). 13C NMR (125 MHz, CDCl3): δC 31.0, 32.9, 77.1, 84.7, 92.1, 123.1, 128.2, 128.4 (2C), 131.7, 140.5. GC-MS: m/z = 184. Anal. Calcd. for C13H12O: C, 84.75%; H, 6.57%. Found: C, 84.80%; H, 6.55%.
2-(4-Pentylphenylethynyl)-cyclopent-2-enol ( 5l ). Brown oil; IR (CH2Cl2): 3377, 2914, 2363, 1491, 1313, 1041, 759 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.87 (t, 3H, J = 6.9 Hz), 1.27-1.34 (m, 4H), 1.58-1.63 (m, 2H), 1.80-1.84 (m, 1H), 2.03 (s, 1H), 2.33-2.37 (m, 2H), 2.56-2.62 (m, 3H), 4.86 (s, 1H), 6.26 (s, 1H), 7.11 (d, 2H, J = 7.6 Hz), 7.36 (d, 2H, J = 8.4 Hz). 13C NMR (125 MHz, CDCl3): δC 14.1, 22.6, 30.9, 31.0, 31.5, 32.9, 35.9, 79.1, 83.9, 92.5, 120.2, 128.4, 128.5, 131.6, 139.9, 143.5. GC-MS: m/z = 254. Anal. Calcd. for C18H22O: C, 84.99%; H, 8.72%. Found: C, 84.85%; H, 8.78%.
Experimental procedure for the synthesis of compound ( 5m ). A mixture of compound 3a (205 mg, 1 mmol), phenylethynylcopper(I) (164 mg, 1 mmol) and dry Et3N (5 mL) was heated at 80 °C under an atmosphere of N2 for 6 h. The mixture was then poured into ice-cold water (25 mL) and extracted with Et2O (3 × 10 mL). The combined organic extracts were washed sequentially with 2M HCl (5 mL), 5% NaHCO3 (5 mL) and water (10 mL), and then dried over anhydrous MgSO4. The solvent was removed under reduced pressure to afford the crude product, which was purified by column chromatography over silica gel eluting with a 1:4 (v/v) mixture of EtOAc and petroleum ether to afford the pure product 5m as a light yellow solid. IR (KBr): 3390, 2921, 2352, 1595, 1431, 748 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.62-1.77 (m, 6H), 1.99-2.08 (m, 2H), 2.17-2.23 (m, 1H), 2.34-2.43 (m, 2H), 6.45 (t, 1H, J = 6.9 Hz), 7.32-7.40 (m, 4H), 7.48-7.52 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 24.3,25.9, 27.5, 28.9, 35.4, 71.7, 87.9, 91.6, 123.6, 128.5, 128.9, 131.7, 131.9, 140.4. GC-MS: m/z = 226. Anal. Calcd. for C16H18O: C, 84.80%; H, 8.02%. Found: C, 84.95%; H, 7.96%.
AuBr3 (5 mol%) was added a stirred solution of 2-acetylenic alcohol 5 (1.0 mmol) in dichloroethane (1 mL) under N2, and the resulting mixture was stirred at the specified temperature and the specified time (see Table 2 and Schemes 2 and 7). Upon completion of the reaction, as indicated by TLC, the reaction mixture was quenched with 10 mL of water and extracted with dichloromethane (3 × 5 mL). The combined organic extracts were dried over anhydrous Na2SO4, filtered and concentrated under reduced pressure to afford the crude product, which was purified by column chromatography over silica gel (100-200 mesh) eluting with a mixture of cyclohexane and EtOAc to afford pure product ( 6a-6l and 6q ).
2-Phenyl-5,6,7,8-tetrahydro-4H-cyclohepta[b]furan ( 6a ). Colorless oil; IR (CH2Cl2): 2924, 2851, 1676, 1450, 803 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.75-1.82 (m, 6H), 2.53 (t, 2H, J = 5.3 Hz), 2.86 (t, 2H, J = 6.1 Hz), 6.45 (s, 1H), 7.21 (t, 1H, J = 7.6 Hz), 7.36 (t, 2H, J = 8.4 Hz), 7.63 (d, 2H, J = 7.6 Hz). 13C NMR (125 MHz, CDCl3): δC 26.3, 26.7, 28.8, 29.1, 30.9, 108.8, 123.0, 123.2, 126.5, 128.6, 131.4, 149.8, 153.4. GC-MS: m/z = 212. Anal. Calcd. for C15H16O: C, 84.87%; H, 7.60%. Found: C, 85.00%; H, 7.55%.
2-(4-Pentylphenyl)-5,6,7,8-tetrahydro-4H-cyclohepta[b]furan ( 6b ). Colorless liquid; IR (CH2Cl2): 2926, 2851, 1676, 1450, 803 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.90 (t, 3H, J = 6.9 Hz), 1.33-1.36 (m, 5H), 1.62 (t, 2H, J = 7.6 Hz), 1.72-1.79 (m, 5H), 2.51 (t, 2H, J = 6.1 Hz), 2.59 (t, 2H, J = 7.6 Hz), 2.83 (t, 2H, J = 6.1 Hz), 6.37 (s, 1H), 7.15 (d, 2H, J = 8.4 Hz), 7.51 (d, 2H, J = 7.6 Hz). 13C NMR (125 MHz, CDCl3): δC 14.1, 22.6, 26.3, 26.7, 28.8, 29.1, 30.9, 31.2, 31.6, 35.7, 108.0, 122.8, 123.2, 128.6, 128.9, 141.3, 150.1, 152.9. GC-MS: m/z = 282. Anal. Calcd. for C20H26O: C, 85.06%; H, 9.28%. Found: C, 85.00%; H, 9.30%.
2-Thiophen-2-yl-5,6,7,8-tetrahydro-4H-cyclohepta[b]furan ( 6c ). Brown oil; IR (CH2Cl2): 2921, 2847, 1663, 1573, 1443, 1218, 1080, 840, 691 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.72-1.73 (m, 4H), 1.77-1.79 (m, 2H), 2.49 (t, 2H, J = 6.1 Hz), 2.81 (t, 2H, J = 6.1 Hz), 6.29 (s, 1H), 7.00 (dd, 1H, J1 = 3.8 Hz, J2 = 3.8 Hz), 7.14-7.15 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 26.2, 26.6, 28.7, 29.0, 30.8, 108.8, 121.3, 122.9, 123.1, 127.6, 134.5, 145.5, 153.0. GC-MS: m/z = 218. Anal. Calcd. for C13H14OS: C, 71.52%; H, 6.46%. Found: C, 71.58%; H, 6.45%.
2-Butyl-5,6,7,8-tetrahydro-4H-cyclohepta[b]furan ( 6d ). Colorless liquid; IR (CH2Cl2): 2919, 2850, 1660, 1565, 1435, 1211, 1075, 850 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.95 (t, 3H, J = 6.8 Hz), 1.27-1.34 (m, 4H), 1.55-1.65 (m, 6H), 2.31-2.55 (m, 6H), 6.03 (s, 1H). 13C NMR (125 MHz, CDCl3): δC 14.0, 20.2, 20.3, 24.4, 29.9, 30.1, 31.2, 32.6, 32.8, 106.4, 112.8, 149.8, 152.0. GC-MS: m/z = 192. Anal. Calcd. for C13H20O: C, 81.20%; H, 10.48%. Found: C, 81.30%; H, 10.44%.
1-(5,6,7,8-Tetrahydro-4H-cyclohepta[b]furan-2-yl)-cyclo-hexanol ( 6e ). Colorless liquid; IR (CH2Cl2): 3477, 2940, 2935, 1652, 1439, 1231, 799, 702 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.19-1.26 (m, 2H), 1.55-1.63 (m, 6H), 1.72-1.79 (m, 4H), 1.75-1.81 (m, 4H), 1.92-2.15 (m, 4H), 3.99 (brs, 1H), 6.49 (s, 1H). 13C NMR (125 MHz, CDCl3): δC 16.9, 17.3, 18.5, 18.9, 19.9, 20.1, 22.8, 31.2, 35.3, 105.9, 117.8, 140.7, 151.0. GC-MS: m/z = 234. Anal. Calcd. for C15H22O2: C, 76.88%; H, 9.46%. Found: C, 77.01%; H, 9.44%.
2-Phenyl-4,5,6,7-tetrahydro-benzofuran ( 6f ). Colorless liquid; IR (CH2Cl2): 2934, 2851, 1669, 1447, 1247, 760, 690 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.75-1.78 (m, 2H), 1.84-1.89 (m, 2H), 2.46 (t, 2H, J = 6.1 Hz), 2.67 (t, 2H, J = 6.1 Hz), 6.47 (s, 1H), 7.20 (t, 1H, J = 7.6 Hz), 7.35 (t, 2H, J = 7.6 Hz), 7.62 (d, 2H, J = 6.9 Hz). 13C NMR (125 MHz, CDCl3): δC 22.2, 23.1, 23.2, 23.4, 106.1, 119.0, 123.3, 126.6, 128.6, 131.5, 150.9. GC-MS: m/z = 198. Anal. Calcd. for C14H14O: C, 84.81%; H, 7.12%. Found: C, 84.75%; H, 7.15%.
2-(4-Pentylphenyl)-4,5,6,7-tetrahydro-benzofuran ( 6g ). Colorless liquid; IR (CH2Cl2): 2928, 2851, 2354, 1495, 1452, 909, 838 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.92 (t, 3H, J = 6.8 Hz), 1.30-1.36 (m, 5H), 1.64-1.66 (m, 3H), 1.80-1.88 (m, 2H), 1.99-2.28 (m, 2H), 2.59-2.77 (m, 4H), 6.35 (s, 1H), 7.18 (d, 1H, J = 8.4 Hz), 7.25 (d, 1H, J = 7.6 Hz), 7.52-7.57 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 14.2, 22.1, 22.9, 23.1, 23.5, 30.7, 31.2, 31.6, 35.8, 105.2, 118.8, 123.3, 126.6, 141.5, 147.7, 150.1, 152.1. GC-MS: m/z = 268. Anal. Calcd. for C19H24O: C, 85.03%; H, 9.01%. Found: C, 84.98%; H, 9.03%.
2-(4,5,6,7-Tetrahydro-benzofuran-2-yl)-pyridine ( 6h ). Yellow oil; IR (CH2Cl2): 3400, 2930, 2850, 1680, 1450, 823 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.65-1.74 (m, 3H), 2.21-2.24 (m, 2H), 2.38-2.40 (m, 1H), 2.44 (t, 1H, J = 7.6 Hz), 2.66 (t, 1H, J = 6.1 Hz), 6.36 (s, 1H), 7.14-7.17 (m, 1H), 7.56 (t, 1H, J = 7.6 Hz), 7.63-7.65 (m, 1H), 8.57 (d, 1H, J = 3.8 Hz). 13C NMR (125 MHz, CDCl3): δC 19.7, 24.6, 27.7, 29.7, 82.9, 104.2, 113.7, 120.1, 123.0, 136.4, 143.2, 149.6, 160.1. GC-MS: m/z = 199. Anal. Calcd. for C13H13NO: C, 78.36%; H, 6.58; N, 7.03%. Found: C, 78.25%; H, 6.60%; N, 7.07%.
2-Butyl-4,5,6,7-tetrahydrobenzofuran ( 6i ). Colorless oil; IR (CH2Cl2): 2935, 2853, 1675, 1447, 799, 763 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.93 (t, 3H, J = 6.9 Hz), 1.33-1.69 (m, 8H), 2.35-2.60 (m, 6H), 6.01 (s, 1H). 13C NMR (125 MHz, CDCl3): δC 13.4, 20.9, 21.2, 29.5, 31.1, 32.3, 35.4, 36.0, 106.3, 112.6, 149.5, 151.1. GC-MS:m/z = 178. Anal. Calcd. for C12H18O: C, 80.85%; H, 10.18%. Found: C, 80.74%; H, 10.22%.
1-(4,5,6,7-Tetrahydro-benzofuran-2-yl)-cyclohexanol ( 6j ). Colorless oil; IR (CH2Cl2): 3480, 2935, 2929, 1669, 1447, 1250, 800, 713 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.20-1.25 (m, 2H), 1.49-1.61 (m, 6H), 1.65-1.69 (m, 4H), 1.72-1.75 (m, 2H), 1.89-2.10 (m, 4H), 3.95 (brs, 1H), 6.51 (s, 1H). 13C NMR (125 MHz, CDCl3): δC 17.2, 17.4, 18.0, 18.2, 19.0, 20.1, 22.6, 35.7, 105.2, 118.0, 141.9, 151.2. GC-MS: m/z = 220. Anal. Calcd. for C14H20O2: C, 76.33%; H, 9.15%. Found: C, 76.25%; H, 9.17%.
2-Phenyl-5,6-dihydro-4H-cyclopenta[b]furan ( 6k ). Colorless oil; IR (CH2Cl2): 2935, 2859, 1681, 1453, 810 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.79-1.83 (m, 2H), 1.95 (t, 2H, J = 6.3 Hz), 2.56 (t, 2H, J = 6.2 Hz), 6.50 (s, 1H), 7.15 (t, 1H, J = 7.6 Hz), 7.34 (t, 2H, J = 8.4 Hz), 7.63 (d, 2H, J = 7.6 Hz). 13C NMR (125 MHz, CDCl3): δC 23.5, 23.7, 24.2, 105.1, 118.0, 122.3, 125.5, 127.6, 130.5, 150.7, 151.9. GC-MS: m/z = 184. Anal. Calcd. for C13H12O: C, 84.75%; H, 6.57%. Found: C, 84.86%; H, 6.54%.
2-(4-Pentylphenyl)-5,6-dihydro-4H-cyclopenta[b]furan ( 6l ). Colorless oil; IR (CH2Cl2): 2931, 2856, 1680, 1455, 892, 800 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.94 (t, 3H, J = 6.8 Hz), 1.36-1.41 (m, 5H), 1.68-1.71 (m, 3H), 1.76-1.80 (m, 2H), 1.93 (t, 2H, J = 6.2 Hz), 2.56 (t, 2H, J = 6.3 Hz), 6.43 (s, 1H), 7.22 (d, 2H, J = 7.6 Hz), 7.34 (d, 2H, J = 7.6 Hz). 13C NMR (125 MHz, CDCl3): δC 14.3, 22.0, 22.8, 23.0, 30.6, 31.1, 31.6, 35.8, 104.9, 117.9, 123.4, 123.8, 128.7, 148.0, 150.0, 152.0. GC-MS: m/z = 254. Anal. Calcd. for C18H22O: C, 84.99%; H, 8.72%. Found: C, 85.10%; H, 8.67%.
2,3-Dimethylfuran ( 6q ). Colorless liquid; IR (neat): 3150, 3115, 1501, 1164, 1075, 801 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.91 (s, 3H), 2.29 (s, 3H), 6.19 (d, 1H, J = 6.0 Hz), 7.41 (d, 1H, J = 6.0 Hz). 13C NMR (125 MHz, CDCl3): δC 9.3, 11.0, 113.3, 114.5, 140.5, 147.9. GC-MS: m/z = 96. Anal. Calcd. for C6H8O: C, 74.97%; H, 8.39%. Found: C, 75.15%; H, 8.26%.
Dry triethylamine (5mL) was added to a mixture of 2-bromo-cyclooct-2-enol 3d (1.0 mmol), Pd(PPh3)2Cl2 (5 mol%) and CuI (5 mol%) in an oven-dried flask under N2, and the resulting suspension was stirred for 5 min. Terminal alkyne 4 (1.2 mmol) was then added to the reaction in a dropwise manner, and the resulting mixture was stirred at room temperature until it reached completion, indicated by the disappearance of 2-bromo-cyclooct-2-enol by TLC (~6 h). The reaction was diluted with water (50 mL) and extracted with ethyl acetate (4 × 15 mL). The combined organic extracts were dried over anhydrous sodium sulfate and concentrated under reduced pressure to give the crude product. The crude was then purified by column chromatography over silica gel eluting with a 1:9 (v/v) mixture of EtOAc and petroleum ether to afford the pure product ( 6m-6o ). Compound 6m was synthesized in the way using the catalyst and conditions depicted in Scheme 3.
2-Phenyl-4,5,6,7,8,9-hexahydrocycloocta[b]furan ( 6m ). Colorless oil; IR (CH2Cl2): 3081, 3055, 2927, 2844, 1625, 1606, 1541, 1485, 1455, 1351, 895, 797 cm-1.1H NMR (500 MHz, CDCl3): δH 1.49-1.55 (m, 4H), 1.65-1.70 (m, 2H), 1.75-1.80 (m, 2H), 2.55 (t, 2H, J= 6.2 Hz), 2.85 (t, 2 H, J = 6.2 Hz), 6.41 (s, 1H), 7.15-7.20 (m, 1H),7.30-7.35 (m, 2H), 7.60-7.64 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 23.8, 25.3, 26.1, 27.4, 28.9, 108.1, 120.5, 123.1, 126.4, 128.5, 131.3, 150.5, 151.7. GC-MS: m/z = 226. Anal. Calcd. for C16H18O: C, 84.91%; H, 8.02%. Found: C, 85.11%; H, 7.98%.
2-Pentyl-4,5,6,7,8,9-hexahydrocycloocta[b]furan ( 6n ). Colorless oil; IR (CH2Cl2): 2927, 2860, 1733, 1520, 1455, 1345, 1257, 1165, 1090, 1010, 930, 850 cm-1. 1H NMR (500 MHz, CDCl3): δH 0.89 (t, 3H, J = 6.4 Hz), 1.30-1.35 (m, 4H), 1.44-1.68 (m, 10 H), 2.44-2.55 (m, 4H), 2.70 (m, 2H), 5.69 (s, 1H). 13C NMR (125 MHz, CDCl3): δC 14.1, 22.3, 23.8, 25.3, 26.0, 26.1, 27.5, 28.0, 28.1, 28.9, 31.5, 107.5, 118.5, 149.5, 152.9. GC-MS: m/z = 220. Anal. Calcd. for C15H24O: C, 81.76%; H, 10.98%. Found: C, 81.91%; H, 10.92%.
2-(3-(Benzyloxy)propyl)-4,5,6,7,8,9-hexahydrocycloocta[b] furan ( 6o ). Colorless oil; IR (CH2Cl2): 2925, 2853, 1572, 1495, 1476, 1450, 1410, 1361, 1305, 1280, 1250, 1210, 1145, 1100, 1074, 1025, 983, 960, 905, 881, 858, 800 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.35-1.70 (m, 8H), 1.85 (q, 2H, J = 6.7 Hz), 2.39 (t, 2H, J = 6.3 Hz), 2.55-2.65 (m, 6H), 3.45 (t, 2H, J = 6.7 Hz), 5.65 (s, 1H),7.20-7.29 (m, 5H). 13C NMR (125 MHz, CDCl3): δC 23.7, 24.6, 25.3, 25.8, 26.0, 27.3, 28.2, 28.7, 69.4, 73.0, 108.0, 118.6, 127.5, 127.6, 127.7, 128.4, 128.5, 138.5, 149.7, 152.0. GC-MS: m/z = 321. Anal. Calcd. for C20H26O2: C, 80.50%; H, 8.78%. Found: C, 80.21%; H, 8.85%.
Dry triethylamine (50 mL) was added to a mixture of 2-bromo-cyclooct-2-enol 3d (10.0 mmol), Pd(PPh3)2Cl2 (5 mol%), and CuI (5 mol%) in an oven-dried flask under N2, and the resulting suspension was stirred for 5 min. Phenylacetylene 4a (1.2 eq.) was then added to the reaction in a dropwise manner, and the resulting mixture was stirred at room temperature for 6 h. Molecular iodine (1.0 eq.) was then added to the reaction, and the resulting mixture was stirred for further 2 h. The mixture was then quenched with a saturated solution of sodium thiosulfate and extracted with EtOAc (3 × 50 mL). The combined organic extracts were dried over anhydrous sodium sulfate, filtered and concentrated under reduced pressure to afford the crude product, which was purified by column chromatography over silica gel (100-200 mesh) eluting cyclohexane/EtOAc to afford pure 8a as a colorless liquid. IR (neat): 3084, 3059, 2929, 2851, 1635, 1610, 1549, 1489, 1449 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.65-1.79 (m, 4H); 1.81-1.92 (m, 4H); 2.37 (t, 2H, J = 6.1 Hz); 2.72 (t, 2H, J = 6.2 Hz); 7.34 (t, 1H, J = 7.6 Hz); 7.48 (t, 2H, J = 7.6 Hz); 8.02 (d, 2H, J = 7.6 Hz). 13C NMR (125 MHz, CDCl3): δC 20.7, 21.9, 22.9, 23.4, 23.6, 66.9, 123.7, 126.5, 128.0, 128.9, 129.0, 131.2, 150.1, 151.5. GC-MS: m/z = 352. Anal. Calcd. for C16H17IO: C, 54.56%; H, 4.86%. Found: C, 53.91%; H, 4.95%.
A solution of organozinc reagent 7a (1.05 eq.) in THF was added to a stirred solution of 8a (1.0 mmol) and Pd(Ph3P)4 (10 mol%) in dry dioxane at 0 °C, and the resulting mixture was stirred at 25 °C for 30 min. The reaction was quenched with 0.5 mol/L HCl and extracted with Et2O. The combined organic extracts were then washed sequentially with saturated NaHCO3 solution and brine, and dried over anhydrous Na2SO4. The solvent was then removed under reduced pressure to give the crude product, which was purified by column chromatography over silica gel (100-200 mesh) eluting with a mixture of hexane and EtOAc to give the pure product 9a as a colorless solid. MP 72-74 °C; IR (KBr): 3069, 3025, 2935, 1519, 1489, 1449, 1375, 781 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.34-1.45 (m, 4H), 1.67-1.77 (m, 4H). 2.36 (s, 3H), 2.47 (t, 2H, J = 7.6 Hz), 2.89 (t, 2H,J = 8.1 Hz), 6.95-7.04 (m, 2H), 7.12 (t, 1H, J = 7.6 Hz), 7.29-7.40 (m, 4H), 7.51-7.67 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 21.5, 22.9, 24.1, 25.5, 27.0, 30.5, 57.4, 115.1, 116.5, 119.5, 120.2, 124.1, 127.9, 129.8, 130.4, 132.5, 131.9, 146.7, 150.9, 160.1. GC-MS: m/z = 316. Anal. Calcd. for C23H24O: C, 87.30%; H, 7.64%. Found: C, 88.11%; H, 7.55%.
Dry triethylamine (5mL) was added to a mixture of compound 8a (1.0 mmol), Pd(PPh3)2Cl2 (5 mol%) and CuI (5 mol%) were placed in an oven-dried flask under N2, and the resulting suspension was stirred for 5 min. Phenylacetylene 4a (1.1 eq.) was added to the reaction in a dropwise manner, and the resulting mixture was stirred at room temperature for 3 h. The reaction was diluted with water (50 mL) and extracted with ethyl acetate (4 × 15 mL). The combined organic extracts were dried over anhydrous sodium sulfate and concentrated to dryness to give the crude product, which was purified by column chromatography over silica gel eluting with a mixture of EtOAc and petroleum ether to afford the pure product 10a as a yellow solid. MP 110-112 °C; IR (KBr): 3060, 3018, 2939, 2855, 2219, 1642, 1608, 1556, 1499, 1351 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.66-1.79 (m, 4H), 1.85-1.93 (m, 4H), 2.55 (t, 2H, J = 6.7 Hz), 2.69 (t, 2H, J = 6.4 Hz), 7.29 (t, 1H, J = 7.6 Hz), 7.35-7.41 (m, 5H), 7.51-7.55 (m, 2H), 8.05 (d, 2H, J = 8.1 Hz). 13C NMR (125 MHz, CDCl3): δC 20.7, 21.0, 21.3, 22.8, 23.1, 23.4, 84.1, 97.5, 105.2, 123.6, 124.5, 124.9, 127.9, 128.4, 128.8, 129.6, 131.5, 132.2, 151.1, 153.4. GC-MS: m/z = 326. Anal. Calcd. for C24H22O: C, 88.31%; H, 6.79%. Found: C, 88.91%; H, 6.65%.
To a stirred solution of iodofuran 8a (1.0 mmol) in dimethoxyethane at room temperature was added phenylboronic acid 11a (1.0 eq.), Pd(PPh3)4 (10 mol%) and Cs2CO3 (1.0 eq.), and the resulting mixture was stirred at 60 °C for 1 h. The mixture was cooled to room temperature and filtered through a sintered crucible. The filtrate was collected and concentrated to dryness under reduced pressure to give the crude product, which was purified by column chromatography over silica gel eluting with a mixture of EtOAc and petroleum ether to afford the pure product 12a as a colorless solid. MP 88-90 °C; IR (KBr): 3068, 3025, 2932, 1515, 1475, 1381, 763 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.65-1.78 (m, 4H), 1.83-1.92 (m, 4H), 2.39 (t, 2H, J = 6.7 Hz), 2.75 (t, 2H, J = 6.6 Hz),6.78-6.89 (m, 2H), 7.17-7.35 (m, 5H), 7.44-7.55 (m, 3H). 13C NMR (125 MHz, CDCl3): δC 20.9, 21.3, 22.7, 22.9, 23.1, 23.4, 55.7, 114.1, 114.2, 119.8, 122.1, 125.6, 126.5, 126.6, 127.4, 128.5, 130.8, 131.9, 146.8, 150.5, 158.9. GC-MS: m/z = 302. Anal. Calcd. for C22H22O: C, 87.38%; H, 7.33%. Found: C, 86.97%; H, 7.45%.
To a stirred solution of iodofuran 8a (1.0 mmol) in dry THF (10 mL) at room temperature was added Pd(PPh3)4 (10 mol%), LiCl (3.0 eq.) and tributyl(vinyl)tin (2.0 eq.), and the resulting mixture was stirred at room temperature for 12 h. The mixture was filtered through a pad of Celite and the filtrate was concentration under reduced pressure to give a residue, which was purified by column chromatography over silica gel (100-200 mesh) eluting with a mixture of hexane and EtOAc to afford 14a as a colorless liquid. IR (neat): 3091, 3061, 3035, 2935, 2849, 1631, 1614, 1591, 1471, 1455, 1425, 1345, 781 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.65-1.79 (m, 4H), 1.85-1.94 (m, 4H), 2.55-2.67 (m, 4H), 5.35 (dd, 1H, J1 = 12.2 Hz; J2 = 2.1 Hz), 5.47 (dd, 1H, J1 = 18.4 Hz; J2 = 12.2 Hz), 6.91 (dd, 1H, J1 = 18.2 Hz, J2 = 12.2 Hz), 7.29-7.34 (m, 1H), 7.40-7.45 (m, 2H), 7.67 (t, 2H, J = 7.6 Hz). 13C NMR (125 MHz, CDCl3): δC 21.5, 22.6, 22.9, 23.4, 115.2, 118.3, 127.1, 128.8, 129.6, 130.1, 130.3, 131.9, 149.5, 150.6. GC-MS: m/z = 252. Anal. Calcd. for C18H20O: C, 85.67%; H, 7.99%. Found: C, 86.07%; H, 7.87%.
To a stirred solution of iodofuran 8a (1.0 mmol) in DMAc (1.5 mL) at room temperature was added ethylacrylate (1.1 eq.), Pd(OAc)2 (5 mol%), nBu3P (25 mol%) and pyridine (3.0 eq.), and the resulting mixture was stirred at 50 °C for 1 h. The mixture was then diluted with brine (10 mL) and extracted with EtOAc (3 × 15 mL). The combined organic extracts were washed with brine (20 mL) and dried over anhydrous MgSO4. The solvent was then removed under reduced pressure to give a residue, which was purified by column chromatography over silica gel eluting with a mixture of hexane and EtOAc to give 16a as a pale yellow liquid. IR (neat): 3095, 3061, 2941, 2841, 1717, 1635, 1621, 1542, 1480, 1455, 1425, 1341, 781 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.29 (t, 3H, J = 7.6 Hz), 1.66-1.78 (m, 4H), 1.81-1.92 (m, 4H), 2.67-2.75 (m, 4H), 3.96 (q, 2H, J = 7.6 Hz), 6.52 (d, 1H, J = 16.4 Hz), 7.30 (t, 1H, J = 7.6 Hz), 7.45 (t, 2H, J = 7.6 Hz), 7.65 (t, 2H, J = 7.6 Hz), 7.95 (d, 1H, J = 16.4 Hz). 13C NMR (125 MHz, CDCl3): δC 13.8, 21.8, 22.4, 22.7, 23.0, 23.3, 51.5, 61.7, 117.1, 117.5, 117.9, 127.2, 128.0, 128.6, 130.8, 137.5, 151.8, 153.8, 167.1. GC-MS: m/z = 324. Anal. Calcd. for C21H24O3: C, 77.75%; H, 7.46%. Found: C, 77.57%; H, 7.53%.
AuBr3 (5 mol%) was added to a solution of compound 6f (1.0 mmol) in dichloroethane (1 mL) under N2 at room temperature, and the resulting mixture was heated at 70 °C for 30 min. Butenone 17a (1.2 eq.) was then added to the reaction, and the resulting mixture was stirred for 20 min. Upon completion of the reaction, as indicated by TLC, the reaction mixture was quenched with water (10 mL) and extracted with dichloromethane (3 × 5 mL). The combined organic extracts were dried over anhydrous Na2SO4, filtered and concentrated under reduced pressure to afford the crude product, which was purified by column chromatography over silica gel (100-200 mesh) eluting with a mixture of cyclohexane and EtOAc to afford pure product 18a as a yellow liquid. IR (neat): 3098, 3055, 2946, 1685, 1586, 1355 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.78-1.85 (m, 2H), 1.88-1.95 (m, 2H), 2.19 (s, 3H), 2.45 (t, 2H, J = 6.9 Hz), 2.61 (t, 2H, J = 6.7 Hz), 2.81 (t, 2H, J = 3.4 Hz), 2.95 (t, 2H, J = 2.8 Hz), 7.29 (t, 1H, J = 7.6 Hz),7.45 (t, 2H, J = 7.6 Hz), 7.66-7.77 (m, 2H). 13C NMR (125 MHz, CDCl3): δC 19.5, 20.5, 21.4, 22.9, 23.6, 30.1, 44.2, 118.2, 119.1, 120.1, 121.1, 123.5, 124.3, 128.5, 150.3, 151.4, 208.8. GC-MS: m/z = 268. Anal. Calcd. for C18H20O2: C, 80.56%; H, 7.51%. Found: C, 81.07%; H, 7.39%.
To a mixture of AuBr3 (5 mol%) and AgSbF6 (5 mol%) in dry dichloroethane (1 mL) under N2 was added a solution of compound 6f (1.0 mmol) in dichloroethane (1 mL), and the resulting mixture was heated at 70 °C for 30 min. Phenylacetylene 4a (1.2 eq.) was added to the reaction, and the resulting mixture was stirred for 3 h. The reaction was then cooled to room temperature and quenched with water (10 mL). The resulting mixture was extracted with dichloromethane (3 × 5 mL) and the combined organic layers were dried over anhydrous Na2SO4. The solvent was then removed under reduced pressure to afford the crude product, which was purified by column chromatography over silica gel (100-200 mesh) eluting with a mixture of cyclohexane and EtOAc to afford pure product 19a as colorless liquid. IR (neat): 3095, 3054, 2941, 1685, 1609, 1450, 1355, 898, 747 cm-1. 1H NMR (500 MHz, CDCl3): δH 1.77-1.85 (m, 2H), 1.89-1.96 (m, 2H), 2.65 (t, 2H, J = 6.4 Hz), 2.78 (t, 2H, J = 6.6 Hz), 5.41 (d, 1H, J = 2.3 Hz), 5.67 (d, 1H, J = 2.0 Hz), 7.15-7.29 (m, 4H), 7.35-7.48 (m, 5H), 7.49-7.54 (m, 1H). 13C NMR (125 MHz, CDCl3): δC 19.5, 22.5, 23.4, 23.9, 105.5, 120.1, 121.2, 124.4, 127.5, 127.9, 128.1, 128.3, 128.6, 129.3, 141.2, 145.8, 150.4, 150.6. GC-MS: m/z = 300. Anal. Calcd. for C22H20O: C, 87.96%; H, 6.71%. Found: C, 88.17%; H, 6.63%.

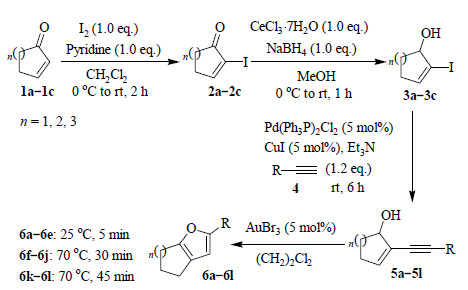

We previously reported a convenient method for the synthesis of fused furans via AuBr3-catalyzed cycloisomerization of 2-alkynyl-cycloalk-2-enols (Scheme 1) [24]. The requisite 2-alkynyl-cycloalk-2-enols were synthesized via the α-iodination of the corresponding cycloalken-2-ones 1 with I2/pyridine, which afforded the 2-iodocycloalk-2-enones 2 [64, 65, 66]. Subsequent 1,2-reduction of these 2-iodocycloalk-2-enones 2 with a stoichiometric mixture of NaBH4 and CeCl3·7H2O gave the 2-iodoenols 3 [67, 68]. These iodoenols were then treated with a variety of terminal alkynes 4 under Sonogashira conditions [69, 70] to give the hitherto unknown 2-alkynyl-cyclo-alk-2-enols 5 in excellent yields. A wide range of coupling products were successfully synthesized under these conditions, including those bearing aliphatic, aromatic and heteroaromatic substituents, with yields ranging from good to excellent (Table 1).
The results of a series of optimization studies revealed that all of the substrates underwent the desired cycloisomerization reaction in the presence of 5 mol% AuBr3 in 1,2-dichloroethane (Table 2). As shown in Table 2, the yields of the fused furans varied from good to excellent depending on the nature of the substituent attached to the alkyne moiety and the reaction temperature. Furthermore, the results indicated that the efficiency of the cyclization was dependent on the nature and the size of the ring attached to the alkyne moiety for substrates 5a-5l . For example, substrates bearing a cycloheptyl ring, the reaction proceeds smoothly over a short reaction time, even at room temperature (Table 2, entries 1-5). Substrates bearing a cyclohexyl ring also reacted rapidly to produce the desired products in good yields when the reaction was carried out for 30 min at 70 °C (Table 2, entries 6-10). However, substrates with a cyclopentyl ring reacted slowly to give low yields of the desired products, even when the reaction time was extended to 45 min (Table 2, entries 11 and 12). These observations can be rationalized in terms of the greater degree of strain associated with the resulting cyclopenta[b]furan products compared with the cyclohexa[b]furan and cyclohepta[b]furan products. The results of these experiments also revealed that the nature of the substituent on the alkyne of the 2-alkynylcycloalk-2-enol substrate did not play a significant role in determining the success of the cyclization, because aliphatic, aromatic and heteroaromatic groups were well tolerated at this position to give almost identical yields of the products. The formation of the products was confirmed by the appearance of a singlet peak in their 1H NMR spectra in CDCl3 with a δH value in the range of 6.20-6.30 ppm, which was attributed to the C3-H of the furan ring. Moreover, the 13C NMR spectra of these products all contained a peak with a δC value in the range of 104-109 ppm, which confirmed the presence of the C3 carbon of the furan ring.

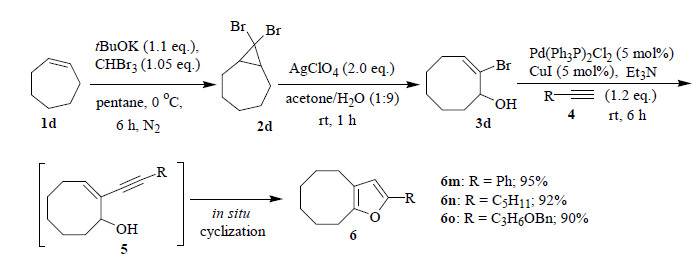

In light of their biological significance and their prevalence as the core substructures in numerous crenulide diterpenoid natural products, we became interested in extending the scope of our study to cyclooctyl-fused furan ring systems [71, 72]. Using the optimized reaction conditions, we initially explored the general scope of our methodology by investigating the synthesis of a series of cyclooctyl furans (Scheme 2). According to the literature, the precursors for this cyclization reaction could be synthesized from commercially available cycloheptene ( 1d ) [73, 74]. Thus, the cyclopropanation of 1d with CHBr3 afforded cycloadduct 2d , which underwent a ring expansion reaction with AgClO4 in aqueous acetone to furnish the 2-bromoenol 3d [75]. Surprisingly, the subsequent alkynylation of 3d under the standard Sonogashira conditions did not lead to the expected alkynylated product 5 . In contrast to other ring systems (n = 1, 2, 3), we found that the eight-membered ring 3d reacted rapidly under the Sonogashira condition to afford the cyclized product 6 directly without the isolation of the cross-coupled intermediate 5 .

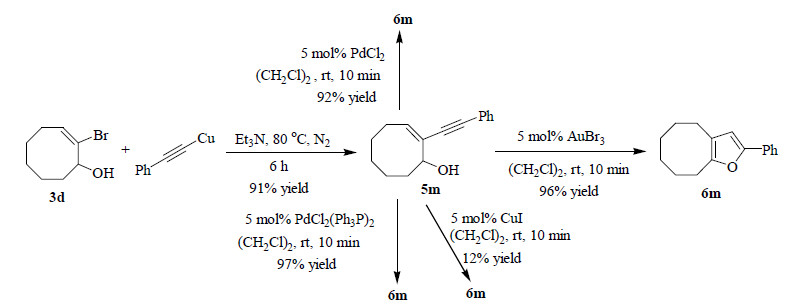

At this stage in the study, the identity of the catalytic species involved in this one-pot operation was unknown. As well as playing an important role in oxidative addition reactions [76, 77], palladium salts can catalyze the intramolecular cyclization reactions of alkynes bearing a hydroxyl tether [78, 79, 80, 81]. Prompted by this literature survey, we assumed that palladium was the catalyst involved in this tandem process. To test this hypothesis, we investigated the synthesis and isolation of alkyne 5m , which was readily prepared by the Castro-Stephens coupling of 2-bromoenol 3d with phenylethynylcopper(I) [82] (Scheme 3). This reaction led to the stable alkyne 5m in excellent yield without the formation of any of the corresponding cyclized product 6m , which suggested that Et3N and CuBr (formed as by-product) were not acting as catalysts for the cyclization. We subsequently investigated the cyclization of 5m using 5 mol% PdCl2(Ph3P)2 and found that the reaction proceeded smoothly to afford the cyclization product 6m in excellent yield. PdCl2 also gave the cyclized product 6m in excellent yield, which indicated that this reaction did not require a neutral phosphine ligand. These two test reactions clearly indicated that Pd(II) was the active catalytic species involved in this transformation. Notably, the reaction of 5m with CuI (co-catalyst in the Sonogashira reaction) under the same conditions led to only trace quantities of the cyclization product 6m with 80% of starting material being recovered unchanged. This result therefore precluded the participation of CuI in the cyclization reaction. Finally, the reaction of 5m with a catalytic amount of AuBr3 also afforded a clean conversion to product 6m , which suggested that our gold-based methodology was indeed applicable to cyclooctyl systems.

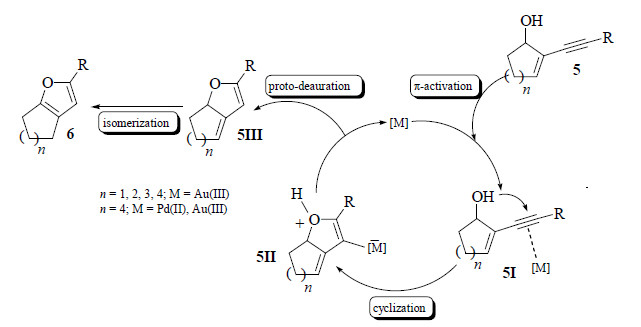

Based on these results, we proposed a mechanism for the formation of fused furans, which is shown in Scheme 4. Thus, the initial coordination of the soft Lewis acidic metal [M] to alkyne 5 would lead to π-complex 5I . The increased electrophilicity of the alkyne would allow for the nucleophilic attack of the adjoining hydroxyl group to give the cyclized intermediate 5II . The subsequent proto-deauration of 5II would results in the formation of 5III , which would undergo an isomerization reaction to produce the fused furan 6 .

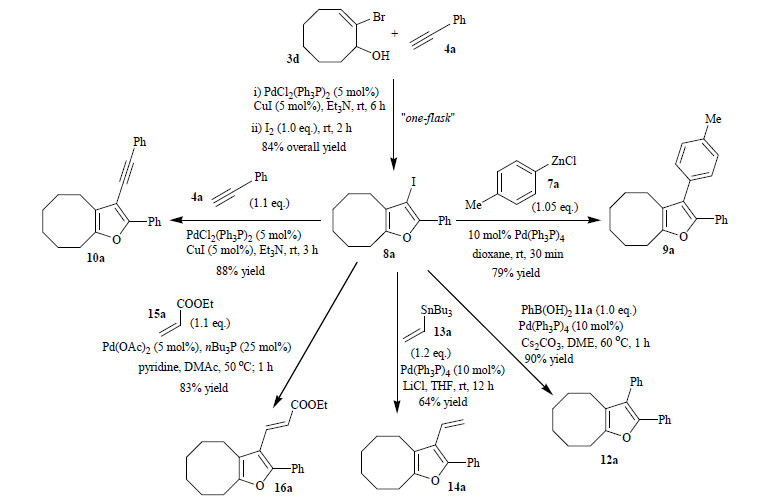

At this stage in the study, we decided to delineate the scope of our chemistry through a series of synthetic elaborations. Keeping in mind the versatility of the iodide functionality in organometallic transformations, we attempted the one-pot synthesis of 3-iodofuran 8a (Scheme 5). Pleasingly, this sequential process provided the desired iodide 8a in 84% yield. The subsequent Negishi coupling reaction of compound 8a with the arylzinc reagent 7a in the presence of 10 mol% Pd(Ph3P)4 allowed for the introduction of an aryl group, with the tetra-substituted furan product 9a being isolated in 79% yield [83, 84]. Furthermore, the Sonogashira reaction of 8a with phenylacetylene ( 4a ) provided the functionalized alkyne 10a in 88% yield [69]. The Suzuki-Miyaura coupling reaction of 8a with phenylboronic acid 11a afforded the 2,3-diphenyl substituted furan 12a in 90% yield [85]. Lastly, compound 8a also underwent Stille and Heck coupling reactions with tributyl(vinyl)tin ( 13a ) and ethylacrylate ( 15a ), respectively, to give the corresponding 3-vinyl derivatives 14a and 16a in moderate to good yields [86, 87].

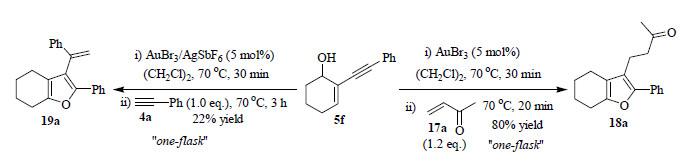

Having demonstrated the catalytic application of this newly developed palladium-catalyzed tandem process, we turned our attention back towards the possibility of using AuBr3 to facilitate other interesting one-pot procedures with particular emphasis on Michael- [88] and Friedel-Crafts-type reactions [89] (Scheme 6). For example, the cyclization of substrate 5f under the optimized conditions followed by the in situ addition of methyl vinyl ketone 17a resulted in the formation of the Michael adduct 18a in 80% yield. Furthermore, the tandem Friedel-Crafts alkenylation of 5f with phenylacetylene ( 4a ) in the presence of a silver co-catalyst resulted in product 19a bearing a C=C bond, albeit in a low yield of 22%. It is noteworthy, however, that this reaction proceeded regioselectively, with the addition only occurring at the internal carbon of alkyne 4a , as indicated by NMR analysis of the crude mixture. This observation was consistent with those of previous studies, in that the Au π-acid drove the addition of an arene/heteroarene to the internal carbon of the terminal acetylene [89].

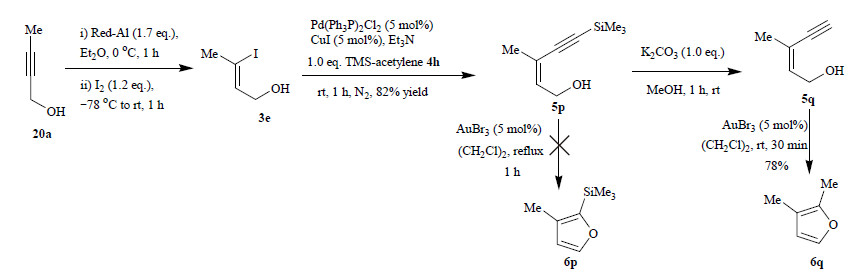

Finally, we were intrigued by the prospect of applying this methodology to acyclic acetylenic alcohols for the synthesis of non-fused furan rings (see Scheme 7). The requisite (Z)-iodoallylic alcohol 3e was prepared by the reaction of commercially available butyn-1-ol ( 20a ) with Red-Al [NaAlH2(OCH2CH2OMe)2], followed by quenching of the resulting carbanion with I2 [90]. Subsequent Sonogashira coupling of 3e with ethynyltrimethylsilane 4h gave alkyne 5p [91]. Disappointingly, the reaction of silylated alkyne 5p under our validated conditions did not provide the expected product 6p , even under reflux conditions. This result was attributed to the reduced aurophilicity of alkyne 5p as a result of the deactivating effect of the silyl group. However, substrate 5q bearing an unsubstituted terminal alkyne underwent a 5-exo-dig cyclization exclusively to give furan 6q as the only product. The regioselectivity of this reaction was attributed to the greater electrophilicity of the remote sp-hybridized carbon of the alkyne.
The use of AuBr3 as a catalyst allowed for the smooth and effective cycloisomerization of 2-alkynylcycloalk-2-enols to give the corresponding cycloalkyl-fused furans. A detailed study of this methodology as a synthetic strategy for the formation of a diverse range of furan derivatives has also been provided in terms of its scope and limitations towards ring-free substrates. We also observed the in situ cross-coupling/cycloisomerization of α-bromocyclooct-2-enols with terminal alkynes under Sonogashira conditions and showed that Pd(II) was the active catalytic species involved in this process. This methodology was also applied to a series of tandem processes, which provided access to a wide range of functionalized furan molecules. Given that most of these substrates are commercially available or synthetically accessible this new method could be used for the synthesis of furan-based libraries for detailed SAR studies in medicinal chemistry. Further studies towards identifying new applications for this process to generate furan-based chemical libraries of potential pharmacological interest are currently underway.
C. Praveen acknowledges the Department of Science and Technology for providing INSPIRE faculty award. C. Praveen also thanks Dr. Vijayamohanan K. Pillai and Dr. D. Jeyakumar of CSIR-CECRI for providing infrastructure facilities.
