The amount of scrap tires is increasing significantly as a result of rapid economic growth and development of the transport industry. According to statistics ^{[1, 2]}, approximately 3.0 billion tires are generated globally, with a predicted growth rate of at least 1.0 billion tires each year. North America, Europe, and Asia generate a large number of scrap tires, accounting for almost 90% of global tire production. In China, more than 280 million tires were discarded in 2012, with a weight of 10.18 million tons. Scrap tires are insoluble and infusible thermosetting materials and are therefore difficult to degrade naturally. A lack of suitable techniques and economic factors had resulted in scrap tires becoming a serious problem in terms of environmental pollution. At present, the majority of scrap tires is deposited in open or landfill sites; this results in disposal problems and increases the risk of fires. Various recycling methods have been developed over the years, such as retreading, incineration, and crumbling to produce rubber powder, but they all have significant limitations or drawbacks.

Pyrolysis as a viable recycling process has potential advantages in terms of energy recovery and could mitigate the disposal problem ^[3]. The products of pyrolytic degradation of scrap tires could be reused as high-calorific-value gas to meet the energy requirements of processing plants, oil for boiler fuel, or high-value-added chemical feedstocks; the char formed could be used as low-grade activated carbon or carbon black. It has been proved that the derived oil is more suitable for making high-value-added chemicals than for use as fuel, because it contains large amounts of single-ring aromatics. Several workers have shown that the derived oil contains variable concentrations of valuable aromatic and aliphatic compounds such as butadiene, d-limonene, benzene, toluene, and xylenes, which could be used directly as substitutes for conventional fuels or petrochemical feedstocks as a potential source of light aromatics ^[8]. San Miguel et al. ^{[9, 10]} reported an increase in the yield of BTX aromatics, based on results obtained by incorporating in situ zeolites in the sample container of a thermobalance. This indicates that Diels-Alder dehydrogenation of alkanes to alkenes occurs, followed by cyclization and aromatization. This mechanism suggests that the steric and acidic properties of catalysts can be used to accelerate cyclization and aromatization reactions to increase the polyaromatic hydrocarbon content of the derived oil. Some researchers have found that the catalytic conversion of waste polymers in fixed-bed and semi-continuous fluidized-bed reactors significantly increases the concentration of single-ring aromatic species in the oil fraction ^[17]. Catalysts with strong acid sites and large pores, such as Y catalysts, produce more aromatics than are produced by ZSM-5 catalysts.

In this study, thermal pyrolysis of scrap tires at different temperatures and catalytic pyrolysis with various types of catalysts were performed in a nitrogen-purged stirred batch reactor. The effects of catalysts on the derived oils from scrap tires were investigated in terms of product yields, elemental compositions, simulation distillation, and hydrocarbon group composition using gas chromatography-mass spectrometry (GC-MS) analysis. Attention was principally focused on assessing methods for direct catalytic pyrolysis and studying the effects of catalysts on the reaction process and properties of the derived oil.

Sidewall rubber of automotive vehicle scrap tires ground to 20-100 mesh was supplied by a rubber-recycling company. The steel threads were removed prior to use by magnetic separation. Table 1 shows the ultimate and proximate analysis of the scrap tires. Table 2 lists the properties of the catalysts used in the work. The ZSM-5 and β catalysts were provided by the Catalyst Plant of Nankai University, Tianjin, China. The USY, ZSM-22, and SAPO-11 catalysts were supplied by the College of Chemistry and Chemical Engineering of the China University of Petroleum, Qingdao, China. The Si/Al atomic ratios of the catalysts were determined using inductively coupled plasma atomic emission spectroscopy (Leeman Prodigy XP ICP-AES spectrometer). Surface areas were determined at -196 °C using a Micromeritics ASAP 2020 nitrogen gas adsorption analyzer.

Table 1 Ultimate and proximate analysis of feedstock. Method Material Content (wt%) Ultimate analysis C 83.34 H 6.56 S 1.33 N 0.79 O 2.78 Proximate analysis Ash 4.20 Volatile matter 63.04 Fixed carbon 32.00 Moisture 0.76

Table 1 Ultimate and proximate analysis of feedstock.

Table 2 Physical properties of catalysts. Catalyst Si/Al SBET (m2/g) Micropore size (Å) ZSM-5 30 541 5.6 USY 5.4 432.5 7.8 β 73 524 6.5 ZSM-22 58 350 5.6 SAPO-11 4 186 6.7

Table 2 Physical properties of catalysts.

The experiments were performed in a 1000-mL static stirred batch stainless-steel reactor, using 150 g of scrap tires and 1.5 g of catalyst (Fig. 1). The reactor was heated externally with an electric heating jacket to the desired temperature at a heating rate 15 °C/min, and the temperature was held for 30 min until no liquid was produced. N₂ (400 mL/min) was used as the purging gas to carry volatile matter away from the hot zone and downward into a first condenser, which was cooled with ice-water mixtures, and then into a second water-cooled condenser, which was used to condense out the heavy and light fractions. The non-condensable gases were collected in sample bags for off-line GC analysis. Trace water and particles were removed from the liquid sample prior to analysis.

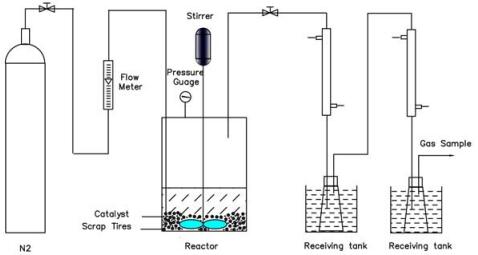

Fig. 1. Schematic diagram of the scrap tire pyrolysis system.

The oil condensed in the oil-receiving tank was weighed directly, and the char left in the bottom of the reactor was collected and weighed by subtracting the weight of the catalyst. The weight of the gas products was calculated as the difference between the loaded amount of scrap tires minus the weights of derived oil and char after the end of each experiment. The yields of derived oil, char, and gas were then calculated.

The derived oils were analyzed with a GC-simulated distillation apparatus (Agilent 7890B) using standard method ASTM 2887 to obtain boiling range data. The data are as follows: gasoline fraction, initial boiling point to 180 °C, diesel fraction 180-350 °C and heavy oil 350 °C to final boiling point. In the experiment, the total gasoline and diesel fractions were defined as light oil.

The elemental composition, i.e., H, C, and N contents of the derived oil, was determined using an elemental analyzer (AJ13-std-EA5000). The S content was obtained based on ultraviolet fluorescence (Shimadzu UV-2700) according to the ASTM D5453 method, and the O content was calculated by difference.

The chemical groups in the derived oil were identified using GC-MS (Agilent 7890). The analysis was performed using a Thermo Fisher ITO 1100 GC-MS system at an ionizing energy of 70 eV. The evolved species were identified based on their mass spectra in the National Institute of Standards and Technology MS library and by comparing their elution times with those of pure commercial compounds.

Scrap tires are composed of carbon atoms linked by single or double bonds to form a three-dimensional structure with a bulk mass; they are very difficult to degrade and handle because of the degradation-inhibiting fillers used in tire manufacturing. Pyrolysis, which is a thermochemical process, can transform scrap tires into high-value chemical products and increase their reuse value.

The effect of temperature, a key factor in scrap tire pyrolysis, was investigated. Figure 2 shows the effect of temperature on the product distribution for scrap tire pyrolysis. The reaction temperature significantly affected the product distribution. As the temperature increased from 430 to 500 °C, the gas yield decreased from 8.00 to 4.50 wt%. The highest yield of char was 48.67 wt% at 430 °C, which implies that pyrolysis was incomplete at low temperatures. The char yield gradually decreased to 40.0 wt% as the temperature rose to 470 °C, and then remained constant above 470 °C. The yield of derived oil was 43.33 wt% at 430 °C and increased significantly to 53.5 wt% at 470 °C and 55.5 wt% at 500 °C. The best results were achieved at 500 °C with yields of gas, derived oil, and char of 4.50, 55.5, and 40.0 wt%, respectively. This is consistent with previous reports that the maximum amount of pyrolytic oil was obtained in the range 400-550 °C ^[18]. Berrueco et al. ^{[19, 20]} obtained a maximum liquid yield at 500 °C. Laresgoiti et al. ^[21] studied the pyrolysis of scrap tires in the range 300-700 °C and found that increasing temperature above 500 °C had almost no effect on the pyrolysis reaction.

Fig. 2. Effect of pyrolysis temperature on product distribution.

The use of a catalyst generally promotes the pyrolysis of scrap tires and improves the yields or upgrades the properties of the products to obtain desired chemicals for specific applications. It also increases the reaction rate and shortens the reaction time.

Table 3 shows the product distributions for catalytic and thermal pyrolysis at 500 °C. The catalysts had a limited effect on the yield of derived oil, whereas the gas yield increased and that of char decreased significantly. The yields of gas, derived oil, and char were 4.50, 55.5, and 40.0 wt%, respectively, for thermal pyrolysis. However, for catalytic pyrolysis, the gas yield increased to 6.17-10.45 wt%, twice that of thermal pyrolysis, and the char yield decreased to 34.43-38.71 wt%. A reasonable explanation is that catalytic pyrolysis may involve two stages. First, at low temperatures, the scrap tire powder is liquefied to give a mixture of liquid hydrocarbons and solid carbon black, with only a little degradation of lower-boiling-point components. Second, as the reaction temperature gradually increases, the liquid hydrocarbons come into contact with active sites on the catalyst and react quickly, shortening the overall reaction time. As a result, condensation of coke on the surfaces of carbon black and the catalyst is inhibited. Therefore, although addition of a catalyst during pyrolysis does not significantly increase the yield of derived oil, it promotes the deep transformation of scrap tires into organic hydrocarbons in a shorter reaction time.

Table 3 Product distributions (wt%) for catalytic and thermal pyrolysis. Catalyst Gas Derived oil Char ZSM-5 6.49 55.65 37.86 USY 9.97 53.49 36.54 β 8.24 54.00 37.76 SAPO-11 10.45 55.12 34.43 ZSM-22 6.17 55.12 38.71 None 4.50 55.50 40.00

Table 3 Product distributions (wt%) for catalytic and thermal pyrolysis.

The SAPO-11 catalyst gave the highest yield of gas, 10.45 wt% and the lowest yield of char 34.43 wt%. This proves that the scrap tires were completely converted and formed less carbonaceous coke, approximately 2.5 wt%, compared with the amount of fixed carbon, 32 wt%, in scrap tire compounds. However, the highest yield of derived oil, 55.65 wt%, was obtained with the ZSM-5 catalyst, with a gas yield of 6.49 wt%. The order of the gas yields obtained with different catalysts was SAPO-11 > USY > β > ZSM-5 > ZSM-22 > no catalyst. The order of the oil yields was ZSM-5 > no catalyst > SAPO-11 = ZSM-22 > β > USY. The order of the char yields was no catalyst > ZSM-22 > ZSM-5 > β > USY > SAPO-11. These results reflect the effects of the catalyst on scrap tire pyrolysis: catalysts with high surface areas and strong acidity accelerate the conversion of scrap tires and produce much more low-molecular hydrocarbons. Research on the catalytic conversion of polyolefin plastics to petrochemical feedstock has shown that acidic catalysts significantly increase the amounts of gaseous hydrocarbons produced ^[22].

In the presence of a catalyst, the oil derived from catalytic pyrolysis is brown, with a low viscosity and good fluidity; this implies that the oil has a relatively high content of light fraction. In the absence of a catalyst, the oil obtained from the thermal process is dark brown, with a higher viscosity. Table 4 presents the elemental analysis results for the derived oils obtained from catalytic and thermal pyrolysis.

Table 4 Elemental analysis results (wt%) for derived oils obtained from catalytic and thermal pyrolysis. Catalyst C H S N O H/C ZSM-5 86.333 11.214 0.341 0.786 1.327 1.559 USY 85.801 11.431 0.535 0.990 1.243 1.599 β 84.134 11.155 0.381 0.833 3.497 1.591 SAPO-11 84.115 11.118 0.393 0.845 3.529 1.586 ZSM-22 84.755 11.666 0.547 1.028 2.003 1.652 None 85.202 10.164 0.602 0.830 3.401 1.432

Table 4 Elemental analysis results (wt%) for derived oils obtained from catalytic and thermal pyrolysis.

The H, O, and S contents of the oil derived from thermal pyrolysis were 10.164, 3.401, and 0.602 wt%, respectively. The presence of 1.0 wt% catalyst clearly improved the quality of the derived oil. For example, the addition of a ZSM-5 catalyst increased the H, S, and O contents to 11.214, 0.341, and 1.327 wt%, respectively. The derived oils had low S contents of 0.3-0.57 wt% and high N contents of 0.7-1.0 wt% in the presence and absence of catalysts, respectively, in contrast to other reported results. López et al. ^[23] studied the properties of oils derived from the pyrolysis of granulated scrap tires at moderate temperature 550 °C in a pilot distillation unit. They found that the derived oil had a lower S and N contents of 0.4 wt% and 0.6 wt%, respectively. Some researchers have reported that the S concentration in the oil ranges from 0.9 to 1.4 wt%. The results can be attributed to catalytic reactions of the primary pyrolysis products of scrap tires, which accelerate C-S, C-N, and C-O bond cleavage on the surface acid sites of the catalysts; this removes heteroatoms in the derived oils. In addition, zinc oxide acts as an accelerant, which can control the vulcanization process and enhance the physical properties of the rubber and the desulfurization reaction. Some research has indicated that zinc oxide promotes the hydrogenation of thiophene rings to generate hydrocarbon sulfides, which can produce stable zinc sulfide, significantly decreasing the S content.

The derived oil was separated from the product mixture after each pyrolysis using a solid-liquid separation method. The derived oil was analyzed using a GC simulation distillation apparatus.

Figure 3 shows the distillation data for the derived oils obtained from catalytic and thermal pyrolysis. Their boiling points ranged between 27 and 520 °C; this is a much wider range than that of previously reported data (70-400 °C). The results show that the gasoline fraction accounted for 23-38 wt%, the diesel fraction for 35-38 wt%, and the heavy oil fraction for 1.0-3.0 wt%. However, the derived oil from thermal pyrolysis had a lower gasoline fraction, 20.0 wt% and higher diesel fraction, 37.4 wt%. The catalyst significantly affects the conversion of primary products to light hydrocarbons, but acidic and sterically bulky catalysts promote the cracking of large molecules to small molecules, and this increases the gasoline fraction at the expense of the diesel fraction. Additionally, close inspection of the distillation-temperature curves for all the catalysts (Fig. 3) shows that ZSM-22 gave 60.0 wt% light-fraction oil and 30-35 wt% middle-fraction oil, but for the other catalysts (ZSM-5, USY, β, and SAPO-11), the values were 70-75 and 25-27 wt%, respectively. This might be because of the weak-medium acidity and smaller pore size of ZSM-22.

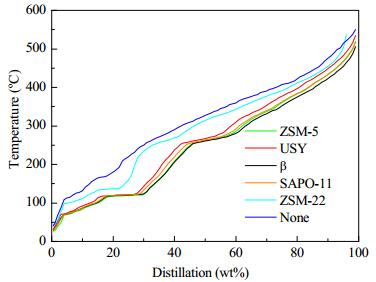

Fig. 3. Distillation data for derived oils obtained from catalytic and thermal pyrolysis.

The derived oil can be directly used as boiler fuel or heating oil after separation, purification, and hydrotreatment. Murillo et al. ^[24] showed a process for separation of valuable gas and liquid fraction from the volatiles released in scrap tire pyrolysis by using commercial process simulation software. Five streams were obtained and characteristics by comparing its different boiling points with commercial fuels. The first stream (7.4 wt%) showed similar characteristics with light naphtha (boiling point range 61.5-107.5 °C). The second stream (22.37 wt%) was comparable to commercial naphtha (146.4-199.5 °C). The third stream (15.18 wt%) coincided with No. 1 fuel oil regarding boiling point range, flash point, and S content. The last two fractions were classified as heavy gas oil according to their boiling point (305.1-363.3 °C and 335.3-374.4 °C, respectively). Conventional diesel fuels have a cetane number between 40 and 55 while scrap tire liquid has showed value between 40 and 44 ^[25]. In addition, the octane number of the obtained naphtha was higher than that of petroleum naphtha. The light fraction was suitable as a gasoline additive, the middle fraction could be used as a plasticizer for reducing the cure times of rubbers, and the heavy fraction had potential applications in coke production and road materials.

The derived oils are complex mixtures, consisting of a wide variety of aliphatic, aromatic, and polar compounds; this reflects the tire compositions, organic additives, and tire pyrolysis products. Scrap tires consist of natural rubber and synthetic rubber, which are derived from petroleum products such as butyl rubber and styrene-butadiene rubber. Rubber decomposition involves breakage of the C-C bonds in the polymer network structure and production of reactive free radicals, which can participate in reactions such as isomerization, dehydrogenation, aromatization, and condensation. As a result, the derived oils not only have a wide distillation range, but also display the features of higher single-ring aromatic and polycyclic aromatic hydrocarbon species ^[18]. It is therefore essential to acquire more detailed information on the compositions of the derived oils using GC-MS analysis.

The alkanes and aromatic compounds in the derived oils obtained from catalytic and thermal pyrolysis at 500 °C are listed in Table 5. The results show that the oils contained mainly alkanes, single-ring aromatics, and double-ring aromatics, with much less three-ring aromatics in the oil fraction (distilled up to 350 °C). The results also show that the catalysts had a significant effect on the product composition, by promoting isomerization, cyclization, and aromatization of the primary products, which are the main sub-units of the original rubber molecules, and decreasing the amount of straight-chain alkenes; the content of straight-chain alkanes was 3.5 wt% for thermal pyrolysis. This can be explained by conversion of the straight-chain alkanes to cycloalkanes or aromatics via cyclization and aromatization reactions at the acidic sites, and the shape selectivities of the catalysts. The pyrolysis of polyethylene without a catalyst generates n-alkanes and n-alkenes ^[1]. The ZSM-22 catalyst has weak-medium acidity and low activity in both isomerization and aromatization; this led to a higher alkane content, 57.3 wt%. However, the catalysts with medium-strong acidities (such as ZSM-5, USY, β, and SAPO-11) enhance cyclization and dehydrogenation to form aromatics species, therefore the alkane contents were lower than that obtained with ZSM-22.

Table 5 GC-MS analysis (wt%) of derived oils obtained from catalytic and thermal pyrolysis. Catalyst Alkanes Alkylbenzenes Indans Indenes Single ring aromatics Naphthalene Naphthalenes Acenaphthenes Acenaphthylenes Double ring aromatics Three ring aromatics Total aromatics ZSM-5 49.7 33.3 5.1 7.4 45.8 0.4 2.5 1.1 0.3 4.3 0.2 50.3 USY 51.1 35.8 3.0 6.6 45.4 0.3 2.0 1.0 0.1 3.4 0.1 48.9 β 49.9 39.8 2.0 4.9 46.7 0.2 1.8 1.0 0.3 3.3 0.1 50.1 SAPO-11 51.5 42.5 0.7 3.6 46.8 0.0 0.9 0.6 0.0 1.5 0.2 48.5 ZSM-22 57.3 34.1 1.8 3.2 39.1 0.5 2.4 0.6 0.0 3.5 0.1 42.7 None 52.9 34.4 0.4 5.7 40.5 0.3 4.0 2.2 0.1 6.6 0.0 47.1

Table 5 GC-MS analysis (wt%) of derived oils obtained from catalytic and thermal pyrolysis.

The acidity and size of the catalyst can affect the conversion of alkanes to aromatic hydrocarbons, therefore the aromatics were analyzed in detail. Again, because of the properties of ZSM-22 mentioned above, the derived oil obtained using this catalyst gave the lowest content of single-ring aromatics (39.1 wt%). The β and SAPO-11 catalysts gave the best experimental results; they have medium-strong acidities and large pores, and therefore gave the highest contents of alkylbenzenes, i.e., 39.8 wt% and 42.5 wt%, respectively; USY, ZSM-22, ZSM-5, and thermal pyrolysis gave similar aromatic contents. Laresgoiti et al. ^[2] performed pyrolysis under nitrogen in a 3.5-dm³ autoclave at 300-700 °C. They found that the derived oils from scrap tire pyrolysis were a complex mixture of C₆-C₂₄ organic compounds with aromatic contents of 53.4-74.8 wt%. The amounts of double-ring aromatic compounds in the derived oils were lower in the presence of catalysts than without catalysts. This is because the catalyst can trigger side-chain cleavage reactions on the catalyst surface, leading to a decrease in the amount of double-ring aromatics.

The thermal and catalytic pyrolysis of scrap tires using different types of catalysts was investigated. Compared with the thermal process, the addition of a catalyst increased the reaction rate, shortened the reaction time, increased the conversion of scrap tires, decreased the char yield, and increased the gas yield; the yield of derived oil was unchanged or a little lower. Catalytic pyrolysis gave better-quality derived oils with higher light oil yields (approximately 70-75 wt%), H/C ratios (1.55-1.65), and lower contents of S (0.3-0.58 wt%) and N (0.78-1.0 wt%). The acidity and pore size of the catalyst affected the chemical composition of the derived oil. In the presence of ZSM-5, USY, β, and SAPO-11, the total amounts of aromatic compounds in the derived oils were significantly higher, up to 50.0 wt%, and the contents of single-ring aromatics reached 45 wt%.
