Isoproterenol (ISPR, isoprenaline) is a catecholamine-based drug that is widely used in asthmatic therapy, allergic emergencies, bronchial asthma, ventricular bradycardia, cardiac arrest, glaucoma, and as a styptic. ISPR under the brand name Isuprel in ampoule form is used to treat asthma, chronic bronchitis, and emphysema ^[1]. The cardiovascular effects of ISPR are similar to those of adrenaline and noradrenaline, which can relax almost any type of smooth muscle that contains adrenergic nerves. Adjusting the dose of medications by rapid determination of their concentration in biological fluids is very important. Hence, accurately determining their concentration is important. Analysis of catecholamine drugs in biological fluids, where they are found at relatively low concentrations, generally requires the use of selective and highly sensitive techniques with high detectability, such as high performance liquid chromatography with fluorometric ^[2] and/or with electrochemical ^{[3, 4]} detection. Voltammetric systems for detecting drug and biological samples are cheap and sensitive techniques because they are widely used to analyze electroactive materials ^{[5, 6, 7, 8, 9, 10]}. Electrochemical-based methods are fast, sensitive, selective, and simple methods for determining important electroactive materials in pharmaceutical and biological samples ^{[11, 12, 13, 14, 15, 16, 17, 18, 19, 20]}.

Modifying electrode substrates with nanomaterials such as graphene, metal oxide nanoparticles, metal-based nanoparticles, and carbon nanotubes (CNTs) for use in analytical sensing has been reported to result in low detection limits, a high linear dynamic range, high sensitivity, good selectivity, and the reduction of overpotentials ^{[21, 22, 23, 24, 25, 26, 27, 28, 29, 30]}. CNTs are a class of nanomaterials that have a wide range of applications ^{[31, 32, 33, 34, 35]}.

In this study, the suitability of a pyrogallol red modified-multiwalled carbon nanotube paste electrode (PGRMMWCNTPE) for the electrocatalytic determination of ISPR was investigated using cyclic voltammetry (CV) and square-wave voltammetry (SWV). The effect of different parameters, such as electrode composition, electrolyte, pH, potential scan rate, and interference on the potential was investigated by CV. The proposed sensor was then used to determine the concentration of ISPR in pharmaceutical and biological samples.

For all of the electrochemical investigation, we used a potentiostat/galvanostat (Autolab PGSTAT 302N, the Netherlands) connected to a three-electrode cell (663 VA Stand, Metrohm, Herisau, Switzerland) linked to a computer (Pentium IV, 1200 MHz) with Autolab software. A platinum wire was used as the auxiliary electrode. The PGRMMWCNTPE and a Ag/AgCl/KCl_sat electrode were used as the working and reference electrodes, respectively. The electrode prepared with CNTs was characterized by scanning electron microscopy (SEM, AIS 2100, Seron Technologies).

Figure 1 shows the typical morphologies of the carbon paste electrode (CPE) and the PGRMMWCNTPE characterized by SEM. As shown in Fig. 1(b), the mediator (pyrogallol red, PGR) is distributed on the surface of the modified electrode and the morphology of the modified electrode remains unchanged. This indicates that PGR and multiwall CNTs (MWCNTs) almost homogeneously distribute on the surface of the carbon paste matrix, which exhibits a unique three-dimensional structure.

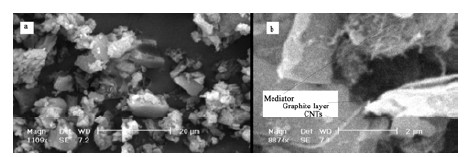

Fig. 1. SEM images of (a) the CPE and (b) the PGRMMWCNTPE.

The electrochemical behavior of the modified electrode was investigated by CV in phosphate buffer solution (PBS, pH 7.0). The experimental results show well-defined and reproducible anodic and cathodic peaks related to the PGR_(Red)/PGR_(Ox) redox couple with quasi-reversible behavior and peak separation of ΔE_p = E_pa − E_pc = 180 mV. These cyclic voltammograms were used to determine the relationship between the anodic peak current (I_pa) and the square root of the potential scan rate (ν^1/2) (Fig. 2). From Fig. 2, I_pa is linearly dependent on ν^1/2 with a correlation coefficient of R² = 0.9996. This indicates that the redox system shows Nernstian behavior.

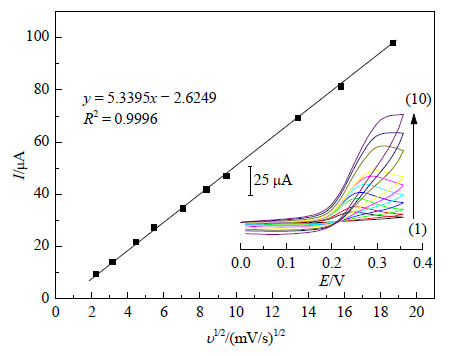

Fig. 2. Plot of Ipa versus ν1/2 for the oxidation of ISPR by the PGRMMWCNTPE. The inset shows cyclic voltammograms for various scan rates of 5 (1), 10 (2), 20 (3), 30 (4), 50 (5), 70 (6), 90 (7), 180 (8), 250 (9), and 350 mV/s (10) in 0.1 mol/L PBS (pH 7.0).

One important objective of the present study was to develop a modified sensor capable of electrocatalytic oxidation of ISPR. We obtained the cyclic voltammetric responses for the electrochemical oxidation of 500 μmol/L ISPR at the PGRMMWCNTPE (Fig. 3) and at the PRG-modified CPE (PGRCPE). In Fig. 3, curves (4) and (5) are the same as curves (3) and (2) but without the mediator.

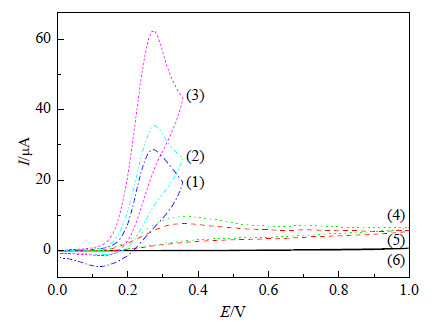

Fig. 3. Cyclic voltammograms of PBS at the PGRMMWCNTPE (1), 500 μmol/L ISPR at the PGRCPE (2), PGRMMWCNTPE (3), CNPE (4), and CPE (5), and PBS at the CNPE (6). Conditions: 0.1 mol/L PBS (pH 7.0) and scan rate 20 mV/s.

These results show that the sensor produces a large anodic peak current in the presence of ISPR without a cathodic counterpart (Fig. 3, curves (3) and (2)). Curve (1) shows the cyclic voltammogram of the PGRMMWCNTPE in PBS (pH 7.0). The current observed is associated with ISPR oxidation and not oxidation of the modifier, which was determined by comparing the current in the presence and absence of ISPR. At the surface of the MWCNT paste electrode (MWCNTPE) and the CPE without mediator, ISPR was oxidized at around 357 mV. The electroactivity of ISPR on the PGRMMWCNTPE and the PGRCPE was significant (Fig. 3) with a strongly defined peak potential at around 277 mV (vs. Ag/AgCl/KCl_sat). Thus, a decrease in the overpotential and enhancement of the peak current for ISPR oxidation were achieved with the PGRMMWCNTPE and the PGRCPE.

When we compared the oxidation of ISPR at the surfaces of the PGRMMWCNTPE and the PGRCPE, a dramatic enhancement of the anodic peak current occurred at the PGRMMWCNTPE compared with the value obtained with the PGRCPE. In other words, the data clearly show that the combination of the MWCNTPE and the mediator definitely improves the characteristics of the electrode for the oxidation of ISPR. The process corresponds to an EC′ (catalytic) mechanism (Scheme 1), where the electrochemically formed PGR_(Ox) chemically reacts with ISPR that diffused toward the electrode surface, while the simultaneous oxidation of the regenerated PGR_(Red) causes an increase in the anodic current. For the same reason, the cathodic current of the modified electrode is smaller in the presence of ISPR.

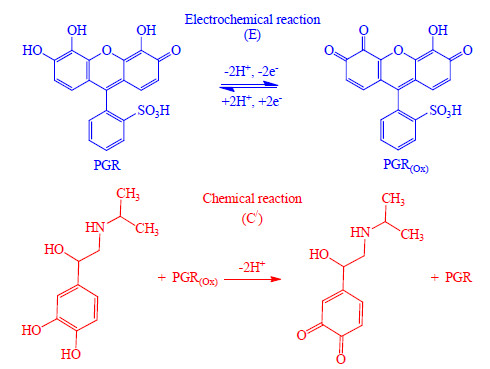

Scheme 1. Electrocatalytic mechanism for determining ISPR at the surface of the PGRMMWCNTPE.

In the scan rate investigation, the peak current for ISPR oxidation at the surface of the PGRMMWCNTPE was proportional to the square root of the scan rate (ν^1/2) (Fig. 4). This result clearly indicates a diffusion-controlled electro-oxidative process.

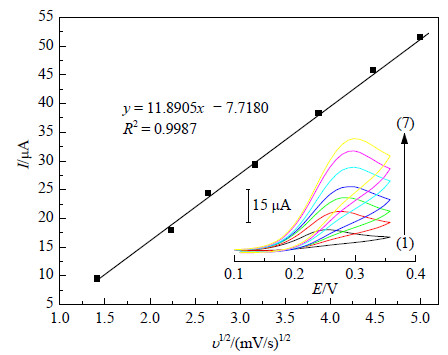

Fig. 4. Plot of Ipa versus ν1/2 for the oxidation of 300 µmol/L ISPR at the surface of the PGRMMWCNTPE. The inset shows cyclic voltammograms of 300 µmol/L ISPR at the PGRMMWCNTPE for various scan rates of 2 (1), 5 (2), 7 (3), 10 (4), 15 (5), 20 (6), and 25 mV/s (7) in 0.1 mol/L PBS (pH 7.0).

To obtain information about the rate-determining step, a Tafel plot was constructed for ISPR oxidation at the PGRMMWCNTPE using the data derived from the increasing part of the current-voltage curve (Fig. 5). The slope of the Tafel plot is n(1−α)F/2.3RT, which is equal to 8.5523 V⁻¹ decade. This gives nα = 0.49. Assuming that n = 1 then α = 0.49.

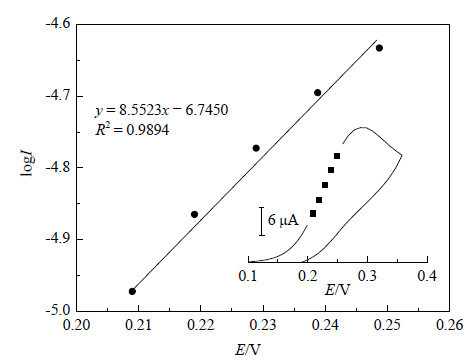

Fig. 5. Tafel plot for the PGRMMWCNTPE in 0.1 mol/L PBS (pH 7.0) with a scan rate of 10 mV/s in the presence of 300 μmol/L ISPR. The inset shows the cyclic voltammograms (at 10 mV/s) obtained with the PGRMMWCNTPE in 0.1 mol/L PBS (pH 7.0).

Double potential step chronoamperometry was used with the PGRMMWCNTPE to determine the diffusion coefficient of ISPR in aqueous solution. According to the Cottrell equation, we calculated a diffusion coefficient of D = 8.73 × 10⁻⁵ cm²/s for ISPR.

We also determined the catalytic reaction rate constant k_h for ISPR using the Galus method. Based on the slope of the I_C/I_L (I_C is the catalytic current and I_L is the limited current in the absence of ISPR) versus t^1/2 plot, k_h can be obtained for a given ISPR concentration. From the values of the slopes, the average value of k_h was found to be k_h = 8.42 × 10³ mol⁻¹ L s⁻¹.

SWV was used for determining ISPR (Fig. 6, inset). There is a linear relationship between the peak current (I_p) and the ISPR concentration (C_ISPR) in the range 0.8-570 μmol/L ISPR with the regression equation of I_p (µA) = (0.0255±0.0011)C_ISPR + (22.5281±0.4122) (R² = 0.9962, n = 10) (Fig. 6).

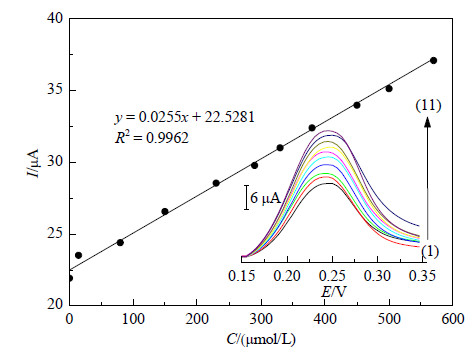

Fig. 6. Plot of the electrocatalytic peak current as a function of ISPR concentration. The inset shows square-wave voltammograms of the PGRMMWCNTPE in 0.1 mol/L PBS (pH 7.0) containing different concentrations of ISPR, from (1) to (11), 0.8, 15, 80, 150, 230, 290, 330, 380, 450, 500, and 570.0 μmol/L ISPR.

The detection limit was determined to be 0.47 μmol/L ISPR according to the definition of the limit of detection (LOD) = 3s_b/m, where s_b is the standard deviation of the blank signal (n = 10) and m is the slope of the calibration.

The influence of various substances on determination of ISPR was investigated with 5.0 μmol/L ISPR. We found that only 250 μmol/L thiourea and 5.0 μmol/L ascorbic acid interfere with the determination of ISPR. Although ascorbic acid shows interference, interference from ascorbic acid can be minimized by using an ascorbic oxidase enzyme, which shows high selectivity for oxidation of ascorbic acid. We found that other compounds, such as glucose, fructose, lactose, sucrose, glycine, and methionine, do not significantly interfere with determination of ISPR at a surface of the modified electrode. Additionally, saturated starch solution and 2 mmol/L uric acid did not interfere with the determination of ISPR.

To evaluate the electroanalytical applicability of the proposed sensor, it was applied to the determination of ISPR in urine and ampoule samples. The results for determination of ISPR in the real samples are given in Table 1.

Table 1 Determination of isoproterenol in real samples using the proposed sensor and the results of a previously published method. ttab tex Ftab Fex Published method (μmol/L) Detected (μmol/L) Expected (μmol/L) Added (μmol/L) Sample — — — — — <LOD <LOD — Urine 3.8 2.1 19.0 8.6 5.36 ± 0.42 5.20 ± 0.02 5.00 5.00 — — — — 15.35 ± 0.54 14.81 ± 0.68 15.00 10.00 — — — — 20.30 ± 0.05 20.30 ± 0.05 20.00 15.00 — — — — 5.11 ± 0.35 4.70 ± 0.24 Unknown — Ampoule 3.8 1.9 19.0 8.1 10.35 ± 0.41 10.30 ± 0.16 10.00 5.30

Table 1 Determination of isoproterenol in real samples using the proposed sensor and the results of a previously published method.

The results obtained for the real samples using the proposed method were statistically compared with the published results for another electrochemical sensor ^[36] using the Student’s t test (for accuracy) and the variance ratio F test (for precision) at the 95% confidence level. Clearly, the modified electrode is capable of voltammetric determination of ISPR with high selectivity and good reproducibility.

We report a carbon paste electrode chemically modified with PGR and MWCNTs as a modifier for determining ISPR in aqueous solution. This sensor is simple to prepare and surface renewal is easy. The electrochemical behavior of the mediator was investigated by CV and chronoamperometry in both the absence and presence of ISPR at pH 7.0, which is the optimum pH for analysis. The catalytic peak current obtained by SWV is linearly dependent on the ISPR concentration with a minimum ISPR concentration of 0.80 μmol/L. The current sensitivity, low detection limit, and high selectivity of the PGRMMWCNTPE indicate that the sensor shows potential for the determining ISPR in pharmaceutical and biological samples.

The authors wish to thank Majlesi Branch, Islamic Azad University, for their support.
