The biological catalyst lipase (glycerol ester hydrolases E.C. 3.1.1.3) is widely used in the production of biofuels, organic synthetic compounds, detergents, perfumes, cosmetics, leather, enantiopure pharmaceuticals, medical diagnostics, food and feeds ^{[1, 2]}. Aspergillus niger lipase is a well known biocatalyst because of its wide application in the chemoselective, enantioselective and regioselective hydrolysis and synthesis of a broad range of non-natural esters ^[3]. However, the disadvantages of the free lipase such as poor mechanical stability, non-recyclability and difficulty in separating it from the products hinder its application in industry. To overcome these problems, techniques for the immobilization of the enzyme have been widely employed ^[4]. For the further development of the catalytic system, the ideal immobilization technique should meet the following requirements: (1) the enzyme carrier should have a high specific surface area, good biocompatibility, be easily recyclable and can bind large amounts of the active enzyme; (2) the immobilization process should be simple, rapid and facile; (3) the immobilized enzyme should exhibit good stability in the reaction system ^[5].

Magnetic iron oxide nanoparticles (MNPs) have attracted interest for their properties of biocompatibility, magnetism, high surface-to-volume ratio and low toxicity ^[6]. They have been used as an enzyme support for their high specific surface area and easy separation from the reaction mixture by an external magnet ^[7]. In most cases, the MNPs require a modification or functionalization to introduce the catalyst onto the surface.

Polydopamine, which is a polymer inspired by the composition of the adhesive protein in mussels, is one of the most commonly used biomimetic materials ^[8]. The primary advantage of polydopamine is that it can be easily deposited on virtually all types of inorganic and organic materials by the self-polymerization of its monomer dopamine ^{[9, 10, 11]}. Furthermore, many macromolecules (such as an enzyme) containing thiol or amine can be grafted on polydopamine by the Michael addition or Schiff base reaction between catechols (a moiety of polydopamine or dopamine) and amines or thiols ^[12]. Therefore, it is of interest to use polydopamine to surface modify MNPs because it can be expected that the polydopamine-coated MNPs (PD-MNPs) would be an excellent support for enzyme immobilization ^[13] due to these advantages: polydopamine exhibits good biocompatibility, the enzyme immobilization process is simple and natural ^{[14, 15]}, and the immobilized enzyme can be easily and rapidly recycled with the use of a magnet.

Dihydromyricetin (DMY), a natural aglycone flavonoid, has been found to possess bioactivities with potential beneficial effects to the human body, such as anti-inflammatory, analgesic, antitussive, expectorant, antibacterial, anti-thrombotic and anti-tumor activities ^[16]. However, DMY is poorly soluble in aqueous and nonaqueous systems, which limits its processing and application. Our research group ^[17] has reported the lipase catalytic acylation of DMY, and shown that the solubility of the product in organic solvents and lipid systems was significantly improved. However, to meet the requirements of industrial production, the reusability of the lipase needed to be improved.

In this study, MNPs were prepared and surface-modified by a polydopamine coating. The polydopamine-coated MNPs (PD-MNPs) were structurally characterized in detail. The lipase from Aspergillus niger (ANL) was immobilized on the PD-MNPs with a high activity recovery rate and protein loading. The enzymatic properties of the immobilized lipase (ANL@PD-MNPs) were investigated systematically. The ANL@PD-MNPs were used as a magnetic recyclable biocatalyst for the regioselective acylation of dihydromyricetin (DMY).

Dopamine hydrochloride was purchased from Aladdin. Ferric chloride hexahydrate (FeCl₃·6H₂O) and ferrous chloride tetrahydrate (FeCl₂·4H₂O) were obtained from Guangzhou Chemical Reagent Co. Ltd. Aspergillus niger lipase was purchased from Shenzhen Leveking Bio-Engineering Co. Ltd. (Shenzhen, China). DMY was obtained from Aladdin (Shanghai, China). Vinyl acetate (VA), used as acyl donor, was purchased from Sigma-Aldrich and TCI Co. Ltd. (Shanghai, China). All other reagents were analytical grade reagents and obtained from commercial sources.

The procedure for the preparation of MNPs was based on the conventional co-precipitation method with some modifications. In a typical experiment, 0.9 g FeCl₂·4H₂O and 2.43 g FeCl₃·6H₂O were dissolved in 300 mL deionized water under N₂ at room temperature. The pH of the solution was kept at 9.5 with 25% ammonia solution and vigorous stirring. After 1 h, the magnetite precipitate was collected by an external magnet and washed three times with deionized water. The precipitate was dispersed in Tris-HCl buffer (10 mmol/L, pH = 8.5) to MNPs of 2.7 mg/mL solution.

The MNPs suspension prepared as described above was ultrasonicated for 20 min before dopamine hydrochloride (37.5 mg, 2.5 mg/mL) was added to the MNP suspension. The pH of the solution was adjusted to 8.5 by the addition of 100 mmol/L NaOH. After vigorous stirring for 1 h, the PD-MNPs were separated by an external magnet and washed three times with deionized water and then dispersed in deionized water to PD-MNPs solution of 4.2 mg/mL.

Before immobilization, the PD-MNPs solution was ultrasonicated for 10 min. In order to immobilize Aspergillus niger lipase (ANL), the suspension of PD-MNPs was added to a buffered lipase solution. An aqueous solution of ANL (1.5 mg/mL) was prepared by dissolving the ANL powder in sodium phosphate solution (50 mmol/L, pH = 8.0). The freshly prepared PD-MNPs solution (2 mL, 4.2 mg/mL) was added to the ANL solution (1 mL, 1.5 mg/mL) at 0 ℃ in an ice bath. After stirring at 100 rpm for 12 h (at 0 ℃), the ANL-loaded precipitate was washed with deionized water and collected. The concentration of the residual ANL in the solution and the concentration of ANL in the washings were determined by the Bradford method ^[18]. The amount (m) of ANL in the prepared ANL@PD-MNPs was calculated using the following equation:

where m₀ (mg) is the mass of ANL initially added to the solution, C₁ (mg/mL) is the residual ANL concentration of the solution, V₁ (mL) is the volume of the solution, C₂ (mg/mL) is the ANL concentration of the washings, and V₂ (mL) is the volume of the washings. Finally the ANL@PD-MNPs was stored at 4 ℃.

The enzymatic activity of free and immobilized lipase was measured by the para-nitrophenyl palmitate (pNPP) assay ^[19]. The basis of this assay protocol is the colorimetric estimate of para-nitrophenol (pNP) released as a result of the enzymatic hydrolysis of pNPP at 405 nm. In brief, an amount of free lipase or immobilized lipase was dispersed in 0.6 mL of sodium phosphate solution (50 mmol/L, pH = 7.0) and subsequently mixed with 0.1 mL of 140 mmol/L para-nitrophenyl palmitate (in isopropanol) as the substrate. After 5 min of incubation at 35 ℃ with shaking at 100 rpm, the enzymatic reaction was terminated by the addition of 5.3 mL of ethanol. The free para-nitrophenol was detected spectrophotometrically at 405 nm. One unit (U) of lipase activity was defined as the amount of lipase which liberated 1 μmol of para-nitrophenol per minute under the assay conditions. The activity recovery of the immobilized enzyme was calculated as the ratio of immobilized lipase activity to that of the amount of lipase added initially.

In order to study the optimal pH and temperature for both free and immobilized lipase, their activities were measured over the pH range from 5 to 10 and temperature range from 20 to 80 ℃.

The Michaelis-Menten constant (K_m) and maximum reaction rate (V_max) of both free and immobilized lipases and reusability of the immobilized lipase were determined as described previously ^[20]. In order to determine the kinetic parameters of free and immobilized lipase, the enzymatic hydrolysis of pNPP was used as the model reaction. The initial reaction rates were determined under the optimum reaction conditions (0.063 U/mL, 35 ℃, pH = 7.0 for the free enzyme or 40 ℃, pH = 8.0 for the immobilized enzyme). The substrate concentration was varied from 20 to 180 mmol/L. The Michaelis-Menten equation was used to fit the data (initial reaction rate versus substrate concentration). The kinetic parameters (K_m and V_max) of pNPP hydrolysis with free or immobilized lipase were obtained from the fit.

To determine the pH stability and thermostability of the enzyme, ANL@PD-MNPs containing 20 μg lipase or 20 μg free lipase were incubated in sodium phosphate buffer (50 mmol/L) adjusted to various pH values (pH = 6-10 at 40 ℃) and various temperatures (40-80 ℃, pH = 7). The incubation times to test the stability of the enzyme were 12 and 8 h for the pH stability and thermostability, respectively. The residual activity of both free and immobilized lipases was determined as above.

To investigate the solvent tolerance of the free and immobilized enzymes, lipase immobilized on MNPs containing 50 U lipase or 50 U free lipase was incubated in 3 mL of solvent (acetonitrile, DMSO, ethanol or [HMIm]BF₄) at 30 ℃ for 6 h. The residual activity of the enzyme was assayed by the method described above.

The IR spectra of free ANL and ANL@PD-MNPs were obtained by the same method previously described. The FT-IR spectra were measured from 4000 to 400 cm^-1 with powder samples dispersed in a pressed KBr disc using a Tensor 37 spectrometer (Bruker, Germany) equipped with a deuterated triglycine sulfate (DTGS) detector. This equipment was controlled by the Bruker OPUS software. The subtraction of residual vapor absorption was also performed as necessary. The background spectra were recorded in the absence of the enzyme. The enzyme spectra were corrected by the subtraction of the background spectra. Curve fitting of the amide I region (1600 to 1700 cm^-1) first used smoothing with a 13-point Savitzky-Golay filter and identified using the secondary derivative. A multiple peak fitting program with a Gaussian function in the PeakFit 4.2 software (Jandel Scientific) was used to quantify the multicomponent peak areas of the protein amide I bands. The relative contents of the α-helix structure (1650-1658 cm^-1), β-sheet structure (1610-1640 cm^-1), random coil structure (1640-1650 cm^-1), and β-turn structure (1660-1700 cm^-1) based on the multicomponent peak areas were calculated according to the procedure described in the literature for the software ^[21].

During the regioselective acylation process of DMY, 60 U of free ANL or ANL@PD-MNPs was added to 2 mL of DMSO, followed by the addition of DMY and vinyl acetate to the final concentrations of 0.04 and 0.4 mmol/L, respectively. The mixture was incubated at 35 ℃ in an orbital shaking water bath (200 rpm) for up to 48 h. Aliquots were withdrawn at specific time intervals. The reaction mixture was analyzed by RP-HPLC on a 4.6 mm × 250 mm (5 μm coating thickness) Zorbax SB-C18 column (Agilent Technology Industries Co., Ltd.) using a Waters HPLC system consisting of two Waters 1525 pumps and a Waters 2489 UV detector set at 294 nm. Elution was performed with a gradient system comprising 0.1% acetic acid and 100% methanol as solvents A and B, respectively. Elution began with 28% solvent B, which was increased to 30% between 0 and 6 min, and then to 80% between 6 and 12 min, and finally returned to 28% between 12 and 13 min. The peak of DMY (which eluded at 6.68 min) was detected by HPLC. The conversion (C) of DMY was calculated by

where C₀ and C_s were the initial and terminal concentration of DMY, respectively.

To study the effect of the molar ratio of vinyl acetate to DMY on the reaction, acylation reactions were conducted in 2 mL DMSO with the addition of 60 U free ANL or ANL@PD-MNPs. The molar ratio of vinyl acetate to DMY was varied from 2.5 to 25. To investigate the effect of temperature on the reaction, acylation reactions were conducted under the same conditions as above except that the molar ratio of vinyl acetate to DMY was fixed at 1 to 10 (0.04 mmol DMY and 0.4 mmol vinyl acetate). The reaction temperature was varied between 30 and 50 ℃. To study the effect of enzyme concentration on the reaction, acylation experiments were conducted under the same conditions as above except that the temperature was fixed at 45 ℃ and the molar ratio of DMY to vinyl acetate was fixed at 1 to 10. The amount of enzyme was varied from 10 to 100 U.

The activity stability of immobilized lipase during the regioselective acylation process of DMY was studied under the same conditions as described in the previous section. After each enzyme run, the ANL@PD-MNPs were magnetically isolated and washed with hexane and ultrapure water to remove any remaining substrate and product before the next experiment. The residual activity of the immobilized lipase after each cycle was expressed as a percentage of the activity at the beginning of the experiment. All data reported in this study were averages of experiments performed at least in triplicate with no more than 3.0% experimental error.

TEM images of the MNPs and PD-MNPs are shown in Fig. 1. The MNPs were spherical with the average diameter of 10 nm (Fig. 1(a)). The fact that the MNPs were aggregated was consistent with their having a large specific surface area and high surface energy. After coating with polydopamine (polymerization time 1 h), it was clearly observed that the dark MNPs were uniformly encapsulated in the light gray polydopamine layer (Fig. 1(b)). The MNPs showed a tendency to aggregate due to the interaction between polydopamine and MNPs. The average thickness of the polydopamine coating around the edge of the MNP aggregates in the hybrid material was 4 nm. Fig. 1(c) shows a TEM image of the ANL@PD-MNPs. The mean size of the aggregates of PD-MNPs with immobilized lipase was 25 nm, which was obviously larger than that of the PD-MNPs without the enzyme. The sizes of the MNPs, PD-MNPs and ANL@PD-MNPs were also determined by dynamic light scattering (DLS). The size distribution is depicted in Fig. 1(d, e, f). The mean sizes of the MNPs, PD-MNPs and ANL@PD-MNPs were 9.6, 13.8 and 26.1 nm, respectively, which were consistent with those observed in the TEM images.

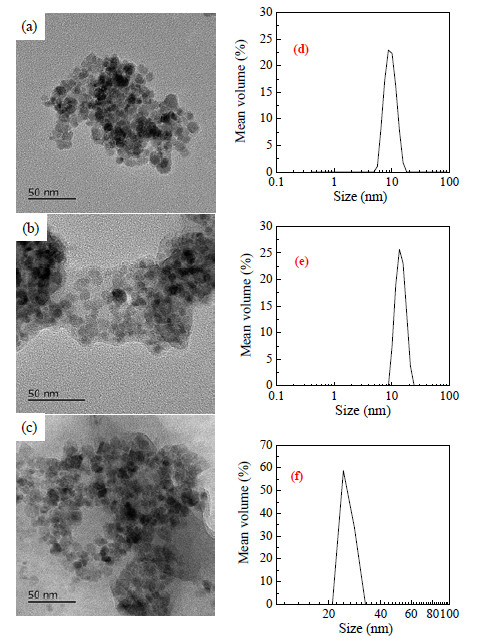

Fig. 1. TEM images and size distribution of MNPs (a, d), PD-MNPs (b, e) and ANL@PD-MNPs (c, f).

XPS was applied to investigate the chemical elements on the surface of MNPs and PD-MNPs. The energy scale was calibrated with the C 1s peak (284.8 eV). Wide scan XPS spectra for the MNPs and PD-MNPs are shown in Fig. 2(a) and (b). The characteristic peaks of Fe 2p (Fe 2p_1/2 724.38 eV, Fe 2p_3/2 710.58 eV ) and O 1s (530.08 eV) appeared in the spectrum due to Fe₃O₄. The weak peak of C 1s was attributed to the presence of impurities ^[22]. After the MNPs were coated with polydopamine, the peak of C 1s was enhanced significantly (boxed in red in Fig. 2(b)), and that of O 1s was reduced somewhat due to the high content of carbon and low content of oxygen in polydopamine. Meanwhile, the appearance of the characteristic N 1s weak peaks at the expected positions at 399.08 eV (also boxed in red in Fig. 2(b)) confirmed the presence of nitrogen contained in the polydopamine. The data in Fig. 2(b) indicated that the PD-MNPs exhibited an N/C ratio of 0.106, which is close to the N/C ratio of 0.125 (dopamine). Fig. 2(c) and (d) shows high resolution scan spectra of the C 1s and N 1s regions, respectively, of the PD-MNPs after XPS peak deconvolution and fitting. The C 1s peak contained C-C (284.8 eV), C-N (285.8 eV), C-O (286.3 eV) and C=O (287.8 eV) peaks and the N 1s region was made up of N-H (398.7 eV) and -N= (399.7 eV) peaks, which were in accordance with previously published XPS results of polydopamine ^[23]. Taken together, the XPS results demonstrated that the MNPs were successfully covered by polydopamine.

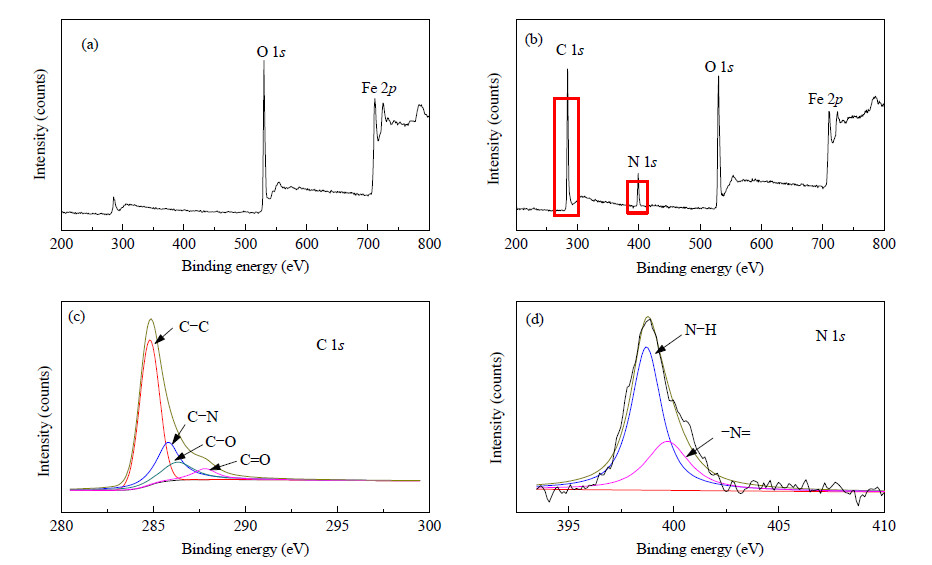

Fig. 2. (a) Wide XPS scan of MNPs; (b) Wide XPS scan of PD-MNPs; (c) Narrow scan XPS spectrum of the C 1s region of the PD-MNPs; (d) Narrow scan XPS spectrum of the N 1s region of the PD-MNPs.

The FT-IR spectra displayed in Fig. 3 were recorded to confirm the chemical composition of the PD-MNPs. A strong peak appearing at 580 cm^-1 and a weak one at 436 cm^-1 in the spectra of both the MNPs and PD-MNPs were due to the vibration of the Fe-O functional group. The relatively high intensity of the band at 580 cm^-1 indicated the high content of Fe₃O₄ ^[24]. In addition, a weak band appearing at 1255 cm^-1 in spectrum (2) in Fig. 3 was attributed to the phenolic hydroxyl group stretching mode of the polydopamine layer. For the PD-MNPs, this signal appeared and showed the interaction between the hydroxyl and aromatic rings. The vibrational signals at 1610 and 1490 cm^-1 were ascribed to C=C in aromatic rings. The peak at 1428 cm^-1 of the PD-MNPs was broader than that of MNPs, which results from the overlapping of O=C-O symmetric vibration (1405 cm^-1) and the indoline peak of polydopamine (1438 cm^-1) ^[25].

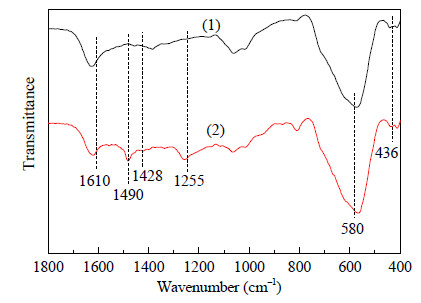

Fig. 3. FT-IR spectra of MNPs (1) and PD-MNPs (2).

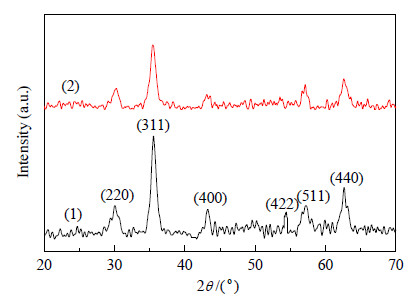

Fig. 4(1) shows the XRD patterns of the MNPs. Similar to the previous report ^[26], the XRD pattern showed six diffraction peaks in the 2θ range of 20°-70°, including a high intensity sharp peak at 2θ = 35.6°, corresponding to the (311) plane, and five additional weak peaks at 2θ = 30.6°, 43.4°, 54.4°, 56.7° and 62.7°, corresponding to the (220), (400), (422), (411) and (440) planes, respectively, showing the presence of the magnetite crystal with a cubic spinal structure ^[27]. The unit cell of the cubic spinal structure consists of eight ferric ions at tetrahedral sites each with four oxide ion nearest neighbors, and eight ferric ions and eight ferrous ions at octahedral sites each with six oxide ions as the nearest neighbors ^[28]. The XRD pattern of the PD-MNPs (Fig. 4(2)) showed that the crystal structure of Fe₃O₄ was maintained after the coating process. No obvious diffraction peak for the polydopamine was observed, which may be due to the relatively thin layer and amorphous structure of the polydopamine prepared with this polymerization method ^[29].

Fig. 4. XRD patterns of the MNPs (1) and PD-MNPs (2).

The polydopamine (PDA), MNPs and PD-MNPs were analyzed by TGA analysis in a nitrogen atmosphere with a heating rate of 10 ℃/min. Fig. 5 illustrates the TGA curves depicting the variation of the mass of the sample with temperature. The first mass loss (below 130 ℃) of the polydopamine sample (Fig. 5(a)(1)) can be ascribed to the evaporation of water molecules in the polymer matrix while the other mass loss beginning at about 190 ℃ was due to the decomposition of polydopamine. As the PDA content of the materials increased (Fig. 5(a)(3-5)), the proportion of the mass lost due to thermal decomposition of the PDA increased also. As shown in Fig. 5(b), when the concentration of dopamine hydrochloride was up to 4.0 mg/mL, the mass loss of the PD-MNPs on heating was 24.4%.

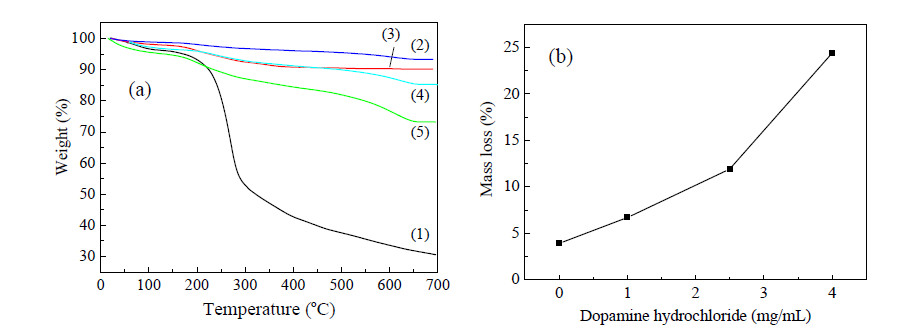

Fig. 5. (a) Mass loss curves of (1) PDA, (2) MNPs, (3) PD-MNPs (dopamine hydrochloride 1 mg/mL), (4) PD-MNPs (dopamine hydrochloride 2.5 mg/mL), and (5) PD-MNPs (dopamine hydrochloride 4.0 mg/mL); (b) Effect of concentration of dopamine hydrochloride on the mass loss of PD-MNPs (at 700 ℃).

The PD-MNPs can be separated and purified from the solvent by using a magnet (Fig. 6(a)). The vibrating specimen magnetometer (VSM) magnetization curves of the MNPs and PD-MNPs (Fig. 6(b)) indicated no remanence or coercivity, suggesting that the MNPs and PD-MNPs were superparamagnetic. Saturation magnetization is defined as the maximum magnetic response of a material in an external magnetic field, which can be used to estimate the magnetism of the material ^{[30, 31]}. Consistent with their superparamagnetic behavior, the MNPs and PD-MNPs showed high saturation magnetization of 60.1 and 52.7 emu/g, respectively. The lower saturation magnetization of the PD-MNPs compared with the MNPs was consistent with their smaller proportion of magnetic material due to the presence of the polydopamine coating. Nonetheless, the magnetic properties of the PD-MNPs were sufficient to provide an easy and effective way to isolate them from the liquid reaction system.

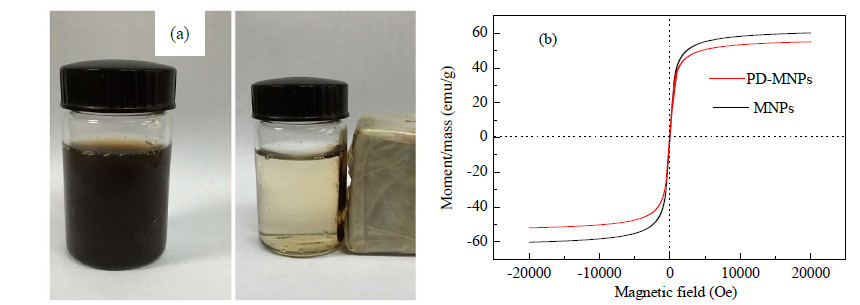

Fig. 6. (a) PD-MNPs dispersed in aqueous solution (left) and PD-MNPs attracted by an external magnet (right); (b) Hysteresis loops of magnetic MNPs and PD-MNPs.

During the immobilization process, the activity recovery and the protein loading were affected by the pH and immobilization time. Therefore, these two factors were varied in order to maximize the immobilization capacity and enzyme activity. As the pH was increased from 6 to 9, the amount of lipase immobilized on the PD-MNP support increased from 26.3 to 138.1 mg/g. The proportion of enzyme activity remaining after immobilization dropped off above pH = 8 (Fig. 7(a)). Hence, under the conditions tested, pH = 8 was optimal for the immobilization of the enzyme because, while protein immobilization continued to become more effective with increasing pH beyond this, the enzyme began to become deactivated. The immobilization time also influenced the properties of the immobilized biocatalyst. As the immobilization time was increased, the amount of enzyme loaded on the PD-MNPs and the proportion of activity remaining after immobilization showed maximum values after 12 h of immobilization, with 138 mg/g of enzyme immobilized and 83.6% retention of activity (Fig. 7(b)). The decrease in the retention of activity after a longer immobilization time may be related to the steric hindrance of substrate access to the enzyme at high enzyme loading on the solid support ^[32].

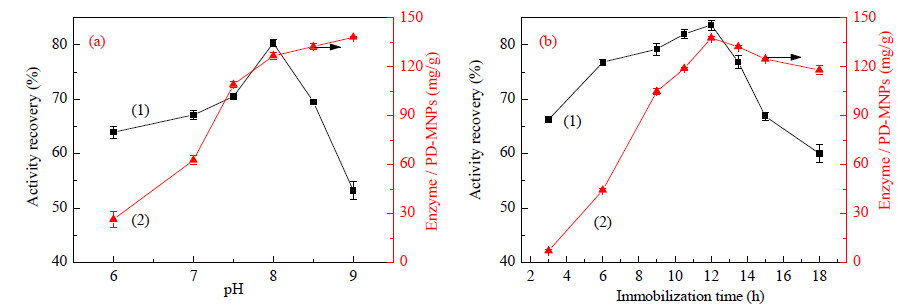

Fig. 7. Effects of immobilization conditions on the activity recovery (1) and protein loading (2). (a) Effect of pH (1.5 mg lipase, 3 mg PD-MNPs, 2.5 mg/mL dopamine hydrochloride, polymerization time 1 h; immobilization time 9 h); (b) Effect of immobilization time (1.5 mg lipase, 3 mg PD-MNPs, 2.5 mg/mL dopamine hydrochloride, polymerization time 1 h; pH = 8.0).

Immobilization resulted in a change in the pH activity profile of the lipase (Fig. 8(a)) such that the range over which the lipase retained more than 85% of enzyme activity, which was widened slightly from pH = 7 to 8 for the free ANL to pH = 7 to 8.5 for the ANL@PD-MNPs. The optimum pH shifted from pH = 7 to 8 upon immobilization. The interactions between the enzyme and the polymeric matrix, such as hydrogen bonding and electrostatic interactions, can explain the observed alkaline shift and broadening in the pH profile of the immobilized lipase ^[33]. Similar results upon immobilization of lipase and other enzymes have been reported previously ^[34]. In particular, compared with free ANL, the ANL@PD-MNPs exhibited a considerably higher activity at pH = 10 (64.3% of the maximum activity), while its free counterpart only had 24.6% of the maximum activity at this pH. Hence, the ANL@PD-MNPs exhibited improved activity across a wider pH range, especially in weakly alkaline media.

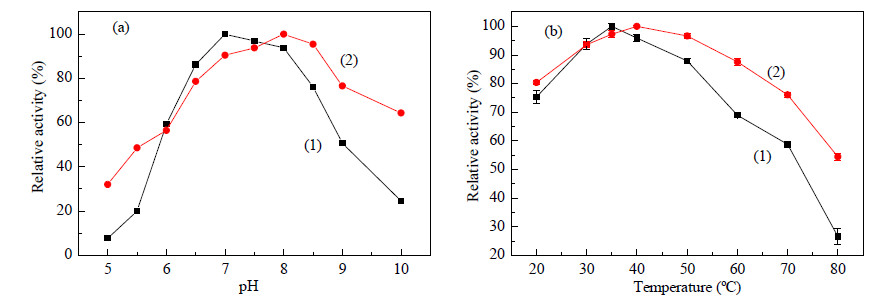

Fig. 8. Optimal pH (a) and temperature (b) of ANL@PD-MNPs (2) and free ANL (1).

Fig. 8(b) shows the effect of temperature on the activity of free ANL and ANL@PD-MNPs. The activity obtained in the temperature range of 20-80 ℃ were expressed as percentage of the maximum activity recorded at 35 and 40 ℃ for free ANL and ANL@PD-MNPs, respectively (percentage of the activity at the optimum temperature for each form of the enzyme). Above 50 ℃, the relative activity of free ANL dropped sharply and it retained only 26.7% at 80 ℃. In contrast, the ANL@PD-MNPs retained 54.4% of the activity at 80 ℃. The increase in the optimum temperature of the immobilized enzyme may have resulted from the changing conformational integrity of the lipase structure by covalent bond formation between the enzyme and solid support via amino groups. During the immobilization, if the flexibility of the enzyme molecule is decreased, the enzyme would require a higher activation energy to reorganize to the appropriate conformation for catalysis ^[35]. The ANL@PD- MNPs showed enhanced heat resistance at high temperature (>70 ℃), possibly because of restricted conformational mobility of the molecules which protect against thermal denaturation ^[36]. Therefore, the activity of the ANL@PD-MNPs was higher than its free counterpart at high temperatures. Similar results of improved activity at high temperatures after enzyme immobilization have also been observed previously ^[37].

In order to study the pH stability of the free ANL and ANL@PD-MNPs over a period of time, the enzyme was incubated at 40 ℃ for 12 h in phosphate buffer (50 mmol/L, pH varied over the range 6-10) (Fig. 9(a)). The ANL@PD-MNPs retained 49.1% of its initial activity after 12 h incubation at pH = 10, while the final activity of the free ANL was only 22.9 % of the initial value. This indicated that the ANL@PD-MNPs exhibited enhanced pH stability.

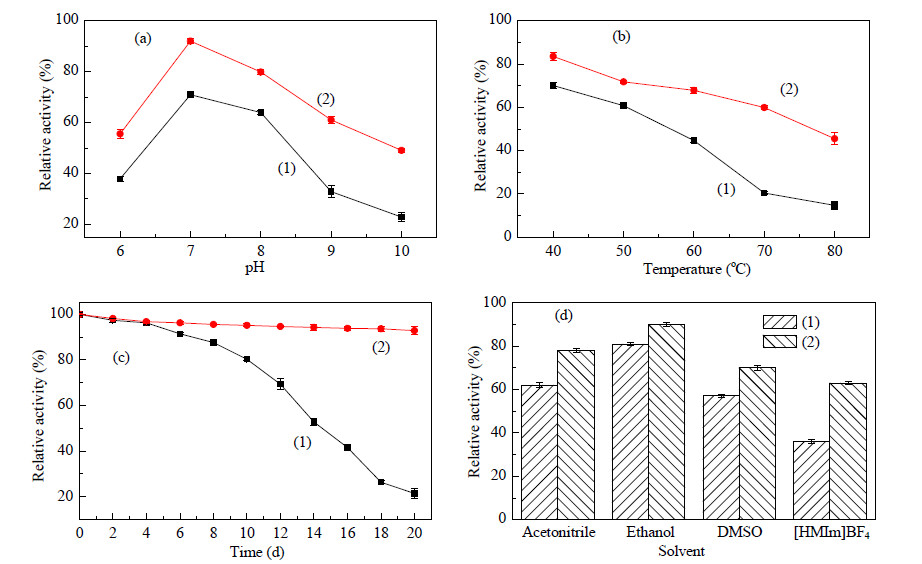

Fig. 9. Stabilities of ANL@PD-MNPs (2) and free ANL (1). (a) pH stability; (b) Thermal stability; (c) Storage stability; (d) Solvent tolerance.

The thermal stability of free ANL and ANL@PD-MNPs was investigated as a function of time at different temperatures between 40 and 80 ℃. As seen in Fig. 9(b), the ANL@PD-MNPs retained more than 83.5% of its initial activity after incubation for 8 h at 40 ℃, while less than 71% of residual activity was detected with the free ANL after the same treatment. As mentioned above, the conformational rigidity of lipase would have been strengthened by immobilization, thus enhancing its thermal stability.

Both the free ANL and ANL@PD-MNPs were stored at 4 ℃ in pH = 7 phosphate buffer for 20 d in order to investigate the enzymatic storage stability. Compared to the free ANL, the ANL@PD-MNPs exhibited excellent retention of activity under these conditions, as can clearly be seen by the fact that after 20 d of storage, the ANL@PD-MNPs retained 92.8% of its original activity, while the free counterpart retained only 21.5% under the same conditions (Fig. 9(c)).

Compared with the free ANL, the ANL@PD-MNPs exhibited significantly better tolerance to all four solvents tested (Fig. 9(c)). The difference in retention of activity between the free ANL and ANL@PD-MNPs increased with an overall degree of inhibition caused by the solvent during the 6 h incubation period at 40 ℃. Hence, the least inhibitory solvent ethanol permitted retention of 90.48% and 81.30% of the initial activity by the free ANL and ANL@PD-MNPs, respectively. In contrast after exposure to the most inhibitory solvent (the ionic liquid [HMIm]BF₄), the ANL@PD-MNPs retained 63.19% of its initial activity, while the free ANL retained only 35.79% of its initial activity. Owing to immobilization, the ANL@PD-MNPs maintained its catalytic conformation and exhibited more structural rigidity, resulting in enhanced solvent tolerance, which agreed with previous reports ^[38].

The kinetic behavior of the free ANL and ANL@PD-MNPs in the catalysis of pNPP hydrolysis was investigated. Both reactions were found to follow Michaelis-Menten kinetics. K_m for free ANL and ANL@PD-MNPs was 74.5 and 63.2 mmol/L, respectively, which demonstrated that the immobilized lipase had a moderately enhanced enzyme-substrate affinity ^[39]. The V_max for the ANL@PD-MNPs and the free ANL was 2.36 × 10^-2 and 3.03 × 10^-2 mmol L^-1 min^-1, indicating a slightly lower maximal rate for the ANL@PD-MNPs compared with the free ANL. This was consistent with the fact that the specific activity of the ANL@PD-MNPs was lower than that of the free ANL (1.58 U/mg vs 2.11 U/mg).

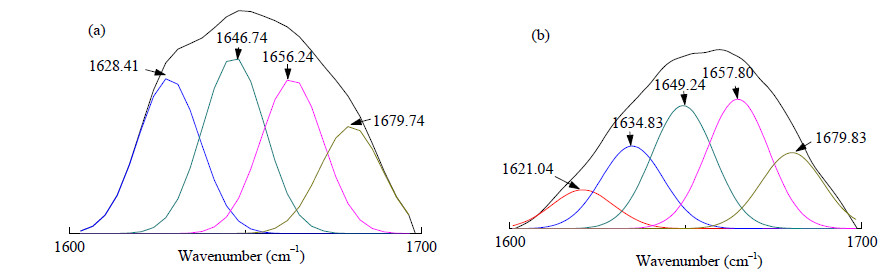

The deconvolution of the amide I band from the FT-IR spectrum of the free ANL (Fig. 10(a)) has several distinct Lorentzian peaks. The band at 1628.41 cm⁻¹ can tentatively be assigned to the β-sheet structure ^[40]. Following this assignment and according to deconvolution results, the β-sheet contribution constitutes 26.15% of the secondary structures in free ANL (Table 1). The band at 1656.24 cm⁻¹ is characteristic of an α-helical structure, and the area of this component accounts for 26.14% of the total band area in free ANL. The random coli (29.78%) and β-turns (17.93%) contributed to the bands at 1646.74 and 1679.74 cm⁻¹, respectively, in free ANL ^[41]. In the ANL@PD-MNPs (Fig. 10(b)), the Lorentzian bands of the deconvoluted amide I region at 1621.04 and 1634.83 cm⁻¹ indicated 26.99% of the structure as β-sheets and the band at 1657.80 cm⁻¹ suggested an α-helix content of 28.88%. This suggested an increase of β-sheet and α-helix contents upon lipase immobilization of 2.74% and 0.84%, respectively. The existence of hydrogen bonds within the secondary structure elements such as the β-sheet and α-helix generally helps to maintain the protein structure ^{[42, 43]}, which may be one reason why the ANL@PD-MNPs exhibited enhanced stability and improved tolerance to organic solvents and ionic liquid ^[44].

Fig. 10. Amide I fitting results of free ANL (a) and ANL@PD-MNPs (b).

Table 1 Amide I band deconvolution for free ANL and ANL@PD-MNPs. Sample Secondary structure (%) β-sheet α-helix Random coli β-turn Free ANL 26.15 26.14 29.78 17.93 ANL@PD-MNPs 26.99 28.88 27.46 16.67

Table 1 Amide I band deconvolution for free ANL and ANL@PD-MNPs.

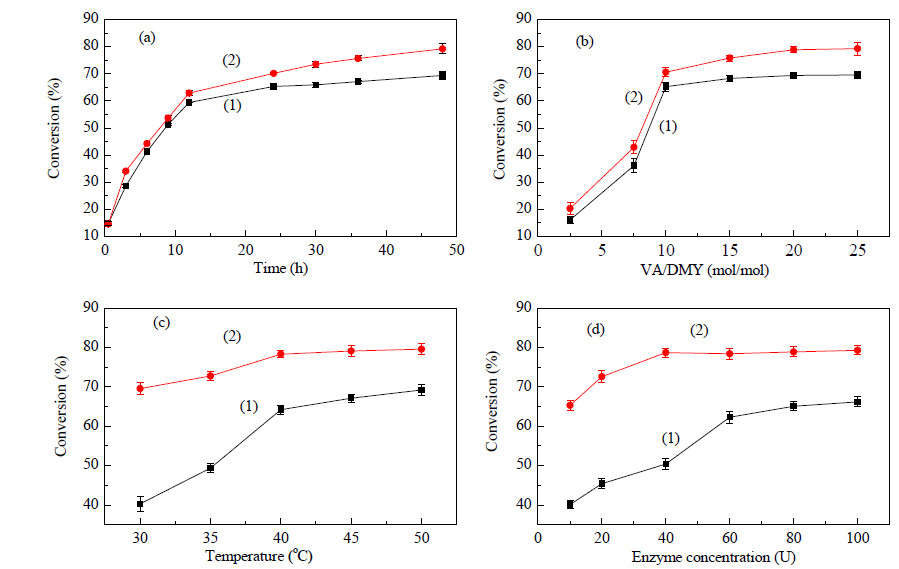

As shown in Fig. 11(a), when the ANL@PD-MNPs was used as the biocatalyst for the acylation of DMY, the course for the regioselective acylation reaction was similar to that catalyzed by an equal number of units of the free ANL. The final conversion was 79.28% at 48 h with the ANL@PD-MNPs as biocatalyst and 69.47% with free ANL. The higher conversion with the immobilized lipase can be explained by the better organic solvent tolerance of the immobilized enzyme.

Fig. 11. (a) Enzymatic regioselective acylation of DMY catalyzed by ANL@PD-MNPs (2) and free ANL (1) (2 mL DMSO, 0.04 mmol DMY, 0.4 mmol vinyl acetate, 35 ℃, 200 rpm, 60 U ANL@PD-MNPs or free ANL); (b) Effect of molar ratio of substrates on the conversion (2 mL DMSO, 35 ℃, 200 rpm, 60 U ANL@PD-MNPs or free ANL); (c) Effect of temperature on the conversion (2 mL DMSO, 0.04 mmol DMY, 0.4 mmol vinyl acetate, 200 rpm, 60 U ANL@PD-MNPs or free ANL); (d) Effect of enzyme concentration on the conversion (2 mL DMSO, 0.04 mmol DMY, 0.4 mmol vinyl acetate, 200 rpm, 45 ℃).

As shown in Fig. 11(b), the molar ratio of the substrate strongly affected the conversion rate of enzymatic DMY acylation. With the increase of the molar ratio of vinyl acetate (VA) to DMY from 2.5 to 10, the conversion rate increased from 16.1% to 65.3% (free ANL) and from 20.3% to 70.6% (ANL@PD-MNPs). However, the conversion obtained from the free enzyme was retained at 70% when the molar ratio increased from 10 to 25. Thus, the molar ratio of vinyl acetate to DMY of 10 was selected for both free ANL and the ANL@PD-MNPs in the following experiment.

Temperature is a key parameter in the enzymatic acylation of DMY. With temperature increase from 30 to 45 ℃, the conversion rate increased from 40.3% to 67.1% (free ANL) and 69.6% to 79.1% (ANL@PD-MNPs), respectively (Fig. 11(c)). Further increase in temperature had nearly no effect on the conversion rate. So the suitable temperature was 45 ℃ for the following experiment.

Also, the enzyme concentration has a significant effect on the conversion. As shown in Fig. 11(d), when the amount of enzyme in the reaction mixture was increased from 10 to 40 U, the conversion increased obviously for both free ANL (40.1% to 50.4%) and ANL@PD-MNPs (65.3% to 78.7%). However, further increase in ANL@PD-MNP concentration had little effect on the conversion and the conversion rate remained at 78%, indicating that the enzyme was saturated at 40 U in the reaction. In contrast, free ANL was saturated at 80 U and the corresponding conversion was 65%, which showed that the ANL@PD-MNPs have better catalytic activity than free ANL.

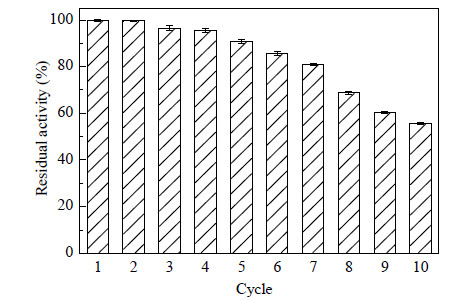

Because the ANL@PD-MNPs can easily be isolated from the reaction system by an external magnet, its activity stability was investigated during 10 cycles of reuse (Fig. 12). The ANL@PD-MNPs retained more than 90% of its original catalytic activity in the regioselective acylation of DMY after four consecutive reaction cycles and 56% of the initial activity after ten cycles of reuse. This result strongly suggested that the ANL@PD-MNPs is applicable to repeated use as a biocatalyst.

Fig. 12. The operational stability of ANL@PD-MNPs.

MNPs were modified by a mussel-inspired polydopamine coating and characterized with respect to their morphology, composition, structure and magnetic properties. The PD-MNPs proved suitable for ANL immobilization and gave high protein loading and good activity recovery. The ANL@PD-MNPs showed improved pH, thermal, solvent and storage stability compared to its free counterpart. The kinetic study of both the immobilized and free enzymes showed that the ANL@PD-MNPs have high catalytic efficiency. The ANL@PD-MNPs exhibited excellent reusability and kept over 55% of its initial activity after 10 cycles of reuse during the regioselective acylation process of DMY with convenient magnetic recovery of the biocatalyst.
