Chemoselectivity is one of the most important factors for evaluating the economic benefit of catalytic industries because of its direct relation to the value of products as well as the final separation costs in the heterogeneous processes^{[1, 2]}. Two aspects of surface features govern the selectivity profile of a chemoselective transformation with heterogeneous materials as catalysts. First,supported catalysts are generally composed of a spectrum of distribution of metal nanoparticles that consists of several to thousands of metal-atom ensembles. Each of these ensembles has its own energetically favored chemoselective product,which therefore leads to a correspondingly broad spectrum of products ^[1]. Second,even for each multi-metal ensembles,it can provide non-exclusive pathways for the adsorption and evolution of starting reactants^{[1, 3, 4, 5]},which poses a great challenge in chemoselective control in the heterogeneous catalytic processes. As a result,it is highly desired to develop new catalysts with not only homogeneous size,but also atomically distributed metal active sites for chemoselective transformations.

In our previous research ^[6],we have achieved homogeneous distribution of Pd active sites within unique Pd-Zn-Pd ensembles by intermetallic alloying of Pd with Zn on Pd/ZnO catalysts during reduction at 400 ℃. Such PdZn intermetallic nanostructures are both highly active and selective for the semi-hydrogenation of acetylene to ethylene,which is usually inaccessible because the hydrogenation of acetylene generally proceeds via a thermodynamically favored,sequential hydrogenation to the undesired ethane (C₂H₂→C₂H₄→C₂H₆),especially at high conversions of acetylene,but which must be reduced to ppm level in ethylene feedstock to avoid poisoning Ziegler-Natta polymerization catalysts^{[7, 8, 9, 10, 11, 12]}. The appropriate spatial arrangement of Pd active sites in the Pd-Zn-Pd ensembles of PdZn alloys is found to lead a σ-bonding mode of acetylene with two neighboring Pd sites and a weak π-bonding pattern toward ethylene adsorption on the single Pd site,which facilitates acetylene chemisorption and promotes the desorption of ethylene from the catalyst surface. This results in kinetic favoring of the selective conversion of acetylene to ethylene ^[6]. Accordingly,another possible method for high chemoselectivity in acetylene semi-hydrogenation would be isolating Pd active sites with solid supports to form supported single atom catalysts (SACs),which provide not only homogeneous metal active sites,but also maximum utilization of metal atoms and unique active site oxidation states. Such SACs have also been reported to exhibit excellent activity and selectivity in a variety of catalytic processes^{[13, 14, 15, 16, 17]}. For example,we have previously reported that the single atom or the pseudo-single-atom Pt catalyst supported on FeO_x exhibits 99% selectivity in the hydrogenation of 3-nitrostyrene to 3-aminostyrene with a turn-over frequency as high as 1500 h^-1 due to the distinct adsorption of nitro group and C=C bond over positively charged single platinum centers^[17]. Hence,this new type of SAC provides an excellent opportunity for designing new catalysts for chemoselective transformations.

Herein,single Pd active sites were achieved by decreasing the metal loading on the ZnO support. Our characterization results indicate that the Pd nanoparticle size decreases when decreasing the Pd loading from 1% to 0.1%,and becomes isolated single atom Pd sites on the 0.01% Pd/ZnO sample. Unexpectedly,this Pd₁/ZnO SAC exhibits excellent catalytic performance in the chemoselective hydrogenation of acetylene,with comparable chemoselectivity and an improved activity compared with that of our previously reported PdZn intermetallic catalysts,which was ascribed to the high-valent single Pd active sites on the ZnO support.

Different Pd/ZnO catalysts,with nominal metal loadings of 1 wt%,0.1 wt%,and 0.01 wt%,were synthesized by incipient wet impregnation of ZnO (BET surface area of 2.9 m²/g) with a prediluted solution of palladium nitrate. Prior to impregnation,the support was dried at 120 ℃ for 8 h. After impregnation at ambient temperature,the samples were dried at 120 ℃ for 12 h and then calcined at 400 ℃ for 3 h at a heating rate of 2 ℃/min.

The temperature-programmed reduction (TPR) was carried out on a Micromeritic AUTOCHEM Ⅱ 2920. For the H₂-TPR experiment,the catalyst (0.26,0.26 and 0.55 mg for 1%,0.1% and 0.01%-Pd/ZnO,respectively) was placed in a U-shaped quartz reactor and pretreated at 200 ℃ for 1 h under an Ar flow to remove adsorbed carbonates and hydrates. As the PdO species may be readily reduced even below room temperature,the sample was cooled to -50 ℃ by a cold trap,and the experiment was performed under 10 Vol% H₂/Ar from -50 to 600 ℃ under a ramping rate of 10 ℃/min. The consumption of H₂ was monitored with a thermal conductivity detector (TCD).

X-ray diffraction (XRD) patterns were recorded using a PW3040/60 X’Pert PRO (PANalytical) diffractometer with a copper anode (Cu K_α,λ = 0.15432 nm),operating at 40 kV and 40 mA and a scanning angel (2θ) of 10°-80°.

A JEOL JEM-2100F microscope equipped with scanning transmission electron microscopy (STEM) and Oxford detectors was employed to acquire the transmission electron microscopy (TEM) and STEM images and the energy-dispersive X-ray spectral (EDS) data at 200 kV. To obtain the Pd particle size distribution,a few hundred Pd particles (160-250) from different areas were counted. For 0.01%-Pd/ZnO,subångström-resolution high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) characterization was also carried out on a JEOL JEM-ARM200F STEM/TEM equipped with a CEOS probe corrector,with a guaranteed resolution of 0.08 nm. The samples were suspended in ethanol with an ultrasonic dispersion of 15 min,and then two drops of the resulting solution were dropped onto a copper grid and dried at room temperature for electronic imaging.

X-ray absorption spectra (XAS),including X-ray absorption near-edge structure (XANES) and extended X-ray absorption fine structure (EXAFS) at the Pd K-edge,were recorded at the BL14W1 at the Shanghai Synchrotron Radiation Facility,Shanghai Institute of Applied Physics,China. A double Si(311)-crystal monochromator was used for energy selection. The energy was calibrated by Pd foil. Before the experiments,all the samples were reduced at 100 ℃ and were sealed with Kapton films in the glove box. The spectra were collected at room temperature under fluorescence mode with a solid state detector. The data were analyzed using the Athena software package. The ranges used for data fitting in κ-space and R-space were Δκ: 3.0-12.9 Å^-1 and ΔR: 1.2-2.9 Å,respectively.

In situ X-ray photoelectron spectroscopy (XPS) measurements were performed on a Thermo ESCALAB 250Xi spectrometer employing a monochromatic Al X-ray source (Al K_α = 1846.6 eV),operated at 15 kV and 10.8 mA. The samples were ground and pressed to circular pellets of ~1 mm thickness using a stainless steel pressing tool and then mounted on a sample holder. The samples were reduced in situ in hydrogen at 100 or 400 ℃. The spectra were subsequently collected using an analyzer pass energy of 50 eV at room temperature. The base and operating pressure were 1 × 10^-8 Pa and 7.1 × 10^-5/7.1 × 10^-7 Pa. XPSPEAK software was used for qualitative and quantitative analyses of the XPS data. The C 1s peak of adventitious C at 284.6 eV was used for energy calibration. The collected spectra were fit by a least squares routine using Gaussian and Lorentzian lines after background subtraction. The surface concentration of each element was calculated as follows ^[18]:

where n,I,σ,and E_k (subscript of 1,2 represent corresponding element) in the formula represent the count of each atom on the surface,the intensity (area) of the corresponding peak,the photoionization cross-section of the corresponding energy level of the corresponding peak,and the kinetic energy of the emitted electron,respectively.

The semi-hydrogenation of acetylene in the excess ethylene over these three catalysts was evaluated in a continuous flow fixed-bed reactor,described elsewhere ^[6]. A quartz tube with an inner diameter of 4 mm was used as the reactor. Prior to reaction,the Pd/ZnO catalysts diluted with quartz sand were reduced in situ at 100 ℃ with pure hydrogen for 1 h,followed by cooling to 80 ℃ for performance testing. The reaction gas contained 2 Vol% C₂H₂,20 Vol% H₂,40 Vol% C₂H₄,and He as a balance gas with a total flow rate of 30 mL/min. The main challenge in acetylene hydrogenation is the general difficulty in attaining high selectivity toward ethylene because of the sequential hydrogenation of ethylene at high conversion of acetylene. Because of this,as well as for a distinct comparison of the catalytic performances of different catalysts,the optimized amount of these three catalysts (3.8 mg 1%-Pd/ZnO,9.0 mg 0.1%-Pd/ZnO,and 50.0 mg 0.01%-Pd/ZnO) were used to keep a high stable conversion rate (> 80%) but under the complete conversion of acetylene. The gas composition at the inlet and outlet were analyzed using an online Agilent Technologies 6890N gas chromatograph with a flame ionization detector (FID) and a PORAPAK-N column. A small amount of “green oil” was found to be deposited on the outlet of the reaction tube after reaction,while C2 species are the predominant products according to our previous product analysis ^[6]. To clarify the catalytic mechanism of C=C and C≡C hydrogenation on our Pd/ZnO catalyst,the ethylene selectivity in the C2 products was present in the text. Conversion (C) and selectivity (S) were calculated as follows^{[19, 20]}:

where C₂H_x (in) and C₂H_x (out) (x = 2,4,6) in the formulas represent the concentrations of the corresponding gas analyzed by chromatograph before or after reaction,respectively.

To obtain differently sized Pd species on the support,Pd/ZnO catalysts with nominal metal loadings of 1 wt%,0.1 wt%,and 0.01 wt% were synthesized. Fig. 1 shows the H₂-TPR profiles for these three catalysts. As the PdO species can be readily reduced to metal phase even below room temperature,the TPR experiments were conducted from temperatures as low as -50 up to 600 ℃. Both the 1% and 0.1%-Pd/ZnO catalysts display distinct peaks at relatively low temperatures (from -30 to 100 ℃). By quantification,the actual hydrogen consumption on these two catalysts is much higher than the theoretical values for a stoichiometric reduction of a PdO to the Pd species. This can be ascribed to the formation of a palladium hydride phase or the hydrogen spillover from Pd to the surface of the ZnO support^{[21, 22, 23]}. Meanwhile,a broad peak from 100 to 500 ℃ was observed for these two catalysts,which is related to partial reduction of ZnO in the formation of the PdZn intermetallic phase^{[21, 22, 23, 24]}. It indicates that the formation of the PdZn intermetallic alloy occurs only at a relatively high temperature (> 100 ℃),and behaves as a much slower process ^[25]. No hydrogen consumption peak was observed for the 0.01%-Pd/ZnO sample during the entire experiment because of the low Pd loading. As the PdZn intermetallic catalyst has already been proven effective for acetylene semi-hydrogenation in our previous work ^[6] as well as other reports^{[26, 27]},the final Pd/ZnO catalysts in this work were obtained and tested at a relatively low reduction temperature (100 ℃) to avoid the formation of intermetallic catalyst.

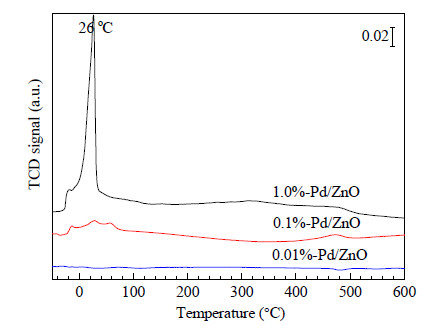

Fig. 1. TPR profiles of different Pd/ZnO catalysts. Experiments were performed from -50 ℃ in 10% H2/Ar flow with a heating rate of 10 ℃/min.

The XRD patterns of 1%-Pd/ZnO and 0.1%-Pd/ZnO catalysts after reduction at 100 ℃ are displayed in Fig. 2. Other than the distinct reflection peaks of the wurtzite-type phase of ZnO,no other diffraction peaks were detected,indicating the strong metal-support interactions between Pd and ZnO with the Pd species well-distributed on the ZnO support. Correspondingly,as indicated in the representative TEM images and particle size distributions in Fig. 3,the 1% and 0.1%-Pd/ZnO Pd nanoparticles display a hemispherical morphology on the support. Based on statistical analysis of ~200 nanoparticles,the metal particle size of the 1%-Pd/ZnO sample ranges from 1.5 to 9 nm with a mean size of 3.8 nm,while it ranges from 0.3 to 2.8 nm with an average size of 0.9 nm for the 0.1%-Pd/ZnO catalyst. When further decreasing the Pd loading to 0.01%,no particles can be distinguished in our TEM images. To determine whether Pd was present in a random sample zone,STEM equipped with EDS analysis was also performed for this sample. As we can see in Figs. 3(d) and (e),while the EDS signal of Pd species is relatively weak due to the low Pd loading,it can still serve as qualitative evidence for the presence of palladium on this 0.01%-Pd/ZnO catalyst,in which the Pd species might be isolated on the ZnO support. Fortunately,by carefully analyzing the sample with HAADF-STEM equipped with a CEOS probe corrector (Fig. 3(f)),an exclusive single-atom distribution of Pd sites was observed on the support. Hence,decreasing Pd loading on the ZnO support leads to smaller Pd nanoparticles,and single Pd atoms on the support as the Pd loading decreases to 0.01%,which serves as a single atom catalyst and is denoted as Pd₁/ZnO SAC in this report.

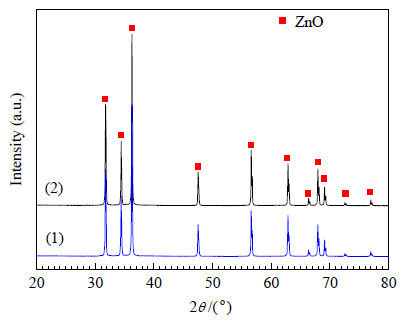

Fig. 2. XRD patterns of 1%-Pd/ZnO (1) and 0.1%-Pd/ZnO (2) after reduction at 100 ℃.

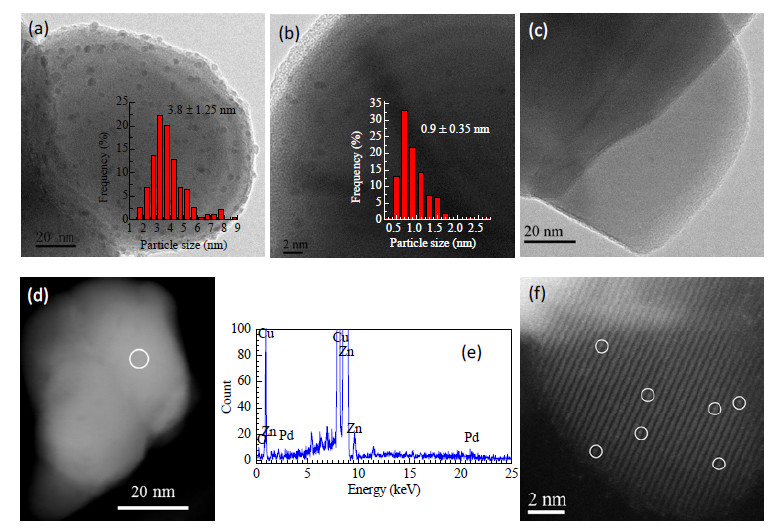

Fig. 3. TEM images and the corresponding particle size distributions of 1%-Pd/ZnO (a),0.1%-Pd/ZnO (b),and 0.01%-Pd/ZnO (c) reduced at 100 ℃; STEM (d) with energy dispersive X-ray spectrum (e) and HAADF-STEM image (f) for 0.01%-Pd/ZnO reduced at 100 ℃.

To obtain the oxidation state as well as the coordination environment of Pd active sites,XAS measurements were performed on our Pd/ZnO catalysts at the K-edge of Pd after reduction at 100 ℃. The 0.01%-Pd/ZnO sample was not considered here because of its comparatively low Pd content. From the XANES spectra shown in Fig. 4(a),the 1% and 0.1%-Pd/ZnO samples exhibit an absorption edge at approximately 24350 eV,with near-edge peaks centered at ~24367,24389,and 24428 eV,respectively,akin to those of Pd foil,indicating that the Pd atoms are in a predominantly metallic state ^[28]. However,as seen in Fig. 4(b),there are also some deviations in the κ-space of the EXAFS spectra between the Pd/ZnO samples and the Pd foil,suggesting that the other coordination shells also make some contributions to its coordination environment. The Fourier transforms of κ³-weighted EXAFS spectra are shown in Fig. 4(c),with the fitting results summarized in Table 1. The best fitted coordination parameters for 1%-Pd/ZnO are Pd-Pd neighbors with a coordination number of 5.1,accompanied by some contributions from Pd-Zn and Pd-O shells. When decreasing the loading to 0.1%,the coordination number of Pd-Pd neighbors decreases to 4.2,suggesting the smaller size of Pd in the 0.1%-Pd/ZnO catalyst ^[29] in agreement with the TEM results. Meanwhile,the coordination number of Pd-Zn slightly decreases but that of the Pd-O shell increases,indicating that the Pd species becomes more difficult to reduce and more positive as the loading of Pd decreases.

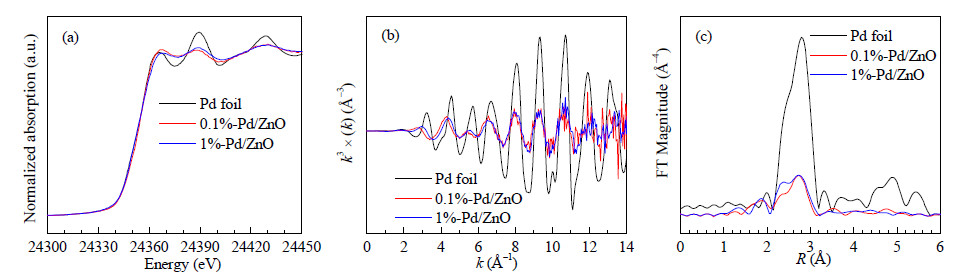

Fig. 4. The normalized XANES spectra at Pd K-edge (a),the κ-space EXAFS spectra (b),and the corresponding Fourier transform of κ3-weighted EXAFS spectra (c) for Pd foil and Pd/ZnO catalysts with different loadings of Pd reduced at 100 ℃.

Table 1 EXAFS data fitting results of Pd/ZnO samples with different loadings of Pd reduced at 100 ℃. Sample Shell N a R b (Å) σ2×102 c (Å2) ΔE0 d (eV) γ-factor (%) Pd foil Pd-Pd 12.0 2.74 5.3 1.0 0.30 0.1%-Pd/ZnO Pd-O 1.5 1.99 0.61 -10.3 0.24 Pd-Zn 0.4 2.60 0.61 -10.3 Pd-Pd 4.2 2.71 0.82 -10.3 1%-Pd/ZnO Pd-O 0.9 2.00 0.61 -6.9 0.38 Pd-Zn 1.1 2.59 0.61 -6.9 Pd-Pd 5.1 2.70 0.91 -6.9 a The coordination number for the absorber-backscatterer pair. b The average absorber-backscatterer distance. c The Debye-Waller factor. d The inner potential correction. The accuracies of the above parameters were estimated as N,± 20%; R,± 1%; σ2,± 20%; ΔE0,± 20%. The data range used for data fitting in κ-space and R-space are 3.0-12.9 Å-1 and 1.2-2.9 Å,respectively.

Table 1 EXAFS data fitting results of Pd/ZnO samples with different loadings of Pd reduced at 100 ℃.

Fig. 5 illustrates the XPS spectra of Pd 3d of the Pd/ZnO catalysts after in situ reduction at 100 ℃,with the 1%-Pd/ZnO sample reduced at 400 ℃ as a comparison. By deconvolving the spectral profiles,the corresponding binding energy as well as the Pd(0)/Pd(+) ratio are determined (summarized in Table 2). As indicated in our XAS results,three distinct Pd oxidation states can be resolved for the 1%-Pd/ZnO catalyst after reduction at 100 ℃,including the Pd component with a binding energy at 335.0 eV,which serves as a typical metallic Pd species (Pd(0))^{[22, 30, 31]},the PdZn intermetallic phase with a binding energy at 335.4 eV^[32],as well as one with a binding energy at 336.0 eV ascribed to oxidized palladium (PdO) ^[30]. In contrast,the 1%-Pd/ZnO sample reduced at 400 ℃ results in only a single peak at 335.6 eV,with a positive shift of binding energy (0.6 eV) compared with that of the Pd(0) species from nanoparticles,which is ascribed to the PdZn intermetallic alloy^{[22, 33]}. Similar to the 1%-Pd/ZnO catalyst after reduction at 100 ℃,the spectra recorded for the 0.1%-Pd/ZnO and 0.01%-Pd/ZnO samples also contain both the Pd(0) and Pd(+) components,however,the corresponding binding energy increases slightly while the ratio of Pd(0)/Pd(+) decreases as decreasing the loadings of Pd on the ZnO support,indicating a promoted oxidation state of Pd species for low-loading Pd/ZnO samples,especially for the 0.01%-Pd/ZnO. Our XPS results are also consistent with our XAS findings,which suggests that the 0.01%-Pd/ZnO catalyst behaves as a unique geometric and electronic state for Pd active sites compared with high-loading samples.

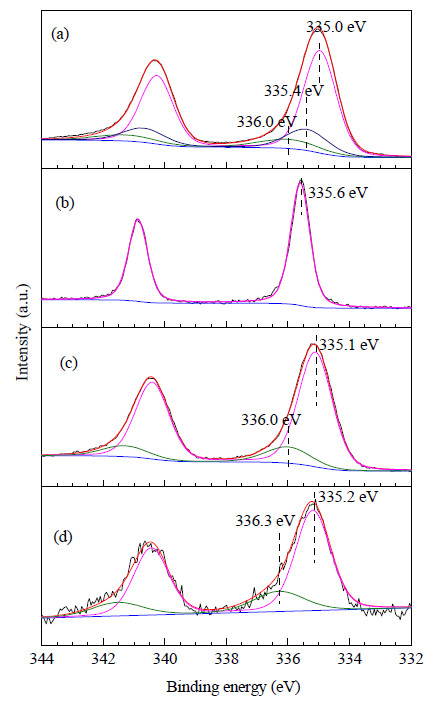

Fig. 5. XPS spectra of Pd 3d peaks for 1% (a),0.1% (c),and 0.01% (d) Pd/ZnO samples reduced at 100 ℃,with the 1%-Pd/ZnO sample reduced at 400 ℃ for comparison (b).

Table 2 XPS analysis results of Pd 3d peaks for different samples. Sample T (℃) Binding energy of Pd 3d5/2 (eV) Pd(0)/Pd(+) Pd(0) in Pd particles Pd(0) in PdZn Pd(+) 1%-Pd/ZnO 100 335.0 335.4 336.0 6.12 1%-Pd/ZnO 400 335.6 0.1%-Pd/ZnO 100 335.1 336.0 5.23 0.01%-Pd/ZnO 100 335.2 336.3 3.45 T—Reduction temperature.

Table 2 XPS analysis results of Pd 3d peaks for different samples.

Finally,the catalytic performances of these three Pd/ZnO catalysts were tested in the chemoselective hydrogenation of acetylene. To mimic the industrial process of ethylene purification,the hydrogenation of acetylene was performed in the presence of a large amount of ethylene (2 Vol % C₂H₂,40 Vol % C₂H₄,and 20 Vol% H₂ in the balance with He) at isothermal testing at 80 ℃. For a more convenient comparison,the conversion of acetylene was controlled at a high conversion (in the range of 80% to 100%) by optimizing the mass of catalysts,because the main challenge in acetylene hydrogenation is the general difficulty in attaining high selectivity toward ethylene owing to the sequential hydrogenation reaction of ethylene at a high conversion of acetylene^{[7, 8, 9, 10, 11, 12]}.

Fig. 6(a) shows the conversion and selectivity evolution with time on stream for 1%-Pd/ZnO reduced at different temperatures (100 and 400 ℃). The Pd/ZnO catalyst reduced at 400 ℃ possessed superior activity and selectivity in the semi-hydrogenation of acetylene. A selectivity toward ethylene as high as ~90 % was obtained,and a nearly complete conversion was achieved at 80 ℃. As indicated in our previous work ^[6],this is ascribed to the formation of a PdZn intermetallic alloy with an appropriate spatial arrangement of Pd single sites of Pd-Zn-Pd ensembles at high temperature reduction,which leads to the moderate σ-bonding of acetylene with two neighboring Pd sites while a weak π-bonding pattern of ethylene adsorption on the single Pd site,and facilitates the chemisorption of acetylene and promotes the desorption of ethylene from the catalyst surface. This leads to the kinetic favorability of the selective conversion of acetylene to ethylene. In contrast,the Pd/ZnO sample reduced at 100 ℃ required less catalyst to achieve the complete conversion of acetylene,suggesting it has a high activity; however,it becomes less selective (~30%). This can be explained by the Pd nanoparticles becoming predominant on the ZnO support after low temperature reduction,and the formation of the PdZn intermetallic phase only starting at 100 ℃. As a result,it exhibits similar catalytic performance to Pd nanocatalysts on other supports,such as SiO₂ ^[20],Al₂O₃^{[34, 35]} and others ^[36].

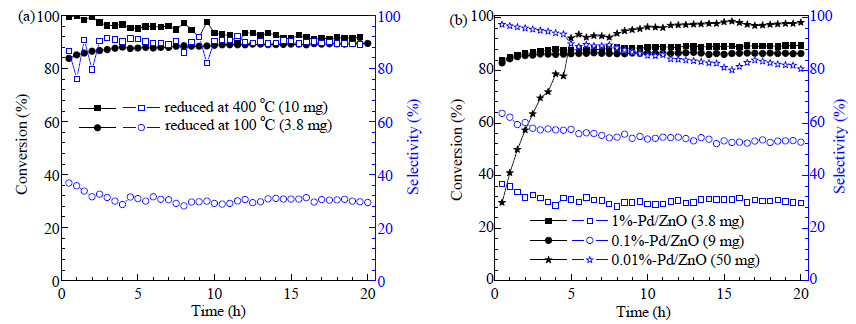

Fig. 6. Conversion and selectivity as a function of time in the selective hydrogenation of acetylene at 80 ℃ over 1%-Pd/ZnO reduced at 400 and 100 ℃ (a) and 1%,0.1%,0.01%-Pd/ZnO reduced at 100 ℃ (b). The reaction gas consists of 2 Vol % C2H2,20 Vol % H2,40 Vol % C2H2,and He as balance with a flow rate of 30 mL/min.

When decreasing the Pd loading to 0.1% and reducing at a low temperature (100 ℃),both the activity and selectivity greatly increase,with chemoselectivity doubling from ~30% to ~60% and a doubling of activity due to the improved Pd dispersion. More interestingly,when decreasing the Pd loading to 0.01%,an exceedingly high chemoselectivity is achieved (> 80%),which is comparable to that of 1% PdZn intermetallic catalysts,but with a much higher activity (Fig. 6(b)). Therefore,this 0.01%-Pd/ZnO catalyst exhibits different behaviors toward acetylene semi-hydrogenation than do Pd nanocatalysts and PdZn intermetallic catalysts. It indicates a different origin is involved in the 0.01%-Pd/ZnO catalyst that differs from the nanocatalysts and intermetallic catalysts. According to the characterization results,the single atom Pd active site plays an important role in its excellent catalytic performance in acetylene semi-hydrogenation. First,this Pd₁/ZnO SAC with Pd single sites will prevent the adsorption of ethylene from σ-bonding mode to the weak π-bonding pattern owing to the geometric restraining effect,as a result avoiding the further hydrogenation of ethylene to ethane. In this situation,it behaves similarly to the PdZn intermetallic catalysts,as both of them possess high chemoselectivity toward ethylene in acetylene hydrogenation. Second,the high-valent single Pd active sites can promote electrostatic interactions between the acetylene molecule and the Pd active sites,which facilitates the adsorption and conversion of acetylene. Meanwhile,an induction period of acetylene conversion was observed for the 0.01%-Pd/ZnO catalyst. After 15 h of testing,the conversion of acetylene remains almost constant with a slight decrease of chemoselectivity,suggesting the relative stability of our Pd₁/ZnO SACs.

In order to obtain differently sized Pd species,notably single atom Pd sites,different Pd/ZnO catalysts were obtained by lowering the content of Pd on ZnO supports. Our characterization results indicate that the Pd nanoparticle size decreased with the Pd loading from 1% to 0.1%,and became single-atom distributed Pd sites for the 0.01%-Pd/ZnO catalyst. Unexpectedly,this 0.01%-Pd₁/ZnO SAC exhibited excellent catalytic performance in the chemoselective hydrogenation of acetylene,with a comparable chemoselectivity and an improved activity compared with those of our previously reported PdZn intermetallic catalysts. The selectivity to ethylene is > 80% at nearly 100% conversion and a space velocity of 36000 mL·g^-1·h^-1 at 80 ℃. This unusual behavior of the Pd₁/ZnO SAC in acetylene semi-hydrogenation was ascribed to its high-valent single Pd active sites,which could promote electrostatic interactions with acetylene but restrain undesired ethylene hydrogenation by spatial restriction on σ-chemical bonding toward ethylene. Such SACs provides an excellent chance to design new catalysts to achieve unique active sites and optimize the activity and selectivity of heterogeneous catalysis. Toward these goals,further studies on SACs for other chemoselective reactions are ongoing in our group.
