Anisole is an important industrial chemical and intermediate product used for perfumes, flavoring agents, and organic synthesis ^{[1, 2]}. Anisole is usually synthesized by a liquid phase process in an alkaline environment, such as the reaction between sodium phenolate and dimethyl sulfate, the reaction between bromobenzene and methanol, and the reaction between sodium phenolate and chloromethane ^[2]. However, these processes have been severely restricted in recent years because the alkali used are harmful to the environment and the extremely toxic raw materials like dimethyl sulfate and bromobenzene are dangerous to human health. So, a green process for anisole synthesis is needed, and a vapor phase catalytic reaction was proposed.

The synthesis of anisole by a vapor phase reaction between phenol and dimethyl carbonate (DMC) has been investigated ^{[2, 3, 4, 5]}. DMC, a green chemical material that is used for methylation, can be synthesized from the oxidative carbonylation of methanol ^[6], but the synthesis of DMC increases the complexity and cost of the anisole synthetic process. So, another method that uses methanol for direct methylation to replace DMC was studied ^{[1, 7, 8, 9]}. However, in the reaction between phenol and methanol, the product composition is more complicated, and the product from O-methylation (methylation on the oxygen atom of the phenolic hydroxyl group) of phenol is more difficult to obtain compared to that from C-methylation (methylation on the carbon atom of the aromatic ring) ^{[10, 11, 12, 13, 14, 15, 16]}. Kirichenko et al. ^[1] obtained a high anisole selectivity of 93.9% with a phenol conversion rate of 81% with the catalysis of NaX at 320 ℃. Sarala et al. ^[16] found that the existence of cesium in samarium phosphate enhanced anisole selectivity by suppressing C-alkylated side products. A high anisole yield of 83% was obtained at 350 ℃. Generally, compared to the DMC approach, the synthesis of anisole from the methylation of phenol with methanol is less satisfactory, and the mechanism is rather vague. Therefore, further study on the vapor phase catalytic reaction for anisole preparation is of great significance.

In this paper, the synthesis of anisole by vapor phase methylation of phenol with methanol over a γ-Al₂O₃ supported catalyst was studied. The vapor phase reaction conditions of temperature, space velocity, feed ratio of phenol to methanol, and catalyst synthesis conditions including the type and loading amount of the metal salts, and the calcination temperature were examined for level of anisole yield optimization. A catalytic mechanism was deduced.

The catalyst was prepared by the impregnation method in which a metal salt was loaded on the support of activated alumina (AA, γ-Al₂O₃) granules (diameter around 2 mm). γ-Al₂O₃ granules was washed with distilled water and dried at 120 ℃ for 12 h first, and then cooled to room temperature for use. A salt solution was slowly added to a known amount of γ-Al₂O₃ granules according to the isopyknic impregnation rules. Theimpregnated γ-Al₂O₃ granules were then placed in open air at room temperature for 24 h, and finally calcined in a muffle furnace for 8 h (the calcining temperature was 700 ℃ unless otherwise specified).

The metal content on the γ-Al₂O₃ support was measured by inductively coupled plasma-atomic emission spectrometry (ICP-AES, IRIS Intrepid Ⅱ XSP). The chemical phase of the catalyst was analyzed by X-ray diffraction (XRD) with a D/teX-Ultra detector and Cu K_α radiation.

The schematic of the experimental system is shown in Fig. 1. The liquid reactant mixture of phenol and methanol and a stream of nitrogen as carrier gas were introduced into a fixed bed reactor by a peristaltic pump and mass flowmeter, respectively. The fixed bed reactor was a quartz tube (length of 600 mm and inner diameter of 27 mm) placed coaxially in an electric furnace. About 20 g catalyst granules were loaded inside the reactor. When the set temperature was reached, the carrier gas of nitrogen (100 mL/min) was introduced into the reactor to purge out air. Then the liquid reactants were fed into the reactor. The products were taken out of the reactor and sent to a condensing unit, which comprised a Graham condenser and two bottles located in an ice-water bath. The product was condensed to liquid and collected in the bottles. In each run, the time on stream was 3 h.

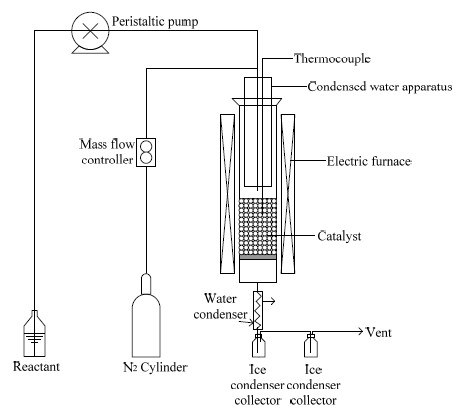

Fig. 1. Schematic of the lab scale apparatus for vapor phase synthesis of anisole.

To get the conversion of phenol and selectivity for anisole, the total liquid in the two bottles were weighed after the experiment. The liquid composition was analyzed by GC/MS (gas chromatography combined with mass spectrometry). The absolute amount of phenol remaining in the liquid product was determined by the internal standard method. The compound of isoamyl acetate (IAA) was used as the internal standard. The conversion of phenol was defined as the ratio of the mass of converted phenol to the original mass of phenol fed into the reaction system. However, the amounts of other components were not quantified by the internal standard because the correlation was not as good as that for phenol. Therefore, the selectivity of a liquid product was denoted by its area percentage among the major products, and accordingly the arithmetic product by multiplication between the phenol conversion rate (wt%) and the anisole selectivity (area%) was used to represent the level of anisole yield (LAY). The analytical conditions by GC/MS (Varian 3800GC/300MS with FFAP column of 25 mm x 0.25 mm x 0.2 μm) were as follows: oven temperature started from 40 ℃, hold for 3 min, then increased by 4 ℃/min to 100 ℃, hold for 3 min, and finally increased to 240 ℃ by 6 ℃/min and hold for 10 min; the injector temperature was 240 ℃ and the ion source temperature was 250 ℃. The error analysis of the experimental system was conducted by three repeated experiments. The standard deviation of phenol conversion rate was 1.88%. The standard deviation of anisole selectivity was 0.42%.

Table 1 Catalytic performance due to the type of metal salt impregnated in γ-Al2O3. Salt Metal content (wt%) Phenol conversion (wt%) Selectivity (area%) Anisole Methyl anisole BTX Methyl phenol Others None 0 100 — — 45.01 12.47 42.52 NaCl 5.23 72.76 27.68 6.58 — 64.73 0.91 KH2PO4 4.44 75.12 90.04 2.13 — 2.02 5.81 MgCl2 1.11 97.94 — — 40.31 23.82 35.87 Fe2(SO4)3 3.20 100 — — 19.24 60.92 19.85 Co(NO3)2 7.47 100 0.62 — 40.58 49.03 9.77 ZnCl2 6.76 100 — — 40.40 28.11 31.49 La(NO3)3 1.45 100 — 3.10 16.49 58.64 21.77 Ce(NO3)3 2.55 100 0.78 — 20.98 59.97 18.27 BTX: Benzene-toluene-xylene.

Table 1 Catalytic performance due to the type of metal salt impregnated in γ-Al2O3.

The effect of calcination temperature on the catalytic performance of KH₂PO₄/AA (K content of 8.75 wt%) is shown in Fig. 2. The vapor phase reaction was conducted under the same conditions as given before. It can be seen that the phenol conversion was higher at the calcination temperatures of 500 and 700 ℃, and reached the highest value of 72.34% at 700 ℃. Anisole is the main product and the other products were methylanisole, methylphenol, and dimethylphenol, with a high anisole selectivity of over 98%. The selectivity to anisole varied slightly in a reverse trend to that of methylanisole. This indicated that the consecutive conversion of anisole to methylanisole is a major cause of the decrease of anisole. The slight variation of anisole selectivity and significant change of phenol conversion gave a similar trend of LAY to that of phenol conversion with increasing calcination temperature. A highest LAY of 70.92% appeared at 700 ℃ as well.

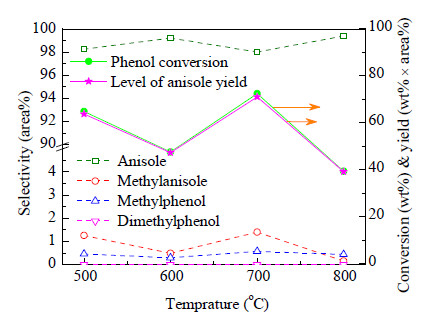

Fig. 2. Effect of calcination temperature on the performance of KH2PO4/AA.

XRD analysis of KH₂PO₄/AA calcined at different temperatures are shown in Fig. 3. It can be seen that a new chemical phase of K₃Al₂(PO₄)₃was generated on the γ-Al₂O₃ support. In particular, the peak intensity of K₃Al₂(PO₄)₃ was more distinct at the calcination temperature of 600 and 800 ℃, which was opposite to the better performances of the catalysts calcined at 500 and 700 ℃ on the phenol conversion. This indicated that too much K₃Al₂(PO₄)₃ generated was disadvantageous for the catalyst activity.

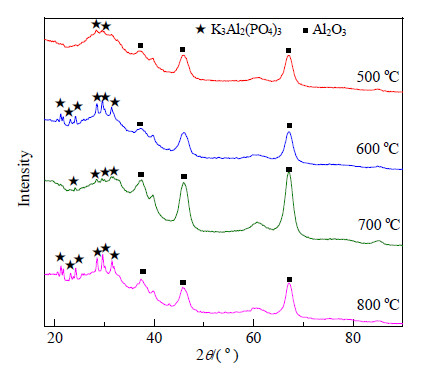

Fig. 3. XRD patterns of KH2PO4/AA at different calcination temperatures.

Under the same reaction conditions given above, the effect of K content on the performance of KH₂PO₄/AA was investigated as shown in Fig. 4. It can be seen that the phenol conversion generally decreased with increasing K content and in particular decreased faster with K content of over 7.53 wt%. In contrast, the selectivity to anisole increased rapidly with a low K content and became stable with increasing K content after 4.44 wt%. The selectivities of the other components exhibited a common reverse trend to that of anisole. In particular, the selectivity of methyphenol was the highest and even higher than that of anisole at the lowest K content. This indicated that a low K content was advantageous for C-methylation conversion of phenol, while a high content of K favored the conversion of phenol by O-methylation, illustrating the importance of K on the formation of anisole. By multiplication between the two factors of conversion and selectivity of anisole, the LAY reached the highest of 80.06% at the K content of 7.53 wt%.

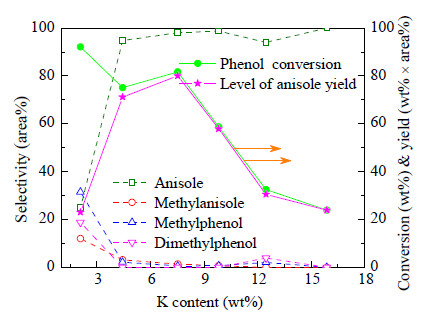

Fig. 4. Effect of K content on the performance of KH2PO4/AA.

The KH₂PO₄/AA catalysts with different K loadings were analyzed by XRD, as shown in Fig. 5. It can be seen that only the peaks of Al₂O₃ could be detected on the catalysts with low K contents. For the catalysts with K contents at 7.53-12.48 wt%, the peaks of Al₂O₃ were reduced and simultaneously the peaks of K₃Al₂(PO₄)₃ appeared distinctly with increasing K content. By considering the performance of the catalyst, the middle value of 7.53 wt% was the optimum K content for the highest selectivity to anisole.

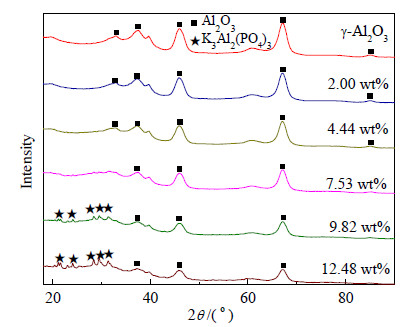

Fig. 5. XRD patterns of KH2PO4/AA with different K contents.

Under the catalysis of KH₂PO₄/AA, the influence of vapor phase reaction conditions including the reaction temperature, WHSV, and molar ratio of phenol to methanol on the conversion of phenol, selectivity to anisole, and level of anisole yield were investigated.

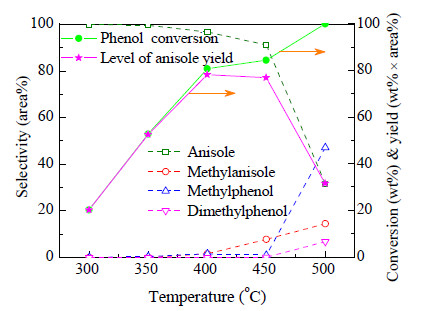

Fig. 6 shows the influence of reaction temperature on the performance of KH₂PO₄/AA (K content 7.72 wt%). The reaction was conducted at temperatures from 300 to 500 ℃ with a constant WHSV of 0.21 h^-1 and mole ratio of phenol to methanol of 1:5. It can be seen that the phenol conversion increased with increasing temperature from 300 to 500 ℃. Anisole was the main product at low temperatures, and its amount decreased slowly with increasing temperature and decreased much faster at high temperatures over 450 ℃. The selectivities of the other three components increased with increasing temperature, and in particular, the formation of methylphenol was promoted most significantly at high temperatures. This indicated that a low temperature favored the O-methylation of phenol, and the C-methylation of phenol was prevalent at high temperatures. As the arithmetic product of phenol conversion and anisole selectivity, the LAY reached the highest value of 77.5% at the temperature of 400-450 ℃, indicating an optimal operating temperature range.

Fig. 6. Effect of reaction temperature on the performance of KH2PO4/AA.

The influence of WHSV on the performance of KH₂PO₄/AA (K content 8.45 wt%) was investigated as shown in Fig. 7. The reaction was conducted under different WHSVs, which were controlled by a varied feeding rate of the reactant mixture, while the other conditions were constant at 400 ℃ and mole ratio of phenol to methanol of 1:5. It can be seen that phenol conversion decreased with increasing WHSV. Anisole selectivity increased slightly with the increase of WHSV, while the other products slightly decreased. This indicated that anisole was a primary product, and thus a shorter residence time was advantageous for a higher selectivity to anisole. The decreased phenol conversion and the slightly varied anisole selectivity determined a decreasing trend of LAY with a similar trend to that of phenol conversion with increasing WHSV, and a high LAY over 70% was obtained at a low WHSV less than 0.18 h^-1. An even lower WHSV will cause an even longer residence time and thus reducing the time efficiency of the process, though it favors the increase of LAY further. So, a preferred WHSV should be determined by optimizing between anisole yield and time efficiency.

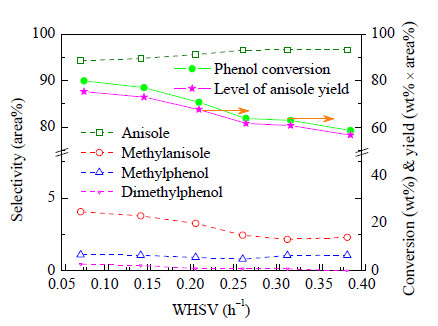

Fig. 7. Effect of WHSV on the performance of KH2PO4/AA.

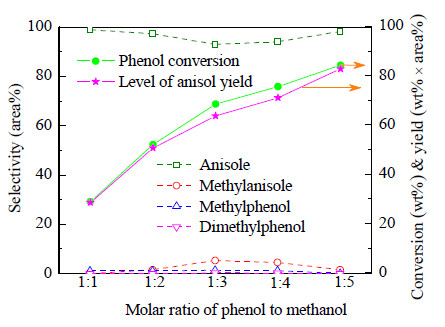

Fig. 8 displays the effect of reactant composition on the performance of KH₂PO₄/AA (K content 7.34 wt%). The reaction was conducted under a varied molar ratio of phenol to methanol with a constant temperature of 400 ℃ and a WHSV of 0.21 h^-1. It can be seen that phenol conversion increased distinctly with increasing mole fraction of methanol. The selectivities of all products, including the main product of anisole, generally varied very little with the increase of mole fraction of methanol. A low methanol fraction favored high anisole selectivity. LAY increased with increasing methanol fraction in a similar trend to that of phenol conversion, and a high LAY over 80% was obtained when the methanol fraction was 5 times higher than the phenol fraction. The reaction between phenol and methanol to anisole is a process with equal stoichiometric coefficients, and thus an excess of methanol can promote the reaction in the forward direction.

Fig. 8. Effect of mole ratio of phenol to methanol on the performance of KH2PO4/AA.

Phenol can be converted to aryl ethers by O-methylation or to methyl phenols by C-methylation over different catalysts under different conditions. A summary of the above results is that a low reaction temperature, high WHSV meaning a shorter residence time, and low methanol fraction over KH₂PO₄/AA with a higher K content favored the increase of anisole selectivity by O-methylation of phenol. Relatively, the reaction temperature and K content of the catalyst were the more significant influencing factors.

According to the above results, the reaction routes to the major products can be deduced. As shown in Fig. 9, phenol is first converted to anisole by O-methylation and to methylphenol by C-methylation in parallel. Route (a) is the dominant one under the optimized reaction conditions as discussed above. The obtained methylphenol and anisole are further converted to dimethylphenol and methylanisole by C-methylation. Methylanisole may also be generated from methylphenol by route (e) beyond route (c), while route (c) would be the preferred one for the formation of methylanisole since the amount of anisole was much higher than that of methylphenol.

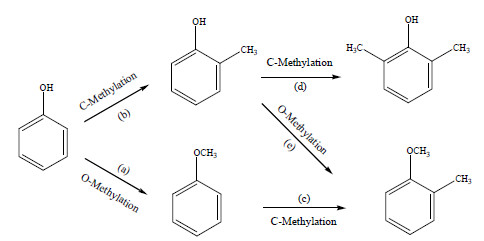

Fig. 9. Reactions routes to the major products.

Based on the results given above, the reaction mechanism over KH₂PO₄/AA was deduced and shown in Fig. 10. In the vapor phase reaction, phenol was adsorbed on the K sites of the catalyst surface. Methanol was adsorbed on the Lewis acid sites of alumina. The anion of ^-OH was removed from methanol by the acidic alumina, generating a separated cation of CH₃⁺. In the presence of K, the H⁺ cation of phenol was replaced by the K⁺ cation of the catalyst. CH₃⁺ from methanol and the Ph-O^- from phenol then combined to give anisole, and water was also generated by the combination of H⁺ and ^-OH. So, the catalytic mechanism can be attributed to a ‘K-acid’ bifunctional process. According to this mechanism, an excess of K can occupy the Lewis acid sites, and thus decrease the activation of methanol, while a low K loading would give decreased activation of phenol. This explains the phenomenon that the catalyst with the best performance has a medium loading.

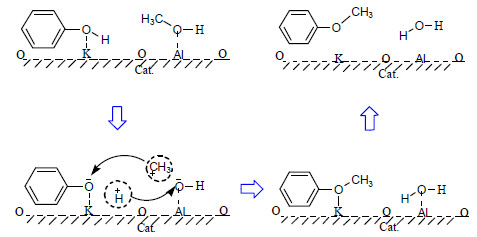

Fig. 10. Catalytic mechanism for the vapor phase methylation of phenol with methanol over KH2PO4/AA.

Synthesis of anisole by vapor phase methylation of phenol with methanol over activated alumina supported catalysts were investigated in a fixed bed reactor. The KH₂PO₄/AA catalyst with the calcination temperature of 700 ℃ for 8 h gave the best performance. The optimal K content was 7.53 wt%. The level of anisole yield has a maximum value at 400-450 ℃ in the range from 300 to 500 ℃, decreased slightly with increasing WHSV, and increased with increasing mole fraction of methanol. On comparing the O-methylation and C-methylation of phenol, a low reaction temperature, high WHSV, and low methanol fraction over a KH₂PO₄/AA catalyst with higher K content favored the increase of anisole selectivity by O-methylation of phenol. The level of anisole yield was maximized under the optimized reaction conditions of around 400-450 ℃, low WHSV below 0.18 h^-1, and high molar ratio of methanol to phenol of 5. The catalyst preparation and anisole synthesis process are very simple with low cost and a relatively good result, and thus is advantageous for practical application. The catalytic mechanism was deduced to be that the adsorption of phenol on the K site of KH₂PO₄/AA and the adsorption of methanol on the Lewis acid site as the first reaction steps. The following combination of the CH₃⁺ of methanol and the Ph-O^- of phenol gave anisole.
