In recent years, carbon solid acids (CSAs) have been studied by many researchers ^{[1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21]}. CSAs are amorphous carbon materials consisting of small polycyclic aromatic carbon sheets with attached SO₃H groups ^[1]. Due to the high density of SO₃H groups, simple separation process and environmentally friendly characteristics, CSAs are considered promising replacements for H₂SO₄, which is one of the most widely used liquid acid catalysts for the production of many industrially important chemicals ^[2]. CSAs exhibit high catalytic performance for many types of acid-catalyzed reactions, such as esterification ^{[3, 4, 5, 6, 7]}, transesterification ^{[8, 9, 10]}, hydration ^{[2, 11]}, dehydration ^[12], alkylation ^[13], hydrolysis ^{[14, 15, 16, 17]}, condensation ^[18], and rearrangement ^{[19, 20]}. There are two routes for the preparation of CSAs ^[21]: one is the incomplete carbonization of sulfoaromatic compounds and the other is the sulfonation of partially carbonized organic matter, such as sucrose, D-glucose, starch, cellulose, or biomass. Most CSAs are prepared by the second route because of its convenience and safety.

Peanut shell is an agricultural waste and would be an excellent bio-resource for preparing CSAs because of its high supply, low cost, and easy sustainability. Several papers ^{[22, 23, 24]} have reported the preparation of CSAs by the sulfonation of the partially carbonized peanut shell and shown their high activity and excellent recyclability for biodiesel production and esterification reactions. Zeng et al. ^[24] found that the acid strength of the CSAs from peanut shell was stronger than that of HZSM-5 (Si/Al = 75), but weaker than that of 100% H₂SO₄. The CSAs produced from peanut shell do not have any Lewis acid sites on their surface.

Cyclohexyl formate is an important chemical used in the perfume and coating industries ^[25]. The most widely used method for the production of cyclohexyl formate is the reaction of formic acid with cyclohexanol over a mineral acid catalyst or an acidic heterogeneous catalyst. Due to the availability of cyclohexene on a large scale, the direct esterification of cyclohexene with formic acid has been of interest in recent years. Saha et al. ^[26] investigated the esterification of formic acid with cyclohexene in the presence of cation-exchange resins as the catalyst. Cyclohexene conversion reached 95.7% with 95.2% selectivity for cyclohexyl formate. The esterification of cyclohexene with acetic acid has been also studied over Hβ ^[27], ionic liquids ^[28], and ion exchange resins ^[25]. A propysulfonic acid modified mesostructured silica (SBA-15-SO₃H) was used as catalyst for the esterification of acrylic acid and cyclohexene ^[29], which gave good catalytic performance and stability. Other than use in the perfume industry, cyclohexyl formate can also be easily hydrolyzed to cyclohexanol ^[30], which is an important chemical intermediate in the synthesis of adipic acid and caprolactam for the production of nylon-6 and nylon-66 polymers ^[31]. In the 1990s, Asahi Chemical Industry Co. commercialized a process for the preparation of cyclohexanol by the direct hydration of cyclohexene ^[32]. However, this reaction is limited by the thermodynamics and extremely poor miscibility of water and cyclohexene, and the reaction rate was low. The once-through yield was only 10%, which led to high recycle amounts with high energy consumption. The synthesis of cyclohexanol from cyclohexene via cyclohexyl formate in the direct hydration of cyclohexene overcomes the drawbacks above ^[33]. Steyer et al. ^[30] studied the esterification of cyclohexene with formic acid and the subsequent hydrolyzation of the ester over Amberlyst 15 catalyst in a reactive distillation column. They concluded that it was possible to achieve an almost complete conversion of cyclohexene to cyclohexanol ^[34]. Du et al. ^[35] studied the one-pot synthesis of cyclohexanol from cyclohexene via cyclohexyl formate over HZSM-5 catalyst and obtained cyclohexanol in yields of up to 40%, which was far more than in the direct hydration of cyclohexene.

Concerning the two reactions in the synthesis of cyclohexanol from cyclohexene via cyclohexyl formate, the esterification of cyclohexene with formic acid should receive more attention because the hydrolyzation of cyclohexyl formate is much easier. Cyclohexyl formate conversion can reach nearly 60% with high cyclohexanol selectivity even without a catalyst ^[35]. Therefore, in this work, the catalytic performance of a CSA catalyst for the esterification of cyclohexene with formic acid was evaluated. The CSA catalyst was prepared by the sulfonation of partially carbonized peanut shell with concentrated H₂SO₄. The structure and acidic properties were characterized and the reusability of the catalyst was also studied.

Peanut shell was heated in a tube furnace for 10 h at 723 K under a N₂ flow. Then the partially carbonized peanut shell was ground into powder. To sulfonate this carbon material, 6 g of the carbonized peanut shell powder and 150 mL concentrated H₂SO₄ (98%) were mixed in a 250 mL flask and heated at 433 K for 8 h under N₂ flow. After sulfonation, the mixture was cooled to room temperature. Then the carbon material was filtered and washed repeatedly with hot deionized water (>353 K) until the filtrate was free of SO₄^2-. Finally, the solid was dried at 353 K under vacuum overnight to obtain the peanut shell derived carbon solid acid catalyst. The catalyst was denoted as PSCSA.

The Fourier transform infrared (FT-IR) spectrum of PSCSA with the KBr tablet method was recorded by a Thermo Nicolet Nexus 470 spectrometer. The results were used to determine the functional groups on the material. The morphology of PSCSA was characterized by scanning electron microscopy (SEM) using a Hitachi S-4800 field emission scanning electron microscope. X-ray diffraction (XRD) was carried out using a Rigaku D/Max-2500 X-ray diffractometer and Cu K_α radiation at 40 kV and 100 mA. Raman spectra were measured by a Renishaw inVia Reflex microspectrometer.

The thermostability of PSCSA was measured by thermogravimetric analysis (TGA) using a DuPont TA2000 TG analyzer. The temperature was increased from ambient temperature to 1273 K under air/N₂ flow at a heating rate of 10 K/min. X-ray photoelectron spectroscopy (XPS) measurements were performed with a PE PHI-1600 spectrometer with a Mg K_α source (1253.6 eV). The composition of the samples was determined by the elemental analysis of C, H, N, S and O using an Elementar Vario EL elemental analyzer. The content of S was used to calculate the acid density of -SO₃H. The specific surface area and pore structure of PSCSA were measured by N₂ adsorption using a Micromeritics ASAP 2020 instrument. The surface area was calculated by the BET method.

The esterification of cyclohexene with formic acid was carried out in a 100-mL Teflon-lined stainless steel autoclave fitted with a magnetic stirrer. In a typical experiment, 15.0 mL cyclohexene (0.148 mol) and 16.8 mL formic acid (0.446 mol) were introduced into the autoclave together with 1.05 g PSCSA as catalyst. The autoclave was sealed and pressurized with N₂ for leak testing, then purged and the temperature set to 413 K to start the esterification. At the end of the reaction, the autoclave was cooled in an ice bath and vented. The catalyst was separated by centrifugation and the liquid was washed with deionized water to eliminate formic acid. The reaction products in the organic phase were identified and quantified by capillary gas chromatography using a BAIF SP-3420 instrument with PEG 20M column (30 m × 0.25 mm) and FID. Cyclohexene conversion (X) and cyclohexyl formate selectivity (S) were calculated by

The FT-IR spectra of the partially carbonized peanut shell and PSCSA are shown in Fig. 1, which identified the functional groups on the carbon surface. Compared to the spectrum of the partially carbonized peanut shell, there were two additional bands at 1189 and 1037 cm^-1 in the PSCSA, which were assigned to the SO₂ symmetric and asymmetric stretching modes, respectively ^[36]. This illustrated that sulfonic acid groups were loaded on the surface of the PSCSA by the sulfonation process. Moreover, the band at 1711 cm^-1 can be assigned to the C=O stretching mode of the -COOH group ^[24]. Therefore, -COOH and -SO₃H were present on the surface of PSCSA, which became an acidic material with Brönsted acid sites.

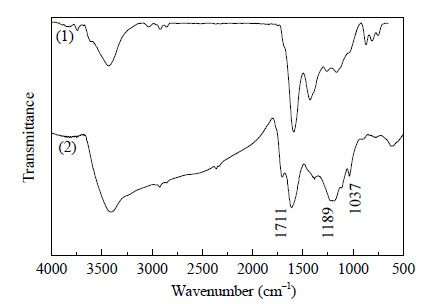

Fig. 1. FT-IR spectra of partially carbonized peanut shell (1) and PSCSA (2).

Fig. 2 shows the SEM images of the PSCSA catalyst at two different positions. There were two different morphologies seen on this carbon material. Fig. 2(a) shows that the sample has a highly irregular, complex structure with some discrete pores. Part of the sample has an ordered fiber-like structure. Another part of the same sample, shown in Fig. 2(b), has lamellar structures of different sizes. The difference between the different parts of PSCSA was attributed to the inhomogeneous components of the peanut shell. SEM-EDAX tests showed that the S contents were 3.01 and 3.62 wt% at the two positions on the PSCSA.

Fig. 2. SEM images of PSCSA.

The XRD pattern of PSCSA, shown in Fig. 3(a), exhibited one broad diffraction peak at 10°-30° and one weak peak at 40°-50°. The peaks were attributed to amorphous carbon composed of aromatic carbon sheets in random orientations ^[14]. Okamura et al. ^[2] showed that the latter peak was due to the a axis of the graphite structure. When using D-glucose as the precursor of the CSAs, the diffraction peak appeared at a higher carbonization temperature, 823 K. Therefore, this showed that peanut shell was easily carbonized and the PSCSA was composed of large carbon sheets. Fig. 3(b) shows the Raman spectrum of the PSCSA catalyst. The intensity ratio of the D band (1350 cm^-1, A_1g D breathing mode) to the G band (1590 cm^-1, E_2g G mode) was 0.85. The average size of the graphene in PSCSA was therefore estimated to be 1.2 nm ^[37].

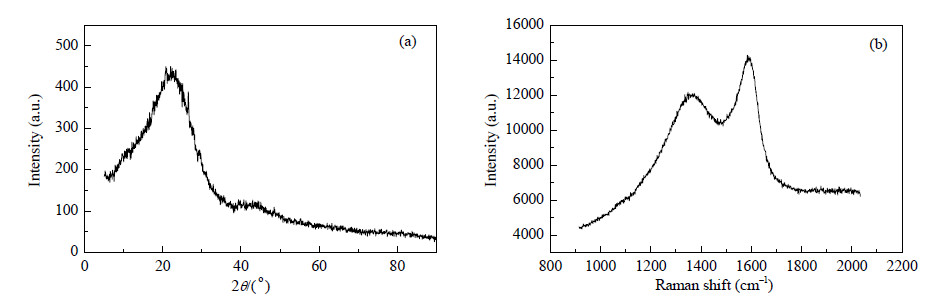

Fig. 3. XRD pattern (a) and Raman spectrum (b) of PSCSA.

The thermal stability of PSCSA was examined by TGA under a flow of air/N₂. The results are shown in Fig. 4. PSCSA lost 10.0% of its weight from 333 to 393 K, which was due to desorption of water and other low boiling compounds. The weight did not change from 393 to 553 K. A rapid 85.0% weight loss then occurred from 553 to 823 K due to the oxidation of the carbon. Hara et al. ^[1] found by temperature programmed desorption with a mass spectrometer (TPD-MS) that H₂O, SO₂, and CO₂ were evolved from a carbon solid acid above 520 K. Because PSCSA was used in an inert atmosphere (N₂) in this study, the TGA measurement of PSCSA was also conducted in N₂. Due to the removal of water, there was a noticeable weight loss of 10.1% below 393 K, which was similar to the TGA result in air. Then, beyond 498 K, there was a weight loss of 40.1%, which was attributed to the thermal decomposition of PhSO₃H groups ^[38]. When the temperature was above the carbonization temperature (723 K) of PSCSA, there were also weight losses corresponding to the deep carbonization process, such as pyrolysis of lignin and primary carbide ^[39]. In any event, PSCSA was stable below 473 K, where the esterification of cyclohexene with formic acid was conducted.

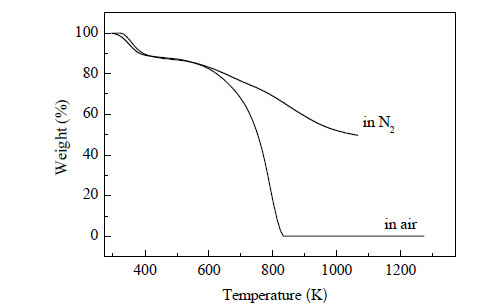

Fig. 4. TGA curves of PSCSA in air/N2.

Fig. 5 shows the narrow scan for the S 2p region of the XPS spectrum of the PSCSA catalyst. A single S 2p peak was observed at 168.3 eV, which indicated that all the S atoms in the catalyst were contained in -SO₃H groups. Thus, the density of -SO₃H groups can be estimated on the basis of the S content. The density of -SO₃H sites in PSCSA was calculated to be 0.81 mmol/g with an S content of 2.59 wt% as measured by elemental analysis.

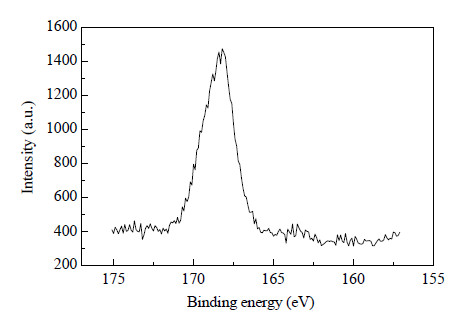

Fig. 5. XPS spectrum of PSCSA.

The esterification of cyclohexene with formic acid is an electrophilic addition reaction. First, cyclohexene is protonated by -SO₃H on PSCSA to generate the carbocation, which is the rate determining step. The carbocation is then attacked by the nucleophilic formic acid molecule to create an oxonium ion. Finally, cyclohexyl formate is formed by deprotonation of the oxonium ion and the catalyst is regenerated. The reaction mechanism is shown in Scheme 1. Besides cyclohexyl formate, the GC analysis also showed that cyclohexanol was the main side product. Since the purity of formic acid used in this work was 99%, there may be a small quantity of water in the reaction. Therefore, cyclohexanol was produced by the hydrolysis of cyclohexyl formate, or the direct hydration of cyclohexene. Moreover, other side products, such as a cyclohexene dimer and dicyclohexyl ether were also found by GC-MS at higher sensitivity. The amounts of these additional products were negligible. Other studies have shown that these side reactions are unavoidable in the reactions of olefins over an acidic catalyst ^[40]. The overall reactions involved in PSCSA-catalyzed esterification of cyclohexene with formic acid are shown in Scheme 2.

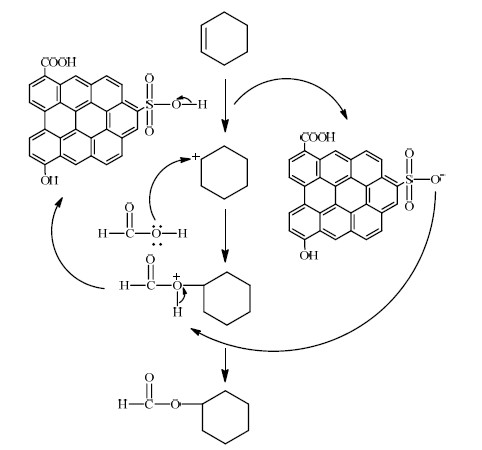

Scheme 1. Mechanism of the esterification of cyclohexene with formic acid over PSCSA.

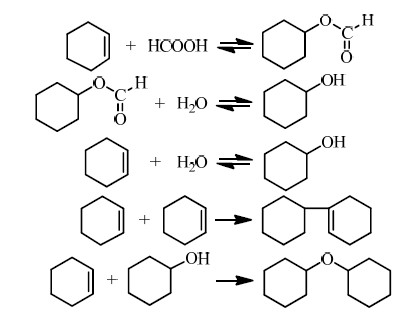

Scheme 2. Reactions in the esterification of cyclohexene with formic acid over a PSCSA catalyst.

According to the stoichiometry, equimolar formic acid is needed for cyclohexene to form cyclohexyl formate. Because esterification is a reversible reaction, there must be an excess of formic acid to promote the conversion of cyclohexene. The effect of the molar ratio of formic acid to cyclohexene on this esterification was studied. The results are shown in Fig. 6. When an equimolar amount of formic acid and cyclohexene was used, the cyclohexene conversion was 59.1%. The cyclohexene conversion increased to 87.8% with a molar ratio of 3 to 1. It then slightly increased as the molar ratio increased to 5 to 1. The selectivity for cyclohexyl formate changed only slightly at different ratios of formic acid to cyclohexene and was always above 96.6%.

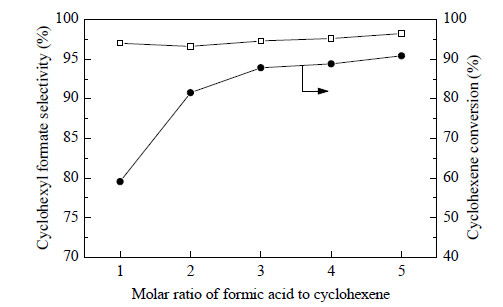

Fig. 6. Effect of the molar ratio of formic acid to cyclohexene on the esterification of cyclohexene with formic acid. Conditions: 413 K, 1 h, catalyst loading 0.13 g/mL-cyclohexene.

The effect of PSCSA catalyst loading on the esterification of cyclohexene with formic acid is shown in Fig. 7. At a catalyst loading of 0.01 g/mL-cyclohexene, cyclohexene conversion was 70.8% with 97.9% selectivity for cyclohexyl formate. On increasing the catalyst loading to 0.07 g/mL of cyclohexene, the cyclohexene conversion reached 88.4%. This was because of the increase in the number of acid sites. However, a further increase in the catalyst loading from 0.07 to 0.19 g/mL-cyclohexene decreased the cyclohexene conversion slightly to 84.9%. One possible reason is that the poor mixing of the reactants caused by the high catalyst loading under the same stirring conditions resulted in a lower reaction rate. The selectivity for cyclohexyl formate also decreased slightly with increased PSCSA catalyst loading. The GC results showed that both of the amounts of cyclohexanol and 1-cyclohexyl cyclohexene increased with increasing catalyst loading. Therefore, the optimum catalyst loading for this experimental system was 0.07 g/mL-cyclohexene.

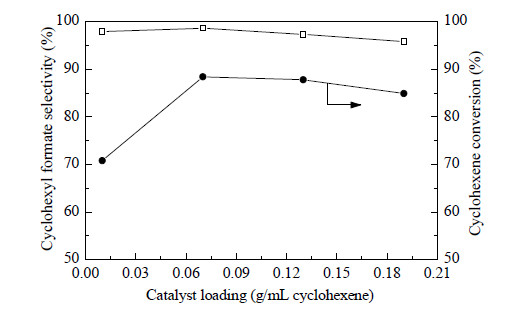

Fig. 7. Effect of catalyst loading on the esterification of cyclohexene with formic acid. Conditions: 413 K, 1 h, formic acid-to-cyclohexene molar ratio 3:1.

To study the effect of reaction temperature on the esterification of cyclohexene with formic acid, experiments over the PSCSA catalyst were carried out at 393-433 K. The results are shown in Fig. 8. As the reaction temperature increased from 393 to 413 K, cyclohexene conversion increased rapidly from 39.9% to 88.4%. However, at higher temperatures, the cyclohexene conversion decreased. At 433 K, the cyclohexene conversion was 79.9%. The selectivity for cyclohexyl formate was almost constant with temperature but also showed an analogous trend of peaking at 413 K.

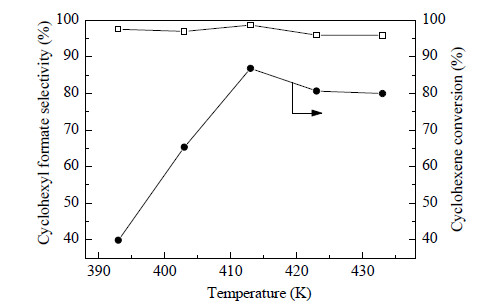

Fig. 8. Effect of the reaction temperature on the esterification of cyclohexene with formic acid. Conditions: 1 h, formic acid-to-cyclohexene molar ratio 3:1, catalyst loading 0.07 g/mL-cyclohexene.

In general, a higher temperature should give a higher reaction rate. Because esterification of cyclohexene with formic acid is a reversible exothermic reaction, higher temperatures enhance the reverse reaction, which favored the pyrolysis of cyclohexyl formate to cyclohexene and formic acid. In addition, the GC results showed that the amounts of cyclohexanol and 1-cyclohexyl cyclohexene increased with increasing temperature. In other words, a higher temperature promoted the hydrolysis of cyclohexyl formate and the dimerization of cyclohexene. Therefore, cyclohexene conversion and selectivity to cyclohexyl formate both decreased at higher temperatures.

The effect of the reaction time on the esterification of cyclohexene with formic acid is shown in Fig. 9. Cyclohexene conversion was 76.9% at 0.5 h. This increased to 88.4% at 1 h. Cyclohexene conversion was then unchanged up to 3 h. The selectivity to cyclohexyl formate decreased slightly as the time increased. This was because the esterification reaction was followed by the hydrolysis of cyclohexyl formate to cyclohexanol. Prolonged reaction times favor the formation of cyclohexanol. However, because of the limited amount of water, the consecutive reaction was limited. Therefore, the optimum reaction time was 1 h with 88.4% cyclohexene conversion and 97.3% selectivity for cyclohexyl formate.

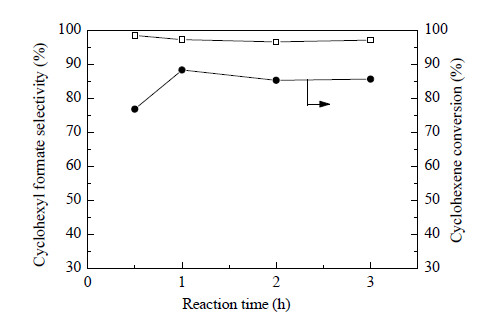

Fig. 9. Effect of reaction time on the esterification of cyclohexene with formic acid. Conditions: 413 K, formic acid-to-cyclohexene molar ratio 3:1, catalyst loading 0.07 g/mL-cyclohexene.

The evaluation of catalytic performance for the esterification of cyclohexene with formic acid over several acid catalysts is illustrated in Table 1. Among these catalysts, Amberlyst-15 exhibited the highest activity even when the reaction was conducted at 393 K due to the limit placed by its maximum operating temperature. This was attributed to its highest acid density. However, its high price limits its large scale application in industry. PSCSA showed the second highest catalytic activity although both the specific surface area and acid density of PSCSA were less than those of HZSM-5. To have a better comparison between these two catalysts, the chemical reaction rate at the initial stage was investigated. Fig. 10 shows the cyclohexene conversion over PSCSA and HZSM-5 at 393 K. At the initial stage, the reaction rate over HZSM-5 was a little faster than that over PSCSA. After the reaction had proceeded for 30 min, cyclohexene conversion over PSCSA increased rapidly, which indicated a faster reaction rate.

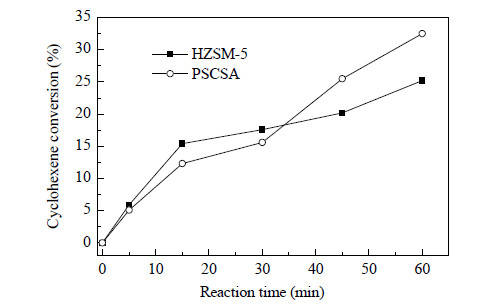

Fig. 10. Comparison of PSCSA with HZSM-5 for the esterification of cyclohexene with formic acid. Conditions: 393 K, formic acid-to- cyclohexene molar ratio 3:1, catalyst loading 0.01 g/mL-cyclohexene.

Table 1 Catalytic performance in the esterification of cyclohexene with formic acid. Catalyst S BET (m 2/g) Pore diameter (nm) Acid density (mmol/g) Cyclohexene conversion (%) Cyclohexyl formate selectivity (%) PSCSA 10.0 3.9 0.81 a 87.8 97.4 HZSM-5 b 416.1 0.57 1.70 c 77.6 97.0 Amberlyst-15 d 42.3 - 4.60 91.5 98.1 Nafion NR50 e < 1 - 0.51 68.2 98.5 Reaction conditions: 413 K, 1 h, catalyst loading 0.13 g/mL-cyclohexene, formic acid/cyclohexene 3:1 (molar ratio). a Based on S content by elemental analysis. bn(SiO2)/n(Al2O3) = 25. c Measure by NH3-TPD. d Purchased from Alfa; reaction was condcuted at 393 K. e Purchased from Alfa.

Table 1 Catalytic performance in the esterification of cyclohexene with formic acid.

Both the high activity of PSCSA and the change in the reaction rate can be explained by one of the properties of PSCSA, which is that it swells in a strongly polar solvent. Kitano et al. ^[14] found that the carbon solid acid swelled in water and the effective surface area determined from the water vapor adsorption isotherm was as high as 580 m²/g. Therefore, in this reaction, PSCSA swelled in the formic acid solvent and incorporated a large amount of formic acid into the carbon bulk. Because cyclohexene and formic acid have good miscibility, cyclohexene can be incorporated into the carbon particles to reach the -SO₃H active sites easily with the help of formic acid. This resulted in the good catalytic performance of PSCSA. Furthermore, Zeng et al. ^[24] found that the acid strength of the solid acid from peanut shell was stronger than that of HZSM-5 (Si/Al = 75). This was also an important reason for the high activity of PSCSA. The difference in the pore size of the two catalysts also has an effect. As shown in Table 1, the average pore diameter of PSCSA (3.9 nm) was larger than that of the HZSM-5 (0.57 nm). Therefore, PSCSA would have faster molecular internal diffusion than HZSM-5. The different reaction rate over PSCSA may also be attributed to the swelling. At first, PSCSA did not swell fully, therefore the number of the active sites that cyclohexene and formic acid can reach was limited. After the reaction had proceeded for a while, PSCSA had swelled completely and the active sites that take part in the reaction increased. Therefore, the reaction was accelerated.

The reusability of the PSCSA catalyst for the esterification of cyclohexene with formic acid was investigated. The catalyst was filtered from the mixture after the reaction and washed with water and dried. Then, it was reused directly in a new cycle without any further treatment. As shown in Fig. 11, high selectivity for cyclohexyl formate was obtained in every cycle, but the cyclohexene conversion decreased from 88.4% to 81.0% (2nd cycle) to 68.6% (3rd cycle). After this, the activity remained constant with reuse from the 3rd to the 5th cycles.

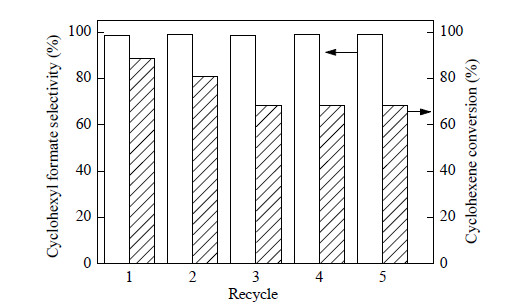

Fig. 11. Reusability of the PSCSA catalyst.

When the HZSM-5 zeolite catalyst was used in this reaction, it also showed a decline in the reusability tests ^[35]. The reason for the deactivation of HZSM-5 is the covering of the acid sites and diffusion hindrance by the accumulation of oligomerized cyclohexene in the zeolite micropores. The PSCSA catalyst has a smaller specific surface area and there were almost no micropores. Therefore, the deposition of macromolecular compounds was not the reason for the decline in activity. The PSCSA catalyst that had been used for five cycles was characterized and the -SO₃H density was only 0.55 mmol/g. Compared with that on the fresh PSCSA of 0.81 mmol/g, it was concluded that the activity decrease was proportional to the decrease of the -SO₃H density and the deactivation of PSCSA was due to the leaching of -SO₃H.

Although sulfonated carbons are insoluble in some solvents ^[2], Mo et al. ^[41] found that the catalytic deactivation of their CSAs was caused by the leaching of polycyclic aromatic hydrocarbon-containing -SO₃H groups, especially in polar media. This phenomenon that the PSCSA catalytic activity decreased in the initial cycles but then was constant after three cycles indicated that the leaching of the active species on the PSCSA had stopped. This was attributed to the different nature of the acid sites. Some were readily leached, while others were not. Mo et al. ^[41] estimated that 75%-80% of the acid sites in a sulfonated carbon catalyst were more stable and not readily leached. This is in accordance with our reusability tests.

A peanut shell-derived carbon solid acid exhibited high activity for the esterification of cyclohexene with formic acid. At the optimal reaction conditions of reaction for 1 h at 413 K, formic acid-to-cyclohexene molar ratio of 3:1, and catalyst loading of 0.07 g/mL of cyclohexene, the cyclohexene conversion was 88.4% with 97.3% selectivity for cyclohexyl formate. Compared to HZSM-5, the catalyst showed better activity because of fast adsorption of both reactants which was due to the swelling of this catalyst in formic acid. The initial decrease of catalytic activity in the first two recycles was due to the leaching of polycyclic aromatic hydrocarbon containing -SO₃H groups. Because of the different nature of the acid sites, the leaching stopped and the catalytic activity remained stable in the succeeding reuse.
