Polymer membrane fuel cells (PMFCs) are a promising means of addressing the present challenges of environmental pollution and energy shortages. Both anode and cathode electrocatalysts, typically composed of precious metals, are key components of PMFCs and play central roles in enhancing the output power density and extending the working lifetime [1-4]. It is notable that the performance of precious metal nanoparticles is limited primarily by several controllable parameters, including size distribution [5], composition [6-9] and morphology (a factor related to preferential facets) [10-13]. Each of these parameters is critical to the electrocatalysis process and significantly affects the reaction pathways and/or activities [14-19]. However, the size, composition and morphology of metal nanoparticles are difficult to tune during synthesis due to the nature of the precursors that are employed, and so various controlling agents, such as polymers and polyols, are often used. The as-prepared electrocatalysts also tend to suffer from agglomeration, dissolution, detachment of catalytic nanoparticles and, especially, severe corrosion of support materials during long-term operation [20-29]. As a result of these phenomena,PMFCs incorporating these materials may not meet the requirements for commercialization. At present, carbon materials such as 1D carbon nanotubes (CNTs) and fibers [30-38], 2D graphene [39-49] and 3D carbon [50-60, 61] are still the most widely used supports due to their balanced performance, although they undergo more severe corrosion under fuel cell operating conditions [25-29, 62-68] compared with other novel supports such as metal oxides [69-75] and metal carbides [76-82]. Graphitization is efficient at enhancing the stability of carbon materials, and can significantly reduce surface defects, although it also results in a decrease in the loading sites available for nanoparticles. Therefore, the development of catalytic nanoparticles (commonly precious metals and their a lloys) exhibiting high activity and stability, as well as support materials with high stability, electrical conductivity and strong interactions with nanoparticles, is urgently required [3, 83-93].
Polyelectrolytes have the potential to address the above challenges, and so are widely used in fabricating membrane electrode assembly (MEA) devices based on layer-by-layer self-assembly. Several excellent reviews of this subject have been published [94, 95] in addition to other reports regarding catalytic nanoparticles and/or support materials [96-105]. However, only minimal attention has been paid to the effects of polyelectrolytes with regard to tuning catalytic nanoparticles and functionalizing support materials. Herein, we focus on the applications of polyelectrolytes, particularly poly (diallyldimethyl ammonium chloride) (PDDA), in developing novel catalytic nanoparticles and carbon support materials with remarkably enhanced performance.

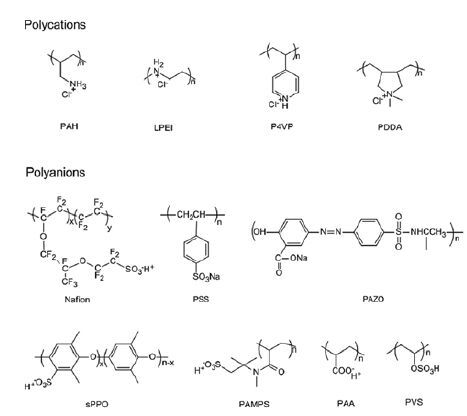

Polyelectrolytes, or polymeric electrolytes, are generally recognized as helpful agents in the design and synthesis of electrocatalysts, due to their unique properties and/or charged states in aqueous solutions. Based on their charge states, polyelectrolytes can be classified as polycations, polyanions or polyampholytes, among which the polycations and polyanions are potentially useful in the field of PMFCs (Fig. 1) [94].

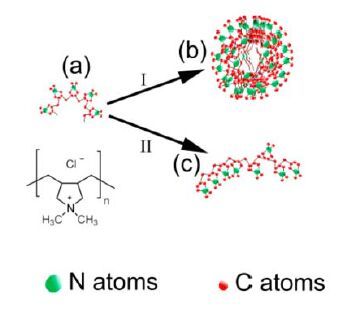

Polyelectrolytes in aqueous solution typically dissociate into long polymer chains and ions having opposite charges. Taking PDDA as an example, the polymer dissociates into Cl- ions and positively charged polymer chains (Fig. 2). Within the PDDA chains, the positively charged regions are hydrophilic amino groups, while the remainder of each chain is composed of hydrophobic hydrocarbyl regions (Fig. 2(a)). These charged polymer chains can form micelles, the shape and size of which depend on the concentration of the polymer. When the PDDA concentration is high, positively charged hydrophilic groups move outward to form a spherical micelle structure with exposed amino groups (Route Ⅰ,Fig. 2(b)). At lower concentrations, the polymer chains will form a twisted structure (Route Ⅱ,Fig. 2(c)) [106]. In addition, long chains with functional groups can adsorb on the surfaces of both catalytic nanoparticles and support materials, which is the basis for using polyelectrolytes to modify such materials. Interestingly, the modified nanoparticles and supports can be either positively or negatively charged by the polymer chains, depending on the polyelectrolyte type. Oppositely charged regions will tend to gather together based on electrostatic attraction, which leads to numerous possibilities with regard to synthesizing novel electrocatalysts and MEAs. The various uses of polyelectrolytes are all based on these unique properties.
It should be emphasized that most reports of polyelectrolyte in PMFCs are associated with layer-by-layer self-assembly, which involves non-covalent integration between two oppositely charged regions to produce highly ordered structures on the MEA level [94, 95], rather than on the catalyst level. However, as researchers have developed a more profound understanding of polyelectrolytes, more and more investigations have focused on the application of polyelectrolytes to catalyst synthesis. Although the main object of our attention is PDDA at present, there is still much to be learned in this field regarding many other polyelectrolytes.
The size distribution of noble metal catalytic nanoparticles is crucial to electrocatalytic performance. Larger nanoparticles result in low specific surface areas and fewer potential active sites. However, smaller catalytic nanoparticles lead to poor durability because they typically agglomerate and dissolve more readily compared with larger particles. Thus, the appropriate size distribution represents a balance between the number of active sites and the durability of the electrocatalyst [107-109]. During metal nanoparticle synthesis, two successive steps can take place: nucleation and the growth of these nuclei. Commonly, increasing the nucleation rate and reducing the subsequent growth time will result in a smaller size distribution. This section discusses the function of polyelectrolytes in limiting the sizes of nanoparticles and in preventing degradation.

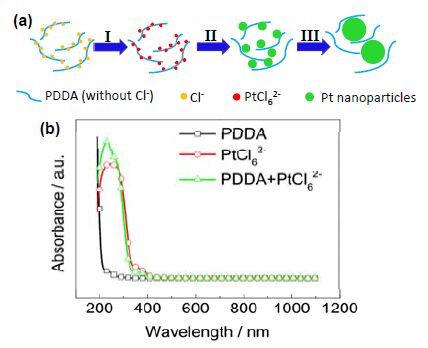

Taking Pt nanoparticles and PDDA as models,Fig. 3(a) depicts a possible reaction process for the formation of nanoparticles. The PDDA initially dissociates into long chains and Cl- ions. Upon adding a Pt precursor such as chloroplatinic acid to the polymer solution, chloroplatinic ions (PtCl62-) replace the Cl- ions (that is, an ion-exchange process occurs) and are thus adsorbed on the PDDA chains at the N sites (step Ⅰ,Fig. 3(a)) [110, 111]. This process has been confirmed by UV-vis spectroscopy (Fig. 3(b)) [106]. Thus, the Pt precursor can be protected by a so-called “nanoreactor” consisting of PDDA chains. After introducing strong reductants such as ethanol or sodium borohydride, numerous Pt nuclei are rapidly formed (step Ⅱ,Fig. 3(a)), after which these Pt seeds continue to grow while being restricted by the PDDA chains (step Ⅲ,Fig. 3(a)). Thus, the Pt nanoparticle sizes can be controlled by the PDDA nanoreactor.
In early studies, several polyelectrolytes were investigated as stabilizers and control agents in the synthesis of Pt nanoparticles, applying a polyelectrolyte-to-Pt precursor molar ratio of 3:1, followed by reduction in ethanol/water (v:v = 4:6). The electrochemical characteristics of the resulting catalysts were then assessed in 1.0 mol/L H2SO4 + 2.0 mol/L CH3OH or O2-saturated 1.0 mol/L H2SO4 solutions during the methanol oxidation reaction (MOR) and oxygen reduction reaction (ORR), respectively, with the results presented in Table 1 [111]. From these data, it is evident that the size distribution of the Pt nanoparticles is well controlled in the range of 2 to 3 nm, a range that is similar to that obtained with the widely used polyhydric alcohols method [112]. In addition,PDDA-Pt and PSS-Pt nanoparticles have been found to exhibit superior performance compared with commercial Pt black catalysts during both the MOR and ORR, indicating that both PDDA and PSS are potential size control agents for metal nanoparticles when using simple chemical reduction methods [110, 111, 112, 113, 114]. It is notable that the synthesis of Pt catalysts using other polyelectrolytes results in much lower activities, possibly due to significant adsorption on the Pt surfaces, blocking the active sites. Therefore, it is crucial to choose the most suitable polyelectrolyte, and the relationship between the polyelectrolyte and the catalyst performance requires further investigation. Because PDDA-Pt particles present the highest activity, it is helpful to focus on the effects of the PDDA-to-Pt precursor molar ratio on the size distribution. Studies have shown that a lower amount of PDDA (PDDA:Pt = 1:1) generates larger nanoparticles (approximately 4 nm in size) because the limiting effect of the nano-reactor is weakened [110]. However, greater amounts of PDDA can serve to block the active sites and lower the activity. Thus, the optimal PDDA:Pt molar ratio is in the range of 3:1 to 8:1.

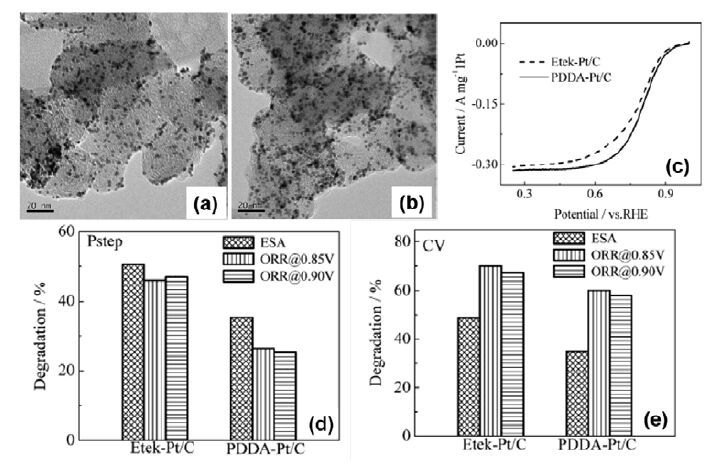

As a means of stabilizing nanoparticles and thus synthesizing practical electrocatalysts, polyelectrolyte-assisted metal nanoparticles can be deposited on carbon materials by damaging the double layer using solutions that are strong acidic (such as HNO3), alkaline (such as NaOH) or saline (such as KNO3), followed by stirring for a long period of time. Fig. 4(a) and (b) presents transmission electron microscope (TEM) images of a commercial Pt/C catalyst and well-dispersed PDDA-Pt nanoparticles loaded on Vulcan XC-72R carbon black by a method employing NaOH. The mass-based activity (A/g) of PDDA-Pt/C has been shown to be approximately 1.45 times that of an Etek-Pt/C catalyst (Fig. 4(c)), which can be attributed to the well-defined size distribution as well as the N-doping of the Pt nanoparticles [115]. Results such as these demonstrate novel strategies for developing doped materials that include metals [106] and carbon, as discussed in greater detail below. In fact, the use of a polyelectrolyte enhances not only the activity of the catalyst, but also the stability. As shown in Fig. 4(d) and (e), two accelerated degradation tests (ADTs) were applied to both the Etek-Pt/C and PDDA-Pt/C catalysts. The potential step trials, from 1.4 V for 10 s to 0.85 V for 5 s over 22 h, would be expected to protect the Pt nanoparticles due to the passivation caused by the high potential, and thus allows efficient analysis of the corrosion of the carbon supports. In contrast, the potential cycling protocol allows one to assess the degradation of the Pt nanoparticles. From these data, it is evident that the use of PDDA effectively protects both the Pt nanoparticles and the underlying carbon support from degradation, an effect that is believed to result from protective layers formed by PDDA chains on the material surfaces.
Polyelectrolytes are also beneficial during the synthesis of alloys such as PtAu nanoparticles, which typically cannot be easily produced using polyhydric alcohols due to the reducibility gap between the different precursors. This is the reason why polyhydric alcohols are typically used to synthesize Pt and PtRu alloys, but not to prepare PtAu alloys. Thus, the generation of uniform alloys from several metal precursors having different reducibilities must be performed using strong reductants such as sodium borohydride or hydrazine. The synthesis of overly large nanoparticles can be avoided during this process by employing a polyelectrolyte to tune the size of the PtAu alloy particles. Using this approach,PtAu nanoparticles approximately 3.1 nm in size with a high degree of alloying have been produced and loaded on graphene sheets [116]. Interestingly, the strong interaction between the PDDA and the graphene sheets [41] allows good dispersion of the PtAu nanoparticles supported by the graphene and also enhances durability during electrocatalysis [116].

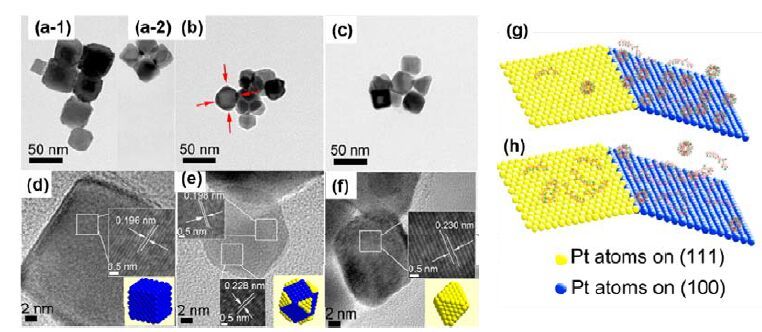

In addition to size distribution, the unique structures of electrocatalysts (that is, their preferential facets) also play a central role in electrochemical reactions. The atomic arrangements of Pt and its alloys, as an example, can remarkably affect the atomic coordination number surrounding each Pt atom, which is an important parameter influencing the activity of the material towards specific electrochemical reactions [117-119]. Thus, the presence of the optimal facets can enhance electrochemical performance [120, 121]. Pt nanocrystals are commonly synthesized with several low-index facets, including (111),(110) and (100), forming simple structures such as octahedrons, cubes and/or tetrahedra [122]. One of the earliest reports regarding the preparation of polydisperse Pt nanocrystals, using PAAS as the controller, obtained nanocrystals consisting of a mixture of cubes and octahedra [123]. In subsequent studies, uniformly-dispersed Pt nanocrystals with optimal exposed facets were synthesized using simple capping agents, including macromolecules [31, 124-129], various ions [128, 130-133], metal carbonyls [134-139], traces of active metals [140, 141] and/or electrochemical methods [119]. PDDA can also be employed for the purpose of controlling the morphology of Ag and Pd particles [114], to obtain shapes other than spherical. PDDA has been shown to allow the reduction of Pt precursors, as well as continuous tuning of the morphology of Pt nanocrystals from cubes to octahedra via a one-pot hydrothermal process [106]. The key factor in this control technique was found to be the PDDA concentration, with concentrations of 60, 40 and 30 mg/mL generating cubes, truncated cubes and octahedra, respectively (Fig. 5(a)-(f)). The morphological control mechanism appears to be associated with the unique structures that PDDA chains assume at different concentrations, as shown in Fig. 2. As noted, concentrated PDDA trends to form spherical micelles with numerous exposed amino groups, which preferentially adsorb on and block the Pt (100) facets compared with the (111) facets (Fig. 5(g) and (h)). According to Bravis’ law, the blocked Pt (100) facets lead to reduced growth rates and result in nanocrystals enclosed with (100) facets. Conversely, at low concentrations, the Pt nanocrystals are enclosed by (111) facets. This observation suggests that the application of PDDA to the synthesis of electrocatalysts can be extended to use as a reductant and a capping agent.

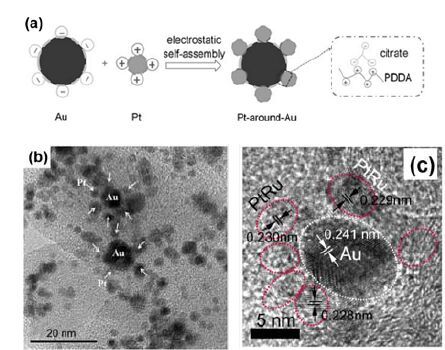

Another interesting example of the use of polyelectrolytes involves the preparation of binary or even ternary electrocatalysts with special morphologies via self-assembly, based on the unique charged properties of the polymer. In one process,Pt and Au colloids are positively and negatively charged, respectively, by the application of PDDA and citrate ions. After mixing these two colloids, the positively and negatively charged nanoparticles combine as the result of electrostatic attraction, leading to a unique Pt-around-Au catalyst (Fig. 6(a) and (b)), which exhibits remarkably enhanced activity towards formic acid oxidation [142]. This work not only provides a strategy for obtaining excellent electrocatalysts, but also reveals an efficient model for future investigations of reaction pathways due to the use of independent but connected Pt and Au nanoparticles. On this basis, our own group has developed a novel ternary PtRu-around-Au/C catalyst (Fig. 6(c)) intended for formic acid oxidation, which exhibits significantly enhanced performance.

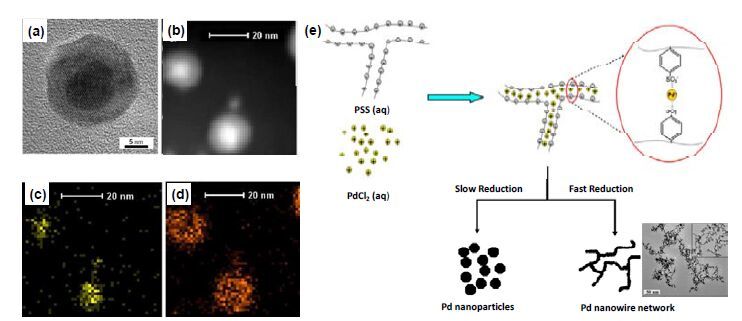

As discussed above, polyelectrolytes can be used as nanoreactors to limit the growth of nanoparticles. This special confinement effect also leads to other possibilities regarding the preparation of catalysts with core-shell structures. In one such case, a film consisting of layers of PSS and PDDA is added into a Au precursor solution, following which the AuCl4- anions tend to occupy the Cl- sites on the PDDA through an ion exchange process, and are subsequently reduced by sodium borohydride. An additional PSS layer is applied, followed by Ag+ cation exchange and reduction, leading to the formation of Au@Ag core-shell nanoparticles (Fig. 7(a)) [143]. Fig. 7(b)-(d) show the energy-dispersive X-ray (EDX) elemental maps of Au and Ag obtained from this electrocatalyst, confirming the well-defined Au core-Ag shell structure with uniform sizes. The formation of PSS networks in aqueous solutions can also be used to control the assembly of Pd2+ ions via the suspended sulfo groups of the polymer. The reduction rate of the Pd ions can be controlled such that the ions form particles having various morphologies (Fig. 7(e)). These observations demonstrate that nanocrystals with unique morphologies can be designed by utilizing the special properties of polyelectrolytes.
Although the polyelectrolyte-assisted methods show significant potential with regard to catalyst synthesis, a challenge that should not be neglected is the blocked active sites that result from adsorbed polyelectrolytes; these absorbed polymers are difficult to completely remove solely by washing with water or ethanol. Among several possible solutions to this problem, annealing has been found to give the best results [145], although the associated high temperatures may induce agglomeration of metal nanoparticles, thus lowering the electrochemical surface area. One possible means of mitigating this agglomeration is to protect the metal nanoparticles with highly heat stable compounds that are easily removed after synthesis, such as MgO [146]. However, other efficient strategies to prevent heat-induced agglomeration are still required.

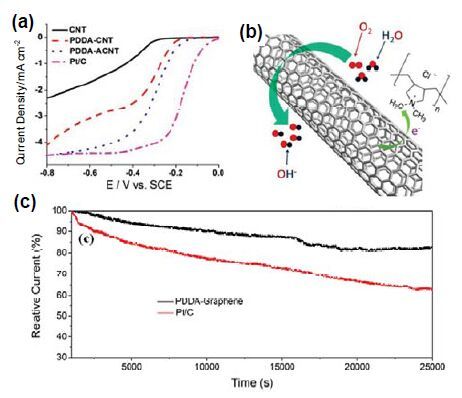

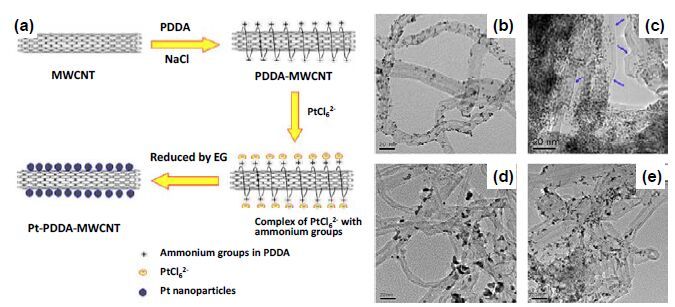

As discussed in the Introduction, the commonly employed carbon-based support materials are not completely satisfactory because they can undergo severe corrosion during the fuel cell operation [100]. A possible method to enhance the stability of typical carbon materials is graphitization, even though this can reduce the sites available for nanoparticles loading. As an alternative, non-covalent polyelectrolyte functionalization has shown potential [35, 36, 93, 147]. As can be seen from Fig. 8(a), the PDDA is able to adsorb onto and non-covalently functionalize graphited CNTs. The polymer chains also electrostatically attract the PtCl62- precursor ions, resulting in a PDDA-bridged composite composed of Pt and a carbon support that is much more stable than standard Pt/CNT catalysts [35, 147]. TEM images of both Pt/CNT and Pt/PDDA-CNT catalysts before and after an ADT using a potential step protocol (1.4 to 0.85 V) are presented in Fig. 8(b)-(e). The Pt/PDDA-CNT exhibits a uniformly well-defined Pt nanoparticle dispersion (Fig. 8(c)) compared with the Pt/CNT (Fig. 8(b)). In the absence of the PDDA, the Pt nanoparticles are seen to undergo severe agglomeration on the CNTs, with significant particle size growth (Fig. 8(b) and (d)). In contrast, the Pt nanoparticles on the PDDA-CNT retain their original sizes (Fig. 8(c) and (e)), which can be attributed to the anchoring effect of the PDDA on the CNT surfaces [35, 148-152]. PAH [36],CTAB [153-155] and PSS [31] have also shown the ability to modify carbon supports in this manner.

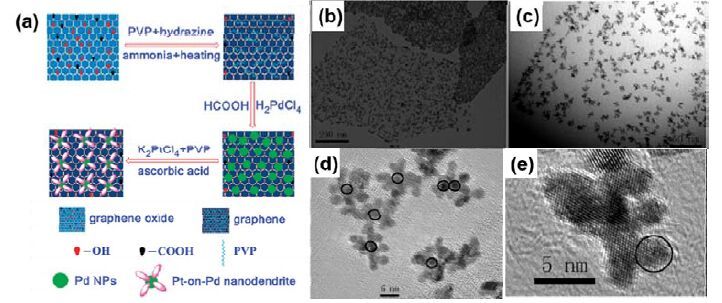

Another useful study focused on modifying graphene with PVP followed by the deposition of reduced Pd seeds and the fabrication of Pt nanobranches through reduction by ascorbic acid to form 3D Pt-on-Pd electrocatalysts supported on graphene (Fig. 9(a)) [156]. Fig. 9(b) and (c) presents TEM images of this 3D Pt-on-Pd/graphene catalyst that demonstrate the uniformly well-defined structure in which Pt branches are situated on Pd seeds (Fig. 9(d) and (e)). These materials showed significantly enhanced electrochemical surface areas and correspondingly higher activity towards methanol oxidation. Although this work employed PVP rather than a true polyelectrolyte, it can be expected that polyelectrolytes also have the potential to assist in preparing multi-component catalysts with particularly well-defined structures, given that polyelectrolytes have been successfully used in modifying graphene [41, 157]. What should be emphasized is that PDDA can be used as a reductant when preparing graphene from graphite oxide in aqueous solutions, because the N+ groups in PDDA can interact with the epoxides on the graphite oxide [41]. Thus, the PDDA may also be used as a doping agent to synthesize N-doped carbon materials. N-doped,PDDA-functionalized CNTs [158] and graphene [159] could be applied to the catalysis of the ORR as non-precious metal catalysts. As an example,PDDA-CNT presents significantly improved ORR activity very close to that obtained from a Pt/C catalyst in alkaline solutions (Fig. 10(a)) [158]. This can be attributed to the electron-withdrawing ability of the N+ group in the PDDA, which results in intermolecular charge transfer and forms delocalized positive charges on the conjugated carbon surfaces. This strategy tunes the electronic properties and adsorption ability of graphene for oxygen molecules to a remarkable extent (Fig. 10(b)) [158, 159]. In addition,PDDA-carbon materials exhibit much higher stability under typical reaction conditions compared with Pt/C (Fig. 10(c)) [158].
The above results show that polyelectrolytes can be used as bridges between nanoparticles and supports, leading to strong interactions between these two components. Additionally, it is notable that polyelectrolyte-modified Pt nanoparticles can be directly fabricated in place on polymeric membrane surfaces [160]. In this case, the polyelectrolyte can also be used to modify the membrane, leading to better stability and low organic crossover [161-163]. Such reports indicate that polyelectrolytes can most likely serve to bridge the catalyst, membrane and diffusion layers in an MEA, which could be beneficial with regard to integrating catalyst synthesis and MEA fabrication.
Electrocatalysts play critical roles in energy conversion devices. Although the application of polyelectrolytes to the fabrication of MEAs via layer-by-layer self-assembly has been investigated for many years [94, 95], the role of polyelectrolytes in catalyst synthesis requires further attention. Recently, many electrolytes have been applied to catalyst synthesis, including LPEI [164-166],P4VP [167],PAA [168-171],PSS [172-180],PVS [181], sPPO [182] and PDDA (Fig. 1), among which PDDA has been investigated in significant detail. Therefore, this review focused on PDDA and aimed to summarize the currently-available information as well as to provide a more general perspective regarding the research and development of polyelectrolytes in the field of catalysts synthesis.
Polyelectrolyte have three useful properties; (1) they readily dissociate into oppositely charged chains and ions in aqueous solutions,(2) they can contain unique functional groups, and (3) they can undergo structural transformations with changes in solution concentration. Thus, polyelectrolytes can act as nanoreactors to control the growth of metal nanoparticles, to functionalize or dope nanoparticles or support materials, to protect nanoparticles and supports from degradation, and/or to charge other components to prepare ordered catalysts by self-assembly. However, the majority of studies to date have been based on PDDA and so it would be beneficial to systematically investigate other polyelectrolytes to better understand the relationships between the various parameters of polyelectrolytes, catalysts and electrocatalytic performance.
Although various reports have described applications of PDDA, there are still some issues that should be addressed in future investigations. Firstly, polyelectrolytes typically present poor electrical conductivity, which will affect the activity of catalysts upon blocking of active sites. Despite various proposed strategies, such as annealing, washing with chemicals and/or photodegradation to remove residual polyelectrolyte, systematic studies are still needed. Secondly, advanced tools (such as in situ characterizations and simulations) need to be developed, particularly to develop an understanding of the functions or effects of polyelectrolytes during catalyst formation in terms of the structure-property relationship. Finally, catalysts are commonly evaluated in half-cell or three-electrode systems that are completely different from actual fuel cell devices, such as MEAs. Due to their complex working conditions, including heat and water management and interfaces between components,MEAs using polyelectrolyte-assisted catalysts will likely exhibit undesirable levels of performance. Thus, the processing of MEA materials and the fabrication of the devices themselves may need to be revisited if polyelectrolytes are involved in the synthesis process.
