Exploring efficient electrocatalysts for the sluggish oxygen reduction reaction (ORR) is desirable for the commercialization of fuel cells [1] and metal-air batteries [2]. In the past decade, intensive studies have been done to develop low cost, high efficient ORR electrocatalysts, such as the doped N-based metal-free and Pt-free electrocatalysts [3, 4]. Concerning the active sites on N-doped carbon materials for ORR, there are four types of N-based active sites, namely, pyridinic N (P-N), pyrrolic N (Py-N), graphitic N (G-N) and oxidized N (O-N) [5]. In spite of extensive studies, the structure-activity relationship or catalytic mechanism on the different N-containing active sites on carbon is still not clear. Debated questions related to the catalytic activity of different N-containing groups still exist [6, 7]. Some experimental data showed that P-N and Py-N werecatalytically active [8-13], while others indicated that G-N was active [14-18]. Some reports claimed that both P-N and G-N contributed to the catalytic property but with different roles [6, 19]. These observations suggested that to get clear understanding of these N-containing active sites for ORR, it is desirable to getthe structure-activity relationship of different dopedN-based active sites on carbon. For this goal, some clean models with only one type of N doped site have been reported. In 2013,Wei’s group [20] reported a selective synthesis of P-N and Py-N-doped graphene and showed that the pyridinic and pyrrolic sites with a planar structure were catalytically active for the ORR. Qiao’s group [7] further showed that the carbon atoms close to P-N were the main active sites among the different nitrogen doping configurations.
In this work, we used a common carbon black,Vulcan XC-72 (VXC-72) and an acid oxidation (Hummers method) treatment [21] and showed that the Hummers acid oxidation treatment led to pure G-N doping on carbon, and a following heat treatment led to Py-N doping with adsorbed NO3- or NO2- as the N precursor. Furthermore, for the ORR process, a 2e--pathway with H2O2 as the main product was found on the G-N-based active sites while a 4e--pathway existed on Py-N sites with water as the main product, which was consistent with a recent report [22].
The oxidization of VXC-72 was performed by Hummers method [21]. The Vulcan XC-72was purchased from E-TEK Company. USA. H2SO4,NaNO3,KMnO4,H2O2 (30%),HCl and KOH were purchased from Beijing Chemical Works. Nafion solution (5 wt%) was obtained from Sigma-Aldrich. All chemicals were used without further treatment. Ultrapure water with a specific resistance of 18.23 MΩ·cm was obtained by reversed osmosis followed by ion exchange and filtration. The once and twice oxidation products were denoted as VXCO-1 and VXCO-2, respectively. VXCO-1 was prepared by stirring 1.0 g VXC-72 powder and 0.5 g NaNO3 into 23.0 mL concentrated sulfuric acid (98%). The ingredients were mixed in a 500.0 mL round-bottomed flask that had been cooled to 0 °C in an ice bath. While maintaining vigorous agitation, 3.0 g KMnO4 was carefully added to the suspension. The ice bath was then removed and the suspension was heated to 35 °C, where it was maintained for 60 min. After that, 46.0 mL water was slowly dropped into the flask, causing violent effervescence and an increase in temperature to 98 °C. The mixture was further stirred for 30 min. Finally, 140.0 mL distilled water and 10.0 mL H2O2 were added dropwise and the reaction was terminated. The generated solid VXCO-1 was separated by centrifugation, washed and finally dried under vacuum. The further oxidized product VXCO-2 was based on VXCO-1 formed by the same Hummer method. VXC-72,VXCO-1 and VXCO-2 were then subjected to thermal treatment at 900 °C under N2, which were denoted as VXC-72(900),VXCO-1(900) and VXCO-2(900), respectively. VXCO-1 was also subjected to a thermal treatment at 800 and 1000 °C under N2 gas, which were denoted as VXCO-1(800) and VXCO-1(1000), respectively. The resultingblack powder was carefully collected because the products had a low mass density and was very easily blown away.
The morphology and dimensions of the samples were obtained using a field emission scanning electron microscope (SEM) (XL30) operated at an accelerating voltage of 10 kV. BET surface areas (ABET) and pore volumes were obtained from N2 adsorption-desorption isotherms using an ASAP 2020 instrument at -196 °C. The N content in the catalysts were obtained from elemental analysis (EA,Vario EL CUBE,Elementar). X-ray photoelectron spectroscopic (XPS) measurements were performed on an AXIS Ultra DLD (Kratos company) using a monochromic Al X-ray source. The Raman spectrum was obtained on a laser confocal Raman spectroscopy (Labram-010,Horiba-JY) employing the Nd: YAG laser wavelength of 633 nm. X-ray diffraction (XRD) patterns were obtained on a D8 ADVANCE (Bruker company,Germany), using filtered Cu Kα radiation (40 kV, 30 mA).
The electrochemical performance was conducted in 0.1 mol/L KOH solution. The counter and reference electrodes were a platinum wire and SCE electrode, respectively. The potential of the electrode was controlled by a CHI 750E system (CH Instrument Co.,USA). Cyclic voltammetry (CV) was performed from 0.2 to -1.2 V at 50 mV/s after purging the electrolyte with O2 or N2 for 30 min. Linear sweep voltammetry (LSV) measurements were performed using a rotating disk electrode (RDE) at different rotating speeds from 225 to 1600 r/min in an O2 saturated electrolyte from 0.2 to -1.2 V (vs. SCE) at a sweep rate of 5 mV/s in O2 saturated KOH solution (0.1 mol/L). For the RRDE measurements, the disk electrode sweep was from 0.2 to -1.2 V vs. SCE while the Pt ring potential was kept at 0.5 V vs. SCE at a scan rate of 5 mV/s after O2 was purged for about 30 min into the KOH solution (0.1 mol/L). The percentage of HO2- generated from the ORR and the electron transfer number (n) were estimated by the following equations [23]:
where iDis the disk current density,iRis the ring current density and M is the current collection efficiency of the Pt ring disk. Mwas 0.37 from the reduction of K3Fe[CN]6.
All the current densities were normalized to the electrode surface area. All electrochemical experiments were carried out at room temperature.

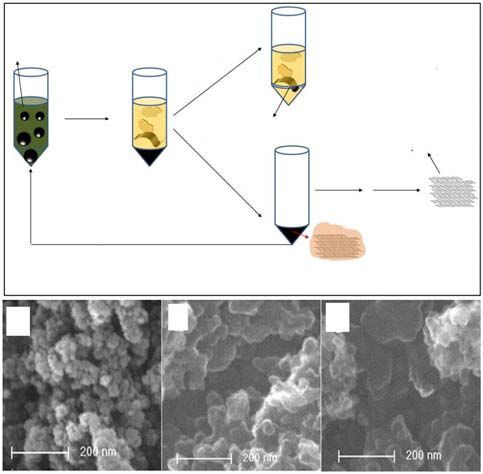

As shown in Fig. 1(a), after the reaction, the supernatant containing small pieces of graphene oxide (GO) was discarded. The obtained precipitant was either washed directly with a large amount of water by repeated sonication and centrifugation until pH ≈ 7 or re-oxidized one more time. The water-washed samples (VXCO-1 and VXCO-2, representing the samples obtained after one or two acid oxidation, respectively) were then heated at 900 °C for three hours under flowing N2 to get the final heat treated samples (VXCO-1(900) and VXCO-2(900)). SEM analysis showed that the surface of the carbon nanoparticles became smoother after the acid treatment. The flatness of the surface was in the order: VXCO-2 > VXCO-1 > VXC-72. This result was consistent with the ABET analysis. As shown in Table 1, after the first and second oxidation treatment,ABET decreased from 204.1 (VXC-72) to 179.9 (VXCO-1), and then to 65.9 (VXCO-2). Moreover, these SEM images showed clearly that the carbon nanoparticles became bigger after the acid treatment (from 35 to 55 nm, then to 70 nm). The increase of particle size may be due to the arrangement of small carbon particles into agglomerates [24]. In addition, the morphology change of the carbon nanoparticles can be attributed to the Hummers method used, which has been used extensively to peel off single/few-layered graphene oxide (GO) from a graphite surface layer-by-layer [21].

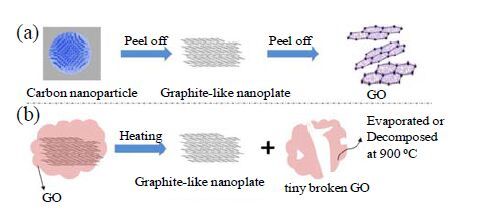

Due to the layered structure of the carbon nanoparticles shown in Scheme 1(a), the tiny graphene layers on the carbon nanoparticle surface will be peeled off one-by-one. Then the exposed surface of the remaining carbon nanoparticles becomes smoother and larger, and some graphite-like carbon nanoplates was obtained. With the multiple peeling-off cycles, some tiny carbon nanoparticles will be completely peeled into GO pieces and were lost. Most of the GO obtained was removed in the following washing step since these tiny GO could not be centrifuged at 10000 r/min. In this way, the tiny spherical carbon nanoparticles disappeared and some flat surface graphite-like large carbon nanoplates remained. This was the reason why the remaining carbon nanoparticles became larger and flatter after the acid treatment.

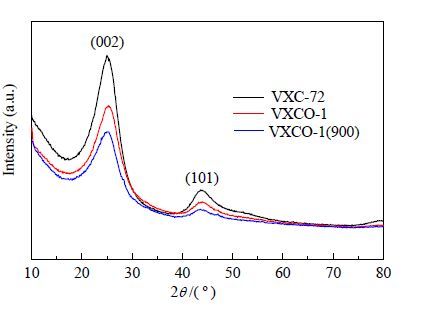

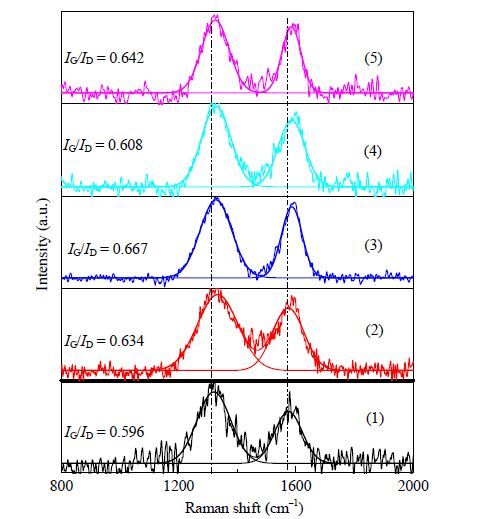

The formation of the flat surface graphite-like structure was also confirmed by the Raman spectra shown in Fig. 2. The D (related to defects) and G (related to graphite-like structure) bands, which are the two characteristic peaks of graphite, were clearly seen in all of these samples at ~1300 and 1600 cm-1, respectively [25]. After the first and second oxidation treatment, the intensity ratio of the G- and D-bands (IG/ID) increased slightly from 0.596 (VXC-72) to 0.634 (VXCO-1), and finally to 0.667 (VXCO-2), which confirmed the formation of a graphite-like structure in the VXCO-1 and VXCO-2 samples (Table 1). The increase of graphitized degree after the acid treatment was further confirmed on XRD. As shown in Fig. 3, the three VXC-72,VXCO-1 and VXCO-1(900)samples exhibited two peaks at 25° and 43° corresponding to the (002) and (101) planes of the graphitic structure. The (002) diffraction peak of VXCO-1 was shifted towards a higher value compared to VXC-72, suggesting the (002) interplanar distance in VXCO-1 was smaller than that in VXC-72. In other words, the graphitic structure of VXCO-1 was larger than that of VXC-72, which was consistent with the Raman analysis [26].

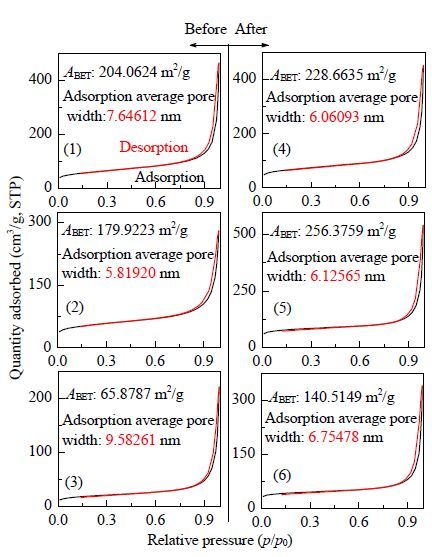

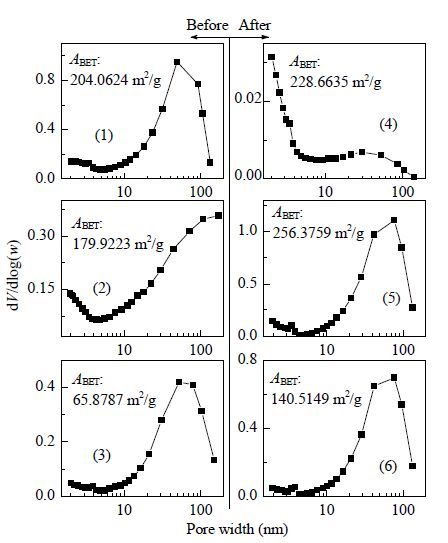

Furthermore, unexpectedly, it was found that a heat treatment at 900 °C increased the ABET of these acid treated samples as shown in Table 1. From the adsorption isotherm of the carbon materials before and after the heat treatment (Fig. 4), we can see that the ABET increase after the heat treatment (VXCO-1(900)) can be partially attributed to the formation of smaller (50 nm) pores compared with those (100 nm) in VXCO-1 [24]. For VXCO-2,Figs. 4 and 5 did not show much difference in the pore size distribution between VXCO-2 and VXCO-2 (900), but the ABET increased more than two times (from 65.88 to 140.51 m2/g) after the heat treatment. This was different compared with that which occurred on VXCO-1. So what was the reason for this? In order to get some clues, we looked back at the method of the acid pretreatment: Hummers method, which is usually used to peel off single/few-layered GO from graphite [21]. Due to this special acid oxidation method, we need to consider the effect of some residual large GO after the water washing. With the acid treatment, the surface layers of the carbon nanoparticles were peeled into single or few-layered GO. Most of these GO pieces in the supernatant were removed in the washing step with centrifugation (Fig. 1(a)). However, some larger GO pieces remained in the precipitate and covered some surface of the remaining graphite-like nanoplates, like that shown in Scheme 1(b). During the heat treatment at 900 °C, these tiny flat surface graphene layers can be easily removed from the carbon nanoparticle surface by evaporation (just like C60) [27] or the decomposition of tiny graphene layers into smaller pieces (Scheme 1(b)), and a rougher surface (steps or edges) of carbon was exposed. The phenomena can also confirmed by the decrease of the value of IG/IDfrom 0.634 (VXCO-1) and 0.667 (VXCO-2) to 0.608 (VXCO-1(900)) and 0.642 (VXCO-2(900)) (Fig. 2,Table 1), which indicated a decrease of the graphitized degree of the carbon materials [25]. This would explain the increase of ABET observed after the heat treatment on acid pre-treated carbon samples. Interestingly, the decrease of graphitized degree after the heat treatment was also observed by XRD (Fig. 3). The (002) diffraction peak of VXCO-1(900) was shifted towards a lower value compared to primary VXCO-1, suggesting the (002) interplanar distance in VXCO-1(900) was larger than that of VXCO-1. This further indicated that the graphitic structure of VXCO-1(900) was smaller than that of VXCO-1.
ICP was used to detect possible metal residuals. Interestingly, no metal (such as Mn,K,Na,Fe,Co or Ni) was detected in these carbon samples, indicating that the washing of the sample after the oxidation reaction was very thorough and removed any byproducts of metal ions. High resolution XPS spectra were used to determine the chemical states of the non-metal elements on the surface of these samples. The N content in the catalysts was obtained by elemental analysis. As shown in Table 1, no N was detected on the raw carbon VXC-72. After the acid treatment, a trace amount of N was detected, ever after the heat treatment (Table 1 and Fig. 6) [28]. As shown in Fig. 2, the positive shift of the Raman peaks (D and G peaks) of VXCO-1 and VXCO-2, compared to those of VXC-72, indicated the occurrence of electron transfer due to the introduction of N. Thus this further confirmed the formation of N-containing carbon materials [25].

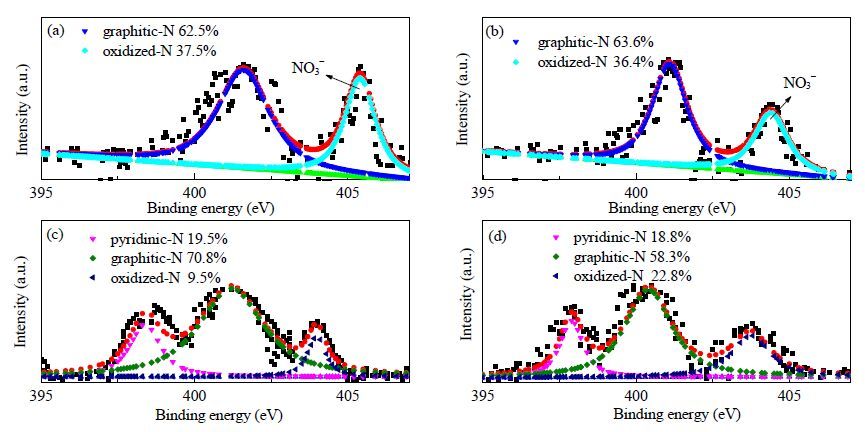

Fig. 6(a) and Fig. 6(b) show that there were two different states of N on the acid-treated samples (VXCO-1 and VXCO-2). One was oxidized N (~35%) mainly due to residual NO3- adsorbed on the carbon nanoparticles with a binding energy of 405.4 eV (on VXCO-1) or NO2- with a binding energy of 404.4 eV (on VXCO-2) [29]. The other was graphitic-N doped on carbon (~63%) [30], further confirming the formation of graphite-like carbon nanoplates after the acid oxidation by Hummers method. This indicated that Hummers method led to pure single doping of G-N on the residual carbon nanoparticle surface due to the freshly exposed perfect graphite surface with minimum defect sites. Defect sites are necessary for other types of N doping [30]. After the following heat treatment at the high temperature of 900 °C,Table 1 shows that the N content on the catalysts decreased from 0.31 wt% (VXCO-1) and 0.29 wt% (VXCO-2) to 0.20 wt% (VXCO-1(900)) and 0.22 wt% (VXCO-2(900)), which was 33% loss of total N content. This was probably due to the decomposition of NO3- or the breaking of N-C bonds at high temperature [25, 31]. Interestingly,Fig. 2(c) and (d) show the appearance of P-N with a binding energy of 397.8 to 398.3 eV (~19%) and O-N with a binding energy of 403.7 to 408.0 eV in the form of C-N-O [31]. The disappearance of NO3- and NO2- after the heat treatment indicated that doped P-N and O-N (C-N-O) were mainly formed with adsorbed NO3- or NO2- as the N precursor. These observations indicated that P-N could only be easily formed at high temperature due to the high energy needed for defect formation on the freshly exposed perfect graphite surface [32]. Interestingly, the data in Table 1 and Fig. 6 further showed that the N content and chemical states did not change much after the second oxidation, in dicating saturated N-doping was achieved under the working conditions of Hummers method.

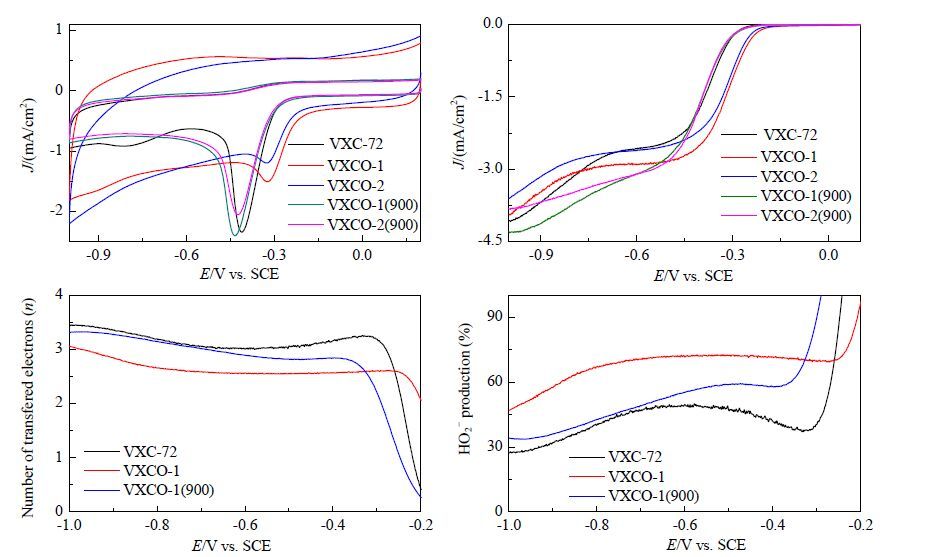

Numerous works have clarified that N-doping on carbon materials enhanced the ORR on the catalysts by the formation of new active sites [33-35]. Graphene samples obtained with Hummers method have been extensively used as the support for non-Pt and metal-free ORR catalysts [5, 8, 33, 36-38]. To gain insight into the effect of doped N on the ORR activity of VXCO-1,VXCO-2,VXC-72(900),VXCO-1(900) and VXCO-2(900), cyclic voltammogram (CV) measurements were performed in 0.1 mol/L KOH solution with oxygen saturation. For comparison, the pristine VXC-72 was also investigated by the same method. As shown in Fig. 7, compared with the pristine VXC-72, the two samples of VXCO-1 and VXCO-2 obtained after the acid oxidation treatment possessed much higher ORR onset potentials (Eonset) and much smaller peak currents. With a following heat treatment, the opposite occurred and compared to VXCO-1 and VXCO-2, the two samples of VXCO-1(900) and VXCO-2(900) obtained after the heat treatment showed lower ORR onset potentials (Eonset) and much larger peak currents. Combining the information shown in Fig. 7 with that shown in Table 1 and Fig. 6, the following conclusions were made: (1) the acid oxidation treatment effectively improved the ORR catalytic activity (or increased Eonset) by graphitic N-doping although the decrease of the ABET led to the decrease of peak current. (2) The following heat treatment have a negative effect on the catalytic activity (indicated by the negative shift of Eonset) of ORR, which was mainly due to the loss (30%) of active sites of doped-N although the doubled ABET led to almost double the peak current. (3) These observations indicated that the trace amount of N doped on carbon played a very significant role in the improvement of the catalytic activity of ORR on N-based metal-free ORR catalysts. Meanwhile, the ABET was related to the limiting current obtained at a high overpotential [9]. The value of Eonset was mainly related to the active sites with high activity, while the active sites with low activity contributed in part to the limiting of the peak current at a high overpotential. In addition, the effect of the heat treatment temperature on the ORR catalytic performance of these carbon materials was also researched. As shown in Fig. 8, compared with VXCO-1(800) and VXCO-1(1000), the samples of VXCO-1(900) possessed the highest ORR onset potentials. This indicated that the optimal heat treatment temperature was extremely important to get carbon catalysts containing many active sites with high activity [39].
As shown above, after the heat treatment, some P-N and O-N appeared on VXCO-1(900) and VXCO-2(900), which was probably transformed from G-N during the heat treatment at 900 °C. It is known that the catalytic activity of O-N for ORR is very low and approximately on the same level as pure carbon. The catalytic activity of doped P-N for ORR is much higher than that of doped G-N [20]. But in this work, the transformation of G-N to P-N did not give an improved ORR catalytic activity in terms of Eonset (Fig. 7). The reason could be due to the loss (~30%) of total N content doped on the carbon and that the G-N still dominated the P-N due to the very low content of P-N as shown in Fig. 6.

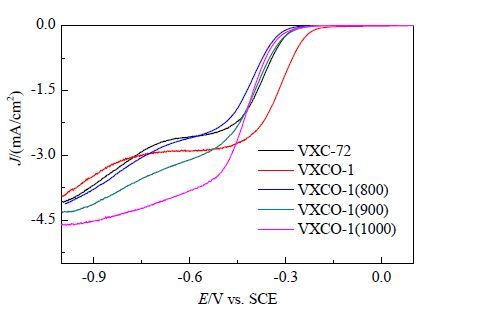

To further understand the catalytic properties of P-N and G-N doped on the carbon samples, the RRDE technique was used to estimate the transferred electron number (n) and verify the ORR pathway. Fig. 7(b) shows the disk current for the five samples. It shows the same information as that shown by CV in terms of Eonset and limiting current (Fig. 7). Together with the ring currents, the transferred electron numbers and the yield of H2O2 at different potentials were obtained. As an example, as shown in Fig. 7(c) and (d) for VXC-72,VXCO-1 and VXCO-1(900), compared with the pristine carbon (VXC-72), the Hummer acid treatment increased the H2O2 yield or decreased the value of n, indicating that ORR on the catalytic sites of doped G-N favored the 2e-pathway with H2O2 as the product (VXCO-1). This indicated that these oxidized samples were better than pristine VXC-72 for the production of H2O2 from oxygen reduction in alkaline medium [39]. After the heat treatment at 900 °C, the H2O2 yield decreased and the value of n increased on VXCO-1(900) compared with VXCO-1. This indicated that the ORR on the newly formed P-N sites favored the 4e pathway with water as the product and decreased the production of H2O2. However, due to the loss (30%) of active sites of doped N during the heat treatment, the H2O2 yield of VXCO-1(900) was still lower than that of pristine VXC-72. From the above results, we can see that if the purpose is to get the direct 4e- pathway of ORR with water as the product, one should get pyridinic N rather than graphite N on the doped catalysts. But if H2O2 is the product wanted, then G-N should be the choice for the N doped metal-free catalysts [22].
We studied the effects of acid oxidation (Hummers method) and heat treatment on the catalytic activity of the carbon support for ORR. The nitric acid-based oxidation treatment induced N doping on the carbon support. The heat treatment increased the BET surface area, but the increased BET surface area alone did not improve the catalytic performance of the catalysts. For the N doped carbon catalytic system, the dopant species and amount of doped N were more important. The diffusion limiting current was increased by removing impurities in the catalyst pores and enlarging the volume of pores thereby increasing the BET surface area.
