The potential-dependence of metal-adsorbate bonding at the electrochemical interface is an issue of basic importance in electrochemistry. One of the most extensively studied topics in this area is the vibrational Stark effect (a change in the vibrational frequency with respect to the applied electric field) of CO on platinum-group metal surfaces [1-4]. It is known that the observed Stark-tuning rates are sensitive to changes in the electrode materials [2, 5], adsorbate coverage [5], binding geometry [6-8], and co-adsorbed species [6-9]; however, the mechanism responsible for the Stark effect remains a topic of debate [10]. One of the challenges commonly encountered is that it is impossible to find a system where the adsorbate coverage, adsorption sites, and the orientation of the system are constrained to a specific case as the potential is altered. Consequently, contributions to the band frequency changes from variations in the dipole-dipole coupling effects, and other structure-dependent interactions, cannot be avoided [7, 11].
Previous studies have investigated CO adsorption at a Pd electrode using electrochemical infrared adsorption spectroscopy (EC-IRAS) [8, 12-15]. From the well-defined C-O stretching vibration, it has been confirmed that CO can adsorb at atop (COL), 2-fold bridge (COB), and 3-fold hollow (COH) sites. In this case, a linear Stark slope of the C-O stretching vibration (dνC-OM/dE ≈ 40 ± 10 cm-1/V) is observed in acidic solutions [8, 15].
Although these studies have clarified the behavior in this system, difficulties remain because there is no direct correlation between the CO adsorption energy and the C-O stretching frequency, because of the alteration of the spectral behavior of the C-O stretching band by the strong dipole-dipole coupling effects between the nearby COad molecules. The dipole-dipole coupling effects for the metal-CO vibration are much weaker than those for the C-O vibration [16]. Information on Pd-CO stretching cannot be obtained in electrochemical environments using EC-IRAS, because of the limited transparency of the IR window (normally < 800 cm-1), and the strong absorption in the far-infrared region by water, which is typically used as the solvent in such studies. In contrast, surface-enhanced Raman spectroscopy (SERS) can be used to obtain vibrational information in a wide spectral window (5-4000 cm-1), and does not require the use of the spectral-difference method to remove solution-phase interferences. However, few electrochemical in-situ SERS studies have been carried out on CO adsorption on Pd substrates, because SERS studies on pure roughened Pd electrodes are typically limited by the poor surface sensitivity. Zou et al. [2] studied the Stark effects of CO adsorption on Pd film-coated Au electrodes by borrowing the strong SERS enhancement from the Au substrate, and found that the slope for the Pd-CO stretching vibration (dνPd-COM/dE) was roughly linear (~-10 cm-1/V). However, because of the limited range of potentials applied in the above studies, it is difficult to infer how the external electric field effect influenced the adsorption behavior for COad at the Pd electrodes.
Here, we report potential-dependent vibrational Stark behavior, based on surface-enhanced Raman measurements of a CO adlayer at an Au-core/Pd-shell nanoparticle film electrode in acidic, neutral, and basic aqueous media, in a broad potential region from -1.5 to 0.55 V. The potential range accessible for SERS measurements is determined by the onset of COad oxidation and a strong hydrogen evolution reaction (HER); the potential range can be expanded by using different electrolytes. Our results revealed distinct Stark slopes in three different potential regions, with a pronounced increase in dνC-O/dE, and a decrease in |dνPd-CO/dE| (the absolute value of dνPd-CO/dE) at potentials where the HER reaction occurred. Such spectral behavior was preliminarily attributed to the COad site transition induced by the co-adsorbed hydrogen atoms involved in the HER, as confirmed using periodic density functional theory (DFT) calculations.
The design of the electrochemical flow cell used in the present SERS study has been described in detail elsewhere [17]. The electrolyte flowing through the cell could be switched between different electrolytic reservoirs, where the flow rate was controlled by changing the hydraulic pressure. In this experiment, the flow rate was 50 μL/s. All measurements were performed at ambient temperature (25 ± 3 ℃). A thin Au foil (thickness 50 mm) and a saturated calomel electrode (SCE) were used as the counter electrode (CE) and the reference electrode (RE), respectively. Here, all potentials are reported with respect to normal hydrogen electrode (NHE).
Electrochemical measurements were conducted using a CHI631B electrochemical workstation (CH Instruments,Shanghai,China). SERS measurements were carried out using a confocal microprobe Raman system (LabRam I from Dilor,France), using an air-cooled CCD and a He-Ne laser operating at 632.8 nm. The laser power delivered at the sample (with beam diameter of ca. 2 mm) was approximately 5 mW. The microscope attachment was based on an Olympus BX40 system, using a long working length (8 mm) x 50 objective. A 1800 g/mm grating was used, and the spectral resolution was 1 cm-1.
PdCl2 (99.9%),HAuCl4 (AR),HCl (AR), sodium citrate (AR), ascorbic acid (AR),Na2SO4 (AR),H2SO4 (GR), and NaOH (GR) were purchased from Shanghai Reagent Corporation,China. Millipore Milli-Q Water (18.2 MW/cm) was used throughout the study. Before SERS measurements, all of the electrolyte solutions were deaerated via continuous N2 (4N,Linde Gas China) purging. CO-saturated solutions were achieved by pre-bubbling the supporting electrolyte with pure CO (99.9%,Linde Gas China) for 15 min in the electrolyte reservoir, and via continuous purging during the experiments.
55 nm Au@0.7 nm Pd nanoparticles were prepared by coating a thin layer (0.7 nm) of Pd over 55 nm Au nanoparticles, following the procedure reported by Tian’s group [18]. First, a H2PdCl4 (1.0 mmol/L)aqueous solution was prepared by dissolving 88.6 mg of PdCl2 in 11 mL of 0.1 mol/L HCl under heating and stirring, and diluting the resulting solution to a final volume of 500 mL. Then, 30 mL of a sol containing 55 nm Au seeds was mixed with 0.8 ml H2PdCl4 (10 mmol/L)solution for several minutes, after synthesizing the Au nanoparticles with a diameter of ca. 55 nm by reducing AuCl4- using sodium citrate. 0.4 ml ascorbic acid (10 mmol/L) solution was slowly dropped into these mixtures under vigorous stirring, using a syringe controlled by a step motor. The mixtures were further stirred for approximately 20 min, to ensure the complete reduction of the H2PdCl4. The 55 nm Au-core 0.7 nm Pd-shell (denoted as 55 nm Au@0.7 nm Pd or Au@Pd hereafter) sol was centrifuged three times, to remove excess reactants. The remaining sol (5 mL) was then cast on a smooth Pd electrode (diameter ca. 1.5 mm), and dried in a desiccator. This procedure was repeated three times, to ensure that the Pd electrode was completely covered with the Au@Pd nanoparticles. The nanoparticles displayed an ellipsoidal shape with a uniform size distribution, as demonstrated in scanning electron microscope (SEM) images (Fig. 1). Cyclic voltammograms (CVs) of the 55 nm Au@0.7 nm Pd nanoparticle-coated Pd electrode measured in 0.5 mol/LH2SO4, 0.5 mol/L Na2SO4, and 0.5 mol/L NaOH are shown in Fig. 2; the results agreed well with previous results reported in the literature, confirming that the nanoparticle film electrodes exhibited the electrochemical behavior of polycrystalline Pd [19-21]. We also checked t he base CV using the upper potential limit of 1.5 V (not shown); the lack of a redox current peak for Au at higher potentials supported the conclusion that the Au core was well coated by the Pd shell.

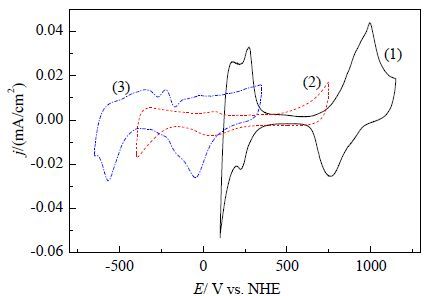

Potential-dependent SERS experiments on the saturated COad layer at the 55 nm Au@0.7 nm Pd/Pd were conducted according to the following procedure. The electrode surface was first saturated with a COad layer by flowing a CO-saturated 0.5 mol/L H2SO4 solution through the cell for 15 min, while the electrode potential was held at 0.05 V. CVs were then measured over the potential range from -0.2 to 0.55 V, at a scan rate of 1 mV/s, and the corresponding Raman spectra in the range from 1600 to 2250 cm-1 were recorded at a time resolution of 50 s per spectrum (50 mV per spectrum). The grating was switched to cover the region from 250 to 1050 cm-1, and the same potential program was repeated to record the spectral signal of the Pd-CO stretching vibration. All measurements were performed under continuous flowing with CO-saturated H2SO4. After scanning back to -0.1 V in 0.5 mol/L H2SO4, the electrolyte solution was switched to CO-saturated 0.5 mol/L Na2SO4, while holding at -0.1 V for ca. 5 min. The area between the cell and the connecting tubes was carefully flushed with 0.5 mol/L Na2SO4, to make sure that the solution exchange was complete. The electrode potential was then scanned negatively from -0.15 to -1.5 V, and then back again. Subsequently, the electrode potential was held at -0.55 V, and the electrolyte was switched to CO-saturated 0.5 mol/L NaOH, and the CV from -0.4 to -1.5 V was recorded. The Raman spectra of the C-O and Pd-CO stretching vibrations were also recorded in potential scans in neutral and basic solutions, similar to the case in the acidic solution.
The first-principle calculations were performed using the plane-wave based Vienna ab initio simulation package (VASP) [22-24]. The exchange-correlation energy was calculated within the generalized gradient approximation (GGA) proposed by Perdew et al. [25]. The interaction between atomic cores and electrons was described using the projector augmented wave (PAW) approach [26], and the cutoff energy was set to 400 eV. Ionic iterations were performed until the forces on the ions were less than 0.003 eV/Å. Brillouin zone integrations were performed on a (5 × 5 × 1) grid of Monkhorst-Pack points [27]. Fractional occupancies were calculated using a first-order Methfessel-Paxton smearing function with a width of 0.2 eV [28].
In the periodic DFT calculations, a slab model of (2 × 2)-3 CO on Pd(111) was used to mimic the saturated CO adlayer at the Pd@Au nanoparticle surface, because the coverage of COad on single crystalline Pd(111) and Pd nanoparticle surfaces is ca. 0.75 ML, as estimated from IRAS and SFG studies [29-31]. The Pd(111) surface was modeled by a periodic four-layer Pd slab with a CO adlayer adsorbed on one side of the slab. Each slab was separated from its periodic image in the z-direction by a vacuum space (~10 Å), to avoid interaction between slabs. The two bottom layers of the slab were fixed at their bulk positions, while all upper layers have been fully relaxed in all calculations. The calculated equilibrium lattice constant for bulk Pd was 3.960 Å, which agreed well with an experimental value of 3.891 Å [32]. The calculations were made using two different (2 × 2)-3CO structures corresponding to the coverage of a 0.75 monolayer. The (2 × 2)-3CO structure had three adsorbed CO molecules in the unit cell. A structure with one atop and two bridge CO molecules (COL + 2COB) was optimized and compared with another structure containing one atop, one (fcc), and one (hcp) hollow CO molecule (COL + 2COH) (Fig. 3). An electric field perpendicular to the slab was imposed using the method implemented in VASP [33]. Vibrational frequencies were calculated via diagonalization of the dynamical matrix. For the (COL + 2COB) structure, the surface plane degrees of freedom of the C and O atoms were constrained to the ideal atop and bridge sites, because a full relaxation of all of the C and O atoms coordinates showed that this structure was not energetically stable. The two (2 x 2)-3CO slab models were used in our calculations for comparison.

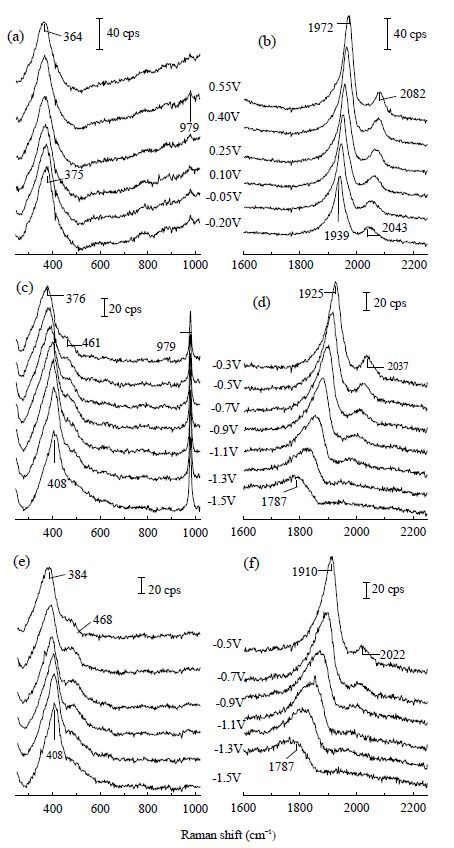

Fig. 4 shows selected SERS spectra of the Pd-CO and C-O stretching vibrations recorded during positive-direction potential sweeps from -0.2 to 0.55 V in 0.5 mol/L H2SO4, from -1.5 to -0.15 V in 0.5 mol/L Na2SO4, and from -1.5 to -0.4 V in 0.5 mol/L NaOH. The bands at ca. 460 and 370 cm-1 were assigned to the Pd-C stretching vibrations between the Pd surface and the linearly- (COL) and multiply-bonded (COM) CO (the multiply-bonded CO might have included both bridge-bonded and hollow sites adsorbed CO whose peak frequencies were not far from each other), and the corresponding peaks centered at ca. 2070 and 1970 cm-1 were attributed to the C-O stretching vibrations of COL and COM, respectively [2，15，29，34]. The lack of characteristic bands for Au-CO and C-O on top of Au further supported that the Au core was well coated by the Pd shell.

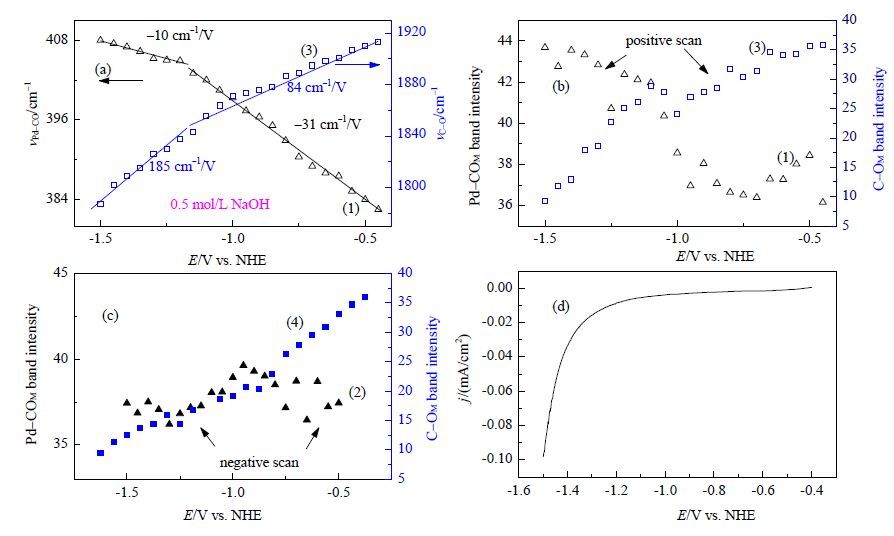

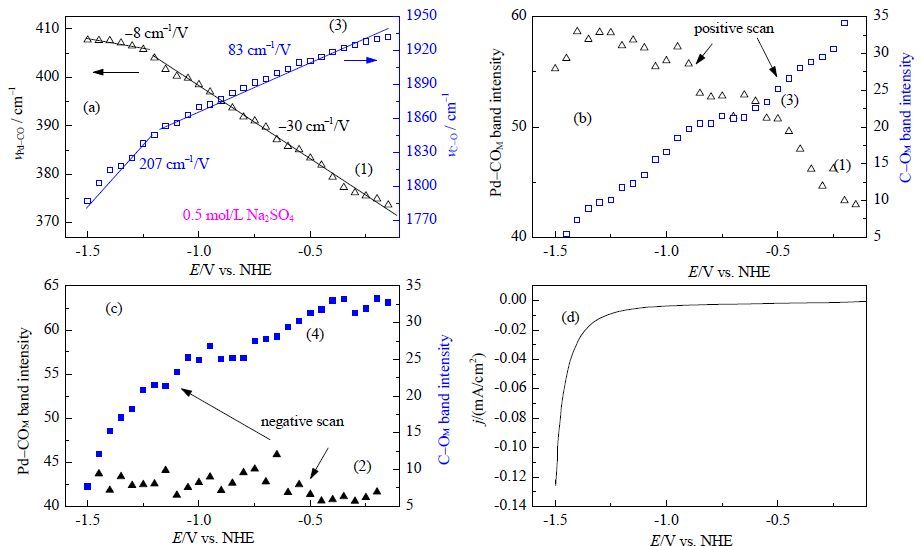

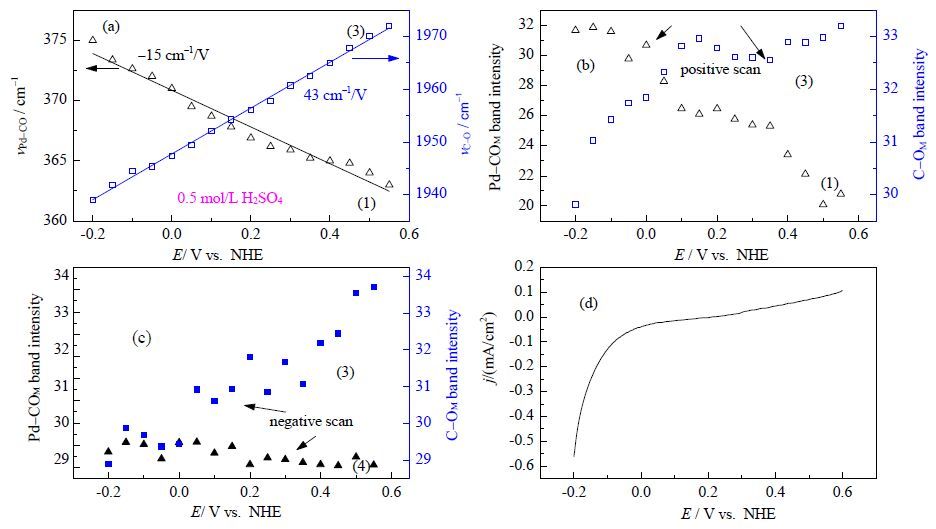

The corresponding changes in the band intensities and the peak frequencies were plotted as a function of electrode potential (Figs. 5,6, and 7). Inspection of the COM peak frequency-potential (νPd-COM-E and νCOM-E) curves in acidic and neutral solutions (Figs. 5(a) and 6(a)) showed that the Stark slopes could be divided into three linear potential regions: in CO-saturated 0.5 mol/L Na2SO4, dνPd-COM/dE and dνC-OM/dE were (1) ca. -8 and 207 cm-1/V from -1.5 to -1.2 V and (2) -30 and 83 cm-1/V in the potential region from -1.2 to -0.15 V, and in CO-saturated 0.5 mol/L H2SO4, the slopes were -15 and 43 cm-1/V from -0.2 to 0.55 V (3), respectively. From the frequency-potential relationship in CO-saturated 0.5 mol/L NaOH (Fig. 7(a)), it was found that the Stark slopes for both dνPd-CO/dE and dνC-O/dE strongly depended on the region of the applied electrode potentials. In the potential region from -1.5 to -1.2 V, the Stark slopes of dνPd-CO/dE and dνC-O/dE were roughly constant, at -10 and 185 cm-1/V, respectively; in the potential region from -1.2 to -0.4 V, the Stark rate dνPd-CO/dE increased to -31 cm-1/V, while dνC-O/dE decreased to 84 cm-1/V.
Furthermore, it was found that the band intensity of the Pd-COM and C-OM stretching vibrations changed in opposite directions; i.e., the former decreased while the latter increased with increasing electrode potential during the positive-direction potential scan in the three solutions (Figs. 5(b),6(b),and 7(b)). During the negative-direction scan (Figs. 5(c),6(c),and 7(c)), the band intensity of C-OM increased with increasing electrode potential, while the band intensity for Pd-COM changed slightly; the experiments were carefully repeated, and these phenomena were found to be highly reproducible. A similar study was also performed using a grating with 1800 grooves; where the Raman spectra for both Pd-CO and C-O could be collected in the same spectra, the same trend was also observed. Such a trend was not observed in our recent study of the Pt/CO system [5]. These trends were not caused by changes in the COad coverage, but were probably induced by the different potential-dependent Raman scattering sections of the Pd-COM and C-OM vibration modes. The reason for the opposite potential-dependent changes in the Pd-CO and C-O band intensities is not clear; further studies on well-defined single-crystalline Pd are underway to clarify this.
The values for dνPd-COM/dE (-15 cm-1/V) and dνC-OM/dE (43 cm-1/V) observed in 0.5 mol/L H2SO4 agreed well with values from previous reports measured under similar conditions [2].. However, the values of 83 cm-1 and 207 cm-1/V observed for dνC-OM/dE at more negative potentials in the CO-saturated 0.5 mol/L Na2SO4 solution were unusually high (Fig. 6(a)). Similar results were also observed for CO adsorbed at the Pd@Au nanoparticle film electrode in an alkaline solution (Fig. 7(a)), and such unusually high Stark slopes were found to be highly reproducible. Referring to the simultaneously recorded i-E curve in CO-saturated 0.5 mol/L Na2SO4 (Fig. 6(d)), it was found that the abrupt changes in dνC-OM/dE and dνPd-COM/dE occurred at the onset potential for the HER (ca. -1.2 V), which indicated that although the surface was saturated with CO, dissociation of water to Had took place. In the present SERS study, we did not observe any band for Pd-H vibrations at the atop site above 2000 cm-1, either with or without COad. This was similar to results from a previous study published by Tian’s group [35]. From such results, it was concluded that at negative potentials the adsorbed hydrogen atoms were located in bridg e or hollow sites of the Pd surface, or inside bulk Pd.
Several factors, such as (1) the effect of the double-layer electric field; (2) changes in COad surface coverage; and (3) changes in the adlayer structures and adsorbate distribution might have contributed to the nonlinear potential-dependent peak frequencies of the Pd-CO and C-O stretching vibrations. We will discuss the effects of these factors one by one.

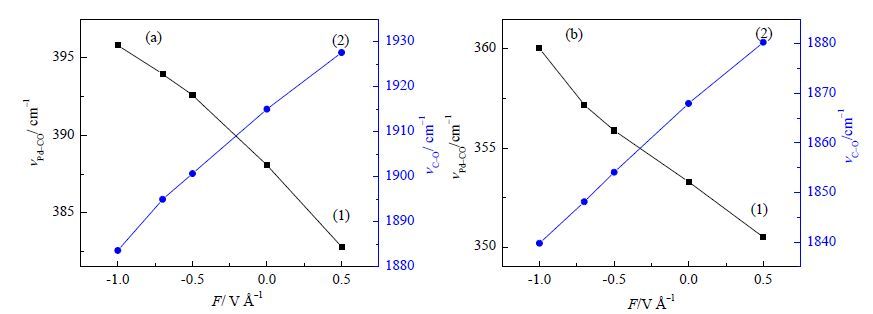

To clarify how the peak frequencies of the Pd-CO and C-O stretching vibrations changed with changes in the applied external electric field, we carried out DFT calculations using a slab model with four Pd layers. Some of us have previously made systematic investigations of the Pd-layer thickness-dependent CO adsorption, and the thickness-dependent electrocatalytic activity, using surface-enhanced Raman spectroscopy. It was found that the potential-dependent SERS behaviors of CO were rather similar with changes in the thickness of the Pd layer, except that there was a very small shift in the vibrational frequencies, compared with those observed for electrochemically roughened Pd electrodes (within 4 cm-1 for C-O stretching vibrations, and 1 cm-1 for Pd-CO stretching vibrations). Hence it is reasonable to calculate the potential-dependent frequency changes of the Pd-CO and C-O stretching vibrations using the 4-Pd-layer slab model. The calculated frequencies of the Pd-COB,H and C-OB,H stretching vibrations were plotted as a function of the external electric field in the range from -1.0 to 0.5 V/Å (ca. -2.0 to 2.5 V vs. NHE, assuming that the thickness of the inner Helmholtz layer was 3 Å, and the potential of zero charge in the Pd-CO system was ca. 1 V vs. NHE [5]) (Fig. 8). The periodic DFT calculations in the potential region from ca. -2.5 to 2 V revealed that when the CO adsorption sites were fixed, the change in the electrode potential induced only a linear change in νPd-CO and νC-O; this indicated that the nonlinearity of the Stark slopes observed using SERS could not be explained purely by the variation in the external electric field.
Each spectrum was measured over a period of 50 s, and all of the experiments were performed under continuous flowing of a CO-saturated solution through the cell, and the spectra were thus recorded from the CO adlayer, which was well equilibrated with the CO in the bulk solution. Several DFT calculations revealed that the CO binding energy increased when the electrode potential was shifted negatively into the potential region where the HER took place [1，37]; this led to slightly higher equilibrium COad coverages at negative potentials, compared with the coverages at positive potentials. Furthermore, recent DFT calculations showed that at Pd/Au(111), both H and CO favor the three-fold hollow site adsorption configuration, and the adsorption energy for H is ca. -0.6 eV, while that for CO is ca. -1.8 eV [36]. This indicates the induction of the desorption of COad by post-adsorbed H in the potential region when HER takes place is unlikely (however, adsorbed H-induced CO surface diffusion and re-distribution are possible, see discussion below). It should be mentioned that at E < 0 V in 0.5 mol/L H2SO4 (and at E < -1.0 V in the neutral and basic solution), slow reduction of CO might have taken place. In contrast, at E < 0.3 V in 0.5 mol/L H2SO4, slow oxidation of CO might have occurred, as evidenced by the small anodic current shown in Fig. 5(c). However, it was still unlikely that the variation in the COad coverage was due to CO oxidation and reduction, because under the conditions of the present study, such processes were mainly kinetic-limited; i.e., if such processes occurred, the consumed CO should have been replenished easily by the adsorption of CO dissolved in bulk solution. Thus it was concluded that the spectral variation due to the change (decrease) in COad coverage, and coverage-induced changes in the dipole-dipole coupling interaction at different potenti als, were negligible.

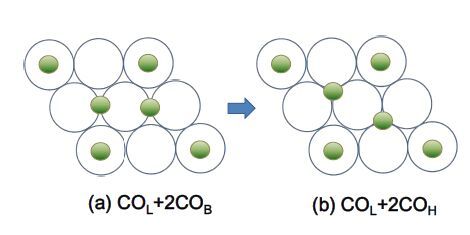

Based on the analysis above, the nonlinear Stark slopes observed in the present study for both dνC-O/dE and dνPd-CO/dE were attributed to the changes in the CO adlayer structure. It has been confirmed using UHV studies that repulsion dominates the interaction among neighboring H and CO species co-adsorbed on transition metals. Recently, an infrared spectroscopic study on the adsorption of submonolayer CO at a Pt electrode revealed that in the potential region from 0.05 to 0.35 V, post-adsorbed H atoms could force well-distributed CO to form islands on Pt [6]. Thus, a change in the COad adlayer structure can be envisaged when the potential is scanned from the HER potential region to a more positive region. In the HER potential region from -1.5 to -1.2 V, post-adsorbed H atoms formed by the dissociation of water might have forced the COad molecules previously adsorbed at the bridge sites to move to hollow sites. The more negative the electrode potential, the higher the coverage of Had atoms, and the more COB changed to COH. Since the COM bands included stretching vibrations of both COH and COB (superimposed), the conversion of COB to COH toward negative potentials greatly decreased νC-OM, and increased dνC-OM/dE. In contrast, dνPd-COM/dE| decreased in more negative potential regions, as a result of the offsetting effects from the decrease of νPd-COM that was due to the site conversion (νPd-COB was higher than νPd-COH), and the increase of νPd-COM that was due to the negative shift in the electrode potential, in well agreement with the present observations.
The abrupt changes in the Stark slopes of C-OM and Pd-COM stretching vibrations that occurred in neutral and basic solutions were not observed in CO-saturated 0.5 mol/L H2SO4, when scanning the electrode potential from the HER region to the double layer region. In acidic solutions, the HER at a Pd electrode can be expressed using the following scheme [37]:
In neutral and basic solutions, it goes through water dissociation as following
Because the absorption of hydrogen into a Pd electrode can occur more easily in an acidic solution, where the concentration of H3O+ is much higher than in neutral or basic solutions, the abrupt changes in the Stark slopes observed for the C-OM and Pd-COM stretching vibrations in neutral and basic solutions, but not in acidic solution, could not be attributed to the changes in the structure of the Pd surface layer due to the absorption of H atoms into the bulk of the Au@Pd nanoparticles. The lack of sharp changes in the Stark slopes for the C-OM and Pd-COM stretching vibrations in acidic solutions indicated that different sites at the Pd surface might have been involved in the HER in the acidic and basic solutions [38,39]. It remains unclear whether water molecules in the double layer to be dissociated might also have had some influence on the peak frequencies of the COad species; e.g., via tuning of the potential drop across the double layer.
It should be noted that there remains one phenomenon to be explained in the SERS behavior of CO adsorption at the Au@Pd electrode; in particular, the higher dνC-OM/dE and dνPd-COM/dE in the potential region of ~-1.2 to -0.15 V in 0.5 mol/L Na2SO4 and 0.5 mol/L NaOH, compared with that in the potential region of ~-0.2 to 0.55 V in 0.5 mol/L H2SO4 must be associated with the changes in the CO adlayer structure. However, it cannot be explained simply by the continuous conversion of COad from bridge to hollow sites, because both the potential region and the pH value of the solution varied simultaneously. Further investigations are underway to clarify these issues.
In summary, unique potential-dependent SERS spectral behavior of Pd-CO and C-O stretching vibrations at Au@Pd nanoparticle electrodes was observed. Throughout the examined potential region (from ~-1.5 to 0.55 V), three distinct Stark slopes for both Pd-CO and C-O stretching vibrations were observed: dνC-OM/dE decreased from ~185-207 cm-1/V (~-1.5 to -1.2 V) to ~83-84 cm-1/V (~-1.2 to -0.15 V), and then to 43 cm-1/V (~-0.2 to 0.55 V), while dνPd-COM/dE changed from ~-10 to -8 cm-1/V (~-1.5 to -1.2 V) to ~-31 to -30 cm-1/V (~-1.2 to -0.15 V), and then to -15 cm-1/V (~-0.2 to 0.55 V). The abrupt changes in the Stark slopes for both Pd-CO and C-O stretching vibrations occurred at -1.2 V when scanning the electrode potential from the HER region to the double layer region. This was confirmed by the simultaneously recorded CVs. DFT simulations with a slab model revealed that the change in the electric field across the interface only led to linear Stark slopes in a broad potential regime from -2.5 to 2 V. Therefore, the abrupt changes in the Stark slopes were attributed to the change in the CO adlayer structure, which corresponded to the site conversion between COH and COB trigged by the co-adsorption of hydrogen atoms.Finally, we believe that a systematic study of the vibrational spectroscopic behavior of COad will greatly improve understanding of both CO adsorption/desorption processes, and the kinetics of heterogeneous catalytic reactions involving COad as intermediates, spectators, or poisoning species, because CO is one of the most important molecules in heterogeneous catalytic reactions. We also hope that our present study will stimulate interest and further investigations in such topics.
