Volatile organic compounds (VOCs) have a high vapor pressure and low water solubility and most of them are major contributors to air pollution due to their toxic nature or as a precursor of ozone or photochemical smog [1, 2]. A large variety of VOCs are emitted from industrial and transportation (outdoor sources) and household (indoor sources) activities,such as power generation,vehicle emission,solvent use,and from office supplies and restaurant and domestic cooking. Most VOCs are harmful to the atmosphere and human beings [3, 4]. VOCs include alkanes,olefins,alcohols,ketones,aldehydes,aromatics,paraffins,and halogenated hydrocarbons [5]. Among the most common and toxic VOCs are formaldehyde,benzene,toluene,propene,phenol,and acetone.
The removal of these emitted VOCs is a crucial topic in environmental protection. The conventional approach to dispose of highly concentrated VOC streams is thermal incineration. However,this needs to be operated at high temperatures (800-1200 °C) and requires a high operating cost. Furthermore,undesirable byproducts such as nitrogen oxides are produced in the incineration. In contrast,catalytic combustion or oxidation is an effective and feasible technology for VOC removal,which can be operated with dilute VOC effluent streams (< 1 %) and at low temperatures (< 600 °C). Thus,this has been widely investigated in recent years. Current efforts for this technology concentrate on developing efficient and low cost catalysts which can catalyze the complete oxidation of VOCs into CO2 and H2O at low temperatures [6]. Two classes of catalysts,supported noble metals and transition metal oxides (TMOs),are the most promising materials for VOC combustion [7-11]. Supported noble metal catalysts,in spite of their more expensive costs,are preferred because of their high specific activities at low temperatures [12-18]. Regarding metal oxide catalysts,pure transition metal oxides,mixed transition metal oxides,and perovskites are recognized as efficient low cost catalysts for VOCs combustion [19-28].
It is accepted that the catalytic activity of a metal oxide is associated with its surface area,pore structure,oxygen nonstoichiometry,and reducibility [29]. These factors are determined by the preparation method. The preservation of high surface area is critical because the reaction rate is proportional to the surface area [30]. A good approach for increasing the surface area is to have a metal oxide material fabricated as an ordered porous structure. Porous materials are classified into three types in terms of the pore diameter: microporous (below 2 nm),mesoporous (2-50 nm),and macroporous (above 50 nm) [31]. The fabrication of porous materials,especially the creation of ordered meso- or macroporous materials,has been extensively investigated in the past years. Template methods,which imply a more or less direct replication of the pore system from the template,is one promising synthetic pathways to create porous materials,especially ordered porous materials [32].
The preparation of transition metal oxides by nanocasting procedures makes it possible to obtain nanopore-structured materials which are difficult to achieve using surfactant-usage techniques. This constitutes an additional advantage of the hard template route over the soft template route [33]. The first nanopore-structured transition metal oxide synthesized with mesostructured silica materials was Cr2O3 using SBA-15 as template [34]. Tian and coworkers obtained nanospheres of In2O3 and Co3O4 prepared from 3D-caged mesoporous silica (SBA-16) that showed ordered patterns in TEM images [35]. Nanopore-structured CeO2 with a BET surface area of 198 m2/g was prepared using a KIT-6 silica as template by Laha et al. [36]. Recently,Guan and coworkers [37] reported a general reaction container effect in the nanocasting synthesis of a series of mesoporous metal oxides.
Mesopores and micropores help to impart a high surface area and pore volume in a material. They provide numerous active sites and size selectivity for molecules. These small pores can then be coupled with larger macropores that improve mass transfer through the structure to overcome the diffusion limitation present in purely micro-/mesoporous materials. Novel approaches for the synthesis of hierarchically functional materials have been developed in recent years. One such class of materials are the three dimensionally ordered macroporous (3DOM) solids. The general process of fabricating 3DOM structures is simple: (1) form a colloidal crystal of close packed spheres with a uniform size; (2) fill the interstitial space with a fluid precursor capable of solidification,and (3) remove the template to obtain a porous inverse replica [38]. The colloidal crystal templates used for the generation of 3DOM materials were prepared from monodispersed silica or polymer spheres,including polystyrene (PS) and poly(methyl methacrylate) (PMMA). The spheres can be arranged into close packed structures by several methods [39]. For example,using metal nitrates or acetates as precursor and well-aligned PMMA or PS microspheres as the hard template,3DOM-structured La1-xSrxFeO3 (surface area 24-49 m2/g) [40],LaMnO3 [41],and La0.7Ca0.3-xSrxMnO3 (surface area 24 m2/g) [42] were prepared. Zhao and coworkers adopted PMMA as the template to generate 3DOM-structured LaFeO3-supported Au (surface area 32 m2/g) [43],Ce0.8Zr0.2O2-supported Au (surface area 58 m2/g) [44] and LaCoxFe1-xO3 (x = 0-0.5) [45] catalysts,which showed superior performance for the catalytic oxidation of soot. In the past years,Dai’s group has investigated the controlled preparation and physicochemical properties of porous Co3O4 [46, 47],MnOx [46, 48],Cr2O3 [49, 50],Fe2O3 [51],g-Al2O3 [52],LaMnO3 [53, 54, 55],LaCoO3 [56],La2CuO4 [57],InVO4 [58],SrFeO3-δ [59],and BiVO4 [60] using the silica-templating or surfactant-assisted PMMA-templating strategy. These authors pointed out that the good catalytic performance of the materials obtained for VOC combustion was associated with the large surface area and unique pore structure.
In this review,the correlation between surface area,pore structure,metal dispersion and catalytic performance of the porous materials that leads to the identification of the catalytic active sites is discussed. Due to the explosion of the publications in this field and limited by space,only two kinds of ordered porous materials associated with the issue of VOC combustion are discussed: (1) ordered mesoporous transition metal oxide (TMOs) and supported noble metal catalysts; and (2) ordered macroporous transition metal oxide (TMOs) and supported noble metal catalysts.
The utilization of mesoporous TMOs as the catalyst for VOC combustion has attracted attention in the past years because of their low cost,stable structure and,especially,excellent catalytic performance. Great achievements have so far been obtained [61-63].
Compositionally identical TMOs with different pore structures have been reported in the literature. For example,one dimensional (1D)-MnO2,two dimensional (2D)-MnO2 and three dimensional (3D)-MnO2 with different structures were synthesized using the hydrothermal and nanocasting methods,respectively. The catalytic activity for ethanol oxidation over different MnO2 catalysts decreased in the order of 3D-MnO2 > 2D-MnO2 > 1D-MnO2. The apparent activation energy over 3D-MnO2 was the lowest (28.2 kJ/mol),which was much lower than over 2D-MnO2 (33.6 kJ/mol) and 1D-MnO2 (52.8 kJ/mol). A mesoporous MnO2 catalyst,especially 3D-MnO2,had the best low temperature catalytic activity,which was primarily due to the better low temperature reducibility,more adsorbed surface oxygen species and Mn4+ ions [64]. In addition,Puertolas et al. [65] demonstrated that the aging temperature of the silica template was of great importance as this parameter was directly responsible for both the pore size and surface area of the catalysts. For the nanocast CeO2 catalysts,the one prepared from the silica template aged at 80 °C presented the highest activity for naphthalene oxidation. The best catalyst gave a CO2 yield of over 80% at 260 °C and over 95% at 275 °C. However,Garcia et al. [66] found that the relationship between the ordered structure and high catalytic activity for propane and toluene oxidation was reversed. The partially ordered Co3O4 showed a higher reaction rate when normalized per surface area than the fully ordered replicas. Since the reducibility was not very different among the porous catalysts,the different activity can be related to the existence of a higher concentration of highly reactive oxygen defects (higher concentration of surface Co2+ species) in the partly ordered catalysts [66]. In fact,for catalytic oxidation,CO oxidation is one of the most studied reaction using nanocast catalysts. The catalytic activity was also dependent on the textural parameters of the catalysts. A better performance was achieved over the catalyst with a higher surface area and more open pore system. By varying the hydrothermal temperature of the KIT-6 synthesis,two kinds of Co3O4 replicas possessing coupled and uncoupled sub-frameworks were obtained. Co3O4 replicas with uncoupled sub-frameworks which possessed a higher surface area and more open pore system exhibited better performance than Co3O4 replicas with coupled sub-frameworks [67].
Dai and coworkers have developed a novel solvent-free route using KIT-6 as hard template to synthesize Cr2O3 with ordered 3D hexagonal polycrystalline structures in an autoclave. They believed that the co-existence of multiple chromium species promoted the low temperature reducibility of chromia,thus increasing the catalytic performance for the oxidation of toluene and ethyl acetate [49]. 3D ordered mesoporous cubic Co3O4 (Co-KIT6 and Co-SBA16) were also fabricated using the KIT-6- and SBA-16-templating methods,respectively. It is shown that the Co3O4 prepared possessed a large surface area (118-121 m2/g),high adsorbed oxygen species concentration,and good low temperature reducibility. Over the Co-KIT6 catalyst at a space velocity of 20000 mL/(g h),90% toluene and methanol conversions were achieved at 180 and 139 °C [47],respectively. By adopting the novel ultrasound-assisted SBA-16-nanocasting strategy,Deng et al. [48] and Xia et al. [50] have synthesized highly 3D ordered mesoporous MnO2,Co3O4,and Cr2O3 with high surface areas (266,313,and 124 m2/g). The dramatically enhanced surface area of these materials was attributed to that ultrasonic irradiation promoted liquid-solid mass transfer and dispersion of the metal precursors in the pores of the silica template. The catalytic activities of the porous TMOs materials were investigated for the combustion of a series of VOCs,such as toluene,formaldehyde,acetone,and methanol.

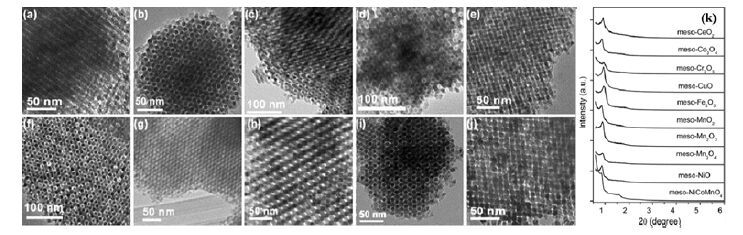

Recently,3D ordered crystalline mesoporous CeO2,Co3O4,Cr2O3,CuO,Fe2O3,MnO2,Mn2O3,Mn3O4,NiO,and NiCoMnO4 were used for CO oxidation (Fig. 1) [68]. Among these,Co3O4,MnO2,and NiO showed appreciable CO conversions below 0 °C. Fe2O3 was the least active. The catalytic activities of these materials were found to depend on the pretreatment temperature. By taking into account the lower metal-oxygen bond energy of Co3O4,MnO2,and NiO,it was reasonably explained that the pretreatment in air at a moderate temperature was efficient for oxygen abstraction from the surface of these metal oxides to form surface oxygen vacancies,hence enhancing the adsorption and activation of O2 [69]. According to the literature,MnO2 and Co3O4 among the transition metal oxides are the most catalytically active for VOC and CO oxidation. A recent work found that the 3D mesoporous tetragonal MnO2 catalysts (T90% corresponding to a VOC conversion of 90% was 217-220 °C) were superior to the 3D mesoporous cubic Co3O4 catalysts (T90 = 233-240 °C) in catalyzing the oxidation of toluene. But the latter (T90 = 129-132 °C) outperformed the former (T90 = 158-178 °C) in catalyzing the oxidation of CO [70].
Co3O4 with a spinel structure is a very active catalyst for the oxidation of CO. In these catalysts,octahedrally coordinated Co3+ is considered to be the active site,while tetrahedrally coordinated Co2+ is assumed to be inactive. Recently,a highly ordered mesoporous CoO was prepared by H2 reduction of nanocast Co3O4 at low temperatures by Jia and coworkers. The CoO material prepared has a rock salt structure with a single Co2+octahedrally coordinated by lattice oxygen in Fm3m symmetry. It exhibited unusually high activity for CO oxidation. Careful investigation on the catalytic behavior of the mesoporous CoO catalyst led to the conclusion that the oxidation of surface Co2+ to Co3+ gave high activity [71]. Copper/ceria-based catalysts are considered the most promising candidates for the preferential oxidation of CO (PROX) process because of their low cost and high selectivity [72]. Kleitz and coworkers [73] investigated the catalytic performance of nanocast mesoporous Cu/CeO2 and CuM/CeO2 (M = Fe and Co) mixed oxides for their effectiveness in the CO-PROX reaction. The catalytic performance of these materials among copper/ceria-based compositions was the best both with respect to CO conversion and CO2 selectivity at low temperatures. A complete CO conversion with 100% selectivity was achieved at 40 °C in the case of Cu/CeO2 synthesized using KIT-6 silica after aging at 40 °C. The molar amount of Cu was 30%. Interestingly,negligible decline was observed in the performance of these materials even after three cycles of operation. He et al. [74] synthesized 3D ordered mesoporous CuOx-CeO2 catalysts through the metal nitrate precursor host-guest interaction with SBA-16 silica as hard template. Th eir catalysts with 3D mesoporous structures have much higher low temperature activity for the complete oxidation of epichlorohydrin. The T50 temperature of the 3D-structured catalysts was decreased more than 130 °C as compared to the bulk CeO2 catalyst.
Another interesting class of mixed metal oxides are perovskites (ABO3). In catalytic applications,these materials comprise a rare earth metal in the A site and a transition metal in the B site. In addition,these materials can be synthesized by partially substituting either or both the A and B sites. The efficiency of these perovskites,either substituted or not,is well documented for the catalytic oxidation of VOC[75]. However,a major challenge in the commercialization of these materials is their low specific surface areas resulting from the required high temperature calcination during the synthesis [72]. For this reason,one major objective regarding these materials is to produce them with enhanced surface areas. Although several solid and liquid phase synthesis methods were developed,the surface areas achieved still remained below 30 m2/g. Wang et al. [76] performed a catalytic study on nanocast perovskites. The efficiency of mesoporous LaCoO3 was monitored for the total oxidation of methane and was compared with a bulk counterpart obtained from the citrate method. The light-off temperature (denoted as T10) and half-conversion temperature (T50) were 335 and 470 °C,respectively,and were much lower than those over the bulk perovskite at a space velocity of 60000 h-1. A series of perovskites were also synthesized using nanocasting method by Kleitz and coworkers [77]. Even though the resulting materials were not the exact replica of the template,extremely high surface areas (110-155 m2/g) were obtained. The mesoporous LaMnO3 catalysts showed the highest conversion efficiency for methanol oxidation under steady state conditions as compared with both LaCoO3 and LaFeO3 nanocasts and LaMnO3 prepared by other methods. Gao et al. [78] prepared a porous wormhole-like LaFeO3 perovskite with a surface area of 138 m2/g using the hard templating method. The mesoporous LaFeO3 sample showed better catalytic performance: T50 and T90 were 155 and 180 °C for CO oxidation,and 200 and 253 °Cfor toluene oxidation at SV = 20000 mL/(g h),respectively. Table 1 summarizes the catalytic activity of various mesoporous catalysts for VOC oxidation reported in the literature.

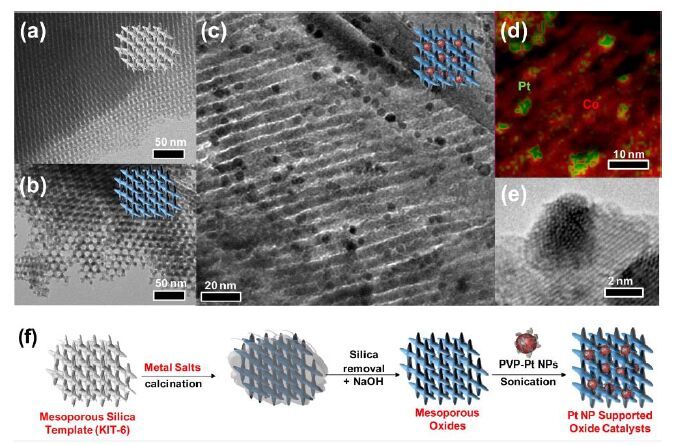

Noble metal nanoparticles (NPs) finely dispersed on high surface area oxides are the most widely used heterogeneous catalysts. The catalytic activity and selectivity of the supported NPs strongly depend on their sizes and shapes and metal-support interactions [79]. One of the greatest challenges in the catalysis of supported NPs is the deactivation of catalysts under realistic conditions. Continuous operation at a high temperature generally leads to the sintering of NPs,resulting in a loss of surface metal atoms and substantial changes in the metal-support interface. Many strategies have been applied to reduce the sintering issue of noble metal NPs [80-82]. Suppressing atom migration is an effective way to control the problem of sintering,but it is more challenging relative to harnessing particle migration. When a non-reducible oxide (e.g.,silica) is used as the support,it is very difficult to obtain an optimum particle size range of the noble metal particles due to the weak interaction between the noble metal and irreducible support. In these cases,an ordered mesoporous transition metal oxide with a well-defined pore size would be an appropriate support for the confinement of noble metal NPs. Moreover,the ordered pore system of the support is helpful in controlling the dispersion of the multicomponent active phase(s). In this aspect,the supports such as mesoporous Co3O4,MnOx,and CeO2 are especially valuable as their porous structure is periodic and their pore size can be controlled to be within a range of a few nanometers.
Low temperature catalysts of mesoporous Co3O4 and Au/Co3O4 with high catalytic activities for the oxidation of trace ethylene at 0 °C were reported. The synthesized Au/Co3O4 materials,in which the gold NPs were assembled into the pore walls of the mesoporous Co3O4 support possessed stable,highly dispersed,and exposed Au sites. Over the gold NPs present on Co3O4 with the reactive planes {110},surface active oxygen species can be readily generated,thus promoting ethylene oxidation with a 76% conversion at 0 °C,which was the highest conversion reported so far [83]. Formaldehyde (HCHO) is regarded as a major indoor pollutant emitted from widely used building and decorative materials in airtight buildings,which needs to be eliminated. Recently,Ma et al. [84] found that mesoporous Co3O4 generated from SBA-15 silica with predominately exposed {110} facets and mainly Co3+ cations were the main active facets for HCHO oxidation. These adsorb and activate HCHO species on the surface of Co3O4. The surface active oxygen species on the Co3O4-supported gold catalyst can be generated more readily,hence improving the oxidation of HCHO. HCHO can be oxidized into formate,and was further oxidized into carbonate that then dissociated to CO2. The proposed reaction mechanism was a pathway where only C-H bonds were broken while the C-O σ and C-O π bonds were unchanged. Recently,Li’s group reported that alkali metal ions could act as a promoter to improve the catalytic activity for HCH O oxidation on a mesoporous Co3O4-supported Ag catalyst. They discussed the effect of K+ ions on catalytic performance. The turnover frequency (TOF) on 1.7 wt% K-Ag/Co3O4 was 0.22 s-1 at 60 °C and HCHO conversion was 55% at room temperature. They attributed the good catalytic performance to the surface OH- species provided by K+ ions and the more abundant Ag (111) active face as well as Co3+ cations [85]. In order to investigate the oxide-metal interface effect on catalytic CO oxidation in both excess O2 and excess CO,a serious of mesoporous oxides (Co3O4,NiO,MnO2,Fe2O3,and CeO2) were synthesized and loaded with size-controlled Pt NPs by Somorjai's group (Fig. 2). Through in situ characterization using near-edge X-ray absorption fine structure (NEXAFS) and ambient pressure X-ray photoelectron spectroscopy (APXPS) under alternating redox conditions combined with catalytic activity measurements,they found that the active surface phases of the oxide at the interface with Pt NPs in the CoO-,Mn3O4-,and CeO2-supported catalysts were responsible for the orders of magnitude enhancement in CO oxidation rate (Fig. 2) [86].
In recent years,supported Au catalysts have attracted tremendous attention,but Au NPs are easily sintered at relatively low temperatures. This results in the deactivation of the supported Au catalysts [87]. The dispersion of Au NPs on high surface area supports is expected to promote the catalytic activity and stability because it helps to not only increase the gold loading but also improve its dispersion and would be beneficial for preventing sintering of Au NPs [87]. Recently,Dai's and Ye's groups developed a novel method to synthesize ordered mesoporous Co3O4- and β-MnO2-supported Au catalysts. The Au NPs with a size of 2-5 nm were uniformly deposited inside the mesoporous channels of the metal oxide. There were good correlations of high adsorbed oxygen species concentration,high oxidized gold species concentration,and good low temperature reducibility as well as the high quality 3D ordered mesoporous structure with the catalytic activity of the sample for CO or BTX (benzene,toluene,and o-xylene) oxidation. The effects of water vapor,CO2,and SO2 on the catalytic performance of the samples were also examined [88, 89]. After investigating ordered mesoporous Co3O4-supported Pd catalysts for o-xylene oxidation,Wang et al. [90, 91] pointed out that the good catalytic performance of Pd/porous Co3O4 was associated with the Pd particle size,oxidized Pd species,and oxygen vacancies in Co3O4. Moreover,catalytic oxidation of CO was investigated over a serious of Pd-deposited ordered mesoporous TMO catalysts. The authors claimed that the activity of a Pd-loaded catalyst was dependent on the type of support and metal-support interaction. They found that an in situ H2 pretreatment before the test resulted in a significant enhancement in catalytic activity at low temperatures. This indicated tha t the H2 pretreatment might be important for the metal-support interaction,formation of oxygen vacancies on the support,and generation of hydroxyl groups around Pd [92].
Previous attention was mostly paid to understanding the role of the active species in the catalytic oxidation of VOCs. However,it should be noted that the catalytic activity is also closely related to the interaction between the reactant and catalyst. VOC molecules are first adsorbed on the catalyst surface and then oxidized to CO2 and H2O. Several research works have pointed out that the pore structure influence the adsorption behavior of VOCs on the catalyst surface. For example,Bai et al. [64] found that 3D mesoporous MnO2 had a special pore channel structure (which benefits the adsorption and diffusion of reactants and products) giving much better catalytic performance than the non-porous counterpart for ethanol oxidation. He and coworkers claimed that the Pd catalyst supported on a porous SiO2 with a bimodal micro- and mesoporous structure performed better than the Pd catalyst supported on a purely mesoporous SiO2 for toluene oxidation [93]. Based on the characterization results,the authors pointed out that the catalytic performance was associated with the toluene adsorption capability. That is,the higher toluene adsorption capability gave the higher catalytic activity. Overall,the easy diffusion of VOCs molecules inside the porous materials would benefit the improvement in catalytic activity.
Similarly,a range of macroscopic structures can also be formed through deliberate changes in the hard-templating synthesis of porous materials. Hard templates are often employed as a platform for producing hierarchically porous (e.g.,three dimensionally ordered macroporous (3DOM)) materials [38-45, 94, 95]. The synthesis of 3DOM materials involves the infiltration of a colloidal crystal template with a precursor,followed by calcination or pyrolysis to condense and,in many cases,crystallize the precursor(s) and remove the template used. Additional “soft” templating agents can also be added to the precursor,producing secondary pores in the walls of the material. Furthermore,morphological control is also desirable at larger length scales. This can be established with the sol-gel precursor and gelation processes.

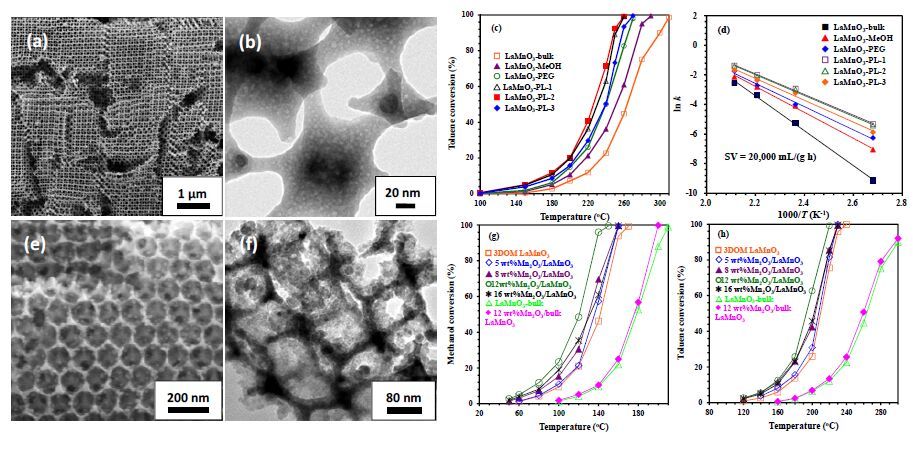

Perovskites are known to be catalytically active for the complete oxidation of hydrocarbons and oxygenates. The catalytic activity of an ABO3 is associated with its surface area and pore structure. These factors are determined by the preparation method. The preservation of high surface area is important since the reaction rate is often proportional to the surface area of a bulk perovskite catalyst. The ABO3 materials derived from the hydrothermal [96],sol-gel [97],co-precipitation [98],and solid-state reaction [99] routes are usually nonporous and possess relatively low surface areas (< 10 m2/g),which are unfavorable for the facile accessibility of reactant molecules to active sites. Hence,it is highly desired to establish an effective method to controllably prepare ABO3 with a porous structure and high surface area. Dai and coworkers reported the synthesis of LaMnO3 using a hard-soft dual template approach where poly(methyl methacrylate) (PMMA) was used as the hard template. In order to develop mesopores in the walls of the macropores,a surfactant was added to the precursor. The soft template was observed to be beneficial for the generation of mesopores. In fact,using optimized contents of P123 and L-lysine,it is possible to generate an ABO3 material with a surface area of 39.4 m2/g and bimodal macro- and mesopores (Fig. 3). Under the conditions of toluene concentration = 1000 ppm,toluene/O2 molar ratio = 1/400,and SV = 20000 mL/(g h),the porous LaMnO3 catalysts were much superior to the bulk LaMnO3 catalyst in activity. Over the best performing catalyst,the T50 and T90 were 226 and 249 °C,respectively. The kinetic studies revealed that the apparent activation energies (57 kJ/mol) for toluene combustion over the porous catalysts were much lower than that (97 kJ/mol ) over the bulk LaMnO3 catalyst (Fig. 3). They believed that the good catalytic performance of the 3DOM-structured LaMnO3 with mesoporous skeletons for toluene combustion was associated with the excellent textural properties (high surface area,unique bimodal pore structure) and physicochemical properties (high adsorbed oxygen species concentration and good low temperature reducibility) [53, 54]. The thermal stability of the 3DOM ABO3 was also examined. After being aged at 800 °C for methane combustion,the 3DOM architecture of La0.6Sr0.4MnO3 was still maintained. The used 3DOM sample exhibited a similar surface area to the fresh counterpart [100]. In the past several years,Dai’s group has shown interest in developing strategies that generate a number of 3DOM-structured materials (e.g.,Fe2O3 [101],Pr6O11 [102],Tb4O7 [102],La2CuO4 [103],La0.6Sr0.4FeO3-δ [104],SrFeO3-δ[105],and La0.6Sr0.4Fe0.8Bi0.2O3-δ[106]) with high surface areas by the surfactant-assisted PMMA-templating approaches. They observed that some of the 3DOM materials performed excellently in the oxidation of CO and typical VOCs. Recently,Li’s group found that 3DOM LaMnO3 can be treated with diluted HNO3 to selectively remove La cations,and obtained a novel porous γ-MnO2-like material. Upon the removal of La cations,the sample showed a significantly higher CO oxidation catalytic activity (T50 = 89 °C) than the initial precursor LaMnO3 (T50 = 237 °C) and conventional γ-MnO2 (T50 = 148 °C). This finding not only suggested a new method to improve the catalytic activity,but also supplied a strategy to synthesize novel γ-MnO2-like materials,which have potential applications in other fields [107].
In order to further increase the catalytic performance of ABO3,one solution is to load transition metal oxide(s) on the surface of ABO3. For supported transition metal oxide catalysts,a particular interest is the strong metal-support interaction (SMSI). There is a synergetic effect between the metal oxide and the support,which can strongly influence the electronic structure of the metal oxide. A number of attempts have been made to identify the synergistic interaction between the metal oxide and support,which has frequently been proposed to explain the high catalytic activities of Co3O4/ZrO2 [108],Co3O4-MnOx/Ce0.85Zr0.15O2 [109],and CuO/Ce1-xCuxO2-δ[110] for the oxidation of CO and VOCs. Ji et al. [111] synthesized 3DOM-structured Eu0.6Sr0.4FeO3 (ESFO) and CoOx/3DOM ESFO using citrate acid-assisted PMMA-templating and incipient wetness impregnation methods,respectively. All the supported samples retained a high quality 3DOM architecture with a surface area of 22-31 m2/g. The cobalt oxide NPs with a diameter of 7-9 nm were highly dispersed on the surface of 3DOM ESFO. The apparent activation energy (72 kJ/mol) of the 3 wt% CoOx/3DOM ESFO sample was much lower than that (81 kJ/mol) of the 3DOM ESFO support. The size and dispersion of a metal oxide on support are crucial factors influencing its catalytic performance. According to the literature,however,most of the supported metal oxide (MOx) catalysts display big particles of MOx and poor MOx dispersion. Furthermore,the supported MOx catalysts are usually prepared using the incipient wetness impregnation method,causing difficulty in controlling the morphology of the metal oxide. Therefore,it is highly desired to develop a facile and one-step approach for the preparation of supported MOx catalysts. Recently,Liu et al. [112] developed a novel in situ tryptophan-assisted PMMA-templating strategy to prepare MnOx/3DOM LaMnO3 materials. By adding an excess amount of manganese precursor and with L-tryptophan as chelating agent,the MnOx/3DOM LaMnO3 samples were directly synthesized. The 12 wt% MnOx/3DOM LaMnO3 sample contained MnOx NPs (4-18 nm in size) highly dispersed on the surface of 3DOM LaMnO3 (Fig. 3). Under the conditions of toluene or methanol concentration = 1000 ppm,toluene or methanol/O2 molar ratio = 1/400,and SV = 20000 mL/(g h),the 12 wt% MnOx/3DOM LaMnO3 sample exhibited the highest TOF of 7.9 × 10-6 s-1 for toluene combustion at 160 °C and 7.3 × 10-6 s-1 for methanol combustion at 80 °C (Fig. 3). Table 2 gives an overview of the catalytic performance of various macroporous catalysts for VOC oxidation reported in the literature.
Generally,the strong metal-support interaction plays an important role in influencing the performance of supported catalysts. Many studies have assigned the origin of the catalytic activity of supported noble metal catalysts to the perimeter interfaces between the noble metal nanocrystals (NCs) and oxide support [113, 114]. Charge transfer may also occur across the nanoscale interface,either from the noble metal to the oxide (e.g.,Au-TiO2 [113]) or from the oxide to the noble metal (e.g.,Fe3O4-Pt [114]) to promote the catalysis process.
Zhang and coworkers [115] found that their Au/3DOM CeO2 catalysts showed a unique 3DOM structure with interconnected networks of spherical voids favoring less aggregation and good distribution of small Au NPs,which gave enhanced catalytic activity for formaldehyde oxidation,with 100% formaldehyde conversion achieved at a temperature as low as 75 °C. This was approximately 25 °C lower than with the previously reported Au/nonporous CeO2 catalysts. The characterization results of hydrogen temperature programmed reduction (H2-TPR),formaldehyde temperature programmed surface reaction (HCHO-TPSR),CO2 temperature programmed desorption (CO2-TPD),and Fourier transform infrared (FT-IR) spectroscopy reveal that the weak adsorption ability of CO2 on the Au/3DOM CeO2 catalyst and the co-existence of Au active species (Au3+ and Au0) would account for the efficient catalytic oxidation of HCHO. The formation of carbonate and hydrocarbonate on the surface of Au/3DOM CeO2 derived from the incomplete oxidation of formate during the HCHO oxidation processes lead to the deactivation of catalytic activity. The carbonate and hydrocarbonate formed,however,would find it hard to block the active sites of the Au/3DOM CeO2 catalyst due to its large and open macroporous structure. Therefore,the Au/3DOM CeO2 catalyst showed good catalytic activity and stability for HCHO oxidation [116]. Liu et al. [55, 117] reported the successful preparation of a chain-like ordered macroporous LaMnO3 and 3DOM La0.6Sr0.4MnO3 using the poly(ethylene glycol) (PEG)-assisted PMMA-templating method. Taking the chain-like LaMnO3 synthesis as an example,high quality colloidal crystals were infiltrated with a precursor solution containing PEG. Through controlled calcination and after removal of the polymer microspheres,one can obtain an initial 3DOM structure which was then disassembled into individual chain-like entities. Subsequent incipient wetness impregnation of the chain-like LaMnO3 support with a gold sol derived from the reduction of HAuCl4 by sodium borohydride using polyvinyl alcohol (PVA) as protecting agent was adopted to fabricate the chain-like LaMnO3-supported Au nanocatalysts. The catalytic oxidation of CO and toluene over these catalysts proceeded via a suprafacial mechanism. After loading gold,partial surface Mn4+ species were reduced to Mn3+ species by Au0 by the SMSI between Au NPs and LaMnO3,resulting in the formation of surface oxygen vacancies. Gas phase O2 molecules were activated on the oxygen vacancies near the Au-LaMnO3 interface to active oxygen species. On the other hand,loading of Au NPs significantly promoted the adsorption of CO and toluene,thus enhancing the migration of chemisorbed CO and toluene to the Au-LaMnO3 interface. The oxidation of CO and toluene occur between chemisorbed CO or toluene and active oxygen species at the Au-LaMnO3 interface. A similar conclusion was drawn by Arandiyan et al. [118, 119],who found that after Pt loading,the rise in Ce3+ content of the Pt/3DOM Ce0.6Zr0.3Y0.1O2 (CZY) samples indicated that a strong interaction existed between Pt and 3DOM CZY. This was due to the electron transfer from Pt0 to Ce4+ in the 3DOM CZY support (Fig. 4). In other words,the Pt atoms (Pt0 Ptδ+) was oxidized by the surface Ce atoms (Ce4+ Ce3+),even though there was no direct Pt-Ce bonding. After that,a series of macroporous transition metal oxide- or perovskite-type oxide-supported catalysts were prepared,such as Au/3DOM Co3O4 [120],Au/3DOM LaCoO3 [121],Ag/3DOM La0.6Sr0.4MnO3 [122],Au/MnOx/3DOM La0.6Sr0.4MnO3 [123],and Au/3DOM Mn2O3 [124].

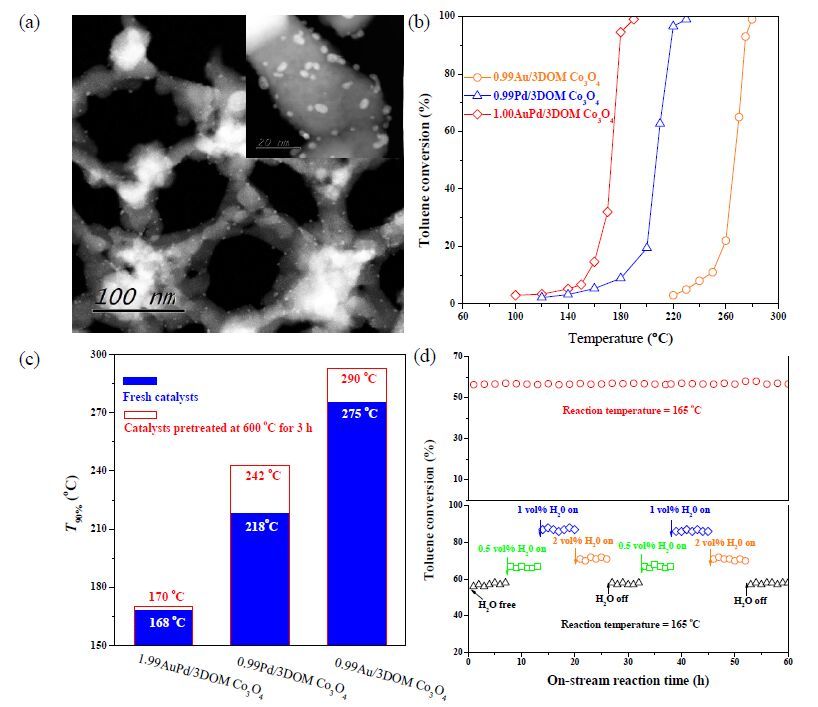

In recent years,nanoalloys have been of interest due to their potential technological applications in catalysis [125, 126]. From a basic science perspective,nanoalloys exhibit very complex structures and unique properties,which strongly depend not only on the particle size but also on the composition and atomic ordering. Recently,Xie et al. [126, 127] synthesized Au-Pd/3DOM Co3O4 (Au/Pd mass ratio = 1:1) catalysts with a Au-Pd NPs average size of 2.6-2.7 nm. They showed that they were highly efficient for toluene oxidation. Characterization results revealed that the Au-Pd/3DOM Co3O4 catalysts possessed stronger ability in activating oxygen and toluene and strong interaction between Au-Pd NPs and 3DOM Co3O4. The Au-Pd/3DOM Co3O4 samples outperformed the 3DOM Co3O4-supported Au or Pd sample for toluene oxidation,with the 1.99 wt% Au-Pd/3DOM Co3O4 sample showing the highest catalytic activity (the T10,T50,and T90 were 145,164,and 168 °C at SV = 40000 mL/(g h),respectively) (Fig. 5). Furthermore,the authors found that moisture introduction had a positive effect on the catalytic activity of the supported Au-Pd nanocatalyst for toluene oxidation. The supported noble metal alloy catalyst exhibited excellent catalytic and hydrothermal stability (Fig. 5).
Zhang and coworkers [128] demonstrated that the catalytic performance of Pt-Au/3DOM CeO2 catalysts was much better than that of the Pt/3DOM CeO2 or Au/3DOM CeO2 catalyst. For the CO-PROX reaction,the Pt-Au/3DOM CeO2 catalyst showed superior catalytic performance with 90% CO conversion and 83% CO2 selectivity at 80 °C. The long term stability lifetime of the alloyed catalyst can be realized with 90% CO conversion and 56% CO2 selectivity even after 260 h of running time.
Catalytic oxidation is the most important method for the removal of VOCs,especially low concentration organics. Transition metal oxides,such as MnOx,Co3O4,and CuO,are better than the supported noble metal catalysts because of their comparable catalytic performance for the deep oxidation of VOCs and their much lower cost. Transition metal oxides are considered as “active” supports for supported noble metal catalysts,by both allowing the reduction of the noble metal loaded and increasing their life time. However,transition metal oxides suffer from several disadvantages,such as low thermal stability and high sensitivity to poisoning. As an alternative,perovskites have received wide attention and often showed good catalytic performance. The catalytic properties of ABO3 and A2BO4 materials are easily tuned by partial substitution in the lattice. But the preparation of single phase perovskites is usually conducted at high temperatures and long calcination times,inevitably leading to rather low surface areas but high thermal stability. The solutions proposed to overcome these drawbacks of perovskites were by calcining the materials in a reducing atmosphere.
This review provided a complete survey from a perspective on the development of ordered porous transition metal oxide and supported noble metal catalysts for VOC oxidation. Examples of ordered meso- and macroporous transition metal oxide and supported noble metal catalysts were highlighted. Porous catalysts showed much better catalytic performance than their bulk and even nanosized counterparts. The excellent catalytic performance of porous materials is associated with their high surface areas,high adsorbed oxygen species concentrations,good low temperature reducibility,strong interaction between the noble metal and support and highly dispersed noble metal NPs and unique porous structures. In addition,the catalytic performance for VOC oxidation was also influenced by experimental parameters,such as space velocity and concentration of initial VOCs,water vapor,carbon dioxide,and sulfur dioxide. Based on the understanding of the reaction mechanisms at the molecular level,the ultimate goal of this review is to help rational design and successfully synthesize efficient catalysts with defined active sites.
There are still several critical issues to be addressed with these materials in environmental catalysis. First,the hard-templating method was used extensively to synthesize ordered porous metal oxides,but it is not a direct one-step method and the preparation is too expensive to be scaled up. Therefore,more efforts should be devoted to the development of alternative convenient synthesis strategies. For example,by using cheap natural minerals as the hard template instead of artificially synthesized silica and polymers,the nanocasting method is versatile for the fabrication of a variety of nanoporous metal oxides that have pores on multiple scales. Another improvement is to use the hydrothermal method with cheap surfactants to synthesize nanoporous metal oxides with dual micro- and mesoporosity. The challenge is the generation of porous metal oxides with crystalline walls in the absence of a hard template. Second,the removal of mixed VOCs in humid air at low temperature is a great challenge in practical industrial applications. Hybrid processes that combine different technologies are an interesting direction for future study since each of the methods for VOC elimination has its own advantages and limitations. The coupling of multiple remediation technologies,such as adsorption-catalysis combination,photocatalysis-thermocatalysis combination,and plasma-catalysis combination can be good choices for the effective removal of VOCs.
