Natural gas has proven reserves far more than that of crude oil. It consists of 90% methane and is a promising energy resource to substitute for crude oil. Much attention has been paid to the activation and functionalization of methane to useful hydrocarbons and oxygenated products. One of the most challenging processes of high industrial importance is the conversion of natural gas or methane to methanol,which is an important intermediate source of energy in our daily lives. For example,methanol is an important fuel for heating,automobiles and as the replacement of MTBE (methyl tert-butyl ether) as an additive in petrol.

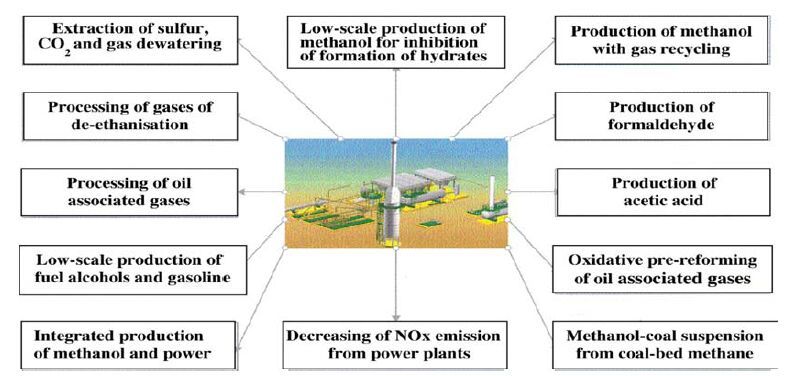

Conventionally,an indirect route for the conversion of natural gas to methanol is used. The reactions are: (1) intermediate production of synthesis gas by steam reforming,and (2) catalytic conversion of synthesis gas to methanol. However,the production of syngas is an energy-intensive process,which is operated at 65% thermodynamic efficiency between 800-1000 °C and more than 25% of the feed (natural gas) has to be burned to provide the heat of reaction. Hence,from the viewpoint of sustainable development,the direct conversion of methane to methanol is a desired alternative to the current technology [1]. There are some promising areas for the application of the direct partial oxidation of hydrocarbon gases,which is displayed in Fig. 1. [2]. In spite of the fact that there are no actual plants yet for the process of direct methane to methanol (DMTM),previous experimental and theoretical works have demonstrated the feasibility of this route [3]. Here,we assess the various methods and catalysts in different systems for the DMTM,and provide highlights on the approaches to overcome existing problems to realize industrial utilization of DMTM.
In the last century,many publications in this field have discussed the partial oxidation of methane at high temperature over transition metal oxides catalysts. The most widely studied catalysts were those based on molybdenum trioxide and iron compounds.
Atroshchenko et al. [4] first investigated various metal oxides for the partial oxidation of methane,and reported that MoO3 was one of the best catalysts at elevated temperature and pressure. The authors also found that the successive oxidation of methanol was difficult.
One of the earliest patents was claimed by Dowden and Walker [5],who developed a series of multicomponent oxides based on molybdenum. They stated that the most active catalyst was Fe2O3(MoO3)3,which yielded 869 g kg-1 h-1 of methanol.
In 1982,Liu et al. [6] studied the kinetics and mechanism of the partial oxidation of methane using N2O and MoO3/SiO2 catalysts. They obtained a combined selectivity of 84.6% towards methanol and formaldehyde. Their results indicated a rate law of the form,d[CH4]/dt = -k[N2O]1[CH4]0. These researchers also found that it was the more reactive O- species that was responsible for initiating the selective oxidation cycle,which was formed by the interaction of N2O with surface MO (V) species.
Liu et al. [7] and Sugino et al. [8] successively reported that the addition of steam to the system with a MoO3/SiO2 catalyst increased the selectivity to oxygenates by inhibiting further oxidation due to the formation of H4SiMo12O40,but most of the product was formaldehyde.
Zhen et al. [9] compared V2O5/SiO2 to MoO3/SiO2 catalysts for the partial oxidation of methane,and concluded that although the former catalyst was more active for methanol production,its product selectivity was generally poorer. The maximum conversion to methanol was only 0.2% at 460 °C.
Spencer [10] carried out methane partial oxidation using molecular oxygen over a MoO3/SiO2 catalyst. However,only trace amounts of CH3OH was produced. Similar results were obtained by others [11-13],regardless of whether dopants were added to the catalyst.
Later researchers focused on finding more effective support which can replace SiO2 to increase the selectivity to methanol. Taylor et al. [14] investigated the oxidation of methane over a MoO3 catalyst on different supports and found that Ga2O3 was the best support of MoO3 with the highest selectivity (22%) to methanol. They suggested that a cooperative effect between MoO3 andGa2O3 played a crucial role in increasing the yield of methanol when compared to the other complex metal oxides.

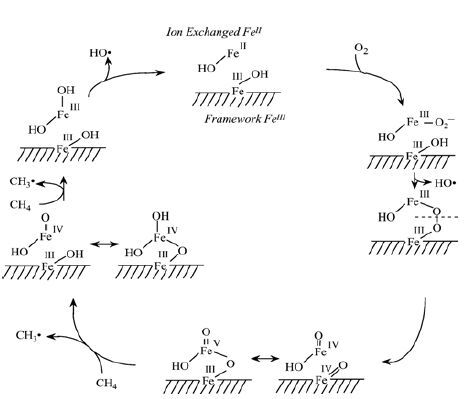

Otsuka and Wang [15] studied the reaction mechanism for the partial oxidation of methane over an iron sodalite catalyst (Fig. 2). From considering the mechanism of methane monooxygenase for alkane oxidation,Lyons and co-workers [16, 17] designed an iron sodalite-based catalyst that showed 70% selectivity to methanol with 5.7% methane conversion at 416 °C and 5.5 MPa using a 3:1 methane-air mixture. They also discussed several similar types of catalysts,and suggested that altering the redox potential of the Fe(II) species can eliminate the requirement of electrons and protons in the biological systems to increase methanol selectivity by mimicking the μ-oxo-bridged binuclear iron centers. Through a combined theoretical and experimental study,Betteridge et al. [3] observed that in a simple flow reactor,there was only a small region where the selectivity was enhanced in the presence of iron sodalite.
Otsuka and Hatano [18] studied the kinetics of the partial oxidation of methane over a Fe2(MoO4)3 catalyst. They observed that HCHO and CO were the main products and the rate determining step was the activation of methane by dissociatively adsorbed oxygen.
To prevent the consecutive oxidation of CH3OH,Wang and Otsuka [19] added a gas mixture of hydrogen and oxygen to a system with different iron-based catalysts,such as Fe-ZSM-5,FAO-5 and FePO4. The results suggested that a new kind of active center was formed in the presence of H2,and methane can be selectively oxidized to methanol on this active center at low temperature.
In order to further increase the activity of iron-based catalysts,iron phosphate supported on MCM-41 was studied for the partial oxidation of methane with both oxygen and nitrous oxide by Wang et al. [20]. The supporting of iron phosphate on MCM-41 with loadings of (20-40) wt% significantly increased both methane conversion (3.01%) and the selectivity to methanol (17.3%).
Michalkiewicz [21] researched the partial oxidation of methane with molecular oxygen at atmospheric pressure with Fe-ZSM-5 and Fe-NaZSM-5 catalysts. The results showed that although the two catalysts had different effects on methane conversion and methanol selectivity,generally,increasing the iron content in ZSM-5 led to an increase of the activity. However,the consecutive oxidation to CO2 was also inevitable.
Starokon et al. [22] and Parfenov et al. [23] found an interesting phenomenon that methanol generated by hydrolysis of (Fe-OCH3)α groups on the surface of Fe-ZSM-5 migrated from α-sites to initiate a new cycle. Furthermore,this work was the first example to succeed in finding the cut-off point between quasicatalytic and catalytic modes in the same system. The selectivity for methanol could be increased to 62% when water was added.
Over the past 100 years,the heterogeneous catalytic and homogeneous oxidation of methane to methanol was extensivelystudied and shown to have practical value [24]. For the heterogeneous catalysis,the examined catalysts include metals,single metal oxides,multiple metal oxides,zeolites and homogeneous complex catalysts. However,owing to irreversible reduction and bulk metal formation,almost all these catalysts showed poor selectivity and the maximum methanol yields were around 5% in the process [25]. In order to improve the methanol yield,using the progress of engineering technology,many researchers have shown much interest in the gas phase homogeneous oxidation of methane in the absence of catalysts. Economic studies [26, 27, 28] showed that the direct route can replace the conventional technology when a minimum conversions of 7.5%-10% and selectivity to methanol of over 70% can be obtained.
Experiments conducted on the gas phase reaction for the conversion of methane to methanol without a catalyst have shown that this reaction is a degenerate chain branching process [29-31].
The chain reaction is initiated by molecular oxygen at high temperatures:
The CH3OO• radical plays a crucial role in controlling the low temperature kinetics of methane oxidation. It is the key intermediate that determines the operation of the whole chain process for the direct oxidation of methane to methanol. The subsequent reactions for the formation of methanol are:
During the past decades,much effort were put into increasing the yield of methanol in the homogeneous gas phase partial oxidation of methane. There are some crucial factors that contribute to the wide range of results obtained,such as reactor type,reaction conditions and additives. To facilitate clarity,each of these parameters will be discussed individually.
Much earlier work was carried out using stainless steel and gave a very low selectivity for methanol,mainly owing to the undesirable side reactions of the deep catalytic oxidation of methane which occurs on the metal surface. Zhang et al. [32] stated that methanol was easier to adsorb than methane on the surface of the catalyst or reactor wall and to activate and oxidize. So,a number of studies concentrated on the reactor materials that would minimize the deep oxidation of methanol to increase the selectivity. The results indicated that the optimal choice for reactor material was Pyrex [33, 34, 35] or quartz [36, 37] linings,which would ensure the reaction was homogeneous.

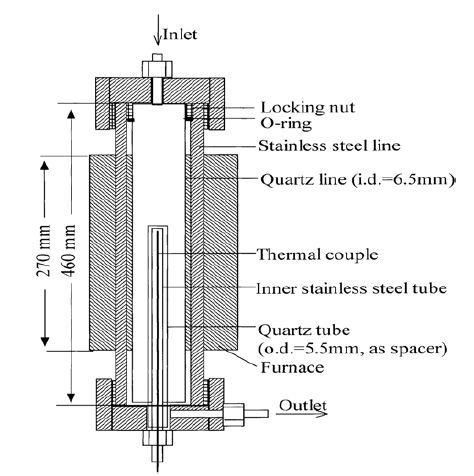

A special reactor (Fig. 3.) was designed by Zhang et al. [38] to carry out gas phase oxidation of methane to methanol,which gave a comparatively high selectivity of methanol (60%) over a quite wide temperature range at 5.0 MPa and CH4:O2:N2 = 100:10:10 (mL/min). As compared to the “two-step” route via syngas,a “single-pass” concept for producing methanol was proposed [39],which is shown in Fig. 4.

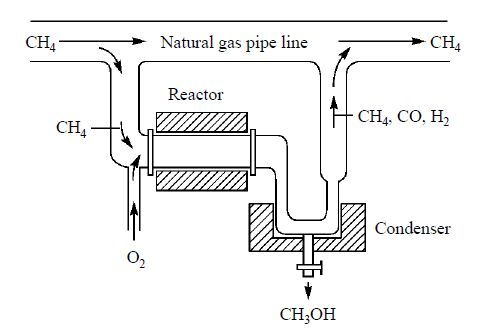

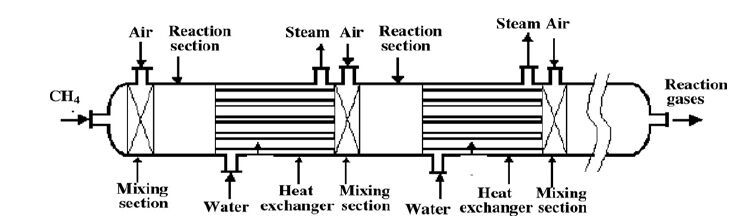

Arutyunov [1] provided a better understanding of the direct conversion of methane to methanol by designing a complex reactor to increase the conversion of methane. This process needs a higher amount of oxygen per pass to increase the conversion of methane. However,a low actual concentration of oxygen is necessary to prevent a substantial temperature rise. By only fractionally introducing oxygen and partially removing heat before adding the next portion of oxygen satisfied these demands,as shown in Fig. 5. Also,by forming a “cold-gas cylinder” to isolate the reaction mixture from the reactor walls,the temperature can be decreased,especially in the case that the conversion of the gas was not complete to produce some methanol [40]. This construction decreases the contribution from surface oxidation and ease the demands for the construction materials for the reactor.
Based on the earlier work done on the homogeneous gas phase oxidation of methane to methanol,a summary of some significant results obtained is given in Table 1 [41].
The narrow temperature interval is not a decisive factor for this process,but the initial temperature has to be above 400 °C to initiate the radical chain reaction. The equilibrium temperature should be less than 550 °C to avoid deep oxidation of the oxygenates. Once the reactor temperature is determined,the conversion of methane is dependent on the other variables in the reactor. According to Table 1,the highest selectivity of methanol is obtained at 500-550 °C.
High pressure plays an important role in providing the necessary conditions for chain branching. Increasing the reactor pressure can reduce the temperature at which the highest selectivity of methanol is obtained. In addition,increasing the pressure results in a sharp increase in methanol yield due to the kinetics. When the pressure is increased to 5 MPa,the optimal temperature drops to 370 °C. However,when the pressure is above 8 MPa,the higher yield of methanol cannot compensate for the expenses consumed by compression equipment [40]. Due to these variables being inextricably linked,the effect of pressure on the DMTM process is complex. Arutyunov [49] carried out studies in laboratory scale stainless steel and quartz flow reactors at 1.5-8.0 MPa to analyze the effect of reactor surface material and pressure on the partial oxidation of methane.
In considering the explosive limits of methane,the upper oxygen limit is 10%. Consequently,the majority of the studies in Table 1 chose a feed oxygen concentration ranging from 1%-10%. Generally,when the feed oxygen concentration is increased,a higher conversion of methane is obtained with a lower selectivity for methanol.
Another important factor is the reaction time,which has two models: “short-time” model (several seconds) and “long-time” model (minutes) based on the study of Rytz and Baiker [36]. In the “short-time” model,in which the duration of the process does not exceed the time of diffusion of the reaction intermediates to the surface,the conversion of methane gets higher as the reaction time gets longer,but the selectivity of methanol gets lower. The yield of methanol is not more than 2.5%,which is consistent with gas phase kinetic simulation results. In the “long-time” model,in which the duration of the process exceeds the time of diffusion of the intermediates to the walls,the methane conversion is constant as the reaction time increases and there is no limit to the yield of methanol. These results are not consistent with gas phase kinetic simulation results,and this model is the description of heterogeneous reactions.
Natural gas is a hydrocarbon gas mixture consisting primarily of methane,containing some ethane and higher hydrocarbons. In a study on the effect of additives on the partial oxidation of methane,Fukuoka et al. [47] found that the additives can lower the initiation temperature and donate hydrogen to the methoxy radical.
Burch et al. [50] reported that the ignition temperature can be lowered by 50 °C with 5% ethane in methane while the methanol selectivity was unaffected. Foral [51] investigated the effect of ethane in the feed. The results indicated that methane conversion decreased as the ethane content increased,but the total conversion (methane and ethane) increased. Methanol selectivity remained unchanged. A study has demonstrated the trend between the initial oxygen concentration and composition of the oxidation products of methane-ethane mixtures. There was a decrease in the [CH3OH]/[CO] ratio with the increase in the initial concentration of oxygen during the partial oxidation,which can be seen from Table 2 [52].
Fokin et al. [53] conducted studies on the partial gas phase oxidation of hydrocarbons (C1-C4) mixtures at a specific composition to investigate the effect of different parameters on the [CH3OH]/[CO] ratio and product distribution. The results showed that a lower initiation temperature can contribute to a high yield of methanol and the [CH3OH]/[CO] ratio was strongly affected by the initial concentration of oxygen. Therefore,in order to obtain a high yield of methanol,it is necessary to control the additives in the reaction mixture,especially the additives-to-oxygen ratio.
In recent years,many researchers found that the addition of NOx can remarkably increase methane conversion and selectivity to methanol. Teng et al. [54] observed that when 0.25% NO was injected into the CH4-O2 system,the methane conversion increased from only 1% at 693 °C to 10% at 535 °C. The effects of NO2 on the oxidation of methane were also investigated [54]. It was shown that the addition of NO2 decreased the reaction initiation temperature by 300 °C and it improved the CH4 conversion as well as the target product yield.
In gas-solid phase heterogeneous catalytic oxidation,owing to the strong chemical stability of methane,the process of DMTM often needs to be activated at high reaction temperature. However,in the liquid phase,this reaction can occur at moderate reaction conditions,and the medium can eliminate diffusion resistance of the reactants to increase the activity of the catalyst.
Homogeneous catalysis mediated by a transition metal complex is one of the most efficient ways to improve the yield of methanol. Depending on the nature of the metal M and the ligand set Ln in the active LnM species,different situations are encountered. The C-H activation processes are classified according to four main different mechanisms: oxidative addition,σ-bond metathesis,electrophilic substitution and 1,2-addition. Electrophilic substitution is the most popular in the homogeneous catalysis of DMTM. The mechanism is illustrated in Fig. 6.
In the liquid phase oxidaiton of methane,metal ions as a very strong electrophilic reagent makes an electrophilic attack on methane,generating the corresponding intermediates of the metal complex. Then,these intermediates are transformed to stable compounds by nucleophilic reagents. The recycle of the catalyst can be achieved through the oxidation of the reduced metal ions to a high chemical valence. Nucleophilic reagents play an important role in the process. So,according to the different nucleophilic reagents,the homogeneous catalysis of DMTM can be roughly classified into a strong acid system,water system and ionic liquid system.
At present,many researchers focus their attention on the homogeneous catalysis in a strong acid system which is influenced by two main factors: (1) the coordination ability of the conjugate base of a strong acid is so weak that it can improve the electrophilicity of the metal ions to promote the activity of the catalyst,and (2) esterification products of methanol generated by the strong acid can avoid the excessive oxidation of methanol to improve the selectivity.
In 1993,by using H2SO4 as the oxidant,Periana et al. [56] succeeded in converting CH4 to CH3OSO3H in a concentrated sulfuric acid medium with a HgSO4 catalyst. The selectivity to CH3OSO3H reached 85% at a CH4 conversion of 50% at 180 °C. The details of the reaction kinetics and design of the reactor for the DMTM process have been reported by Gang et al. [57].

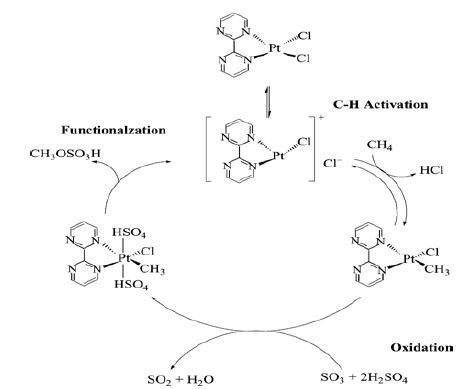

To overcome the loss of active components due to the reduction of noble metal ions,a new catalyst-bipyrimidyl PtII complex was designed to replace HgSO4 for the conversion of CH4 in oleum by Periana et al. [58]. The reaction mechanism for this catalytic process is shown in Fig. 7. The turnover numbers (TONs) reached 300 at 81% selectivity with methyl bisulfate as a highly promising system with the highest activity so far. Compared with non-liganded Pt salts,the key role of the Pt-bipyrimidine ligand is to maintain the solubility of the Pt(II) species. The presence of the ligand in the transition state for C-H activation can enable the selectivity of the C-H activation reaction to be controlled. To obtain insight regarding structure-activity relationships of this kind of solid catalyst,further investigations were made by Palkovits et al. [59],demonstrating that the ligand can increase the electron density on the Pt and the stability of the catalyst which are both important for the process of DMTM.
Subsequently,many studies were focused on iodine and iodine-containing compounds for the process of DMTM in oleum. Periana et al. [60] reported that 1-10 mmol elemental iodine dissolved in sulfuric acid containing 2%-3% SO3 (oleum) can generate a stable active species that at 165-220 °C catalyzed the functionalization of methane (3.45 MPa) to methyl bisulfate. This gave 45% yield at > 90% selectivity. Gang et al. [61] got similar results when a series of iodine-containing compounds were applied in oleum,and both authors concluded that it was I2+ as the electrophilic reagent that catalyzed methane to methyl bisulfate. In optimizing the process,Cao [62] found that 70.5% yield of methanol at 82.7% conversion of methane can be obtained at 200 °C in oleum containing 50 wt% SO3. He suggested that the reaction mechanism in this system was electrophilic substitution and not radical degenerate chain branching.
In 2004,a uniquely efficient electrophilic catalyst for methane conversion was developed. This was gold cations in a strong acid solvent using SeVI ions as the stoichiometric oxidant. This was different from several such systems based on the cations HgII,PdII and PtII with more than 90% selectivity to methanol [63].
In addition to the above noble metal catalysts,some transition metal oxides [64],transition metal sulfates [65] and heteropolyacids [66] have been proved to have roles in the DMTM process.
In 1989,Sen and coworkers [67] found that methane can be converted into methyl trifluoroacetate in trifluoroacetic acid (aq) with using Pd(OAc)2 as catalyst,O2 or H2O2 as oxidant,and the TON was 0.6 h-1.
In 1990,Vargaftik et al. [68] discovered that methane can be oxidized stoichiometrically by cobalt(III) trifluoroacetate in CF3COOH solution at 150-180 °C and 1-4 MPa to give methyl trifluoroacetate in (90±10)% yield. In the presence of O2 (0.1-0.5 MPa),methyl trifluoroacetate was the sole product of the oxidation of methane.
In 1995,Yamanaka et al. [69] designed a new catalyst system,EuCl3-Zn-CF3CO2H. They found that MeOH was only produced in the liquid phase with no production of HCHO. The TON based on EuCl3 for the formation of MeOH was 4.0 h-1. A year later,Lin et al. [70] increased the TON to 7.5 h-1 using RhCl3.
Based on the work of Gretz et al. [71],An et al. [72] built an electron transfer chain which used dioxygen for methane oxidation to methanol at low temperature. With the combination of three redox couples Pd2+/Pd0,Q/H2Q,and NO2/NO in CF3COOH,the authors developed a catalyst for a one-pot aerobic oxidation of methane at 80 °C. The TON was 0.7 per hour. Afterwards,a new electron transfer chain was designed,namely,Pd/C-benzoquinone-CO-O2,which increased the catalytic efficiency and avoided the loss of active components.
In 2013,a direct selective aerobic oxidation reaction of methane to methanol with a Pd(OAc)2/BQ/H5PMo10V2O40 catalyst using oxygen in CF3COOH/C8F18 was studied by Yuan et al. [73]. The results suggested that methyl trifluoroacetate was the only liquid product. As an oxygen carrier,perfluorooctane can improve the yield of methyl trifluoroacetate significantly.
From the above discussion,it is obvious that a much higher conversion of methane and selectivity to methanol can be obtained in a strong aid media system. However,the use of a strong acid or heavy metal as the catalyst gives problems of severe corrosion and serious pollution. Consequently,exploring green processes for methane conversion has attracted considerable interest.
In 1969,methane was successfully converted to methanol in an aqueous medium using H2PtCl4 as catalyst [74]. In 2004,on the basis of the work of the Periana’s group [58],Neumann et al. [75] designed a new catalyst,bipyrimidinylplatium- polyoxometalate (H5PV2Mo10O40) hybrid complex,which was effectively used in the mild aerobic (50-60 °C,0.1-0.2 MPa of O2) aqueous oxidation of methane to methanol. The TON was as high as 33.
In 2010,Sorokin and co-workers [76] discovered the first bio-inspired catalytic system for the mild oxidation of methane to methanol in water at 25-60 °C using an N-bridged diiron phthalocyanine complex as the catalyst. This showed an unexpected activity and provided a novel promising approach in the field of methane oxidation.
In 2012,the partial oxidation of methane to methanol was studied by Hammond et al. [77] using copper-promoted Fe-ZSM-5 catalyst in an aqueous medium. The results demonstrated that the interaction between Fe-ZSM-5 and hydrogen peroxide resulted in a low energy pathway for methane oxidation,which was distinguished from Fenton’s chemistry,an oxygen and an MMO-type rebound mechanism.
Water as a medium is economically and environmentally friendly. It has been applied successfully in the process of DMTMon the laboratory scale. In this system,H2O2 as the oxidant is easily decomposed by metal ions which are necessary for the catalytic oxidation of methane. As regards the disadvantage of a low conversion of methane,this process would be more attractive if H2O2 is replaced by another stable oxidant and a catalyst with high activity is developed.
Shilov and Shul’pin [78] studied the direct oxidation of methane to methanol in acetonitrile solution under mild conditions in the presence of nBu4NVO3 as catalyst. The effect of promotors on the reaction,such as pyrazine-2-carboxylic acid (PCA),manganese(IV) complex and vanadium-containing polyphosphomolybdate was investigated. It was found that the total TON was 376 in the presence of PCA,which was the best promotor among other substituted pyrazinecarboxylic acids [79].
Li et al. [80] have an interesting work on this reaction with iodine as catalyst in a mixed solvent consisting of acetic acid and H3P6W8Mo12O70. They obtained a methane conversion of 32.79% and the target product selectivity of 96.64% at 210 °C and reaction pressure 4.0 MPa.
Li and coworkers [55] designed a green chemical process employing nano-particle gold as catalyst and [Bmim]Cl ionic liquid (IL) as solvent for methane oxidation. The results showed that the ionic liquid acted as a dissolution medium for the nano-Au/SiO2 catalyst,and promoted the activity of gold. They obtained a methane conversion of 24.9% and methanol selectivity of 71.5%. Furthermore,the gold particles and IL can be recycled. The recovery was 96.9%.
For the liquid phase oxidation of methane,many researchers have concentrated on developing green chemical processes. Finding a suitable solvent system is a task of top priority. Although acetonitrile solution,acetic acid,heteropolyacid and ionic liquid were all applied in the oxidation of methane successfully,with high selectivity of methanol,these systems are still at the stage of experiments,and still far from practical production.
The controlled partial oxidation of methane to methanol has been studied for many decades. However,there is still a long way to go to get a reasonable methanol yield with high selectivity. The high stability of the C-H bond (435 kJ/mol) in methane and the easy over-oxidation to form CO2 make it hard to get a high yield of methanol. Many efforts have been made to solve the problems and some promising results and significant advances were obtained. However,there are still critical matters that prohibit its large scale use.
In heterogeneous oxidation,the most widely studied catalysts are those based on molybdenum and iron. Considerable progress has been made in the design of catalysts,optimization of reaction conditions and analysis of the reaction mechanism,but the process still suffers from low selectivity and yield.
In gas phase homogeneous oxidation,several process controlling parameters were discussed,including reactor design,reaction pressure,reaction temperature and additives. The studies indicated that a low temperature is conducive to methanol production,so long as ignition can occur. So decreasing the ignition temperature should have further research emphasis. It was reported that increasing the reactor pressure can reduce the temperature at which the highest selectivity of methanol is obtained. Besides,a higher product selectivity can only be obtained under a lower conversion per pass. So,a new reactor design is recommended to improve the conversion of methane,such as using membrane reactors to have the advantage of separating methanol from the mixed gases in the reactor. In addition,the effects of additives on the oxidation process were discussed.
Compared to the above two systems,aqueous homogenous oxidation affords the most efficient route to higher yields of methanol. However,the strongly corrosive medium used in this system seriously pollutes the environment and therefore hinders its widespread use. Nevertheless,a green approach promoted by a highly efficient catalyst system will enhance its commercialization.
