Enantioselective Michael addition is an asymmetric C-C bond-forming strategy for single-step generation of multiple stereogenic centers [1]. Excellent conversions and enantiomeric excesses (ee) have been achieved in asymmetric syntheses using metal catalysts such as Cu,Ca,Ni,Co,and Rh [2]. However,the use of metal catalysts in the pharmaceutical industry is restricted to avoid the presence of trace heavy metals in products. Metal-free catalysts for enantioselective Michael additions are therefore important. The use of small organic molecules as catalysts in asymmetric Michael additions [3] is growing because of their low price,and high stability,efficiency,and selectivity; examples are primary amines [4],pyrrolidine derivatives [5],(thio)ureas [6],chiral squaramides [7],binaphthols [8],quinines [9],chiral phosphines [10],ionic liquids [11],and peptides [12]. However,green reactions that use non-toxic and harmless solvents need to be developed. Water is a safe,economical,and environmentally benign solvent,therefore there has been increasing interest in asymmetric organic reactions in neat aqueous media [13]. Cyclodextrins (CDs) and their derivatives in aqueous systems have been extensively studied as enzyme mimics [14],which can significantly increase the reaction rates and enantioselectivities of various organic transformations.
β-CD is a cyclic polysaccharide consisting of seven d-glucopyranoside units. It has a hydrophilic outer surface and a hydrophobic inner cavity,which can induce chiral recognition through complex formation with substrates,similar to the action of enzymes,via non-covalent bonds in water [15]. β-CD modification with catalytic or reactive groups such as catalytic sites or enzyme binding sites could improve its binding ability and enantioselectivity compared with the hydroxyl-containing parent CD [16]. The construction of an asymmetric catalytic center to enable asymmetric reactions to be performed using CDs is the main target in CD catalysis. In recent years,many asymmetric reactions such as reduction [17],oxidation [18],epoxidation [19],aldol reactions [20],Henry reactions [21],and transamination [22] catalyzed by modified CDs have given acceptable yields and poor to high enantioselectivities. The enantioselectivity is greatly influenced by the structure of the modifying group,solvent,and temperature. Michael additions of nitromethane and thiols to chalcones in water,catalyzed by per-6-amino-β-cyclodextrin,are highly efficient [23] and achieved 68.5% ee; only 30% ee was achieved with the unmodified β-CD using 2-cyclohexenone and octyl maleate with benzenethiol [24].
In our previous studies,use of an (S)-2- aminomethylpyrrolidine-modified β-CD (CD-1) as a chiral base catalyst significantly enhanced the stereoselectivity in asymmetric aldol reactions,achieving 94% ee [25]. It would be useful to know whether this asymmetric catalytic effect could also be obtained in Michael additions with CD-1 in water. To the best of our knowledge,there are few reports focusing on the asymmetric Michael addition of cyclohexanones to nitroolefins catalyzed by modified CDs in water. Catalysts CD-1 and CD-2 were tested in Michael additions,and CD-3 to CD-9 (Scheme 1) were prepared under identical conditions and used for comparison.
β-CD (99%) was purchased from the Shanghai Boao Biological Technology Co.,Ltd,China. (S)-Prolinamide,(R)- prolinamide,piperazidine,4-aminopiperidine,1,2- diaminopropane (racemic),N,N'-dimethyl-1,2-ethanediamine,N,N'- dimethyl-1,3-propanediamine,and 4-nitro-β-nitrostyrene (purity 98% in all cases) were purchased from the Sahn Chemical Technology Co.,Ltd,China. p-Toluenesulfonyl chloride,LiAlH4,and 1,3-diaminopropane were purchased from Aladdin. Ethylenediamine and other common reagents were analytical grade. n-Hexane and isopropyl alcohol were chromatographically pure grade. All reagents were used as received without further purification,unless otherwise noted.
Nuclear magnetic resonance (NMR) spectra were recorded,using a Bruker Avance III 400 spectrometer,in CDCl3,DMSO-d6,or D2O. Tetramethylsilane was used as the internal standard (0.00 ppm) in CDCl3 and DMSO-d6,and H2O was used as the internal standard (4.79 ppm) in D2O. The ee was determined by high-performance liquid chromatography (HPLC) using a Shimadzu LC-20AT chromatography system equipped withan ultraviolet (UV)-visible detector and a Chiralcel AS-H or OD-H column,with n-hexane and isopropyl alcohol as the eluents. The absolute configuration was determined using HPLC by comparison of the elution sequences of the enantiomers with those of authentic samples and those reported in Ref. [4]. Quantum chemical calculations were performed at the PM3 and B3LYP/6-31G(d) levels using the GAUSSIAN 09 program.
CD-1 to CD-9 were synthesized according to the procedure reported in Ref. [18]; a representative synthesis is shown in Scheme 2. Nucleophilic substitution of mono(6-O-p- tolylsulfonyl)-β-CD (6.4459 g,5 mmol) with the corresponding amine (25 mmol) was performed by reaction in anhydrous dimethylformamide (DMF) at 80 °C in a nitrogen atmosphere for 24.0 h,followed by cooling to room temperature. (S)-Prolinamide and (R)-prolinamide were reduced with LiAlH4 to (S)-2-aminomethylpyrrolidine and (R)-2- aminomethylpyrrolidine.
CD-1: yield 32.5%; [α]25 D +138.27 (c 0.2006,H2O); mp ＞ 240 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.14-4.99 (m,7H),3.97-3.68 (m,24H),3.61-3.30 (m,15H),3.11-3.00 (m,3H),2.78-2.37 (m,5H),1.92-1.43 (m,5H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 164.9,161.2,102.0-101.3 (m),84.1,84.0,81.6-80.9 (m),72.8-71.8 (m),66.0,63.3,59.6,56.3-55.0 (m),44.4,27.4,27.1,23.3,23.0; MS (ESI): m/z 1246 [M + CH3CH2]+,1218 [M + H]+.
CD-2: yield 24.2%; [α]25 D +143.01 (c 0.2017,DMF); mp ＞ 250 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.03-4.93 (m,7H),3.90-3.68 (m,23H),3.56-3.29 (m,15H),3.05-2.53 (m,7H),2.26-2.13 (m,1H),1.95-1.36 (m,6H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 165.6,161.3,101.8-101.5 (m),84.1,84.0,81.5-80.8 (m),72.8-71.7 (m),69.2,62.1,59.7-59.1 (m),53.9,53.7,42.7,27.0,22.5; MS (ESI): m/z 1246 [M + CH3CH2]+,1218 [M + H]+.
CD-3: yield 54.3%; [α]25 D +141.22 (c 0.2010,H2O); mp ＞ 250 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.02-4.95 (m,7H),3.96-3.72 (m,26H),3.57-3.28 (m,14H),3.09-2.52 (m,6H),2.30-1.72 (m,4H),1.45-1.23 (m,2H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 109.2,101.9-101.2 (m),83.6,81.4-81.0 (m),72.8-71.7 (m),70.1,59.6,57.5,53.3,52.3,47.8,34.7,34.5; MS (ESI): m/z 1220 [M + H2]+,1218 [M + H]+.
CD-4: yield 64.9%; [α]25 D +146.54 (c 0.2023,H2O); mp ＞ 250 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.01-4.93 (m,7H),3.97-3.74 (m,26H),3.58-3.28 (m,16H),2.81-2.72 (m,4H),2.56-2.48 (m,4H); 13C NMR (400 MHz,DMSO-d6):δ (ppm) 102.1-101.5 (m),83.8,81.7-81.3 (m),73.1-72.0 (m),70.3,70.0,59.9,58.4,57.6,54.7,54.3,53.1,45.3,44.9; MS (ESI): m/z 1205 [M + H2]+,1203 [M + H]+.
CD-5: yield 30.1%; [α]25 D +148.67 (c 0.2074,H2O); mp ＞ 240 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.06-4.98 (m,7H),3.97-3.77 (m,26H),3.61-3.51 (m,14H),3.43 (t,1H),2.92 (t,1H),2.68-2.47 (m,4H),2.30(s,3H),2.23 (s,3H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 102.1-101.6 (m),84.2,81.6-81.1 (m),73.2-71.9 (m),70.2,59.8,58.3,56.9,48.8,42.7,35.7,29.2; MS (ESI): m/z 1207 [M + H2]+,1206 [M + H]+.
CD-6: yield 46.6%; [α]25 D +149.87 (c 0.2105,H2O); mp ＞ 240 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.13-5.03 (m,7H),4.01-3.79 (m,26H),3.70-3.53 (m,14H),3.60-3.38 (m,1H),3.15-2.95 (m,2H),2.89-2.42 (m,4H),1.07 (d,3H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 101.7-101.4 (m),83.1,81.1,72.6-71.6 (m),70.4-69.7 (m),59.5,57.1,57.0,54.2,54.0,49.2-49.1 (m),46.8,46.4,45.8,45.6,20.85,17.8,17.6; MS (ESI): m/z 1193 [M + H2]+,1192 [M + H]+.
CD-7: yield 30.1%; [α]25 D +146.52 (c 0.2081,H2O); mp ＞ 240 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.07-4.97 (m,7H),3.98-3.76 (m,26H),3.62-3.50 (m,14H),3.43 (t,1H),2.92 (d,1H),2.64-2.38 (m,4H),2.40 (s,3H),2.22 (s,3H),1.65-1.58 (m,2H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 102.2-101.5 (m),84.1,81.5-81.1 (m),79.1,73.2-71.8 (m),70.2,59.9-59.6(m),58.0,56.2,49.6,42.9,35.8,26.6; MS (ESI): m/z 1221 [M + H2]+,1220 [M + H]+.
CD-8: yield 50.6%; [α]25 D +156.72 (c 0.2064,H2O); mp ＞ 240 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.01-4.92 (m,7H),3.88-3.74 (m,26H),3.56-3.45 (m,14H),3.32 (t,1H),2.94 (d,1H),2.70-2.49 (m,5H),1.58-1.51 (m,2H); 13C NMR (400 MHz,DMSO-d6): δ (ppm) 101.8,101.4,83.6,81.1,80.8,73.0-72.9 (m),72.0-71.7 (m),70.3,60.2-60.1 (m),49.4,46.4,38.5,37.9,32.5,30.8; MS (ESI): m/z 1193 [M + H2]+,1192[M + H]+.
CD-9: yield 52.4%; [α]25 D +148.15 (c 0.2036,H2O); mp ＞ 240 °C (decomp.); 1H NMR (400 MHz,D2O):δ (ppm) 5.02-5.00 (m,7H),3.93-3.79 (m,26H),3.60-3.49 (m,14H),3.38 (t,1H),3.01-2.98 (m,1H),2.77-2.58 (m,7H); 13C NMR (400 MHz,D2O):δ (ppm) 101.8,100.5,83.6,81.1,80.9,73.1-73.0 (m),72.0-72.0 (m),71.8,70.4,60.2,50.7,49.3,42.2,39.7; MS (ESI): m/z 1178 [M + H2]+,1177 [M + H]+.
Aqueous CH3COONa-HCl buffer solution (1 mL,0.5 mol/L) and cyclohexanone (0.2 mL,2 mmol) were added to a stirred solution of CD-1 (0.0487 g,0.04 mmol) and 4-nitro-β- nitrostyrene (0.0388 g,0.20 mmol). The solution was stirred at 25 °C for 96.0 h and then extracted with ethyl acetate (3 × 2 mL). The combined organic phases were dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure to give the crude product,which was purified by column chromatography over silica gel. The yield and ee were determined using HPLC.
A mixture of CD-1 (0.6085 g,0.5 mmol) and 4-nitro-β- nitrostyrene (0.0970 g,0.5 mmol) in deionized water (10 mL) was stirred at 50 °C for 2 h,i.e.,until the solution was clear. The solution was cooled at 5 °C for 24 h and filtered to give a light yellow precipitate. The precipitate was washed with hexane to remove free 4-nitro-β-nitrostyrene. The inclusion complex was dried under vacuum at 50 °C for 24 h.
Quantum chemical calculations were performed using the GAUSSIAN 09 program to investigate the energies and structures of CD-1 and 4-nitro-β-nitrostyrene. The initial β-CD structure was constructed using information available in Ref. [26]. The modifying amino groups and the guest molecule 4-nitro-β-nitrostyrene were constructed using ChemBioOffice 3D Ultra (Version 12.0,Cambridge Software) and were fully optimized using the PM3 and B3LYP/6-31G(d) methods,without any symmetric restrictions. The optimized amino groups were attached to C-6 of β-CD and the modified β-CDs were optimized using PM3. In the coordinate system,the glycosidic oxygen atoms of β-CD were placed in the XY plane and their center was defined as the origin. The C-2 and C-3 hydroxyls were placed on the negative Z axis. The guest molecule,i.e.,4-nitro-β-nitrostyrene,was located with three virtual atoms in the coordinates,two in the XY plane,and one on the Z axis. The carbon atom linked to the nitro group in the benzene ring of 4-nitro-β-nitrostyrene was the labeled atom. The inclusion complexes were optimized based on the PM3 calculation to obtain the optimized energies,and the output files were used as the input files for optimization at the ONIOM level (B3LYP/6-31G(d):PM3). The binding energy (BE) was calculated as BE = E[C]ONIOM - E[H]PM3 - E[G]B3LYP/6-31G(d),where E[C]ONIOM is the optimized energy of the inclusion complex obtained using the ONIOM (B3LYP/6-31G(d):PM3) method,E[H]PM3 is the optimized energy of the modified CD obtained using PM3,and E[G]B3LYP/6-31G(d) is the optimized energy of the guest molecule,i.e.,4-nitro-β-nitrostyrene,obtained using B3LYP/6-31G(d).
The diamine-catalyzed Michael addition is pKa dependent; therefore,the effect of pH on the enantioselectivity of the asymmetric Michael addition catalyzed by CD-1 was studied in detail. The effect of pH on the catalytic activity and enantioselectivity in the asymmetric Michael addition catalyzed by CD-1,assuming an intermolecular enamine transition state,is shown in Table 1. When the pH of the CH3COONa-HCl buffer solution was kept at 6.0 or lower,both the amino group in the pyrrolidine and the secondary amine linked to C-6 were protonated,therefore the active catalytic center became inactive (Table 1,entries 1-5),and no catalytic activity was observed. When the pH was increased from 6.5 to 7.5,the ee increased from 42% (Table 1,entry 6) to 61% (Table 1,entry 8),and the yield increased from 13% to 46%,because protonation of the secondary amine became weaker,and both amino groups were able to catalyze the Michael addition with moderate enantioselectivity and yield.
When CD-1 dosage was decreased to half,the yield was halved (Table 1,entry 10),but the ee remained almost the same. This shows that in water the effect of the pH on the enantioselectivity was greater than that of the catalyst dosage. There is an optimum pKa for the amines to be effective,which in the present case was 7.5.

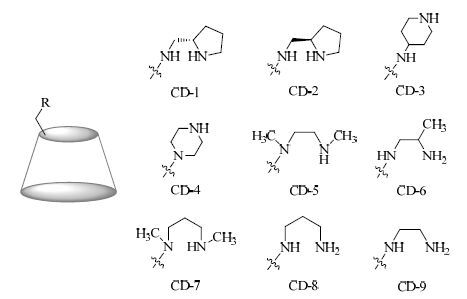

On the basis of the initial experiments,the reactions using β-CDs modified with various diamines were investigated at pH 7.5; the results are shown in Table 2. The CD-9-catalyzed Michael addition gave a good yield 96% (Table 2,entry 9) but poor ee. The enantioselectivity did not improve when the ethylenediamine group in CD-9 was substituted with one methyl group (CD-6) or two methyl groups (CD-5),and the reaction yields decreased to 44% (Table 2,entry 6) and 6% (Table 2,entry 5),respectively. The same substituent effect was observed with the 1,3-propanediamine-based catalysts CD-8 and CD-7; the reaction yield decreased from 49% (Table 2,entry 8) to 33% (Table 2,entry 7). Catalysts containing a tertiary amino group,i.e.,CD-4 and CD-5,and a bifunctional secondary amine,i.e.,CD-3,were inert and gave low yields. These 6- monosubsituted β-CD derivatives would mainly exist in self-included conformations in pure water solutions,as shown by previous studies,therefore the reaction rates decreased [20]. The difference between CD-1 and CD-2 was the absolute configuration of the appended modifying group; CD-1 showed better catalytic efficiency and enantioselectivity (61% ee vs 41% ee) than did CD-2. Quantum chemical calculations showed that their optimum conformations were different [25],because the secondary amine in the pyrrolidine ring cannot be included in the hydrophobic cavity of CD-2,giving racemic products. The structure and absolute configuration of the modifying group in the β-CD therefore plays a decisive role in the catalytic activity and in inducing enantioselectivity in the asymmetric Michael addition.
The enantioselectivity of conjugate addition in amine organocatalysis is induced and controlled through three routes,i.e.,(1) formation of an enamine or imine; (2) non-covalent interactions such as hydrogen bonding; and (3) steric hindrance. Catalysis using the modified β-CDs CD-1 to CD-9 could therefore be improved by considering these factors.
The CD-1-catalyzed asymmetric Michael additions of cyclohexanone to a variety of conjugated nitroolefins were investigated. Additions of cyclohexanone to substituted nitroolefins containing both electron-withdrawing and electron-donating groups were studied; the results are shown in Table 3. In most cases,the corresponding Michael adducts were obtained with moderate diastereoselectivity and enantioselectivity,suggesting that electronic factors slightly influenced the enantioselectivity. The highest ee,i.e.,71%,was obtained with 2-nitro-β- nitrostyrene (Table 3,entry 1); the value for 4-nitro-β- nitrostyrene was 61% (Table 3,entry 2). The observed enantioselectivity can be rationalized based on quantum chemical calculations. The side views of the optimized geometries of the inclusion complexes between the two substrates and CD-1 were visualized,as shown in Fig. 1. The active site of the double bond in 4-nitro-β-nitrostyrene was deep inside the cavity of CD-1 (Fig. 1(b)),but the active site of 2-nitro-β- nitrostyrene remained outside the narrow rim of CD-1 (Fig. 1(a)); this is attributed to the ortho substituent making the binary complex more crowded. Steric hindrance might therefore improve enantioselection and give higher ee values. The same ortho substituent effect was observed in the cases of Table 3,entry 3 (50% ee) and entry 4 (68% ee).
The yield and optical yield decreased from 46% and 61% (Table 3,entry 2) to 12% and 46% (Table 3,entry 10),respectively,when 2-adamantanone (0.2 equiv. relative to 4-nitro-β- nitrostyrene) was added to the reaction system. 2- Adamantanone immediately forms a 1:1 inclusion complex with β-CD and can be used as a competitive inhibitor in the formation of inclusion complex,resulting in inhibition of the catalytic process,i.e.,the hydrophobic cavity is necessary in the present asymmetric Michael addition.

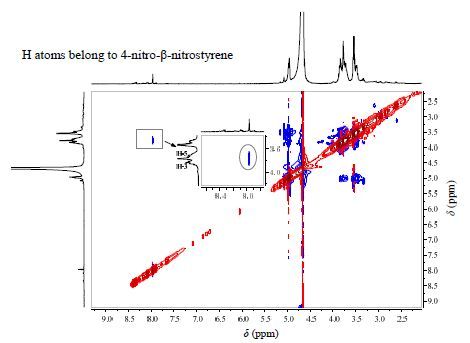

β-CD can form inclusion complexes with guest molecules,and the formation of inclusion complexes is important in the induction of enantioselectivity. In this study,inclusion complexes between modified β-CDs and 4-nitro-β-nitrostyrene were prepared by stirring mixtures of CD-1 to CD-9 and 4-nitro-β-nitrostyrene in water; the complexes were characterized using 1H rotating-frame overhauser effect spectroscopy (ROESY),UV spectroscopy,and quantum chemical calculations. The 1H ROESY results for the inclusion complex between CD-1 and 4-nitro-β-nitrostyrene is shown as an example in Fig. 2. The clear correlation peaks between the H atoms located in the phenyl ring of 4-nitro-β-nitrostyrene and H-3 and H-5 in the cavity of the parent β-CD indicate formation of an inclusion complex between CD-1 and 4-nitro-β-nitrostyrene. No correlation peaks between the H atoms located in the phenyl ring of 4-nitro-β-nitrostyrene and H-2 and H-4 outside the parent β-CD are observed. These results show that in the inclusion complex of CD-1 and 4-nitro-β-nitrostyrene,the phenyl ring is almost entirely situated in the cavity of the parent β-CD.

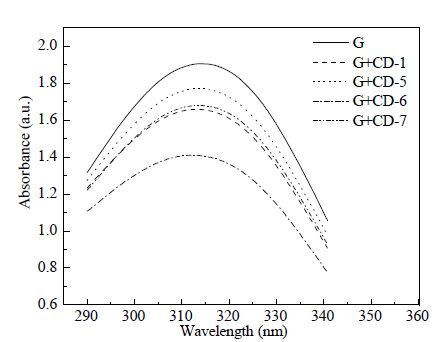

Fig. 3 shows that the UV absorbance changed when 4-nitro-β-nitrostyrene was treated with solutions of the CD catalysts; for example,the absorbance decreased when CD-1 was added to a dilute solution of 4-nitro-β-nitrostyrene in water and DMF,suggesting formation of a complex between CD-1 and 4-nitro-β-nitrostyrene.

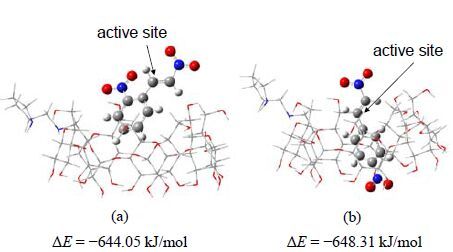

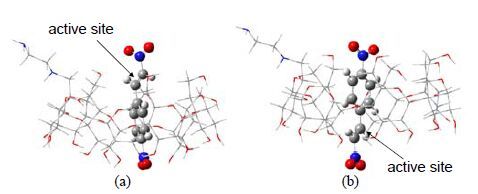

The inclusion complex was investigated in greater detail by determining the BEs of the inclusion complexes between the modifiedβ-CDs and 4-nitro-β-nitrostyrene using quantum chemical calculations at the ONIOM (B3LYP/6-31G(d):PM3) level to verify the intramolecular interactions (Table 4). The negative BE indicates that formation of an inclusion complex is thermodynamically favorable and spontaneous; two models of the inclusion complex are shown in Fig. 4. In model (a),the catalytic center is next to the active site and intramolecular catalysis would occur,giving a chiral product. In model (b),the catalytic center is beyond the active site and intermolecular catalysis would occur,giving an achiral product. However,the difference between the BEs for models (a) and (b) is just below 15 kJ/mol,a low energy barrier,for each modified β-CD. The difference between the BEs of models (a) and (b) can therefore be ignored,and both are involved in the asymmetric Michael addition. When intramolecular catalysis is dominant,a better ee is achieved. The probabilities of Michael addition of β-nitrostyrene to cyclohexanone are nearly the same for models (a) and (b),and a moderate enantioselectivity (50% ee, Table 3,entry 6) was achieved. Increased steric hindrance of the nitroolefin increased the enantioselectivity to some extent.

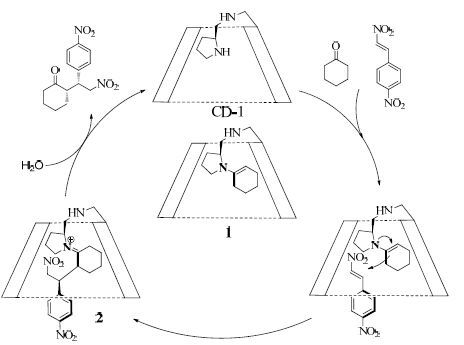

These results suggest that the mechanism of Michael addition is similar to that suggested by Xu and co-workers [30]. When primary or secondary chiral amines are used as organocatalysts,the reaction proceeds via an enamine pathway. A plausible mechanism is as follows (Scheme 3). The initial step is formation of a chiral enamine 1 between CD-1 and cyclohexanone. Michael addition,the C-C bond-forming step,between 1 and 4-nitro-β-nitrostyrene occurs,leading to formation of the corresponding product via transition state 2. The product is released and escapes from the cavity and CD-1 is regenerated for use in subsequent catalytic cycles.
Nine β-CD derivatives containing amino-groups were used in asymmetric Michael additions in water. The (S)-2- aminomethylpyrrolidine-modified β-CD (CD-1) gave the best performance,with 71% ee being obtained. The structure of the modifying group,pH,and steric hindrance between the substrate and the modified β-CD played important roles in inducing enantioselectivity in the asymmetric Michael addition. Quantum chemical calculations were effective in investigating the enantioselectivities of Michael additions using various β-CD derivatives. Studies of the use of CD-1 in other asymmetric reactions are in progress.
