Poly(vinyl chloride) (PVC) is one of the most widely used engineering plastics. It has a broad range of applications because of its advanced properties. PVC is manufactured from vinyl chloride monomer (VCM). About 41% of PVC is produced in China. In China,VCM is mainly produced by acetylene hydrochlorination using HgCl2/activated carbon (AC) catalysts [1, 2]. Mercury-based catalysts are toxic and cause environmental problems. Therefore it is imperative to develop non-mercury catalysts for acetylene hydrochlorination as alternatives to HgCl2/AC catalysts. Based on the previously reported correlations between the activities of various metal chloride catalysts and standard electrode potentials [3, 4],several non-mercury catalysts for acetylene hydrochlorination have been investigated. Hutchings et al. [5, 6] reported that gold-based catalysts were the best metal chloride catalysts for acetylene hydrochlorination,but such catalysts are easily deactivated via reduction of the active Au3+ species to metallic gold during the reaction [5, 6]. Much effort has been made to elucidate the reaction and reduction mechanism of gold-based catalysts [7-10]. However,the commercialization of gold-based non-mercury catalysts is difficult because of the high price of gold. Catalysts based on other noble and non-precious metal catalysts such as Ru [11-13],Ag [2],Pt [14],Pd [15, 16],Rh and Ir [7],and Cu [15, 17] for acetylene hydrochlorination have also been investigated. Metal-based catalysts need to be further improved to prevent rapid deactivation and low acetylene conversions,and the development of catalysts that do not contain mercury or noble metals is important.
Recently,metal-free heterogeneous catalysts have attracted much attention and have proved to be versatile functional materials for heterogeneous catalysis of various reactions,including oxygen reduction reactions [18-20],biomass conversion [21],and acetylene hydrochlorination [22-25]. Nitrogen-doped carbon materials,in particular,have been widely studied because of their surface chemistry and the electron-donating properties of nitrogen species. Nitrogen-doped carbon materials prepared using chemical vapor deposition,heat-treatment with nitrogen sources,or direct carbonization of nitrogen containing precursors has been proposed as catalysts for acetylene hydrochlorination. Li et al. [22] prepared an AC-based g-C3N4 catalyst (g-C3N4/AC) using cyanamide as a nitrogen-containing precursor. The g-C3N4/AC catalyst had a high surface area and nitrogen content,and significantly improved the conversion of acetylene to 76.52% at 180 °C and a gas hourly space velocity (GHSV) of 50 h−1,showing that pyridinic nitrogen can provide active sites in g-C3N4/AC. Zhou et al. [24] synthesized a nitrogen-doped carbon nanotube catalyst via chemical vapor deposition; the catalyst gave a turnover frequency (TOF) of 2.3 × 10−3 s−1,suggesting that quaternary nitrogen species,rather than pyridinic or pyrrolic nitrogen,were the active sites. Bao’s group [25] overcame disadvantages such as shaping difficulties and low mechanical strength by preparing a SiC-based nitrogen-doped carbon catalyst. They achieved an acetylene conversion of 80% in a 150 h test at 200 °C and 30 h−1. They found that the active sites were pyrrolic nitrogen species and that little acetylene was adsorbed on quaternary and pyridinic nitrogen. In a later study,Zhang et al. [26] found that the catalytic activity of nitrogen-doped AC catalysts in acetylene hydrochlorination depended strongly on the nitrogen species present,and the activity order was pyrrolic nitrogen ＞ graphitic nitrogen ＞ pyridinic nitrogen.
There have been few systematic studies of new preparation methods for nitrogen-doped carbons and the relationship between their active sites and catalytic activities. In this work,nitrogen-doped ordered mesoporous carbons (N-OMCs) were prepared,and the effects of the nitrogen species present on the catalytic performance in acetylene hydrochlorination were studied.
Sucrose (Guangdong Guanghua Sci-Tech Co.,Ltd.,China),urea (Sinopharm Chemical Reagent Co.,Ltd.,China),tetramethoxysilane (98%,Hangzhou Guibao Chemical Co.,Ltd.,China),HCl gas (99.999%,Shuanglin Reagent Co.,Ltd.,China),and acetylene gas (99.9%) were used. All materials were analytical grade and used without further purification.
Mesoporous SBA-15 was synthesized using the method described by Zhao et al. [27].
In a typical procedure,taking a urea/sucrose mole ratio of 2.0 as an example,a precursor solution containing sucrose (12.5 g),urea (4.45 g),and distilled water (43.0 mL) was prepared; 75% of the solution was infiltrated into SBA-15 silica (6.0 g),followed by drying at 100 °C for 6 h and 160 °C for 6 h. The infiltration and drying were repeated using the remaining 25% of the precursor solution. The composite was carbonized at 850 °C for 3 h under a nitrogen flow and then washed with sodium hydroxide solution at 70 °C to remove the silica template completely to give a template-free product. This sample is denoted by N-OMC-O2.0,where O indicates a one-step process and 2.0 indicates a urea/sucrose ratio of 2.0 (Fig. 1).
The effects of the nitrogen content and type of nitrogen species were investigated by preparing N-OMC catalysts using urea/sucrose ratios of 0.5,1.0,2.0,and 4.0 via the same procedure; the catalysts are denoted by N-OMC-Ox,where x represents the urea/sucrose ratio.

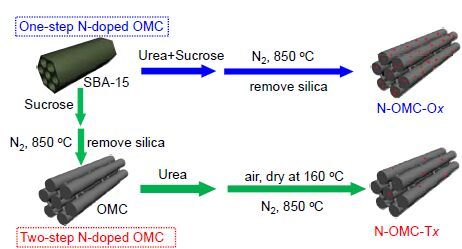

For comparison,pure OMC was synthesized using the procedure described above,with SBA-15 as a hard template but without urea. N-OMC-T2.0,where T indicates a two-step process and 2.0 is the urea/sucrose ratio,was synthesized by carbonizing a composite prepared by pre-impregnating OMC with urea solution at 850 °C for 3 h under a nitrogen flow (Fig. 1).
Nitrogen sorption isotherms were recorded at −196 °C using a Quantachrome Autosorb-IQ instrument in static mode. Before the measurements,the samples were degassed at 200 °C for 10 h. The carbon surface areas were calculated from the adsorption isotherms using the multipoint Brunauer-Emmett- Teller method. The pore size distributions of the supports were determined from the desorption branches using the Barrett-Joyner-Halenda method.
High-resolution transmission electron microscopy (HRTEM) was performed using a Philips-FEI Tecnai G2 F30 S twin electron microscope,with a field-emission gun as the electron source,operated at 300 kV. The samples were mounted and ultrasonically dispersed in ethanol,and then a few droplets of the suspension were deposited on a copper grid coated with a holey carbon film,followed by drying under ambient conditions.
X-ray photoelectron spectroscopy (XPS) was performed with a Kratos AXIS Ultra DLD instrument using 300 W Al Kα radiation,with the C 1s peak at 284.6 eV as the internal standard. The carbon,hydrogen,nitrogen,and sulfur contents of the catalysts were determined using a MACRO cube elemental analyzer.
The catalytic performance was investigated using a fix-bed glass reactor (i.d. 10 mm). Acetylene was passed through sodium hypochlorite solution to remove trace impurities,and HCl gas was dried using 5A molecular sieves. Acetylene (2.42 mL/min) and HCl (2.95 mL/min) were introduced into a heated reactor containing the catalyst (3.0 mL) through a mixing vessel with calibrated mass flow controllers,giving an acetylene gas/HCl mixture pressure of 0.1 MPa,feed volume ratio VHCl/VC2H2 = 1.1,and GHSV 50 h−1 at 180 °C. The microreactor was purged with nitrogen before the reaction to remove water and air. The reactor effluent was passed through an absorption bottle containing sodium hydroxide solution to remove unreacted hydrogen chloride. The gas mixture was analyzed using a gas chromatography (GC-1690F).
The textural properties and nitrogen contents of the catalysts were determined using nitrogen adsorption-desorption methods and elemental analysis; the results are summarized in Table 1.

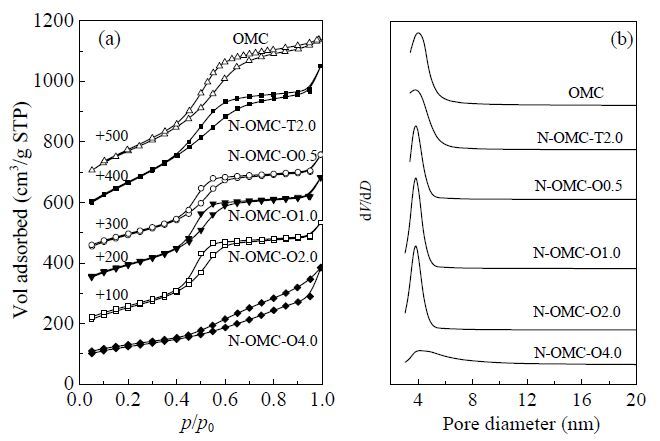

The isotherms (Fig. 2) of OMC,N-OMC-T2.0,and N-OMC-Ox are type V,which is the typical adsorption isotherm for OMC materials with well-ordered mesoporous structures. All the isotherms show a sharp step characteristic of capillary condensation of nitrogen within uniform mesopores at high relative pressures (p/p0 ＞ 0.35); the p/p0,at which the inflection point is observed,is related to the mesopore diameter. The specific surface area of OMC is 1271 m2/g,and the pore size is around 4.2 nm,showing good replication of the template. The specific surface area of N-OMC-T2.0 is 952 m2/g,and the pore size is 3.8 nm. The pore size distributions of all the samples are narrow,suggesting predominantly uniform mesopores; this indicates that the urea addition method did not strongly affect the pore structure during carbonization. The surface areas and pore structures of the N-OMC-Ox samples are similar to those of pure OMC when the urea/sucrose ratio is less than 2.0 (urea/sucrose = 0.5,1.0,and 2.0). However,for N-OMC-O4.0,the surface area decreases to 337 m2/g,indicating collapse of the ordered mesoporous structure. This is confirmed by the nitrogen sorption isotherms. The pore structures of the samples were examined using HRTEM. The images (Fig. 3) clearly show that N-OMC-O2.0 and N-OMC-T2.0 have similar mesoporous structures consisting of well-ordered hexagonal mesopore arrays.
Elemental analysis was performed to determine the nitrogen contents of N-OMC-Ox and N-OMC-T2.0; the results are shown in Table 1. The nitrogen content of N-OMC-Ox is much higher than that of N-OMC-T2.0. This may be because of strong linkages between urea and sucrose in the pre-carbonization and carbonization processes in the direct synthesis method. However,N-OMC-T2.0,prepared by carbonizing a composite synthesized by pre-impregnation of OMC with a urea solution,only has weakly physisorbed nitrogen impurities on its surface,therefore the nitrogen content is only 0.2 wt%. The nitrogen content increases gradually from 2.7 wt% for N-OMC-O0.5 to 3.6 wt% for N-OMC-O4.0 when urea and sucrose are consecutively added. The oxygen content was calculated by subtracting the nitrogen,carbon,hydrogen,and sulfur contents,based on the assumption that there are no impurities in the samples and the total of the contents of these five elements represents 100%. The data in Table 1 show that the oxygen content is about 25%−35%. The oxygen content cannot be directly determined by elemental analysis; therefore,these data are not accurate.
The samples were characterized using temperature- programed desorption in argon (Ar-TPD). The results (figure not shown) show that the N-OMC-Ox samples have similar profiles for CO and CO2,indicating that the types and contents of oxygen functional groups exposed on their surfaces are similar. The profiles for N-OMC-T2.0 show significantly lower amounts of CO and CO2,possibly because the surface oxygen groups were reconstructed after urea loading and thermal treatment at 850 °C. No nitrogen-containing species such as NO,N2,and NH3 were detected in the gas released during Ar-TPD; this shows that the nitrogen species cannot be desorbed below 850 °C or the nitrogen content is too low to be detected.

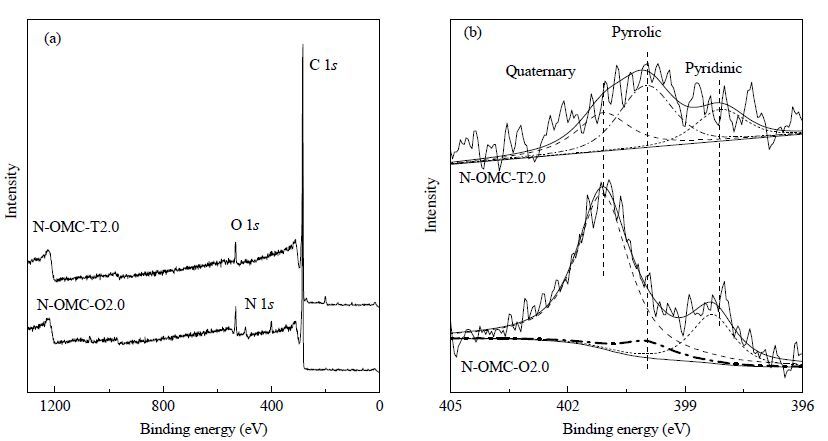

The nitrogen species in the N-OMC samples were identified using XPS. Fig. 4(a) shows the wide N 1s regions for N-OMC-T2.0 and N-OMC-O2.0; the figure also shows that N-OMC-O2.0 and N-OMC-T2.0 contain only oxygen,nitrogen,and carbon. Fig. 4(b) shows the N 1s core level peaks for N-OMC-O2.0 and N-OMC-T2.0. No peak is observed for OMC. N-OMC-O2.0 and N-OMC-T2.0 give three peaks at binding energies of 398.3,400.0,and 401.1 eV. These peaks can be assigned to pyridinic (398.3 ± 0.2 eV),pyrrolic (400.0 ± 0.2 eV),and quaternary (401.1 ± 0.2 eV) N species,respectively [28, 29]. It should be noted that the proportion of quaternary nitrogen in N-OMC-O2.0 is higher than that in N-OMC-T2.0 (Table 2). The nitrogen species in N-OMC-O2.0,which was prepared via a one-step method,were introduced by in situ carbonization of urea and sucrose and are probably more easily doped into the carbon framework. The data in Table 2 show that the quaternary nitrogen content decreases slightly with increasing urea/sucrose ratio,especially in the case of N-OMC-O4.0,for which the quaternary nitrogen content deceases to 61.5% from 77.69%. This could be because there is a maximum quaternary nitrogen content for samples prepared using the present method. For N-OMC-T2.0,prepared via a post-synthesis method,the quaternary nitrogen content,i.e.,32.7%,is much lower than those of the N-OMC-Ox samples. The dominant species are pyridinic and pyrrolic nitrogen. The one-step method is therefore more suitable for obtaining a framework doped with quaternary nitrogen species.
The surface nitrogen loadings of various samples,determined using XPS,are shown in Table 2. For the N-OMC-Ox and N-OMC-T2.0 catalysts,the surface nitrogen loadings obtained using XPS are higher than the nitrogen contents obtained using elemental analysis,indicating that the surface nitrogen concentrations are higher than those of the bulk. For N-OMC-O4.0,the nitrogen loading determined using XPS is 5.4%,whereas elemental analysis gives a nitrogen loading of 3.6%. The N 1s XPS spectra (figure not shown) show that the pyridinic and pyrrolic nitrogen contents of this sample are higher than those of the other samples. This may indicate that these two nitrogen species are more easily exposed on the surfaces of the carbon materials.

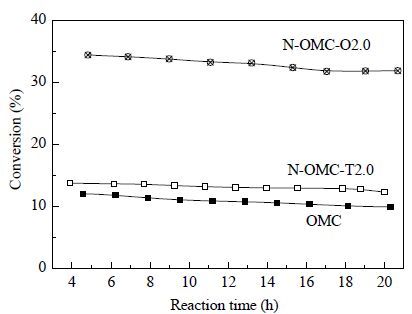

The catalytic performance of N-OMC-O2.0,N-OMC-T2.0,and OMC in acetylene hydrochlorination is shown in Fig. 5. The acetylene conversions of N-OMC-O2.0,N-OMC-T2.0,and OMC were 33.5%,12.5%,and 10.0%,respectively. The activities of N-OMC-O2.0 and N-OMC-T2.0 are better than that of OMC,and N-OMC-O2.0 has a higher activity than N-OMC-T2.0. The VCM selectivities of all the catalysts are above 99% (not shown).

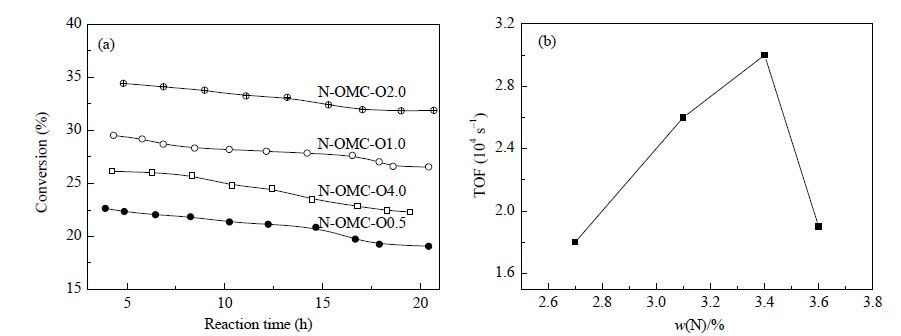

The catalytic performance of the N-OMC catalysts was further investigated using N-OMC-Ox samples with various urea/sucrose ratios; the results are shown in Fig. 6(a). The figure shows that the acetylene conversion increases from 19.5% to 33.5% as the urea/sucrose increases from 0.5 to 2.0,and reaches a maximum at a ratio of 2.0. The acetylene conversion starts to decrease when the urea/sucrose ratio reaches 4.0. This may be because the pore structure collapses when there is an excessive amount of urea,as shown by the surface area and pore distribution results.
The intrinsic activities of the N-OMC-Ox were determined by calculating the TOF values based on acetylene conversions at 10 h and the total nitrogen loadings. OMC also contributed to acetylene conversion,but quantification of the active sites in OMC is difficult; therefore,the conversion of OMC was subtracted from the total conversions of the N-OMC series to calculate the TOFs based on the nitrogen loadings. The TOF values for N-OMC-Ox and N-OMC-T2.0 are shown in Fig. 6(b). For the N-OMC-Ox catalysts,the intrinsic activity increases with increasing nitrogen content from 2.7 to 3.4 wt%,and reaches a maximum value at 3.4 wt%,for N-OMC-O2.0. This shows that nitrogen species must be the active sites for acetylene conversion,and that there is a positive correlation between acetylene conversion and nitrogen content. However,the TOF value for N-OMC-O4.0 is low,although this sample has a nitrogen loading of 3.6 wt%. This could be because of the low surface area of this sample. This indicates that the activity is affected by the pore structure of the N-OMC catalyst. The nitrogen-modified carbon nanotube catalyst synthesized by Zhou et al. [24] gave a TOF value of 2.3 × 10−3 s−1 in acetylene hydrochlorination. This value was calculated based on the quaternary nitrogen atoms; the quaternary nitrogen content of the catalyst was lower than 2%. There is no consensus regarding a positive relationship between activity and specific nitrogen species,and quaternary,pyrrolic,and pyridinic nitrogen are all considered to be active sites in acetylene hydrochlorination. It is therefore more appropriate to calculate TOF values based on the total nitrogen content. The TOF value of the N-OMC-O2.0 catalyst calculated on the basis of the total nitrogen content is 3.0 × 10−4 s−1; the activity level is similar.
We have developed a direct and facile method for the synthesis of N-OMC-Ox. Urea,which was used as a nitrogen source,was carbonized with sucrose; 3.6 wt% nitrogen doping of the carbon framework was achieved,with more than 70% of the nitrogen in the form of quaternary nitrogen species. Only 0.2 wt% nitrogen doping,with 32.7% quaternary nitrogen was achieved for N-OMC-T prepared via a post-synthesis method. The activities of the N-OMC-O catalysts prepared via a one-step method in acetylene hydrochlorination were higher than that of the N-OMC-T catalyst because of the higher nitrogen loadings. The results of this study provide guidance for controlled synthesis to give materials containing a single type or one predominant type of nitrogen species to enable elucidation of the catalytic roles of different nitrogen sites in acetylene hydrochlorination. In further studies,efforts will be focused on the controlled synthesis of nitrogen-doped carbon materials with specific nitrogen species and higher nitrogen contents.
