Friedel-Crafts alkenylation of aromatic compounds has attracted a lot of attention owing to its direct,environmentally benign,and atom economic characteristics for the synthesis of alkenyl aromatic compounds that serve as industrially important organic intermediates for dyes,pigments,pharmaceuticals,flavors,agrochemicals,and natural products ^[1]. The acid-mediated alkenylation of aromatics has been considered a promising approach for the synthesis of alkenyl aromatics owing to its low cost and high activity ^[2-8].

Solid acid catalysis presents a promising route for diverse acid-mediated organic transformations owing to its key features such as clean reactions,easy separation,catalyst reusability,and applicability in large scale continuous production. Recently,zeolites are more and more regarded as an environmentally benign solid acid catalyst for Friedel-Crafts alkylation in both academic and industrial fields ^[9-11]. However,in contrast to the Friedel-Crafts alkylation,there are still many challenges that need to be resolved for Friedel-Crafts alkenylation. The biggest challenge is to efficiently prevent the oligomerization and deep polymerization of alkynes resulting from the lower stability of the alkenyl cation species compared with that of the alkyl cation intermediates ^[12-16]. Until now,there have only been a few reports on alkenylation over solid acid catalysts. Sartori and co-workers ^[17] published a pioneering work on the alkenylation of aromatics over HSZ-360 zeolite. Unfortunately,the results were not satisfactory,and an irreconcilable contradiction existed between selectivity and catalytic activity: the zeolite catalysts suffered from a calcination process at lower temperature and exhibited high catalytic activity,but it resulted in the formation of a large amount of acetophenone (5%-20%); a higher calcination temperature efficiently suppressed the formation of acetophenone along with alkenylation,but it led to a remarkable decrease in catalytic activity. Moreover,the enlargement in scope of substrates is also desirable. The catalytic efficiency of the zeolite-catalyzed alkenylation was not high; 1.0 g of zeolite was required for transforming less than 1.0 g of phenylacetylene. The possible reason was that the reaction only took place on the external surface of the catalyst because of the narrow pore channels within the HY zeolite ^{[14, 18]}. Mesoporous solid acids could be promising candidates for Friedel-Crafts alkenylation. It has previously been demonstrated t hat a Fe-containing mesoporous aluminosilicate exhibited very high activity for the Friedel-Crafts alkenylation of phenols with aryl-substituted alkynes under mild conditions ^[19]. However,a further increase in selectivity is desirable.

We have previously developed H₃PW₁₂O₄₀ (HPA) catalysts supported on MCM-41 for the alkenylation of diverse aromatics ^[13]. However,further improvement in catalytic activity,selectivity,and expansion in the scope of the reactants is indispensable. Moreover,the complexity and high cost of the preparation process of mesoporous silica limits its potential application in the production of α-arylstyrenes using solid acid-catalyzed alkenylation. The supported HPA catalyst on activated carbon was developed to address the high cost issue associated with HPA/MCM-41 ^[15]. The efficient regeneration of the deactivated catalyst by washing with a polar solvent might require a large amount of evaporable solvent,which would consequently produce an environmental issue in addition to the possible leaching of HPA by the polar solvent. Owing to their relatively high thermal stability and strong acidic sites,sulfated solid super acids have been investigated and used in diverse organic transformations ^[19-34]. There have only been a few reports of alkenylation over solid superacids. We previously demonstrated that SO₄²⁻/meso-La₂O₃-ZrO₂ could be a promising solid acid catalyst for the alkenylation of p-xylene ^[16]. However,although the catalyst could be regenerated by calcination,further improvement in both catalytic activity and stability is required. On the whole,the Friedel-Crafts alkenylation reactions over solid acid catalysts have been scarcely reported,although this strategy could be a promising approach for the synthesis of 1,1-diarylalkenes with easy separation,green,and atom efficient features. Therefore,the development of novel,low-cost,and robust solid acid catalysts for Friedel-Crafts alkenylation is highly desirable,but still remains a challenge.

Based on our previously developed SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid catalyst,the tuning of the acidic sites and their accessibility was investigated by regulating the textural features and acidic properties of SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acids. Various characterization techniques including N₂ physisorption,X-ray diffraction (XRD),NH₃ temperature-programmed desorption (NH₃-TPD),and thermogravimetric analysis (TGA) were employed to explore the relationship between the nature of the catalyst and its catalytic performance in Friedel-Crafts alkenylation. It was found that the textural features and acidic properties of SO₄²⁻/meso-La0_.1Zr_0.9O_δ solid acids can be efficiently modulated by changing the preparation conditions of the meso-La_0.1Zr_0.9O_δ composite. As a consequence,the catalytic performance of the SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid catalyst in Friedel-Crafts alkenylation was significantly improved. Moreover,the developed SO₄²⁻/meso-La_0.1Zr_0.9O_δ catalyst demonstrated excellent catalytic performance in the alkenylation of diverse aromatics with phenylacetylene to their corresponding α-arylstyrenes. In combination with the previously established complete regeneration of the used catalyst by a facile calcination treatment and the improved catalytic performance reported in this work,the optimized SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid could be a potential catalyst for the alkenylation of diverse aromatics with phenylacetylene to their corresponding α-arylstyrenes.

2 Experimental

2.1 Catalyst preparation

Mesoporous La_0.1Zr_0.9O_δ composite oxides were synthesized by the previously reported surfactant-assisted hydrothermal crystallization method ^[16]. Typically,the zirconium nitrate (AR,Sinopharm Group,China) and lanthanum nitrate (AR,Tianjin Guangfu Institute,China) with a 9:1 molar ratio of Zr to La were dissolved in deionized water. A certain amount of CTAB (AR,Kermel,China) with various molar ratios of CTAB to metal ions (N_t/m = 0.10,0.13,0.15,0.18,and 0.20) was dissolved in deionized water to give a clear homogeneous solution. The two solutions were then mixed under continuous stirring. Subsequently,various amounts of an ammonium solution (N_a/m = 14,16,18,20) were added dropwise into the mixture. After precipitation,the gelatinous pale mixture was stirred for another 4 h followed by a hydrothermal crystallization process at various hydrothermal temperatures (T_hydro = 75,90,105,and 120 °C) for different hydrothermal time (t_hydro = 36,60,and 84 h) in a sealed Teflon autoclave. The solid product was filtered,washed,dried,and then calcined in a muffle furnace at 550 °C for 6 h to obtain a series of mesoporous La_0.1Zr_0.9O_δ composite oxides. The various SO₄²⁻/meso- La_0.1Zr_0.9O_δ solid acid catalyst samples with different N_t/m,N_a/m,T_hydro,and t_hydro were prepared by the impregnation method with H₂SO₄ (1 mol/L) as impregnant and a subsequent drying and calcination process.

2.2 Catalyst characterization

Nitrogen physisorption experiments were performed at −196 °C on a BeiShiDe 3H-2000PS1 surface area porosity analyzer. The specific surface area was calculated by the BET method and the pore size distribution was calculated by the Barrett-Joyner-Halenda (BJH) model from the desorption branch of the isotherms. The coke amount deposited on the spent catalysts was obtained by TGA analysis using a PerkinElmer STA 6000 with a heating rate of 10 °C min⁻¹ from 30 to 800 °C in an air stream. XRD patterns of the samples were recorded from 0° to 10° and 10° to 80° with a step width of 0.02° using a Rigaku D/max-2400 apparatus using Cu K_α radiation.

NH₃-TPD measurements were performed to characterize the acidic properties of the samples. After pre-treatment of 50 mg samples in Ar (heating to 450 °C with a ramp rate of 10 °C/min,then kept at 450 °C for 0.5 h under an Ar flow of 30 mL/min),the samples were saturated with ammonia (10% NH₃-90% Ar) at 100 °C using the pulse injection method. Finally,the NH₃ desorption step was performed from 100 to 850 °C at a ramp rate of 10 °C/min under an Ar flow of 30 mL/min. The NH₃-TPD profiles were obtained by monitoring the desorbed ammonia with a thermal conductivity detector.

The XPS experiments of the fresh and spent solid acid catalysts were performed on an ESCALAB 250 XPS system with a monochromatized Al K_α X-ray source (15 kV,150 W,500 m,pass energy = 50 eV). The binding energy was calibrated according to the C 1s photoelectron peak at 284.6 eV,and the binding energy of S 2p was analyzed at 152-175 eV,using the Shirley baseline-correction method.

The type of acid sites (Brnsted (B) and Lewis (L)) and relative amount (B/L) were measured by Py-IR. The Py-IR spectra were recorded at room temperature in the wavenumber range of 1590-1410 cm⁻¹ on an EQUINOX-55 Fourier transform infrared spectrometer (BRUKER). The as-prepared solid acid catalysts were pressed into a self-supporting wafer (ca. 15 mg/cm),and introduced into a quartz IR cell with CaF₂ windows. The samples were pretreated in situ by heating in a stream of helium at 30 mL/minfrom room temperature to 450 °C and 5 × 10⁻³ Pa for 30 min. The cell was subsequently cooled to room temperature and pyridine vapor was passed into the cell and adsorbed onto the optimized (in this work) and the unoptimized (previously developed) SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid catalysts for a period of 30 min. After removal of the excess pyridine,the spectrum was recorded. The sample was then evacuated at 150 and 450 °C for 30 min and a corresponding spectrum was recorded to distinguish the acid site. The relative intensities of the vibration bands at 1540 and 1450 cm⁻¹ were assigned to the B and L acid sites,respectively.

2.3 Catalyst performance test

The catalytic performance measurements for the alkenylation of p-xylene with phenylacetylene was performed in a stainless steel fixed-bed continuous-flow reactor. In total,1.0 g of catalyst pressed into tablets and sieved into 20‒60 mesh was loaded into the reactor for all the reaction tests,and the remaining space of the reactor tube was filled with 20‒60 mesh quartz granules. Before the introduction of feedstock,the catalyst was pre-activated in situ for 1 h under a N₂ flow at 30 mL/min. The liquid stream was introduced into the fixed-bed reactor by a syringe pump. N₂ (99.999% purity) was used to maintain system pressure. Quantitative analysis of the collected reaction mixture from the fixed-bed reactor was performed on a FULI 9790 II GC equipped with an HP-5 column (30 m × 0.32 mm × 0.25 μm),and an FID detector. As an evaluation standard of the alkenylation reaction,the phenylacetylene conversion was calculated by mass percentage of the transformed phenylacetylene from the total amount of phenylacetylene introduced in the feed. Based on the GC-MS data and our previous work ^[13-16],besides the main product α-arylstyrene (I),a series of byproducts such as acetophenone (II),β-(2,5-dimethylphenyl) styrene (III),α-(2,5-dimethylphenyl) ethylbenzene (IV),and oligomers (V) were detected,indicating the alkenylation reaction of p-xylene with phenylacetylene is a quite complex competition process. Besides the alkenylation,many side reactions,such as hydration of phenylacetylene,hydrogenation of α-arylstyrene,thermodynamic control alkenylation,and the oligomerization reactions take place simultaneously. The scope of the substrates that can be used for the developed solid superacid catalyst-mediated alkenylation was investigated by employing a diverse range of aromatics as substrates.

3 Results and discussion

3.1 Effect of the molar ratio of template to metal ions

Table 1 presents the results of alkenylation of p-xylene with phenylacetylene over the SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acids prepared with various molar ratios of the template (CTAB) to the total metal ions containing La and Zr (N_t/m). For this preparation process,the 18 of N_a/m,105 °C of T_hydro,and 60 h of t_hydro were used. It can be observed that the conversion of phenylacetylene increases with the increase of N_t/m from 0.10 to 0.18. As the N_t/m increases further the conversion remains almost unchanged. 91.6% of phenylacetylene conversion with 93.1% of the selectivity towards the main product α-(2,5-dimethylphenyl)-styrene can be obtained when N_t/m is 0.18. Furthermore,the N_t/m increases up to 0.18 leads to an increase in oligomers but a decrease in isomer (β-(2,5-dimethylphenyl) styrene). However,interestingly,the further increase of N_t/m from 0.18 to 0.2 results in a decrease in oligomers but an increase in isomers. Considering the reaction results and the economic efficiency,the optimum N_t/m is 0.18.

表 1 (Table 1)

Table 1 Effect of the Nt/m value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene. Nt/m Conv. (%) Product distribution (%) I II III IV V 0.10 80.2 93.5 0.1 5.0 0.1 1.3 0.13 82.7 93.6 0.2 4.6 0.1 1.5 0.15 85.1 93.1 0.2 4.0 0.1 2.6 0.18 91.6 93.7 0.1 3.0 0.2 3.0 0.20 91.7 92.3 0.2 4.6 0.1 2.8 Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h),TOS = 8 h.

Table 1 Effect of the Nt/m value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene.

Nitrogen physisorption,NH₃-TPD,and XRD experiments were performed to reveal the relationship between the nature of the catalyst and its catalytic performance. Fig. 1 presents the adsorption-desorption isotherms,pore size distributions (Fig. 1(a)),and NH₃-TPD profiles (Fig. 1(b)) of the SO₄²⁻/meso- La_0.1Zr_0.9O_δ solid acids prepared with various N_t/m values. As shown in Fig. 1(a),the type IV isotherm with a hysteresis loop is a typical feature of mesoporous materials ^{[35, 36]},indicating the existence of a mesoporous structure in the as-prepared solid superacids. From the inset in Fig. 1(a) and Table 2,the increase of N_t/m from 0.15 to 0.18 leads to an increase in the surface area from 76 to 81 m²/g and to a slight decrease in the total pore volume (V_total) from 0.36 to 0.35 cm³/g,as well as an increase in the amount of mesopores. The further increase of N_t/m from 0.18 to 0.20 leads to an increase in the surface area but to a decrease in the pore volume and a decrease in the amount of mesopores. The increase in mesopores with the increase of N_t/m from 0.15 to 0.18 can enhance the diffusion of the formed main product α-(2,5-dimethylphenyl)-styrene. As a result,the amount of thermodynamically stable side product β-(2,5-dimethylphenyl)-styrene formed by isomerization of the main product decreases owing to the decreased staying time as a result of quick diffusion. The decreased amount of mesopores and pore volume by the further increase of N_t/m from 0.18 to 0.20 leads to an increase in isomers owing to a worse diffusion of the main product. From Fig. 1(b),the NH₃-TPD profiles can be divided into four regions (150-300,300-450,450-600,and above 600 °C),which can be assigned as weak,medium,strong,and super acidic sites,respectively. The acidi c properties of the sulfated metal oxides are dependent on the textural features and the crystalline phase,besides the component of the oxides ^[19-34]. The increase of the surface area as N_t/m is increased from 0.15 to 0.18 leads to an increase in the amount of acidic sites,which results in the increased conversion shown in Table 1. No obvious change in weak and medium acidic sites can be observed as the N_t/m is increased further from 0.18 to 0.20,whereas there is an obvious decrease in strong acidic sites. From the reaction results in Table 1,the two samples with N_t/m of 0.18 and 0.20 demonstrate similar catalytic activity,suggesting that the weak and medium acidic sites are the active sites for alkenylation.

Fig. 1

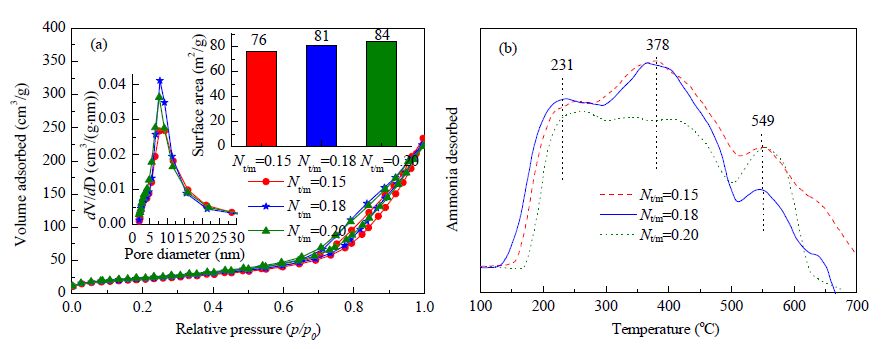

Fig. 1. N2 adsorption-desorption isotherms (a) and NH3-TPD profiles (b) of the as-prepared SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts with various Nt/m values. Insets in Fig. 1(a) are the specific surface area and BJH pore diameter distribution from the desorption branch.

From Fig. 2,the peaks in the XRD patterns of the three samples at 30.1°,34.7°,50.1°,59.5°,and 73.7° can be well-resolved,indexed as the (011),(110),(112),(121),and (123) planes of tetragonal phase of ZrO₂,respectively ^{[35, 37-39]}. No diffraction peaks corresponding to La₂O₃ phase or to m-ZrO₂ can be observed,which is ascribed to the insertion of La into the ZrO₂ lattice and the led stabilization effect on t-ZrO₂ phase ^{[16, 35]}. The increase in CTAB concentration results in a decrease in the average crystallite size (CS_Zr) shown in Table 2 owing to the inhibiting effect of surface micelles on the agglomeration of ZrO₂ particles ^[40]. The interaction between SO₄²⁻ and ZrO₂ would be strengthened as the average crystallite size decreases. As a result,the peak towards the super acid centered at above 600 °C can be seen on the SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acids with 0.18 and 0.20 of N_t/m,but a visible peak can be seen towards super acid on the SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid with 0.15 of N_t/m. The SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid with 0.18 of N_t/m has similar strong acidic sites to that with 0.15 of N_t/m,but the former has super acidic sites. As a result,more oligomers were observed on the former (Table 1). Although there are more super acidic sites on SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid with of 0.20 N_t/m than the one with 0.18 of N_t/m,much less strong acidic sites can be observed on the former. As shown in Table 1,less oligomers were observed on the former. Correlating the oligomerization results to acidic properties,it can be proposed that the strong and super acidic sites are the main active sites for oligomerization.

Fig. 2

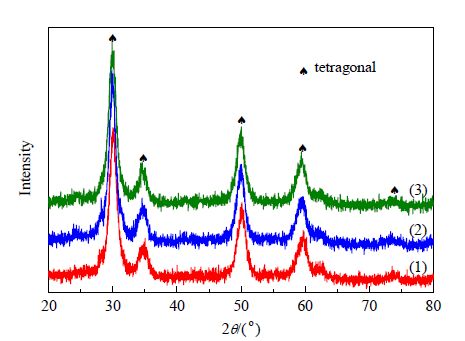

Fig. 2. XRD patterns of the SO42−/meso-La0.1Zr0.9O2 solid acid catalysts with various Nt/m values. (1) Nt/m = 0.15; (2) Nt/m = 0.18; (3) Nt/m = 0.20.

表 2 (Table 2)

Table 2 Effect of Nt/m value on the CSZr and Vtotal of the as-synthesized SO42−/meso-La0.1Zr0.9O2 solid acid catalyst. Nt/m CSZr a (nm) Vtotal b (cm3/g) 0.15 6.1 0.36 0.18 5.9 0.35 0.20 5.8 0.34 a Estimated by Scherrer equation from XRD patterns; b From N2 physisorption.

Table 2 Effect of Nt/m value on the CSZr and Vtotal of the as-synthesized SO42−/meso-La0.1Zr0.9O2 solid acid catalyst.

From the above analysis,it can be concluded that the catalytic performance including activity and product distribution is significantly dependent on the acidic properties and pore structure of the solid acid catalysts. The acidic properties are affected by textural features and crystal phase of the meso-La_0.1Zr_0.9O_δ composite oxides. The N_t/m value has an influence on the textural nature,acidic sites,and crystalline phase of the catalyst. The increase in weak and medium acidic sites is of benefit for the alkenylation reaction,but strong and super acidic sites would lead to oligomerization and deep polymerization. Therefore,the 0.18 of N_t/m is ideal for obtaining solid acid catalysts with excellent alkenylation properties.

3.2 Effect of molar ratio of ammonia to metal ions

The ammonia concentration would affect the formation of surfactant micelles,the nucleation and growth of Zr(OH)₄,as well as the assembly process for mesoporous Zr-O sol and gel. As a consequence,the tuning of the N_a/m values by fixing the other parameters (N_t/m = 0.18,T_hydro = 105 °C,and t_hydro = 60 h) may efficiently regulate the textural features and the ZrO₂ crystal of the meso-La_0.1Zr_0.9O_δ composite oxides,which in turn affects the catalytic performance. The catalytic performance of the SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acids prepared with various N_a/m values for the alkenylation of p-xylene with phenylacetylene was investigated. From the results presented in Table 3,the conversion increases with the increase of N_a/m from 14 to 16. No visible change takes place as N_a/m is increased from 16 to 18. However,further increase of N_a/m from 18 to 20 leads to an obvious decrease in catalytic activity. The opposite odder towards isomers can be observed. Moreover,a monotonous decrease in oligomer percentage with the increase of N_a/m from 14 to 20 can be seen. From the results,the 16 of N_a/m is optimal.

表 3 (Table 3)

Table 3 Effect of the Na/m value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene. Na/m Con. (%) Production distribution (%) I II III IV V 14 83.7 92.1 0.3 4.0 0.1 3.5 16 91.8 93.9 0.3 2.5 0.2 3.2 18 91.6 93.7 0.1 3.0 0.2 3.0 20 84.4 93.3 0.2 3.9 0.1 2.5 Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h),TOS = 8 h.

Table 3 Effect of the Na/m value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene.

N₂ physisorption,NH₃-TPD,and XRD were employed to investigate the structure-performance relationships of the catalysts. N₂ adsorption-desorption isotherms and the corresponding BJH pore size distributions using the desorption branch of the isotherm,as well as NH₃-TPD profiles of SO₄²⁻/meso-La_0.1Zr_0.9O_δ with various N_a/m values are shown in Fig. 3. The type IV isotherms with a hysteresis loop at a high relative pressure indicates that the SO₄²⁻/meso-La_0.1Zr_0.9O_δ solid acid catalysts belong to the mesoporous material family ^[41]. From Fig. 3(a) and Table 4,the increase in the N_a/m value from 14 to 16 leads to an increase in pore volume and the amount of larger mesopores,but it does not result in an increase in surface area. From the average crystallite size listed in Table 4,the increased N_a/m value can lead to larger ZrO₂ crystals. The increased pore volume and amount of larger mesopores of the SO₄²⁻/meso-La_0.1Zr_0.9O_δ prepared with the 16 of N_a/m allow it to have more weak and medium acidic sites than those with 14 of N_a/m,which favors the alkenylation reaction. The increased pore volume and amount of larger mesopores also strengthens the diffusion of the main product,which suppresses the formation of the isomers. From the results in section 3.1,the oligomer percentage is strongly dependent on the strong and super acidic sites. Herein,the solid acid with 16 of N_a/m produces less oligomers than the one with 14 of N_a/m,although the former has more strong and super acidic sites. This may be ascribed to the existence of larger mesopores on the former. The further increase of the N _a/m from 16 to 20 leads to a decrease in the surface area and pore volume. This leads to a decrease in weak and medium acidic sites,which subsequently results in the lowering of the catalytic activity (Table 3). Although the peak centered at 549 °C for the solid acid with 20 of N_a/m is slightly higher than that of the one with 16 of N_a/m,the former has a lower number of strong acidic sites. Moreover,the larger crystallite size of ZrO₂ for the solid acid with 20 of N_a/m is higher than that for the solid acid with 16 of N_a/m. The larger ZrO₂ crystal size of the sample with 20 of N_a/m suppresses the interaction of SO₄²⁻ and ZrO₂. As a result,no super acidic sites on this sample can be observed. The lower amount of strong acidic sites and the absence of super acidic sites results in less oligomers. Furthermore,the decrease in mesopores of the sample with 20 of N_a/m in comparison with the one with 16 of N_a/m leads to worse diffusion of the formed main product,which is of benefit for the formation of thermodynamically stable isomers. As a result,a higher isomer percentage can be observed for the catalyst prepared using 20 of N_a/m compared with 16 of N_a/m,as shown in Table 3. The presence of more weak and medium acidic sites,larger pore volume,and larger mesopores make the solid acid catalyst exhibit excellent catalytic performance. Based on the established template and ammonia dosage,the effect of the hydrothermal conditions including the T_hydro and t_hydro on the nature of the catalyst and its catalytic performance in the alkenylation reaction was investigated.

Fig. 3

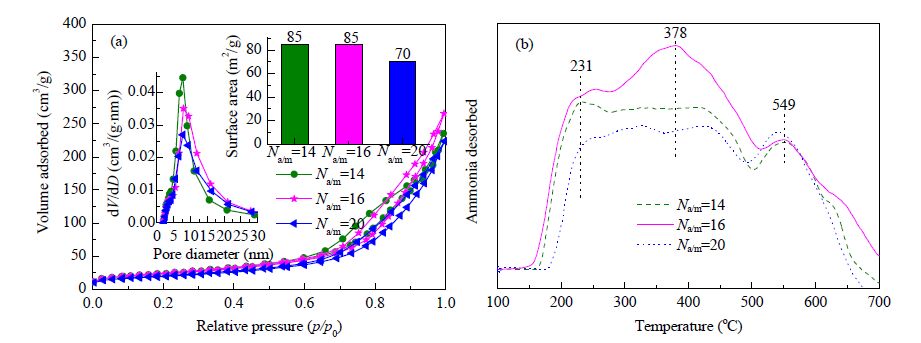

Fig. 3. N2 adsorption-desorption isotherms (a) and NH3-TPD profiles (b) of the as-prepared SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts with various molar ratios of ammonia to metal (Na/m). Insets in Fig. 3(a) are the specific surface area and BJH pore diameter distribution from the desorption branch.

表 4 (Table 4)

Table 4 Effect of Na/m value on the CSZr and Vtotal of the as-synthesized SO42−/meso-La0.1Zr0.9O2 solid acid catalyst. Na/m CSZr a (nm) Vtotal b (cm3/g) 14 5.3 0.36 16 5.5 0.41 20 6.0 0.35 a Estimated by Scherrer equation from XRD patterns; b From N2 physisorption.

Table 4 Effect of Na/m value on the CSZr and Vtotal of the as-synthesized SO42−/meso-La0.1Zr0.9O2 solid acid catalyst.

3.3 Effect of hydrothermal temperature

Table 5 presents the effect of T_hydro on the catalytic performance of the as-synthesized solid acid catalysts in the alkenylation of p-xylene with phenylacetylene by fixing the other conditions including the 0.18 of N_t/m,16 of N_a/m,and 60 h of t_hydro. As shown in Table 5,the conversion increases with the increase of T_hydro up to 90 °C,at which the conversion reaches a maximum (93.5%). Further increase of T_hydro leads to a decrease in conversion. A lower isomer percentage can be observed as T_hydro is increased from 75 to 105 °C,however the isomer percentage rises as T_hydro is further increased to 120 °C. Moreover,the oligomer percentage monotonously rises as the T_hydro is increased in the whole investigated range.

表 5 (Table 5)

Table 5 Effect of the Thydro value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene. Thydro (°C) Conv. (%) Product distribution (%) I II III IV V 75 80.2 92.5 0.1 5.0 0.1 2.2 90 93.5 93.8 0.3 3.4 0.1 2.4 105 91.8 93.9 0.3 2.5 0.2 3.2 120 84.1 93.1 0.4 3.7 0.2 3.5 Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h),TOS = 8 h.

Table 5 Effect of the Thydro value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene.

From Fig. 4 and Table 6,an increase in the surface area from 57 to 79 m²/g and an enlarged pore volume from 0.28 to 0.37 cm³/g can be obtained as T_hydro increases from 75 to 90 °C,which leads to an increase in acidic sites. It is estimated by the Scherrer equation based on XRD patterns that the average crystal size decreases from 6.9 to 5.5 nm as T_hydro increases from 75 to 90 °C. The smaller ZrO₂ crystallite size may allow stronger interaction between the SO₄²⁻ and Zr,which leads to the formation of super acidic sites. Besides the improved accessibility of the acidic sites by the increased surface area and pore volume,the increase in acidic sites is of benefit for the alkenylation reaction. As a result,the solid acid with the 90 °C of T_hydro exhibits higher activity,as shown in Table 5. The super acidic sites on the catalyst with the 90 °C of T_hydro promote oligomerization,leading to the formation of more oligomers. The solid acid with the 90 °C of T_hydro has a larger pore volume than the one with the 75 °C of T_hydro,which is of benefit for the diffusion of the formed α-arylstyrene. This reduces the chance of its isomerization. As a result,a decreased amount of the β-arylstyrene isomer can be obtained. Further increase of T_hydro up to 120 °C leads to a decrease in surface area and pore volume,which results in a decrease in the active sites,the weak and medium acidic sites,for alkenylation. As a consequence,the conversion decreases from 91.8% to 84.1%,as shown in Table 5. Moreover,the further decreased ZrO₂ crystal size leads to more super acidic sites,as shown in Fig. 4(b). It was also observed that the m-ZrO₂ phase exists in the solid acid with the 120 °C of T_hydro ^[37-39],which might affect the acidic properties. The formation of more strong and super acidic sites would promote the formation of more oligomers. The decrease in the amount of larger mesopores on the SO₄²⁻/meso-La_0.1Zr_0.9O_δ prepared with the 120 °C of T_hydro in comparison with the one with the 90 °C of T_hydro leads to a decrease in the amount of isomers. The solid acid prepared with the 75 °C of T_hydro produces the most isomers among the three samples,which is ascribed to the smallest pore volume and lowest surface area.

Fig. 4

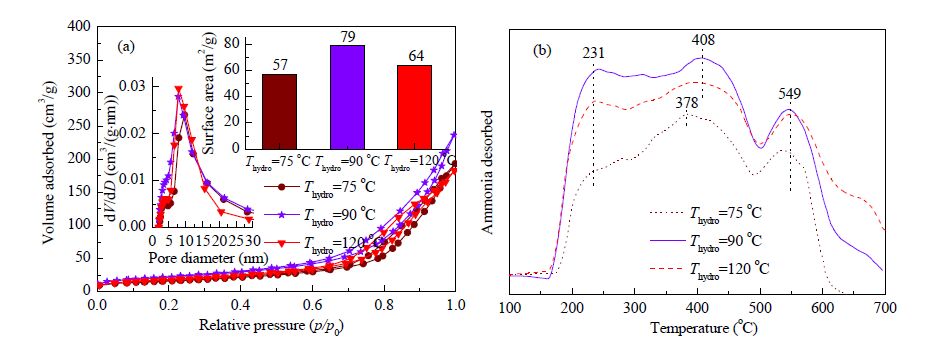

Fig. 4. N2 adsorption-desorption isotherms (a) and NH3-TPD profiles (b) of the as-prepared SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts at various hydrothermal temperatures (Thydro). Insets in Fig. 4(a) are the specific surface area and BJH pore diameter distribution from the desorption branch.

表 6 (Table 6)

Table 6 Effect of Thydro value on the CSZr and Vtotal of the as-synthesized SO42−/meso-La0.1Zr0.9O2 solid acid catalyst. Thydro (°C) CSZr a (nm) Vtotal b (cm3/g) 75 6.9 0.28 90 5.5 0.37 120 5.2 0.30 Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h),TOS = 8 h.

Table 6 Effect of Thydro value on the CSZr and Vtotal of the as-synthesized SO42−/meso-La0.1Zr0.9O2 solid acid catalyst.

3.4 Effect of hydrothermal time

Herein,the effect of t_hydro value (t_hydro = 36,60,and 84 h) on the nature of the catalyst and the catalytic performance in the alkenylation was further investigated by fixing the other conditions including the 0.18 of N_t/m,16 ofN_a/m,and 90 °C of T_hydro. From Table 7,the phenylacetylene conversion increases with the increase of t_hydro,and as t_hydro reaches 60 h,the conversion reaches a maximum (93.5%). Further increase of t_hydro leads to a decrease in conversion. Moreover,from the product distribution,the extended hydrothermal time leads to a decrease in the percentage of isomers,but the solid acid with the 60 h of t_hydro has slightly higher formation of oligomers. Various characterization experiments were performed to explore the structure-performance relationship.

表 7 (Table 7)

Table 7 Effect of the thydro value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene. Thydro (h) Conv. (%) Product distribution (%) I II III IV V 36 84.1 93.4 0.4 3.9 0.1 2.2 60 93.5 93.8 0.3 3.4 0.1 2.4 84 86.9 94.3 0.3 3.2 0.1 2.2 Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h),TOS = 8 h.

Table 7 Effect of the thydro value on the catalytic performance of SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts for the alkenylation of p-xylene with phenylacetylene.

From Fig. 5 and Table 8,the increase of t_hydro from 36 to 60 h leads to an increase in the surface area,pore volume,the amount of weak and medium acidic sites,and the amount of the larger mesopores,which enhances the alkenylation reaction. As a result,there is an increase in the conversion,as shown in Table 7,and the percentage of oligomers increases slightly. The increased t_hydro leads to a relatively smaller ZrO₂ crystal size,which possess super acidic sites owing to a strengthened interaction between SO₄²⁻ and ZrO₂. The further increase of t_hydro from 60 to 84 h leads to a decrease in the surface area,resulting in a decrease in weak,medium,and strong acidic sites. As a result,a much lower conversion with slightly lower oligomers can be observed. Furthermore,the pore volume and the amount of larger mesopores monotonously rises as the t_hydro is extended,which results in the monotonous decrease in isomers owing to the suppression of the isomerization of the formed α-arylstyrene.

Fig. 5

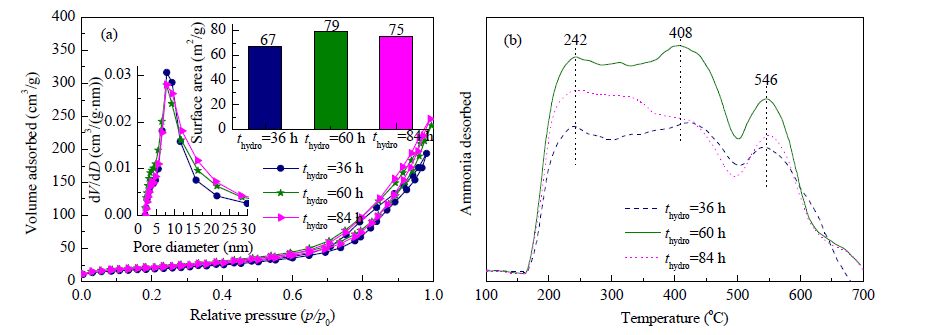

Fig. 5. N2 adsorption-desorption isotherms (a) and NH3-TPD profiles (b) of the as-prepared SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts with various hydrothermal times (thydro). Insets in Fig. 5a are the specific surface area and BJH pore diameter distribution from the desorption branch.

表 8 (Table 8)

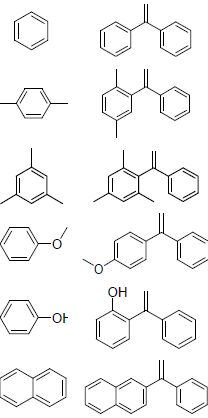

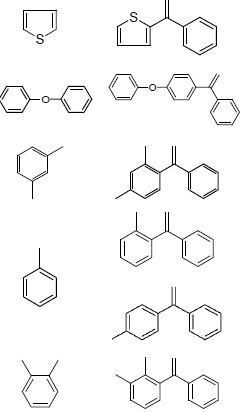

Table 8 Summary of the alkenylation of different aromatics with phenylacetylene over the developed SO42−/meso-La0.1Zr0.9Oδ solid acid catalyst. Entry Substrate Product Con. (%) Sel. (%) Yield a (%) Entry Substrate Product Con. (%) Sel. (%) Yield a (%) 1 91.7 62.6 57.4 7 92.9 76.6 71.2 2 93.5 93.8 87.7 8 c 94.8 95.1 90.2 3 99.0 97.6 96.6 9 97.1 91.0 88.4 4 98.6 91.0 89.7 10 96.9 97.9 94.9 5 b 95.4 77.6 74.0 6 b 86.5 72.5 62.7 11 98.6 85.2 84.0 Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h); a GC yield; b The cyclohexane or dioxane was introduced into the feed for easy material transfer in the fixed-bed reactor.

Table 8 Summary of the alkenylation of different aromatics with phenylacetylene over the developed SO42−/meso-La0.1Zr0.9Oδ solid acid catalyst.

From above,it can be concluded that the SO₄²⁻/meso-La_0.1Zr_0.9O_δ with appropriate preparation conditions for meso-La_0.1Zr_0.9O_δ composite oxides exhibited excellent catalytic performance in the alkenylation reaction. Correlating of the reaction results to the nature of the catalyst,we found that the catalytic activity and product distribution are strongly dependent on the acidic properties and the accessibility of acidic sites,which depend on the preparation conditions of meso-La_0.1Zr_0.9O_δ composite oxides. The developed SO₄²⁻/meso-La_0.1Zr_0.9O_δ with the 0.18 of N_t/m,16 of N_a/m,90 °C of T_hydro,and 60 h of t_hydro exhibits great potential for production of α-arylstyrene through Friedel-Crafts alkenylation.

3.5 Catalytic stability

The catalytic stability and the scope of the substrates over the developed solid acid catalyst were investigated. The catalytic stability plays an important role in practical application of a solid acid catalyst. Therefore,the stability of the developed SO₄²⁻/meso-La_0.1Zr_0.9O₂ solid acid in the alkenylation reaction of p-xylene with phenylacetylene was investigated. Fig. 6 presents the conversion and selectivity as a function of time on stream for the alkenylation over the optimized solid acid catalyst; the unoptimized catalyst (previously developed SO₄²⁻/meso-La_0.1Zr_0.9O₂ solid acid ^[16]) is included for comparison. From Fig. 6,the optimized SO₄²⁻/meso-La_0.1Zr_0.9O_δ in this work exhibits much higher stability in comparison with the unoptimized one,and more than 62.5% conversion can be maintained for up to 31 h of time on stream compared with only 45.4% conversion obtained for the unoptimized catalyst. From TGA experiments,the 15.1% and 25.6% of mass loss for the optimized and unoptimized solid acids,respectively,suggests a higher coke-resistant stability of the optimized catalyst. Therefore,the developed SO₄²⁻/meso-La_0.1Zr_0.9O_δ prepared under appropriate conditions could be a promising solid acid catalyst for the alkenylation reaction.

Fig. 6

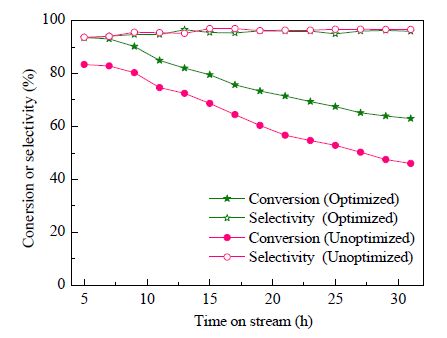

Fig. 6. The catalytic stability of the developed SO42−/meso-La0.1Zr0.9Oδ catalyst for the alkenylation of p-xylene with phenylacetylene. Reaction conditions: catalyst 1.0 g,nAr/nPhen = 25,Tr = 150 °C,Ps = 1.0 MPa,VHSV = 6 mL/(gcat·h).

Py-IR is a powerful tool for investigating the acidic properties of the catalysts. The Py-IR spectra of the optimized solid catalyst in this work and the unoptimized solid acid catalysts at 150,300,and 450 °C of desorption temperature,corresponding to total acidic sites,medium plus strong acidic sites,and strong acidic sites,respectively,were collected and are presented in Fig. 7. The optimized solid acid has more acidic sites,including B and L acids,in comparison with the unoptimized one. More interestingly,the remarkable increase in L acidic sites over the optimized solid acid catalyst can be seen in comparison with the increase in B acidic sites. The interaction of SO₄²⁻ and ZrO₂ leads to the production of L acid sites,and subsequently the B acidic sites can be formed by the incorporation of H₂O in the L acid sites. From references ^[13-16],both B and L acidic sites can enhance the alkenylation reaction,and therefore,the solid acid catalyst developed in this work exhibits a much higher catalytic activity for alkenylation in comparison with the unoptimized one. Moreover,the strong B acidic sites may enhance the polymerization side reactions. The notably increased amount of total acidic sites on the optimized catalyst dramatically increases the conversion of phenylacetylene in the main reaction,which decreases the concentration of phenylacetylene. This may weaken the polymerization and the subsequent coke deposition on the optimized catalyst. Furthermore,we investigated S-leaching in the reaction process by XPS analysis (S 2p) of the fresh and spent SO₄²⁻/meso-La_0.1Zr_0.9O_δ. The XPS results demonstrate that the surface atomic ratio of S to Zr decreases from 0.24 to 0.20 after the catalyst is used in the above reaction process,implying that S-leaching is another reason for the decrease in conversion. More stable solid catalysts will be e xplored in the future.

Fig. 7

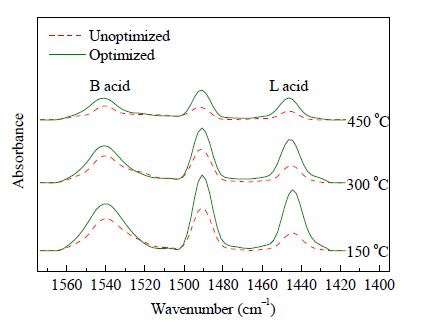

Fig. 7. Pyridine-IR spectra of the optimized and unoptimized SO42−/meso-La0.1Zr0.9Oδ solid acid catalysts.

3.6 Scope of substrates

Herein,the scope of the substrates for the alkenylation over the developed SO₄^2−/meso-La_0.1Zr_0.9O_δ catalyst was investigated,and the reaction results are listed in Table 5. The developed solid acid catalyst demonstrates excellent catalytic performance with more than 90% conversion and high selectivity for the alkenylation of diverse aromatics,suggesting a broad scope of aromatics for the alkenylation for the production of different α-arylstyrenes. Together with the facile regeneration of the used solid acid catalyst established in our previous paper ^[16],the developed SO₄²⁻/meso-La_0.1Zr_0.9O_δ could be considered as a potential candidate for clean and atom efficient production of diverse α-arylstyrenes and industrially important intermediates through the Friedel-Crafts alkenylation of different aromatics with phenylacetylene.

4 Conclusions

The textural features and acidic properties of sulfated mesoporous lanthana-zirconia solid acid catalysts were efficiently tuned by adjusting the preparation conditions,including the molar ratio of the template to metal ions,molar ratio of ammonia to metal ions,hydrothermal temperature,and hydrothermal time,which significantly affected the acidic sites and their accessibility. As a consequence,the conversion and product distribution could be regulated. The optimized sulfated mesoporous lanthana-zirconia solid acid catalysts demonstrated much superior catalytic activity and stability and similar selectivity towards α-arylstyrene to the unoptimized one. Combing the excellent catalytic activity,selectivity,and stability,as well as the broad scope of substrates and easy regeneration of the used catalyst,the developed sulfated mesoporous lanthana-zirconia solid acid catalysts could have great potential for industrial production of α-arylstyrene through clean and atom efficient solid-acid-mediated Friedel-Crafts alkenylation of diverse aromatics with phenylacetylene.
