The enantiomers of drugs have dramatically different biological activities and toxicities. Chiral drugs are more clinically acceptable as they reduce the potential toxicity of racemic drugs. Chiral intermediates are crucial building blocks for the synthesis of valuable chiral drugs and the synthesis of the chiral intermediates of drugs is important in the pharmaceutical industry [1-3].
Chiral α-hydroxy acids,e.g. chiral lactic acid,are important building blocks in the synthesis of many drugs,pesticides and polymers [4, 5]. The preparation of chiral lactic acid is of great importance in both the pharmaceutical and material industries. The synthesis of chiral chemicals like chiral lactic acid is not easily achieved by traditional organic synthesis due to the low enantio-selectivity of traditional metallic organic synthesis [5].
The synthesis of enantiomerically enriched chemicals can also be achieved by biocatalytic methods using enzymes,which avoid the harsh working conditions and pollution by metallic organic synthesis [6, 7]. Due to the existence of one hydroxy group and one acid group in lactic acid,the synthesis of enantiomerically enriched lactic acid can be accomplished by the asymmetric reduction of ketone precursors using dehydrogenases. However,the biocatalytic method using dehydrogenases require expensive co-factors such as NADH and NADPH [8]. Another biocatalytic method is by asymmetric hydrolysis of racemic esters using esterases or lipases. L-lactic acid is not expensive because currently L-lactic acid can be directly obtained using large scale fermentation instead of an organic or enzymatic method [9, 10]. D-lactic acid,which is a chiral chemical of great demand in industry,cannot be directly obtained using the inexpensive fermentation method and is thus more expensive [4]. Biocatalytic methods are the major methods for the preparation of D-lactic acid and its ester derivatives with high enantiomeric excess.
Here,we identified a novel marine microbial esterase,PHE14,from the deep seas of the western Pacific Ocean and characterized its functionalities. We also utilized esterase PHE14 as a biocatalyst for the enzymatic synthesis of D-methyl lactate. The desired chiral product D-methyl lactate was obtained with high enantiomeric excess and yield after process optimization.
E.coli DH5α and E.coli BL21 (DE3) were used as the host strains for gene cloning and protein expression,respectively. Plasmid pET-28a (+) (Novagen,USA) was used as the expression vector of the enzymes. TransStart® FastPfu DNA PolyMerase,ligases and restriction enzymes were all purchased from TransGen Biotech (Beijing,China). p-nitrophenyl (p-NP) esters were obtained from Sigma (St. Louis,MO,USA). Racemic methyl lactate and the corresponding chiral enantiomers were all purchased from Aladdin Industrial Corporation (Shanghai,China). Other chemicals were analytical grade.
The strain Pseudomonas oryzihabitans HUP022 was isolated from the sediments obtained from the deep sea of the western Pacific Ocean. The sequencing of the whole genome of Pseudomonas oryzihabitans HUP022 was completed by Genewiz Inc. The coding DNA sequence of an esterase (named PHE14) was amplified from the genomic DNA of Pseudomonas oryzihabitans HUP022 with a pair of primers (forward: 5′- CACGAATTCGTGCTGGAATCGCCTAGC-3′,reverse: 5′- CCGCTCGAGTTATTTTTTGCCGAGACGTGCC-3′). The primer sequences contained the EcoR I and Xho I (underlined) restriction sites. The PCR products were cloned into the EcoR I and Xho I sites of the expression vector pET-28a (+). Recombinant plasmids were confirmed by sequencing from Majorbio Ltd. (Shanghai,China) and then transformed into E. coli BL21 (DE3) according to standard protocols.
The E. coli and recombinant E. coli strains were incubated at 37 °C and 200 r/min in Luria-Bertani medium (recombinant strains with 50 μg/mL kanamycin). As the cell density reached a turbidity of 0.6 at 600 nm,0.3 mmol/L isopropyl-beta-D-thiogalactopyranoside (IPTG) was added to the culture for protein induction. After 18 h induction at 20 °C,the cells were harvested by centrifugation at 7500 r/min for 10 min,washed with phosphate buffer (50 mmol/L,pH 7.5) two times and then re-suspended in the same buffer. The cells were disrupted by sonication on ice for 10 min and centrifuged (11500 r/min,20 min,4 °C ). The recombinant protein PHE14 was purified and desalted using nickel-nitrilotriacetic acid agarose resin (GE Healthcare Life Science,China) and PD-10 desalting columns (GE Healthcare Life Sciences,China) according to the manufacturer’s instructions. The protein concentration was measured by the method of Bradford,with bovine serum albumin as the standard. Purified PHE14 was examined by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) under denaturing conditions.
The hydrolytic activity of PHE14 was measured at 405 nm using the assay procedure described by Deng et al [11]. A standard reaction system containing 10-µL substrate (10 mmol/L,dissolved in acetonitrile),10-µL (0.8 µg/µL) enzyme,940-µL phosphate buffer (50 mmol/L,pH 7.5),and 40-µL ethanol was incubated at 35 °C for 5 min. The esterase activity was analyzed by detecting the absorbance of p-NP at 405 nm. One unit of enzyme activity was defined as the amount of esterase that liberated 1 μmol of p-NP per minute.
The substrate specificity was determined using different substrates (p-NP C2-C10) under standard reaction conditions. The optimum pH for PHE14 was determined using p-PN acetate (C2) as the substrate in different pH ranges: 50 mmol/L NaAc/HAc (pH 5.0-6.0),50 mmol/L Na2HPO4/NaH2PO4 (pH 6.5-8.0),50 mmol/L Tris/HCl (pH 8.5-9.0) and 50 mmol/L Glycine/NaOH (pH 9.5-10.0). The pH stability was characterized by incubating purified PHE14 at 4 °C for 12 h in the buffer with different pH values. The optimum temperature was measured for the temperature range of 20 to 70 °C under the optimal pH value. The thermo-stability was measured by incubating PHE14 at different temperatures (from 20 to 60 °C) for different times (0-60 min) using p-PN acetate (C2) as the substrate under optimal pH value. The effect of metal ions (Li+,Na+,K+,Mg2+,Ca2+,Fe2+,Ni2+,Mn2+ ) on the activity of PHE14 was deter-mined by incubating PHE14 in the presence of the metal ions (1 mmol/L) for 12 h at 4 °C. The effects of different organic solvents and surfactants were investigated in the presence of thirteen different organic solvents (10%,v/v)and four different surfactants (1%) by incubating PHE14 for 12 h at 4 °C. The effect of salt concentration on PHE14 activity was studied by adding NaCl (0.2 to 4 mol/L) into the incubation mixture and measuring the enzymatic activity after pre-incubation at 4 °C for 12 h. Kinetic parameters were determined from a Lineweaver-Burk plot under the optimal reaction conditions.
A standard 500-µL hydrolytic reaction system containing 140 μg purified esterase PHE14,50 mmol/L substrate (racemic methyl lactate) and 50 mmol/L phosphate buffer (pH 7.5) was incubated at 37 °C for 1 h. After the completion of the enzymatic reaction,reaction samples were extracted with an equal volume of ethyl acetate and the organic phase was further analyzed to evaluate the enzymatic resolution of (±)-methyl lactate.
The enantiomeric excess of the reaction product was analyzed by GC (FULI GC-9700Ⅱ) equipped with a H2 flame ionization detector and a 112-6632 CYCLOSIL-B chiral capillary column (30 m × 0.25 mm ID,0.25 μm df).
A series of enzymatic reactions were carried out at different pH ranging from 6 to 11 for 1 h to determine the optimal pH for the resolution of (±)-methyl lactate. The effect of temperature on the resolution of (±)-methyl lactate was carried out at different temperatures ranging from 25 to 45 °C for 1 h. Under the optimum pH value and temperature,eleven different organic solvents(10%,v/v)and four surfactants (0.01%) were used as the reaction solvent to investigate the effect of the organic solvent and surfactant on the enzymatic reaction. Reactions without adding an organic solvent and surfactant were carried out as a control. (±)-Methyl lactate of different concentrations (from 0.09 to 0.15 mol/L) was employed to determine the effect of the substrate concentration on the kinetic resolution of (±)-methyl lactate. Purified PHE14 was added to the reaction at final concentrations ranging from 1.31 × 104 to 6.55 × 104 U/L to study the effect of enzyme concentration on the kinetic resolution of (±)-methyl lactate. Under the optimum reaction conditions,with 0.14 mg purified enzyme and 60 mmol/L substrate (±)-methyl lactate in the reaction,the product of the enzymatic reaction was regularly monitored at different times to study the effect of reaction time on the enantiomeric excess of the residual methyl lactate. All the products were analyzed by chiral GC to determine the conversion of (±)-methyl lactate.
The sequence analysis showed that the gene PHE14 encoded a protein composed of 214 amino acids without a signal peptide. Secretion signal was predicted by the SignalP 4.0 prediction tool from http://www.cbs.dtu.dk/services/SignalP/. The gene PHE14 was cloned from the genome of P. oryzihabitans HUP022,a marine microorganism identified from the deep sea of the western Pacific Ocean (the sequence of gene PHE14 has been deposited in GenBank with the accession no. KX397626). The protein sequence alignment with microbial esterases revealed that enzyme PHE14 exhibited its maximum identity with a putative esterase (WP_017639130.1) from Pseudomonas sp. 313 (96%) and with a putative esterase (WP_007161882.1) from Pseudomonas psychrotolerans (96%). The functions of these putative esterases have not been characterized before. In addition,the protein sequence analysis showed that PHE14 belonged to the α/β hydrolase family with the conserved signature (Gly-X-Ser-X-Gly) in the ORF. The three dimensional structure of PHE14 consists of five β strands and five α helices,and revealed that its catalytic triad is formed by the three residues (Ser110,Asp162,and His193) located at the C terminal of the main parallel β sheet. This was consistent with previous esterase sequence information with Ser110 being part of the characteristic Gly-X-Ser-X-Gly sequence [12, 13]. Thus,Ser110,Asp162,and His193 are indispensable amino acid residues in the biochemical characterization of PHE14.
PHE14 was purified by Ni-NTA affinity chromatography. The nominal molecular weight and pI of PHE14 were calculated to be 28 kDa and 4.94 by http://web.expasy.org/compute_pi/.
p-PN acetate (C2) was the preferred substrate for hydrolysis and referenced as 100% relative activity. However,PHE14 displayed low activity for C8 and C10 substrates.
The effect of pH on the PHE14 activity was measured over a pH range of 6.0-10.0 with p-PN acetate (C2) as the substrate. The optimal pH for the hydrolytic activity of esterase PHE14 was 9.0. The stability of PHE14 versus pH was studied after incubating PHE14 with different pH values ( pH 6.0-10.0 ) for 12 h. Its activity was almost unchanged. The results showed PHE14 exhibited high activity and stability in a buffer of various pH values.
PHE14 exhibited its highest hydrolytic activity at 60 °C. The thermal stability of PHE14 versus temperature was studied after incubating PHE14 at different temperatures (20-60 °C) for different times (0-60 min). PHE14 exhibited its highest activity and stability at 35 °C. It could retain (85.6±0.7)% of its maximum activities after incubation at 35 °C for 1 h. The stability of PHE14 decreased rapidly when the temperature was over 40 °C.
The esterase PHE14 was studied by incubating PHE21 in the presence of different organic solvents(10%,v/v)and different surfactants (1%) for 12 h at 4 °C. The results showed that almost all the tested organic solvents and surfactants exhibited a positive effect on the hydrolysis activity of PHE14. Notably,the presence of dichlormethane and n-heptane (10%,v/v) greatly promoted the hydrolysis activity of PHE14 with residual activities being (136.2 ± 4.5)% and (137.8 ± 5.8)%,respectively.
The effect of various metal ions on the activity of esterase PHE14 was determined by incubating PHE14 in the presence of different metal ions (1 mmol/L) for 12 h at 4 °C. The results indicated that most tested metal ions had no obvious effect on PHE14 except for Co2+ ((50.9±1.0)%) and Zn2+ ((45.7±2.3)%). The results indicated that PHE14 was a robust esterase with strong resistance to metal ions.
Since the host of PHE14 was isolated from a marine environment,the tolerance of PHE14 to salt was tested by measuring the residual activity after incubation in solution containing 0.2 to 5 mol/L NaCl for 12 h. The results showed that the addition of 0.2 to 1 mol/L NaCl increased the hydrolysis activity of PHE14. Furthermore,the hydrolysis activity of PHE14 retained more than 70% of its initial activity in the presence of 4 mol/L NaCl. The results indicated that PHE14 was a salt-tolerant esterase.
The kinetic analysis of PHE14 was performed using p-NP esters (C2-C8) as the substrates. The Km value for p-NP C2 was the highest and the Km values for short chain p-PN esters (C2-C4) were higher than those of long chain p-PN esters (C6-C8). So PHE14 was further confirmed to be an esterase and not a lipase.

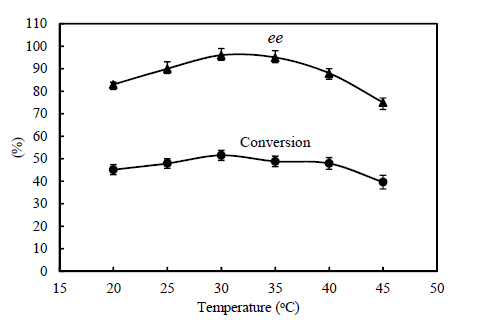

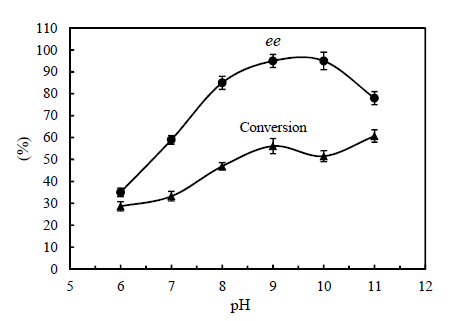

The effect of pH and temperature on the kinetic resolution of (±)-methyl lactate by esterase PHE14 is shown in Fig. 1 and Fig. 2. The optimum reaction pH for the highest ees was pH 9.0,with the ees being 95%. However,the ees and conversion decreased dramatically when the pH values were below or over 9.0. The optimum reaction temperature for the highest ees was 30 °C,with ees and yield being over 96% and 85.2%,respectively. These results indicated that both the stereo-selectivity and catalytic activity were affected by the pH and temperature. In particular,the state of the active center of the enzyme,state of the substrate,and stability of the enzymes were all affected by pH and temperature.
Almost all the tested organic solvents and surfactants decreased both the ees and conversion,thus inhibiting the kinetic resolution of (±)-methyl lactate by esterase PHE14 (Table 1). Thus,no organic solvent or surfactant was added to the enzymatic reactions for the further optimization of the kinetic resolution of (±)-methyl lactate by esterase PHE14.

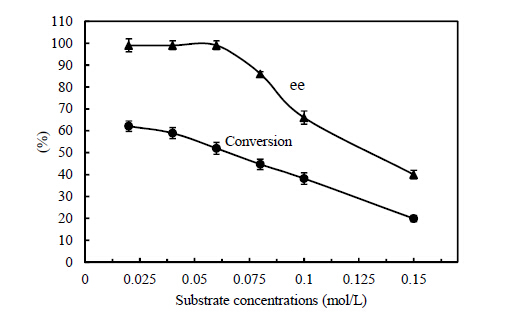

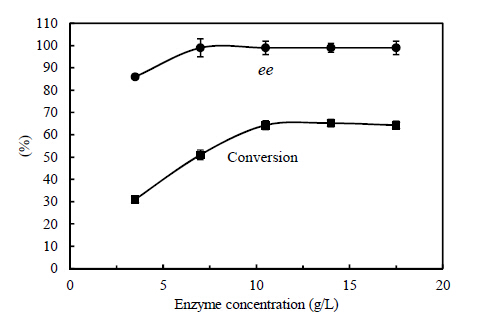

The amounts of substrate and enzyme used for the kinetic resolution of (±)-methyl lactate were another two important factors that affect the conversion and enantio-selectivity. Fig. 3 and Fig. 4 show that 0.06 mol/L substrate and 0.14 mg enzyme were the optimum substrate concentration and enzyme concentration for the kinetic resolution of (±)-methyl lactate by esterase PHE14,with an ees over 99% and a yield of 86.1%.

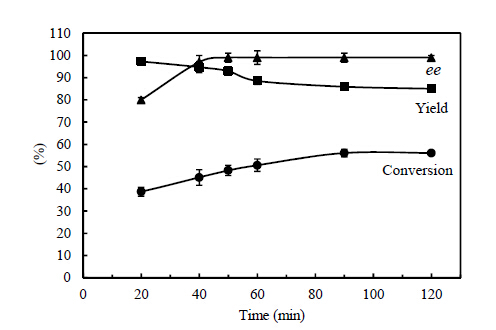

Under the optimum reaction conditions,different reaction times (from 20 to 120 min) were used to investigate the optimal reaction time for the kinetic resolution of (±)-methyl lactate by PHE14. The results showed that the ees and the yield reach over 99% and 88.7%,respectively,when the reaction time was 60 min. The yield of D-methyl lactate in the reaction without added PHE14 was set as 100%. However,when the reaction time was over 60 min,the conversion was higher than 50% (Fig. 5). So,the optimal reaction time for the kinetic of (±)-methyl lactate was 60 min.
We identified and functionally characterized a novel esterase,PHE14,from the genome of Pseudomonas oryzihabitans HUP022 isolated from the deep sea of the western Pacific Ocean. Under standard assay conditions,PHE14 preferred short chain p-NP ester substrates,and gave a Km of 0.24 ± 0.06 mmol/L and a specific activity of 293.07 ± 3.24 U/mg for p-NP C2. However,PHE14 displayed low activity for C6 and C8 substrates. The hydrolytic activity of esterase PHE14 was higher than some other esterases,such as Ls-LeuDH (183 U/mg) [14],EM2L8 (156 U/mg) [15] and Est6 (104.41 U/mg ) [16],but lower than another esterase DAEEst6 (317 U/mg) [11]. The optimal pH and temperature for the hydrolysis activity of esterase PHE14 were 9.0 and 60 °C,respectively. PHE14 exhibited its highest activity and stability at 35 °C,and retained 85.59 ± 0.67% of its maximum activity after incubation at 35 °C for 1 h. Similar results were also observed from an esterase EstIM1 from a metagenomic library of mountain soil with 80% residual activity after heating at 30 °C for 1 h,but it was inactivated when heated at 40 °C for 40 min [17]. PHE14 was also quite stable in the presence of multiple organic solvents,surfactants and metal ions,thus making it a very good esterase candidate for organic synthesis that requires an organic solvent,surfactant or metal ion. Similar behavior was observed with other microbial esterases [18-21]. PHE14 was also characterized to be a salt-tolerant microbial esterase. Some other esterases such as EstKT4,EstKT7,and EstKT9 from the tidal flat sediments of Ganghwa Island in South Korea kept 40%,10% and 40% of their initial activity in the presence of 4 mol/L NaCl [22-24].
Chiral α-hydroxyl acids are an important class of chiral drug in the synthesis of a great variety of drugs,pesticides and polymers [4, 5, 9]. Due to the existence of one hydroxyl group and one acid group in lactic acid,the synthesis of chiral lactic acid can be achieved by enzymatic kinetic resolution catalyzed by a biocatalytic method instead of metallic organic synthesis [7, 25, 26]. Before our study,the preparation of chiral D-lactic acid and its ester derivatives by enzymatic kinetic resolution was quite rare,probably because the structural difference of the two parts on the two sides of the ester bond was too small to be recognized by esterases. PHE14 is a novel marine microbial esterase which can recognize the chirality of racemic methyl lactate and generate valuable chiral D-methyl lactate with high enantiomeric excess and yield.
We identified and functionally characterized a novel esterase,PHE14,from the genome of Pseudomonas oryzihabitans HUP022 isolated from the deep sea of the western Pacific Ocean. Esterase PHE14 exhibited very good tolerance to most organic solvents,surfactants and metal ions tested. Esterase PHE14 also exhibited high resistance to high concentration NaCl. Esterase PHE14 was utilized in the enzymatic preparation of D-methyl lactate by kinetic resolution. The desired product D-methyl lactate was obtained with an enantiomeric excess of 99% and a yield of 88.7% after process optimization. Thus,PHE14 was characterized to possess very good potential as a biocatalyst for asymmetric synthesis in industry.
