Zeolites have been extensively applied as solid acid catalysts in a variety of petrochemical processes and chemical synthesis due to their unique acidity and well-defined microporous framework [1, 2]. In aluminosilicate zeolites, the Brnsted acid sites which function as active centers are the protons that balance the negative charge of the tetrahedrally coordinated aluminum (Al) atoms in the framework [3]. It has been generally accepted that the strength and amount of acid sites are key parameters that influence the catalytic performance for many reactions. On the other hand, the pore structure plays an important role not only in diffusion limitation but also in the reaction mechanism. In addition, the siting and distribution of the framework Al atoms with the concurrent changes in the distribution of Brnsted acid sites have been recognized to influence the catalytic activity and selectivity. Because it offers varying steric access to reactant molecules, spatial constraints for the reaction intermediates or transition states as well as subtle differences in acid strength are due to the bond angles of the tetrahedral [4]. To date, many works have explored the relationship between the catalytic properties and Al distribution in zeolites. For example, Bell and his coworkers [5] controlled the fraction of Al in the intersections of H-MFI by varying the Al content of the zeolite framework and found that terminal cracking and dehydrogenation of n-butane happened preferentially on the Brnsted acid sites located at channel intersections. Davis’s group [6] demonstrated that the location of acid sites can be tailored by using differently sized cyclic amines as the structure directing agent (SDA), which influenced the performance of carbonylation of dimethyl ether (DME). Pinar et al. [7] discovered that the accessibility of the acid sites determined by the Al position had a good correlation with the catalytic results of m-xylene and 1-butene isomerisation. There are several strategies to modify the distribution and local environment of the Al atoms: choosing an appropriate SDA and synthesis conditions, controlling the composition of the reaction mixtures, and adopting post-treatment (including acidic or alkaline leaching, other chemical treatment, steam or thermal treatment, etc.) [8].
The carbonylation of DME to methyl acetate (MA) over zeolites is a typical spatially confined reaction. Iglesia and his colleagues [9] compared different types of zeolites (e.g. FER, MOR, ZSM-5, USY) and found that H-MOR exhibited excellent selectivity (>99%) to MA. The reaction proceeded as follows: DME reacted with Brnsted acid sites to form -CH3, acetyl formation by CO insertion into -CH3, then, the acetyl reacted with another DME molecule to produce MA. A further study revealed that the stabilization of the carbocationic transition states (produced by CO insertion into -CH3) resulted in the specificity of the 8-membered ring (8-MR) channels in H-MOR [10]. An investigation by quantum chemical methods suggested that the T3-O33 position was selective not only due to the channel size but also the unusual orientation of -OCH3 [11]. Shen’s group [12] discovered that H-ZSM-35 with a 10-MR channel intersected perpendicularly by an 8-MR channel showed a similarly high initial selectivity to MA and much better stability. Recently, carbonylation of DME has attracted much attention for its atom economy, mild reaction conditions and inexpensive catalysts. More important, it is an important step in the direct route of ethanol production from syngas [13]. Therefore, regulating the distribution of the Al atoms in a zeolitic framework and elucidating its impact on the catalytic activity would help to understand the structure-function mechanism of zeolites and facilitate ethanol production and syngas utilization.
In previously published works, chemical dealumination and cation-exchange were employed to explore the confinement effect of MOR for DME carbonylation. Both of these were based on the reduction of Brnsted acid sites [14, 15]. Here, we regulated the distribution of Al atoms in the MOR framework in both positive and negative ways, such as controlling the composition of the sol-gel, using different SDAs and using an acidic post-treatment. Ammonia temperature-programmed desorption (NH3-TPD) and in situ Fourier transform infrared (FTIR) were applied to characterize the acid properties of the H-MOR samples. Due to the increased number of Brnsted acid sites, the carbonylation of DME was facilitated. The relationship between the Brnsted acid sites in the 8-MR channel of H-MOR and the MA formation rate revealed that we achieved a controllable modification of the acid properties in MOR.
MOR zeolite with different Si/Al ratios was prepared by hydrothermal synthesis. First, sodium hydroxide, silica sol (30 wt% SiO2, 70 wt% H2O) and sodium aluminate were mixed and stirred at ambient temperature for 4 h. Then, commercial MOR (Yangzhou Zhonghe Petroleum Chemicals Institute Co., Ltd.) as seed (1 wt% relative to SiO2) and tetraethylammonium hydroxide solution (TEAOH, 25 wt%, Guangfu Fine Chemical Co., Ltd.) as SDA were added to the Si-Al-Na mixture and stirred for 1 h. The reaction gel had the following molar composition: 1.0SiO2:xNaAlO2:0.2NaOH:0.23TEAOH (x = 0.1, 0.083, 0.067, 0.056, corresponding to Si/Al ratio = 10, 12, 15, 18). The mixture was transferred into a Teflon-lined 100 mL autoclave and heated at 443 K for 3 d under static condition and autogenous pressure. After the autoclave was cooled down, the solid was recovered by filtration and washed with distilled water and dried in an oven at 373 K for 12 h. The solid was calcined at 823 K for 5 h with a heating rate of 1 K/min to remove organic compounds. In order to get H-MOR, the calcined Na-MOR zeolite was dispersed in NH4NO3 aqueous solution (0.2 mol/L, 1 g sample in 50 mL solution) at 353 K for 6 h, followed by filtering and washing. After repeating the ion exchange once, the resulting solid was dried at 373 K overnight and then calcined at 773 K for 4 h with a heating rate of 2 K/min. When x = 0.083 in the composition, the Na-MOR was labeled as NaM. The H-MOR samples were labeled as HM1, HM2, HM3 and HM4 with decreasing x values.
When using hexamethyleneimine (HMI 99 wt%, Sigma-Aldrich Co. LLC.) as the SDA, the synthesis procedure was almost the same. Extra distilled water was needed to dilute HMI. The molar ratio of H2O/SiO2 was 13.3 in accordance with the gel using TEAOH as template. The composition of the final mixture was 1.0SiO2:0.083NaAlO2:0.2NaOH:0.35HMI [16]. The H-MOR obtained was marked as HM5.
The commercial H-MOR (labeled as HM) was used as a parent sample. Acid treatment was applied to regulate the content and distribution of the Al atoms in HM. Post-treatment with citric acid was carried out at 353 K under refluxing for 24 h (1 g zeolite in 20 mL solution). The sample was then filtered off and washed with distilled water until the pH = 7 and calcined at 823 K for 4 h. The samples treated with citric acid were labeled as C1 and C2 for the concentration of the solution with 0.2 and 0.5 mol/L, respectively. The parent sample was treated with phosphoric acid as follows: incipient impregnation with phosphoric acid (0.15 mol/L) at room temperature overnight, then drying the solid product at 373 K and calcining at 823 K for 4 h. The resulting sample was labeled as P.
X-ray diffraction (XRD) patterns of the zeolite samples were recorded by a Rigaku D/max-2500 diffractometer with Cu Kα radiation (λ = 0.154056 nm, 40 kV and 200 mA) in the 2θ range of 3°-50°.
Elemental analysis of Na, Al, and Si in the samples was performed on an ICP-OES (VISTA-MPX, Varian). The sample (20 mg) was digested in HF aqueous solution, followed by the addition of excess boric acid (H3BO3) to form a complex with HF.
A Micromeritics ASAP-2020 analyzer was employed to get detailed information about the pore distribution and specific surface area of the samples. Nitrogen adsorption was carried out at 77 K. Prior to the analysis, the sample was degassed at 473 K for 24 h. The pore volume was calculated by the Horvath-Kawazoe equation. The surface area was obtained by the Brunauer-Emmett-Teller (BET) method. The micropore volume and the external surface area were obtained from the t-plot method.
NH3-TPD was performed on a Micromeritics Autochem II 2920 instrument equipped with a thermal conductivity detector (TCD). The 40-60 mesh catalyst (10 mg) was placed in a quartz tube. In each experiment, the sample was pre-treated at 473 K for 1 h and cooled down to 423 K under Ar flow. After exposure to excess NH3, the sample was purged by Ar flow (30 mL/min) for 1 h to remove physically adsorbed NH3. Then, the sample was heated from 373 to 1000 K (10 K/min). The released NH3 was detected by a TCD.
FTIR spectra were recorded on a Thermo Scientific Nicolet 6700 connected to an evacuation system. Pyridine was applied as a probe molecule to determine the concentration of Brnsted acid sites in the 12-MR channels of H-MOR. The catalyst (16 mg) was pressed into a 13 mm self-supported wafer and loaded into an in situ cell with CaF2 windows. Subsequently, the sample was pre-treated at 723 K for 30 min under vacuum. When the wafer had cooled down and stabilized at 423 K, the background spectrum was recorded. After saturation by pyridine vapor for 30 min, the sample was evacuated for 30 min to remove physically adsorbed pyridine. All spectra were collected in the range of 650-4000 cm-1 by averaging 32 scans at a resolution of 4 cm-1. The concentration of Brnsted acid sites (1540 cm-1) was calculated according to Ref. [17].
Carbonylation of DME to MA was evaluated in a fixed-bed stainless steel reactor at 1.5 MPa. In a typical run, 1 mL of catalyst (0.5 g, 40-60 mesh) was placed in the reactor. Prior to the reaction, the catalyst was pre-treated in N2 atmosphere (99.99%, Tianjin Sixon Gas Co., Ltd) at 473 K for 9 h. The reactant mixture (DME/CO = 1/49, mol/mol) was introduced into the reactor at a total flow rate of 100 mL/min. The product gas was analyzed by an online gas chromatograph (Agilent 7890B GC) which was equipped with both flame ionization detector (FID) and TCD. The selectivity and space time yield (STY) of MA were calculated by Eqs. (1) and (2), respectively.
Due to coke formation, the conversion of DME on all the H-MOR samples decreased gradually and rapidly with time on stream. Therefore, the initial catalytic performance (reaction time 1.5 h) was discussed in this work.
ICP-OES was applied for element analysis. The molar ratios of silicon and aluminum in the different samples are displayed in Table 1. They varied within a small range from 7.9 to 11.8. For the synthesized sample, we noticed that the Si/Al ratios in the samples were much less than the composition of the raw materials in the mixed sol-gel, indicating a loss of silica in the hydrothermal synthesis. With increasing Si/Al ratio in the sol-gel, the gap continued to widen. Generally, most of the direct synthesis methods of MOR yielded a product with a Si/Al ratio of 10 unless some special SDA or fluoride addition was employed [18, 19]. Compared with HM1-HM4, HM5 had a higher content of silicon, which was very close to the value in the synthesis mixture. This suggested that HMI as a template favored the formation of high silica MOR zeolite in comparison to TEAOH [18]. On the other hand, it was also reported that more amorphous silicon species were deposited on the nuclei because of the weak structure-directing ability of HMI [20]. Post-treatment with chemicals is considered a simple and practical strategy to adjust the composition of the zeolite framework. As shown in Table 1, the Si/Al ratio of commercial H-MOR increased after the treatment with citric acid and phosphoric acid, which was consistent with other published works [21, 22]. Furthermore, when a higher concentration of citric acid solution was used, a more severe dealumination was observed.

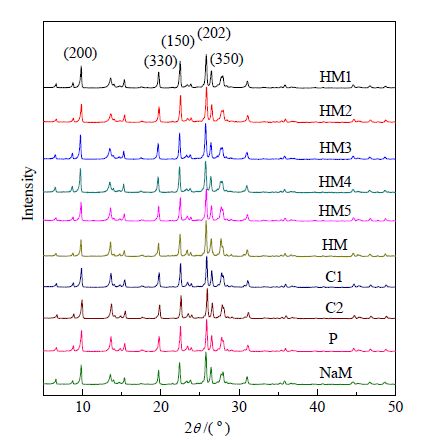

XRD was applied to monitor the structure and crystallinity of the MOR samples. As depicted in Fig. 1, all samples showed the characteristic peaks of zeolite MOR (PDF 43-0171) without any other crystal phase [23]. The relative crystallinity was calculated by comparing the total areas of five peaks with the commercial sample HM (relative crystallinity, 100%). The position of these peaks were 2θ = 9.8°, 19.6°, 22.3°, 25.7°, and 26.3°, which corresponded to the crystal planes of (200), (330), (150), (202), and (350). As summarized in Table 1, this indicated that all the samples that use different synthesis mixture compositions exhibited similar crystallinity. The sample directed by HMI had a lower crystallinity. Compared to TEAOH, HMI possessed weaker alkalinity. As a weak SDA, HMI could not effectively induce nucleation, which resulted in a lower nucleation rate and more amorphous silicon species. A similar phenomenon was reported by Wu et al. [20] in TS-1 synthesis. Post-treatment by citric acid and phosphoric acid led to a slight loss of the crystal architecture. In addition, the crystallinity decreased with increasing acid concentration, implying the removal of framework T-atoms.

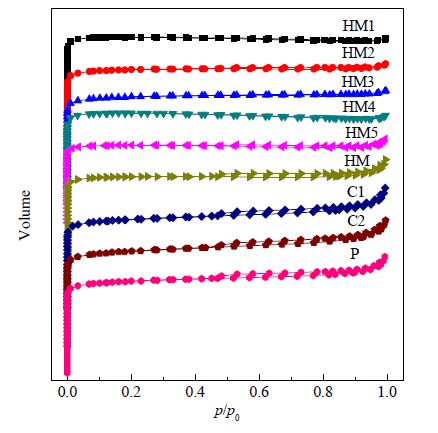

Nitrogen adsorption at liquid nitrogen temperature was carried out to characterize the textural properties of the samples. Figure 2 presents the adsorption isotherms. According to the IUPAC classification, the samples prepared by hydrothermal synthesis (HM1-HM5) exhibited Type I isotherms, which demonstrated their microporous structure. The commercial and acid-treated samples showed a combination of Type I and IV isotherms with hysteresis loops, suggesting the existence of both micro- and mesopores. The calculated specific surface areas and pore volumes are listed in Table 1. For H-MOR samples with TEAOH as the template (HM1-HM4), the surface areas were similar in the range from 423 to 459 m2/g. The pore volumes were also little changed. This indicated that the change of the Si/Al ratio in this range had little impact on the pore structure of MOR under the same synthesis conditions. HM5 synthesized with HMI as the template had the smallest BET surface area and micropore volume compared to the other samples. This was related to the weaker ability of HMI to direct the MOR structure, which was also supported by the XRD data [23]. All the samples after acidic treatment exhibited a larger surface area and mesopore volume than the parent HM sample. Meanwhile, the micropore surface area and volume decreased with acid leaching because of the slight collapse of the zeolitic structure caused by the removal of framework T-atoms. These results were in agreement with the conclusion obtained by the previous works on zeolite post-treatment [24, 25].
For reactions catalyzed by solid acids such as the carbonylation of DME, the quantity, strength and location of the acid sites are the most important factors that influence the catalytic properties. These are dependent on the content and distribution of Al in the zeolite. In previous studies, the steric confinement effect of MOR on DME carbonylation has been proposed and discussed [10]. So it is particularly important to quantitatively detect the acid sites located in the different channels of MOR. The micropore system of MOR possesses two pore channels: the larger pores consist of 12-MR channels (0.67 nm × 0.70 nm) and the smaller ones consist of 8-MR channels (0.26 nm × 0.57 nm), parallel to the direction of the 12-MR channels [18]. To investigate the nature of the acid sites in zeolites, several basic probe molecules with different sizes were employed, such as NH3, d3-acetonitrile, trimethylamine and pyridine [2]. NH3 with a small kinetic diameter (0.26 nm) is extensively applied to determine the total amount of acid sites, especially in microporous zeolite, owing to its strong alkalinity and accessibility to the acid sites in the small channel. Pyridine is also widely used for monitoring acid sites because of its sensitivity in the IR spectrum. More importantly, it is easy to discriminate Brnsted and Lewis acid sites by their characteristic bands. In consideration of the MOR pore structure, pyridine (kinetic diameter, about 0.5 nm) can probe the acid sites in the 12-MR channels, while the acid sites in the 8-MR channels are not accessible to pyridine. Here, we used both NH3-TPD and pyridine-adsorption IR to determine the acid properties of the MOR samples.
Figure 3 shows the NH3-TPD profiles of the MOR samples prepared with the different methods. One peak was at 500-550 K and the other at high temperature was broad and asymmetric. The curves were similar to those in the reported literature [28, 30, 31]. Until now, the interpretation of NH3-TPD of zeolites was not completely consistent. Generally speaking, the peak at low temperature was assigned to physically adsorbed or hydrogen-bonded NH3, while the acid sites gave rise to the peak at the higher temperature in zeolites. Some researchers have proposed that the higher asymmetric temperature peak be considered as a typical characteristic of Brnsted acid sites bonded to the framework Al atoms [32]. Niwa and coworkers [33] found good agreement between IR-TPD and MS-TPD of NH3 at the high temperature desorption, which suggested that the desorbed NH3 at the high temperature mainly came from NH4+ bonded on the Brnsted acid sites. Gounder’s group [29, 34, 35] suggested that the center of the high temperature feature depended on the type of zeolites, which reflect the framework Brnsted acidity. In some other work, the NH3-TPD curve was deconvoluted into three peaks or even more peaks because of the existence of a shoulder peak along with the high temperature desorption peak [36]. Among these, the first peak or group was due to weakly adsorbed NH3, the middle one was normally attributed to Lewis acid sites with a low thermal stability, and the one centered at the highest temperature correspond to the strong acid sites, which were referred to as framework Brnsted acid sites.
In our work, we also deconvoluted the NH3-TPD profiles into three peaks (P1, P2, and P3). For the NaM sample, the peak at 800-850 K had completely disappeared and a low intensity and broad peak at 650 K was observed. From the results of the activity evaluation (Fig. 6 and Table 2), NaM was almost inactive. It is accepted that extra-framework Al species and cations compensated by the negative charge of the framework were the Lewis acid sites [29]. For DME carbonylation, Brnsted acid sites had been confirmed as the active centers [29]. Therefore, we attributed P2 and P3 to Lewis acid sites and framework Brnsted acid sites. Li’s group [37] also analyzed the NH3-TPD profiles of MOR combined with the catalytic performance in DME carbonylation and came to a similar conclusion. They found that the area of the third peak was correlated to the activity, so they believed that P3 reflect the amount of framework Brnsted acid sites. Besides, 27Al MAS NMR showed the existence of extra-framework Al species (signal near to 0 ppm, Fig. 4). Its proportion was from 11%-18% based on the integrated area, which was in agreement with the ratio of the Lewis acid sites (12%-24%) from the NH3-TPD peak fitting. From the analysis above, it is reasonable to calculate the total amount of the framework Brnsted acid sites from the area of P3. Compared to commercial HM and the post-treated samples, the as-synthesized samples showed a more intense and broader peak at high temperature, which was evidence of a larger number of Brnsted acid sites. The results of the quantitative analysis by peak fitting were summarized in Table 2. It was noteworthy that HM5 possessed the largest amount of Brnsted acid sites, although it had the highest Si/Al ratio. This revealed the effect of HMI as the SDA in the synthesis of MOR.

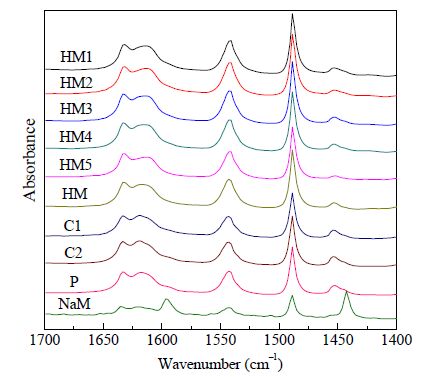

Figure 5 presents the FTIR spectra of adsorbed pyridine in the range of 1400-1700 cm-1. As mentioned above, this illustrated the acidic property in the 12-MR from knowing the sizes of the pyridine molecule and the different pores in MOR. All the samples exhibited the characteristic bands assigned to pyridinium ions on Brnsted acid sites (1540 and 1630 cm-1) and pyridine molecules coordinated to Lewis acid sites (1450 and 1610 cm-1), respectively [37]. Moreover, the band at 1490 cm-1 was observed for all samples, which was attributed to the contribution of pyridine interacting with both Lewis and Brnsted acid sites [36]. More specifically, the band at 1454 cm-1 for the H-MOR samples (HM1-HM5, HM, C1, C2 and P) was due to the C-C stretching vibration of the pyridine complex coordinated to unsaturated Al3+ ions [36]. A red shift occurred in the NaM sample because of the interaction between pyridine molecules and Na+ ions [18]. When TEAOH was used as the SDA, the intensity of the bands at both 1540 and 1454 cm-1 slightly decreased with the decrease of Al content. These two bands of HM5 showed a weaker intensity, demonstrating less Brnsted acid sites and unsaturated Al3+ ions in the 12-MR. The acid-treated samples (C1, C2, and P) displayed less Brnsted acid sites and more Lewis acid sites than the parent HM sample, which could be ascribed to the removal of framework Al and the formation of unsaturated coordinated Al species through the post-treatment. The numbers of Brnsted acid sites in the 12-MR were calculated from Fig. 4 and listed in Table 2.
Above, NH3-TPD was used to determine the total amount of framework Brnsted acid sites by peak deconvolution, while the quantity of Brnsted acid sites in the 12-MR channel was calculated from the area of the band at 1540 cm-1 in the IR spectrum. Therefore, we calculated the amount of Brnsted acid sites in the 8-MR (B8-MR) channels by Eq. (3). The results on the quantity of Brnsted acid sites in the different channels are listed in Table 2.
As shown in Table 2, the variation of B8-MR was similar to the trend of Bframework. It was not easy to distinguish the difference in the distribution of Brnsted acid sites in the MOR samples obtained by different methods. Thus, in order to provide a more intuitive understanding of the distribution of Brnsted acid sites in the different channels, we calculated the proportion of B8-MR (%) using Eq. (4).
The results revealed that the ratio of B8-MR in all the samples ranged from 54.5% to 72.7%. The commercial MOR had the least amount of B8-MR. Compared to the commercial sample and post-treated ones, the as-synthesized MOR exhibited a higher ratio of B8-MR, indicating the successful modification of Al distribution by controlling the synthesis conditions. In particular, HMI as the SDA remarkably increased the number of B8-MR in terms of preferential location of Al atoms in the 8-MR channels of MOR. Jongkind et al. [14] offered an explanation for this result. Because HMI (kinetic diameter, 0.76 nm) can only be accommodated in the 12-MR pores, the incorporation of Al in the larger pores would be blocked by the presence of the template. Hence, Al atoms were preferentially located in the smaller pores (8-MR). Treatment by citric acid or phosphoric acid was able to tune the distribution of the Brnsted acid sites. However, the dissolution of framework T-atoms inevitably occurred at the same time, resulting in the decrease of the total number of Brnsted acid sites. Therefore, increasing the ratio of B8-MR could not neutralize the negative effects caused by the removal of framework Al species, which caused an ultimate reduction of B8-MR.

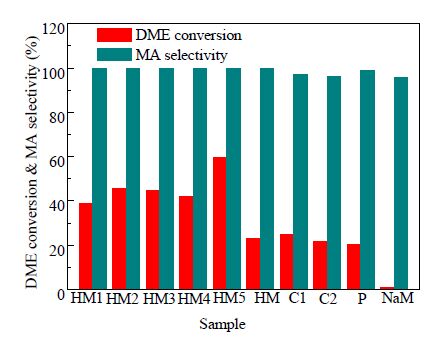

The carbonylation of DME to MA was applied as a probe reaction to detect the variation of Brnsted acid sites. The initial catalytic performance are shown in Table 2 and Fig. 6. The selectivity for MA over the different catalysts was above 95%, reflecting the specificity of the 8-MR channels of MOR [38]. Acid treatment (sample C1, C2, and P) led to a slight decrease of selectivity owing to the deterioration of the framework structure. This can be deduced by the increase of the surface area and mesopore volume, and the decrease of relative crystallinity. The results showed almost undetectable MA from the NaM sample and varying amounts from H-MOR from 0.16 to 0.47 gg-1h-1, which proved that the replacement of Na+ cations by hydrogen protons generated active sites for MA formation. For the H-MOR samples synthesized with TEAOH as the template, the conversion of DME increased first and then decreased with increasing Si/Al ratio. When HMI was used as a template, a maximum conversion with similar selectivity was obtained even at low Al content, poorer crystallinity and smaller surface area. The yield was up to 0.47 g g-1 h-1. By considering the results of acidity characterization, the good catalytic performance was attributed to the concentration of framework Al atoms in the 8-MR pores. Even under mild conditions by using a weak acid solution with a low concentration, acid treatment decreased the activity of the catalyst due to Al leaching of the zeolite framework.

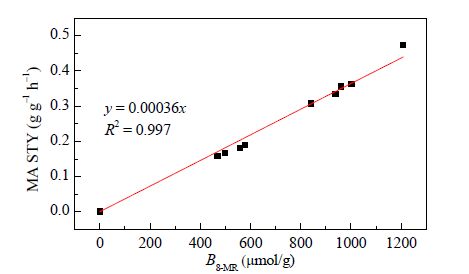

Figure 7 shows the STY of MA as a function of the number of B8-MR for the different samples. MA formation increased in parallel with the amount of Brnsted acid sites in the 8-MR channels. Liu’s group [14] confirmed that the carbonylation reaction only occurred on the acid sites in the 8-MR side pockets by in situ diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS). Iglesia’s group [15] have reported a similar result in their work previously; Na+ and Co2+ cation exchange were used to reduce the acid sites in the different channels. In a further study, an aqueous solution of oxalic acid was used to discern the effect of Al content on the carbonylation of DME [39]. However, all these conclusions were obtained from the same parent H-MOR and post-treated samples. In this study, synthesis as well as chemical post-treatment was used for modifying the amount and distribution of the Brnsted acid sites. Compared with the previous post-treatment approaches, synthetic control is a more effective strategy to promote the carbonlyation of DME. Up to now, some synthesis methods were applied to improve the catalytic activity of MOR for DME carbonylation. Shen’s group [40] found an excellent activity over nanosized H-MOR, which was synthesized using N, N, N, N’, N’, N’- hexaethylpentanediammonium cation as the template. They ascribed the significant improvement to a facilitated diffusion process. Liu’s group [29] also reported enhanced activity on nanocrystal-assembled hierarchical MOR zeolites because of the shortened diffusion path. Li’s group [1] fabricated nanosheet-assembled H-MOR without an organic template. The unique structure gave a larger amount of the framework Brnsted acidic sites, which resulted in higher activity and also better stability. Here, we found that the Brnsted acid sites in MOR can be tailored by controlling the composition of the sol-gel or using an appropriate SDA. In particular, a much higher proportion of B8-MR was obtained when HMI was used as the SDA. The higher rates of DME carbonylation verified the successful modification of the acid sites distribution in MOR.
We successfully regulated the acid properties of MOR by different methods. The quantity of Brnsted acid sites and also their distribution were modified through both synthesis and post-treatment methods. Controllable synthesis is a promising approach to synthesize H-MOR zeolite with a high concentration of Brnsted acid sites. The composition of Si and Al in the sol-gel influenced the distribution of Brnsted acid sites. More importantly, HMI as the SDA gave an enrichment of Brnsted acid sites in the 8-MR channels even at a low Al content in zeolite framework. The rate of MA formation from DME carbonylation, which is a typical spatially confined reaction in MOR, exhibited a linear dependence on the amount of Brnsted acid sites located in the 8-MR. This confirmed that the regulation of the Brnsted acid site distribution and location in MOR was achieved. Our results provide a better understanding of the catalytic site requirement in zeolites. Rational design of the spatial constraints around active sites in inorganic structures is a promising strategy to develop an efficient catalyst with excellent activity and selectivity.
