The properties of osmium(II) complexes are similar to those of ruthenium(II) complexes and they can often be prepared using similar methods ^[1]. In a review of the use of osmium complexes in homogeneous catalysis ^[2], Sanchez-Delgado and coworkers pointed out that because of the stronger bonding of this 5d metal compared with that of its 4d counterpart, i.e., ruthenium, osmiuµ-based catalysts have higher thermal and oxidative stabilities and therefore slower exchange kinetics for ligands typically involved in catalytic transformations. These factors have led to the general assumption that in the case of osmium the reactions involved in catalytic cycles, such as Lewis base addition-elimination and insertion-deinsertion, are too slow to be attractive for catalytic applications. These authors also suggested that this drawback could be overcome by choosing an appropriate ligand-metal system. This has recently been confirmed by the development of various osmiuµ-based catalysts that show high performance and versatility in various processes and have efficiencies comparable or superior to those reported for similar ruthenium systems ^{[3, 4]}; this compensates for the higher costs of osmium precursors compared with those of their analogs. However, despite the considerable progress that has been made in osmiuµ-catalyzed reactions, their use in the hydrogenation and isomerization of alkenes has been neglected. In this review, we outline the evolution of the use of osmium complexes as catalysts in the hydrogenation and isomerization of alkenes, to stimulate research in this field.

The investigation of osmium hydrogenation catalysts began in 1965, when Vaska ^[5] reportedpreliminary observations on factors responsible for the catalytic hydrogenation of unsaturated molecules with metal complexes. It was reported that the octahedral hydride d⁶-osmium complex OsHCl(CO)(PPh)₃ (1) catalyzes the hydrogenation of acetylene to ethylene and ethane. Experiments failed to detect hydrogen uptake by this complex (40 ℃, 0.92 atm of H₂); it reacted with molecular deuterium to give the corresponding monodeuteride, OsDCl(CO)(PPh)₃, but not the dideuteride, OsD₂(CO)(PPh)₃.

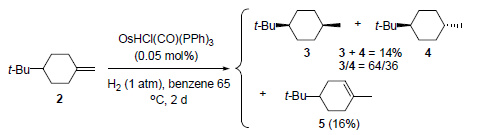

Five years later, the Vaska osmium complex and a number of other metal complexes were assessed for the selective catalytic hydrogenation of 4-t-butylmethylenecyclohexane (2) ^[6]. After 2 d at 85 ℃ under 1 atm of H₂, 1 (0.05 mol%) gave a mixture of cis- (3) and trans-4-t-butylmethylcyclohexane (4) (3:4 = 64:36, 3 + 4 = 14% yield) containing the isomerized alkene, 4-tert-butyl-1-methylcyclohex-1-ene (5) in 16% yield (Scheme 1).

Shortly afterwards, a number of hydrido osmium complexes were prepared and assessed as catalysts in olefin hydrogenation and isomerization ^[7]. Reaction of the tetrahydride osmium complex OsH₄(PEtPh₂)₃ in the absence of H₂ with 4 equiv. of cycloocta-1, 5-diene in toluene at 100 ℃ for 65 h gave a 50% yield of cyclooctene and unreacted cyclooctadiene. The reaction of 12 equiv. of oct-1-ene under the same reaction conditions produced various octanes and 2 equiv. of octane. The same complex converted oct-1-ene under 1 atm of H₂ in boiling toluene to octane and a large amount of isomerized products. The complex cis-OsH₂(PEtPh₂)₄ isomerized and hydrogenated oct-1-ene, indicating that more than two atoms of hydrogen per osmium atom are transferred to octane. This complex also catalyzed hydrogenation under H₂, but the isomerization was much more rapid. Finally, OsH₂(CO)(PEtPh₂)₃ isomerized octenes in boiling toluene without the formation of octane; the isomerization of oct-2-ene was much slower than that of oct-1-ene. This complex gave only traces of hydrogenation products under H₂; the rate of isomerization was similar to that without H₂.

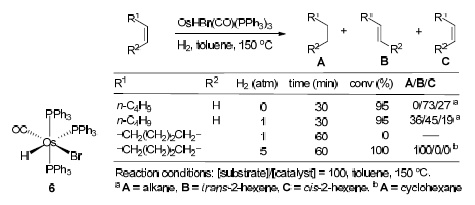

In a preliminary communication, Sánchez-Delgado and coworkers ^[8] described the use of the stable mononuclear osmium(II) complex OsHBr(CO)(PPh₃)₃ (6; Scheme 2), which was first synthesized by Vaska ^[9] in 1964 via the reaction of [OsBr₆]^2- with PPh₃ in refluxing 2-methoxyethanol, as a catalyst in various organic transformations, including alkene isomerization and hydrogenation reactions. Under an inert atmosphere, hex-1-ene was rapidly isomerized (30 min) by 6 ([substrate]:[catalyst] = 100:1) in toluene at 150 ℃, giving an equilibrium mixture of hex-2-enes; no C=C bond migration to the 3-position was observed (Scheme 2). Under 1 atm of H₂, hydrogenation of hex-1-ene to n-hexane was observed together with the formation of hex-2-enes, which were more slowly reduced to hexane. Further data on this isomerization/reduction reaction were later reported by the same research group ^[10]. Under the same reaction conditions, but at 100 ℃, hex-1-ene (7) was rapidly isomerized to a mixture of trans- (8) and cis-hex-2-ene (9) (after 5 h, 7:8:9 = 11:65:24); no double-bond migration to the 3-position occurred, even after reaction for 24 h. Under H₂ at atmospheric pressure, hex-1-ene and trans-hex-2-ene were both isomerized to the same equilibrium mixture. Hydrogenation to n-hexane (10) occurred simultaneously, albeit at a much slower rate (after 5 h, 7:8:9:10 = 7:51:18:24); at longer reaction times, n-hexane became the major product (after 16 h, 7:8:9:10 = 3:34:7:56). Complex 6 did not hydrogenate cyclohexene under 1 atm of H₂, but rapid conversion to cyclohexane was achieved by increasing the H₂ pressure to 5 atm (Scheme 2) ^[8]. The selective hydrogenation in toluene of the α, β-unsaturated aldehyde crotonaldehyde afforded the saturated alcohol or the fully reduced product, depending on the reaction conditions (Table 1, entries 1 and 2) ^[8]. The same reduction in 2-ethoxyethanol solution was next studied using complex 6 and other osmium and ruthenium complexes (Table 1, entries 3-9) ^[11]. The results show that the ruthenium complexes gave high selectivities for C=C bond reduction, whereas osmium complexes gave selective reduction of the C=O bond.

The complex OsHBr(CO)(PPh₃)₃ was the first example of an active osmiuµ-based catalytic system for the selective hydrogenation of conjugated and unconjugated dienes ^[10]. 1-Cyclohexa-1, 3-diene (11) was isomerized under N₂ to the deconjugated product cyclohexa-l, 4-diene (12) (after 5 h, 11:12 = 72:28), but at a slower rate than that observed for hex-1-ene. Under 1 atm of H₂, hydrogenation of 11 gave the mono-olefin cyclohexene 13, the isomerized diene 12, and a small quantity of the fully hydrogenated product cyclohexane (14) (after 24 h, 11:12:13:14 = 37:18:42:3). Alkene 13 was slowly hydrogenated to alkane 14 under these reaction conditions (after 40 h, 13:14 = 83:17), but rapid reduction to 14 was achieved by raising the H₂ pressure to 5 atm. The activity of complex 6 was further investigated based on the hydrogenation of l-carvone (15), a model compound containing exocyclic and endocyclic C=C bonds and a carbonyl group. As shown in Scheme 3, the exocyclic C=C bond in 15 was specifically reduced under 1 atm of H₂ at 100 ℃ (30 turnovers in 24 h). Raising the H₂ pressure to 5 atm resulted in reduction of both C=C bonds (65turnovers in 5 h), but the fully hydrogenated product, 2-methy1-5-(1-methylethyl)cyclohexanol, was not detected.

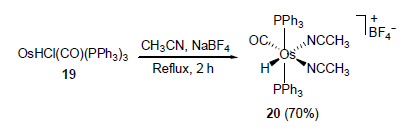

The cationic complex [OsH(CO)(NCMe)₂(PPh₃)₂]BF₄ (20) was synthesized in high yield by reaction of the Vaska complex OsHCl(CO)(PPh₃)₃ (19) with acetonitrile in the presence of NaBF₄ (Scheme 4) ^[12]. These two complexes were assessed as catalysts in the hydrogenation of benzaldehyde, cyclohexanone, cyclohexene, and quinoline. Both complexes were efficient catalysts in the hydrogenation of cyclohexene (Table 2), and had higher activities than their ruthenium analogs. The results show that for some substrates complex 20 was a more efficient catalyst for the hydrogenations of C=C and C=N bonds than for C=O bonds. This enhanced selectivity was rationalized in terms of a greater ability of this charged osmium complex to coordinate with C=C and C=N functional groups to an extent sufficient to promote subsequent hydrogen transfer.

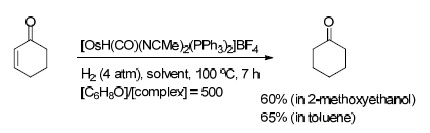

More recently, the same research group found that osmium complex 20 was also an efficient catalyst for the selective reduction of 2-cyclohexen-1-one to cyclohexanone ^[13]. The reductions were performed under 4 atm of H₂ at 100 ℃ for 7 h ([substrate]/[complex] = 500) in 2-methoxyethanol and toluene solutions (Scheme 5). Although previous reports suggested that chemoselective reduction (C=O vs C=C) of the two functional groups in 2-cyclohexen-1-one using the analogous ruthenium complex [RuH(CO)(NCMe)₂(PPh₃)₂]BF₄ as the catalyst depended on the solvent polarity ^[14], similar results were obtained using 20 in polar 2-methoxyethanol (60% yield) and apolar toluene (65% yield). Reduction of the C=O group of cyclohexanone only began when the α, β-unsaturated ketone had been consumed. Two main pathways have been proposed for the hydrogenation of 2-cyclohexen-1-one to cyclohexanone: (1) direct hydrogenation of the C=C bond and (2) hydrogenation of the C=O group of the substrate to produce 2-cyclohexen-1-ol, followed by isomerization to 1-cyclohexen-1-ol, which tautomerizes to cyclohexanone (Scheme 6). Experiments performed with 2-cyclohexen-1-ol to ascertain whether isomerization occurred indicated that the pathway involving isomerization (i.e., 2) could be ruled out.

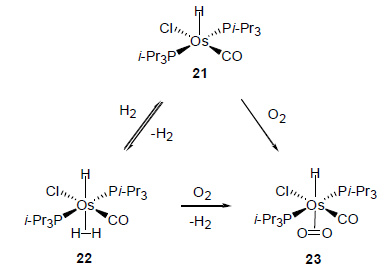

Oro and coworkers ^[15] reported that OsHCl(CO)(Pi-Pr₃)₂ (21) ^[16] added H₂ to give OsHCl(η²-H₂)(CO)(Pi-Pr₃)₂ (22) under 1 atm of H₂ in benzene at room temperature (Scheme 7). On removal of the H₂ atmosphere under reduced pressure, complex 22 was slowly transformed back to the starting complex 21. Traces of O₂ resulted in displacement of H₂ from 22 to give OsHCl(CO)(η²-O₂)(Pi-Pr₃)₂ (23), which can also be formed by stirring a suspension of 21 in 2-propanol exposed to air or in an O₂ atmosphere. Complex 22 catalyzed the hydrogenation of alkenes ([alkene]/[22] = 100, 1 atm of H₂, 60 ℃), but 21 gave no reaction. The hydrogenation rate depended on the solvent (for styrene: PhH < 1, 2-C₂H₄CI₂ < i-PrOH) and on the olefin (in i-PrOH: benzylideneacetone < cyclohexene < styrene). Phenylacetylene was selectively reduced to styrene, and benzylideneacetone to benzylacetone; for cyclohexa-l, 4-diene and diphenylacetylene [preferential formation of (Z)-stilbene] the selectivities were low. Kinetic studies indicated that a tris-hydrido(alkene)osmium or tris-hydrido(alkyne)osmium complex is formed as an intermediate, and gives an alkyl or vinyl species, respectively, via an insertion reaction.

Kinetic and mechanistic studies of the sequential hydrogenation of phenylacetylene catalyzed by OsHCl(CO)(PR₃)₂ [PR₃ = Pi-Pr₃ (21) and PMet-Bu₂ (24)] were reported ^[17]. These studies showed that complexes 21 and 24 efficiently catalyzed the sequential hydrogenation of phenylacetylene in 2-propanol solution at 60 ℃ under 1 atm of H₂, affording selectivities close to 100% for hydrogenation of the alkyne to the alkene. Reduction of the double bond only began when most of the alkyne had been consumed. In the absence of an alkyne, styrene was hydrogenated to ethylbenzene at faster rate than that observed for reduction of the acetylenic triple bond. No reduction of the organic substrates was observed in 2-propanol under argon, showing that hydrogen transfer from the solvent is not an important catalytic pathway.

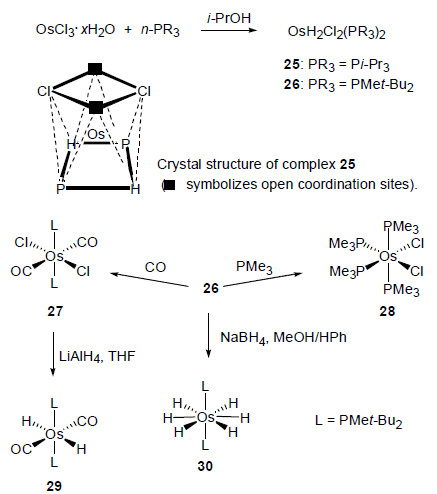

The six-coordinate diamagnetic osmium(IV) complexes OsH₂Cl₂(PR₃)₂ [PR₃ = Pi-Pr₃ (25) and PMet-Bu₂ (26)] were prepared from OsCl₃·xH₂O and PR₃ in boiling 2-propanol in about 80% yield (Scheme 8) ^[18]. The crystal structure of complex 25 was determined. Treatment of complex 26 with CO led to reductive elimination of H₂ and formation of all-trans-OsCl₂(CO)₂(PMet-Bu₂)₂(27). Similarly, complex 26 reacted with excess PMe₃ to give cis-OsCl₂(PMe₃)₄ (28). The reaction of complex 27 with LiAIH₄ in tetrahydrofuran led to the formation of all-trans-OsH₂(CO)₂(PMet-Bu₂)₂(29), whereas treatment of 25 and 26 with NaBH₄ in methanol/benzene afforded the hexahydrido complexes OsH₆(PR₃)₂ 30 in about 60% yields. Under 1 atm of H₂ at 60 ℃, solutions of 25 in 2-propanol, 1, 2-dichloroethane, or toluene ([25] = 2.5 × 10^-3 mol/L, [olefin]/[25] = 100) catalyzed the hydrogenations of styrene, methylstyrene, cyclohexene, and cyclooctene at considerable initial rates. The initial rate v₀ depended both on the solvent (for cyclooctene: v₀[i-PrOH] > v₀[MePh] > v₀[1, 2-Cl₂C₂H₄]) and the olefinic substrate (in i-PrOH: cyclooctene > styrene > cyclohexene > methylstyrene). Dienes and α, β-unsaturated ketones were also hydrogenated by complex 25. Cycloocta-1, 5-diene was more rapidly reduced than the 1, 3-isomer. This finding was also true in a competitive sense: cycloocta-l, 3-diene was not hydrogenated until the concentration of the 1, 5-isomer was almost zero. However, for these reactions, selectivity for the mono-olefin was poor. In contrast, benzylideneacetone and benzylideneacetophenone were reduced to the saturated ketones with high selectivities.

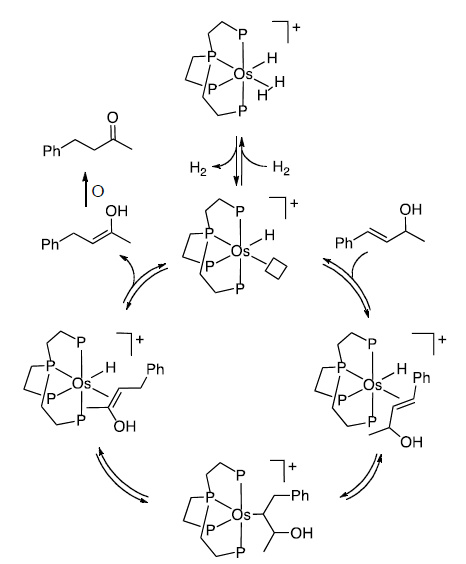

Bianchini and coworkers ^[19] reported that the hydride complexes [M(H)(η²-H₂)(PP₃)]BPh₄ [M = Fe, Ru, Os; PP₃ = P(CH₂CH₂PPh₂)₃] were efficient catalysts for the reduction of α, β-unsaturated ketones via hydrogen transfer from 2-propanol at 80 ℃. The iron and ruthenium complexes reduced α, β-unsaturated ketones to allylic alcohols, whereas the osmium system [OsH(H₂)(P(CH₂CH₂PPh₂)₃)]BPh₄ (31) afforded saturated ketones via isomerization of the initially produced allylic alcohols. Acyclic α, β-unsaturated ketones were reduced with good catalytic activity to give the corresponding saturated ketones, which were subsequently reduced to saturated alcohols (Table 3). Cyclic α, β-unsaturated ketones were also reduced, but in this case the product distribution depended on both the ring size and steric hindrance around the reducible groups. Complex 31 did not catalyze reactions of simple olefins or olefins activated by electron-withdrawing groups, except in the reaction with methyl cinnamate, in which traces of the reduction product were detected. A mechanism for the isomerization of allylic alcohols to saturated ketones catalyzed by osmium complex 31 was proposed (Scheme 9) based on the results of a number of experiments.

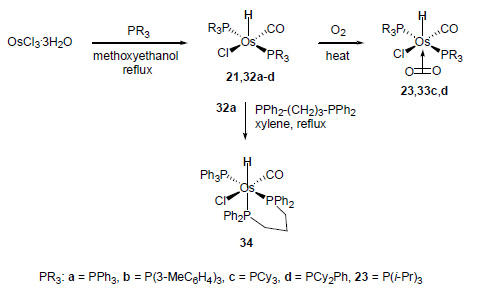

In a series of papers, Rempel and coworkers ^[20] reported studies of the activities of a number of osmium complexes as catalysts for the hydrogenation of diene-based polymers and copolymers. The osmium complexes OsHCl(CO)(Pi-Pr₃)₂ (21) and OsHCl(CO)(PR₃)₂ 32a-d (PR₃ = a: PPh₃, b: P(3-MeC₆H₄)₃, c: PCy₃, d: PCy₂Ph) were prepared by reacting OsCl₃·3H₂O with the appropriate phosphine in methoxyethanol under reflux. OsHCl(CO)(η²-O₂)(Pi-Pr₃)₂ (23) and OsHCl(CO)(η²-O₂)(PR₃)₂ 33c and d (PR₃ = c: PCy₃, d: PCy₂Ph) were obtained by exposing a suspension of complexes 21 and 32c or d in hexane to pure O₂. OsHCl(CO)(PPh₃)(dppp) (34; dppp = Ph₂P(CH₂)₃PPh₂) was obtained by reacting complex 32a with dppp in refluxing p-xylene (Scheme 10).

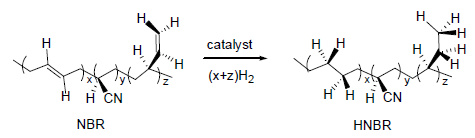

Rempel's group reported that the osmium(II) complexes OsHCl(CO)(L)(PCy₃)₂ (L = vacant 32c and O₂ 33c) were efficient catalysts for the selective hydrogenation of acrylonitrile-butadiene rubber (NBR) (Scheme 11) ^[21]. These catalysts were more active under industrial conditions (pressure > 20 atm, temperature > 100 ℃) than rhodiuµ-, rutheniuµ-, and palladiuµ-based systems ^[22-24]. A detailed study of their catalytic behaviors under hydrogenation conditions approaching those used industrially was later reported ^[25].

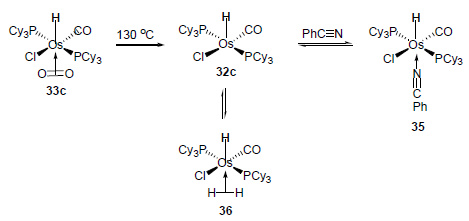

Scheme 12 shows the structures and reactivities of the O₂, PhCN, and H₂ complexes 32c, 35, and 36, which were investigated in that study. Complex 33c, which was used as a catalyst precursor, was activated by O₂ dissociation to generate the related five-coordinate complex 32c ^[26]. Because of its coordinative unsaturation, small Lewis bases readily added to complex 32c to form isolable complexes such as the nitrile adduct 35. H₂ added to the metal center by η²-coordination, with the H-H bond remaining intact, to give complex 36. The predominant osmium complexes formed during NBR hydrogenation under 23.7 atm of H₂ at 130 ℃ were the dihydrogen and nitrile complexes 35 and 36.

The process was first order with respect to [Os], implying that the active complex is mononuclear. Nitrile and phosphine ligands both reduced the catalytic activity: nitrile by coordination to the metal center and phosphine presumably by inhibition of a required dissociation reaction. Nitrile coordination induced second-order dependence of the reaction rate with respect to H₂; the effect was less at high pressures. In contrast, the hydrogenation of substrates lacking a nitrile functionality was unaffected by H₂ at all pressures. These kinetic measurements, coupled with other observations, provide the basis of a plausible reaction mechanism, in which two molecules of H₂ are involved in the rate-limiting reaction (Scheme 13) ^[27].

The NBR hydrogenation selectivities of osmium complexes 21, 23, 32a-d, 33c and d, and 34 were investigated ^[20]. These complexes were divided into three classes, based on correlations between the phosphine ligand properties and catalytic activities of the complexes: (1) class I: complexes containing bulky monophosphines with a Tolman's cone angle ≥160° (23, 32c and d, and 33c and d); (2) class II: complexes containing small monophosphines (32a and b); and (3) class III: complexes containing diphosphines (34). The activities of these complexes generally decreased in the order: class I > class II > class III. This trend was mainly attributed to the ease of dissociation of a ligand from an 18-electron complex to generate a 16-electron species (O₂ > PR₃ > dppp) in the catalytic process. The catalytic activities of class I complexes increased as follows: PCy₂Ph << Pi-Pr₃ < PCy₃. This trend does not correlate with the steric effects, based on Tolman's cone angles, but it is in good agreement with electronic effects, which were evaluated based on the infrared (IR) n_CO values of these complexes. The catalytic activities of these complexes increased with decreasing n_CO value, which is consistent with the increase in the donor power of the phosphine ligands. This indicates that the activities of these complexes predominately depend on the electronic properties of the phosphines; based on this and the kinetic isotope effect, the rate-determining step in the catalytic process would be H₂ bond cleavage or olefin insertion into an Os-H bond. For classes II and III, complexes containing bulky, strong s-donor and weak p-acceptor phosphines were good catalysts, whereas the presence of a chelating phosphine ligand resulted in a poor catalyst.

The catalytic activities of a number of catalysts, namely RhCl(PPh₃)₃, RuCl(CO)(styryl)(PCy₃)₂, [Ir(COD)py(PCy₃)]PF₆, and OsHCl(CO)(h²-O₂)(PCy₃)₂ (33c), in the homogeneous hydrogenation of cis-1, 4-poly(isoprene) (CPIP) were investigated by monitoring the amount of H₂ consumed during the reaction (Scheme 14) ^[27]. The osmium complex was the most efficient. Kinetic experiments on OsHCl(CO)(h²-O₂)(PCy₃)₂-catalyzed CPIP hydrogenation in toluene under 3.4-68 atm of H₂ at 115-140 ℃ indicated that the hydrogenation rate was first order with respect to the catalyst and the C=C bond concentration. A second-order dependence on H₂ concentration for low values and zero order dependence for higher values of H₂ concentration were observed. The apparent activation energy for CPIP hydrogenation in the temperature range 115-140 ℃ was 109.3 kJ/mol. Investigation of the mechanism of this catalytic process showed that the catalytic cycle is the same as that proposed for NBR hydrogenation (Scheme 13) ^[25].

The homogeneous complex 33c was also reported to be an efficient catalyst precursor for the hydrogenation of natural rubber latex (NRL) under 2-68 atm of H₂ at 125-145 ℃ in chlorobenzene, providing an alternating ethylene-propylene copolymer (Scheme 15) ^{[28, 29]}. Kinetic data showed the effects of the catalyst and polymer concentrations, H₂ pressure, and reaction temperature on the catalytic activity. The hydrogenation reaction was first order with respect to catalyst concentration, which implies that the active complex was a mononuclear species. The hydrogenation rate showed first-order dependence on H₂, but this changed to zero-order dependence at low H₂ pressures, and inverse H₂ dependence at high H₂ pressures. The hydrogenation rate depended on the reaction temperature, and the apparent activation energy in the temperature range 125-145 ℃ was 122.76 kJ/mol. A mechanism for the hydrogenation of natural rubber in the presence of OsHCl(CO)(h²-O₂)(PCy₃)₂ was proposed on the basis of the kinetic results.

Complex 33c was an efficient catalyst for hydrogenation of a styrene-g-natural rubber copolymer (ST-g-NR) under 6.7-78 atm of H₂ at 120-160 ℃ in chlorobenzene ^[30]. Univariate experiments were conducted to explore the effects of variables on the rate of hydrogenation; the H₂ consumption as a function of time was measured using a gas-uptake apparatus. The kinetic results showed that ST-g-NR hydrogenation was first-order with respect to [C=C]. The hydrogenation rate showed first-order dependence on the catalyst concentration. The reaction showed first-order dependence on H₂ pressure, changing to zero-order dependence with increasing H₂ pressure. The rate of hydrogenation also decreased with increasing rubber concentration. The addition of a small amount of acid increased the hydrogenation rate of the grafted natural rubber. The ST-g-NR hydrogenation rate depended on the reaction temperature, and the apparent activation energy in the range 120-160 ℃ was 83.3 kJ/mol.

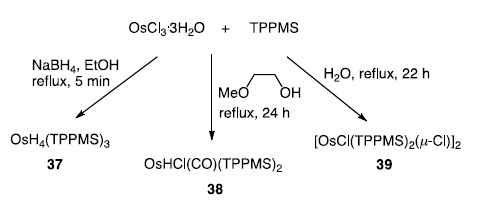

Sanchez-Delgado and coworkers ^[31] synthesized three water-soluble complexes, OsH₄(TPPMS)₃ (37), OsHCl(CO)(TPPMS)₂ (38), and [OsCl(TPPMS)₂(µ-Cl)]₂ (39) (TPPMS = m-sulfonatophenyldiphenyldiphosphine), as shown in Scheme 16. These complexes and mixtures of osmium salts with TPPMS and TPPTS (tris-m-sulfonatophenylphosphine) catalyzed the hydrogenation of cinnamaldehyde under mild reaction conditions in aqueous biphasic systems (Table 4). The activities and selectivities of these catalysts were compared with those of the homogeneous PPh₃ analogs (Table 4). In the examined series, a combination of OsCl₃·3H₂O with 6 equiv. of PPh₃ provided the best homogeneous catalytic system for the regioselective reduction of the C=O bond of cinnamaldehyde. The regioselectivity for production of the α, β-unsaturated alcohol increased significantly on changing from a homogeneous to a biphasic system; OsCl₃·3H₂O with TPPMS or, better still, TPPTS gave the best aqueous biphasic systems.

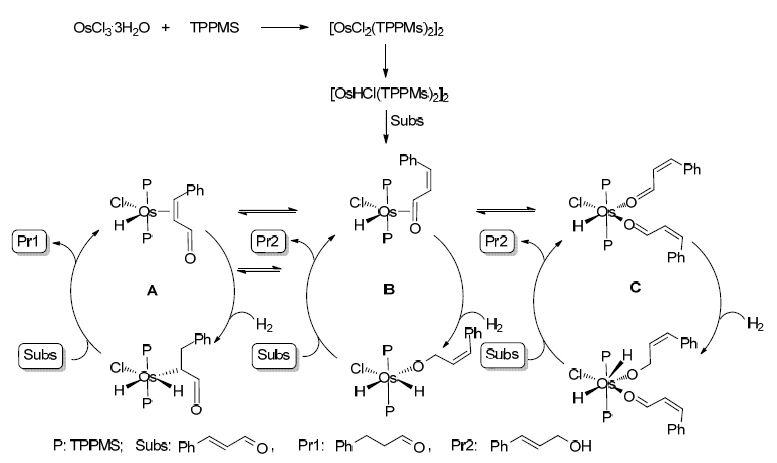

The authors proposed a mechanism for the hydrogenation of cinnamaldehyde with the in situ-prepared catalyst, involving a reasonable set of reactions that lead to the active species participating in the catalytic cycle (Scheme 17) ^[31].. The complex OsCl₃·3H₂O first reacts with TPPMS to yield the dimer [OsCl₂(TPPMS)₂]₂, which is then transformed into [OsHCl(TPPMS)₂]₂ by reaction with H₂; a bridge-splitting reaction with a substrate molecule (Subs) generates the monomeric intermediate OsHCl(TPPMS)₂(Subs), in which the unsaturated aldehyde can be coordinated through the C=C bond or the C=O bond. This provides entries into two catalytic cycles (A and B), leading to the saturated aldehyde (Pr1) and the unsaturated alcohol (Pr2), respectively, probably via a standard series of elementary steps (oxidative addition of H₂, stepwise transfer of hydride to the unsaturated bond, and reductive elimination of the products). At low substrate concentration the reaction selectivity depends on the ability of the catalyst to form the species in the cycle A or B in the mixture. If the substrate concentration is high, two molecules can bind to the metal atom; in this case, for steric reasons, end-on coordination through the C=O bond is favored over side-on C=O or C=C coordination, leading to higher selectivity for the unsaturated alcohol through the third catalytic cycle C (Scheme 17). High selectivity effects are observed on switching from homogeneous to biphasic catalysts because the more hydrophilic C=O bond points toward the aqueous phase, in which the metal center is located, whereas the hydrophobic C=C bond points away from the aqueous phase and into the organic layer, favoring the format ion of the species in B and C over A.

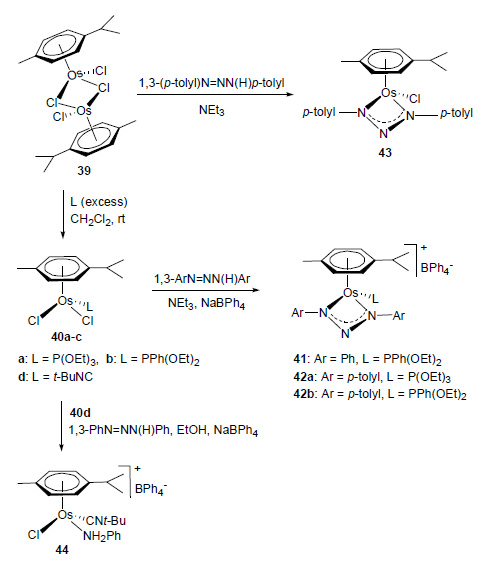

The reactions of [OsCl(m-Cl)(h⁶-p-cymene)]₂ (39) with phosphites or tert-butylisocyanide gave the p-cymene complexes OsCl₂(h⁶-p-cymene)L 40a-c [L = a: P(OEt)₃, b: PPh(OEt)₂, c: tert-BuNC], as shown in Scheme 18 ^[32]. Treatment of complexes 40a and b with the triazines 1, 3-ArN=NN(H)Ar (Ar = Ph and p-tolyl) and excess NEt₃ afforded the cationic triazenide derivatives [Os(h²-1, 3-ArNNNAr)(h⁶-p cymene)L]BPh₄ 41 [Ar = Ph, L = PPh(OEt)₂] and 42a and b [Ar = p-tolyl, L = PPh(OEt)₂ or P(OEt)₃]. The neutral triazenide complex OsCl(h²-1, 3-(p-tolyl)NNNp-tolyl)(h⁶-p-cymene) (43) was prepared by reacting 39 with 1, 3-diaryltriazene in the presence of NEt₃. The p-cymene complex 39 (L = CNt-Bu) reacted with an equimolar amount of the triazine 1, 3-PhN=NN(H)Ph to give the amine derivative [OsCl(PhNH₂)(h⁶-p-cymene)CNt-Bu]BPh₄ (44).

The osmium complexes 41, 42a and b, 43, and 44 were used in the hydrogenation of styrene under 50 atm of H₂ at 80℃ for 22 h, with a substrate/catalyst molar ratio of 500/1 ^[32]. All the catalytic precursors were highly active, affording ethylbenzene in high yields (80%-100%; Table 5). 2-Cyclohexen-1-one was also hydrogenated with these catalysts under the same reaction conditions. The cationic complexes 41 and 42a and b gave low substrate conversions and a mixture of cyclohexanone and cyclohexanol, the former being the main reaction product (80%-85%) (Table 6). The neutral osmium derivative 43, which did not contain a phosphorus ligand, was even less active (10% conversion) and afforded cyclohexanone as the only product. A better result was achieved by performing the reaction in the presence of the isocyanide derivative 44, which gave about 77% substrate conversion. Again, a mixture of cyclohexanone and cyclohexanol was produced and the ketone was the major product (84%). The catalytic activities of these osmium complexes increased when the reaction temperature was increased to 100 ℃. The temperature increase not only led to a substrate conversion of 100%, but also increased hydrogenation of the C=O bond. All the cationic osmium complexes containing a phosphite ligand afforded cyclohexanol in about 40% yield (Table 6) and the most active isocyanide complex, i.e., 44, gave cyclohexanol in 100% yield. When the osmiuµ-based catalytic precursors 41, 42a and b, 43, and 44 were used to hydrogenate cinnamaldehyde under 50 atm of H₂ at 100 ℃ for 22 h, the results were disappointing. In all cases, only 3-phenylpropanal was formed, in negligible amounts (2%-3%).

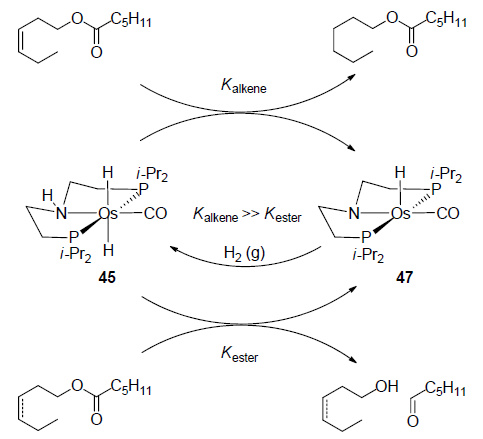

Recently, Gusev and coworkers ^[33] evaluated the osmiuµ-hydride complexes OsH₂(CO)[NH(CH₂Pi-Pr₂)₂] (45) and OsHCl(CO)[NH(CH₂Pi-Pr₂)₂] (46) (Fig. 1) in the catalytic hydrogenation to alcohols of hexyl octanoate and cis-3-hexenyl hexanoate, as model substrates for triglycerides. Both complexes achieved full conversion of hexyl octanoate to hexanol under 54 atm of H₂ at 220 ℃. However, when the second model substrate, cis-3-hexenyl hexanoate, was used under the optimum reaction conditions, complexes 45 and 46 hydrogenated the C=C bond, affording hexyl hexanoate as the main product (97%) and a small trace of 1-hexanol (<3%), resulting in ineffective reduction of the ester moiety. These results show that these complexes are active and selective catalysts for alkene hydrogenation. The reasons for these results were elucidated using ¹H, ¹³C, and ³¹P nuclear magnetic resonance spectroscopy. The spectroscopic information was consistent with reaction of the unsaturated ester with the hydrogenated catalyst 45, yielding the saturated ester and amido complex 47, which can then react under catalytic conditions directly with H₂, generating 45 and closing the catalytic cycle. Scheme 19 summarizes these reactions.

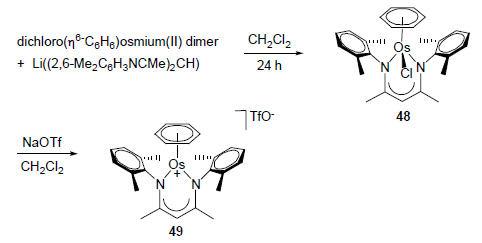

Phillips and coworkers ^[34] described the synthesis and catalytic applications of the organoosmium β-diketiminato complex 48, which was obtained by treatment of the dichloro(η⁶-C₆H₆)osmium(II) dimer with Li[(2, 6-Me₂C₆H₃NCMe)₂CH], and complex 49, which was formed by reacting 48 with NaOTf (Scheme 20). These complexes were screened for their abilities to mediate the catalytic hydrogenations of various olefins. Complexes 48 [turnover frequency (TOF) = 1842 h^-1] and 49 (TOF = 1246 h^-1) both showed good activity in the hydrogenation of styrene, superior to those of the ruthenium analogs (Table 7). The reduction of cyclohex-1-ene was significantly slower than that of styrene (TOF = 1090-1492 h^-1). A considerable decrease in the catalytic activity was observed when 1-methylcyclohex-1-ene was used, as a consequence of the increased steric bulk of the substrate (TOF = 66-60 h^-1; Table 8). Complexes 48 and 49 gave exclusive exocyclic hydrogenation of limonene, and the osmium complexes were considerably more active than their ruthenium counterparts (Table 9). This was the first report of the osmiuµ-catalyzed hydrogenation of limonene.

A number of osmium carbonyl clusters have been synthesized and used as catalysts in the isomerization and hydrogenation of C=C bonds ^[35].

Ferrari et al. ^[36] reported that the trinuclear cluster Os₃(CO)₁₂ in toluene catalyzed the isomerization of linear mono-olefins such as pentenes and hexanes at 110-120 ℃. Pent-1-ene gave 2-cis- and 2-trans-pentene in an initial ratio of 0.4-0.5, but reliable values for the initial isomerization rate could not be obtained because carbonyl complexes were formed when the conversion of pent-1-ene began to be detectable.

The use of osmium clusters as catalysts poses the question whether the cluster itself or a cluster fragment is the catalytically active species. Detailed mechanistic studies were performed to clarify this point.

Keister et al. ^[37] reported that the unsaturated dihydro derivative H₂Os₃(CO)₁₀ hydrogenated olefins in solution. The reaction of this osmium complex with 100 equiv. of hex-1-ene under 3.4 atm of H₂ at 50 ℃ in octane for 35 h gave 31 equiv. of hexane and 69 equiv. of internal hexenes. All the catalyst was recovered at the end of the reaction. The high degree of isomerization indicated reversibility of the insertion and coordination steps, whereas buildup of internal hexenes is consistent with the observed failure of H₂Os₃(CO)₁₀ to hydrogenate other internal alkenes such as cyclooctene. A combination of chemical and spectroscopic methods was used to establish the catalytic cycle, and showed that only trinuclear species were present throughout the hydrogenation process (Scheme 21). The key presumed intermediate in this scheme is the highly unsaturated 44-electron species Os₃(CO)₁₀ (53), which reacts with H-H or vinylic C-H bonds, if available, or decomposes via other, unknown, pathways.

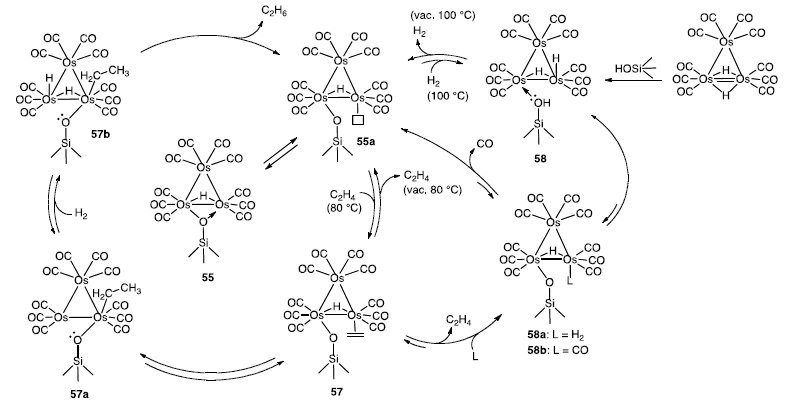

Basset and coworkers ^{[38, 39]} reported that the closely related silica-supported cluster Os₃(CO)₁₀(µ-H)(µ-OSi≡) (55) was an efficient catalyst for ethylene hydrogenation using an ethylene and H₂ (1:10) mixture at 80 ℃ in a closed vessel. Several hydrogenation runs gave about 100% ethylene conversion without any appreciable loss in catalytic activity and apparent changes in the spectroscopic properties of the catalyst. The nature of the active species and the elementary steps involved in the hydrogenation reaction were established based on kinetic and mechanistic studies of cluster 55, and the soluble model compound Os₃(CO)₁₀(µ-H)(µ-OPh) (56). Kinetic (hydrogenation was zero order in ethylene and first order in H₂), volumetric, and IR spectroscopic studies of the reaction of 55 with ethylene, H₂, and CO indicated a mechanism involving the intact triosmium framework in all the elementary steps, supporting the catalytic cycle shown in Scheme 22. The facile 3e ⇌ 1e interconversion of surface oxygen ligands provided an appropriate energy balance for cluster catalysis without fragmentation. The reactivity of 56 toward ethylene and H₂ was also studied using IR and NMR spectroscopies. The results were in agreement with the hydrogenation cycle proposed for 55. However, in contrast to 55, compound56 was quickly transform ed in solution under catalytic conditions, with loss of phenol and formation of H₂Os₃(CO)₁₀ and H₄Os₄(CO)₁₂. This different behavior indicated stabilization by the silica support.

Sánchez-Delgado and coworkers ^[40] investigated the catalytic potential of tri- and tetra-nuclear osmium clusters using the hydrogenation of cyclohexene under 30 atm of H₂ at 100 and 150 ℃ as model reactions (Table 10). The following possible correlations between the catalytic behavior and metal framework structure were proposed. (1) Trinuclear and tetranuclear osmium clusters are efficient catalyst precursors for olefin hydrogenation under moderate reaction conditions, affording appreciable conversions to cyclohexane. (2) The thermal stability is an important factor in the catalytic behaviors of the Os₃ and Os₄ cluster units; the more fragile clusters tend to rearrange to the more stable tetranuclear structure H₄Os₄(CO)₁₂. (3) Coordinatively unsaturated "open" structures, if thermally stable (e.g., H₃Os₄(CO)₁₂I), have higher catalytic activities than "closed" saturated species (e.g., H₄Os₄(CO)₁₂). The increased stability and reactivity are, in this particular case, probably related to the presence of an iodine ligand. (4) For any one structure, anionic clusters tend to be more active than their neutral analogs.

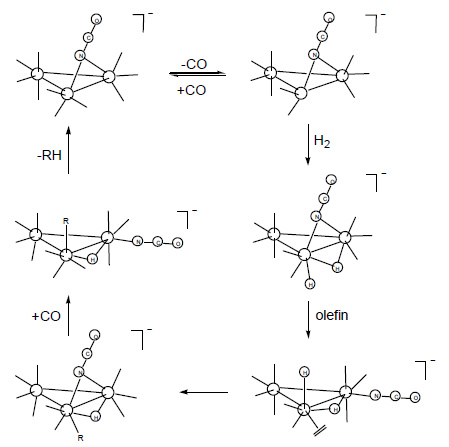

Another system that appears to hydrogenate olefins via a cycle involving only trinuclear species is the osmium complex PPN[Os₃(NCO)(CO)₁₁] [PPN = bis(tripheny1phosphine)iminium cation] (59), which hydrogenated maleic anhydride at 60 ℃ and 3.4 atm of H₂ to afford succinic anhydride after 24 h ^[41]. Analogously, 3, 3-dimethylbutene was hydrogenated at 78 ℃ within 24 h. Spectroscopic studies of the chemical reactions involved with 59 provided evidence for the intermediates shown in the catalytic cycle proposed in Scheme 23, in which the µ-h² ⇌ h¹ transformation of the isocyanate ligand provides the vacant coordination site required for catalysis to proceed, without the need to break any Os-Os bonds.

Styrene hydrogenation was efficiently catalyzed by the tetranuclear osmium complexes H₃Os₄(CO)₁₂(I) (60), H₄Os₄(CO)₁₂ (61), [H₂Os₄(CO)₁₂(I)]^- (62), and [H₃Os₄(CO)₁₂]^- (63) in decalin solution at 140 °C and 1.05 atm of H₂ ^[42]. The activity of the butterfly-shaped cluster 60 was considerably higher than those of the tetrahedral species 61-64. This would be expected to be the case if the integrity of the clusters is maintained during catalysis because a butterfly metal framework is electronically less saturated than a tetrahedral arrangement. However, kinetic (the reaction rate depended on the cluster structure and was first order with respect to the concentrations of styrene and H₂, and the TOF increased with decreasing cluster concentration), spectroscopic, and other results indicated that tetranuclear osmium clusters were not directly involved in the catalytic cycle, but probably underwent fragmentation to produce low concentrations of species of lower nuclearity (perhaps mononuclear), which were responsible for the observed activity.

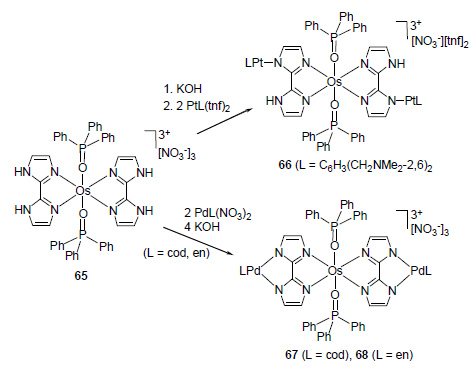

Comba and coworkers ^[43] reported the synthesis and characterization of trinuclear Pt(II)-Os(III)-Pt(II) and Pd(II)-Os(III)-Pd(II) complexes, with 2, 2'-biimidazolate (Hbiim^-, biim^2-) as bridging ligands. The mononuclear osmium(III) complex [Os(H₂biim)₂(O=PPh₃)₂](NO₃)₃ (65) ^[44], used as the starting material, was deprotonated by KOH, affording [Os(Hbiim)₂(O=PPh₃)₂](NO₃) and [Os(biim)₂(O=PPh₃)₂]^-, which smoothly reacted with various transition-metal complexes, producing the trimetallic OsPt₂ and OsPd₂ complexes 66-68 in high yields (Scheme 24). The catalytic properties of complexes 66-68 were investigated based on homogeneous hydrogenation of hex-1-ene and cyclohexene in dichloromethane solution at 25 ℃ under 5 atm of H₂. Low catalytic activities were observed with these complexes, being 67 the most active catalyst in the series (Table 11).

In this review, we have described the evolution of osmium complexes as catalysts in the hydrogenation and isomerization of alkenes. Some of the examples reported here show that the activities and selectivities of osmium complexes in such catalytic processes were initially relatively low, but have increased to useful levels. However, it should be noted that, despite the growing number of reports on the use of osmium complexes in catalysis, examples of these processes are still limited. Studies have so far mostly concentrated on simple model substrates, and therefore reactions involving sophisticated organic molecules need to be explored. Moreover, there are no reported examples of stereoselective alkene reductions using osmium complexes. The development of new osmium complexes or improvement of the existing ones is certainly of great interest in the search for new methods for the catalytic hydrogenation and isomerization of alkenes.
