Sonochemical fabrication, characterization and enhanced photocatalytic performance of Ag2S/Ag2WO4 composite microrods
He Hongboa, Xue Shuangshuanga, Wu Zhena, Yu Changlina, Yang Kaia, Peng Guiminga, Zhou Wanqina, Li Dehaob
a. School of Metallurgy and Chemical Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, Jiangxi, China ;
b. Faculty of Environmental and Biological Engineering, Guangdong University of Petrochemical Technology, Maoming 525000, Guangdong, China
Foundation Item: This work was supported by the National Natural Science Foundation of China (21567008,21263005),the Yangfan Project of Guangdong Province,the Natural Science Foundation of Jiangxi Province (20133BAB21003,20161BAB203090),the Landing Project of Science and Technology of Colleges and Universities in Jiangxi Province (KJLD14046),and the Graduate Innovation Project of Jiangxi Province (YC2015-S293)
* Corresponding author. Tel/Fax: +86-797-8312334; E-mail: yuchanglinjx@163.com E-mail: dehlee@163.com
Abstract: Ag2S/Ag2WO4 composite microrods, with lengths of 0.2-1 m and diameters of 20-30 nm, were fabricated by a facile sonochemical route. The as-synthesized products were intensively investigated by a series of physicochemical characterizations, such as N2 physical adsorption, X-ray diffraction, scanning electron microscopy, transmission electron microscopy, Fourier transform infrared spectroscopy, diffuser reflectance spectroscopy, X‐ray photoelectron spectroscopy, photoluminescence spectroscopy and photocurrent response measurements. Ultrasonic irradiation yields an obvious improvement in the photocatalyst texture, for example, an increase in crystallinity and surface area. Moreover, sonochemically fabricated Ag2S/Ag2WO4 microrods display strong visible light absorption and a high transient photocurrent response. The produced intimate Ag2S/Ag2WO4 interface between Ag2S and Ag2WO4 crystal phases largely promotes the separation of photogenerated holes and electrons. High photocatalytic activity and stability were obtained over Ag2S/Ag2WO4 composite microrods. The dye degradation rate constant of Ag2S/Ag2WO4 was 4.7 times and 29.8 times higher than that of bare Ag2WO4 and Ag2S, respectively.
© 2016, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Sonochemistry     Microrod     Silver tungstate     Photocatalysis     Heterojunction
Ag2S/Ag2WO4微米棒的声化学合成、表征及其高光催化性能
何洪波a, 薛霜霜a, 吴榛a, 余长林a, 杨凯a, 彭桂明a, 周晚琴a, 李德豪b
a. 江西理工大学冶金与化学工程学院, 江西赣州 341000 ;
b. 广东石油化工学院环境与生物工程系, 广东茂名 525000
摘要:TiO2 作为一种光催化剂广泛应用于各种污染物的降解. 但是它较大的宽禁带 (~3.2 eV) 导致其很难吸收可见光, 因此寻找窄禁带的具有可见光响应的半导体光催化剂成为近年来光催化研究的热点. 在众多窄禁带光催化剂中, 纯 Ag2S 在降解污染物方面并不出色, 但是作为一种窄禁带的直接带隙半导体, 它在加快电子迁移和提高光量子效率方面表现出色. 目前有许多高催化活性的 Ag2S 异质结复合半导体光催化剂的报道, 如 Ag2Mo3O10-Ag2S, TiO2-Ag2S, ZnS-Ag2S和NiO-Ag2S 等. Ag2WO4 是一种具有新颖物理化学性质的半导体材料, 在催化、传感器、抗菌和光致发光等方面有着广泛应用. 但是, Ag2WO4 的理论带隙较宽, 约为 3.5 eV, 而且光照下Ag2WO4 很容易产生光化学腐蚀而分解出单质银, 作为光催化剂存在太阳光利用率低和稳定性较差等缺点. 声化学是一种特殊纳米材料的合成方法. 它主要是利用超声空化产生特殊的物理化学环境来强化化学键的生成, 同时实现半导体从无定形态到固定晶型转变. 本文采用超声辅助共沉淀法制备了长为 0.2‒1 μm、直径为 20‒30 nm 的 Ag2S/Ag2WO4 微米棒复合光催化剂. 利用 X 射线衍射 (XRD)、N2 物理吸附、扫描电镜、透射电镜、光电子能谱、光致发光谱 (PL) 和紫外-可见漫反射吸收光谱 (UV-vis DRS)和光电流等手段对所制 Ag2S, Ag2WO4 和 Ag2S/Ag2WO4 进行了表征. 结果表明, 合成的样品比表面积较小 (2.7‒3.6 m2/g). UV-vis DRS 测试表明, 声化学处理能有效拓宽 Ag2S/Ag2WO4 在可见光区的吸收范围, 提高其可见光响应性能. 另外, PL 和光电流测试结果证实, 在声化学制备的 Ag2S/Ag2WO4 体系中, 光生电子 (e)-空穴 (h+) 的复合过程被极大地限制, 具有较高的 e-h+分离效率. 以金卤灯为光源进行了光催化降解染料亚甲基蓝的性能测试. 结果表明, 声化学合成的 Ag2S/Ag2WO4 的反应速率常数 (0.150 min‒1) 分别为单纯 Ag2WO4 (0.031 min‒1) 和 Ag2S (0.004 min‒1) 的 4.7 和 29.8 倍. 自由基捕获实验表明, 在 Ag2S/Ag2WO4 光催化降解甲基橙过程中主要的活性物种为超氧自由基 (O2) 和光生空穴 (h+). 此外, 声化学合成的 Ag2S/Ag2WO4 表现出很好的光催化稳定性. 循环使用 3 次后, 该样品对亚甲基蓝的光催化活性仍高达 80.4%, 而纯 Ag2WO4 几乎完全失活. Ag2S/Ag2WO4 具有很高的光催化活性的原因, 一方面是声化学处理提高了催化剂的结晶度, 同时生成了独特的棒状结构; 另一方面是在超声作用下, Ag2S 和 Ag2WO4 两相紧密接触形成异质结, 促进了可见光的吸收和光生 e与 h+的分离.
关键词声化学     微米棒     钨酸银     光催化     异质结

1 Introduction

The optimal way to deal with the organic pollutants in wastewater is an important issue for environmental protection. Semiconductor photocatalytic technology displays promising applications in the decomposition of organic compounds in polluted water [1-4]. The photocatalyst TiO2 has been widely used in the degradation of various pollutants. However, the wide band gap energy (~3.2 eV) of TiO2 leads to its low application efficiency of solar light because TiO2 can only absorb the small ultraviolet light fraction of solar light (about 2%-3%) [5-8]. Therefore, many studies have focused on developing visible light response semiconductor photocatalysts with a narrow band gap [9-11].

Among the numerous narrow band gap photocatalysts, although pure Ag2S displays poor photocatalytic performance in the degradation of pollutants, as a narrow band gap and stable direct semiconductor, Ag2S exhibits excellent performance in accelerating the electron transfer [12]. The formation of a heterojunction can highlight this effect [13-16]. For example, the heterojunctions of Ag2Mo3O10-Ag2S [14], TiO2-Ag2S [18], ZnS-Ag2S [19] and NiO-Ag2S [20] display superior photocatalytic performance. As a novel and stable semiconductor material, Ag2WO4 has been widely used in catalysis, sensing, and antibacterial and photoluminescence (PL) applications [21-24]. However, as a photocatalyst, Ag2WO4 can only absorb UV light owing to its large band gap (~3.5 eV). Additionally, Ag2WO4 exhibits poor stability because photocorrosion readily takes place over Ag-based semiconductors with light illumination, if no sacrificial reagent is present [25].

Selecting a suitable synthetic route is the key to a successful photocatalyst because the textural properties and photocatalytic performance are determined by how they are prepared. A nanostructure/microstructure is highly desirable in photocatalyst synthesis. Recently, the application of high-intensity ultrasound or sonochemistry has provided a green and effective synthetic strategy for nanostructured photocatalyst that is often unavailable with the traditional methods. In the sonochemical synthesis, the acoustic cavitation effect is able to generate extraordinary physicochemical conditions, for example, high local temperatures (5000 ℃), high pressures (100 MPa), and rapid cooling and heating rates (>1010 ℃/s). These unusual physicochemical conditions could greatly benefit the fabrication of photocatalysts with novel nanostructures [26-30].

In the present work, Ag2S/Ag2WO4 composite microrods were fabricated by a facile sonochemical route and exhibited excellent photocatalytic activity and stability.

2 Experimental
2.1 Synthesis of Ag2S, Ag2WO4 and Ag2S/Ag2WO4

All chemicals were of analytical grade obtained from the Shanghai Chemical Company and were used without further purification. For the sonochemical fabrication of Ag2S/Ag2WO4 (denoted as U-Ag2S/Ag2WO4), 10 mmol AgNO3 was dissolved in 20 mL of deionized (DI) water under stirring, to obtain solution A. Next, 2.5 mmol Na2S was dissolved in 20 mL of DI water, and the resulting solution was added dropwise to solution A. After stirring for 3 h, 20 mL Na2WO4 solution (2.5 mmol) was added dropwise to the Ag2S liquid suspension. Then, a VOSHIN 10-501D ultrasonic generator connected by a Φ10 luffing rod (selected ultrasonic power was 10%, each ultrasonication was 5 s, with a rest period of 2 s) was used to irradiate the mixture for 1 h. After the irradiation, the suspensions were further stirred for 3 h. The resulting powder was collected by filtration, and washed with DI water and ethanol for several times. Finally, U-Ag2S/Ag2WO4 products were obtained after drying at 70 ℃ for 4 h. U-Ag2S and U-Ag2WO4 were fabricated by the same method.

To evaluate the effects of ultrasonic irradiation, the corresponding Ag2S and Ag2WO4 samples were fabricated by a common precipitation method, and Ag2S/Ag2WO4 composites were fabricated by the successive precipitation method. For example, for the synthesis of the Ag2S/Ag2WO4 composite, 10 mmol AgNO3 was dissolved in 20 mL of DI water under stirring, to obtain solution A. Na2S (2.5 mmol) was dissolved in 20 mL of DI water, and the resulting solution was added dropwise to solution A. After stirring for 3 h, 20 mL Na2WO4 solution (2.5 mmol Na2WO4) was added dropwise to the Ag2S liquid suspension and was further stirred for 3 h. The resulting powder was collected by filtration and washed several times with DI water and ethanol. Finally, Ag2S/Ag2WO4 products were obtained after drying at 70 ℃ for 4 h.

2.2 Catalyst characterization

Powder X-ray diffraction (XRD) patterns were recorded at a scanning rate of 0.05°/s using a Bruker D8 Advance X-ray diffractometer at 40 kV and 40 mA with a Cu Kα radiation source (λ = 0.15418 nm). The Brunauer-Emmett-Teller (BET) specific surface area (SBET) was measured on a Micromeritics ASAP2020 nitrogen adsorption apparatus (USA). All the samples were degassed at 120 ℃ for 1 h before nitrogen adsorption measurement. The SBET was determined by a multipoint BET method using the adsorption data in the relative pressure (P/P0) range of 0.05-0.3. Scanning electron microscopy (SEM) images were collected using an MLA650F scanning electron microscope and were used to investigate the sample morphologies. Transmission electron microscopy (TEM) and high- resolution TEM (HRTEM) images were collected using a TECNAI G2F20 microscope. Ultraviolet-visible diffuse reflectance spectra (UV-vis DRS) were recorded using a UV-vis spectrophotometer (UV-2550, Shimadzu). PL emission spectra were obtained with excitation at 325 nm using an F-4600 spectrometer. Surface compositions were determined by X-ray photoelectron spectroscopy (XPS) using an ESCALAB 250 XPS system with a monochromatic Al Kα source and a charge neutralizer. Photocurrent measurements were performed on a CHI 660E electrochemical work station (Chenhua Instrument, China) in a conventional three electrode configuration with a Pt foil as the counter electrode and a Ag/AgCl (saturated KCl) as the reference electrode. A 500-W Xe lamp served as a light source. 0.1 mol/L Na2SO4 aqueous solution was used as the electrolyte. The working electrodes were prepared as follows: 10 mg of the as-prepared photocatalyst and 0.5 mL Nafion dispersing reagent were added in 5 mL absolute ethanol and son icated for 30 min. The slurry was then spread on a 1.0-cm × 1.0-cm indium-tin oxide (ITO) glass substrate and dried in air. The photoresponse of the samples, as light on and light off, was measured at 0.0 V.

2.3 Photocatalytic activity

The photocatalytic activities of the as-prepared samples were determined by the degradation of methylene blue (MB) and methyl orange (MO) dyes in aqueous solution. The photocatalytic reaction was carried out in a photochemical reactor (XPA, XuJiang Electromechanical Plant, Nangjing). The light source was a 400-W metal halide lamp. In each test, 30 mg of the as-prepared samples were added into 60 mL of 20 mg/L MB or MO aqueous solution. Then, the suspension was stirred in the dark for 40 min to achieve the adsorption-desorption equilibrium prior to visible light irradiation. During the degradation process, the reaction temperature was maintained at 20 ℃ by the circulation of water. After fixed irradiation intervals, ~2-mL aliquots of suspension were sampled, and the solids were removed by centrifugation. The MB and MO concentration of the clear upper layer was determined by UV-vis spectrophotometry.

3 Results and discussion
3.1 Texture analysis

The phase composition and crystal properties of the samples were analyzed by XRD. Fig. 1(a) shows the XRD patterns of the as-prepared Ag2S, Ag2WO4 and Ag2S/Ag2WO4 samples. The Ag2S sample corresponded to the monoclinic phase of Ag2S (JCPDS 14-0072). The main characteristic peaks of Ag2WO4 at 16.7°, 30.2°, 31.5°, 32.9°, 45.2°, 54.5° and 58.1° can be indexed to the (011), (002), (231), (400), (060), (233) and (262) crystal planes of Ag2WO4 (JCPDS 70-1719) with orthorhombic phase. The observed main diffraction peaks of Ag2S/Ag2WO4 are the diffraction peaks of Ag2WO4. Additionally, a series of weak diffraction peaks at 2θ = 20°-30° and 35°-45° for Ag2S are observed. Fig. 1(b) shows the XRD patterns of the ultrasonically prepared U-Ag2S, U-Ag2WO4 and U-Ag2S/Ag2WO4 samples. Careful observation shows that ultrasonic irradiation exerts an obvious influence on the crystal structure. For U-Ag2S, after ultrasonic irradiation, the diffraction peaks at 21.2°, 24.6°, 27.6°, 30.3°, 32.8°, 35.1°, 37.3°, 39.5°, 43.4°, 45.3° and 50.6° can be indexed to the (102), (112), (210), (202), (212), (004), (300), (222), (204), (214) and (400) crystal planes of Ag8S4(O4) (JCPDS 032-1023) with tetragonal phase. The unique physicochemical conditions generated by the acoustic cavitation effect could cause the O to enter the Ag2S lattice. On the whole, the U-Ag2S/Ag2WO4 maintained the Ag2WO4 crystal phase structure. However, the intensity of the characteristic peaks at 30.3°, 32.9° and 45.2° was obviously increased with respect to Ag2S/Ag2 WO4. This could arise from the ultrasonic irradiation resulting in an increase in crystallinity.

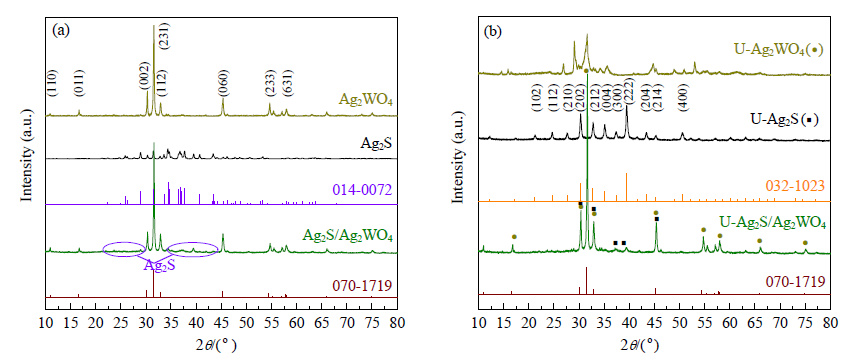

Fig. 1. XRD patterns of the as-prepared samples.

The average crystallite size of the as-prepared samples was estimated using the Scherrer equation. The strongest diffraction peaks, ~39.5° for U-Ag2S and ~31.5° for the other samples, were used in this calculation. Table 1 shows that ultrasonic irradiation obviously decreased the average crystallite size of the samples. The surface area of the fabricated samples was determined by nitrogen physical adsorption and the obtained results are shown in Table 1. Obviously, ultrasonic irradiation has a distinct influence on the surface area. A slight increase in surface area after ultrasonic irradiation was observed, which could arise from the ultrasonic irradiation, improved the dispersion and decreased the crystallite sizes.

Table 1
The average crystallite sizes and specific surface areas of the samples.
3.2 Morphology analysis

The morphologies of the prepared samples were characterized by SEM and the results were shown in Fig. 2. The inset photographs in the corresponding images display the color of the samples. Fig. 2(a) shows that pure Ag2WO4 exhibits microrod morphology with lengths of 0.2-1 μm and diameters of 20-30 nm. After ultrasonic irradiation, some cracks were observed in the U-Ag2WO4 microrods (Fig. 2(b)). Fig. 2(c) suggests that pure Ag2S shows no special morphology. The Ag2S sample was composed of small irregular particles. Compared with Ag2S, U-Ag2S (Fig. 2(d)) has a rounder and smoother surface, and the connections among particles become closer. Fig. 2(e) and (f) show the SEM images of Ag2S/Ag2WO4 and U-Ag2S /Ag2WO4, respectively. Over Ag2S/Ag2WO4, many segregated nanoparticles (NPs) were attached on the surface of a microrod. As for U-Ag2S/Ag2WO4, the attached NPs fused into fluffy particles. The inset photographs indicate that the colors of Ag2WO4, Ag2S and Ag2S/Ag2WO4 are white, black and light brown, respectively. Ultrasonic irradiation slightly changed the color of samples. The colors for Ag2WO4, Ag2S and Ag2S/ Ag2WO4 changed to light brown, deep brown and brown, respectively. Ultrasonic irradiation changed the texture and color, which will certainly result in variations in the surface area and light absorption.

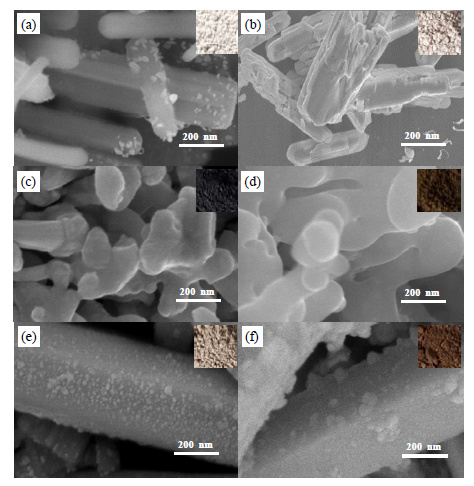

Fig. 2. The SEM images of the as-prepared samples. (a) Ag2WO4; (b) U-Ag2WO4; (c) Ag2S; (d) U-Ag2S; (e) Ag2S/Ag2WO4; (f) U-Ag2S/Ag2WO4.

Fig. 3 shows the TEM images for the U-Ag2S/Ag2WO4 composite. Fig. 3(a) clearly shows that the Ag2S NPs were attached on the smooth surface of the Ag2WO4 microrod. We selected one of the attached nanoparticles to analyze with high resolution HRTEM, and the result is shown in Fig. 3(b). Three clear lattice spacings of approximately 0.297, 0.255 and 0.227 nm correspond to the (202), (004) and (222) planes of Ag2S, respectively, which confirms the high crystallinity of the attached Ag2S NPs. Fig. 3(c) shows the HRTEM image of one of the Ag2WO4 microrods. In this image, two lattice spacings of approximately 0.297 and 0.284 nm are clearly observed, which are attributed to the (002) and (231) planes of Ag2WO4, respectively. Furthermore, an intimate interface between Ag2S and Ag2WO4 was observed from the TEM images. The good interfacial contact in U-Ag2S/Ag2WO4 composite could promote the transfer of charge carriers between the Ag2WO4 host photocatalytic material and the Ag2S co-catalyst, thus promoting the photocatalytic performance.

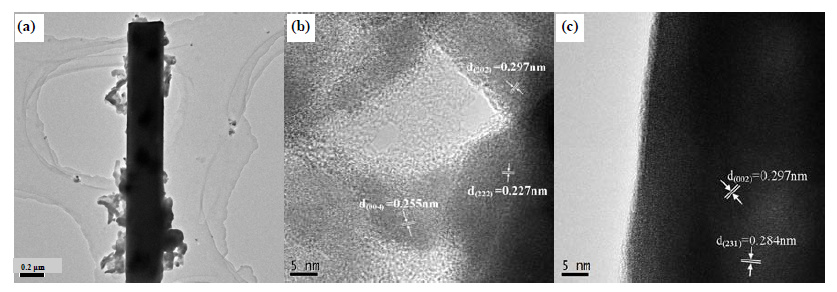

Fig. 3. TEM (a) and HRTEM (b, c) images of the U-Ag2S/Ag2WO4 sample.
3.3 XPS analysis

The surface element composition and chemical state of U-Ag2S/Ag2WO4 were evaluated by XPS. As shown in Fig. 4(a), the XPS survey spectrum proves the co-existence of Ag, S, W and O elements. In the high resolution XPS spectrum of Ag 3d (Fig. 4(b)), the two separate peaks at 373.3 and 367.3 eV are assigned to the Ag+ for Ag 3d3/2 and Ag 3d5/2 [17], respectively. Fig. 4(c) shows the high resolution spectrum of O 1s. The peaks at 530.6 and 529.7 eV correspond to the lattice oxygen in Ag2WO4 and absorbed oxygen [31], respectively. The peak at 531.8 eV is assigned to the chemisorbed oxygen in S-O [31]. The band energies of S 2p (Fig. 4(d)) at 168.2 and 167.1 eV arise from the S in Ag-S-O [32, 33]. This suggests that an Ag2S/Ag2WO4 heterojunction could be formed between the Ag2S NPs and Ag2WO4 microrods. The two peaks at 162.3 and 161.0 eV can be assigned to S 2p1/2 and S 2p3/2 [16], respectively. Fig. 4(e) shows the W 4f spectrum, and the two peaks at 36.6 and 34.4 eV are assigned to W 4f7/2 and W 4f5/2 for W6+ in Ag2WO4, respectively.

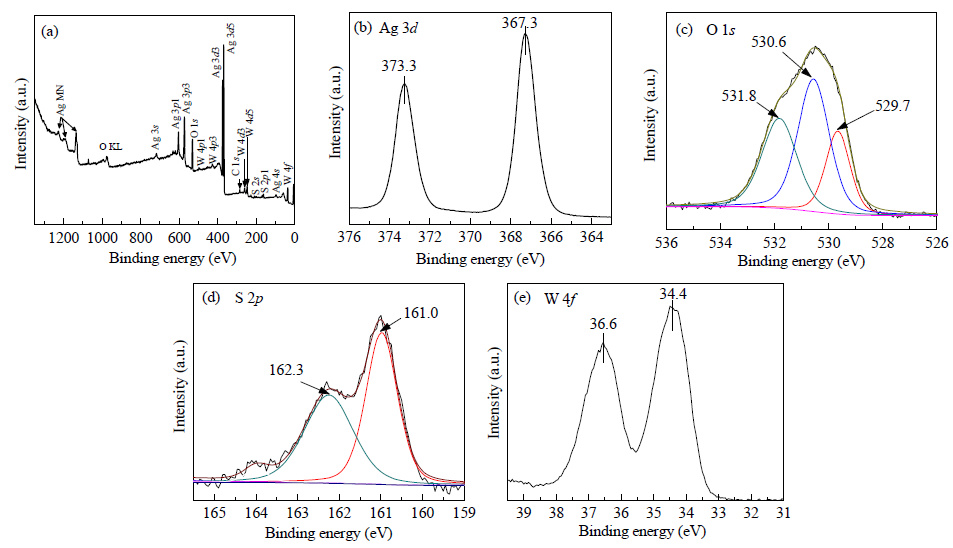

Fig. 4. XPS spectra of the as-prepared U-Ag2S/Ag2WO4. (a) Survey spectrum; (b) Ag 3d; (c) O 1s; (d) S 2p; (e) W 4f.
3.4 Light absorption properties

UV-vis DRS was used to evaluate the light absorption behavior of the samples in the UV to visible light range (λ = 250- 800 nm). Fig. 5(a) shows that the absorption edge of pure Ag2WO4 is at ~380 nm and its light absorption is focused in the ultraviolet region. Ag2S displays obvious ultraviolet and visible light absorption and its absorption is mainly at ~450 nm. After the introduction of Ag2S, the absorption edge of Ag2S/Ag2WO4 samples shows a red-shift and an increase in the visible light absorption appears. Comparing the absorption spectrum of Ag2S/Ag2WO4 with that of U-Ag2S/Ag2WO4, we can observe that the ultrasonic treatment obviously shifts the light absorption edge to the visible light range and, additionally, greatly enhances its light absorption ability. The optical band gap energy of a semiconductor can be estimated from the Tauc plot (i.e., the curve of the converted (αhv)n versus hv from the UV-vis spectrum, in which α, h and v are the absorption coefficient, Planck constant and light frequency, respectively, and n = 2 for a direct band gap material and n = 1/2 for an indirect band gap material [34]). Here, the value of n was selected as 2 and Fig. 5(b) shows a good linear fit when the value n = 2 was applied. The Eg values of U-Ag2WO4 and U-Ag2S were thus determined to be 3.29 and 2.19 eV, respectively, by measuring the x-axis intercept of the extrapolated line from the linear regime of the curve. The loading of Ag2S resulted in a decrease in the Eg. The value of Eg for U-Ag2S/Ag2WO4 was determined to be 1.88 eV.

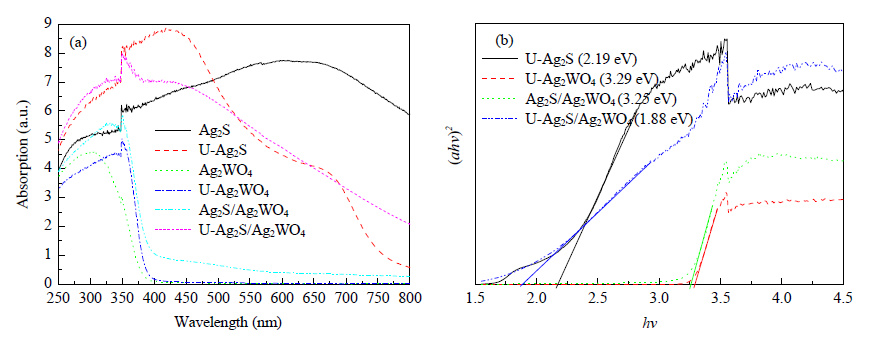

Fig. 5. (a) UV-vis diffuse reflectance spectra of the as-prepared samples; (b) (αhν)2 versus for determining the optical band gap of the as-prepared samples.
3.5 PL properties

PL analysis was performed to investigate the separation efficiency of the photogenerated electrons and holes. Fig. 6 displays the typical PL spectra of Ag2WO4, Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4. The emission peak appearing at 468 nm could be attributed to the radiative recombination process of the photo-excited carriers in Ag2WO4. Fig. 6 shows that pure Ag2WO4 displays the strongest intensity PL peak among the three samples, indicating that the highest recombination probability of the charge carrier is in Ag2WO4. The positions of the emission band for Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4 are similar to Ag2WO4, while the PL peak intensity of U-Ag2S/Ag2WO4 is the weakest, indicating that both the coupling of Ag2S and ultrasonic irradiation could promote the separation of charge carriers.

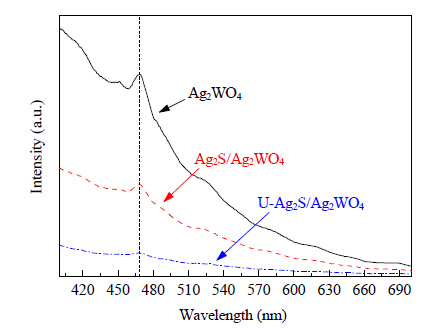

Fig. 6. PL spectra of Ag2WO4, Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4.
3.6 Photocurrent responses

The charge separation efficiency was further investigated by the transient photocurrent response. The transient photocurrent responses were monitored by electrodes consisting of Ag2S, Ag2WO4, Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4 samples. Fig. 7 shows the comparison of the photocurrent-time (I-t) curves of the samples with several on-off cycles under intermittent irradiation from a Xe lamp. Fast photocurrent responses were observed in the samples when the light was turned on, and the photocurrent rapidly decayed when the light was turned off. This indicates that most of the photogenerated electrons are transported back to the contact across the sample to produce photocurrent under Xe lamp irradiation. Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4 exhibited a much higher photocurrent intensity than that of Ag2WO4 and Ag2S. It is proposed that the stronger photocurrent intensity reveals a higher separation efficiency of electrons and holes. This result further demonstrates that a noticeable improvement in the separation of photogenerated electrons and holes, realized by coupling of Ag2S and ultrasonic irradiation, could also largely benefit the boosting of photocatalytic activity.

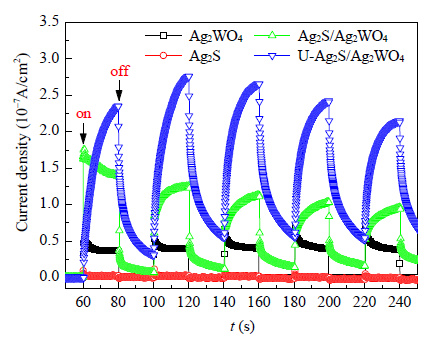

Fig. 7. Transient photocurrent responses of Ag2S, Ag2WO4, Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4 samples in 0.1 mol/L Na2SO4 aqueous solution under irradiation from a Xe lamp.
3.7 Photocatalytic performance

MB was used as the photodegradation target under metal halide lamp illumination. Fig. 8(a) and (b) shows that the addition of Ag2S as a photocatalyst did not result in an obvious degradation reaction for MB, suggesting the poor photocatalytic activity of Ag2S. Ag2WO4 displays an obvious photocatalytic activity for MB decomposition. The highest degradation rate of MB (99%) was observed over U-Ag2S/Ag2WO4. Fig. 8(c) shows the degradation dynamics curves of MB over the as-prepared samples. The largest degradation rate constant over U-Ag2S/Ag2WO4 was 0.149 min-1, which is 4.7 times and 29.8 times higher than that of bare Ag2WO4 (0.032 min-1) and Ag2S (0.005 min-1), respectively. Fig. 8(d) shows the UV-vis absorption spectra of MB with different reaction times in the presence of U-Ag2S/Ag2WO4.

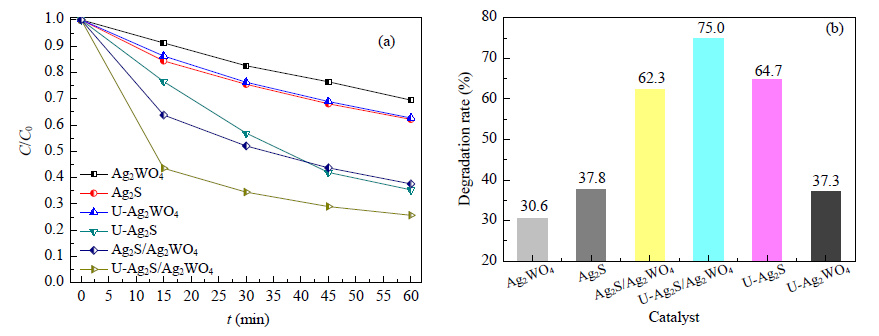

Fig. 8. (a) The photocatalytic performance of samples for the degradation of MB; (b) The comparison of degradation rates of MB for the different samples; (c) Reaction kinetics of the degradation of the MB over different samples; (d) UV-visible absorption spectra of MB with different reaction times in the presence of U-Ag2S/Ag2WO4.

The photocatalytic activities of the as-prepared samples were further evaluated by the degradation of another dye. Fig. 9(a) and (b) display the concentration changes of MO over different samples. Both Ag2S and Ag2WO4 did not exhibit good photocatalytic performance. After ultrasonic treatment, U-Ag2S displayed a significant improvement in the photocatalytic activity. Once Ag2S was loaded into Ag2WO4, Ag2S/Ag2WO4 showed a large enhancement in the photocatalytic activity. Especially, U-Ag2S/Ag2WO4 showed the highest photocatalytic activity, and the degradation rate of MO over it reached 75%.

Fig. 9. (a) The photocatalytic performance of samples in the degradation of MO; (b) The comparison of the degradation rates of MO over different samples.

To explore the degradation mechanism, radical capture experiments were carried out. Generally, hydroxyl radicals (OH), superoxide radicals (O2-) and photogenerated holes (h+) are the main radicals for the photocatalytic degradation of organic pollutants. Here, a series of radical capturing experiments were performed by using tert-butyl alcohol (TBA, a quencher of OH) [35], benzoquinone (BQ, a quencher of O2-) [36] and triethanolamine (TEOA, a quencher of h+) [37] in the U-Ag2S/Ag2WO4 reaction system. Fig. 10 shows the effect of the addition of quenchers on the photocatalytic degradation of MO over U-Ag2S/Ag2WO4. It was shown that the degradation rate of MO was maintained around 75% in the presence of TBA, which means that OH has little effect on the photodegradation of MO. When the TEOA or BQ was added into the reaction solution, the photocatalytic degradation rate was substantially decreased. It was proposed that h+ and O2- are the major reactive species in this U-Ag2S/Ag2WO4 system.

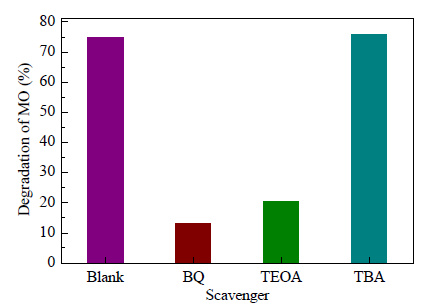

Fig. 10. Effect of the addition of quenchers on the photocatalytic degradation of MO over U-Ag2S/Ag2WO4.

We proposed a possible mechanism to explain the enhanced activity over the U-Ag2S/Ag2WO4 composite. As shown in Fig. 11, upon light irradiation, electrons (e-) in the valence band (VB) will be excited to the conduction band (CB) and holes (h+) will be left in the VB. Then, the photogenerated e- in the CB will be trapped by adsorbed O2 to produce O2- radicals. Both O2- and h+ are powerful oxidative species which can break down the chromophores of organic pollutants into small molecules, for example, CO2 and H2O. Moreover, the intimate interface of Ag2S/Ag2WO4, with a matched band energy structure between Ag2S and Ag2WO4 phases, could promote the transfer of charge carriers between Ag2WO4 and Ag2S. Thus, a relatively large separation of photogenerated holes and electrons was obtained over U-Ag2S/Ag2WO4, which was confirmed by the former PL and transient photocurrent tests. The radical capture experiments suggested that h+ and O2- are the major reactive species in the U-Ag2S/Ag2WO4 system. The relatively large separation of the photogenerated holes and electrons provide more active substances (e.g., h+ and e-O2-) to decompose the dye molecules.

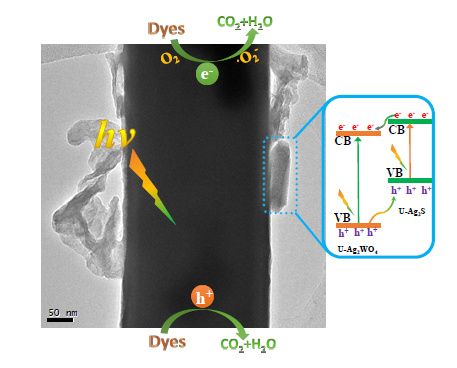

Fig. 11. Scheme of photocatalytic mechanism of U-Ag2S/Ag2WO4.

The stability of the catalyst is an important factor to evaluate its potential for practical applications. Therefore, the performance of Ag2WO4, Ag2S/Ag2WO4 and U-Ag2S/Ag2WO4 was compared through recycling degradation reactions. Fig. 12 shows that after three cycles, the activity of pure Ag2WO4 decreased substantially. The degradation rate was reduced from 61.5% to 5.6%. Compared with Ag2WO4, the stability of the Ag2S/Ag2WO4 was greatly improved. U-Ag2S/Ag2WO4 yielded the highest stability. After three cycles, the degradation rate of MB over it was still maintained at ~80%.

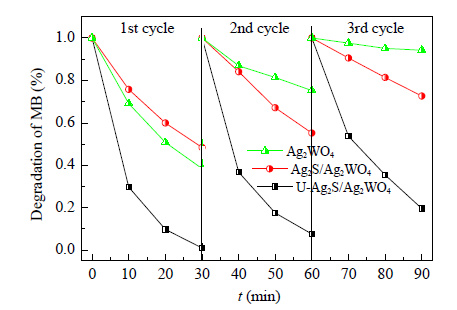

Fig. 12. The stability test of the samples in the recycling reactions for the degradation of MB.
4 Conclusions

Ag2S/Ag2WO4 composite microrods were fabricated by a sonochemical route. Ultrasonic irradiation resulted in an obvious improvement of the textural properties, for example, the increase in crystallinity and surface area. Moreover, sonochemically fabricated Ag2S/Ag2WO4 microrods exhibited strong visible light absorption and a transient photocurrent response. The produced intimate Ag2S/Ag2WO4 interface between Ag2S and Ag2WO4 phases was able to promote the separation of photogenerated h+ and e-. A high photocatalytic activity and stability were obtained over U-Ag2S/Ag2WO4 composite microrods. The degradation rate constant of U-Ag2S/Ag2WO4 was 4.7 times and 29.8 times higher than that of bare Ag2WO4 and Ag2S, respectively. This sonochemical route provides interesting information for the design of highly efficient visible light driven Ag-based semiconductor photocatalysts.
