The large scale of chemical industry and excessive use of chemicals form numerous types of wastewater that are possibly hazardous to the environment and human body ^[1]. Wastewater that contains phenolic compounds has been one of the foremost pollution problems for decades. Phenolic compounds are persistent toxic pollutants that can enter wastewater streams from a variation of industries; for example, steel, resins, ceramics, fiber glass, fungicides, herbicides, metals, and textiles ^[2]. Although phenol is reasonably easy to biodegrade, conventional biodegradation of phenol is usually ineffective because of a self-inhibitory effect at excessive concentrations, the accretion of phenolic intermediates, and the discharge of soluble microbial products ^{[3, 4]}. Even when phenol is biodegraded, the reaction kinetics are sluggish, and biodegradation occurs only at low phenol concentration. In contrast, advanced oxidation processes are effective techniques to break down bulky organic compounds, including aromatic components ^[5].

Phenol was first synthesized in 1834 by Runge ^[6], and is currently produced on a sizeable scale of roughly 7 billion kg per annum from petroleum resources. Phenol is an important starting material in the production of numerous efficacious substances and materials; e.g., polycarbonates, epoxides resins, nylon, and herbicides ^[7]. Phenol contamination of water sources has caused horrendous global pollution as a result of these processes because of the large scale of manufacture and high concentration of phenol in wastewater ^[8]. Phenol has an extremely irritating and carcinogenic nature, and can induce substantial impairment of the respiratory tract and systemic poisoning when it comes into direct or indirect contact with humans.

The typical industrial methods to remove phenol include adsorption, solvent extraction, chemical oxidation, and biological treatment ^[9]. However, these processes are not cost-effective, yield noxious or undesirable side products, and use hazardous chemicals and solvents in bulky quantities. Photocatalysis is an attractive alternative method to degrade phenol because it is green applied science using an advanced oxidation process that can completely mineralize phenol into small non-hazardous constituents such as CO₂ and H₂O.

Titania (TiO₂) has been widely used as a photocatalyst because of its powerful oxidizing attributes, non-toxicity, low cost and high photostability ^[10]. However, TiO₂ can only perform efficiently under ultraviolet irradiation because of its wide band gap of 3.2 eV. The photocatalytic performance of TiO₂ can be improved using TiO₂ nanoparticles or supported TiO₂ instead of bulk TiO₂ ^[11]. Moreover, doping TiO₂ with transition metal oxides or nanoparticles improves its photoactivity, and can even enable TiO₂ to work under visible light irradiation ^[12]. Chromium oxide is a suitable dopant to broaden the photoresponse of TiO₂ by narrowing its band gap to realize a visible photoresponse ^[13]. Although doping TiO₂ with transition metal oxides has allowed TiO₂ to perform under visible light, the low surface area of the resulting materials resulting from agglomeration still continues to be a drawback because it restrains the accessibility of the active sites ^[14].

A number of silica matrixes with high surface area including silica aerogel and zeolite have been intensively used for use as support materials for TiO₂-based photocatalysts ^{[15, 16]}. In this study, the relatively new silica matrix Technische Universiteit Delft (TUD-1) is used as a support material for chromium oxide-doped TiO₂ (Cr-TiO₂) nanoparticles. TUD-1 is amorphous and mesoporous with 3D interlinked pore channels ^[14]. Unlike silica aerogel, it can be easily produced via a comparatively simple and cost-efficient procedure. Recently, our research group reported the use of TUD-1 as a support for TiO₂ nanoparticles ^{[17, 18]}. The synthesized photocatalysts demonstrated favorable photocatalytic responses in the photodegradation of cationic and anionic dyes. In this work, we examine in detail the properties and photocatalytic activity under visible light irradiation of Cr-TiO₂ supported on TUD-1 (Cr-TiO₂/TUD-1). The kinetic behavior and effect of several reaction parameters on the photocatalytic performance of the supported catalysts are investigated.

Cr-TiO₂ was synthesized via a sol-gel method as described elsewhere ^[17]. First, a mixture of titanium tetraisopropoxide (TTIP), ethanol and acetylacetone (acac) as a chelating agent with a TTIP:ethanol:acac molar ratio of 1:100:2 was prepared. All chemicals were of analytical grade with >99% purity and were acquired from Sigma-Aldrich. Chromium(III) acetylacetonate was used as a precursor of chromium oxide and dissolved in acac. The chromium oxide dopant (1 mol%) was added dropwise to the TTIP mixture, which was then stirred for 2 h. Cr-TiO₂ was obtained following solvent evaporation at 353 K, drying overnight at 383 K, and calcination at 823 K for 5 h.

TUD-1 was synthesized as follows. A mixture of water, triethanolamine (TEA, 97 wt%), tetraethylammonium hydroxide (TEAOH, 2 mol/L in water), and tetraethyl orthosilicate (TEOS, 98 wt%) with a TEOS/TEA/TEAOH/H₂O molar composition of 1:0.5:0.1:11 was stirred for 2h. The solution was allowed to evaporate under ambient conditions for 24 h to form a solid gel. The gel was hydrothermally treated at 403 K for 10 h in an autoclave. The mixture was dried at 373 K, and subsequently calcined in air at 873 K for 6 h to remove the organic components.

To synthesize Cr-TiO₂/TUD-1, the pre-synthesized 1 mol% Cr-TiO₂ nanoparticles were added into a mixture of TUD-1 precursors with different Si/Ti molar ratios. The mixture was stirred for 2 h before aging and evaporation as described above. The resulting samples were denoted as Cr-TiO₂/TUD-1(x), where x is the Si/Ti molar ratio and ranged from 10 to 50. Unsupported Cr-TiO₂ and MCM-41-supported Cr-TiO₂ (Cr-TiO₂/MCM-41) were also synthesized for comparison.

Powder X-ray diffraction (XRD) patterns were obtained on a Bruker Advance D8 diffractometer (40 kV, 40 mA) fitted with an incident-beam graphite monochromator with Cu K_a radiation (λ = 0.154 nm). The step size was 0.0175°, and the counting time per step was 8 s. The samples were scanned over a 2θ range of 0.2°-90°. Fourier transform infrared (FTIR) spectra were recorded on a Nicolet iS10 spectrometer using an attenuated total reflectance accessory.

Nitrogen adsorption-desorption isotherms, surface areas and pore volumes of the samples were measured at 77 K using a Quantachrome Surface Autosorb-6B sorption analyzer. Samples were pre-treated at 523 K for 16 h before these measurements. Pore size distributions were determined from adsorption branched using the Barrett-Joyner-Halenda (BJH) model. The Brunauer-Emmett-Teller (BET) method was used to determine the surface areas of samples, while pore volumes were calculated using the t-plot method.

Diffuse-reflectance UV-Vis spectra were measured under ambient conditions on a Perkin Elmer Lambda 35 spectrophotometer using BaSO₄ as a reference. Samples were ground carefully and then were scanned in the range of 200-900 nm. Field-emission scanning electron microscopy (FESEM) was conducted at 10 kV on a JEOL JSM-6701F microscope. The surfaces of samples were coated with gold to prevent charging effects. Energy-dispersive X-ray (EDX) analysis was used to determine the chemical composition of the samples with a LINK EDX system. Transmission electron microscopy (TEM) was performed with a JEOL JEM-2011 electron microscope operating at 200 kV with a field-emission gun as an electron source and Gatan 794 CCD camera. Samples were prepared on copper-supported carbon polymer grids by immersing a copper grid in a few droplets of a suspension of each ground sample solvated in acetone, followed by drying under ambient conditions. Zeta potential and average particle size analyses were carried out at different pH via microelectrophoresis using a Malvern Zetasizer.

A simple batch-type reactor with a hatch was used to elucidate the photocatalytic activity of the synthesized samples. A 100-mL beaker was used as the photoreactor. The visible light source was a 550-W tungsten halogen lamp with a band around 420 nm positioned on the top of the reactor. After the photocatalysts reached adsorption equilibrium in the dark, the reactor was irradiated with visible light for 5 h. In an example experimental setup, aqueous phenol solution (200 ppm, 50 mL) at pH = 7 was stirred at 350 r/min and photocatalyst (0.1 g) was added. Aliquots of the solution (1 mL) were sequestrated at 1 h intervals, centrifuged and then filtered using a 0.2-μm polytetrafluoroethylene Millipore membrane filter to isolate suspended catalyst agglomerates. Finally, each aliquot was analyzed using a Thermo Scientific GENESYS 10S UV-Vis spectrophotometer in the range of 200-800 nm. The concentration of phenol was determined using the 270-nm absorbance peak.

The reusability of selected Cr-TiO₂/TUD-1(x) samples was examined. For this purpose, the photocatalyst was filtered after reaction, washed multiple times with distilled water, and subsequently dried at 373 K for 24 h. After that, the sample was calcined at 723 K for 4 h. The photocatalyst was resuspended in fresh phenol solution following the steps described above. Photocatalysts were reused up to three times. The reusability of Cr-TiO₂/MCM-41 was also examined for comparison.

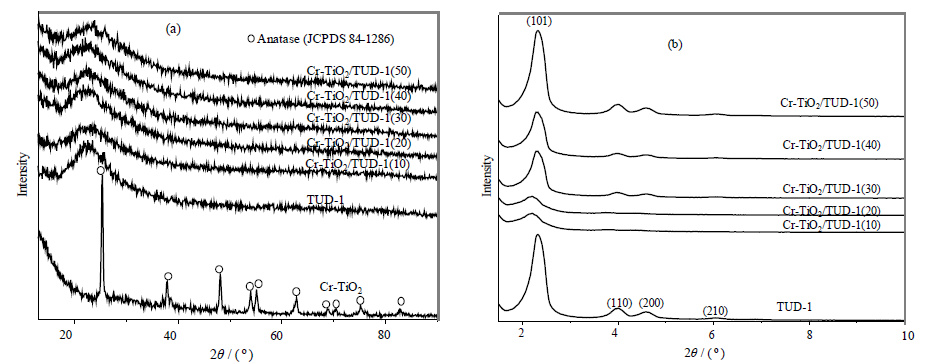

A series of Cr-TiO₂/TUD-1(x) samples with x = 10, 20, 30, 40, and 50 were synthesized and characterized. For comparison, unsupported Cr-TiO₂ and TUD-1 were also prepared and characterized. The phase purity and crystallinity of the samples were determined via powder XRD measurements. Fig. 1(a) shows the XRD patterns of Cr-TiO₂, TUD-1, and Cr-TiO₂/TUD-1. Cr-TiO₂ crystallized in the anatase phase (JCPDS file no. 84-1286). Meanwhile, TUD-1 was amorphous because no peaks were detected in its XRD pattern. A broad halo between 2θ = 20°-40° was observed, implying the sample contained well-ordered amorphous silica. The amorphous nature of TUD-1 remained after loading Cr-TiO₂. No change of the XRD patterns of Cr-TiO₂/TUD-1(x) was observed with changing Si/Ti molar ratio. This result indicates that Cr-TiO₂ is well dispersed on the surface of TUD-1 or successfully loaded into the TUD-1 framework. Alternatively, the crystalline phases of both TiO₂ and Cr₂O₃ may not have been detected because of the low x in the Cr-TiO₂/TUD-1(x) samples.

Fig. 1(b) depicts low-angle XRD patterns of the samples. TUD-1 exhibited a high-intensity peak at 2θ = 2.40° and three continuous small peaks at 2θ = 4.02°, 4.58°, and 6.22°, which were indexed as (100), (110), (200), and (210), respectively. The most intense peak was that of the (100) reflection, which indicated the mesoporous hexagonal ordering of TUD-1, while the weaker peaks represented the quasi-regular arrangement with hexagonal symmetry of the TUD-1 structure ^[19]. Similarly, all Cr-TiO₂/TUD-1(x) samples exhibited an intense peak at 2θ = 1.5°-3° accompanied with three small peaks at low angle, signifying the mesostructure characteristics of the synthesized materials ^[20]. As expected, the peak intensities increased with x. Loading of Cr-TiO₂ caused structural deformation of the silicate matrix in TUD-1, lowering its crystallinity. A similar loading effect has also been reported in the literature ^[21]. The crystallite size of Cr-TiO₂ estimated using the Scherrer equation was 20 nm, implying the formation of nanoparticles. Calculations using Bragg's Law and the (101) peak showed that the d-lattice spacing of Cr-TiO₂ was 0.35 nm.

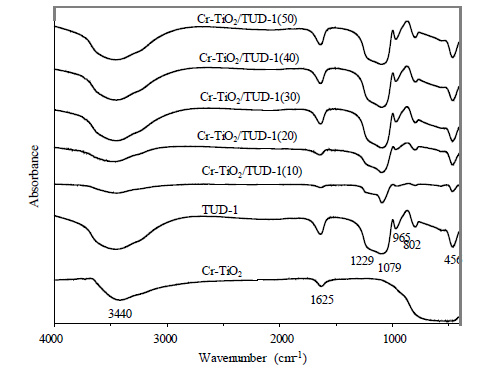

FTIR spectra of Cr-TiO₂, TUD-1 and Cr-TiO₂/TUD-1(x) samples are shown in Fig. 2. For the Cr-TiO₂ sample, a broad peak at 600 cm^-1 assigned to the stretching of Ti-O bonds was detected. The band at 1625 cm^-1 was attributed to the bending of the O-H bonds of silanol groups and adsorbed water ^[22]. The intensity of this band weakened with increasing Ti content and it also shifted slightly to lower wavenumber, signifying a possible interaction of Ti with TUD-1. A broad band at around 3440 cm^-1 was detected for Cr-TiO₂, which was attributed to adsorbed H₂O molecules. Similar to the band at 1641 cm^-1, the intensity of this band increased remarkably with increasing TUD-1 content in the samples. These findings imply that the greater the content of Cr-TiO₂, the fewer hydroxyl groups present on the catalyst surface.

For the TUD-1 and TUD-1-supported samples, bands at 1079, 802 and 456 cm^-1 attributed to the asymmetric stretching, symmetric stretching and bending vibrations of Si-O-Si, respectively, were observed ^[23]. The presence of Cr-TiO₂ on TUD-1 decreased the intensities of all three bands. In addition, these bands were shifted from their original positions, suggesting perturbation of the silica network because of Si-O-Ti bond formation, which is consistent with the XRD analysis. Furthermore, the intensity of a weak band at 965 cm^-1 corresponding to Si-O-H bending increased with Cr-TiO₂ content in the TUD-1-supported samples, which provides further evidence for Si-O-Ti interaction ^[24].

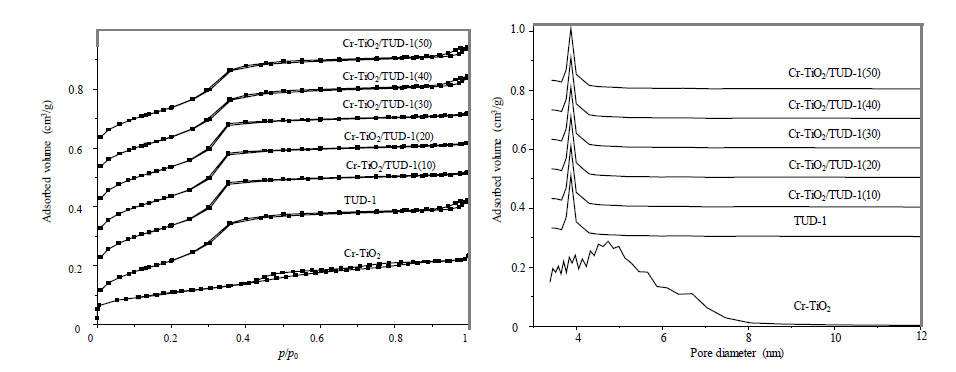

N₂ adsorption-desorption isotherms of the Cr-TiO₂/TUD-1(x) photocatalysts are presented in Fig. 3(a). TUD-1 exhibited a type-IV isotherm with an H3-type narrow hysteresis loop. A similar trend was also observed for all the Cr-TiO₂/TUD-1(x) samples. Desorption curves were steeper than adsorption curves at relative pressures of approximately 0.4-0.5. This characteristic was attributed to the mass-transfer-limited filling and emptying of non-uniform or incompletely blocked uniform pores. Therefore, these results may suggest the presence of Cr-TiO₂ nanoparticles inside the pores of TUD-1. The Cr-TiO₂ nanoparticles influenced the formation of internal structure and pore connections in TUD-1 ^[25]. Meanwhile, unsupported Cr-TiO₂ showed an isotherm between type II and IV, with an H4-type narrow hysteresis loop. BJH plot analyses demonstrated TUD-1 and Cr-TiO₂/TUD-1(x) possessed narrow pore size distributions, strongly indicating formation of highly uniform pore systems with a mesopore size of 3.9 nm (Fig. 3(b)). Conversely, the unsupported Cr-TiO₂ exhibited a wide pore size distribution ranging from 3.5 to 8.0 nm.

Surface areas, pore diameters, and pore volumes acquired from the sorption isotherms of the samples are listed in Table 1. TUD-1 displayed a high surface area of 924.3 m²/g. A considerable decrease of surface area was observed after loading of Cr-TiO₂ into TUD-1. Similarly, the pore volume of TUD-1 decreased remarkably in the presence of Cr-TiO₂. These phenomena might imply the dispersion of some Cr-TiO₂ nanoparticles in the pores of TUD-1. These observations agree well with the XRD results (Fig 1(b)), confirming the change of TUD-1 from a well-ordered mesoporous structure to one with lowered crystallinity upon introduction of Cr-TiO₂. The pore diameter of all the Cr-TiO₂/TUD-1(x) samples was larger than that of TUD-1, and increased with Cr-TiO₂ content. This increase could be caused by the accumulation of Cr-TiO₂ around the pore mouth, resulting in enlargement of the pore width. Alternatively, the Ti-O bonds are longer than Si-O bonds, leading to an increase in pore size. A similar phenomenon was reported for Ti-loaded TUD-1 prepared by microwave synthesis ^[26].

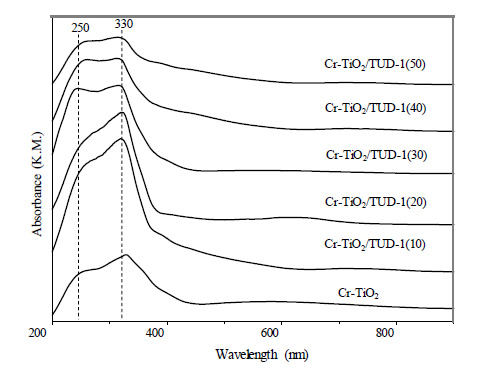

Fig. 4 shows the diffuse-reflectance UV-Vis spectra of Cr-TiO₂, TUD-1, and Cr-TiO₂/TUD-1(x) samples. All the synthesized materials exhibited absorption peaks at 250 and 330 nm, which are assigned to tetrahedral framework Ti⁴⁺ and polytitanate (Ti-O-Ti)_n and/or TiO₂ crystals, respectively ^[26]. As the amount of TUD-1 in the samples increased, the peak at 330 nm became less intense, indicating the presence of TUD-1 facilitated formation of more tetrahedrally coordinated Ti species. The samples also showed a weak absorption at 375 nm that was ascribed to the electron charge transfer from O^2- to Cr⁶⁺ of tetrahedrally coordinated Cr^{6+ [22]}. A shoulder approximately at 450 nm was detected for Cr-TiO₂/TUD-1(40) and Cr-TiO₂/TUD-1(50), implying the existence of Cr⁶⁺ polychromate (Cr-O-Cr)_n in the titania external framework ^[27] originating from the large content of TUD-1 in these samples. Absorption wavelengths exhibited a blue shift when a larger amount of TUD-1 was used as a support. This could be caused by the transition of Ti-O-Ti (0.180 nm) bonding to Si-O-Ti (0.195 nm) bonding, which involves formation of a longer, weaker bond ^[28]. As listed in Table 2, the band edge of the samples decreased with increasing TUD-1 content. The band gap energy of Cr-TiO₂ rose from 2.47 to 3.35 eV after loading onto TUD-1 with Si/Ti molar ratio of 50.

Fig. 5 depicts FESEM images of Cr-TiO₂/TUD-1(30). This material exhibited an asymmetrical irregular sponge-like structure. Similar irregular sponge-like structure was detected for all the Cr-TiO₂/TUD-1(x) samples. The elemental composition of the samples was confirmed by EDX (Table 3). Both the theoretical and actual Si/Al molar ratios for each catalyst were determined. The results indicated that the actual Si/Ti molar ratio was slightly lower than the theoretical values. The loss of Si might have occurred during the sol-gel formation process ^[29]. Elemental mapping using EDX was carried out for the Cr-TiO₂/TUD-1(30) sample (Fig. 6). The elements Cr, Ti, O, and Si were detected. The results clearly showed that these elements were distributed homogeneously on the sample surface, suggesting the Cr-TiO₂ nanoparticles were well-dispersed on the TUD-1 surface. Agglomeration of Cr-TiO₂ nanoparticles was not detected.

TEM images of the selected material Cr-TiO₂/TUD-1(30) are shown in Fig. 7. As illustrated in Fig. 7(a), the sample contained Cr-TiO₂ nanoparticles integrated inside the TUD-1 silicate matrix. The size of the nanoparticles was approximately 5 nm. The d-lattice spacing of the nanoparticles was determined (Fig. 7(b)). The obtained d-lattice spacing of 0.32 nm is consistent with the anatase phase of TiO₂, implying Cr-TiO₂ has anatase crystal structure in the sample ^[30].

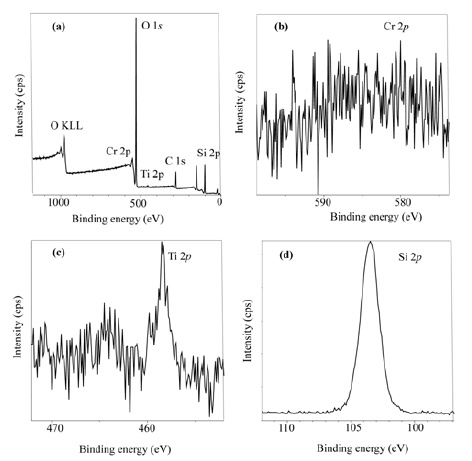

The sample Cr-TiO₂/TUD-1(30) was investigated by X-ray photoelectron spectroscopy (XPS) to identify the oxidation states of the external species. Fig. 8(a) illustrates the comprehensive XPS analysis of this sample. Species of Cr, Ti, O, and Si were detected. The O 1s peak was intense because of the formation of metal oxides including SiO₂, chromium oxide, and TiO₂. The Si peak was attributed to the mesoporous TUD-1. The peaks from chromium oxide and TiO₂ were weak because of the low loading of Cr-TiO₂ onto TUD-1. The detailed analysis of the chromium species is shown in Fig. 8(b). The chromium species produced a peak at a binding energy of 580 eV with a peak area of 174.765, which may indicate the existence of CrO₃ species. Therefore, it could be construed that the oxidation state of the Cr dopant was +6 ^[31]. Nonetheless, the presence of Cr was difficult to confirm because of its low content in the Cr-TiO₂/TUD-1(x) samples. This could be a result of the synthesis methodology, because the Cr-TiO₂ nanoparticles may be embedded deep within the silicate matrix during the sol-gel process. Fig. 8(c) depicts the detailed XPS analysis of Ti. A peak assigned to TiO₂ species was observed at a binding energy of 458.5 eV with a peak area of 266.628. The result indicates that the oxidation state of the TiO₂ species was +4 ^[32]. The comprehensive analysis for Si is presented in Fig. 8(d). The SiO₂ species generated a peak at a binding energy of 103.5 eV with a large peak area of 42419. This strongly suggests that the oxidation state of the silicate was +4 ^[33]. This peak was intense because of the existence of silica species in the TUD-1 catalyst support, which was the main component of the samples. As listed in Table 4, Si species (38 at%) were the most prominent species in TiO₂/TUD-1(30). Meanwhile, the major species was oxygen (61.11 at%) in the sample composed of metal/metalloid oxide.

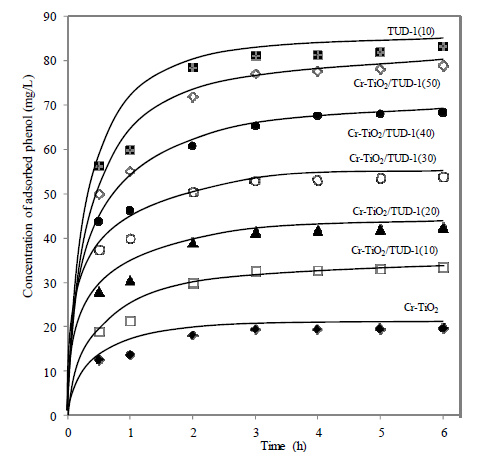

Prior to the photocatalytic testing, the adsorptivity of the synthesized photocatalysts was determined. The quantity of phenol adsorbed on the catalysts was examined using UV-Vis spectroscopy. Adsorption equilibrium was achieved after 2 h (Fig. 9). The results demonstrated that Cr-TiO₂ had the lowest adsorption capacity for phenol because it adsorbed only 18 mg/L of phenol after 2 h. Meanwhile, TUD-1 showed the highest adsorption capacity, adsorbing 71 mg/L of phenol after 2 h. As expected, the adsorption capacity of the Cr-TiO₂/TUD-1(x) samples increased with TUD-1 content in the samples. The adsorption behavior was proportional to the surface area and pore volume of the samples ^[34].

The linearity of plots of the concentration of phenol in solution at equilibrium C_e (mg/L)/the amount of phenol adsorbed on the photocatalyst at equilibrium Q_e (mg/g) versus C_e for the samples verified that the adsorption was monolayer chemisorption because it obeyed the Langmuir model, which is expressed by Equation (1) and (2) as follows.

${{Q}_{e}}~=\text{ }({{C}_{0}}~-~{{C}_{e}})~V/m$

(1)

${{C}_{e}}/{{Q}_{e}}~=\text{ }(1/{{Q}_{m}}){{C}_{e}}~+\text{ }1/{{K}_{L}}{{Q}_{m}}$

(2)

where C₀ is the initial concentration of phenol in solution (mg/L), V is the volume of phenol solution (L), m is the mass of photocatalyst used (g), K_L is the Langmuir adsorption constant (L/mg), and Q_m is the maximum adsorption capacity (mg/g). Table 5 gives Q_m of all the samples. The adsorption capacity of Cr-TiO₂ was enhanced substantially (more than 2.5 fold) after loading onto TUD-1.

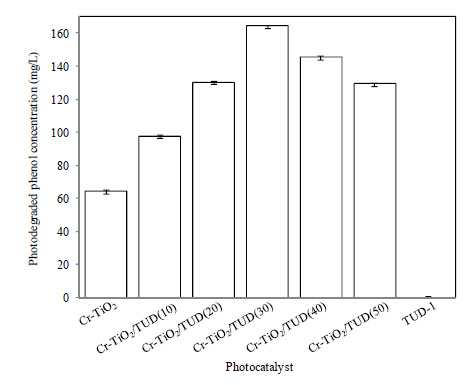

The photocatalytic performance of all the synthesized photocatalysts was evaluated through phenol photodegradation experiments (Fig. 10). The results indicated that Cr-TiO₂ was an active photocatalyst for phenol photodegradation, photodegrading 66 mg/L phenol after 5 h reaction under visible light irradiation. It has been reported that Cr-TiO₂ is an effective photocatalyst for dye photodegradation under visible light ^[8]. Conversely, TUD-1 was totally inactive in photodegradation of phenol. Even though TUD-1 possessed high surface area and pore volume, it did not have active sites for the photocatalytic reaction. After introducing Cr-TiO₂ into the TUD-1 support, the photocatalytic activity of Cr-TiO₂ improved remarkably.

It is believed that the stable mesoporous structure of TUD-1 provided high accessibility to nearly all Cr-TiO₂ nanoparticles and raised the photocatalytic reactivity of Cr-TiO₂ by supplying more active sites to adsorb phenol and hydroxyl groups. In addition, the high surface area of TUD-1 could have acted like a sponge to pre-concentrate the phenol reactant on the photocatalyst surface, increasing the availability of phenol and making it accessible to the active sites on the TUD-1 support surface ^[35]. More importantly, the current results strongly suggest that TUD-1 played an important role as a support to ensure the Cr-TiO₂ nanoparticles were well distributed and not agglomerated, as evidenced in the EDX mapping images. Furthermore, the Si-O-Ti bonds in the silica framework of TUD-1 might have acted as active sites for the photodegradation reaction. Consequently, the photocatalytic performance of Cr-TiO₂ supported on TUD-1 was enhanced markedly compared with that of unsupported Cr-TiO₂. Amongst the samples, Cr-TiO₂/TUD-1(30) showed the highest photocatalytic activity (Fig. 10), photodegrading 162 mg/L phenol after 5 h of photocatalytic reaction.

The reaction order and rate of Cr-TiO₂/TUD-1(30) were determined. Fig. 11 shows that phenol photodegradation using Cr-TiO₂/TUD-1(30) was a first-order reaction according to the following equations.

$ln{{\left[ Ph \right]}_{t}}~=\text{ }-kt\text{ }+~ln{{\left[ Ph \right]}_{0}}$

(3)

$rate~=\text{ }k\left[ Ph \right]$

(4)

where [Ph]_t is the concentration of phenol at time t, k is the rate constant, and [Ph]₀ is the initial concentration of phenol. A negative linear plot was obtained when ln[Ph] was plotted against t. Thus, the photocatalytic reaction depended solely on phenol concentration and the reaction rate was 0.2344 h^-1.

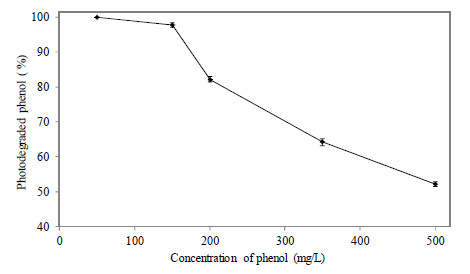

Initial phenol concentration is a critical factor in any water treatment procedure. The effect of initial phenol concentration on photocatalytic performance was studied in the range of 50-500 mg/L in the presence of 0.1 g Cr-TiO₂/TUD-1(30) photocatalyst at pH = 7; the results are shown in Fig. 12. With increasing phenol concentration, less phenol was photodegraded under otherwise identical reaction conditions. It is believed that at high initial phenol concentration, the amount of phenol adsorbed on the Cr-TiO₂/TUD-1(30) surface increased. Consequently, the formation of hydroxyl radicals was hindered because of the limited number of active sites available to adsorb superoxide ions ^[36]. Furthermore, a high aqueous-phase phenol concentration might lessen the visible light irradiation of the photocatalyst surface, which would decrease photoabsorption, resulting in an appreciable decrease in phenol photodegradation.

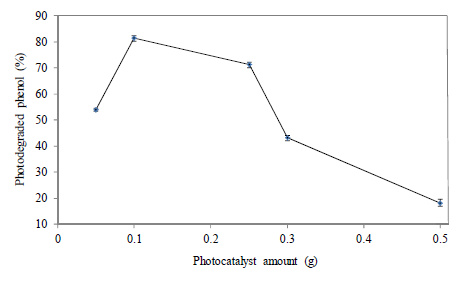

The effect of Cr-TiO₂/TUD-1(30) quantity on phenol photodegradation was determined using phenol solutions with a concentration of 200 mg/L at pH = 7 (Fig. 13). The findings confirmed the positive effect of the increasing number of active sites of photocatalyst on the photodegradation kinetics up to a certain point. The highest photodegradation was achieved when 0.1 g of Cr-TiO₂/TUD-1(30) was used. A further increase in photocatalyst dosage resulted in decreased photodegradation performance. As the photocatalyst amount increased, so did the total active surface sites for light absorption. Therefore, the amount of hydroxyl and/or superoxide radicals increased, leading to improved photocatalytic activity ^[32]. However, system turbidity increased with photocatalyst content. The increase of opacity and light scattering of Cr-TiO₂/TUD-1(30) particles with their content in the reaction mixture would result in decreased transmittance of irradiation passing through the photocatalyst, thus lowering the photocatalytic activity ^[37]. In addition, photocatalyst aggregation when a large quantity of catalyst was present would cause the amount of surface active sites to decrease.

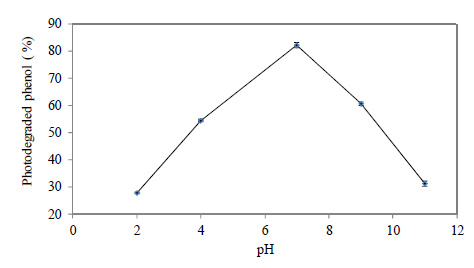

Phenol photodegradation occurs on the surface of the photocatalyst, so pH plays an important role in degradation performance. At alkaline pH, the catalyst surface becomes negatively charged, while the surface becomes positively charged at acidic pH. Therefore, pH plays a pivotal role in the surface adsorption-desorption characteristics of a photocatalyst ^[38]. The effect of pH on phenol (200 mg/L) photodegradation using 0.1 g Cr-TiO₂/TUD-1(30) photocatalyst is illustrated in Fig. 14. The results demonstrate that the photocatalyst achieved the highest activity for phenol photodegradation at pH = 7 after 5 h reaction, degrading 82% of the phenol in the solution. The photocatalytic activity of the photocatalyst decreased dramatically at both low and high pH. At low pH (acidic), the positively charged surface repelled the phenol reactant, thus lowering the surface adsorptivity of the photocatalyst. Meanwhile, at high pH (alkaline), the photocatalyst coagulated, thus decreasing the availability of the surface active sites ^[39].

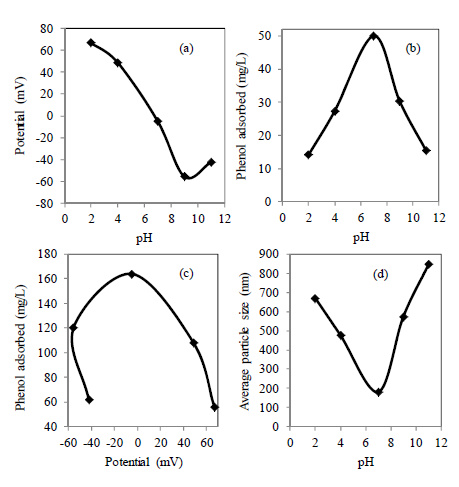

The zeta potential curve of Cr-TiO₂/TUD-1(30) in phenol solution was plotted (Fig. 15(a)). The surface charge of Cr-TiO₂/TUD-1(30) is influenced by the pH of the phenol solution. The pH at zero point charge pH_zpc of Cr-TiO₂/TUD-1(30) is approximately 6.7. Therefore, the surface is positively charged when the pH of the phenol solution is lower than pH_zpc and vice versa. Fig. 15(b) plots of the amount of phenol adsorbed versus pH. The maximum amount of phenol was adsorbed at neutral pH, which is very close to pH_zpc. Because phenol is non-ionic, the effect of surface charge on Cr-TiO₂/TUD-1(30) towards the adsorptivity of phenol is indirect. As shown in Fig. 15(c), the amount of phenol adsorbed decreased with increasing zeta potential when the potential was greater than +20 mV (pH approximately equal to 6). The optimum adsorption of phenol was recorded at zeta potential ranging from -5 to 0 mV. When the zeta potential was lower than -40 mV (pH of approximately 8), the amount of phenol adsorbed decreased with decreasing zeta potential. Such features indicate that electrostatic interactions between the charged surface and phenol are negligible and are primarily dispersion forces. In other words, strong electrostatic repulsion forces tended to push the phenol away from the surface and decreased the dispersion forces between phenol and the Cr-TiO₂/TUD-1(30) surface when the Cr-TiO₂/TUD-1(30) surface was positively or negatively charged. As a result, the surface adsorption forces of Cr-TiO₂/TUD-1(30) decreased at low or high pH. Fig. 15(d) illustrates the average particle size of Cr-TiO₂/TUD-1(30) in phenol solutions of different pH. Cr-TiO₂/TUD-1(30) possessed the smallest average particle size when the pH was close to pH_zpc. Meanwhile, the average particle size of Cr-TiO₂/TUD-1(30) increased markedly at extremely low a nd high pH. This implies that the particles of Cr-TiO₂/TUD-1(30) tended to agglomerate at low and high pH, causing particle growth because of the strong electrostatic forces at the catalyst surface.

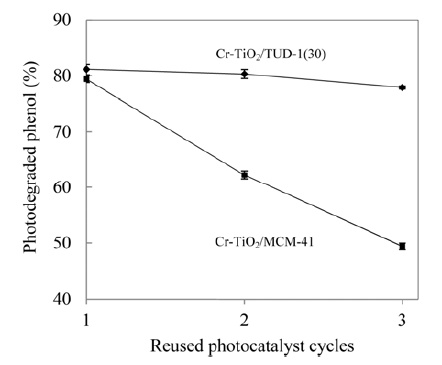

The reusability of Cr-TiO₂/TUD-1(30) for three cycles was investigated; the results are shown in Fig. 16. For comparison, the reusability of Cr-TiO₂/MCM-41 with the same Si/Ti molar ratio = 30 was also tested under the same reaction conditions. In each cycle, the photocatalyst was reused for the photodegradation of a fresh phenol solution. The initial concentration of phenol was constant (200 mg/L), and solutions were irradiated for 5 h. The photocatalyst was recycled after being centrifuged, washed, and calcined at 723 K for 4 h after every photodegradation measurement. After three cycles, Cr-TiO₂/TUD-1(30) was still effective for the photodegradation of phenol, with negligible decrease (< 3%) in the photodegradation percentage of phenol. The small decrease in photocatalytic performance might be attributed to photocatalyst aggregation after several calcination steps, which would lower the surface area of the material. Conversely, Cr-TiO₂/MCM-41 exhibited substantial photocatalytic deactivation after the first run. This may be because the one-dimensional pore channel of MCM-41 does form a good physical interaction with Cr-TiO₂ nanoparticles, resulting in leaching that decreased the photocatalytic activity of the material ^[40]. While the phenol solution remained colorless after the photocatalytic reaction using Cr-TiO₂/TUD-1(30) photocatalyst, it turned into pale yellow after the photocatalytic reaction using Cr-TiO₂/MCM-41, implying Cr leaching in the latter sample. These findings strongly indicate that TUD-1 is a better Cr-TiO₂ photocatalyst support than MCM-41 for phenol degradation.

Mesoporous Cr-TiO₂/TUD-1(x) samples, where x = 10-50, were excellent photocatalysts for phenol photodegradation under visible light irradiation. The mesoporous structure of these catalysts was evidenced by XRD and adsorption-desorption analyses. Cr-TiO₂/TUD-1(x) samples possessed high surface areas and narrow distributions of pore size diameter. The photocatalytic testing results demonstrated that these materials exhibited higher activity in the photodegradation of phenol than unsupported Cr-TiO₂. Cr-TiO₂/TUD-1(30) showed the highest photocatalytic activity in phenol photodegradation, achieving 82% conversion. Photocatalysis followed the Langmuir adsorption isotherm and first-order kinetics with a rate of 0.2344 h^-1. Because of its high reusability, Cr-TiO₂/TUD-1(30) shows potential as a photocatalyst for phenol degradation under visible light irradiation.
