The increase in biodiesel development means that the disposal of crude glycerol is an emerging issue because the transesterification reactions to produce biodiesel yield 10 wt% glycerol as a by-product. Among various methods of crude glycerol disposal and utilization, the glycerol steam reforming reaction (GSR) provides the potential to produce renewable hydrogen gas. This process could substantially improve the viability of numerous bio-refining processes [1-4].
The GSR can be represented by Eq. (1) and can be considered as combination of glycerol decomposition (Eq. (2)) and a water-gas shift (WGS) reaction (Eq. (3)).
These pathways maybe accompanied by other reactions as shown in Eqs. (4)-(12) [5-7].
The fundamental steps involve the cleavage of C-C, O-H and C-H bonds of the glycerol molecule, while maintaining the C-O bonds. The reaction pathways and product distribution are determined to a large extent by the catalyst. A number of studies reporting the performance of different catalytic systems for the GSR have steadily been published in the last few years, with Ni-based systems attracting the most attention [7-12].
Ni-based catalysts have attracted researchers’ interest due to their lower cost and higher availability than noble metal catalysts, and they have considerable intrinsic activity, especially when the Ni is highly dispersed over a support. Alumina-based supports have been investigated because of their mechanical and chemical resistance under the reaction conditions, and because of alumina’s high specific surface area (SSA), which improves metal dispersion. However, Ni on alumina catalysts suffers from deactivation by carbon formation (with carbon tending to deposit and cover the active sites of the catalyst surface), and metal particle sinterization, caused by a lack of adequate thermal stability [13-22].
Maximization of the active phase dispersion, optimization of the active species, and decreasing the rate of coke deposition on the catalysts’ surfaces are major challenges for Ni-based catalysts used in reforming reactions. These problems may be mitigated by developing an appropriate methodology for the preparation of catalysts. Different techniques have been employed for the preparation of GSR catalysts including self-combustion, ionic exchange, sol gel, microemulsion and precipitation [6, 8, 14, 16]. However, the most popular synthetic methods by far have been the incipient wetness and wet impregnation techniques [3-5, 10, 12, 13].
The equilibrium deposition filtration technique (EDF), otherwise called equilibrium adsorption [23, 24], to the best of our knowledge, has not been used to prepare GSR catalysts. Using EDF, active species are deposited not only by adsorption but by reaction with the receptor sites developed on the support surface (surface oxygens and surface hydroxyls) during the long equilibration time of the quite dilute, impregnating suspensions, giving catalysts with promising textural, structural, and expected catalytic properties.
The aim of our work was to comparatively investigate the influence of the catalysts’ synthesis method on surface characteristics and catalytic performance for the GSR. A series of Al2O3-supported Ni catalysts were prepared, with nickel loadings of 8 wt%, using the incipient wetness, wet impregnation and a slightly modified EDF techniques. The catalysts’ surface and bulk properties, at their calcined, reduced and used forms, were determined by applying several characterization techniques including inductively coupled plasma (ICP), N2 adsorption-desorption, X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), temperature-programmed reduction (TPR) and carbon analysis. The catalysts’ performance was studied to investigate the effect of reaction temperature on (1) glycerol total conversion, (2) glycerol conversion to gaseous products, (3) hydrogen selectivity and yield, (4) selectivity of gaseous products, (5) selectivity of liquid products, and (6) molar ratios of H2/CO and CO/CO2 in the gaseous products mixture. Investigating the influence of the catalysts’ synthesis method on their surface characteristics and catalytic performance also provided additional information on the correlation between the physicochemical and catalytic properties of the reforming catalysts.
A commercial γ-Al2O3 (Akzo) was used as the support for all the Ni-based catalysts with its physicochemical properties published elsewhere [25]. The support was purchased in pellet form and crashed and sieved to 350-500 µm before use. The powder was air-dried overnight and calcined at 800 ℃ for 5 h under an atmosphere of air.
The catalysts were prepared via the EDF (slightly modified), wet impregnation and incipient wetness impregnation techniques using nickel nitrate aqueous solutions (0.17 mol/L), in order to obtain catalysts with Ni content of about 8 wt%. The Ni(NO3)2·6H2O used for the catalyst preparation was obtained from Sigma Aldrich. All solutions for catalyst preparation utilized distilled and de-ionized pure water generated by a NANOpure Diamond UV unit (Barnstead International).
The modified EDF sample (labeled herein as Ni/Al-edf) was prepared at constant impregnating solution temperature and a pH value of 25.0 ± 0.1 ℃ and 7.0, respectively. The point of zero charge of the γ-alumina was determined to be close to a pH value of 7.0, i.e., at this pH the positive and negative charge sites on the alumina surface are equal. The catalyst was prepared in a temperature controlled vessel (250 mL) equipped with a pH adjusting and controlling device, involving a glass/saturated calomel electrode (Metro 703 Ti Stand). The pH control system allowed the automatic adjustment of the pH during the impregnation by addition of 0.1 mol/L NH4OH aqueous solution. Nitrogen gas was bubbled into the vessel during the preparation process to prevent dilution of the atmospheric CO2 and subsequent change in the pH. A 100-mL nickel nitrate solution was used. The ionic strength of the solution was adjusted to 0.1 mol/L throughout the impregnation with NH4NO3. The γ- alumina (10 g) was added to the solution and kept under stirring. The pH was kept at 7.0 for about 2.5 h, and then the water was evaporated using a rotary evaporator at 60 ℃ for 4 h.
The catalyst synthesized by the wet impregnation method (labeled herein as Ni/Al-wet) used an impregnation solution volume that was about 10 times higher than the alumina’s pore volume (Vp), and the water was evaporated using a rotary evaporator at 60 ℃ for 4 h. The pH (initial pH value 5.5) was not adjusted or controlled during the catalyst’s preparation.
The incipient wetness impregnation sample (labeled herein as Ni/Al-iwi) was prepared using simple pore volume (Vp) impregnation. The volume of nickel nitrate aqueous solution used was equal to the total Vp of the impregnated alumina. The impregnation solution was added dropwise to the support and mixed. The support became slightly wet after the addition was complete. The catalyst samples were air-dried overnight and then calcined at 800 ℃ for 5 h under an atmosphere of air.
The SSA of the catalysts were measured using N2 adsorption-desorption isotherms at -196 ℃, following the Brunauer-Emmett-Teller (BET) equation at relative pressures in the range of 0.05-0.30, with a Nova 2200e (Quantachrome). The SSAs were measured on the calcined and reduced samples.
The Vp calculation of both calcined and reduced catalysts was based on the nitrogen volume adsorbed at the highest relative pressure, whereas the adsorption average pore size diameter was calculated using the equation 4V/A by BET. The adsorption and desorption average pore width (Da) was determined by the Barrett-Joyner-Halenda (BJH) method. The samples were degassed at 350 ℃ for 5 h under vacuum prior to the measurements.
The total metal loading (wt%) of each of the final catalysts was determined by ICP atomic emission spectroscopy on a Perkin-Elmer Optima 4300DV apparatus using a previously described method [23]. Metal loading was measured for the calcined samples.
The catalyst crystalline structure was determined by XRD using a Siemens D500 diffractometer at 40 kV and 30 mA with Cu Kα radiation (λ = 0.154 nm). Diffractograms were recorded in the 2θ = 2°-70° range at a scanning rate of 0.02° over 2 s. The diffraction patterns were identified by comparison with those of known structures in the Joint Committee of Powder Diffraction Standards database. The XRD technique was used for both calcined and reduced samples.
Η2-TPR experiments were carried out in a conventional quartz bed reactor with a feed of H2 (5%)/He flowing at 50 mL/min. Calcined samples (100 mg) were heated at a rate of 10 ℃/min from 25 to 900 ℃. The catalysts were subjected to an initial pretreatment step using He (50 mL/min) before the reduction procedure. This treatment included preheating up to 600 ℃ at a heating rate of 3 ℃/min and then holding at this temperature for 1 h. The outlet gas was analyzed by mass spectrometry (MS). The main m/z fragment registered was that of H2 = 2.
Conventional TEM and high resolution TEM experiments were carried out in a JEOL JEM-2011 electron microscope, operating at 200 kV with a point resolution of 0.23 nm. The instrument was fitted with an energy-dispersive X-ray spectroscopy (EDS) detector for the elemental analysis of the samples. Qualitative and semi-quantitative analysis of EDS data was accomplished using the INCA microanalysis software package. Samples were prepared according to a previously described procedure [23].
Morphological examination of both fresh and used catalysts was undertaken using SEM in a JEOL 6610LV. The EDS elemental analysis was carried out using a large area (80 mm2) silicon drift detector (X-Max 80 Oxford Instruments). Images, element maps and spectra were acquired and analyzed with the AZtech Nanoanalysis software (Oxford Instruments).
The percentile concentration of carbon in the used catalyst was measured by quantitative infrared spectroscopy performed with a Leco CHN-200 analyzer. Sample (0.1 g) and accelerator material (0.1 g of Lecocel), which was used to ensure complete coupling of the sample and RF field, were weighted into a ceramic crucible and the crucible placed on the loading pedestal for analysis. Furnace closure was performed automatically and the combustion chamber purged with oxygen (99.9%) to drive off residual atmospheric gases. Oxygen flow through the system was restored after purging and the induction furnace turned on. The inductive elements of the sample and accelerator couple with the high frequency field of the furnace. The pure oxygen atmosphere and the heat generated by this coupling cause the sample to combust. During combustion, carbon bearing elements are reduced, releasing the carbon, which immediately binds with the oxygen atmosphere to form CO and CO2. Sample gases are swept into the carrier stream (N2, 99.9%). A small amount of CO2 is converted to CO2 in the catalytic heater assembly and carbon is measured as CO2 in the infrared (IR) cell as gases flow through the IR cells.

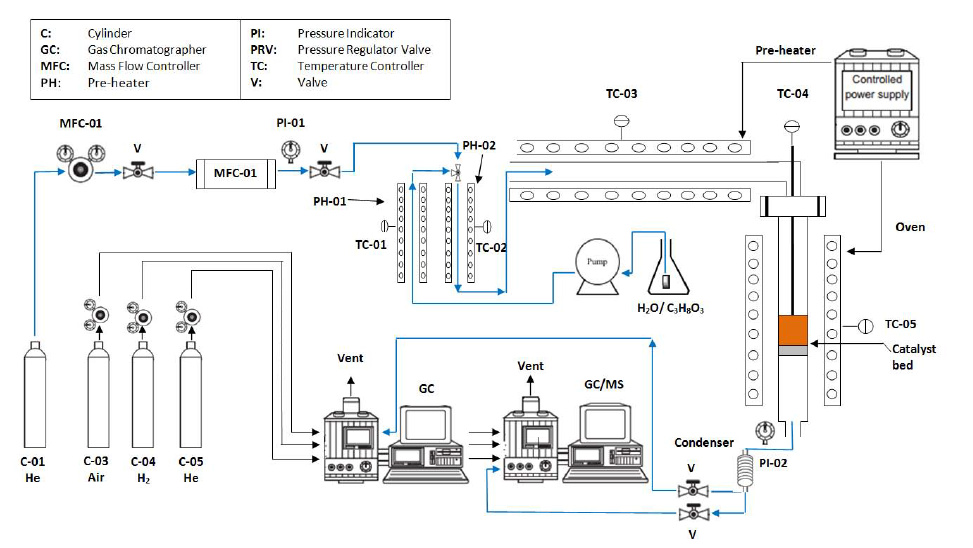

The GSR was carried out at atmospheric pressure in a continuous flow, fixed-bed, single pass, tubular stainless steel reactor with an inner diameter of 14 mm at temperatures ranging from 400 to 750 ℃. The experimental set up had two vaporizers, a pre-heater before the reactor and a condenser after it, allowing the feeding of both liquid and gaseous streams. The vaporizers, pre-heater and reactor were placed into electrical ovens and regulated with programmed-temperature controllers (Fig. 1).
Catalyst (200 mg) was reduced in situ under a flow of 100% H2 (100 mL/min) at 800 ℃ for 1 h prior to catalytic testing. The catalyst was purged with He for 45 min, the temperature lowered to 750 ℃ and the reaction feed was introduced into the catalyst bed. Each step lasted for approximately 50 min in order to ensure operation at steady state conditions. This timeframe allowed three measurements of the gas products at each temperature, helping to ensure the reliability of the results. Liquid products were obtained at the end of each 50-min period.
The reaction feed consisted of the gas stream (He 5.0, 38 mL/min) and the liquid stream (an aqueous solution of 20:80 (wt%) C3H8Ο3 and H2O, 20:1 steam/glycerol molar ratio, with a total liquid flow rate of 0.12 mL/min, which was kept under continuous stirring at room temperature). The glycerol (99.5% purity) was obtained from Sigma Aldrich. The glycerol/water mixture was fed with a high-performance liquid chromatography pump (Series I) into the evaporator and was vaporized at 350 ℃ before it was mixed with He. Pressure controllers were placed before and after the inlet and outlet gas ports to prevent over pressurization. The gas feed to the reactor was a gaseous mixture of 73% H2O, 4% glycerol and 23% He, corresponding to a weight hourly space velocity (WHSV) of 50000 mL g-1 h-1. The reactor’s outlet gases passed through a cold trap for liquid product capture.
The gaseous products were analyzed on-line by gas chromatography (Agilent 7890A), with two columns in parallel, an HP-Plot-Q (19095-Q04, 30 m length, 0.530 mm I.D.) and HP- Molesieve (19095P-MSO, 30 m length, 0.530 mm I.D.), equipped with thermal conductivity and flame ionization detectors.
Liquid products were analyzed via a combination of GC and MS. The instrument used was a 7890A/5975C triple-axis detector diffusion pump based GC-MS equipped with split/ splitless inlet (Agilent Technologies, Santa Clara, CA, USA). Chromatographic separation was achieved by a 30 m × 250 µm HP-5MS (5% phenyl, 95% methylpolysiloxane) capillary column with film thickness of 0.25 µm. He 5.0 (99.999%) was used as carrier gas in a constant flow rate mode (1 mL/min). The oven temperature program was set at 35 ℃ for 5 min, increased by 10 ℃/min to 250 ℃ and held at 250 ℃ for 10 min. The temperature of the split/splitless injector was 280 ℃ and the volume of the samples injected was 1 µL with a split ratio of 100:1 using an ultra-inert liner with glass wool (Agilent Technologies). The temperatures of the ion source, the quadrupole and the MS interface for both instruments were 230, 150 and 250 ℃, respectively. Both full scan (40-160 m/z) and selective ion monitoring modes were performed under electron impact ionization mode at 70 eV. The quantification of compounds carried out by an internal standard method using 2-butanol to monitor batch reproducibility and to correct for variations that occurred during sample preparation and analysis. Mass selective detector ChemStation software (Agilent Technologies) was used to acquire mass spectrometric data. The mass spectra of all detected compounds were compared with spectra in the National Institute of Standards and Technology library. The following ions were chosen for quantification: glycerol (61), acetol (74), acetone (58), acrolein (56), allyl alcohol (57), acetaldehyde (44) and acetic acid (60).
The catalysts’ performance in the gas phase is reported in terms of H2 yield, H2, CO, CH4 and CO2 selectivities, glycerol conversion into gaseous products, and total glycerol conversion. The liquid phase performance is reported in terms of acetol (C3H6O2), acetone ((CH3)2CO), allyl alcohol (CH2=CHCH2OH), acetaldehyde (C2H4O), acrolein (C3H4O) and acetic acid (C2H4O) selectivities. Performance parameters were calculated based on the following equations:
where RR is the reforming ratio (7/3), defined as the ratio of moles of Η2 to CO2 formed.
where species i refers to CO, CO2 or CH4.
where species i refers to acetol, acetone, allyl alcohol, acetaldehyde or acetic acid.
Chemical and structural properties of the calcined and reduced Ni/Al samples, including nickel content and the nickel species particle size, have been presented previously [23]. The N2 adsorption-desorption isotherms and the pore size distribution curves of the calcined and reduced samples are shown in Fig. 2(a) and (b), respectively. The BJH adsorption data were used to establish the pore size distribution curves. The isotherms for all samples are type IVa with a hysteresis loop, indicating the presence of mesopores. The adsorption behavior in mesopores is determined by the adsorbent-adsorptive interactions and by the interactions between the molecules in the condensed state. The initial monolayer-multilayer adsorption on the mesopore walls, which takes the same path as the corresponding part of a Type II isotherm, is followed by pore condensation. Pore condensation is the phenomenon whereby a gas condenses to a liquid-like phase in a pore at a pressure less than the saturation pressure of the bulk liquid. A typical feature of type IV isotherms is a final saturation plateau of variable length (sometimes present as a mere inflexion point). Capillary condensation is accompanied by hysteresis, especially for Type IVa isotherms [26]. This occurs when the pore width exceeds a certain critical width, which is dependent on the adsorption system and temperature (e.g., for nitrogen and argon adsorption in cylindrical pores at -196 and -186 ℃, respectively, hysteresis starts to occur for pores wider than ~4 nm). The hysteresis loop is H2 type, indicating pore connectivity with ink-bottle or channel-like pores.

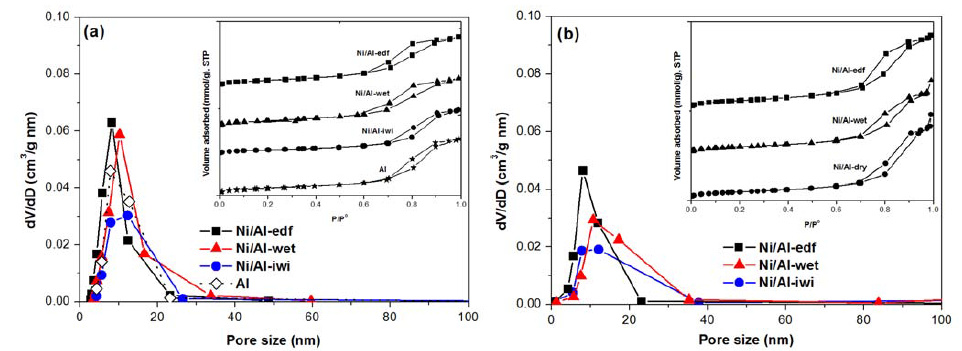

The pore size distribution curves depict that all samples were single modal type with the mesopore range centered around 10-20 nm. The pore distribution curve of the calcined sample of Ni/Al-iwi is relatively broad, while the Al, Ni/Al-wet and Ni/Al-edf calcined samples curves are sharper. For the reduced samples, Ni/Al-iwi has a quite broad curve, Ni/Al-edf has a sharp curve, with the Ni/Al-wet curve somewhere in between. No micropore volume was measured by the t-plot method, indicating that only mesopores developed for all of the samples.
These results provide an indication of the different mechanisms by which nickel species are deposited on the alumina surface, depending on the catalyst preparation process. After calcination the Ni/Al-wet and Ni/Al-edf samples seem to have quite similar textural properties, while this is not true for the same catalysts after their reduction. The Ni/Al-iwi exhibits a quite different texture, with wider pores with a narrower size distribution after reduction. It seems that for the former catalysts, the deposition occurred as a more uniform covering of the mesopores’ internal surface with small nickel particles.
Textural properties of calcined and reduced samples, including the SSA, Vp and Da, are presented in Table 1. The SSA of the calcined support decreased considerably, the Da doubled and the Vp remained approximately the same (commercial alumina has a SSA of 281 m2/g, Da of 7.8 nm and Vp of 0.65 mL/g). These occurrences can probably be attributed to thermal sintering. A partial change in the crystalline structure of the alumina from γ to a tetragonally distorted defective spinel alumina similar to δ-Al2O3 or γ’-Al2O3 cannot be discounted [27, 28]. However, this partial transformation was not detected by XRD analysis. The nickel species deposition resulted in a further decrease in the BET surface area values for the calcined catalyst samples (the smallest drop was recorded for the Ni/Al-edf), while Vp dropped almost equally for all samples (Table 1). The Da decreased for the Ni/Al-edf and increased for the Ni/Al-wet and Ni/Al-iwi samples. A decrease in the Da following nickel loading shows that most of the pores are still available (i.e., little pore blockage), which is an indication of good dispersion of nickel species on the alumina’s surface.
A different trend can be seen between the reduced Ni/Al-edf and the other two reduced samples (Table 1). Specifically, the reduction resulted in an increase to the SSA for Ni/Al-edf and a decrease to the Vp values, while the Da value slightly increased (from 10.90 to 12.52 nm). Opposite effects were observed for the Ni/Al-wet and Ni/Al-iwi samples; for these catalysts, SSA values decreased, and Vp and Da values increased. The differences in the edf sample indicate stability to the reduction treatment, possibly because the pH and ionic strength were kept constant during the preparation of this catalyst. The increase in the pore size can be explained by a combination of the reduction degree of the Ni oxide species on the catalytic surfaces, structural shrinkage and blockage of pores at higher temperatures during the reduction process.

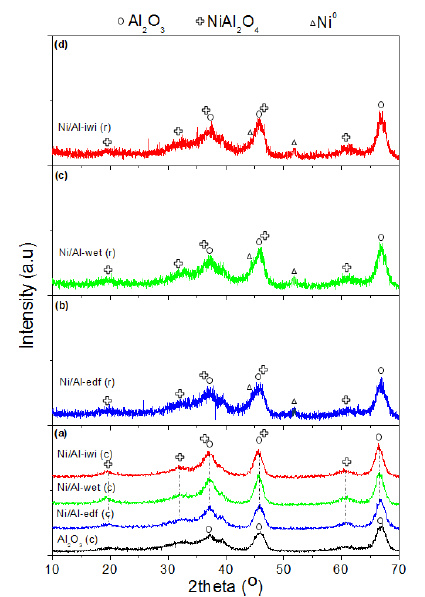

The degree of crystallinity and the phases of the prepared catalysts were identified for their calcined and reduced forms by XRD analysis (Fig. 3). The characteristic peaks of γ-Al2O3 were detected for all samples at 2θ = 37.7°, 45.9° and 67.0°. There is a small increase in γ-Al2O3 in the calcined samples with a characteristic peak intensity at 2θ = 45.9°. This can be attributed to an overlapping with the nickel aluminate (NiAl2O4) phase’s characteristic peak at 2θ = 46°. The formation of the spinel NiAl2O4 phase, observed at the diffraction lines 2θ = 19.0°, 32.0°, 37.0° and 59.6°, is caused by the reaction between nickel oxide (NiO) and Al2O3 at high calcination temperature [14, 25]. NiAl2O4 crystallizes in the cubic system, while the framework of the spinel structures consists of an ensemble of tetrahedral and octahedral coordination occupied by bivalent (Ni2+) and trivalent (Al3+) cations, respectively. This distribution can change in the cases where an octahedral site is partially adopted by the Ni2+ ions and the tetrahedral site hosts both Al3+ and the Ni2+ ions. Thus, a family of compounds with inverse spinel structure, described as Ni1-x[NixAl2-x]O4 (0 < x < 1), can be generated by this structural flexibility [18, 20].
The absence of the NiO structure can be either related to the size of these structures (i.e., they are smaller than 2-7 nm, which is the typical XRD detection limit [29]), or that the structures are nearly amorphous [23]. Note that NiO was indicated by the TEM results for the calcined samples (see below). Two major differences can be observed between the calcined and reduced samples: the first is the decreasing intensities of Al2O3 and NiAl2O4; the second difference is the appearance of small peaks because of the presence of metallic nickel (Ni0), indicated by peaks at 2θ = 44° and 51.2°. The low intensity of the Ni0 peaks is correlated to the small size of the metallic nickel species [30, 31].

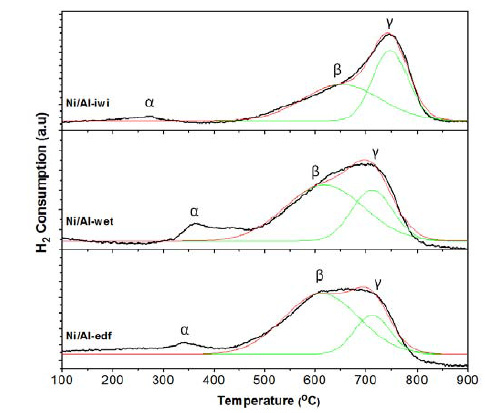

TPR measurements were carried out to examine the interaction between nickel species and the support in the Ni/Al-edf, Ni/Al-wet and Ni/Al-iwi catalysts. A Gaussian-type deconvolution was applied in order to characterize the type of reducible nickel species present on the various catalysts (Fig. 4). All catalysts exhibited a small peak at low temperature, attributed to the reduction of bulk NiO phase (α-peak) and a broad reduction band corresponding to the nickel aluminate structures (β- and γ-peaks), indicated strong interaction between nickel species and the alumina support. These results are consistent with the XRD results (Fig. 3), showing the existence of the nickel aluminate phase for all catalysts were free of α-NiO species.
In the case of the Ni/Al-iwi catalyst, the characteristic reduction peak attributed to bulk NiO is negligible, while the deconvolution curves’ peaks were located at 652 ℃ (β-peak) and 747 ℃ (γ-peak). Both the β- and γ-peaks were located at quite lower temperatures for the Ni/Al-wet and Ni/Al-edf catalysts, 615 and 712 ℃, respectively. The contribution of β- and γ-peaks to the observed reduction peaks, as well as their position, could relate to the different Ni2+ coordination in the spinel framework. The contributions of the β-peaks, estimated from the deconvolution curves, in the total Ni species present in the spinel structure of the Ni/Al-iwi, Ni/Al-wet and Ni/Al-edf catalysts were 53.5%, 67.8% and 76.4%, respectively.
The contribution of the β-peak in the Ni/Al-edf catalyst was higher than in the other two catalysts, indicating that the nickel aluminate species in Ni/Al-edf were more reducible. The surface nickel aluminate phase has a high degree of nickel- saturation, which is more reducible than that with a low degree of nickel-saturation [32, 33]. This is because reduction of nickel species is favored when nickel species are surrounded by less aluminum species, which act as electron deficient sites. The retention of more nickel-saturated surface nickel aluminate phase by the Ni/Al-edf catalyst, in comparison with the other two samples, is another indication that the edf preparation method was more effective in the formation of finely dispersed nickel species in the alumina support.
TEM identified Ni/Al2O4 and NiO phases for the calcined samples. Metallic nickel was identified in the reduced catalysts, while NiO was absent. TEM experiments confirmed that the particle size of the Ni/Al-edf catalyst was slightly lower than the other catalysts. TEM images of the catalysts, as well as a more detailed discussion regarding these results, can be found in a previous publication by our group [23].

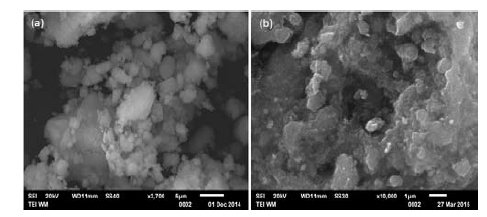

The SEM technique was also used to examine the catalysts’ surface texture and morphology. The SEM images of the calcined Ni/Al-wet catalyst are shown in Fig. 5(a), while Fig. 5(b) shows the same catalyst after reaction (used sample). The calcined catalyst is of nonuniform morphology and includes large ensembles and micro- and nanoparticles.

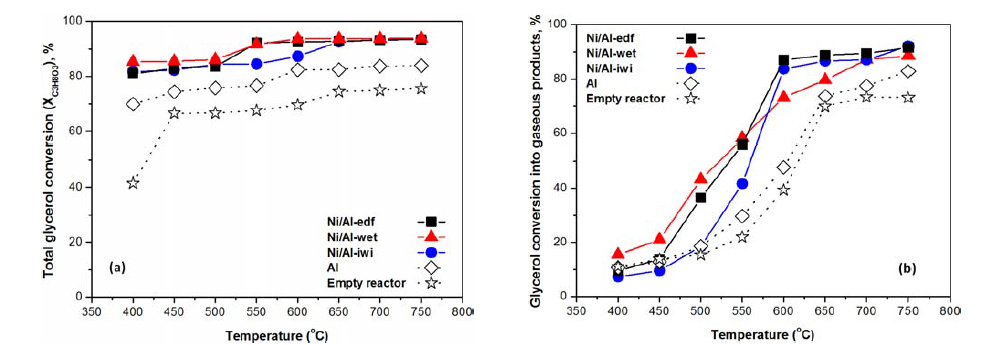

Fig. 6 shows the dependence of reaction temperature on the total glycerol conversion (Fig. 6(a)) and glycerol conversion into gaseous products (Fig. 6(b)). Total glycerol conversion values range from 80% (400-500 ℃) to 90% (550-750 ℃) for all the catalysts. The conversion of glycerol into gaseous products drastically increases at 400-600 ℃, reaching maxima of 90% at 600 ℃ and remaining stable up to 750 ℃ for the Ni/Al-edf and Ni/Al-iwi catalysts. The Ni/Al-edf and Ni/Al-wet catalysts had an almost identical and superior activity in the low temperature range (400-550 ℃) compared with Ni/Al-iwi. The Ni/Al-edf and Ni/Al-iwi samples seem to have an improved ability to convert glycerol into gaseous products at higher temperatures.
Blank tests using the same reaction feed and either an empty reactor tube or calcined Al2O3 particles have also been conducted (Fig. 6(a) and (b)). The trend observed for the blank reactions is similar to that observed for the catalytic samples, with lower conversion values—about 10% for the calcined Al2O3 and 20% for the homogenous (empty tube) reaction—for the whole temperature range, compared with the Ni catalysts. The only exception to this is observed at very low temperature values of 400-450 ℃, where conversions in the empty reactor are about half those seen in the catalytic reactions. Previous work indicated that at reaction temperatures above 600 ℃, considerable homogenous conversion values could be achieved, while H2, CO2, CO and CH4 were the main products of the GSR [3, 11].
The cleavage of the C-C or C-O bonds of glycerol can only be achieved through a dehydrogenation step taking place on the metal active sites and the production of intermediates on the catalytic surface [6, 12]. The formation of CO and H2 is mainly because of the strong C-C bond breaking capacity of nickel catalysts. The steam reforming (SR) reaction is limited at low temperatures from a thermodynamic point of view, while the WGS and methanation reactions are favored. A higher contribution of the GSR, compared with glycerol decomposition at higher temperatures, is also suggested by our results.
The improved catalytic activity for gaseous products of Ni/Al-edf can be attributed to the surface NiAl2O4 [32-36]. Most likely, the active sites of the Ni/Al-edf catalyst are dynamically evolved as the reaction progresses. At the beginning of the reaction nickel particles exist on the catalyst surface as a mixture of small, free particles and encapsulated by a porous NiO/NiAl2O4 layer [21]. This could explain the higher glycerol conversion into gaseous products and confirm that the type of active sites can affect catalyst’s activity and selectivity for the GSR by favoring different reaction pathways.

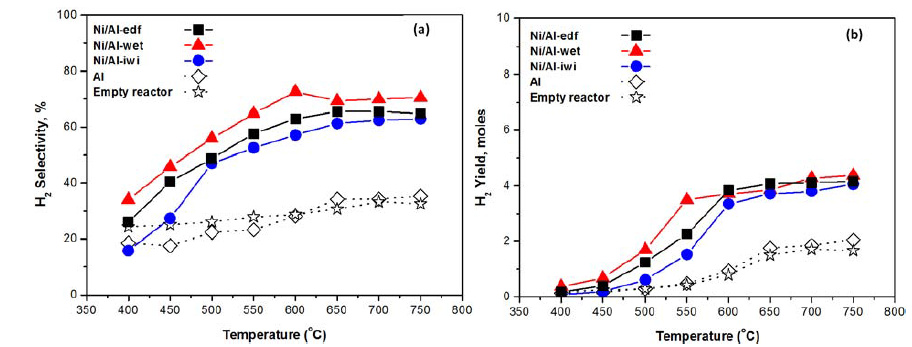

The influence of reaction temperature on hydrogen yield (YH2) and selectivity (SH2) is shown in Fig. 7. Both values increase with increasing temperature and it is well known that temperature significantly affects the hydrogen equilibrium concentrations [37]. The molar fraction and molar flow of hydrogen produced increase when the operating reaction temperatures are raised [38]. A similar trend has also been observed when other fuels are utilized for hydrogen production, such as methane, methanol and ethanol [39]. According to Wang et al. [1], the reaction with a water to glycerol feed ratio (WGFR) equal to 9 is expected to give the greatest quantity of hydrogen (6 mol) at 652 ℃. Increasing the WGFR in the feed over this ratio in our system steadily increased the production of hydrogen. The enhancement of hydrogen production has been observed for all cases of SR reactions when excess steam has been used to overcome equilibrium limitations [40].
Comparison between our catalysts’ experimental results (Fig. 7(b)) reveals that their H2 yield values are quite different for low reaction temperatures (400-600 ℃), with the trend YH2 (Ni/Al-wet) > YH2 (Ni/Al-edf) > YH2 (Ni/Al-iwi). The YH2 values are almost identical for all the catalysts at higher temperatures (600-750 ℃), reaching a value of 4.4 hydrogen moles. The H2 selectivity (Fig. 7(a)) of the catalysts also seems to follow the aforementioned trend for the whole temperature range, reaching the values of 71%, 65% and 63% for NiAl-wet, NiAl-edf and NiAl-iwi, respectively. The YH2 and SH2 for the empty reactor and with calcined Al2O3 are almost identical for the whole reaction temperature range, reaching the values of 35% and 2 moles at 650-750 ℃, respectively.
As already mentioned, the GSR should be considered as a combination of the glycerol pyrolysis as the primary reaction and the WGS as the secondary reaction. The water in the reactor’s inlet mixture provides the proper dilution to produce syngas, resulting in higher conversions [9]. The enhanced glycerol conversion and hydrogen selectivity evident in our experimental results is expected based on previous literature [2, 41], with the values increasing with increased steam to carbon (S/C) molar ratio in the feed.

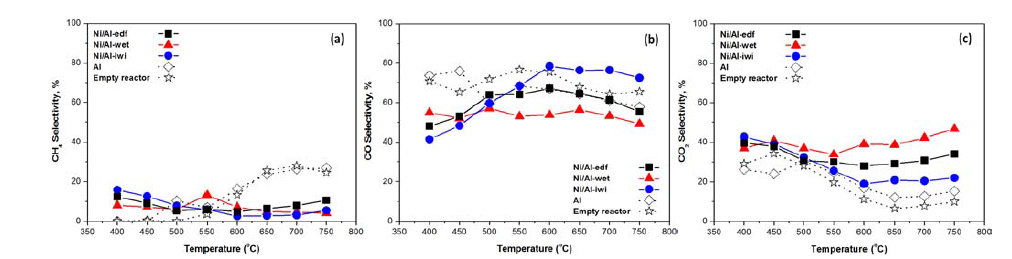

The influence of reaction temperature on the gaseous product selectivities of CO2 (SCO2), CO (SCO) and methane (SCH4) is presented in Fig. 8. A different trend can be observed for SCH4 with increasing temperature for the homogenous and calcined Al2O3 experiments versus the catalytic reactions (Fig. 8(a)). The SCH4 is almost zero for the homogeneous experiments at low reaction temperatures (400-550 ℃), increases with temperature (T > 550 ℃) and reaches a plateau of 28% for higher temperatures (650-750 ℃). SCH4 decreases with increasing temperature in the catalytic reactions and approaches zero at 600 ℃. Methane SR is accelerated in the presence of the catalysts with increasing temperature and contributes to the formation of H2. The formation of CH4 is almost nil with high WGFRs, as in our case, and at higher temperatures (>650 ℃). According to the thermodynamic analysis of Adhikari et al. [41], the production of water and methane decreases as the reaction temperature increases, while the amounts of CO, CO2 and H2 increase; this can be attributed to methane SR.
The SCO seems to be quite constant (70%) with temperature for the homogenous and calcined Al2O3 experiments (Fig. 8(b)). The SCO2 remains unaffected with increasing temperature between 400-500 ℃, drastically decreases from 30% to 10% between 500-650 ℃ and remains constant between 650-750 ℃ (Fig. 8(c)).
The SCO increases with increasing temperature for all catalysts, reaching a plateau at 600-750 ℃, with values of 79%, 67% and 56% for the Ni/A-iwi, Ni/Al-edf and Ni/Al-wet catalysts, respectively (Fig. 8(b)). The opposite trend was observed for the SCO2 (Fig. 8(c)), which decreases with temperature over the low temperature range (< 600 ℃) and then remains almost unaffected until 750 ℃, with values of 47%, 34% and 22% for Ni/Al-wet, Ni/Al-edf and Ni/A-iwi, respectively. These observations can be explained by the varying degree of the reverse WGS participating in the whole process reaction pathway for each one of our catalysts, which are strongly dependent on the synthesis method of the catalysts and their individual characteristics.
High production of CO and CH4 can be associated with the decomposition of acetaldehyde (CH3CHO → CH4 + CO), which has formed as an intermediate product through the glycerol dehydrogenation reaction by a radical decomposition mechanism. Low CO2 production could be attributed to the fact that the WGS reaction does not occur and there is not enough H2 to allow the dehydrogenation reaction [10].
The comparison between catalysts shows that the synthesis method influences their SCO and SCO2, as their values are quite different for reaction temperatures higher than 500 ℃. Specifically, the SCO and SCO2 seem to be rather stable for the temperature range 600-750 ℃, with values of 79% and 22% for Ni/Al-iwi, 67% and 34% for Ni/Al-edf and 56% and 47% for Ni/Al-wet, respectively.

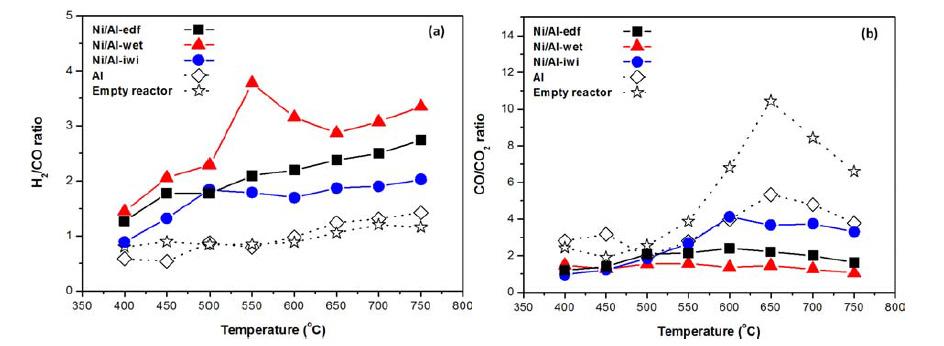

The influence of reaction temperature on the H2/CO and the CO/CO2 molar ratios is presented in Fig. 9. The H2/CO molar ratio is almost identical for the homogenous and calcined Al2O3 experiments and slightly increases with temperature from 0.58 (400 ℃) to 1.43 (750 ℃). The CO/CO2 molar ratio increases with increasing temperature for T < 650 ℃ and decreases between 650-750 ℃. Maximum values were obtained at 650 ℃ and were about 5.34 (H2/CO) and 10.46 (CO/CO2) for both calcined Al2O3 and empty reactor experiments.
The H2/CO molar ratio increases with increasing temperature for all catalysts reaching values of 3.35, 2.73 and 2.03 for Ni/Al-wet, Ni/Al-edf and Ni/Al-iwi, respectively, at 750 ℃ (Fig. 9(a) and (b)). The CO/CO2 molar ratio trend is quite different for the catalysts; the ratio remains almost stable for the whole temperature range at 1.45 for Ni/Al-wet and reaches a peak at 650 ℃ for Ni/Al-edf and Ni/Al-iwi with values of 2.21 and 3.66, respectively. This may indicate the presence of carbon deposits that may also react with the CO2 formed according to the Boudouard reaction, altering the CO/CO2 molar ratio as the reaction proceeds and the catalyst deactivates. It must be concluded that the morphology of the solids is responsible for the different behavior of the catalyst during the reaction because the synthesis method is only difference between the three catalysts.
The methane concentration greatly decreased with increasing temperature for all the catalysts, meaning that methane SR has occurred to a major extent and most of the methane produced was converted into H2. The increasing SCO2 values and the rather constant SCO above 550 ℃ indicate that both Ni/Al-wet and Ni/Al-edf catalysts successfully catalyze the WGS reaction. This can be also deduced from the trend observed in the H2/CO and CO2/CO molar ratios (Fig. 9). Catalyst active in the WGS (an overall exothermic system) normally exhibits characteristics that include available oxygen vacancies, activity in the dissociation of water, and low CO adsorption strength [42]. The intimated interaction between Ni particles and the alumina surface enhanced both glycerol reforming and WGS to improve H2 yield. The Ni particles activate chemisorbed glycerol and its derivatives while alumina assists water dissociation to form surface hydroxyl, which is key for the WGS reaction [43]. The WGS activity of the catalysts was dependent on their reduction degree, which can be ascribed to the different contribution of the nickel aluminate species (β- and γ-peaks) and also to the different contents of free NiO present on the catalysts [44].
The similarity in the product distribution for the noncatalytic (homogeneous) processes of the GSR with different steam-to-carbon molar ratios has been reported by Valliyappan et al. [45]. Glycerol was completely converted to gas and char during the steam gasification reaction at 700 ℃. Stein et al. [46] reported that the main liquid products detected for lower reaction temperatures and higher space velocities were acrolein and acetaldehyde for the noncatalytic GSR. Chiodo et al. [10] also reported that performing the homogenous GSR at 800 ℃ decomposes glycerol to a mixture of gaseous (65 mol% conversion), and liquid products (30 mol% conversion), resulting in a mixture of CO (50 mol%), CO2 (1 mol%), olefins (ethylene and propylene, ~25 mol%), CH4 (~13 mol%), and H2 (~10 mol%).
The liquid product distributions for the GSR using all of our catalysts, calcined alumina and for the homogenous reaction in an empty reactor at various reaction temperatures are presented in Table 2. Acetaldehyde, acrolein, acetone, allyl alcohol, acetic acid, acetol and phenol were present for all experiments using reaction temperatures lower than 600 ℃ (except for acrolein that is only detected for T < 500 ℃). The aforementioned liquid products were detected at higher temperatures only for the Ni/Al-iwi, calcined alumina and homogeneous reaction experiments. Other substances were detected in trace amounts, such as 2-cyclopenten-1-one and 2-methyl-2- cyclopenten-1-one, were detected at 550-600 ℃, while 1, 3-dioxan- 5-ol was produced during the noncatalytic experiments for the whole temperature range. Substances such as 2, 3-butanedione, propylene glycol and 1, 2-ethanediol were identified as reaction products only at low temperatures (T < 550 ℃) for the heterogeneous processes.
Table 3 presents the concentration values of the main liquid products at different reaction temperatures. These values are relatively low, never exceeding 10% for any particular substance, even at low temperatures. Acrolein was mainly produced at low reaction temperatures, namely lower than 500 ℃ for the blank reactor and with alumina or Ni/Al-iwi catalyst. Acrolein was only detected for low temperature reactions for the Ni/Al-wet and Ni/Al-edf catalysts, up to 450 and 400 ℃, respectively, at quite low concentration ranging from 0.8 to 4.0 vol%. Acetone was formed in much higher concentrations for all cases and for a broader reaction temperature range. Acetone was detected for temperatures as high as 750 ℃ for the blank reactor and alumina experiments, 700 ℃ for Ni/Al-iwi and 650 ℃ for Ni/Al-wet and Ni/Al-edf. Acetol, acetone, allyl alcohol and acetaldehyde appear at higher concentrations and more frequently for the catalytic samples compared with acetic acid and acrolein.

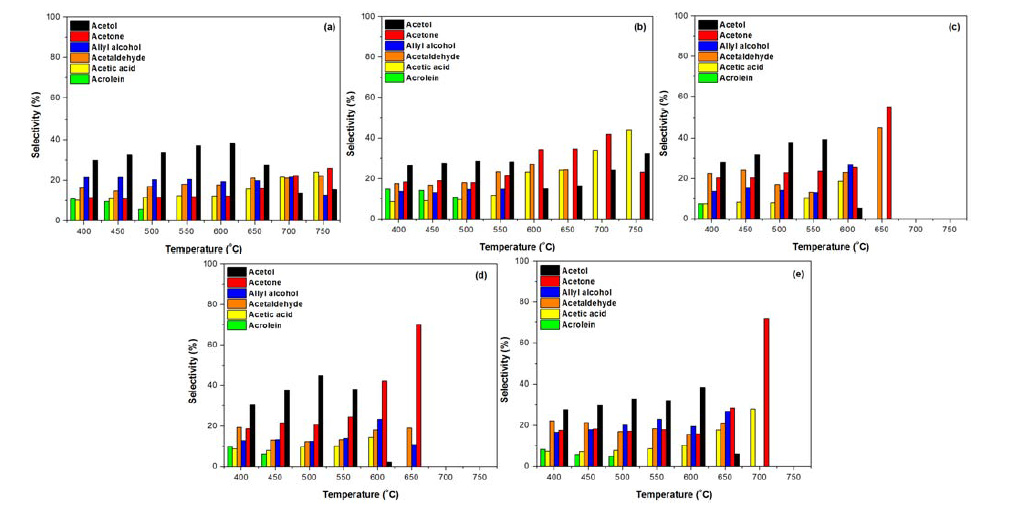

The influence of reaction temperature on the main liquid product selectivities, namely acetol (Sacetol), acetone (Sacetone), allyl alcohol (Sallyl alcohol), acetaldehyde (Sacetaldehyde), acetic acid (Sacetic acid) and acrolein (Sacrolein) is shown in Fig. 10. The main liquid products of the homogenous reaction were detected even at temperatures as high as 750 ℃ (Fig. 10(a)). A decrease in the Sacetol, Sallyl alcohol and Sacrolein values and an increase in the Sacetone, Sacetaldehyde and Sacetic acid were observed, with an almost equimolar liquid product mixture at 700 ℃ (acrolein was not detected for T > 550 ℃). A similar trend was seen for the calcined Αl2O3 experiments (Fig. 10(b)), with the only difference being the disappearance of allyl alcohol and acetaldehyde at reaction temperatures higher than 600 and 700 ℃, respectively.
The main liquid products vary with reaction temperature for the Ni/Al catalysts (Fig. 10(c)-(e)). No liquid products were detected for the Ni/Al-edf catalyst at temperatures higher than 650 ℃, suggesting that glycerol has been fully converted to gaseous products (Fig. 10(c)). The most interesting finding is that an almost equimolar mixture of acetone and acetaldehyde was produced at 650 ℃. The distribution of liquid products is quite different for the Ni/Al-wet catalyst at T < 650 ℃, and no liquid products were detected at higher reaction temperatures (Fig. 10(d)). The values of Sacetone, Sacetaldehyde and Sallyl alcohol at 650 ℃ were 70%, 19% and 11%, respectively. It can be concluded that, as expected, the liquid product selectivities decrease with increasing temperature for all the catalysts. An equimolar amount of acetone and acetaldehyde was produced for the Ni/Al-edf catalyst at 650 ℃ (Fig. 10(c)), while the amounts of acetone, allyl alcohol and acetaldehyde were 70%, 11% and 19%, respectively for Ni/Al-wet (Fig. 10(d)). Acetol (6%), acetone (28.5%), allyl alcohol (26.5%), acetaldehyde (21%) and acetic acid (18%) were detected for the Ni/Al-iwi catalyst at 650 ℃, with only acetone (72%), acetic acid (28%) at 700 ℃. Different liquid product distributions can be obtained by varying the synthesis method of the catalysts for the GSR.
The complexity of the reaction product mixture compositions (Table 2 and Fig. 10) and the dependence on glycerol’s decomposition have been reported in the literature [47-51]. It has been confirmed that glycerol decomposes to CO, CO2, olefins, water, hydrogen and oxygenates at high reaction temperatures in the gas phase. Therefore, the catalyst’s ability to activate C-O (typical of oxygenated compounds), C-C and C=C bonds should be taken into consideration. Olefins (C2H4, C3H6) and CO are thought to be the main substances that reach the catalyst’s surface; thus, it could be said that catalytic performance is dependent upon the tendency towards: (1) C=C cleavage; and (2) coke formation inhibition by polymerization of CHx species and/or CO dissociation (Boudouard reaction).

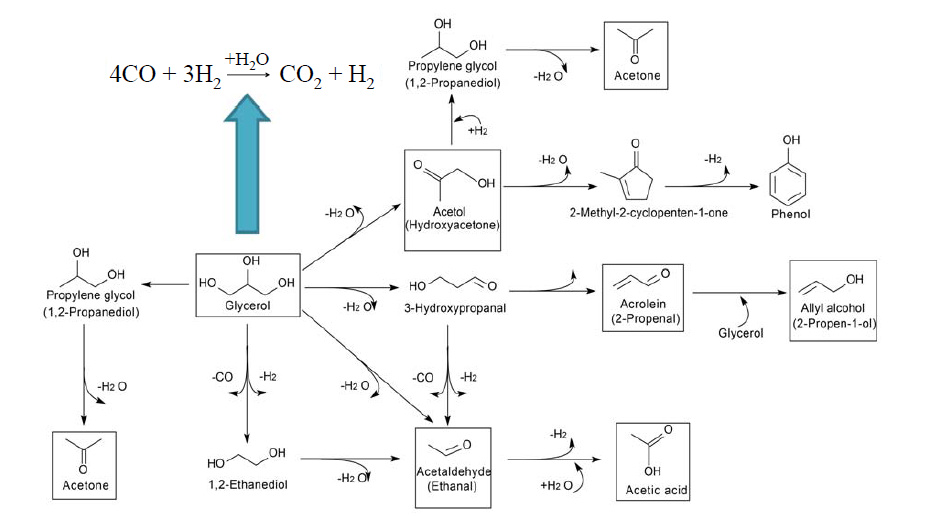

The liquid product distribution can be explained according to the reaction scheme proposed by Dumesic et al. [52], where the conversion of glycerol to hydrogen takes place through the formation of a variety of chemical intermediates, such as alcohols and ketones. A scheme of reactions involved in the GSR is presented in Scheme 1.
The dehydrogenation reactions of glycerol to acetol and glyceraldehyde, as well as its successive transformation to propanediol, are favored because of their small ΔG0 and ΔΗ0 values, resulting in the possible presence of these species during catalytic processes. Conversion to propanediol may take place first by dehydration of glycerol to 2-hydroxy-2-propenol and to acetol. In a following step, the C=C or C=O double bonds are hydrogenated to produce propanediol. This path can be performed over bi-functional catalysts, containing acid and base sites to achieve dehydration, as well as metal sites to facilitate hydrogenation reactions. The formation of synthesis gas (syngas) is highly endothermic and favorable at high temperatures. Syngas conversion is increased by decreasing in the number of Lewis acid sites on the catalyst, indicating that the basic sites favor the route to syngas conversion [53].
The Ni/Al-edf and Ni/Al-wet catalysts promote the formation of acetaldehyde and acetone, respectively (Table 3 and Fig. 10). The Ni/Al-iwi catalyst favors the production of allyl alcohol and acetic acid, as these can be detected even at high temperatures. Presumably these differences can be attributed to the varying abilities of the catalysts to promote the cleavage of C-C, O-H and C-H bonds in the oxygenated hydrocarbon reactant (leading to H2 and CO) and facilitate the WGS reaction in order to remove adsorbed CO from the surface as CO2, as opposed to the cleavage of C-O bonds that leads to alkanes.
The catalytic performances of the Ni/Al catalysts described by the reaction metrics at 650 ℃, including the measured carbon deposition, are shown in Table 4, as well as the results from experiments with calcined alumina and an empty reactor (homogenous reaction). The Ni/Al-edf catalyst gave the highest values of (1) glycerol to gaseous products conversion (88.74%), (2) H2 yield (4.07 moles), (3) acetaldehyde selectivity (45.11%), and lowest carbon deposition (12.3%). The Ni/Al-wet has the highest values of (1) glycerol conversion (93.75%), (2) H2 (69.33%) and CO2 (38.31%) selectivities, (3) acetone selectivity (70.16%), (4) H2/CO molar ratio (2.87) and the lowest values of (1) glycerol conversion to gaseous products (79.56%), (2) CO (56.43%) selectivity, and CO/CO2 molar ratio (1.45). The Ni/Al-iwi catalyst resulted in the highest values for (1) CO (76.39%) and allyl alcohol (26.79%), acetaldehyde (20.72%), acetic acid (17.85%) and acetol (6.06%) selectivities, (2) CO/CO2 molar ratio (3.67) and the lowest for (1) glycerol conversion (92.55%), (2) H2 yield (3.72 moles) and selectivity (61.31%), (3) CO2 selectivity (20.84%), (4) acetone (28.58%), selectivity, and H2/CO molar ratio (1.87).
The importance of studying carbon deposition during the (oxygenated) hydrocarbon reforming reaction is derived from the catalyst’s deactivation, which is the main consequence of the undesirable carbon formation [54-56]. Previously reported experimental and theoretical studies have shown suppression of coke formation could be accomplished with high reaction temperatures and steam to carbon (S/C) molar ratios, and by adding oxygen in the feed [3, 57]. The crucial role of the catalyst’s specific characteristics on the reaction product distribution should be considered because the carbon gasification reaction may be rather kinetically slow. The pathways resulting in coke formation, such as thermolysis, oligomerization, and olefin formation via dehydration and decarbonylation should be carefully tailored. Dramatic Ni/Al2O3 catalyst deactivation caused by carbonaceous deposits over the catalyst surface during reforming reactions has been previously verified [16, 58]. It has been proposed that the coke deposition, associated with the dehydration, cracking and polymerization reactions, takes place on the alumina’s surface acid sites [15]. Pant et al. [16] compared Ni/Al2O3 with Ni-ceria catalysts and reported sintering could be an alternative reason to carbon deposition for deactivation. The transition of alumina’s crystalline phase during the reaction could be associated with sintering of the active Ni phase [17].
Studying the carbon deposition on the catalytic surface during the GSR is considered to be a major challenge [59, 60]. The reactions that are responsible for coke accumulation are glycerol thermal decomposition [61] and the dehydration, dehydrogenation, and condensation of byproducts [62]. Coke formation has a strong dependence on glycerol concentration [59], and it is expected that sintering would accompany coke accumulation on a catalytic surface [63]. The phenomena of both sintering and coke formation during the GSR have also been reported in studies concerning the catalytic performance of supported Ru [10], Pt [64], and Ni [65] catalysts. Strategies to alleviate active phase sintering aim to strengthen the interactions between the catalytically active sites and the support’s surface (strong metal-support interaction) by using other supporting materials, such as CeO2 [66], TiO2, or ZrO2 [13] or by incorporating promoters like alkaline ions (e.g., K and Li) [67].
The SSA for the reduced catalysts were approximately 177, 159 and 156 m2/g for Ni/Al-edf, Ni/Al-wet and Ni/Al-iwi, respectively (Table 1). The adsorption Da had values of 12.5, 15.8 and 17.0 nm for Ni/Al-edf, Ni/Al-wet and Ni/Al-iwi, respectively. The pore size distribution curves are single modal type in the mesopore range (10-20 nm) for all samples, being narrower and shifted to lower values for Ni/Al-edf (Fig. 2). The Ni/Al-edf catalyst, which had the highest values of glycerol to gaseous products conversion and H2 yield, as well as the lowest carbon deposition, also had the highest SSA and the lowest Da. This finding is quite reasonable as the Ni/Al-edf catalyst exhibited higher active phase dispersion and smaller Ni0 crystalline size compared with the other samples (as confirmed by TEM experimental results presented in [23]). The Ni/Al-iwi, having the lowest SSA and largest Ni0 crystalline size, had the highest SCO and the lowest glycerol conversion, H2 yield and selectivity, and H2/CO molar ratio.
According to Ewbank et al. [22] the nickel aluminate formation preparation method can affect the type of nickel species present on the alumina supported nickel catalyst. The formation of nickel aluminate is decreased by using mild conditions. This is the case for samples prepared by controlled adsorption, where the preparation method induces strong metal- support interactions. The thermal energy of the system is great enough to overcome the 5-15 kJ/mol energy of metal-support bond once the reaction temperature exceeds 600 ℃, and the free NiO particles are found to be covered by nickel aluminate surface layers. Surface NiAl2O4 is the primary nickel species in the case of nickel samples prepared by dry impregnation. This has been confirmed by our TPR results (Fig. 4), which identified the different nickel species and showed their abundance depends on the preparation method.
The comparison between catalysts reveals that the catalyst synthesis method influenced their performance, mainly concerning gaseous and liquid product selectivities. The increases in SCO2 and approximately constant SCO for temperatures higher than 550 ℃ indicate that both the Ni/Al-wet and Ni/Al-edf successfully catalyze the WGS reaction. This can be also deduced from the observed trends in the H2/CO and CO2/CO molar ratios for both catalysts (Fig. 9).
As reported by Dou et al. [68], the reaction pathway for hydrogen production via the GSR may be considered to have three steps. During the first step, glycerol dehydrogenation results in CO species bonded onto the catalytic surface. At the second step, the CO species undergo desorption, and finally, WGS and methanation reactions occur in the third step. Adhikari et al. [3] evaluated an alumina-supported metal catalyst and found that at high reaction temperatures H2 production and selectivity values were enhanced up to 70%. In a similar work by Czernik et al. [69], catalytic SR of biomass-derived liquids using a commercial nickel catalyst resulted in H2 yields approaching or exceeding 80% of those theoretically possible for stoichiometric conversion. A NiO/Al2O3 catalyst that is typically used for steam methane reforming was tested for the GSR by Cheng et al. [5]; according to their results the steam-to-carbon molar ratios ranged from 1.1 to 4.0 for reaction temperatures between 450 and 550 ℃. These authors concluded that the main gaseous products were H2, CO2 and CO, with a H2/CO2 ratio of approximately 2.15, while the H2/CO ratio varied between 6.0 and 16.0 depending on the reactant feed composition. Other studies concerning the GSR with Ni/Al2O3 catalysts have also shown, in accordance with our results, that higher H2 yield values could be attributed to the moderate reduction degree and higher dispersion of the active phase on the catalyst or, in other words, to the smaller particle size of nickel crystallites [70].
Chiodo et al. [10] reviewed the GSR using Ni and Rh catalyst and proposed, as main GSR reactions, glycerol decomposition, WGS and methane SR. Pompeo et al. [8] rationalized data of low temperature GSR experiments on Pt-based catalysts and concluded that apart from GSR, glycerol decomposition and WGS, the other major reaction to be considered is the methanation reaction and not methane SR. Dieuzeide et al. [51] performed a thermodynamic analysis of hydrogen production from the GSR using the stoichiometric method. Their main findings can be summarized as follows: glycerol conversion is complete in the equilibrium, product distribution is determined by WGS and methanation reactions, and at low temperature the methanation reaction is predominant over the WGS reaction, while at high temperatures the WGS predominates. The above reported mechanisms are in keeping with the increase of hydrogen yield and SCO2 with temperature, which are a result of the endothermic nature of the GSR. The CO/CO2 ratio, which we found to be maximized at 600 ℃, could be related to a balance between the exothermic nature of glycerol hydrogenolysis and the endothermic nature of the GSR.
We found that the Ni/Al-edf and Ni/Al-wet catalysts promoted the formation of acetaldehyde and acetone, respectively. The Ni/Al-iwi catalyst seems to promote the production of allyl alcohol and acetic acid, as these products were detected even at high temperatures. The clarification of the GSR sequential reaction scheme, consisting of primary conversion into liquid products that are subsequently reformed to hydrogen and carbon oxides, could be modified by the glycerol’s residence time. Liquid product can be categorized as follows (Fig. 10): (1) main liquid products that seem to be independent of the residence time, including dehydration products like hydroxyl-acetone (∼40%) and dehydrogenation by-products like glyceraldehydes (∼20%), which are both connected with the presence of catalyst’s acid and basic sites; and (2) reaction sequence liquid products such as 1, 2- and 1, 3-propanediol, acrolein, acetone, propanal, methanol, ethanol, 2-propanol, formic, acetic and lactic acids, whose concentration depends on the residence time [53]. The aforementioned sequential reaction scheme for glycerol decomposition is in fair agreement with our experimental results and in accordance with the literature [70-72]. Coke can be produced from various sources, such as glycerol’s oligomers, ethylene, acrolein or acetaldehyde [72-74].
In the present study, a series of Al2O3-supported Ni catalysts were synthesized, with nickel loading of 8 wt%, using the incipient wetness, wet impregnation, and a modified EDF preparation methods. The formation of nickel aluminate phase for all catalysts was confirmed by the XRD and TPR results. The deconvolution of the reduction peaks revealed that the contribution of the β-peak in the Ni/Al-edf catalyst was higher than in the other two catalysts, indicating that these nickel aluminate species were more reducible.
The improved catalytic activity for gaseous products of Ni/Al-edf can be attributed to the surface nickel aluminate species that existing on the catalyst’s surface under reaction conditions. The H2 yields of the catalysts were quite different at low temperatures (400-600 ℃), following the trend Ni/Al-wet > Ni/Al-edf > Ni/Al-iwi, while they are almost identical at high temperatures (600-750 ℃), reaching the value of 4 hydrogen moles. The catalysts’ SCO and SCO2 can be explained by the varying degree of the reverse WGS reaction participation in the whole process reaction pathway, as the selectivities are quite different for reaction temperatures higher than 500 ℃. The CO/CO2 molar ratio trend is quite different between the catalysts; it remains almost stable for the whole temperature range at 1.5 for Ni/Al-wet, and it reaches a peak at 650 ℃ for the Ni/Al-edf and Ni/Al-iwi catalysts with values of 2.3 and 4.2, respectively.
Acetaldehyde, acrolein, acetone, allyl alcohol, acetic acid, acetol and phenol were liquid products for all experiments at reaction temperatures lower than 650 ℃. The Ni/Al-edf catalyst had the highest values of (1) glycerol to gaseous products conversion (87.0%), (2) H2 yield (4.4 moles), (3) allyl alcohol (27.0%), acetaldehyde (23.1%), and acetic acid (18.8%) selectivities at a reaction temperature of 650 ℃ and with the lowest carbon deposition of all of the catalysts.
The Ni/Al-edf and Ni/Al-wet catalysts promote the formation of acetaldehyde and acetone, respectively. On the contrary, Ni/Al-iwi produces allyl alcohol and acetic acid. Presumably these differences can be attributed to the varying ability to promote cleavage of C-C, O-H and C-H bonds in the oxygenated hydrocarbon reactant (leading to H2 and CO) and to facilitate the WGS in order to remove adsorbed CO from the surface as CO2, as opposed to the cleavage of C-O bonds (leading to alkanes).
The preparation method influenced the physicochemical properties of the Ni/Al2O3 catalysts and thus the selectivity to gaseous and liquid products, as well as their resistance to carbon deposition.
