For more than a century, heterocyclic compounds have ranked amongst the most important classes of organic compounds. Notably, compounds belonging to this class participate in a wide range of important biochemical processes, as well as being key components of our genetic code (e.g., DNA and RNA). It has been reported that around half of the therapeutic agents developed and commercialized to date consist of heterocyclic compounds ^[1]. Biologically active molecules containing heteroatoms such as nitrogen, sulfur and oxygen, have always attracted considerable interest from chemist because of the challenges associated with their syntheses and the potential application of these compounds as therapeutic agents and tool compounds in medicine and the pharmaceutical sciences. The development of new and efficient procedures for the generation of heterocyclic compounds is therefore highly desired. Diversity-oriented synthesis has been successfully applied to the synthesis of structurally diverse and complex collections of biologically active pharmacophores. Among the many strategies utilized to date, the sequential linking of several different components in one reaction vessel has been studied extensively as an efficient method for the rapid construction of increasingly complex molecular architectures. Critically, this process avoids the requirement for costly and environmentally unfriendly isolation and purification of intermediates ^[2-5]. Multi-component reactions (MCRs) of this type represent efficient approaches for the synthesis of five-membered heterocycles containing sulfur, nitrogen and oxygen in one moiety, allowing for the production of privileged scaffolds of considerable medicinal value.

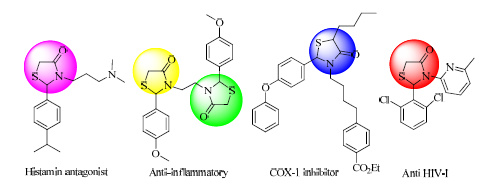

Five-membered rings containing three heteroatoms are a privileged class of heterocyclic structures with proven utility in medicinal chemistry. For example, 4-thiazolidinones are important synthetic intermediates, which can also be found in a wide range of therapeutic agents with interesting pharmacological activities. The 4-thiazolidinone ring system is a versatile structure that can be found in numerous drugs currently being used in clinical practice to treat various diseases. Compounds belonging to this structural class have also been reported to exhibit a broad range of interesting biological properties, including hypoglycemic, antibacterial ^[6], anticancer ^[7-10], antitubercular ^[11-13], antioxidant ^[14], anti-inflammatory ^[15], COX-1 inhibitory ^[16], anti-HIV ^[17-20] and antihistaminic ^[21] activities. The chemical structures of several important thiazolidinone-containing compounds from the literature are shown in Fig. 1.

Several methods have been reported in the literature for the synthesis of 4-thiazolidinones. The main synthetic routes to 1, 3-thiazolidin-4-ones involve the three-component reaction of an amine with a carbonyl group-containing compound and a mercaptocarboxylic acid. This classical approach can either be conducted as a one-pot three-component condensation or a two-step process. Mechanistically, these reactions begin with the formation of an imine, followed by the nucleophilic attack of the nitrogen atom of the amine component on the carbonyl carbon of the aldehyde or ketone. The resulting imine then undergoes a nucleophilic attack from the sulfur nucleophile, followed by an intramolecular cyclocondensation reaction to give the desired product ^[22-24]. Numerous catalysts ^[25-31] have been reported to accelerate the cyclocondensation step of this reaction. Several solid phase ^[32], microwave ^[33] and polymer supported ^{[4, 34-37]} systems have also been developed. MCRs ^[38] are well-known procedures for the rapid construction of diverse chemical structures. Notably, MCRs allow for the synthesis of complex molecules in a modular manner, thereby allowing for the incorporation of one or more units in a final product in a well-defined and predictable order.

With the three-component, one-flask preparation of TZD already reported, we report here a synthetic approach to these heterocycles involving three-component, one-flask, sequential 1 + 2 + 3 atom construction of five-membered ring novel 3-(2-oxo-2-phenylethyl)-2-phenylthiazolidin-4-one. With this in mind, the aim of the current paper was to achieve the synthesis of a new series of thiazolidinones by the condensation of novel amines, with aromatic aldehydes and thioglycolic acid via a one-pot, three-component reaction using DIPEA as a base according to a MCR protocol.

All of the chemicals used in this study were purchased from commercial suppliers and used as supplied without further purification. Melting points (M.P.) were determined in open capillary tubes and reported as the uncorrected values. ¹H NMR spectra were recorded on a 400-MHz Varian spectrometer model Avance-II (Bruker) using DMSO-d₆ as a solvent. Chemical shifts (δ) were reported in ppm relative to TMS, which was used as an internal reference standard, and the coupling constants (J) were expressed in hertz (Hz). Mass spectra were recorded on a Macro mass spectrometer (Waters) using electrospray ionization. The reactions were monitored by thin layer chromatography (TLC) using silica-coated plates (Merck).

To a solution of 2-amino-1-phenylethanone hydrochloride 2a (1 mmol) in toluene (8 mL) was added benzaldehyde 1a (1 mmol) and the mixture was heated for 1 h in the presence of DIPEA (3 mmol) to afford the corresponding Schiff base. The reaction was then treated with mercaptoacetic acid 3 (3 mol), and the resulting mixture was heated for 3-4 h to give the corresponding substituted thiazolidinone 4a-4m. Upon completion of the reaction, as determined by TLC analysis, the toluene was removed under vacuum to give a viscous oil, which was treated with a saturated aqueous NaHCO₃ solution to remove any unreacted mercaptoacetic acid. The product subsequently crystallized and was washed with water before being dried under vacuum at 40 ℃ and recrystallized from alcohol to give the pure product.

3-(2-Oxo-2-phenylethyl)-2-phenylthiazolidin-4-one (4a). ¹H NMR (DMSO, 400 MHz): δ 3.66-3.93 (dd, overlapped, 2H, methylene), 4.26 (s, 2H, CH₂), 5.80 (t, 1H, methine), 7.02-7.14 (m, 4H, Ar-H), 7.27-7.57 (m, 5H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.1, 170.3, 140.1, 138.5, 128.8, 127.3, 126.3, 62.1, 49.8, 32.4. LC-MS (ES+) m/z: 298.12 [M]⁺ & 296.3 [M-H]⁺. Elemental analysis Calcd. for C₁₇H₁₅NO₂S: C, 68.66; H, 5.08; N, 4.71; S, 10.78; Found: C, 68.86; H, 5.18; N, 4.61.

2-(4-Chlorophenyl)-3-(2-oxo-2-phenylethyl)thiazolidin-4-one (4b). ¹H NMR (DMSO, 400 MHz): δ 3.75-4.06 (dd, overlapped, 2H, methylene), 4.78 (s, 2H, CH₂), 5.87 (t, 1H, methine), 7.18-7.28 (m, 4H, Ar-H), 7.47-7.86 (m, 5H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.6, 171.0, 144.7, 135.9, 132.8, 127.9, 63.5, 48.8, 33.5. LC-MS (ES+) m/z: 332.04 [M+H]⁺ & 334.12 [M+2H]⁺. Elemental analysis Calcd. for C₁₇H₁₄ClNO₂S: C, 61.53; H, 4.25; N, 4.22; S, 9.66; Found: C, 61.59; H, 4.30; N, 4.12.

2-(4-Hydroxyphenyl)-3-(2-oxo-2-phenylethyl)thiazolidin-4-one (4c). ¹H NMR (DMSO, 400 MHz): δ 3.32-3.72 (dd, overlapped, 2H, methylene), 4.81 (s, 2H, CH₂), 5.75 (t, 1H, methine), 6.86-6.95 (m, 4H, Ar-H), 7.12-7.71 (m, 5H, Ar-H), 10.06 (s, 1H, OH); ¹³C NMR (100 MHz, CDCl₃): δ 192.6, 170.7, 155.4, 136.8, 130.6, 123.7, 115.2, 61.9, 47.1, 32.8. LC-MS (ES+) m/z: 313.08 [M]⁺. Elemental analysis Calcd. for C₁₇H₁₅NO₃S: C, 65.16; H, 4.82; N, 4.47; S, 10.23; Found: C, 65.22; H, 4.89; N, 4.40.

2-(3-Methoxyphenyl)-3-(2-oxo-2-phenylethyl)thiazolidin-4-one (4d). ¹H NMR (DMSO, 400 MHz): δ 3.65-3.69 (dd, overlapped, 2H, methylene), 3.79 (s, 3H, OCH₃), 5.11 (s, 2H, CH₂), 5.96 (t, 1H, methine), 6.85-7.09 (m, 3H, Ar-H), 7.17 (s, 1H, Ar-H), 7.20-7.64 (m, 5H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.6, 172.4, 159.0, 140.4, 134.8, 129.9, 127.3, 122.7, 120.8, 111.1, 63.4, 55.6, 48.4, 32.5. LC-MS (ES+) m/z: 327.09 [M+H]⁺. Elemental analysis Calcd. for C₁₈H₁₇NO₃S: C, 66.03; H, 5.23; N, 4.28; S, 9.79; Found: C, 66.13; H, 5.300; N, 4.20.

3-(2-Oxo-2-phenylethyl)-2-(p-tolyl)thiazolidin-4-one (4e). ¹H NMR (DMSO, 400 MHz): δ 2.32 (s, 3H, CH₃), 3.33-3.73 (dd, overlapped, 2H, methylene), 4.85 (s, 2H, CH₂), 5.75 (t, 1H, methine), 7.02-7.27 (m, 4H, Ar-H), 7.20-7.77 (m, 5H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.4, 170.9, 139.0, 135.8, 133.9, 127.9, 63.4, 48.4, 31.8, 22.7. LC-MS (ES+) m/z: 312.10 [M+H]⁺. Elemental analysis Calcd. for C₁₈H₁₇NO₂S: C, 69.43; H, 5.50; N, 4.50; S, 10.30; Found: C, 69.49; H, 5.58; N, 4.42.

3-(2-Oxo-2-(p-tolyl)ethyl)-2-phenylthiazolidin-4-one (4f). ¹H NMR (DMSO, 400 MHz): δ 2.49 (s, 3H, CH₃), 3.64-3.98 (dd, overlapped, 2H, methylene), 4.27 (s, 2H, CH₂), 5.82 (t, 1H, methine), 7.10-7.19 (m, 4H, Ar-H), 7.37-7.59 (m, 4H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.2, 171.4, 145.0, 142.2, 139.2, 133.1, 128.5, 127.0, 124.6, 63.5, 49.5, 32.8, 21.0. LC-MS (ES+) m/z: 312.12 ([M]⁺ & 310.31 [M-H]⁺. Elemental analysis Calcd. for C₁₈H₁₇NO₂S: C, 69.43; H, 5.50; N, 4.50; S, 10.30; Found: C, 69.53; H, 5.40; N, 4.30; S, 10.21.

2-(4-Chlorophenyl)-3-(2-oxo-2-(p-tolyl)ethyl)thiazolidin-4-one (4h): ¹H NMR (DMSO, 400 MHz): δ 2.50 (s, 3H, CH₃), 3.75-3.98 (dd, overlapped, 2H, methylene), 4.85 (s, 2H, CH₂), 5.79 (t, 1H, methine), 7.17-7.29 (m, 4H, Ar-H), 7.35-7.73 (m, 4H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.3, 170.7, 142.7, 141.2, 131.9, 128.8, 126.9, 62.7, 49.4, 33.8, 21.8. LC-MS (ES+) m/z: 345.06 [M]⁺ & 347.31 ([M+2H]⁺. Elemental analysis Calcd. for C₁₈H₁₆ClNO₂S: C, 62.51; H, 4.66; N, 4.05; S, 9.27; Found: C, 62.59; H, 4.72; N, 4.00.

2-(3-Methoxyphenyl)-3-(2-oxo-2-(p-tolyl)ethyl)thiazolidin-4-one (4i). ¹H NMR (DMSO, 400 MHz): δ 2.49 (s, 3H, CH₃), 3.72-3.78 (dd, overlapped, 2H, methylene), 3.92 (s, 3H, OCH₃), 4.82 (s, 2H, CH₂), 5.55 (t, 1H, methine), 6.59-6.89 (m, 3H, Ar-H), 7.30 (s, 1H, Ar-H), 7.32-7.39 (m, 4H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.7, 170.7, 158.7, 141.3, 139.9, 131.9, 129.8, 127.9, 63.7, 55.4, 49.6, 33.1, 21.8. LC-MS (ES+) m/z: 342.11 [M]⁺. Elemental analysis Calcd. for C₁₉H₁₉NO₃S: C, 66.84; H, 5.61; N, 4.10; S, 9.39; Found: C, 66.90; H, 5.70; N, 4.02.

3-(2-Oxo-2-phenylethyl)-2-(thiophen-2-yl)thiazolidin-4-one (4j). ¹H NMR (DMSO, 400 MHz): δ 2.56 (s, 3H, CH₃), 3.79-3.96 (dd, overlapped, 2H, methylene), 4.84 (s, 2H, CH₂), 6.16 (t, 1H, methine), 6.94-6.96 (dd, 2H, Ar-H), 7.29-8.50 (m, 6H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.4, 170.6, 139.5, 134.6, 133.7, 127.8, 126.6, 58.9, 49.5, 32.7. LC-MS (ES+) m/z: 304.14 [M+H]⁺. Elemental analysis Calcd. for C₁₅H₁₃NO₂S₂: C, 59.38; H, 4.32; N, 4.62; S, 21.14; Found: C, 59.48; H, 4.40; N, 4.52.

3-(2-Oxo-2-(p-tolyl)ethyl)-2-(thiophen-2-yl)thiazolidin-4-one (4l). ¹H NMR (DMSO, 400 MHz): δ 2.50 (s, 3H, CH₃), 3.76-3.92 (dd, overlapped, 2H, methylene), 4.92 (s, 2H, CH₂), 5.75 (t, 1H, methine), 7.22-7.30 (dd, 2H, Ar-H), 7.74-8.10 (m, 5H, Ar-H); ¹³C NMR (100 MHz, CDCl₃): δ 193.6, 170.9, 141.6, 137.8, 131.8, 127.6, 126.4, 59.9, 48.1, 32.1. LC-MS (ES+) m/z: 318.15 [M+H]⁺. Elemental analysis Calcd. for C₁₆H₁₅NO₂S₂: C, 60.54; H, 4.76; N, 4.41; S, 20.20; Found: C, 60.60; H, 4.86; N, 4.31.

Herein, we report a new convergent approach for the efficient and convenient synthesis of a novel series of thiazolidinone derivatives, which could be conveniently incorporated into a wide range of different drug molecules. This type of convergent approach has several advantages over existing procedures, including using catalyst for accelerating cyclocondensation N, N’-dicyclohexylcarbodiimide (DCC), O-(benzotriazol-yl)- N, N, N’, N”-tetramethyluronium hexafluoro phosphate (HBTU), activated fly ash and the use of microwave heating. Although several 2-amino-1-phenylethanone hydrochlorides are known in the literature, the reported syntheses of these compounds generally require 2-3 h at room temperature and are formally recognized as two-step procedures ^{[39, 40]}. To the best of our knowledge, the 3-(2-oxo-2-phenylethyl)-2- phenylthiazolidin-4- ones (4a-4m) reported in this study have not been reported elsewhere in the literature to date.

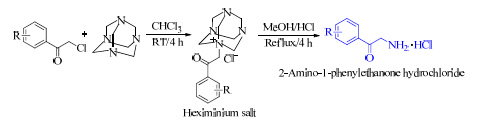

Compounds 4a-4m were prepared from two slightly different 2-amino-1-phenylethanone hydrochloride salts, which were themselves prepared from the corresponding phenacyl chlorides according to a two-step procedure. Thus, the Delépine reaction ^[39] of the phenacyl chlorides with hexamethylenetetramine afforded the corresponding heximinium salts in high yields (90%-92%), which were subsequently hydrolyzed under acidic conditions to give the corresponding amines as the hydrochloride salts (Scheme 1) ^[40]. These amine hydrochloride salts were then treated with a series of benzaldehydes (1a-1m) in the presence of N, N-diisopropylethylamine (DIPEA) to give the corresponding imines, which underwent a cyclocondensation reaction with mercaptoacetic acid in toluene at 110 ℃ to give the desired thiazolidinones 4a-4m (Scheme 2). Compound 4a was obtained in 48% yield when CH₃CN was used as the solvent at 110 ℃ for 7 h (Table 1, entry 1). The yield was improved when the reaction was performed at 110 ℃ for 8 h, and a moderate yield was obtained using triethylamine as a base. When the reaction time was extended to 10 h, the yield increased to 68%. Pleasingly, the addition of DIPEA to the reaction led to an increase in the yield of the desired product 4a to 75% after 3 h.

The crude products were purified by column chromatography over silica gel eluting with a 3:1 (v/v) mixture of petroleum ether/ethyl acetate to give the pure compounds. We have investigated these reactions in more detail. Solvent screening indicated that toluene was still the best solvent for this reaction, and when the reaction time was extended to 4 h, the desired product was obtained in 85% yield (Table 2, entry 1). However, lowering the DIPEA led to a decrease in yield, whereas increasing the amount of DIPEA had the opposite effect. We also found that when the reaction was carried out under a controlled temperature, the result was improved. We explored a variety of different solvents and reaction parameters until we obtained the desired thiazolidinones in suitably high yields (Scheme 2, Table 1). Thiazolidinone 4a was prepared in 66% yield (56% considering both reactions) using a stepwise sequence, and in 85% yield under tandem conditions

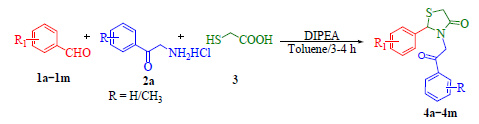

(Table 2, entries 1-12). We found that a tandem sequence was more efficient than a stepwise conversion under thermal conditions. From a mechanistic perspective, we believe that this reaction proceeds by the initial nucleophilic attack of the sulfur atom of the mercaptoacetic acid to the carbon atom of the imine group, followed by an intramolecular cyclization, resulting in the elimination of water (Scheme 2).

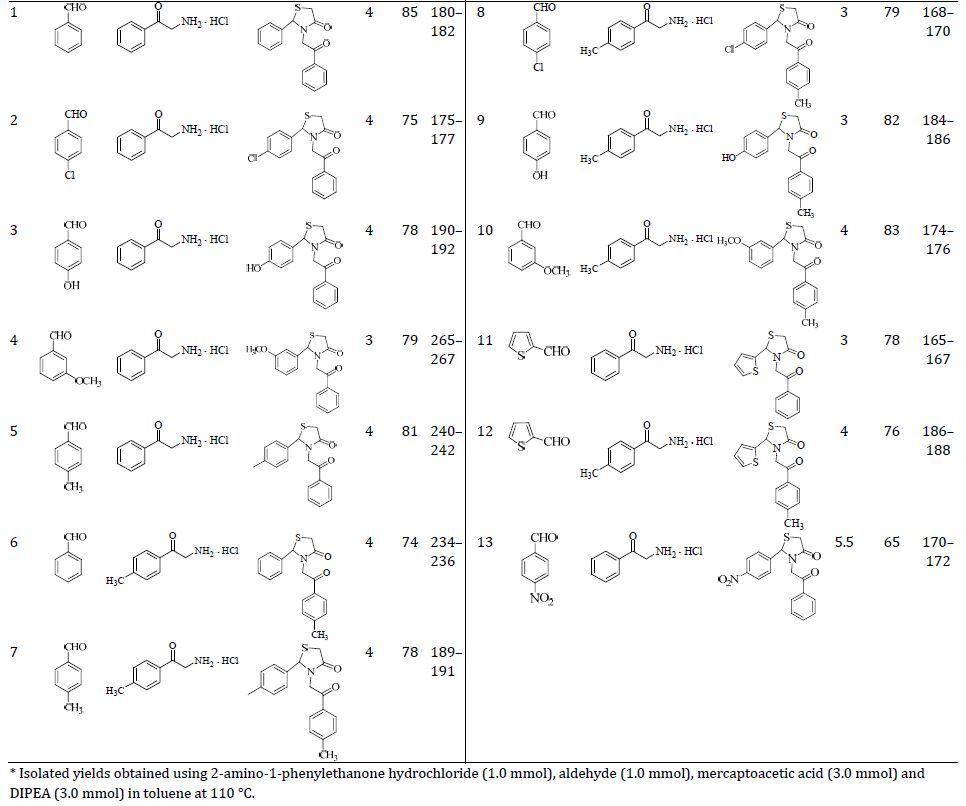

Under optimized conditions (Table 1, entry 4), we converted a wide range of aromatic and heterocyclic aldehydes (1a-1m) to the corresponding thiazolidin-4-ones (Table 2). Aromatic aldehydes reacted smoothly to afford the desired products in good yields (70%-85%). Notably, the heterocyclic aldehyde 2-thiophene-carboxaldehyde also reacted to afford the desired thiazolidin-4-one in 78% yield. The reaction appeared to be independent of the presence of electron-withdrawing or electron-donating substituents on the aromatic ring of the aldehyde. All of the thiazolidin-4-one products were purified by crystallization and their structures were confirmed by ¹H NMR, ¹³C NMR, mass spectrometry and elemental analyses.

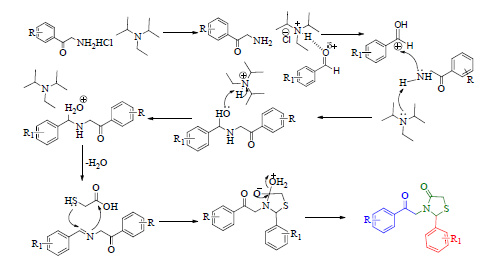

A plausible mechanism for the formation of 3-(2-oxo-2- phenylethyl)-2-phenylthiazolidin-4-one in the presence of DIPEA is shown in Scheme 3. 2-Amino-1- phenylethanone hydrochloride would initially react with DIPEA to give the corresponding free amine, which would react with the activated carbonyl group of the aldehyde (activated by the DIPEA·HCl salt) to give the corresponding imine. Nucleophilic attack at the imine carbon by the sulfur atom of mercaptoacetic acid, followed by the cyclocondensation of the nitrogen atom of the imine into the carboxylic acid group would give the desired 3-(2-oxo-2-phenylethyl)-2-phenylthiazolidin-4-one.

We have developed a new method for the convergent synthesis of 3-(2-oxo-2-phenylethyl)-2-phenylthiazolidin-4-one derivatives using DIPEA as a base. These thiazolidinone derivatives were prepared via a one-pot, three-component protocol, providing rapid access to a series of biologically valuable sulfur-nitrogen heterocycles. This method is mild and versatile, showing good functional group tolerance, allowing for the successful reaction of novel amines with aromatic aldehydes and mercaptoacetic acid to give a small library of new 3-(2-oxo-2- phenylethyl)-2-phenylthiazolidin-4-ones.
