Phenol is an important organic intermediate widely used in the synthesis of medicine, phenol resins, germicides, and dyestuffs ^{[1, 2]}. Nowadays, the green production of chemicals has drawn attention all over the world. However, the current conventional three-step cumene process suffers from high energy consumption, low phenol yield and high pollution ^[3], and cannot meet the requirements of green chemistry. Alternatively, the direct oxidation of benzene to phenol attracts increasing interests for its efficient, economic and environment friendly reactions ^[4-7]. Many kinds of oxidants, e.g., nitrous oxide, molecular oxygen/air, and hydrogen peroxide, have been used in the direct benzene hydroxylation reaction ^[8-10]. Although air or molecular oxygen are abundant sources, their low catalytic efficiency along with the general requirement for reducing agents leads to a limited promise in industrial appl ications ^[11]. The difficulties in the large scale production of nitrous oxide also limit its application despite its high performance as an oxidant in the direct benzene oxidation to phenol ^[12]. In contrast, hydrogen peroxide is a mild and green oxidant with water as the only byproduct, which makes hydrogen peroxide widely used in benzene hydroxylation reaction ^[13]. Nevertheless, the high activation energy of the benzene C-H bonds and the higher reactivity of phenol than that of benzene make the efficient conversion of benzene to phenol challenging. There is a need for the development of efficient and green catalysts for the reaction.

Our previous work indicated that the open π system of a graphene oxide support can facilitate the interaction between the support and benzene, which was beneficial to the benzene hydroxylation ^[14]. As an analogueof graphite, graphitic carbon nitride (g-C₃N₄) consists of tri-s-triazine rings with π-conjugated planar layers ^[15]. Moreover, the rich nitrogen content of g-C₃N₄ affords abundant active sites for chemical modification, which makes g-C₃N₄ widely used as a metal-free catalyst or a promising catalyst support in heterogeneous catalysis ^[16], including in CO₂ activation, water splitting and benzene-involved reactions ^[17-21]. Based on DFT calculations, Goettmann et al. ^[22] found that g-C₃N₄ can activate arenes via electron relocalization due to the π orbitals overlapping of the melem units and ar enes, especially on the defects of g-C₃N₄, such as edges, curvatures and doping atoms. Chen et al. ^[23] found that g-C₃N₄ was able to adsorb and activate benzene chemically, and the phenol yield increased from 1.0% over Fe/SBA-15 to nearly 12% over Fe-g-C₃N₄/SBA-15 in the oxidation of benzene to phenol using hydrogen peroxide and visible light. Long et al. ^[24] employed a dual catalyst system C₃N₄-H₅PMo₁₀V₂O₄₀ in the benzene hydroxylation with oxygen as an oxidant and suggested that benzene was activated on the melem unit of C₃N₄. Therefore, the large π-conjugated system and abundant nitrogen functionalities of g-C₃N₄ may endow g-C₃N₄ with a higher activity than that of graphene oxide as a catalyst support for the direct benzene hydroxylation reaction. Although Ding et al. ^[25] successfully synthesized V-g-C₃N₄ by the co-synthesis method using urea as a precursor and obtained 18.2 % yield of phenol under optimized conditions, the present catalytic activity remains to be improved and meanwhile, that the structure integrity of g-C₃N₄ was easily broken and caused partial collapse during calcination resulting from the decomposition of ammonium vanadate needs to be solved ^[26].

In this work, we report a facile method to prepare a series of xV/g-C₃N₄ catalysts with different vanadium content (x/%). The catalytic activity of the xV/g-C₃N₄ catalysts was investigated in the benzene hydroxylation reaction using hydrogen peroxide as an oxidant in acetic acid solvent. Systematic characterization were conducted on the xV/g-C₃N₄ catalysts to reveal the relationship between structure and catalytic activity.

Urea and ammonium vanadate (NH₄VO₃) were purchased and used without further purification from Aladdin Reagent Inc. g-C₃N₄ was prepared based on a reported method with some modifications ^[27]. Typically, urea was calcined under a nitrogen atmosphere from room temperature to 823 K with a heating rate of 5 K/min and kept at 823 K for 2 h. After cooling down, the yellow powder was obtained as g-C₃N₄. To prepare various xV/g-C₃N₄ catalysts, 0.50 g of g-C₃N₄ was dispersed in 80 mL of deionized water. Then NH₄VO₃ (80, 112, 149, and 262 mg) was added, followed by vigorous stirring for 1 h at 353 K and drying at 333 K overnight. The product was calcined in nitrogen from room temperature to 573 K with a heating rate of 1.5 K/min and kept at 573 K for 3 h. The sample was labeled as xV/g-C₃N₄ (x/%= 6, 8, 10, and 15) with x standing for the mass fraction (%) of the initial mass of vanadium to the initial total mass of g-C₃N₄ and NH₄VO₃.

Transmission electron microscope (TEM) images were obtained from a JEOL JEM2011 microscope operated at 200 kV. Vanadium mapping images were obtained from an energy dispersive X-ray spectrometer (EDX) combined with a FEI Tecnai G² F20 S-Twin microscope. X-ray powder diffraction (XRD) patterns were recorded on a Bruker D8 Advances X-ray diffractometer using Cu K_α radiation with a voltage of 40 kV and a current of 40 mA. Fourier transform infrared (FT-IR) spectra were recorded on a Nicolet iS10 infrared instrument using KBr discs. Nitrogen adsorption results were obtained at 77 K using a Micromeritics Tristar 3000 apparatus. Thermogravimetric (TG) measurements were carried out on a Perkin-Elmer TGA 7 thermal analyzer at a heating rate of 10 K/min under a air flow (40 mL/min). X-ray photoelectron spectra (XPS) were recorded on a Perkin-Elmer PHI 5000C ESCA system equipped with a dual X-ray source by using Mg K_α (1253.6 eV) anode and a hemispherical energy analyzer. All binding energies were calibrated with contaminant carbon (C1s = 284.6 eV) as a reference. The vanadium content of catalysts was measured with a Thermo Elemental IRIS Intrepid inductively coupled plasma atomic emission spectrometer (ICP-AES).

The direct oxidation of benzene to phenol was carried out in a 25 mL three-necked flask connected with a condenser. Typically, 40 mg of catalyst and 1 mL of benzene were dispersed in 10 mL of 80 wt% acetic acid as the solvent. The mixture was heated to 343 K, followed by the dropwise addition of 3.5 mL of 30 wt% hydrogen peroxide within 30 min with magnetic stirring. After reacting for another 4 h, the catalyst was separated by centrifugation. The content of liquid products was analyzed by GC9560 gas chromatography (Shanghai Hua-Ai Chromatography Analysis Co., Ltd.) equipped with a flame ionization detector and a HP-5 capillary column (0.32 mm × 30 m × 0.25 μm, Agilent, USA). The products were confirmed by the retention time of the standard samples. The quantitative analysis of the mixture was determined by the calibration curves and using toluene as the internal standard. The conversion of benzene and the selectivity to phenol were calculated as follows: conversion = n (converted benzene) / n (initial benzene), selectivity = n (phenol) / n (converted benzene).

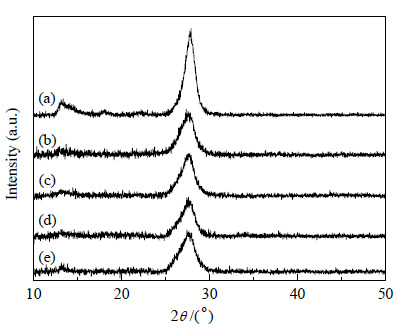

The XRD patterns of g-C₃N₄ and xV/g-C₃N₄ catalysts are presented in Fig. 1. All the samples show peaks at 2q of 13° and 27.4°, corresponding to the (100) and (002) diffraction peaks of g-C₃N₄. The peak at 2q = 13° can be attributed to an in-plane structural motif, such as the hole-to-hole distance of tri-s-triazine units, while the peak at 2q = 27.4° was derived from the stacked interlayers of g-C₃N₄ ^[18]. Although the intensities of the major peaks of xV/g-C₃N₄ catalysts decreased and broadened compared with those of g-C₃N₄, the basic graphitic structures of g-C₃N₄ remained after introducing the vanadium species onto the sheets. No characteristic peaks of crystallized vanadium species was observed, implying that the doped vanadium species are small in crystal size or dispersed well on the g-C₃N₄ layers ^[26].

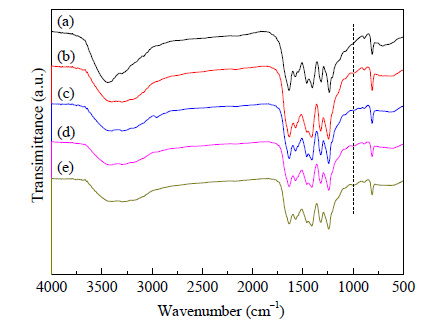

The FT-IR spectra of g-C₃N₄ and xV/g-C₃N₄ catalysts are shown in Fig. 2. All samples manifest similar bands in the region of 1200-1650 cm^-1, corresponding to the typical stretching and bending modes of CN heterocycles. The sharp bands at 810 cm^-1 were ascribed to the breathing modes of triazine units (C₆N₇), which are the elemental building blocks of g-C₃N₄ structure ^{[28, 29]}. After the incorporation of vanadium species, a broad band appeared in the region of 3000-3500 cm^-1 that can be assigned to the stretching vibrations of aromatic N-H bonds of uncondensed amino group (-NH₂), indicating the formation of hydrogen bonds between vanadium species and g-C₃N₄ ^{[30, 31]}. Moreover, a new weak band at 995 cm^-1 was also observed after vanadium incorporation. This band was probably caused by the shift of the stretching modes of V=O bonds from 1020 cm^-1 due to the strong interaction between VO_x species and g-C₃N₄ ^[32].

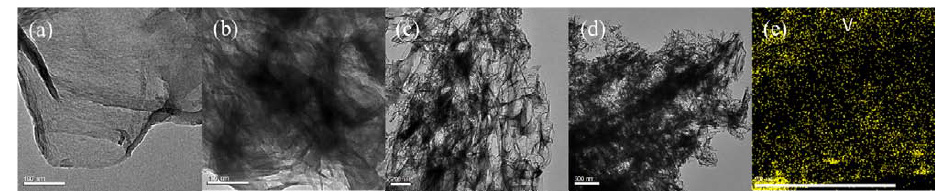

The TEM images of g-C₃N₄, 8V/g-C₃N₄ and 15V/g-C₃N₄ are shown in Fig. 3. g-C₃N₄ consists of large flat and partially stacked layers (Fig. 3(a)). For 8V/g-C₃N₄ (Fig. 3(b) and 3(c)) and 15V/g-C₃N₄ (Fig. 3(d)), the vanadium species were dispersed well on the surface of g-C₃N₄ sheets which was consistent with the XRD results and the V mapping image of 8V/g-C₃N₄ (Fig. 3(e)). Moreover, the EDX pattern of 8V/g-C₃N₄ further confirmed the existence of vanadium species on the g-C₃N₄ sheets.

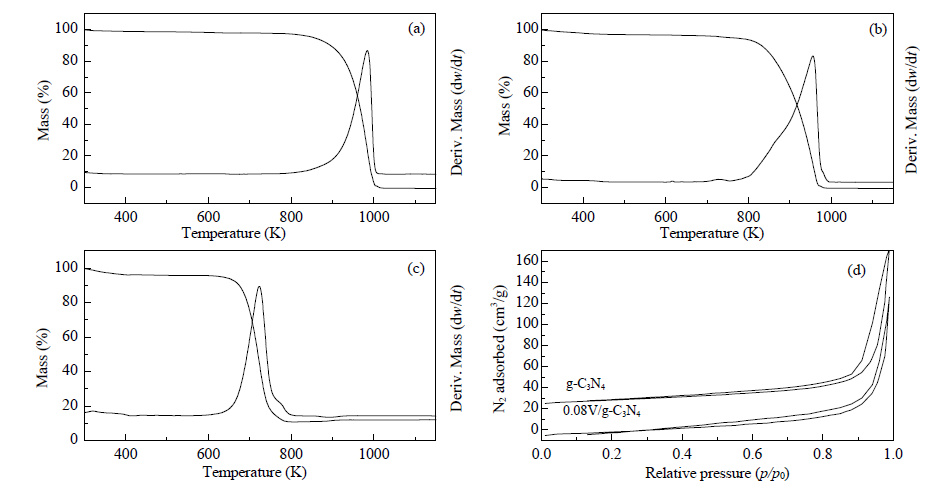

The TG analysis was conducted from 298 to 1123 K. As shown in Fig. 4(a), pure g-C₃N₄ has a rapid mass loss from 840 to 1015 K under a nitrogen atmosphere as a result of complete decomposition. On the DTG curve, the main peak at 984 K suggested that g-C₃N₄ was stable during the calcination treatment up to 823 K in nitrogen. Furthermore, the TG-DTG curves of g-C₃N₄ obtained under an air atmosphere (Fig. 4(b)) showed that g-C₃N₄ was still stable up to 823 K. In contrast, under an air atmosphere, the main exothermic peak at 720 K of 8V/g-C₃N₄ (Fig. 4(c)) revealed that the existence of vanadium species promoted the oxidization of the g-C₃N₄ at a relatively low temperature ^[33]. When the calcination temperature was higher than 790 K, the residue remained constant and can be detected as vanadium pentoxide.

The nitrogen adsorption isotherms are shown in Fig. 4(d). Both samples display the Type IV isotherm with a H1 hysteresis loop along with the distinct capillary condensation step at high relative pressure, indicating the stacked-layer structure of the g-C₃N₄ support ^[26]. The pure g-C₃N₄ has a BET surface area of 56 m²/g, while the BET surface area of 8V/g-C₃N₄ decreased to 49 m²/g, due to the loading of vanadium species.

The catalytic activity of the catalysts was tested in the direct benzene hydroxylation with hydrogen peroxide as an oxidant. Various reaction conditions (such as catalyst amount, solvent, reaction temperature, reaction time, hydrogen peroxide amount, and the concentration of acetic acid) were investigated to find the optimum one for the present system. As shown in Table 1, the blank experiment in the absence of catalyst revealed no measurable benzene conversion (entry 1). Bare g-C₃N₄ exhibited a trace benzene conversion (entry 2), implying that benzene can be activated by g-C₃N₄. NH₄VO₃ afforded a benzene conversion of 11.4 % and a phenol selectivity of 88.4 % (entry 3). Since NH₄VO₃ acts as a homogeneous catalyst, the consequent rapid H₂O₂ decomposition probably led to its limited phenol selectivity. Among the xV/g-C₃N₄ catalysts, 8V/g-C₃N₄ catalyst showed the best performance with a benzene conversion of 24.6% and a phenol selectivity of 99.2% (entry 7). Moreover, the TOF values based on the vanadium content further implied that 8V/g-C₃N₄ was the most efficient catalyst in benzene hydroxylation. It is worth noting that the catalytic performance in the present reaction system with a high turnover frequency (TOF = 13.1 h^-1) was superior to previously reported vanadium doped carbon nitride materials ^[24-26]. With different reaction conditions, those reported catalysts gave a TOF value in the range of 0.52 to 0.59 h^-1 (calculated in the same method mentioned above). The lower activity of 6V/g-C₃N₄ was caused by insufficient active centers for benzene activation (entry 4), while the lower performance of 10V/g-C₃N₄ and 15V/g-C₃N₄ was probably due to the rapid self-decomposition of hydrogen peroxide (entries 5 and 6) accelerated by the large amount of vanadium species. Furthermore, XPS was employed to investigate the surface vanadium states of 8V/g-C₃N₄, as shown in Fig. 5. The V 2p_3/2 band of the fresh 8V/g-C₃N₄ was deconvoluted into two peaks with the binding energies of 516.9, 517.2 and 515.8, 516.2 eV, attributed to V⁵⁺ and V⁴⁺ species, respectively ^[34]. The used 8V/g-C₃N₄ after four recycles also consisted of both V⁵⁺ and V⁴⁺ species, while the relative content of the V⁴⁺ species increased after recycling. The existence of V⁴⁺ species in 8V/g-C₃N₄ and the π-π interaction between g-C₃N₄ and benzene played a role in the excellent catalytic activity of 8V/g-C₃N₄ ^{[26, 35]}.

In order to verify the stability of 8V/g-C₃N₄, the catalyst was separated by centrifugation, dried and re-used. After three more recycle experiments under the optimum conditions (entries 7-9), there was negligible decrease of phenol yield from 24.4 % to 23.3 %. After the fourth recycle, the recovered 8V/g-C₃N₄ catalyst was collected and its vanadium content was detected by the ICP-AES. Notably, the structure of 8V/g-C₃N₄ was maintained well and negligible vanadium leaching occurred after four recycles, indicating its good stability in the direct oxidation of benzene to phenol. The high catalytic activity and stability of xV/g-C₃N₄ mainly originated from the highly dispersed vanadium species with excellent redox properties and the g-C₃N₄ support with superior benzene adsorption and activation ability, which provided insight into the future design of efficient catalysts for the reaction.

A series of xV/g-C₃N₄ catalysts with different vanadium contents were synthesized and evaluated in the direct hydroxylation of benzene to phenol with H₂O₂ as the oxidant. Among these catalysts, 8V/g-C₃N₄ showed the best activity with a phenol yield of 24.4% and selectivity of 99.2%, which were superior to those of previous reported vanadium doped g-C₃N₄ catalysts. Also, 8V/g-C₃N₄ exhibited good reusability during four recycles. Characterization revealed that the vanadium species were highly dispersed over the g-C₃N₄ sheets and the g-C₃N₄ support played a role in the activation of benzene. The efficient combination of high performance vanadium species with an excellent g-C₃N₄ support made the xV/g-C₃N₄ catalysts very promising.
