Benzaldehyde (BzH) is the second most commonly used flavor compound in the world, with a wide range of important applications in the food and drink, cosmetics and pharmaceutical industries [1-5]. Increasing concerns surrounding food quality has led to a growing demand for natural benzaldehyde. The natural benzaldehyde used in commercial applications is mainly obtained by the aqueous hydrolysis of natural cinnamon oil, which contains more than 80% cinnamaldehyde [6, 7]. However, the widespread application of this process has been limited by the poor aqueous solubility of cinnamon oil and the low selectivity of this transformation towards natural benzaldehyde [8-10]. The oxidation of cinnamaldehyde in the liquid phase therefore represents a promising route for the manufacture of natural benzaldehyde under mild conditions [11]. However, the biggest challenge to realizing this approach is the availability of an effective catalyst, especially economically viable noble metal-free catalysts.

Cyclodextrins (CDs) are an important class of cyclic oligosaccharides that contain 6-8 D-glucose units linked together by α-1, 4-glucose bonds, which are called α-, β-and γ-CDs, respectively. The central cavity of a CD system provides a hydrophobic space in which a suitable guest molecule can be sequestered under aqueous conditions. CDs are known to form inclusion complexes with a wide range of compounds, especially aromatic compounds [12-14]. Considerable research efforts have been directed towards the development of CDs capable of mimicking natural enzymes with high catalytic activity and substrate selectivity during the last decade. Among them, β-CD has been widely used to mediate a broad range of organic transformation under aqueous conditions, including oxidation, reduction, ring opening and hydrolysis reactions [15-20]. However, β-CD is soluble in water and must be immobilized on an appropriate solid support so that it can be readily recycled. β-CD was recently immobilized on cellulose and chitosan, and the resulting supported systems were applied to the catalytic oxidation of cinnamaldehyde under aqueous conditions [21-24]. The results revealed that β-CD and the functional groups of the support acted synergistically to allow for the oxidation of cinnamaldehyde. However, from an industrial production perspective, the application of these catalysts could be limited by their low mechanical strength and poor durability towards successive reaction cycles.

Carbon nanotubes (CNTs) have also been studied extensively as catalysts (or supports) and adsorbent materials for liquid phase reaction-adsorption systems because of their unique properties, including their excellent electrical and thermal conductivity, good chemical stability and recyclability, environmental acceptability and low cost [25-28]. Several studies have shown that CNTs are effective adsorbents than activated carbon for the removal of organic pollutants from aqueous solutions because of their excellent adsorption capacity [29, 30]. CNTs have also been used as metal-free catalysts in numerous reactions, including the oxidative dehydrogenation of aromatic hydrocarbons and alkanes, the reduction of oxygen, the oxidation of hydrocarbons and phenols, and the decomposition of ammonia [31-34]. Furthermore, CNTs have been used to catalyze the oxidation of benzyl alcohol to benzaldehyde using molecular oxygen as an oxidant [35, 36]. There have been numerous reports in the literature aimed at modifying the surfaces of CNTs by the introduction of specific functional groups to improve their performance as catalysts and adsorbents [37-39]. As part of our ongoing interest in such materials, we report herein the development of surface-modified CNT system bearing β-CDs as a high performance catalyst for the oxidation of cinnamaldehyde. To the best of our knowledge, this study represents the first reported example of the systematic evaluation of β-CD-functionalized multi-walled CNTs (MWCNTs) as a recyclable heterogeneous catalyst for the oxidation of cinnamon oil for industrial application.

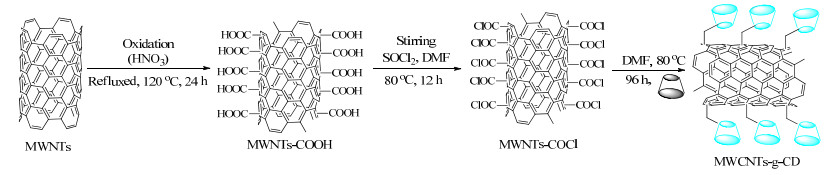

The main goal of this work was to design β-CD grafted MWCNTs (MWCNTs-g-CD) for the oxidation of cinnamon oil to natural benzaldehyde under aqueous conditions (Scheme 1). It was investigated that the MWCNTs-g-CD would allow for the supramolecular recognition of β-CD, as well as showing good adsorption and chemical stability properties. The resulting catalyst was initially evaluated for the oxidation of cinnamaldehyde using hydrogen peroxide as the terminal oxidant under the mild reaction conditions. A plausible mechanism was proposed for the oxidation of cinnamaldehyde. The MWCNTs-g-CD exhibited enhanced catalytic activity comparison with the MWCNTs and β-CD in isolation, which was attributed to the occurrence of a synergistic effect between β-CD and the MWCNTs.

MWCNTs were purchased from Shenzhen Nanotech Port Co., Ltd (Shenzhen, China). β-CD ( > 99%) was purchased from Shanghai Boao Biotechnology (Shanghai, China). Cinnamaldehyde ( > 99%) was obtained from Sinopharmacy Chemical Reagent (Shanghai, China). All of the other chemicals used in this study were purchased as the analytical grade and used without further purification. All of the aqueous solutions were prepared using Milli-Q water under ambient conditions.

MWNTs were purified and oxidized according to a previously reported procedure [40]. Briefly, MWCNTs (200 mg) were added to a solution of HNO₃ (3 mol/L, 20 mL), and the resulting mixture was agitated under ultrasonic irradiation at 25 ℃ for 30 min. The mixture was then heated at 120 ℃ with an agitation speed of 120 r/min for 24 h. Upon completion of the reaction, the mixture was cooled to room temperature and the solids were separated by centrifugation (1 min), washed to neutral pH with distilled water and dried under vacuum to give MWNTs-COOH. A small portion of this material (60 mg) was dispersed in SOCl₂ (25 mL) under sonication conditions for 30 min in the presence of DMF (1 mL). The mixture was then heated at 80 ℃ under nitrogen overnight. Upon completion of the reaction, the solvent and excess SOCl₂ were removed under reduced pressure to give the acyl chloride-functionalized MWNTs (MWNTs-COCl). This material was immediately dispersed in DMF (10 mL) under sonication conditions for 5 min before being treated with β-CD (1 mmol) and triethylamine (0.5 mL). The resulting mixture was heated in an oil bath at 80 ℃ for 96 h. The product of this reaction was washed repeatedly with deionized water to remove all of the free β-CD. The washed product was then dried in an oven at 80 ℃ for 24 h to give the MWCNTs-g-CD.

Fourier transform infrared (FTIR) spectra were recorded on a TENSOR 37 FTIR spectrometer (Bruker, Ettlingen, Germany) as KBr disks for wavelengths in the range of 4000-400 cm^-1. Thermogravimetric analysis (TGA) was performed on a STA-449C thermal analysis system (Netzsch, Selb, Germany). The TGA measurements (weight loss) were performed using dried samples under N₂ with a flow rate of 50 mL/min. The temperature of each measurement was increased from room temperature to 800 ℃ at a rate of 10 ℃/min. The X-ray crystal structure of the catalyst was measured by X-ray diffraction (XRD) analysis using a D/max-2200/PC X-ray diffractometer (Rigaku, Tokyo, Japan) equipped with a Cu K_α radiation source (λ=1.54056 Å). Raman spectra were recorded using a Lab-RAM Aramaic micro Raman spectrometer (Renishaw Diagnostics, Gloucestershire, UK) with an excitation wavelength of 514.5 nm to investigate the surface structures of the MWCNTs and MWCNTs-g-CD. Transmission electron microscopy (TEM, S-520, JEOL, Tokyo, Japan) was used to determine the surface morphology and the particle size characteristics of the catalysts. The BET specific surface areas were measured using an ASAP 2020 accelerated surface area and porosimetry analyzer (Micromeritics, Norcross, GA, USA).

The catalytic oxidation of cinnamaldehyde was performed according to a previously reported procedure [41]. Typically, a mixture of the catalyst (60 mg) and cinnamaldehyde (1 mmol) in deionized water was added to a 100 mL three necked flask fitted with a reflux condenser and magnetic stirrer. The mixture was then heated at 60 ℃ for 0.5 h, before being treated with a solution of H₂O₂ (2.5 mL, 30 wt%) containing NaHCO₃ (2 mmol), which was added to the reaction mixture in a dropwise manner under stirring. Samples were taken at appropriate intervals and extracted with ethyl acetate (5 mL) before being centrifuged. The supernatants were analyzed and identified by gas chromatography-mass spectrometry (GC-MS) using an Agilent 7890B gas chromatograph (Agilent, Santa Clara, CA, USA) equipped with a HP-5 column (30 m × 0.25 mm id, 0.25 μm), which was coupled to an Agilent HP5977A mass spectrometer. The reproducibilities for these data were determined to be within 5%.

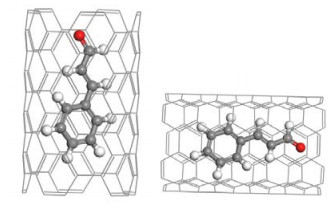

All of the calculations were performed using the DMol3 method in version 8.0 of the Materials Studio software (Accelrys Inc., San Diego, CA, USA) [42]. The geometries and complexation energies of the host, guest and host-guest inclusion complex were optimized using a local density approximation (LDA) in the Perden-Wang (PWC) form at the Double Numerical plus d-functions (DND) basis set level [23, 41]. Each complex was minimized in energy in an aqueous environment. The binding energy (BE) values were expressed as follows:

(1)

where E_C is the total energy of the inclusion complex, E_G is the sum total energy of the guest, and E_H is the total energy of the host. The MWCNTs and cinnamaldehyde were selected as the host and model guest molecules, respectively.

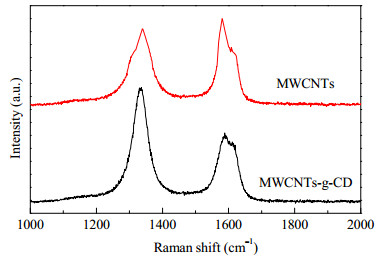

The Raman spectra of the MWCNTs and MWCNTs-g-CD are shown in Fig. 1. The main peaks in the spectra at 1350 and 1590 cm^-1 were attributed to the disordered (D mode) and the graphite (G mode) structures of the MWCNTs, respectively. The G and D bands usually represent the E_2g phonons of the sp² atoms and the breathing mode of the k-point phonons with A_1g symmetry, respectively. The intensity ratio (I_D/I_G) of the D and G bands in graphitic materials can be used to evaluate the size of sp² domains [43]. The I_D/I_G ratios of the MWCNTs and MWCNTs-g-CD were determined to be 0.96 and 1.21, respectively, indicating that the sp² domains were larger in the latter of these two systems. These results therefore indicated that the degree of disorder on the surfaces of the MWCNTs increased after the grating of the β-CD molecules.

TEM images of the MWCNTs and MWCNTs-g-CD are presented in Fig. 2. It showed that the MWCNTs were tubular in shape with a smooth surface, vertical sidewalls and a diameter in the range of 10-30 nm. The MWCNTs-g-CD exhibited a more compact stacking morphology. The diameters of the MWCNTs-g-CD were in the range of 20-40 nm, which is larger than that of the MWCNTs. This difference in the diameters was attributed to the grafting of the β-CD molecules to the surfaces of the MWCNTs, which is consistent with previous studies [44, 45]. Furthermore, several porous interspaces were observed on the surfaces of the MWCNTs-g-CD, which could enhance the catalytic activity of this system.

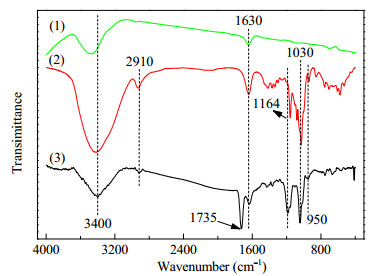

The FTIR spectra of the MWCNTs, β-CD and MWCNTs-g-CD are shown in Fig. 3. The MWCNTs contained two prominent absorption bands at 3400 and 1630 cm^-1, which were attributed to the stretching vibrations of the water molecules adsorbed on the surfaces of the MWCNTs and the C=O stretching vibrations of the quinone groups on the surface, respectively [46]. The FTIR spectrum of β-CD contained major absorption bands at 3400 cm^-1 (-OH stretching vibrations), 2910 cm^-1 (-CH₂ stretching vibrations), 1630 cm^-1 (H-O-H bending), 1164 cm^-1 (C-O stretching vibrations) and 1030 cm^-1 (C-O-C stretching vibrations). The FTIR spectrum of the MWCNTs-g-CD clearly showed several functional groups belonging to β-CD, including-CH₂ (2910 cm^-1), C-O (1164 cm^-1) and C-O-C (1030 cm^-1) groups, which indicated that the grafting of β-CD to the MWCNTs was successful. Notably, the intensity of the peak observed at 3400 cm^-1 for the MWCNTs-g-CD was greater than that of the MWCNTs, which could be attributed to there being more hydroxyl groups in the former of these two species because of the β-CD molecules. Moreover, the peak observed at 950 cm^-1 in the MWCNTs-g-CD is characteristic of an α-(1, 4) glucopyranose [47]. The new peak at 1735 cm^-1 was due to ester groups, indicating that the carboxylic acid groups in MWCNTs-COOH reacted with hydroxyl groups of β-CD during the grafting process [48]. Therefore, the results clearly suggest that β-CD is successfully immobilized on the surface of MWCNTs.

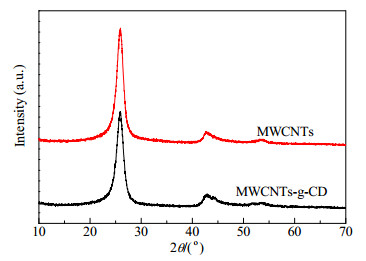

The XRD patterns of the MWCNTs and MWCNTs-g-CD are shown in Fig. 4. Both of these materials gave peaks at 26°, 44° and 54°, which are characteristic of MWCNTs [49]. These results indicated that the β-CD molecules had been grafted onto the surfaces of the MWCNTs in a way that did not interfere with their structural framework. Similar results to these have been reported elsewhere in the literature [50]. The grafting of β-CD onto the surface of the MWCNTs led to a decrease in the BET surface area from 101 m²/g (MWCNTs) to 22 m²/g (MWCNTs-g-CD), as well as a decrease in the pore volume from 0.4806 to 0.1284 cm³/g. Similar results were also observed in our previous study [51]. The average pore diameters of the MWCNTs and MWCNTs-g-CD were determined to be 23.2 and 19.2 nm, respectively.

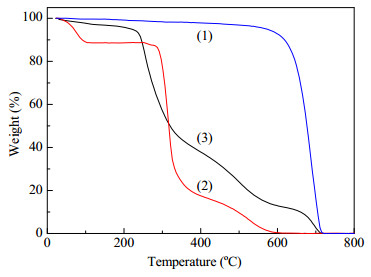

TG curves for the MWCNTs, β-CD and MWCNTs-g-CD are shown in Fig. 5. The TG curve for the MWCNTs showed two separate weight loss steps. The first weight loss occurred at 100 ℃, which was caused by dehydration, whereas the second weight loss occurred at 450-700 ℃, which was attributed to the decomposition of the MWCNTs. The TG curve of β-CD showed three degradation stages, including two weight loss steps at 50-110 and 320-450 ℃, which were attributed to the evaporation of water adsorbed by β-CD and the thermal decomposition of β-CD, respectively. The third weight loss step occurred at temperatures above 450 ℃ and was attributed to a carbonization process. The MWCNTs-g-CD showed a weight loss at 100 ℃, which was attributed to the loss of moisture and solvents incorporated in the polymer. The TG curve of MWCNTs-g-CD also showed weight losses at 280-450 and 450-700 ℃ corresponding to the decomposition of β-CD and the oxidation of the MWCNTs and the β-CD residues, respectively. Based on these TGA results, the weight percentage of surface grafted β-CD was estimated to be around 40% in the MWCNTs-g-CD. This result is consistent with previously findings [52].

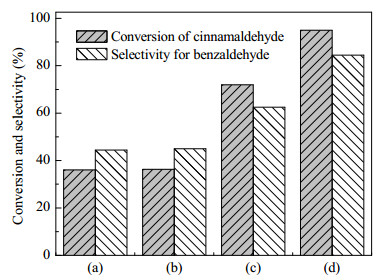

A comparison of the catalytic performances of the MWCNTs, β-CD and MWCNTs-g-CD for the oxidation of cinnamaldehyde is shown in Fig. 6. A blank reaction was also conducted without any catalyst, which gave a low benzaldehyde yield of only 16% after 3 h. MWCNTs alone cannot effectively promote the oxidation of cinnamaldehyde. The addition of β-CD was beneficial for the reaction, affording a cinnamaldehyde conversion of 72% after 3 h with a benzaldehyde selectivity of 62%, which is consistent with previous results from the literature [21, 23, 41]. Among these catalysts, MWCNTs-g-CD was found to be the most effective, achieving a cinnamaldehyde conversion of 95% with a benzaldehyde selectivity of 85% after a reaction time of 10 min. These results clearly show that β-CD and MWCNTs were acting synergistically to allow for the efficient oxidation of cinnamaldehyde.

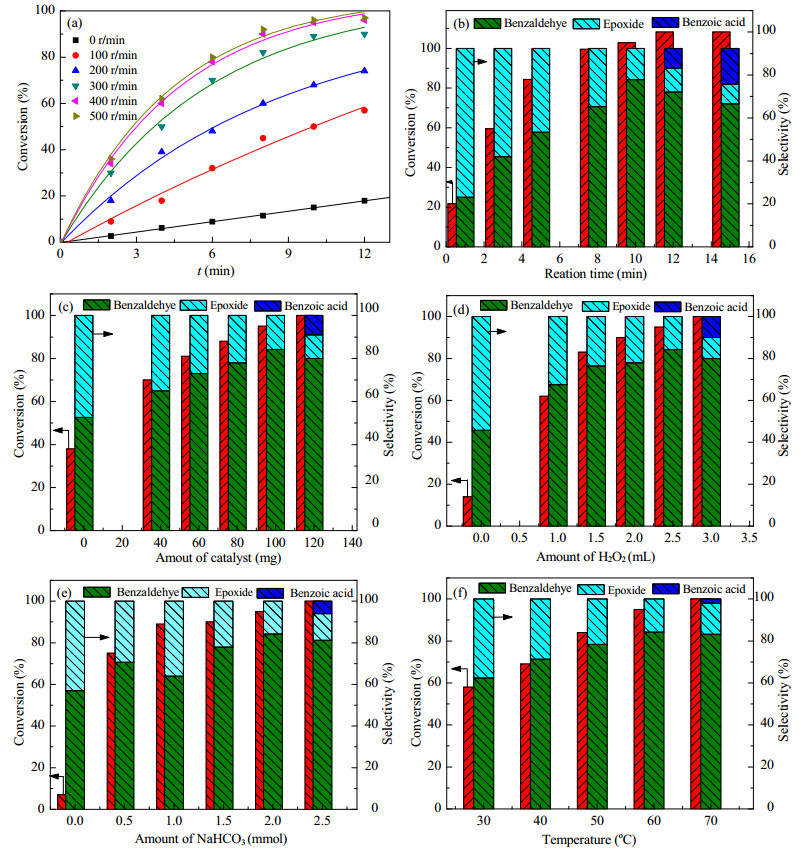

Fig. 7 shows the effects of several different parameters on the outcome of the oxidation of cinnamaldehyde, including the reaction time, reaction temperature, amount of MWCNTs-g-CD, amount of H₂O₂ and amount of NaHCO₃. It is noteworthy that the agitation speed also had an impact on this reaction (Fig. 7(a)). Cinnamaldehyde conversions of 19.7%, 58.5% and 74.2% were achieved in the solution phase for agitation speeds of 0, 100, and 200 r/min, respectively, after a reaction time of 12 min. At a low agitation speed, the conversion of cinnamaldehyde would be dependent on the low transfer rate of the oxidant from the aqueous phase into the solid-liquid phase. Higher agitation speeds would enhance the extent of the contact between the two phases and the performance of the catalyst. Agitation speeds of 300 and 400 r/min resulted in cinnamaldehyde conversions of 93.0% and 98.2%, respectively, after 12 min. However, further increases in the agitation speed did not result in further increases in the cinnamaldehyde conversion, indicating that the mass transfer was no longer driving this process. An agitation speed of 400 r/min was therefore selected as the optimum agitation speed to eliminate the effects of the liquid-solid mass transfer. This value was used to evaluate the other parameters. The conversion of cinnamaldehyde over the MWCNTs-g-CD increased with increasing reaction time and reached 95% after a reaction time of 10 min. The selectivity to benzaldehyde for this reaction remained in the region of 85% from 1 to 10 min. A slight decrease was observed in the selectivity when the reaction time was increased to 12 min most likely because of the deep oxidation of benzaldehyde. These results demonstrated that the optimal reaction time for this transformation was 10 min, which is much shorter than those reported for other cinnamaldehyde oxidation systems [21-23, 41], thereby highlighting the excellent performance of MWCNTs-g-CD. The cinnamaldehyde conversion and selectivity to benzaldehyde increased from 38% and 53% in the absence of MWCNTs-g-CD to 95% and 85%, respectively, following the addition of 100 mg of MWCNTs-g-CD at 60 ℃ over 3 h (Fig. 7(c)). This result indicated that the MWCNTs-g-CD played an important role in the oxidation of cinnamaldehyde. However, the addition of an excess of the MWCNTs-g-CD (e.g., 120 mg) led to a decrease in the benzaldehyde selectivity, which is attributed to the oxidation of benzaldehyde to benzoic acid [21, 23].

The effect of the amount of H₂O₂ on the performance of the MWCNTs-g-CD for the oxidation of cinnamaldehyde was also evaluated (Fig. 7(d)). The cinnamaldehyde conversion and selectivity to benzaldehyde increased from 14% and 45.7% in the absence of H₂O₂ to 95% and 85%, respectively, following the addition of 2.5 mL H₂O₂ at 60 ℃ over 3 h. However, further increasing the amount of H₂O₂ to 3 mL led to a decrease in the benzaldehyde selectivity to 80%. Based on the stoichiometry, the molar ratio of H₂O₂ to cinnamaldehyde was 1:1. In practice, a small excess of H₂O₂ was used in this reaction to overcome the losses encountered as a consequence of the decomposition of H₂O₂ at high temperatures. Notably, the oxygen released during the decomposition of H₂O₂ would have no impact on the oxidation of cinnamaldehyde [22, 23]. Based on these results, 2.5 mL of H₂O₂ was selected as the optimum amount for this reaction. Although H₂O₂ is an oxygen-rich, environmentally friendly oxidant, which generates water as its only byproduct, it is a slow-acting oxidant in the absence of activation. Richardson et al. [53-55] reported a new method for activating H₂O₂ with bicarbonate ions. The treatment of H₂O₂ with bicarbonate ions resulted in the formation of peroxymonocarbonate ions (HCO₄^-), which effectively oxidized cinnamaldehyde to produce benzaldehyde [22, 23]. As shown in Fig. 7(e), the cinnamaldehyde conversion and benzaldehyde selectivity were 7% and 57%, respectively, when the reaction was conducted in the absence of NaHCO₃. Notably, the addition of NaHCO₃ (2 mmol) led to a considerable improvement in the cinnamaldehyde conversion to 95%, as well as an increase in the benzaldehyde selectivity to 85%, indicating that NaHCO₃ played a crucial role in the oxidation of cinnamaldehyde. Furthermore, increasing the amount of NaHCO₃ to 2.5 mmol led to further a increase in the cinnamaldehyde conversion to 100%. However, this increase was accompanied by a decrease in the benzaldehyde selectivity to 80%, which was caused by the oxidation of benzaldehyde to benzoic acid. Taken together, these results show that the addition of an appropriate amount of NaHCO₃ is necessary for the reaction.

The reaction temperature also had a pronounced effect on the oxidation of cinnamaldehyde (Fig. 7(f)). For example, increasing the reaction temperature increased the cinnamaldehyde conversion and benzoic acid selectivity but led to a decrease in the benzaldehyde selectivity. The optimal reaction temperature for the oxidation of cinnamaldehyde was therefore set as 60 ℃, which represents a compromise between the benzaldehyde selectivity and cinnamaldehyde conversion.

The performance characteristics of the MWCNTs-β-CD were evaluated under the optimized conditions and the results were compared with those of several other β-CD-based catalysts from the literature (Table 1). The results revealed that the MWCNTs-β-CD developed in the current study performed comparably or better than the other systems in terms of the cinnamaldehyde conversion and benzaldehyde selectivity. The MWCNTs-β-CD also required much shorter reaction times then the other β-CD-based catalysts, thereby highlighting the excellent catalytic performance of the MWCNTs-β-CD for the oxidation of cinnamaldehyde. However, the MWCNTs-β-CD could decompose over time leading to a decrease in their catalytic activity, and small changes in the crystallinity of this material could go undetected by XRD. To evaluate this possibility, we conducted a series of experiments to assess the reusability of the catalyst, which is an important index for assessing the practical application of a catalytic system. Given that the benzaldehyde product of this reaction is soluble in ethyl acetate, which can be separated by extraction from the aqueous reaction mixture, it was investigated that the catalyst could be recovered by filtration and reused for the oxidation of a fresh batch of cinnamaldehyde. Table 2 provides a summary of the recyclability properties of the MWCNTs-g-CD. After each reaction, the benzaldehyde was isolated by extraction, and the resulting precipitate was washed sequentially with ethanol and water at 80 ℃ for 2 h. After drying, the catalyst was reused for the next run under the same conditions. As shown in Table 2, the MWCNTs-g-CD shows outstanding recyclability over five catalytic cycles, as well as good stability.

Scanning electron microscope (SEM) was used to evaluate changes in the morphological characteristics and sizes of the used catalysts. SEM images of the MWCNTs and the used MWCNTs-g-CD are shown in Fig. 8. The MWCNTs were found to be tubular in shape with a diameter in the range of 10-30 nm (Fig. 8(a)). In contrast, the diameters of the used MWCNTs-g-CD (20-40 nm) were larger than those of the MWCNTs, which indicated that β-CD was uniformly dispersed on the surfaces of the MWCNTs (Fig. 8(b)). This difference in the diameters was attributed to chemical bonding between the MWCNTs and β-CD, and hydrogen-bonding interactions between the adjacent β-CD molecules. A comparison of the SEM images for the MWCNTs and the used MWCNTs-g-CD confirmed that the morphological characteristics of the used MWCNTs-g-CD were not affected by the oxidation of cinnamaldehyde.

In light of the results achieved for the efficient oxidation of cinnamaldehyde, we also evaluated the oxidation of a series of substituted cinnamaldehydes using the MWCNTs-g-CD catalyst, and the results are listed in Table 3. Pleasingly, all of the substituted cinnamaldehydes were smoothly converted to the corresponding benzaldehydes with good conversions and selectivity. However, the electronic nature of the substituent group had a pronounced impact on the outcome of the oxidation reaction. For example, cinnamaldehydes bearing an oxygen-containing substituent (Table 3, entries 1-3 and 10-12) produced the corresponding benzaldehydes in 81%-85% selectivity, which were higher than that of cinnamaldehyde. This increase in the selectivity could be attributed to the formation of a weak ternary complex between the oxygen-containing substituent (e.g., -OCH₃ or-NO₂) and the secondary hydroxyl groups on the rim of the β-CD through hydrogen bonding interactions. The position of the substituent on the phenyl ring had a considerable impact on the catalytic activity through steric hindrance. For example, the conversions of the cinnamaldehydes increased going from the o-substituted systems (Table 3, entries 1, 4, 7 and 10) to the m-substituted systems (entries 2, 5, 8 and 11), and increased again going to the p-substituted cinnamaldehydes (Table 3, entries 3, 6, 9 and 12). These results also indicated that the oxidation of the substituted cinnamaldehydes was also affected by the β-CD cavity. Cinnamaldehydes bearing an electron-rich methoxy group (Table 3, entries 1-3) or an electron-neutral methyl group (Table 3, entries 4-6) gave the corresponding benzaldehydes in 63%-100% conversions with selectivities of 72%-85%. In contrast, cinnamaldehydes bearing an electron-withdrawing chloride-or nitro-substituent gave conversions and selectivities of 63%-78% and 72%-85%, respectively, (Table 3, entries 6-12) even after a longer reaction time (180 min). The results in Table 3 also showed that the formation of weak interactions between β-CD and the substrates enhanced their reactivity depending on the size, shape and hydrophobicity of the guest molecule [3, 56].

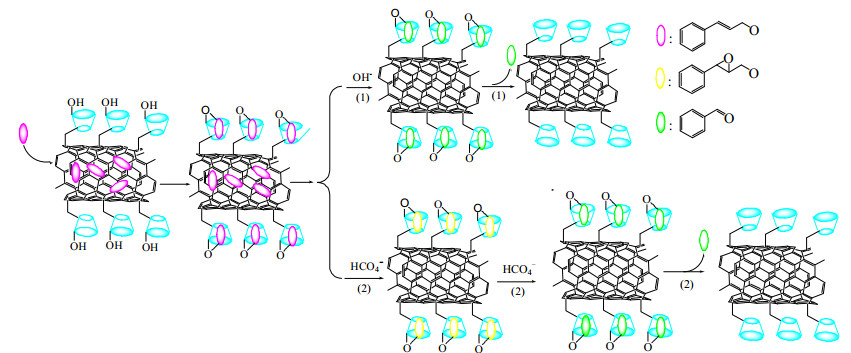

Our previous results [21-23, 41] indicated that the β-CD sites could be regarded as the active sites in the catalytic oxidation of cinnamaldehyde with H₂O₂ activated by bicarbonate ions in water. Based on the experimental data presented above, we proposed a plausible mechanism for this reaction, which is presented in Fig. 9. Firstly, cinnamaldehyde would be quickly adsorbed onto the surface of the MWCNTs through electrostatic attraction under mechanical stirring (Fig. 10). Cinnamaldehyde would also be encapsulated in the cavities of β-CD through host-guest interactions. However, the changes observed in the energy during the course of the inclusion process would be dependent of the stability of the host-guest complexes between the MWCNT or β-CD and the different guests. Previous reports in this area have indicated that increasingly negative binding energies lead to increasingly stable host-guest complexes [41]. The binding energy for the MWCNT-cinnamaldehyde complex is listed in Table 4. The results showed that the MWCNTs could interact with cinnamaldehyde to form stable inclusion complex through aromatic-aromatic (π-π stacking) interactions [57]. However, the binding energy for the cinnamaldehyde-β-CD complex was lower than that of the MWCNT-cinnamaldehyde complex [8], indicating that cinnamaldehyde was being preferentially absorbed in the β-CD cavities. The β-CD sites therefore interacted with cinnamaldehyde to form more stable inclusion complex than the MWCNTs through intermolecular hydrogen bond interactions, which were confirmed by ¹H NMR and 2D ROESY experiments [11]. Secondly, the nucleophilic hydroxyl groups of β-CD would attack the β-carbon atom of the α, β-unsaturated carbocation to form a hydrated molecule via the hydrolysis of sodium carbonate. This would lead to a 6% yield of benzaldehyde by the deprotonation of the hydrated molecule, which would lead to the cleavage of the C=C bond. In contrast, the active peroxymonocarbonate ions (HCO₄^-) formed via the activation of H₂O₂ with bicarbonate would be adsorbed onto the surfaces of the MWCNTs. The MWCNTs could also accelerate the formation of the active species according to reaction (2). The HCO₄^- species generated in this way could react with cinnamaldehyde to yield the corresponding epoxide. In situ-generated HCO₄^- could then react with newly formed epoxide to form the benzaldehyde. The catalyst would then be restored to its initial state.

(2)

(3)

Lastly, we evaluated oxidation of cinnamaldehyde over β-CD and MWCNTs-g-CD based on the apparent activation energy (E_a). The results revealed that the rate constants increased with the increasing temperature, and that the rate constants were higher in the presence of MWCNTs-g-CD than they were in the absence of β-CD, which implied that MWCNTs-g-CD could significantly improve the oxidation reaction (Table 5). The relationship between the rate constant and the temperature was fitted according to the following equation:

(4)

where k is the rate constant of the reaction (min^-1), k₀ is the constant-frequency factor (min^-1), E_a is the activation energy of the reaction (kJ/mol), R is the gas constant (8.314 × 10^-3 kJ mol^-1K^-1), and T is the absolute temperature (K).

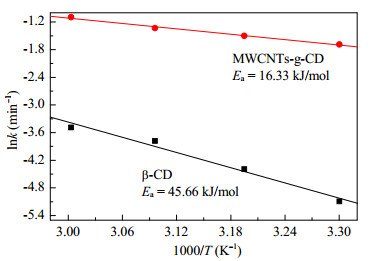

The rate constants shown in Table 5 were used to generate the Arrhenius plots of lnk and 1/T shown in Fig. 11. The E_a values were calculated in the presence of the MWCNTs-g-CD and β-CD and found to be 16.33 and 45.66 kJ/mol, respectively. These results clearly show that the MWCNTs-g-CD led to a reduction in the activation energy and improved the oxidation rate of cinnamaldehyde compared with β-CD. In addition, the inclusion of β-CD led to an increase in the substrate specificity and mass transfer, as reported previously [22]. Taken together with the synergistic effects of MWCNTs and β-CD, these results highlight the potential of MWCNTs-g-CD for the oxidation of cinnamaldehyde.

An efficient β-cyclodextrin (β-CD)-functionalized MWNT (MWCNTs-g-CD) catalyst was designed and successfully applied to the eco-friendly oxidation of cinnamaldehyde to benzaldehyde. Under the optimized conditions, this system achieved 95% cinnamaldehyde conversion with 85% selectivity to the natural benzaldehyde with a short reaction time of 10 min. This catalyst also demonstrated outstanding recyclability following five reaction cycles, with good stability. These results highlight the potential of designing heterogeneous catalysts for the production of natural benzaldehyde.
