4-tert-Butyltoluene (PTBT) is commercially important because its derivatives, such as 4-tert-butylbenzoic acid and 4-tert-butylbenzaldehyde, are used in the fine chemical and petrochemical industries [1-3]. Conventionally, toluene butylation reactions are conducted over catalysts such as AlCl₃, sulfuric and phosphoric acids, and boron trifluoride. However, these acid catalysts are not environmentally benign or reusable and corrode equipment. Considerable attention has therefore been devoted to development of environmentally friendly solid acid catalysts [4, 5].

Zeolites are regarded as a good choice because of their unique pore structures and acidic properties. Zeolites have been investigated for toluene alkylation with tert-butyl alcohol (TBA) [4, 6-10]. Zeolite β, which has a three-dimensional interconnecting pore system and high acidity, shows high catalytic activity. Pai et al.[4] reported that the catalytic activities of Hβ (Si/Al=25) and HY (Si/Al=30) were better than that of HMCM-22 (Si/Al=52) in vapor-phase butylation of toluene. Mravec et al. [9] reported that the most active zeolite catalysts for liquid-phase butylation of toluene were Hβ (Si/Al=12.5) and HM (Si/Al=17.5). In our previous study [11], we found that Hβ showed high catalytic activity in toluene alkylation with TBA. However, the para selectivity, i.e., for PTBT, was 69.6% and the meta selectivity, i.e., for 3-tert-butyltoluene (MTBT), was 26.9% over Hβ. The selectivity for the desired product, i.e., PTBT, was therefore low. The dimensions of the 12-ring portals of the parent Hβ are 0.67 nm × 0.66 nm [12], and the kinetic diameters of PTBT and MTBT are 0.58 and 0.65 nm [9], respectively. The shape selectivity has little effect on the PTBT selectivity over Hβ. However, the shape selectivity can be greatly improved by slightly narrowing the 12-ring portals of the parent Hβ. Modification with a metal oxide is a highly efficient method for improving the para selectivity by reducing the number of external acid sites and adjusting the pore entrance size. Kostrab et al. [5] reported that cerium-modified HM maintained a constant high PTBT selectivity (near 90%) but decreased the catalytic activity, i.e., improving the para selectivity by metal oxide modification usually decreases the catalytic activity. New and efficient catalysts for PTBT synthesis by toluene alkylation with TBA that enhance the para selectivity but also maintain or increase the catalytic activity are therefore needed.

Zeolite-catalyzed toluene alkylation with alcohols is generally considered to proceed via carbonium ion mechanisms [13] and the active sites are B acid sites [6-14]. Because of its strong B acidity, H₃PW₁₂O₄₀ (HPW) is a promising catalyst, with high activity in toluene alkylation with alcohols. The specific surface area of HPW is low (close to 5 m²/g), therefore many attempts have been made to support HPW using various acidic or neutral solid materials [15-19]. Zeolite β is a promising support for acid-catalyzed alkylation reactions because of its high specific surface area, high thermal stability, and hardness.

HPW loading is expected to improve the para selectivity because HPW loading narrows the pores and improves the shape selectivity. HPW loading is also expected to increase the catalytic activity because of the increased number of B acid sites. To the best of our knowledge, there are no reports of toluene alkylation with TBA catalyzed by Hβ-supported HPW. It is therefore of interest to investigate the catalytic activities of HPW-modified Hβ catalysts for toluene alkylation with TBA.

The aim of the present study was to evaluate the catalytic behavior of HPW/Hβ in toluene alkylation with TBA under liquid reaction conditions. HPW/Hβ was obtained using a wetness impregnation method and fully characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), fourier transform infrared spectroscopy (FT-IR), inductively coupled plasma-optical emission spectrometry (ICP-OES), the brunauer emmett teller (BET) method, temperature-programmed NH₃ desorption (NH₃-TPD), and pyridine adsorption FT-IR (Py-IR) spectroscopy. Our objective was to correlate the channel structures and acidity of the HPW/Hβ catalyst with its catalytic properties in toluene alkylation.

The starting material was Naβ zeolite (Zeolyst International). Hβ powder was prepared by impregnation of Naβ with NH₄NO₃ (Sigma Aldrich, reagent grade) aqueous solution using a reported procedure [20]. After impregnation, the zeolite was filtered, dried at 120 ℃ for 12 h, and calcined at 450 ℃ for 4 h to give Hβ. H₃PW₁₂O₄₀·xH₂O (HPW, Sigma-Aldrich, reagent grade) was dried at 200 ℃ in a furnace for 24 h to remove water. HPW-modified Hβ was prepared by wetness impregnation with an ethanol solution of the desired amount of HPW. The product was aged at ambient temperature for 8 h, dried at 60 ℃ overnight, and calcined at 450 ℃ for 4 h. The prepared catalyst is denoted by HPW/Hβ.

XRD analysis was performed using a D/max-2200PC X-ray diffractometer with Cu K_αradiation at 40 kV and 30 mA, in the scanning range 2θ=10°-80° at a scanning rate of 4°/min.

The catalyst surface morphology was examined using SEM (Zeiss-ΣIGMA).

TEM examinations were performed using a JEM-1010 instrument (JEOL). Samples were dispersed in ethanol and placed on a carbon grid before TEM examinations.

IR spectra were recorded using a Bruker FT-IR spectrometer (Tensor 27) in the wavenumber range 4000-400 cm^-1 at a 4 cm^-1 resolution. KBr pellets containing 5% of powder sample were used.

The HPW content of the catalyst was determined using ICP-OES (Perkin Elmer Optima 2000DV instrument).

The physicochemical properties of the supports and catalysts were investigated by the BET method using a NOVA2000e instrument (Micromeritics). All the samples were outgassed at 200 ℃ until the vacuum pressure was 6 mm Hg. N₂ adsorption isotherms were recorded at -196 ℃.

The catalyst acidity was measured using NH₃-TPD (Quantachrome Chembet-3000 characterization system). A sample (200 mg) was pretreated at 550 ℃ for 1 h in dry He (50 mL/min) and cooled to 120 ℃. It was then exposed to 10% NH₃/90% He for 1 h. After purging the catalyst with He for 1 h, a TPD plot was obtained at a heating rate of 10 ℃/min from 120 to 600 ℃.

The Py-IR spectra were recorded using a Bruker FT-IR spectrometer (Tensor 27) and a high-temperature vacuum cell. The sample powder was pressed into a self-supporting wafer, and the spectra were recorded in the wavenumber range 4000-400 cm^-1 at a 4 cm^-1 resolution. Before each experiment, the sample was pressed into thin pellets (10-30 mg) of diameter 16 mm and activated in situ under vacuum (10^-5 Pa) at 170 ℃ overnight. Excess pyridine was introduced at 150 ℃ after activation. The concentrations of B sites and L sites were determined from the integrated area bands of PyH⁺ (around 1540 cm^-1) and PyL (around 1450 cm^-1) species using the molar extinction coefficients of the bands.

Side-chain alkylation of toluene with TBA was performed in a laboratory autoclave reactor (300 mL) at 180 ℃. In a typical experiment, toluene (10 mL, 94 mmol; 98%, Aladdin) and TBA (28 mL, 283 mmol; 98%, Aladdin) were mixed with cyclohexane (60 mL, 99%, Aladdin) as a solvent. Then the zeolite catalyst (1.0 g) was added. The reaction system was sealed and purged continuously with N₂ for 30 min. The mixture was heated to a certain temperature to start the alkylation reaction. After the reaction, the mixture was cooled to room temperature, and the zeolite catalyst was removed by filtration. The liquid phase was analyzed using a GC-14C gas chromatograph equipped with an SE-30 capillary column (f 0.25 mm × 50 m). The analysis was performed at an initial temperature of 60 ℃ for 2 min, a ramping rate of 10 ℃/min, and a final temperature of 220 ℃, which was held for 10 min, with N₂ as the carrier gas. A number of runs were performed to check the reproducibility of the experimental results; it was found to be excellent. Typical errors were in the range±2%.

Toluene is not active enough to undergo Friedel-Crafts alkylation in the absence of a catalyst. The selection of a suitable catalyst is therefore crucial for highly efficient alkylation of toluene with TBA. Initially, unmodified zeolites, i.e., Hβ, HM, HY, and HZSM-5, were used as catalysts for toluene butylation. The results are listed in Table 1. Two monoalkylated products were detected, namely a large amount of PTBT (the para isomer) and MTBT (the meta isomer). However, no 2-tert-butyltoluene (OTBT, the ortho isomer) was detected. PTBT is the major product because steric hindrance of the methyl group and the large tert-butyl group favor formation of the para isomer. It is also favored by shape selectivity because of the regular channel structures of zeolite catalysts. The formation of OTBT is hindered by the methyl group ortho to the tert-butyl group. A trace amount of the dialkylated product, 3, 5-di-tert-butyltoluene, formed by further alkylation of the monoalkylated products PTBT and MTBT, was also detected. This can also be explained by the steric effects of all the alkyl groups being in meta positions.

It is clear that the Hβ zeolite was the most effective catalyst (Table 1), this can be ascribed to the special structure of the Hβ zeolite and its higher acidity [11]. The toluene conversion was 54.0% and the selectivity for PTBT was just 69.6% over Hβ zeolite, i.e., lower selectivity for the desired product, PTBT. Based on the potential benefits of heteropoly acid modification, heteropoly-acid-modified Hβ zeolites were then investigated in this reaction (Table 1). As expected, the catalytic performances of these modified Hβ zeolites were better than that of Hβ zeolite, especially in the case of HPW/Hβ. The toluene conversion and selectivity for PTBT over HPW/Hβ were 73.1% and 80.8% respectively, which are both better than the results obtained using Hβ zeolite. HPW/Hβ therefore had the highest activity and was chosen as the catalyst for further investigation.

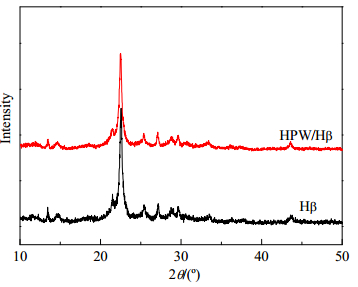

The XRD patterns of the Hβ and HPW/Hβ samples are shown in Fig. 1. The main diffraction peak from the Hβ zeolite was observed at 2θ=22.5°. No additional diffraction peaks were observed in the XRD pattern of HPW/Hβ, indicating that HPW was well dispersed on the Hβ zeolite surface and no obvious structural changes were caused by HPW loading. However, a slight decrease in the diffraction peak intensity was observed after HPW loading. This indicates that some loss of crystallinity occurred after HPW loading by impregnation and heat treatment. These processes would also cause collapse of the Hβ framework, which is another reason for the decreased intensity.

The SEM images of the Hβ and HPW/Hβ samples in Fig. 2 show that the outer surface of HPW/Hβ was essentially unchanged compared with that of the Hβ zeolite. The HPW/Hβ crystal size was around 200-300 nm.

The morphologies of the Hβ and HPW/Hβ samples were consistent in the TEM results (Fig. 3). TEM showed that the Hβ zeolite had a honeycomb structure. In the HPW/Hβ catalyst, HPW was uniformly dispersed on Hβ, and can be distinguished as dark dots in the TEM images.

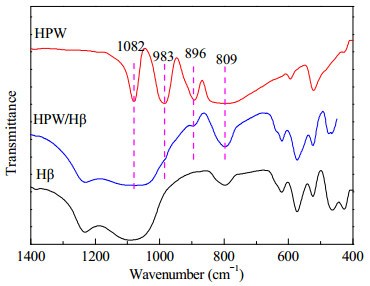

Fig. 4 shows the FT-IR spectra of HPW, HPW/Hβ, and the parent Hβ. In the HPW spectrum, the band at 1082 cm^-1 can be assigned to P-O, the broad band at 983 cm^-1 can be assigned to W=O, the band at 896 cm^-1 can be assigned to O-W-O (corner-sharing oxygen), and the very broad band at 809 cm^-1 can be assigned to W-O-W (edge-sharing oxygen) [21-22]. The spectrum of HPW/Hβ showed a large band at 809 cm^-1 and a broad band at 1082 cm^-1, attributed to overlapping of the bands from HPW and the Hβ zeolite at the corresponding positions. In addition, small bands at 983 and 896 cm^-1 can be observed in the HPW/Hβ spectrum. These results confirm that HPW was successfully supported on the Hβ zeolite and there were strong bonding interactions between HPW and Hβ [23].

The loaded amount of HPW in HPW/Hβ, determined using ICP-OES, was 29.6%, which is consistent with the theoretical amount (30.0%) (Table 2). The textural properties of the parent Hβ and HPW/Hβ are also listed in Table 2. HPW loading decreased the BET surface area of Hβ from 492.5 to 379.6 m²/g, the pore volume decreased from 0.48 to 0.29 cm³/g, and the pore size decreased from 3.90 to 3.17 nm. These effects are attributed to the HPW entering the Hβ pores during the modification process [24]. The decrease in the pore size after HPW loading improves the para selectivity. Similar observations were made by Kumar et al. [25]. The dimensions of the 12-ring portals of the parent Hβ are 0.67 nm × 0.66 nm [12], and the kinetic diameters of PTBT and MTBT are 0.58 and 0.65 nm, respectively [9]. Shape selectivity therefore has little effect on PTBT selectivity over the Hβ zeolite; the PTBT selectivity over the parent Hβ was 69.6%, which is low. However, HPW loading narrows the pore entrances, as confirmed by the decrease in the average pore size from 3.90 to 3.17 nm (Table 2). Shape selectivity could therefore play a more important role in the product selectivity over the HPW/Hβ catalyst than in the case of the parent Hβ. PTBT can easily diffuse from the narrow pores of HPW/Hβ, but MTBT diffusion is restricted because of steric hindrance in the narrow pores of HPW/Hβ. The PTBT selectivity over HPW/Hβ (around 81.0%) was therefore higher than that over Hβ (69.6%).

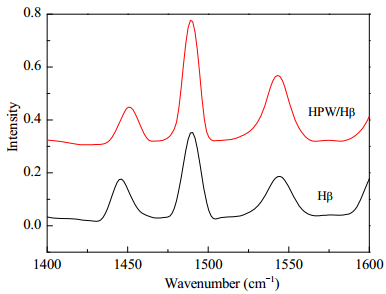

The FT-IR spectra of pyridine after desorption at 150 ℃ are shown in Table 2 and Fig. 5. The strong absorption peak at 1450 cm^-1 is attributed to L acid sites, and the peak at 1540 cm^-1 is attributed to B acid sites [26-27]. A stronger absorption peak, from B and L acid sites, was observed at 1490 cm^-1[28]. It is clear that the number of L acid sites in HPW/Hβ decreased, whereas the number of B acid sites significantly increased, after HPW loading (see Table 2), leading to an increase in the total number of acid sites and the B/L ratio. This is possibly because HPW loading covers some of the acid sties on the Hβ zeolite. However, new B acid sites are introduced by HPW loading, and this compensates for coverage of the original B acid sites in the parent Hβ by HPW [27]. A significant decrease in the number of L acid sites was observed because of coverage of L acid sites by HPW loading. Zeolite-catalyzed alkylation of toluene with alcohols is generally considered to proceed via carbonium ion mechanisms [13] and the active sites are B acid sites [6, 14]. The data in Table 2 show that the B acidity of HPW/Hβ was 142.97 μmol/g, which is 69.74% higher than that of Hβ (84.23 μmol/g). The larger number of B active sites on HPW/Hβ increased the catalytic activity. The toluene conversion over HPW/Hβ reached 73.1%, which is much higher than that achieved over Hβ (54.0%).

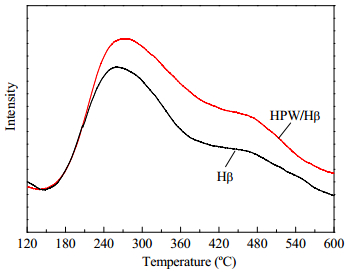

Fig. 6 shows that the NH₃-TPD curves of the parent Hβ and HPW/Hβ contained two NH₃ desorption peaks. The strong peaks in the range 150-400 ℃ are assigned to weak acid sites and the peaks in the range 400-600 ℃ are assigned to strong acid sites [29-30]. Fig. 6 clearly shows that the total amount of acid sites determined using NH₃-TPD correlates well with the Py-IR results; the amounts of weak and strong acid sites in HPW/Hβ were both higher than in the parent Hβ.

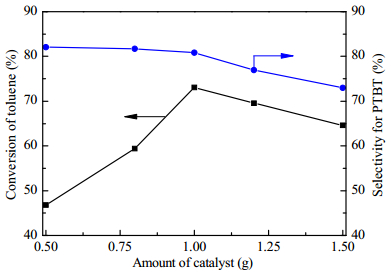

The effects of the catalyst amount on the toluene conversion and PTBT selectivity were investigated in the range 0.5-1.5 g, using HPW/Hβ as the catalyst (Fig. 7). The toluene conversion initially increased and then decreased with increasing catalyst amount. This is because of the increased number of acid sites. Electrophilic aromatic substitution generally occurs via formation of a carbenium ion as the intermediate. An increase in the catalyst amount increased the number of acid sites and the surface area, leading to the formation of more carbenium ions per unit of time, which directly increased the reaction rate. However, more acid sites on the zeolite surface accelerated the subsidiary reactions (i.e., isomerization and oligomerization), which resulted in decreases in the toluene conversion and PTBT selectivity.

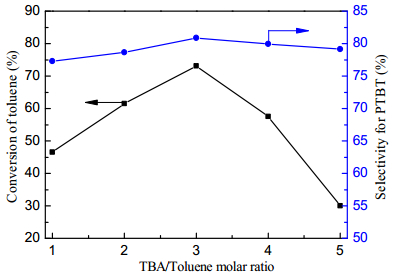

The effects of the TBA/toluene molar ratio on the toluene conversion and PTBT selectivity were studied by varying the molar ratios from 1/1 to 5/1 over the HPW/Hβ catalyst at 180 ℃; the results are shown in Fig. 8. When the TBA/toluene molar ratio was increased from 1 to 3, the toluene conversion greatly increased, from 46.5% to 73.1%. When the ratio was increased to 5, the conversion decreased to 30.0%. The reason for this is that higher TBA concentrations increased oligomerization of isobutylene (formed by dehydration of TBA), and the oligomerization reaction competed with the main alkylation reaction. The best PTBT selectivity was obtained at a TBA/toluene molar ratio of 3/1, showing that a small excess of TBA increased the para selectivity. Similar results were reported by Kostrab et al. [5]. They suggested that a small excess of TBA was suppressed dealkylation (cleavage ofthetert-butyl group from the aromatic ring).

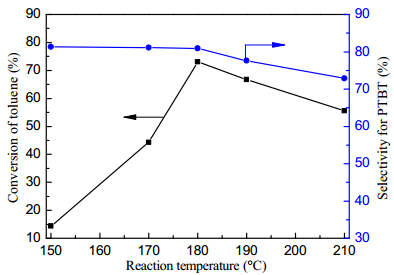

The effects of reaction temperature on PTBT synthesis are summarized in Fig. 9. The toluene conversion clearly increased sharply when the reaction temperature was increased from 150 to 180 ℃, and the toluene conversion then decreased with further temperature increases. Based on these results, we suggest that the numbers of activated toluene molecules and activated tert-butyl carbenium species increase with increasing temperature, which results in increased toluene conversion. However, the toluene conversion decreases above 180 ℃. This is because the decomposition rate of PTBT increases quickly as the temperature increases. The selectivity for PTBT decreases as the temperature increases. This is because a higher temperature favors secondary reactions, which are dominant at higher reaction temperatures, therefore the toluene conversion and PTBT selectivity decrease.

Reusability is an important factor for an industrial catalyst. The reusability of HPW/Hβ was tested over four cycles; the results are shown in Table 3. After four cycles, the selectivity for PTBT was unchanged. However, the toluene conversion decreased from 73.1% to 59.1%, and the PTBT yield decreased from 59.1% to 48.0%. Drops of 19.2% for toluene conversion and 18.8% for the PTBT yield were observed compared with those in the first cycle. HPW/Hβ gave a relatively stable catalytic performance. HPW leaching into the reaction mixture and deactivation of active sites during the reaction were responsible for the decreases in the catalytic performance of HPW/Hβ.

A novel synthesis of PTBT via Friedel Crafts alkylation of toluene with TBA using HPW/Hβ as the catalyst was developed. The catalytic activity and product selectivity of HPW/Hβ were better than those of the other zeolites tested in this study. The results show that loading HPW on Hβ effectively increased the B acidity and decreased the pore size of Hβ. The B acidity of HPW/Hβ was 142.97 μmol/g, an increase of 69.74% compared with that of Hβ (84.23 μmol/g). The catalytic activity of HPW/Hβ was better than that of the parent Hβ zeolite because its high B acidity. The toluene conversion over HPW/Hβ reached 73.1%, which is much higher than that over Hβ (54.0%). HPW loading on Hβ decreased the Hβ BET surface area from 492.5 to 379.6 m²/g, accompanied by a significant decrease in the pore size, from 3.90 to 3.17 nm. Shape selectivity therefore played a more important role in the product selectivity of the HPW/Hβ catalyst than in that of the parent Hβ. PTBT (kinetic diameter 0.58 nm) can easily diffuse through the narrowed pores of HPW/Hβ, but the diffusion of MTBT (kinetic diameter 0.65 nm) is restricted because of steric hindrance in these narrowed pores. This improved the PTBT selectivity over HPW/Hβ (around 81.0%). HPW/Hβ gave a relatively stable catalytic performance in reusability tests.
