The world’s energy supply is based predominantly on the use of non-renewable energy resources such as oil, coal, and natural gas. A sustainable, scalable source of energy-dense chemical fuel is urgently needed to ensure the security of our energy supply for future generations ^{[1, 2]}. Solar energy is the only renewable energy source of sufficient scale to replace fossil fuels and meet rising environmental demand ^{[3, 4]}. Hydrogen is the cleanest energy with many potential applications, including the powering of nonpolluting vehicles, fuel cells, domestic heating systems, and aircraft ^[5-7]. Additionally, the use of hydrogen as an energy carrier is a long-term option for reducing worldwide CO₂ emissions via the hydrogenation of CO₂ to obtain high-value hydrocarbons ^[8-10]. Therefore, using solar energy to produce hydrogen by photocatalytic water splitting is one of the most promising ways to harness its power.

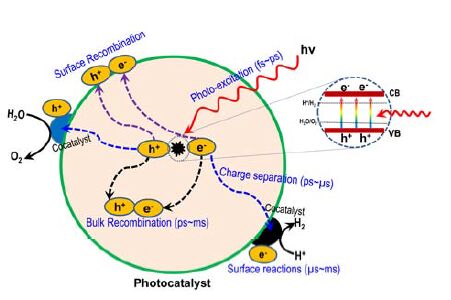

The water splitting reaction (H₂O → 1/2O₂ + H₂) is an thermodynamical uphill reaction with a net Gibbs free energy of 237 kJ/mol. Since the work by Fujishima and Honda ^[11] using rutile TiO₂ anode coupled with a platinum cathode for photoelectrochemical water splitting, extensive efforts have been made to construct efficient photocatalyst systems for solar energy utilization. Generally, the overall photocatalytic water splitting reaction on semiconductor-based photocatalysts involves three major steps: (1) electrons and holes are generated inside semiconductor particles by band-gap excitation, (2) the photogenerated electrons and holes are separated and transferred to the surface of the semiconductor, and (3) the photogenerated electrons and holes are trapped by surface active sites (reduction and oxidation co-catalysts) and consumed by catalytic water reduction and oxidation reactions (Fig. 1) ^[12-15]. The whole process spans more than 10 time orders from the absorption of light for the charge carrier generation to the surface catalytic reactions that produce gas, which is why photocatalytic water splitting is so challenging. Notably, the recombination of photoexcited carriers generally occurs on a very fast timescale alongside these reactions. Therefore, charge separation in the photocatalyst particles and the redox reactions on their surface must proceed within the lifetimes of the photoexcited carriers for successful water splitting ^[16]. Many useful strategies have been investigated for improving charge separation efficiency in both PC and PEC systems, e.g., constructing a heterojunction at the interfaces of different photocatalysts to form a built-in electronic field that provides a driving force for charge separation ^{[17, 18]}. Such “junction” strategy can also be successfully introduced between different crystalline phases of the same photocatalyst (e.g., anatase and rutile phase TiO₂, α- and β-phase Ga₂O₃), named "phase junction" strategy ^{[19, 20]}. For single photocatalysts without "junctions", morphology engineering, spatial charge separation between different exposed facets of semiconductor crystals, and surface modification by proper co-catalysts have been demonstrated to be useful strategies for improving photocatalytic performance ^{[15, 21, 22]}.

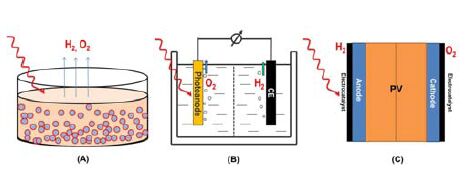

Widely-used solutions for solar hydrogen production mainly fall into three categories: particulate photocatalyst (PC) systems, photoelectrochemical (PEC) systems, and photovoltaic- photoelectrochemical (PV-PEC) hybrid systems (Fig. 2). In PC systems, which are the simplest and lowest cost for potential scalable solar hydrogen production, photocatalyst powders are dispersed in water for hydrogen production under light irradiation. However, the necessity of H₂/O₂ gas separation and an enclosed reaction system on a large-scale are disadvantages in PC water splitting processes. The molecular sieving effect of microporous membranes has shown promise for the safe separation of the mixture of H₂ and O₂ gas. Great progress has been achieved in gas separation by zeolite membranes, and some reviews have highlighted the recent advances in both fundamental science and potential industrial applications ^[23-25]. The H₂/O₂ mixture produced in PC systems may be separated by molecular sieving based on the different kinetic diameters of the two gases (H₂, 2.9 Å; O₂, 3.5 Å). In photoelectrochemical systems, the photocatalysts must first be prepared on conductive substrates as electrodes and a small additional bias applied for water splitting. To make a PEC cell work, one or both of the electrodes should be a photoactive semiconductor, in which a space-charge layer forms at the semiconductor/liquid junction. Upon irradiation, photogenerated carriers are separated by the space-charge field and the minority carriers (holes for an n-type photoanode and electrons for a p-type photocathode) travel to the semiconductor-liquid interface for reaction ^[26]. There is no need for gas separation in PEC water splitting systems because the production of H₂ and O₂ is spatially separated at different electrode sides. PV-PEC hybrid system for hydrogen production is based on the coupling of highly efficient photovoltaic solar cells and with water electrolysis. PV-PEC systems have many advantages for hydrogen production compared with PEC systems if cost is not a major consideration. For example, for PEC systems the obstacles are a lack of efficient light absorber (for reasonable solar conversion efficiency, the band gap must be less than 2.0 eV), the corrosion of the semiconductor (thermodynamically, the most useful semiconductors are photochemically unstable in water), and the energetics (the difficulty of matching the semiconductor band-edge energies to the H₂ and O₂ evolution reactions) ^{[27, 28]}, all of which are not present for PV-PEC water splitting system. For the hydrogen production via solar water splitting, some latest reviews focusing on materials designing, engineering and energy evaluation have been comprehensively summarized ^[29-32]. In this mini-review, I only describe the very latest progress (mainly in the past 2-3 years) from the view of three typical solutions for solar water splitting: PC, PEC and PV-PEC systems.

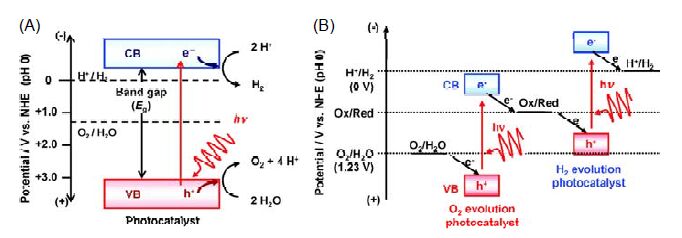

To achieve overall water splitting with particulate photocatalyst systems, single-step excitation and two-step excitation (Z-scheme) photocatalysts have been investigated for solar hydrogen production (Fig. 3). In the case of single-step excitation photocatalysts, the band gap of the semiconductor must at least straddle the chemical potentials for proton reduction and water oxidation thermodynamically, however, this is not necessary for a two-step Z-scheme photocatalyst system. In Z-scheme water splitting systems, an electronic mediator is used to connect the hydrogen-evolution and oxygen-evolution redox reactions even though H₂ and O₂ production takes place on the surface of different photocatalysts.

Many one-step excitation photocatalysts have been investigated in the past few decades for overall water splitting in PC systems. Kato et al. ^[33] reported that NiO-loaded NaTaO₃ doped with lanthanum showed a high photocatalytic activity for water splitting into stoichiometric amounts of H₂ and O₂ under UV irradiation and an apparent quantum efficiency (AQE) of 56% at 270 nm. The representative visible- light-responsive photocatalyst for overall water splitting is Rh@Cr₂O₃/GaN:ZnO, which was first reported by Maeda et al. ^{[34, 35]} with an AQE of up to 5.9% at a wavelength of 420 nm. More and more photocatalysts for overall water splitting under visible light irradiation have been explored recently (e.g., In_{1- x} Ni _x TaO₄ ^[36], LaMg _x Ta_{1− x} O_{1+3 x} N_{2−3 x} ^[37], nitrogen-doped graphene oxide quantum dots ^[38], InGaN/GaN nanowires ^[39]). However, the solar-to-hydrogen (STH) efficiencies of these photocatalysts are still at a very low level (generally less than 0.1%) and far below the expectations of industrial applications. Very recently, using a particle transfer method, Wang et al. ^[40] prepared a photocatalyst sheet for overall water splitting composed of a hydrogen-evolution photocatalyst (SrTiO₃:La, Rh) and oxygen-evolution photocatalyst (BiVO₄:Mo) with Au acting as an electronic shuttle (Fig. 4). The photocatalyst sheet exhibited an extremely high overall water splitting activity with an AQE of 30% at 419 nm and STH efficiency exceeding 1%, which is the highest reported for a particulate photocatalyst system. The STH of this system is to expected be further improved by employing photocatalysts with narrower bandgap energies than the short absorption edge wavelengths of SrTiO₃:La, Rh and BiVO₄:Mo (520 and 540 nm, respectively). Although the STH efficiency is still far below the estimated industrial requirement of 10%, the work leads us to believe that scalable water splitting using particulate semiconductors is not far from unreachable in the future. One of the greatest obstacles to the future application of PC systems is the cogeneration of H₂ and O₂ gas, which results in a combustible mixture; suitable engineering controls will be strongly needed to mitigate this safety risk ^{[41, 42]}. Gas separation in PC systems is a very costly process. It has been estimated that the energy required for gas separation and the dilution of the gas mixture below the explosion limit will use 60% of the energy stored in the produced hydrogen ^[42]. Therefore, efficient photocatalysts responsive to visible light, especially to wavelengths larger than 600 nm, are desired because the maximum peak of the solar spectrum is located near this range. Furthermore, the investigation of new gas separation strategies and new materials for H₂/O₂ separation (e.g., highly selective molecular sieve membranes for oxygen/hydrogen permeation) has become more and more important for future applications.

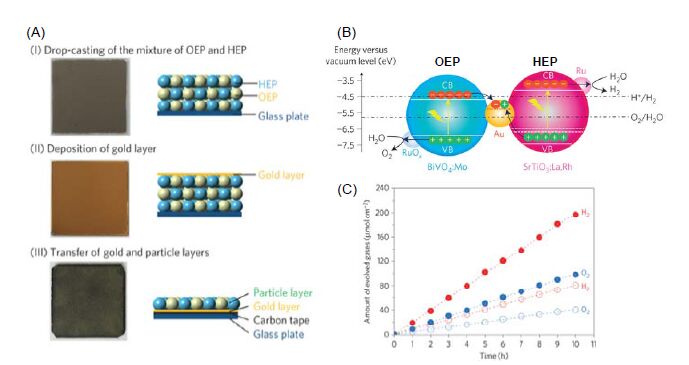

Two-step excitation water splitting (Z-scheme) systems that couple a hydrogen-evolution photocatalyst (HEP) and oxygen- evolution photocatalyst via an electronic shuttle (e.g., IO₃ ^-/I^-, Fe³⁺/Fe²⁺) have also attracted increasing attention since they were first reported in 2002 ^[43-46]. The highest AQE for a Z-scheme water splitting system was recently reported by Chen et al. ^[47], who constructed a heterojunction between MgTa₂O_{6- x} N _y and TaON for efficient charge separation, and it could act as a HEP for Z-scheme water splitting to achieve an AQE of 6.8%@420 nm. Although the H₂ and O₂ gases are physically separated on the different sides of Z-scheme systems, their AQE and STH efficiencies are still very low and the highest AQE has only been improved from 6.3% (Pt/ZrO₂/TaON as HEP) ^[48] to 6.8% in more than 5 years. The visible light responsive photocatalyst, especially for the hydrogen- evolution reaction in the presence of the electronic shuttle, largely determines the efficiency of Z-scheme water splitting.

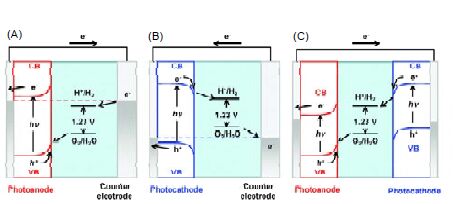

When semiconductor-based photocatalysts are prepared on an electronic substrate to form photoanodes or photocathodes for PEC water splitting in the presence of an electrolyte solution, electron transfer takes place at the semiconductor- solution interface. This causes the Fermi level to equilibrate with the redox potential of the electrolyte solution and the band bending is consequently produced at the space-charge-layer. Three different configurations of PEC water splitting system have been explored: single photoanode (n-type semiconductor), single photocathode (p-type semiconductor), photoanode and photocathode tandem systems (Fig. 5). Great progress has been achieved in PEC water splitting over the past 2-3 years. Photo-to-current efficiency (ABPE) is generally used to evaluate the conversion efficiency of PEC systems. The ABPE of a PEC system is calculated from the J-V curve of the photoelectrode, where V _bias is the bias applied between the working electrode and counter electrode:

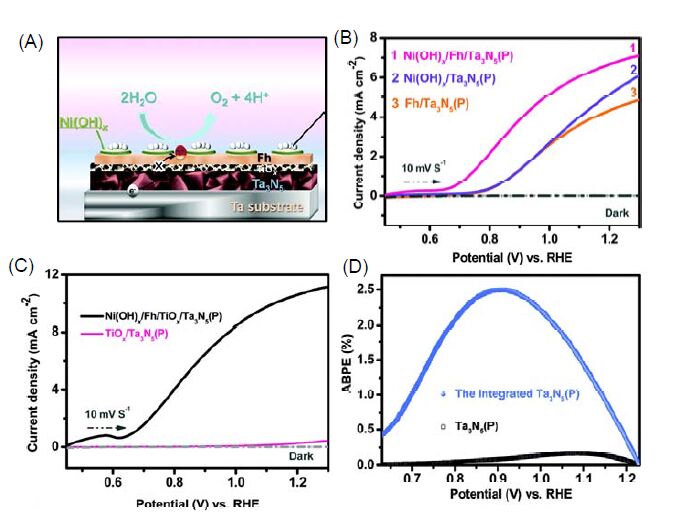

Some popular semiconductors (e.g. BiVO₄, Ta₃N₅) have attracted great attention for PEC water splitting because of their wide-range light absorption and consequently high theoretical STH efficiency under irradiation with sunlight (9% for BiVO₄ and 15% for Ta₃N₅, respectively). Choi et al. ^[49] deposited two oxygen evolution catalysts (FeOOH and NiOOH) on a nanoporous BiVO₄ photoanode, which reduced interfacial recombination at the junction between BiVO₄ and oxygen evolution catalysts while creating a more favorable Helmholtz layer potential drop at the junction between oxygen evolution catalysts and electrolyte. The resulting BiVO₄/FeOOH/NiOOH photoanode achieved a photocurrent density of 2.73 mA/cm² at 0.6 V vs. RHE. Further annealing under N₂ atmosphere not only expanded the light-absorption range via N-doping but also improved the charge separation efficiency of the BiVO₄ photoanode; the photocurrent was remarkably improved to 4.16 ± 0.41 mA/cm² and the NiOOH/FeOOH/N-BiVO₄ photoanode showed an ABPE efficiency of up to 2.0% under a bias of 0.6 V ^[50]. Almost at the same time, Kang et al. ^[51] reported a nanoworm BiVO₄ photoanode with bimetallic NiFe as an efficient oxidation co-catalyst, which showed a record ABPE efficiency of up to 2.25%. Ta₃N₅ is a promising candidate for PEC water splitting and many creative studies have been reported on it. Li et al. ^[52] fabricated a vertically aligned Ta₃N₅ nanorod photoelectrode using a through-mask anodization and nitridation method that yielded a photocurrent density of 3.8 mA/cm² at 1.23 V vs. RHE under AM 1.5G simulated sunlight. The photocurrent was further improved to more than 5.0 mA/cm² at 1.23 V by doping the nanorods with barium and introducing a cobalt phosphate co-catalyst, which yielded a maximum ABPE efficiency of 1.5% ^[53]. However, the stability of the Ta₃N₅ photoanode is still a challenging issue and the reported systems always rapidly degraded within minutes, and thus new strategies are urgently required to improve this material. Liu et al. ^[54] reported that ferrihydrite could act as a hole storage layer and permitted sustainable water oxidation at Ta₃N₅ photoanode for at least 6 h with a benchmark photocurrent of over 5.0 mA/cm², which is a breakthrough for PEC water splitting on Ta₃N₅ photoanodes. A Ni(OH) _x /MoO₃ bilayer was also found to be an efficient hole-storage layer that greatly improved the stability of a Ta₃N₅ photoanode to more than 24 h ^[55]. Very recently, the authors further coupled a hole-storage layer (Ni(OH) _x /ferrihydrite), an electron-blocking layer (TiO₂), and a Co-complex as an efficient water oxidation co-catalyst to reduce surface electron-hole recombination, which exhibited a record photocurrent of 12.1 mA/cm² at 1.23 V vs. RHE and a ABPE efficiency of more than 2.5% (Fig. 6) ^[56]. This is nearly equivalent to its theoretical photocurrent limit under sunlight (12.9 mA/cm²), suggesting that almost every pair of photogenerated charge carriers in the Ta₃N₅ was efficiently extracted and collected for solar water splitting. However, the challenge that must be overcome in the future for this system is that the onset potential of Ta₃N₅ photoanodes is still too positive (~0.6 V vs. RHE), resulting in a relatively small fill factor, which largely determines the level of efficiency. Other potential semiconductors (e.g. Fe₂O₃ ^[26], BaTaO₂N ^[57], LaTaO₂N ^[58]) that possess good light absorption properties for PEC water splitting have also drawn the attention of many researchers in this field.

Beyond research on photoanodes, some progress has very recently been achieved in the development of photocathodes for PEC water splitting. Cu₂O is a promising photocathode candidate that possesses a band gap of 2.0 eV and could theoretically deliver a solar to hydrogen conversion efficiency of 18% for water splitting. In 2011, Paracchino et al. ^[59] reported that a Cu₂O photocathode protected by nanolayers of Al-doped zinc oxide and titanium oxide delivered a photocurrent of up to 7.6 mA/cm² at a potential of 0 V vs. RHE for hydrogen evolution. Very recently, Luo et al. ^[60] fabricated Cu₂O nanowire array photocathodes for PEC water splitting by combining a high-quality surface p-n junction, conformal protection layer, and excellent catalyst decoration, and introducing an innovative blocking layer, which delivered a unprecedentedly high photocurrent density of 10 mA/cm² and stable operation beyond 50 h, establishing a new benchmark for metal oxide based photoelectrodes.

For future practical application, the scalable fabrication of PEC water splitting photoelectrodes with large areas and stable photoanodes that can be operated for several days or months are required. Because the efficiency of PEC systems is much higher than that of particulate photocatalysis systems and H₂/O₂ separation is built-in, PEC water splitting has become one of the most promising solutions for solar energy conversion both in fundamental research and potential applications.

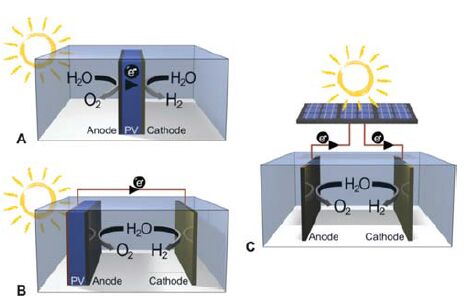

For photovoltaic-photoelectrochemical hybrid systems, three approaches have been proposed for coupling the photovoltaic material with the electrolytic water splitting components: integrated PEC devices, partially integrated PEC devices, and non-integrated PEC devices (Fig. 7) ^[61]. The solar-to- hydrogen efficiency of photovoltaic-photoelectrochemical (PVPEC) systems is the highest among all three kinds of solar hydrogen production system. The first monolithic PV-PEC device for hydrogen production via water splitting was constructed by Khaselev et al. ^[27] using a GaInP₂/GaAs tandem cell in 1998, which showed an STH efficiency more than 10%. Combining a WO₃/BiVO₄ photoanode with a double-junction GaAs/InGaAsP solar cell to construct a self-operating integrated photoelectro-catalysis device resulted in a STH efficiency of up to 8.1% ^[62]. Luo et al. ^[63] reported a hybrid system containing a perovskite solar cell and bimetallic NiFe oxides as electrocatalyst that showed a STH efficiency of 12.3%. The highest efficiency obtained using a PV-PEC strategy was recently achieved by Bonke et al. ^[61], who fabricated a hybrid system with a multi-junction GaInP/GaAs/Ge solar cell and Ni electrodes for H₂ production that delivered a STH efficiency of 22.4% (Fig. 8). The efficiency of PV-PEC is largely determined by the efficiency of the photovoltaic solar cell and electrocatalyst used in this system. Although the efficiency of hybrid systems has already exceeded the requirements for industrial hydrogen production, the fabrication of solar cells is relatively complicated and expensive, and their cost for solar hydrogen production is far beyond that of hydrogen produced from fossil fuels. Without taking the cost factor into account, PV-PEC systems are the most feasible hydrogen production method for the practical applications. PV-PEC based hydrogen production is expected to be primarily used in aerospace, navigation, and military applications to provide fuel for these special situations.

A great increase in research activity around solar hydrogen production via water splitting has been achieved in the past 2-3 years. The STH efficiency of particulate photocatalyst systems has now exceeded 1.0%, and this value has been improved to more than 2.5% and 22.4% for PEC and PV-PEC water splitting systems, respectively. Challenges and opportunities coexist in solar water splitting for hydrogen production like the two sides of a coin. New semiconductor-based photocatalysts with wide range light absorption, new strategies for improving photogenerated charge separation, and new materials and techniques for gas separation must be explored urgently before scaled-up solar hydrogen production can be realized. Meanwhile, advanced characterization technologies, especially in-situ and ultra-fast spectroscopy methods, that can provide information at very fast time-scales are essential for understanding the mechanism of water splitting reactions. The most exciting thing that has engaged more and more researchers in this field is that there are many important scientific problems that are still unclear, e.g., how charge separation takes place in condensed matter at very fast time-scale, how H-O chemical bond breaking and H-H and O-O chemical bonds forming at the surface of a photocatalyst, and how to accurately simulate charge separation and surface reactions via theoretical calculations. Such fundamental research will help us to deeply understand the mechanisms of and give further guidance for constructing highly-efficient solar energy conversion systems.
