The rapid development of economies and technology has led to increased attention to wastewater treatment, especially to effluent containing dyes and their decomposition products produced in the textiles industry ^[1]. Silver is a group IB transition metal with a valence shell electronic structure of 4 d ¹⁰5 s ¹. Silver-based materials are widely applied in catalysis because of their specific physical and chemical structures ^[2].

Silver nanoparticles (Ag NPs) are often loaded on a support material such as microspheres ^[3], beads ^[4], films ^[5], and fibers ^[6], which limits their agglomeration and improves their catalytic activity. In situ reduction ^[7] and post-processing ^[8] are two common methods for loading Ag NPs onto supports. In situ reduction is simple and convenient, but most Ag NPs are distributed within the support, with only a few exposed on the surface, which is therefore an inefficient use of Ag NPs. In contrast, decorating Ag NPs on the surface of fiber supports through post-processing can yield silver-based materials with high catalytic activities ^[9].

Nanofibers are fibers with diameters of less than 100 nm. The nanometer scale of the nanofibers makes them an efficient catalytic support ^[10]. Electrospinning is a versatile, effective, and widespread method for manufacturing long continuous nanofibers ^[11]. There are many reports of electrospun nanofiber membranes being used as catalytic supports for Ag NPs. Jang et al. ^[12] fabricated cellulose-based nanofibers by electrospinning and subsequent ultraviolet irradiation. The resulting cellulose nanofiber matrices were loaded with Ag⁺ or Ag NPs, and demonstrated potential as catalytic membranes for the sensing of specific chemicals. Liu et al. ^[13] fabricated Ag/PS nanofibers by a combination of electrospinning and in situ reduction. The resulting membranes exhibited excellent catalytic activity for the degradation of dye pollutants. Gao et al. ^[14] fabricated Ag/PAN fiber networks, which exhibited activity for the degradation of 4-NP under general conditions.

Recent advances in electrospinning technology have allowed the fabrication of specifically-structured nanofiber membranes, such as core-shell structures ^[15], hollow structures ^[16], porous structures ^[17], and web-like structures ^{[18, 19]}. Hierarchically-structured nanofibers with multiscale organizations have been inspired by the hierarchical structures of trees consisting of many trunks and branches. Such nanofibers have exhibited high levels of functionality and performance. This has been because of the high surface area provided by their thin fibers, and excellent mechanical properties provided by their thick fibers ^[20-22]. Specifically-structured nanofiber membranes have been applied in filters ^[23], sensors ^[24], and catalysts ^[25]. Bai et al. ^[26] fabricated tree-like hierarchically-structured TiO₂ nanofiber (NF)/ZnO nanorod (NR) materials by the electrospinning of TiO₂ NFs and hydrothermal growth of ZnO NRs. The resulting structures yielded high photocatalytic activity because of their high specific surface area, high rate of mass transfer, and thus readily accessible reaction sites. Shi et al. ^[25] fabricated branch-like carboxylated multiwalled carbon nanotube/chitosan nanofibrous membranes by simultaneous electrospinning and spraying. The resulting membranes exhibited improved rejection of 161%-166% and 80%-90% toward methylene blue (MB) and methyl orange, respectively. We recently fabricated hierarchically-structured nanofiber membranes by adding tetrabutylammonium chloride (TBAC) into PVDF/dimethyl formamide/acetone solution, via one-step electrospinning. The resulting tree-like PVDF nanofiber membranes exhibited high mechanical strength and high specifi c surface areas ^[27].

Nylon 6 (PA6) is a widely used polymer, which is low cost, exhibits strong chemical and thermal stability, and is hydrophilic ^{[28, 29]}. The molecular chains of PA6 can coordinate with Ag, making PA6 a potential Ag NP support ^[30-32]. In the current study, a hierarchically-structured Ag/PA6 nanofiber membrane (HS-Ag/PA6 NM) was fabricated by adding TBAC into PA6/HCOOH solution, via one-step electrospinning and silver colloid solution impregnation methods. The resulting HS-Ag/PA6 NM exhibits excellent catalytic activity in the reduction of MB. This enhanced catalytic performance results from the high specific surface area of HS-Ag/PA6 NM. Because the membrane is easily recovered and reused, it has potential practical use in catalysis.

Nylon 6 granules (PA6, M_w = 16000) were purchased from Ube Industries Ltd. PVP was purchased from Jiaozuo Meida Fine Chemical Co., Ltd. Formic acid (HCOOH) and silver nitrate (AgNO₃) were purchased from Tianjin Yingda Rare Chemical Reagents Factory. TBAC was purchased from Tianjin Guangfu Chemical Reagent Co. NaBH₄ and NaOH were purchased from Tianjin Fengchuan Chemical Reagent Technologies Co. MB and acid magenta were purchased from Tianjin Tensing Fine Chemical Research Develop Center. All reagents except PA6 and PVP were of analytical grade, and were used without further purification. Deionized water was used through all experiments.

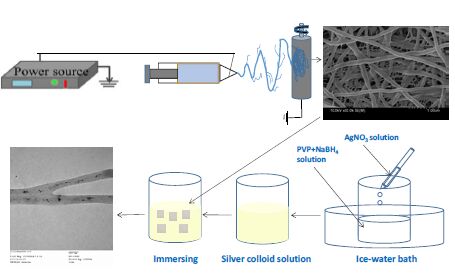

PA6/TBAC solution was prepared by mixing 14 wt.% PA6 and 4 wt.% TBAC with HCOOH and stirring for 10-12 h to form a stable and homogeneous solution. For comparison, a solution without TBAC was also prepared. These solutions were used to prepare nanofiber membranes by electrospinning with an applied voltage of 45 kV, distance from collector to syringe tip of 15 cm, and injection rate of 0.1 mL/h. The inner diameter of the syringe was 0.45 mm. The temperature was kept at 25±2 ℃, and the relative humidity was (35±2)%. The nanofiber membranes were collected on surface of a grounded aluminum foil. The membranes were then washed with distilled water, dried at 60 ℃, and cut into 2 cm × 2 cm pieces for further use. Membranes fabricated with and without the addition of TBAC were denoted HS-PA6 NM and PA6 NM, respectively.

PVP (0.0844 g) was added to 60 mL of deionized water and stirred for 20 min. NaBH₄ solution (0.008 mol/L, 40 mL) and 10 mL of AgNO₃ solution (0.006 mol/L) were prepared under dark conditions. The PVP and NaBH₄ solutions were then mixed thoroughly, and the AgNO₃ solution was then added slowly, yielding a silver colloid solution named solution A. Similar solutions were prepared with concentrations of 0.012 mol/L AgNO₃/0.016 mol/L NaBH₄, and 0.03 mol/L AgNO₃/0.04 mol/L NaBH₄, and were named solution B and solution C, respectively. Ag/PA6 NM and HS-Ag/PA6 NM were fabricated by the impregnation method, and 0.1 g of nanofiber membranes were immersed in 30 mL of silver colloid solution for 5 h in the dark. The membranes were then washed with deionized water for three times, and dried at 60 ℃ . PA6 NM immersed in solutions A, B, and C were named samples 1, 2, and 3, respectively. HS-PA6 NM immersed in solutions A, B, and C were named samples 4, 5, and 6, respectively. The fabrication of HS-Ag/PA6 NM is shown schematically in Fig. 1.

The morphologies of the electrospun membranes were observed using field-emission scanning electron microscopy (FE-SEM, S-4800, Hitachi, Japan). Energy dispersive X-ray spectroscopy (EDS) observations were also carried out using the FE-SEM instrument. The size, shape, and deposition of the Ag NPs on the fiber surface were investigated using transmission electron microscopy (TEM, H-7650, Hitachi, Japan). X-ray photoelectron spectroscopy (XPS) was carried out with K-alpha X radiation using a Thermo Fisher Co. instrument (England). The specific surface areas of PA6 NM and HS-PA6 NM were investigated by nitrogen adsorption measurements (Quantachrome Instruments Autosorb-iO, USA).

The catalytic activities of the samples were investigated by their degradation of MB. MB is a standard model contaminant for catalysis tests. Before degradation, 0.1 g of the nanofiber membranes was dispersed in 50 mL MB solutions with concentrations of 10 and 20 mg/L for 2 h in the dark, to ensure adsorption equilibrium. A certain amount of NaBH₄ was then added, and 0.1 g of NaOH was added to stabilize the NaBH₄. At different time intervals, 1-2 mL of test solution was removed. The absorbance of this aliquot at the wavelength of maximum absorption intensity of MB (λ _max = 665 nm) was quickly measured using a UV-2401 Shimadzu spectrophotometer. The degradation rate of MB was expressed as D = (1 - (C / C ₀)) × 100%, where C ₀ and C are the initial and residual concentrations of MB, respectively.

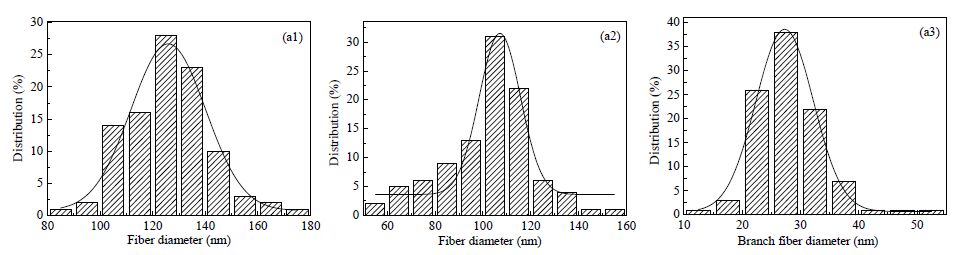

Fig. 2 shows FE-SEM images of PA6 NM and HS-PA6 NM before and after immersing in silver colloid solution. The nanofibers formed in the absence of TBAC exhibit a common circular structure (Fig. 2(a1)). The nanofibers formed in the presence of TBAC exhibit a hierarchically structure (Fig. 2(b1)) composed of thick and thin fibers. The formation of the hierarchically structure can be explained by the presence of TBAC. TBAC is an organic branched salt ^[33], which increases the electrical conductivity of the solution, and destabilizes the electrospinning jet. Splitting of the jet occurs when the excess charge density is above a certain threshold, at which point the electric forces overcome the surface tension. The presence of TBAC also decreases the forces between PA6 molecules because of its steric bulk, which promotes slipping of the jet. The formation mechanism was reported in our previous study ^[27]. Splitting of the jet also leads to a change in the nanofiber diameter, since the diameter of HS-PA6 NM is smaller than that of PA6 NM. The nanofiber diameter of PA6 NM is 80-140 nm, as shown in Fig. 3(a1). The diameters of the thick and thin nanofibers of HS-PA6 NM are 50-120 nm and 10-50 nm, respectively, as shown in Figs. 3(a2) and 3(a3), respectively. Immersing in the silver colloid solution and water washing has no obvious effect on the morphologies of the nanofibers.

EDS analysis of the as-fabricated nanofiber membranes is shown in Table 1. The higher recorded Ag content of HS-PA6 NM demonstrates that the Ag content on the surface of HS-PA6 NM is higher than that on the surface of PA6 NM, probably because of the high specific surface area of HS-PA6 NM. The Ag content increases with increasing concentration of the silver colloid solution, as shown in Table 1. Therefore, the content of Ag NPs loaded on the fibers could be controlled by the concentration of the silver colloid solution.

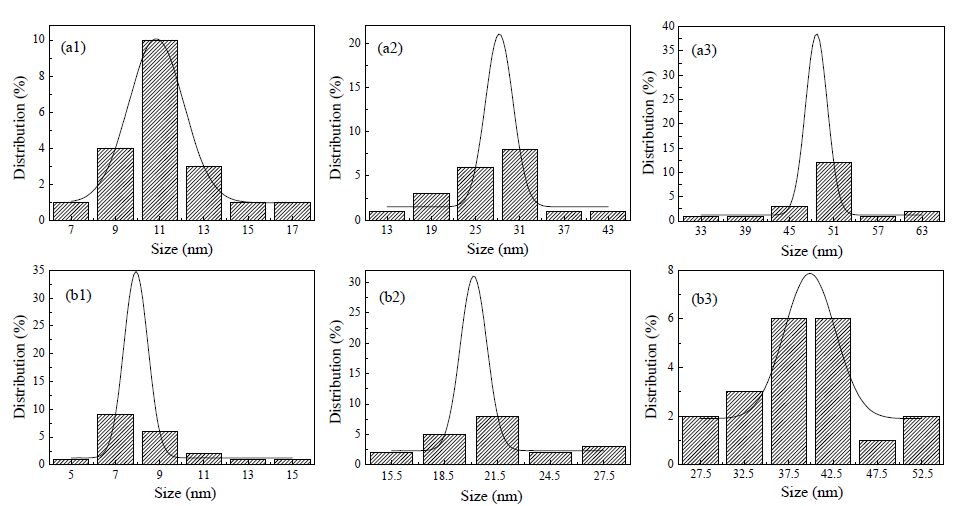

TEM images of PA6 NM and HS-PA6 NM nanofibers decorated with Ag NPs are shown in Fig. 4. The size of the Ag NPs could also be controlled by the concentration of the silver colloid solution. The mean sizes of the Ag NPs in samples 1, 2, 3, 4, 5, and 6 are estimated to be approximately 11.2, 27.4, 50.1, 8.6, 21.3, and 39.2 nm, respectively (Fig. 5). This indicates that the size of the Ag NPs increases with increasing silver colloid solution concentration. The Ag NPs distributed on PA6 NM are slightly larger than those on HS-PA6 NM, when immersed in the same concentration silver colloid solution. This further indicates that HS-PA6 NM is better able to disperse the Ag NPs, compared to PA6 NM. The size and content of Ag NPs reportedly have a pronounced effect on the color of the silver colloid solution ^[34]. In the current study, the colors of samples varied from pale yellow to light black with increasing Ag colloid size and concentration, as shown in Fig. 4.

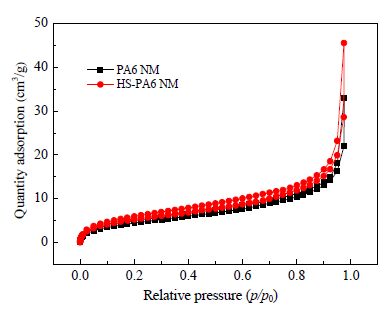

BET analysis was also used to investigate the specific surface areas of PA6 NM and HS-PA6 NM. Fig. 6 shows nitrogen adsorption-desorption isotherms for PA6 NM and HS-PA6 NM. The isotherms of both membranes could be categorized as type IV from BDDT, indicating the presence of mesopores in the nanofiber membranes ^[35]. The BET specific surface area of HS-PA6 NM is 21.867 m²/g, which is higher than that of PA6 NM (15.826 m²/g). The higher specific surface area facilitates a higher Ag NP loading, in accordance with the EDS results in Table 1.

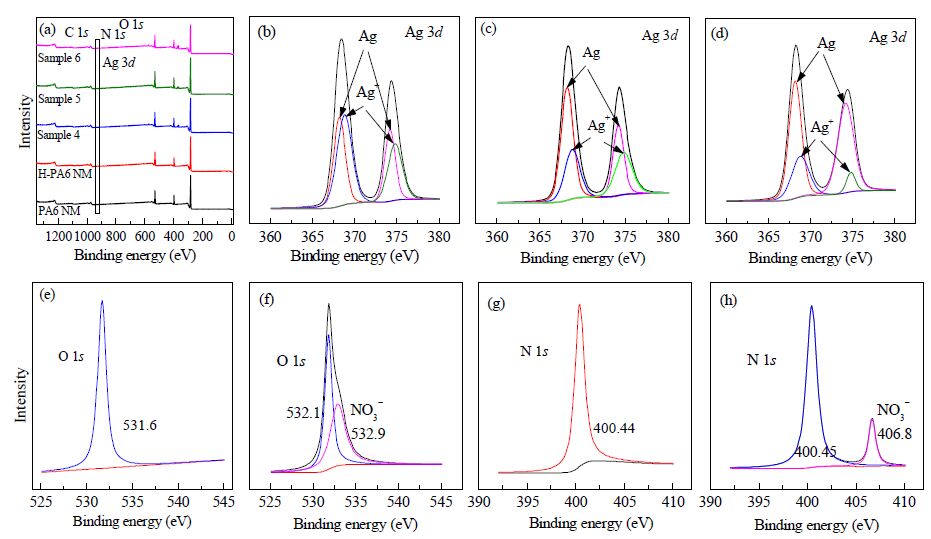

Fig. 7 shows the XPS spectrum of HS-Ag/PA6 NM. C, N and O exist throughout the whole region, as shown in Fig. 7(a). High-resolution spectra of the Ag 3 d region are shown in Fig. 7(b), (c) , and (d). The spectra of samples 4, 5, and 6 contain two peaks at binding energies of about 368 and 374 eV. Curve fitting indicates that two peaks centered at 368.2 and 374.2 eV are attributed to metallic Ag⁰. Another two peaks centered at 368.8 and 374.8 eV are attributed to non-reduced silver (Ag⁺) trapped in the fiber membrane ^[36]. The Ag⁰ contents of samples 5 and 6 are higher than that in sample 4. This is because the low NaBH₄ concentration in solution A results in the incomplete reduction of AgNO₃. High-resolution XPS spectra of the O and N regions were investigated to confirm the presence of coordination bonds between PA6 molecular chains and Ag. Fig. 7(e) shows a peak associated with oxygen doubly bound to carbon. This indicates that the O predominantly exists in the form of carbonyl (C=O) groups in PA6. The O 1 s peak of the carbonyl oxygen atom in HS-Ag/PA6 NM shifts to higher binding energy (532.1 eV) compared with HS-PA6 NM (531.6 eV). This suggests a decrease in electron density because of coordination between PA6 and Ag, in which electrons transfer from the carbonyl oxygen atom to Ag. The peak observed at 532.9 eV arises due to the existence of NO^3-. Fig. 7(e) shows a distinctive peak at 400.44 eV, which is attributed to the nitrogen atoms of PA6. The N 1 s peak does not appear to be influenced by the presence of Ag, since no obvious shift is seen in Fig. 7(f). The new peak at 406.8 eV could also be attributed to the existence of NO^3-. These result reveal the prese nce of coordination bonds between the carbonyl oxygen atom and Ag, which would inhibit the agglomeration of Ag NPs and contribute to their immobilization ^[30].

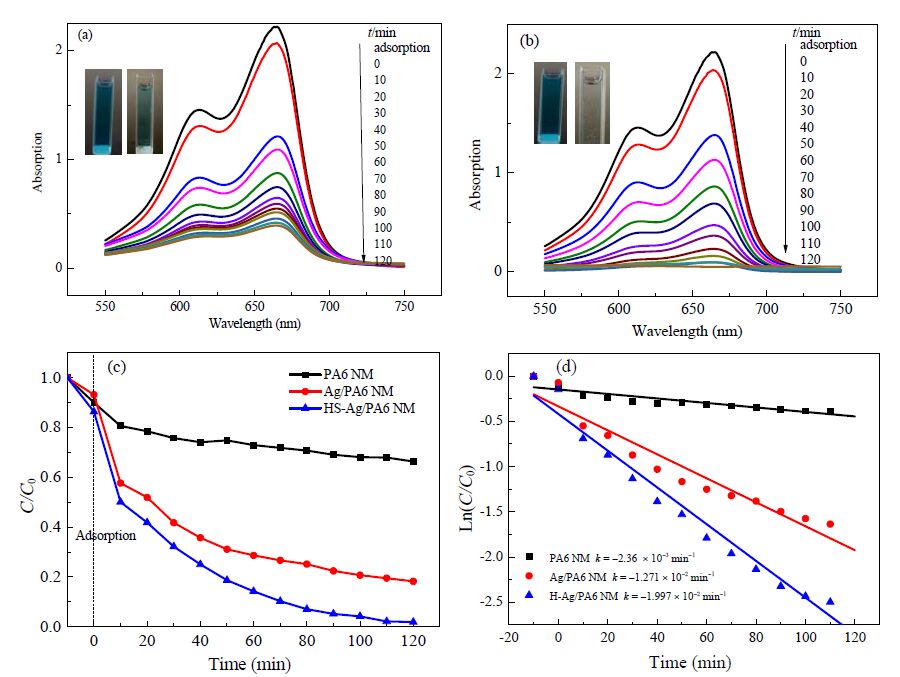

The catalytic degradation capacity of HS-Ag/PA6 NM was investigated by the reduction of MB using the reducing agent NaBH₄. MB has a characteristic absorption peak at 665 nm ^[37], the intensity of which is proportional to its concentration in solution. A decrease in absorption can be attributed to the degradation of MB ^[38]. The rate of degradation can be determined by measuring the intensity of the absorbance of the MB solution at 665 nm at different time intervals. Fig. 8 shows the corresponding ultraviolet-visible (UV-vis) absorption spectra and degradation rate of MB. The difference in the dye adsorption for the three samples is shown in Fig. 8(c). The adsorption activity of HS-Ag/PA6 NM is higher than those of Ag/PA6 NM and PA6 NM, and the adsorption activity of PA6 NM is slightly higher than that of Ag/PA6 NM. This can be explained by the wicking progress. The presence of thinner fibers accelerates wicking. More MB molecules adsorb to the fibers, which promotes the degradation of MB. The absorbance at 665 nm gradually decreases with increasing reaction time, as the solution color changes from blue to colorless. The fastest degradation occurs in the catalytic system containing HS-Ag/PA6 NM, and which the MB color appears lighter than that in the system containing Ag/PA6 NMs, after a given time interval. This indicates that HS-Ag/PA6 NM has a better catalytic degradation capacity than Ag/PA6 NMs. MB degradation is almost complete after 2 h for the HS-Ag/PA6 NM system, as shown in Fig. 8(b). The degradation kinetics were then investigated. The linear region of the MB degradation with time can be accounted for using a pseudo first-order model, called the Langmuir-Hinshelwood (L-H) model ^[8]. Kinetic analysis was performed to understand the MB degradation procedure. Rate constants for MB degradation (k ) over the samples were calculated and are shown in Fig. 8(d). The rate constants in the presence of PA6 NM, Ag/PA6 NM, and HS-Ag/PA6 NM are -2.36×10⁻³, -1.271×10⁻², and -1.997×10⁻² min⁻¹, respectively. HS-Ag/PA6 NM has the highest catalytic activity, as evidenced by its highest rate co nstant. The results demonstrate that the catalytic support plays an important role in the degradation of MB, and that HS-Ag/PA6 NM with its high specific surface area is a potential catalyst.

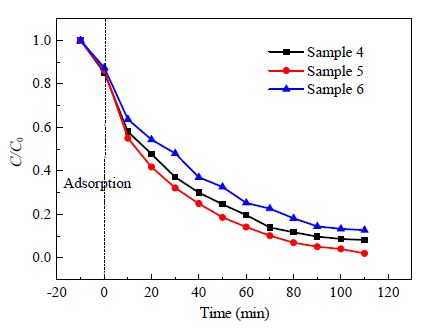

The catalytic degradation capacity of HS-Ag/PA6 NM immersed in silver colloid solutions of different concentrations was also investigated. Fig. 9 shows the MB degradation rate in the presence of the different nanofiber membranes. The adsorption activities follow the trend: sample 4 > sample 5 > sample 6, but the differences are minor. Samples 4, 5, and 6 exhibit excellent catalytic properties. Their degradation rates indicate catalytic activities following the trend: sample 5 (98.1%) > sample 4 (92.5%) > sample 6 (88.8%). The catalytic activity of HS-Ag/PA6 NM clearly depends on the Ag NP content and size. The obvious effects of the size and shape of Ag NPs on their antibacterial and catalytic properties have been previously reported ^[39]. The size of the Ag NPs in sample 4 is small (8.6 nm), but the Ag content is low (1.5%). The Ag content in sample 6 is high (6.8%), but the large size of the Ag NPs promotes aggregation (Table 1), which weakens the nanometer size effect. Sample 5 contains Ag NPs of suitable size (21.3 nm) and content (4.80%), so exhibits the highest catalytic activity.

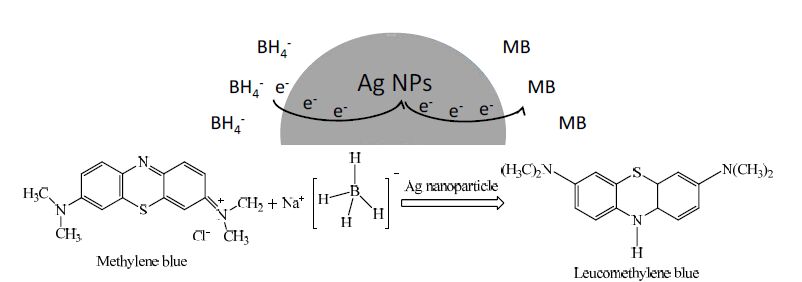

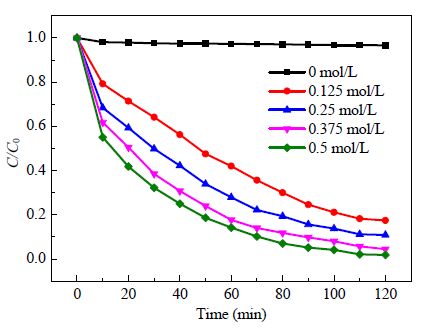

The effect of the initial NaBH₄ concentration on the catalytic degradation of MB was investigated by varying the NaBH₄ concentration from 0 to 0.5 mol/L. 0.1 g of HS-Ag/PA6 NM was immersed in 10 mg/L MB solutions with different NaBH₄ concentrations, and the resulting degradation rates were investigated. Fig. 10 shows that the MB degradation rate MB decreases with increasing NaBH₄ concentration. Thus, a higher NaBH₄ concentration promotes MB degradation, which can be explained by the catalytic mechanism. The catalytic reducing of MB by NaBH₄ is shown in Fig. 11. Ag NPs on the fiber surface act as electron transfer pathways in the oxidation-reduction system. Nucleophilic BH^4- donates electrons to Ag NPs, while electrophilic MB receives electrons from Ag NPs ^[15]. Ag NPs accelerate the transfer of electrons, because of their electronic properties ^[40]. The reduction product of MB is Leucomethylene blue, as shown in the reaction equation. The NaBH₄ concentration therefore has a significant effect on the degradation of MB.

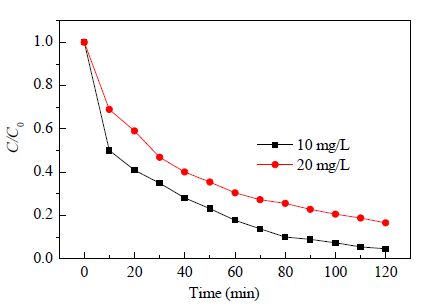

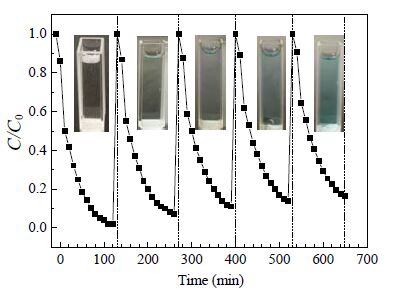

The degradation rate for different initial MB concentrations was also investigated, and the results are shown in Fig. 12. Sample 5 exhibits a high adsorption activity for the MB solution (10 mg/L), with a degradation rate of 98.1%. Its degradation rate for the MB solution (20 mg/L) decreases slightly to 84%, perhaps because the NaBH₄ concentration is insufficient to provide enough electrons for the reduction of MB. The stability of HS-Ag/PA6 NM was then investigated. Used catalyst was thoroughly washed with distilled water after each run, dried at 60 ℃, and then reused in the same procedure for up to five times. The degradation results are shown in Fig. 13. The catalytic activities of HS-Ag/PA6 NM after runs 1, 2, 3, 4, and 5 are 98.1%, 93%, 89%, 86%, and 83.5%, respectively. There is some decline in degradation rate after the five cycles, but HS-Ag/PA6 NM still maintains a satisfactory catalytic reduction capacity for MB.

HS-Ag/PA6 NM was fabricated and exhibited a high surface area and high accessibility of active sites. Coordination bonds form between the molecular chains of PA6 and Ag, which promote the immobilization of Ag NPs on the high surface area fibers. The content and size of the Ag NPs could be controlled by the concentration of the silver colloid solution. HS-Ag/PA6 NM exhibits excellent catalytic activity for the reduction of MB in the presence of NaBH₄, because the fiber support provides readily accessible active sites. HS-Ag/PA6 NM can be readily recycled, and its MB degradation rate is 83.5% after five consecutive cycles. These findings provide a potential platform for fabricating other noble metal nanocatalysts with readily accessible active sites.
