Biomass resources waste can cause environmental issues because of its persistence and accumulation. The best response to this problem is to utilize waste for the production of valuable products. Chitin, a homopolymer formed by covalent β-1, 4 linkages of N-acetyl-D-glucosamine [1], is widely distributed as a structural component in arthropod exoskeletons, connective tissues, and fungal cell walls [2]. It is the second most abundant polysaccharide found in nature after cellulose [3]. Thousands of metric tons of biowaste are being generated globally every year [4]. An important source of chitin is the shells of shrimps and crabs [5]. To date, chitin has not been applied to large-scale industrial use because of its extreme insolubility [6]. The conversion of chitin-containing wastes to oligosaccharides has attracted increasing attention because these oligosaccharides have useful biological activities, such as antifungal, antitumor, and immunity enhancement activities [7, 8].

Traditionally, concentrated acids or alkalis are used in the chitin-hydrolysis reaction in industry, and there are many issues with this process, including production of undesired products such as large quantities of short chain oligosaccharides, a high cost for separation, and serious environmental pollution [9-12]. Consequently, research has focused on the development of enzymatic degradation methods under mild conditions and reduction of pollution [13]. The chitin-hydrolyzing enzyme has been found in a board range of organisms including numerous bacteria, fungi, insects, animals, and vascular plants [14]. Chitinase plays an important role in catalyzing the hydrolysis of glycosidic bonds in polysaccharides into low molecular mass chitin oligosaccharide [15]. Based on the homology of amino acid sequences and catalytic mechanism, these chitinases are classified as either glycoside hydrolase family 18 or 19 [16].

To obtain enzymes that are capable of hydrolyzing chitinous waste and producing specific oligosaccharides, we screened chitin-degrading bacteria from soil for chitinase activity in a culture medium. The aim of this work was to purify and characterize chitinase from Paenibacillus pasadenensis CS0611. Furthermore, this chitinase was applied to production of (GlcNAc)₂ using colloidal chitin and crab shell powder (CSP) as substrates.

Crab shell was purchased from Nantong Xingcheng Biological Products Factory (Nantong, China). To prepare CSP, the waste was dried, milled, and sieved to particles less than 100-mesh. Colloidal chitin was prepared according to an established method [17]. Chitin powder (5 g) (Sigma-Aldrich, St. Louis, MO) was added slowly to 100 mL of concentrated HCl with vigorous stirring on ice overnight. Then, the mixture was added dropwise to 1 L of ice-cold ethanol with rapid stirring for 4 h. Finally, the precipitate was collected by suction filtration and washed with water until the washing solution was neutral. The colloidal chitin was stored at 4 ℃ for subsequent use. Diacetylchitobiose and N-acetylglucosamine were purchased from Bozhihuili Co. (Qingdao, China) and Sigma-Aldrich, respectively. All other reagents used were of analytic grade.

P. pasadenensisCS0611 was previously isolated from soils around chitin biological products factories in Shandong China, using crab shell powder as the only carbon source, and stored at China Center for Type Culture Collection (CCTCC M2014458). It was identified based on morphological characterization and 16s rDNA sequence analysis. The strain was incubated in 50 mL of liquid medium in a 250-mL flask (10 g/L crab shell powder, 0.7 g/L K₂HPO₄, 0.3 g/L KH₂PO₄, 0.5 g/L MgSO₄, 1 g/L peptone) at 37 ℃ for 48 h and 180 rpm.

The chitinase activity was determined by measuring the release of reducing sugar using colloidal chitin as a substrate. The reaction mixture contained 0.5 mL of enzyme solution and 1 mL of colloidal chitin (3% colloidal chitin in 100 mmol/L, pH 5.0 citrate buffer) and was incubated at 50 ℃ for 30 min with a magnetic stirrer. Then, the reaction was terminated by placing the flask in a boiling water bath for 5 min. After centrifugation (13500 g, 5 min), the chitinase activity of the supernatant was determined according to an established method with N-acetylglucosamine as a standard [18]. One unit of chitinase activity was defined as the amount of the enzyme that catalyzed the release of 1 μmol of N-acetylglucosamine per minute. The protein concentration was determined using the Branford method with bovine serum albumin as the standard [19].

The resulting 800-mL culture was centrifuged (6010 g, 10 min) at 4 ℃ to obtain cell-free supernatant. Ammonium sulfate was added to the supernatant to 80% saturation. Subsequently, the protein deposit was collected by centrifugation at 13500 g for 20 min and dialyzed overnight in 20 mmol/L Tris/HCl buffer (pH 8.9). The enzyme solution was loaded on a HiTrap DEAE FF column (5 mL column volume, GE Healthcare, Fairfield. CT.USA) pre-equilibrated with Tris/HCl (20 mmol/L, pH 8.9), and eluted with 0-1 mol/L NaCl in the same buffer. The active fractions which showed chitinase activity were collected, concentrated with an ultra-filtration membrane (3 kDa, Millipore, Billerica, MA), and then applied to a HiLoad 26/600 Superdex 200pg column (310-330 mL column volume, GE Healthcare, Fairfield. CT. USA) pre-equilibrated with Tris/HCl (20 mmol/L, pH 8.9) containing 150 mol/L NaCl. The protein fractions were analyzed for chitinase activity.

The purified proteins were analyzed by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) as described by Laemmli [20]. After electrophoresis, the gels were stained with Coomassie Brilliant Blue R-250 and decolorized in 10% acetic acid. The band of interest was removed from the gel and digested by trypsin. After freeze-drying, the sample was mixed with matrix solution. Mass spectra were recorded on a matrix-assisted laser desorption/ionization time-of-flight mass spectrometer (MALDI-TOF-MS, Bruker Daltonics, Karlsruhe. Germany), which was equipped with a nitrogen laser operated at 337 nm in linear mode[21]. The fragment spectra were compared with the NCBI protein database using BLAST.

To study the effect of pH on chitinase activity, enzyme activity was investigated in different reaction buffers with pH values ranging from 3.0 to 12.0. The buffer systems (100 mmol/L) used were citric acid (pH 3.0-6.0), sodium phosphate buffer (pH 6.0-8.0), and glycine sodium hydroxide buffer (pH 8.0-10.0), sodium bicarbonate-sodium hydroxide buffer (pH 10.0-11.0), and potassium chloride-sodium hydroxide buffer (pH 11.0-12.0). pH stability was tested by pre-incubating purified enzyme in these buffers at 30 ℃ for 3 h, and then measuring the enzyme activity under standard assay conditions.

The optimum temperature for chitinase was determined in 100 mmol/L citric acid (pH 5.0) using a temperature range of 20-80 ℃. Thermal stability was determined by incubating the enzyme at the selected temperature for different periods, and then measuring the residual activity under standard assay conditions.

The effects of metal ions on enzyme activity were determined after addition of Fe²⁺, Fe³⁺, Mg²⁺, Ba²⁺, Zn²⁺, Ca²⁺, K⁺, Mn²⁺, Cd²⁺, and Cu²⁺ at different concentrations. The effects of the reagents Triton X-100, Tween-80, ethylene diamine tetraacetic acid (EDTA), sodium dodecyl sulfate, urea, β-mercaptoethanol were also evaluated. The enzyme activity obtained without addition of any metal ion or chemical reagent was set as 100% for comparison purposes.

Purified chitinase was reacted with powdered shrimp crab shells, powdered chitin, colloidal chitin, powdered chitosan, cellulose, soluble starch, and carboxymethyl cellulose in citric acid buffer (100 mmol/L, pH 5.0), each at a concentration of 30 mg/mL under standard conditions. The degree of substrate hydrolysis was determined by the 3, 5-dinitrosalicylic acid method. Colloidal chitin with a final concentration ranging from 5 to 100 mg/mL was used for determination of K_m and V_max. Assays performed were performed under optimal conditions and terminated after 5 min. The kinetic constants K_m and V_max were obtained from Hanes-Woolf plots.

The chitin hydrolysates were tested by thin layer chromatography (TLC) and high-performance liquid chromatography (HPLC). For TLC, the samples were spotted on the silica gel plates, then the mobile phase of n-butanol: methanol: ammonia: H₂O (5:4:2:1, v/v) was applied. The results were revealed by spraying the plates with aniline diphenylamine chromogenic agent (1 g of diphenylamine dissolved in a mixture of 1 mL of phenylamine, 5 mL of 85% phosphoric acid, 0.5 mL of concentrated HCl, and 50 mL of acetone) and heated for a few minutes at 100 ℃. In addition, the sample was analyzed using an HPLC system equipped with a DIEX P680 HPLC pump, a Alltech ELSD2000ES detector, and a NH₂P-50(4E) column (250 mm x 4.6 mm i.d., partical size 5 um, Shodex, Tokyo. Japan). The mobile phase was acetonitrile and water (7:3, v/v) with a flow rate of 0.6 mL/min. The column temperature was 30 ℃.

Extracellular chitinase from P. pasadenensis CS0611 was purified for analysis. The crude enzyme obtained was purified using ammonium sulfate, and HiTrap DEAE FF column and Hiload 26/200 superdex 200pg columns (Table 1). The purification factor of the final product was 5.30, the specific activity was 10.28 U/mg, and the yield was 15.7%. Wang et al. [22] purified chitinase from Bacillus subtilis W-118 by ammonium sulfate fractionation, and DEAE-Sepharose CL-6B and Sephacryl S-200 gel filtration, and obtained a purification factor of 6.97 and chitinase specific activity of 7.1 U/mg. For P. pasadenensis NCIM-5434, chitinase was obtained in a 24.96% with a purification factor of 8.87 [23].

SDS-PAGE analysis of the purified enzyme was performed to verify its purity (Fig. 1). The apparent molecular mass of the chitinase was 69 kDa. In earlier reports, the molecular mass of chitinase from other species varied from 20 to 80 kDa (Table 2). MALDI-TOF-MS was used to identify proteins showing chitinase activity appearing at 69 kDa on SDS-PAGE. This is a simple method for preliminarily identification of proteins with unknown sequences. The mass spectrum of the 69 kDa protein was identical to the chitinase from P. pasadenensis (GenBank accession number gi655151624) (Table 3).

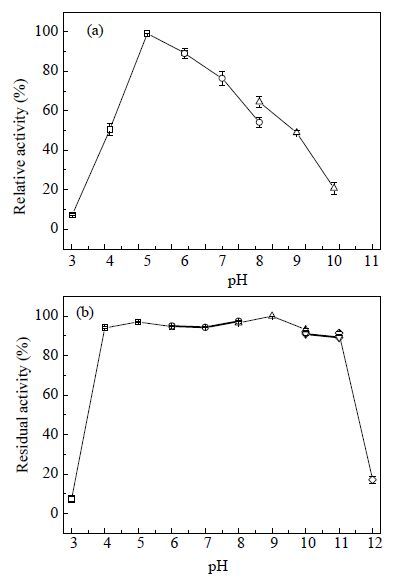

Temperature and pH play important roles in enzyme activity and stability. The effects of pH on the activity and stability of chitinase are shown in Fig. 2. The chitinase exhibited maximum activity at pH 5.0. From pH 5.0 to 7.0, the activity was higher than those at other pH values, indicating that the enzyme was active in a neutral environment. With regard to pH stability, the enzyme was stable over a broad pH range from 4.0 to 11.0. The residual enzyme activity was nearly 90%, even at pH 11.0. The excellent stability in alkaline environments indicated that denaturation of the chitinase because of pH in this work was, to some degree, reversible over a certain pH range. However, at pH 12.0, the chitinase activity was almost non-existent. It is likely that amino acid residues near the catalytic or binding center of the enzyme are responsible for such uniqueness. The chitinase in this work was more suitable in alkaline media than the chitinase from Bacillus amyloliquefaciens V656 [13]. Most of the purified bacterial chitinase showed high activity and stability within the pH range of 4.0-10.0 [28]. The enzyme from Streptomyces sp. CS495 was active from pH 8.0 to 13.6 with the highest activity at pH 12.5 [29]. For practical application, two methods can be used to maintain high activity at alkaline pH. The first is immobilization of chitinase, which could stabilize the structure to some extent and allow for application even under harsh pH or temperature conditions. The second is molecular modification of chitinase at the gene level using molecular biology technology.

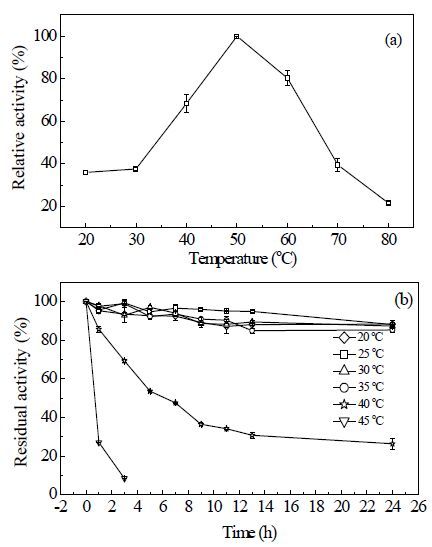

The optimum temperature for the chitinase was 50 ℃ (Fig. 3(a)). At temperatures above 50 ℃, the enzyme activity decreased quickly and largely. The activity dropped to less than half of the highest activity, which was obtained at 70 ℃. The chitinase had relatively high thermostability at temperatures below 40 ℃ (Fig. 3(b)), even after incubation for 24 h. However, the residual enzyme activity reduced to 45% at 40 ℃ after incubation for more than 4 h. Generally, the optimal temperature range for chitinase from microorganisms is 40-50 ℃ [24, 30, 31]. The properties of chitinase from other species are shown in Table 2. The optimum temperature for chitinase from P. pasadenensis NCIM5434 is 37 ℃ [23]. The optimal temperature for the chitinase in the present study was similar to that from Streptomyces sp.[32]. A high reaction temperature is more suitable for industrial application than a low temperature. The optimum temperature of an enzyme is the result of the mutual effects of denaturation and activity increases with temperature increasing. Considering the relative poor thermostability of the chitinase at 50 ℃, further technology like immobilization or directed mutation could be used to improve the thermostability to meet the requirements for practical application.

Metal ions play important roles in biological catalysis [33]. In the present study, we investigated the influence of metal ions on chitinase activity (Table 4). None of the metal ions tested provided good activation of the chitinase. This result was similar to that for chitinase from Streptomyces violaceusniger [34]. Three ions, Mn²⁺, Mg²⁺ and Co²⁺, could inhibit chitinase activity at different levels. The chitinase activity was affected by urea, Tween 80, and Triton X-100 to a low degree (Table 5). EDTA, a chelating agent capable of binding metal ions in solution, showed no obvious inhibition of the chitinase activity, suggesting that the chitinase was not a metal-enzyme. As opposed to the chitinase from Paenicibacillus barengoltzii [26], the major inhibitor of enzyme activity was SDS, since it could break the inter- and intra-molecular hydrogen bonds, unfold protein, and destroy the secondary and tertiary protein structure.

The substrate specificity of the chitinase was assayed using different chitin substrates. The chitinase from P. pasadenensis CS0611 had the best digestive ability for colloidal chitin, exhibiting a activity of 100%. Relatively low activity was observed in the presence of chitin powder and crab shell powder, and it did not show activity towards chitosan, carboxymethyl cellulose, and cellulose. Similar results were found for chitinase from Bacillus sp. [35]. In addition, the chitinase exhibited relatively low activity (11.4% and 6.38%) towards chitosan with different degrees of deacetylation (80% and 90%, respectively). There was no hydrolysis activity when the degree of deacetylation was 95%. Therefore, the chitin from this study has high specificity for hydrolyzing glycosidic bonds between GlcNAc-GlcNAc.

To investigate the ability of chitinase to degrade chitin oligosaccharides and its affinity characteristics on the substrate, the kinetic constants of purified chitinase were calculated by fitting the data to a Hanes-Woolf plot. The K_m and V_max were 4.41 mg/mL and 1.08 mg/min, respectively. The K_m was lower than that of the chitinase from Bacilus sp. BG-11 [36]. The K_m of chitinase from Streptomyces sp. was determined using a Lineweaver-Burk plot to be 6.74 mg/mL [30]. Results suggested that there was higher affinity of the purified chitinase towards the substrate compared with the above two chitinases.

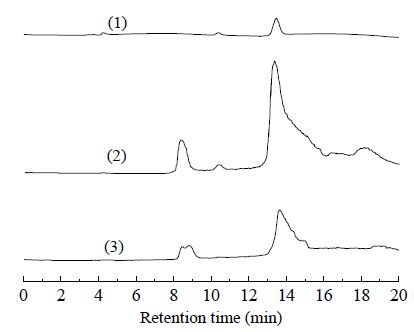

The hydrolytic products of colloidal chitin and crab shell powder by chitinase were analyzed by both TLC and HPLC. The TLC results (Fig. 4) indicated that (GlcNAc)₂ was the principal oligosaccharide produced by the hydrolytic action of different substrates. Most bacterial chitinase reported so far, such as chitinase from Vibrio parahaemolyticus [37], produce diacetylchitobiose as a major product from colloidal chitin. Based on the hydrolysate formed, the chitinase from Chitinibacter sp. GC72 was characterized as an exohydrolytic N-acetylglucosaminidase, which has the ability to hydrolyze colloidal chitin into GlcNAc as the main product [38]. B. licheniformis ChiA could efficiently covert colloidal chitin to GlcNAc and (GlcNAc)₂ as major products, and (GlcNAc)₃ as a minor product [39]. Meanwhile, HPLC analysis (Fig. 5) also showed that the hydrolysis product at a retention time of 13.5 was mainly (GlcNAc)₂ under the same reaction conditions. (GlcNAc)₂ has been widely used for the synthesis of biologically active compounds as a starting material [40].

Chitinase was purified from a newly isolated P. pasadenensis CS0611 strain. The enzyme was stable and active in alkaline environments. Above 40 ℃, the enzyme lost activity rapidly. None of tested metal ions had an active effect on purified chitinase. The enzyme was inhibited by Mn²⁺, Mg²⁺, Co²⁺ to some extent. Substrate specificity suggested that the chitinase has high specificity for hydrolyzing the glycosidic bond between GlcNAc-GlcNAc. Analysis of the hydrolysates of different substrates showed that the chitinase produced (GlcNAc)₂ as the mainly hydrolyzed product. Thus, the chitinase shows great potential in the production of (GlcNAc)₂ with crab shell waste.
