Carbon dioxide (CO₂) is a readily available renewable carbon resource that exhibits some advantages, including low cost, nontoxicity, and abundant reserves [1-9]. Recently, the fixation of CO₂ to produce cyclic carbonates has attracted growing interest since cyclic carbonates play an important role in society [10, 11]. Cyclic carbonates are widely used as polar solvents, electrolytes in lithium-ion batteries, precursors for polycarbonate, and so forth [12, 13]. However, the use of CO₂ still faces a big challenge owing to its high thermodynamic stability and kinetic inertness [14]. Catalysts are considered to be essential to activate CO₂ for cycloaddition [15, 16].

In the past few decades, a considerable number of homogeneous catalysts have been developed for the coupling of CO₂ and epoxides. Various homogeneous catalysts, such as alkali metals [17, 18], metal-salen complexes [19-22], and ionic liquids (ILs) [23-25], have been employed. Among them, ILs have been widely studied owing to their outstanding properties of good thermal stability, negligible vapor pressure, and high tunability [26, 27]. So far, ILs, including quaternary ammonium salts [28-30], imidazolium salts [31, 32], and quaternary phosphonium salts [33-35], have been shown to exhibit high catalytic activities. In addition, ILs have been modified with the addition of various functional groups in their cations or anions to further increase the catalytic activity [36]. However, these homogeneous catalysts inevitably possess some problems, such as, the difficulty to recover the catalysts from products and also to purify the products.

The heterogeneous catalytic process has the potential to solve these problems through easy solid/liquid separations. ILs immobilized on polymer [32, 37], silica [38, 39], SBA-15 [40], graphene oxide [41, 42], and carboxymethyl cellulose [43, 44] supports have been widely developed as heterogeneous catalysts for the cycloaddition of CO₂ and epoxides. These heterogeneous catalysts have exhibited great advantages, but the poor catalytic activity is still of concern, especially under mild reaction conditions. To solve this problem, the effect of the structures of catalytically-active groups on the performance of the catalyst has to be further studied.

Although a number of approaches have been used to introduce active groups onto the supports, no matter what the support is, a main difference for catalysts with the same active group is the length of the linking chain between the support and active groups [45, 46]. To the best of our knowledge, there has never been a study on the impact of the linking chain length on the catalytic performance. In addition, having a strong hydrogen bond donating capacity, the hydroxyl group as an end group has demonstrated a synergistic effect on the cycloaddition reaction of epoxide and CO₂ [47]. However, it is unknown if the hydroxyl group as a lateral group also exhibits the promotion effect.

In the present work, new spherical polystyrene-supported ammonium salts containing different linking chains between the support and ammonium group were prepared. The effect of the length of linking chains between the supports and ammonium groups was investigated. A polystyrene-supported ammonium with a hydroxyl group on the linking chain was also synthesized and the impact of a pendent hydroxyl group was studied. In addition, the charges of halogen anions in the different catalysts and the interaction of the hydroxyl group were studied by density functional theory (DFT) calculations. It was found that compared with a short linking chain, a long chain can provide a catalyst with a more negative halogen anion as well as a larger contact area of the catalysts with reactants, thus enhancing the reaction kinetics. The hydroxyl group can stretch the C-O bonds of epoxides, which promotes the reaction thermodynamics. As a result, the yield is much higher for the catalyst with a long linking chain than for that with a short chain, and is further enhanced by the introduction of hydroxyl groups. The effect of the reaction conditions and the reusability of the catalyst were also studied.

Spherical chloromethylated polystyrene resin (CMPS, 1 mm) with 17% Cl content and 7% cross-linked with divinylbenzene was purchased from the Chemical Plant of Nankai University. Propylene oxide was acquired from Sinopharm Chemical Reagent Co., Ltd. and was distilled before the reaction. Other epoxides and glycidyl trimethylammonium chloride were purchased from J & K Chemical. 3-Bromopropylamine hydrobromide was purchased from Bide Pharmatech Ltd. Trimethylamine and ammonia aqueous solution were purchased from Shanghai Macklin Biochemical Co., Ltd. CO₂ with a purity of 99.999% was commercially available. Sodium hydroxide and other chemical solvents were purchased from Tianjin Kemiou Chemical Reagent Co., Ltd. without any further purification.

Nuclear magnetic resonance (NMR) spectra were obtained on a Bruker 500 AVANCE Ⅱ spectrometer, using CDCl₃ or DMSO-d₆ as solvent with a TMS reference. Fourier transformation infrared (FT-IR) spectra were recorded on a Nicolet iN10 spectrometer (Thermo Fisher). Scanning electron microscopic (SEM) patterns were collected with a NOVA NanoSEM 450 microscope. Energy dispersive X-ray spectroscopy (EDX) observations were performed by using an accessory (INCA 250) of the NOVA NanoSEM 450 instrument. Thermal gravimetric analysis (TGA) curves were obtained on a TGA/DSC1 instrument (Mettler Toledo) using a heating rate of 10 ℃/min in a N₂ flow.

1-Amino-2-hydroxy-3-trimethylammonium propane chloride (AHTAPC) was synthesized according to the literature procedure (Scheme 1) [48]. First, glycidyl trimethylammonium chloride (25 mmol, 4 g) was dissolved in deionized water (10 mL) to form a solution, which was added dropwise to the 25 wt% ammonia aqueous solution (300 mL) with stirring. The reaction was kept at 40 ℃ for 12 h. Then, the solvent and excess ammonia were removed at 50 ℃ under a vacuum environment to yield AHTAPC. ¹H NMR of AHTAPC (500 MHz, TMS, CDCl₃): δ = 2.75-2.79 (m, CH₂, 1H), 2.88-2.92 (m, CH₂, 1H), 3.46 (s, CH₃, 9H), 3.56-3.59 (m, CH₂, 1H), 3.81-3.84 (m, CH₂, 1H), 4.27-4.32 (m, CH, 1H).

3-Trimethylammonium propylamine bromide (TAPB) was synthesized according to the literature procedure (Scheme 2) [49]. A solution of 3-bromopropylamine hydrobromide (2.23 g, 10 mmol) in 10 mL of ethanol was added to a 30 wt% aqueous solution of trimethylamine (5.9 mL, 30 mmol), and the reaction mixture was stirred at 25 ℃ for 5 d. Then, the ethanol and water were removed by distillation under reduced pressure to yield a white solid. Next, the solid was dissolved in isopropyl alcohol under 83 ℃, and the white crystals were precipitated by standing at 25 ℃ overnight. Then, a white solid was obtained by recrystallization twice in isopropyl alcohol, followed by washing with dichloromethane and drying. The solid was dissolved in a small amount of deionized water, and the pH of the system was adjusted to 9-10 with 0.1 mol/L NaOH solution. After that, most of the water was removed by distillation under reduced pressure, and the residue solid was again dissolved in a large amount of anhydrous ethanol and the mixture was centrifuged at 7000 r/min for 15 min. Finally, the clear liquid was distilled by removing the ethanol to yield the TAPB. ¹H NMR of TAPB (500 MHz, TMS, DMSO-d₆): δ = 1.74-1.79 (m, CH₂, 2H), 2.61-2.63 (t, CH₂, 2H), 3.07 (s, CH₃, 9H), 3.36-3.39 (m, CH₂, 2H).

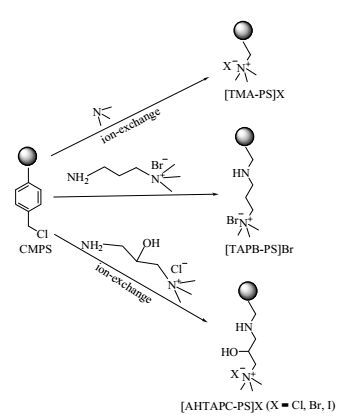

CMPS-supported catalyst ([AHTAPC-PS] Cl) was synthesized by the reaction of CMPS and AHTAPC. CMPS (1 g) was added in 30 mL DMSO, and 20 mL 5 wt% DMSO solution of AHTAPC was added into the reaction system and the mixture was stirred for 48 h at 100 ℃. The product was collected by filtration and washed ten times with diethyl ether and anhydrous ethanol, after drying at 65 ℃ under vacuum for 12 h. The resulting solid was denoted as [AHTAPC-PS] Cl. Then, the catalyst [AHTAPC-PS] Cl was immersed into saturated KBr solution at room temperature for 12 h to perform ion-exchange. The product was filtered and washed five times with deionized water and anhydrous ethanol, then dried at 65 ℃ under vacuum for 12 h to obtain the product [AHTAPC-PS] Br. For the synthesis of the catalyst [AHTAPC-PS] I, [AHTAPC-PS] Br was immersed into saturated NaI solution to perform ion-exchange in the dark under a nitrogen atmosphere. The catalyst [TAPB-PS] Br was synthesized by the reaction of CMPS and TAPB according to the above procedures. The catalyst [TMA-PS] Cl was synthesized by the reaction of CMPS and trimethylamine (TMA). CMPS (1 g) was added in 20 mL 25 wt% TMA aqueous solution, and the mixture was stirred at 25 ℃ for 48 h to obtain [TMA-PS] Cl. An ion-exchange procedure was also used to acquire [TMA-PS] Br. The synthesis process and chemical structures of [AHTAPC-PS] X, [TAPB-PS] Br, and [TMA-PS] X are shown in Scheme 3. FT-IR, SEM, and EDX were used to confirm the synthesis of long-chain functional quaternary-ammonium-immobilized polystyrene. The thermal stability of the catalyst was performed by TGA at a heating rate of 10 ℃/min with the temperature ranging from 25 to 600 ℃ in a N₂ flow.

The IL grafting capacity was defined to represent the content of the quaternary ammonium group in catalysts, and was determined by the back titration method. Specifically, 0.1 g catalysts were immersed in the NaOH aqueous solution (1 mol/L) for 24 h, followed by washing with deionized water to neutral. Then, 60 mL HCl standard solution (0.01 mol/L) was added. After immersion for 24 h, the solution was then titrated with a NaOH standard solution (0.01 mol/L) to neutral with phenolphthalein as the indicator. Next, the catalysts were immersed into saturated KBr solution at room temperature for 12 h to perform ion-exchange. The dry catalysts in the form of Br^- were obtained by filtration, washing five times with deionized water, and vacuum-drying at 65 ℃ for 12 h. The weights of the dry catalysts were registered. The IL grafting capacities (mmol/g) of [AHTAPC-PS] Br, [TAPB-PS] Br, and [TMA-PS] Br were calculated using the following equation:

IL grafting capacity = (V_HClC_HCl-V_NaOHC_NaOH)/m_dry

where V_HCl (mL) is the volume of the standard HCl aqueous solution, V_NaOH (mL) is the volume of the standard NaOH aqueous solution consumed in the titration, C_HCl and C_NaOH (mol/L) are the mole concentrations of the standard HCl and NaOH aqueous solution, respectively, and m_dry (g) is the mass of the dry catalysts.

All the cycloaddition reactions were conducted in a 100 mL high-pressure stainless-steel vessel equipped with a magnetic stirrer. In a typical run, the catalyst (0.78 mol%, calculated in accordance with the amount of ionic liquid) was charged into the reactor vessel. The reactor was pressurized with CO₂ to 4 MPa and then the pressure was released. After repeating the above step four times, the epoxide (28.6 mmol) was injected into the reactor. The reactor was fed with CO₂ to a desired pressure and heated to a specified temperature. The reaction was kept for a designated period of time. Then, the reactor was cooled to 0 ℃ and CO₂ was ejected slowly. The organic product was separated from the mixture by filtration. All the products were identified on a gas chromatograph that was equipped with a flame ionization detector (FID) and a DB-wax capillary column (30 m × 0.25 mm × 0.25 mm).

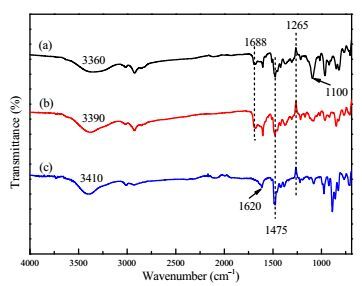

The FT-IR differential spectra of [AHTAPC-PS] Br, [TAPB-PS] Br, and [TMA-PS] Br, obtained by subtracting the spectrum of CMPS, are shown in Fig. 1. Positive (above the base line) bands in the spectra represent functional groups that were removed, whereas negative bands represent groups that are evident in the sample [50]. Accordingly, the positive characteristic peak at 1265 cm^-1 in the spectra for all three catalysts arose from the disappearance of the stretching vibration of C-H in the-CH₂Cl group. The negative peaks at 1475 cm^-1 in Fig. 1(a) and (c) and at 1473 cm^-1 in Fig. 1(b) were assigned to the stretching vibration of the C-H of CH₃ in the quaternary ammonium groups. The negative peak at 1688 cm^-1 in Fig. 1(a) and (b) was associated with the N-H bending and stretching frequencies. The negative peaks at 1100 and 3360 cm^-1 in Fig. 1(a) were attributed to the stretching vibration of O-H in hydroxyl groups. The negative peak at 3390 cm^-1 in Fig. 1(b) was the stretching vibration of N-H in amino groups. Owing to the existence of water, there were the negative peaks at 1620and 3410 cm^-1 in Fig. 1(c). Based on the obtained spectra, it was confirmed that [AHTAPC-PS] Br, [TAPB-PS] Br, and [TMA-PS] Br were successfully synthesized.

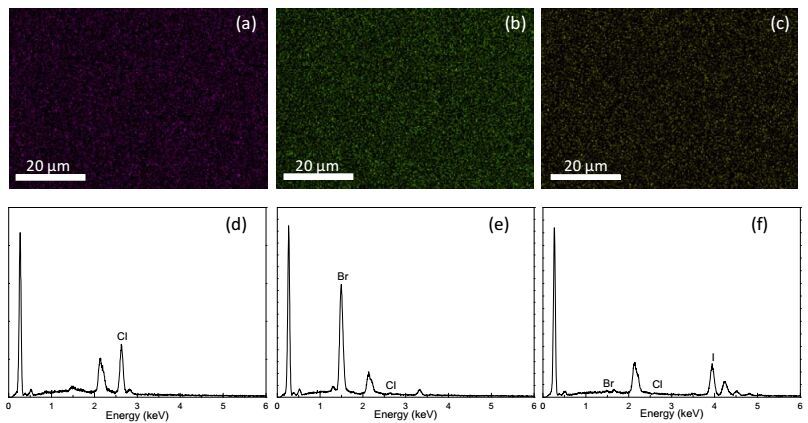

The morphology of the synthetic catalysts was observed by SEM. As shown in Fig. 2, all the surfaces of [AHTAPC-PS] Br, [TAPB-PS] Br, and [TMA-PS] Br were roughened by the grafting of quaternary ammonium. The main elements in the surfaces of [AHTAPC-PS] Cl, [AHTAPC-PS] Br, and [AHTAPC-PS] I were determined by EDX. To guarantee the veracity of the measurement, the test area of the catalysts was more than 100 × 100 μm². As shown in Fig. 3(d), the existence of Cl indicates the successful introduction of quaternary ammonium. The peak for Cl vanishes and the new peaks for Br and I appear in Fig. 3(e) and (f), suggesting the complete ion-exchange.

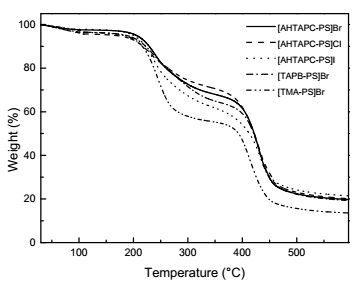

The TGA curves of [AHTAPC-PS] Br, [TAPB-PS] Br, and [TMA-PS] Br are presented in Fig. 4. The slight weight losses below 100 ℃ for all catalysts arose from the trace water absorbed by the catalysts. All five catalysts have two weight loss steps characterized by the onset decomposition temperature, T_OD, and the fastest decomposition temperature, T_FD. The first steps (T_OD = 196, 190, 191, 188, and 176 ℃, T_FD1 = 236, 230, 232, 228, and 239 ℃ for [AHTAPC-PS] Br, [AHTAPC-PS] Cl, [AHTAPC-PS] I, [TAPB-PS] Br, and [TMA-PS] Br, respectively) were attributed to the cleavage of the grafted side chain ammoniums. The second steps were ascribed to the decomposition of the polystyrene chains. The thermal stabilities of all five catalysts were sufficiently high for their application in the cycloaddition reaction. The thermal stability for the catalysts with the anions of Cl, Br, and I exhibited no obvious difference.

Propylene oxide was chosen as a model substrate for the cycloaddition of CO₂, and all catalyst screenings were performed using the same amounts of catalysts and propylene oxide. The results are summarized in Table 1. All supported quaternary ammonium catalysts exhibit a high selectivity (above 99%) for the synthesis of propylene carbonate (PC). Each catalyst was added at a loading of 0.78 mol%. [TMA-PS] Br resulted in a yield of 70.9%. After the introduction of a long chain between the supporter polymer and ammonium group, [TAPB-PS] Br exhibited an enhanced activity (yield 91.4%) compared with [TMA-PS] Br. The presence of the long chain between the supporter polymer and ammonium group increased the activity area of catalysts exposed to the mixture of CO₂ and propylene oxide. The yield with [AHTAPC-PS] Br was up to 98.5%, which was higher than that obtained with [TAPB-PS] Br. This suggests that the incorporation of the hydroxyl group onto the chain between supporter polymer and ammonium group could improve the catalytic activity. The catalytic activities of catalysts with different halide anions were also investigated. The activity order of the catalysts was I^- > Br^- > > Cl^-, which is in accordance with the nucleophilicity order and leaving ability of the halides. A stronger nucleophilicity results in an easier attack at the β-carbon atom of the epoxide, and the leaving ability in the ring-closing step is also important for the formation of the five-membered cyclic carbonate [51, 52]. The I^- and Br^- forms of the catalysts show much higher activity than that of the Cl^- form. Considering the poor stability of I^-, Br^- is the best choice for this type of heterogeneous catalysts. As shown in Table 2, [AHTAPC-PS] Br exhibited the highest catalytic activity under mild conditions among the heterogeneous catalysts that have been reported in the literature.

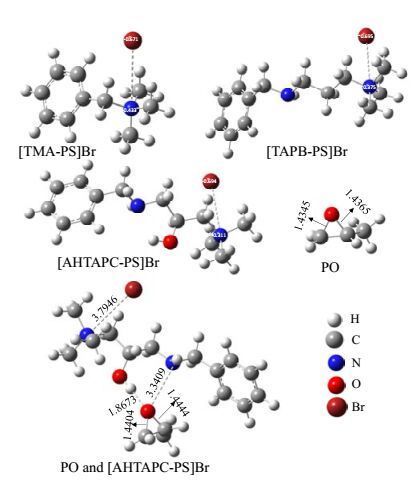

To further investigate the effect of the long chain on the catalytic activity, the charge population analyses of catalysts were conducted using the DFT method (B3LYP, 6-311G ++(d, p)) [36]. As shown in Fig. 5, the electron density of Br^- is slightly higher for [TAPB-PS] Br (Mulliken charge:-0.695) than for [TMA-PS] Br (Mulliken charge:-0.671). The Br^- anion of [AHTAPC-PS] Br (Mulliken charge:-0.694) has almost the same electron density to that of [TAPB-PS] Br. This suggests that the introduction of a long chain increases the electron density, and weakens the electrostatic interaction between the anion and cation, which increases the mobility of the anion. Both the high electron density and mobility facilitate the nucleophilic attack of Br^- at the β-carbon of the epoxide. Hence, the introduction of the long chain has two effects: one is to increase the catalytic activity area of catalysts; the other is to enhance the nucleophilic performance of anions. Both of these effects improve the catalytic activity of the catalysts. The influence of the hydroxyl group was also studied. As shown in Fig. 5, for PO and [AHTAPC-PS] Br, the strong hydrogen bond interaction between the hydrogen of the hydroxyl group and the oxygen of PO stretches the lengths of the C-O bonds from 1.4365/1.4345 to 1.4444/1.4404 Å, which would facilitate the breakage of the C-O bond and thus increase the catalytic activity. Since the interaction between the hydrogen in-NH-and oxygen in PO is very weak and the-NH-group is far from the ammonium group, the promotion effect of the-NH-group could be ignored.

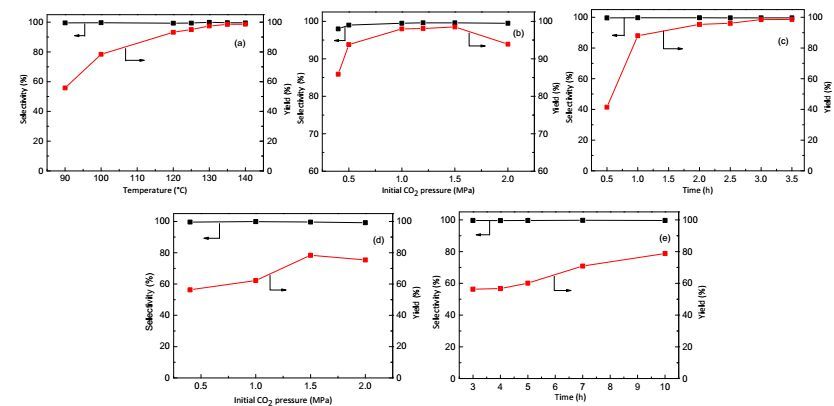

The effects of the reaction parameters, including reaction temperature, CO₂ pressure, and reaction time, on the [AHTAPC-PS] Br-based catalytic system were studied. The cycloaddition of PO and CO₂ is expected to be conducted at moderate temperature with low energy consumption. Fig. 6(a) shows that the reaction temperature has a substantial effect on this reaction. The PC yield increased from 55.8% to 97.4% by increasing the temperature from 90 to 130 ℃. Once the reaction temperature was higher than 135 ℃, the PC yield was always more than 98%. The relationship between temperature and yield was attributed to the higher reactivity at higher temperature. When the temperature was higher than 135 ℃, the yield of PC remained constant, indicating that the reaction reached a thermodynamic equilibrium. It was observed that the high yield could be achieved at mild temperatures, for example, the yield was 78.4% at 100 ℃. The selectivity remained above 99% when the temperature was increased from 90 to 140 ℃. The structure of the catalyst is usually responsible for the selectivity [37, 56]. This suggests that the [AHTAPC-PS] Br exhibits an essentially good catalytic selectivity for the cycloaddition of PO and CO₂.

The effect of the CO₂ pressure on the PC yield of the cycloaddition reaction at 100 and 135 ℃ was studied. As shown in Fig. 6(b), at 135 ℃, the PC yield increased dramatically with increasing the CO₂ pressure from 0.4 to 1.0 MPa. The yield was slightly increased at pressures from 1.0 to 1.5 MPa. The yield decreased to 93.9% at pressures > 1.5 MPa. Therefore, an appropriate CO₂ pressure is required for an efficient cycloaddition reaction. An elevated pressure is favorable for the cycloaddition reaction, but too high a CO₂ pressure might isolate the catalyst from PO, resulting in a reduced yield. The competitive effect of these two factors resulted in the first increase and then decrease in the yield of PC. In addition, the CO₂ pressure has almost no effect on the selectivity.

The dependence of the PC yield and selectivity on the reaction time are shown in Fig. 6(c). For the first hour, an obvious increase in the yield was observed, and the yield increased slowly to 98.5% over the next 2 h. After 3 h, the yield remained constant, indicating a reaction balance occurred after 3 h. It was observed that the PC selectivity was always above 99.0%.

The reaction temperature and pressure are important parameters to evaluate the activity of the catalyst. Mild reaction conditions would be attractive for industrial use. The above results suggest that the [AHTAPC-PS] Br catalyst possesses a good activity at mild temperature. Therefore, the effects of reaction time and CO₂ pressure on the yield at 100 ℃ were investigated. As shown in Fig. 6(d), the yield increased at < 1.5 MPa and decreased at > 1.5 MPa. The maximum yield was 78.4% at 1.5 MPa. It is noticed that the [AHTAPC-PS] Br exhibited a good activity at low pressure. Under a CO₂ initial pressure of 0.4 MPa, the yield increased with reaction time and reached 78.8% after 10 h, as shown in Fig. 6(e). The PC selectivity was above 99% under all reaction conditions.

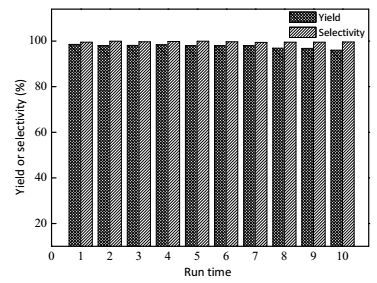

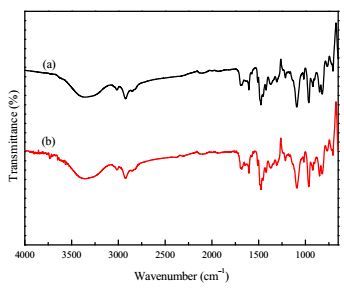

The recyclability of the [AHTAPC-PS] Br catalyst was examined with PO under an initial CO₂ pressure of 1.5 MPa at 135 ℃ for 3 h). In each run, the catalyst was recovered by filtration. As shown in Fig. 7, the catalyst exhibited a high activity across ten consecutive cycles. The PC yield remained constant for the first six recycles and was up to 96% after ten cycles. The selectivity always remained above 99%. These results indicate that [AHTAPC-PS] Br exhibits good stability and is promising for commercial application in the continuous heterogeneous cycloaddition reaction. As shown in Fig. 8, there was no obvious change on the differential spectra of FT-IR for the catalyst with a long linking chain [AHTAPC-PS] Br after ten runs. This indicates that [AHTAPC-PS] Br exhibited a good stability.

The performances of the [AHTAPC-PS] Br catalyst were further studied for the cycloaddition of CO₂ with various epoxides and the results are listed in Table 3. All the reactions were carried out at 135 ℃ without any solvent. The [AHTAPC-PS] Br catalyst exhibited catalytic activities for all the selected epoxides. All the reactions showed a high selectivity (above 90%). The yield of epichlorohydrin was lower than those of PO and 1, 2-epoxybutane owing to the electron withdrawing effect of the chloride. The cycloaddition of styrene oxide also exhibited a reduced reaction rate because of the large steric hindrance of the benzene ring and was even worse for cyclohexene owing to the large steric hindrances of both α-and β-carbons.

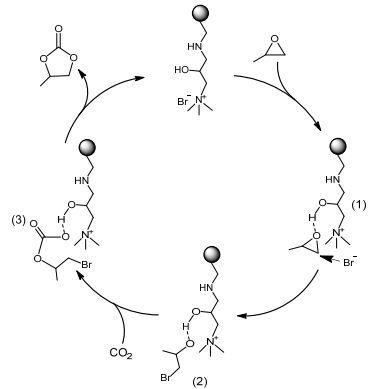

As shown in Table 1, the order of the catalytic activity for [AHTAPC-PS] X is the same to that of the nucleophilicity of the halogen anion, suggesting that the nucleophilic attack of the halogen anion on the epoxide group is important for the cycloaddition reaction. In addition, the catalyst [AHTAPC-PS] Br with a hydroxyl group showed a better catalytic activity compared with [TAPB-PS] Br without an hydroxyl group. This indicates that although the hydroxyl group was located in the middle rather than at the end of the chain, the presence of a hydroxyl group is favorable for the cycloaddition reaction. As shown in Fig. 5, the length of the C-O bonds was elongated from 1.4365/1.4345 to 1.4444/1.4404 Å owing to the stretching of the strong hydrogen bond interaction between the hydrogen in the hydroxyl group and oxygen in PO, which would facilitate the breakage of the C-O bond. Based on the current results and previous work [3, 4, 26, 57, 58], a possible mechanism was proposed, as shown in Scheme 4. The hydrogen bond between the H atom in the-OH group of the catalyst and O atom in the epoxide stretched the C-O bonds and also increased the polarization of the C-O bonds, which activated the PO for ring-opening. At the same time, the Br^- anion attacked the β-carbon of PO where the steric hindrance was minimal. The negative charge was shifted to the O atom of PO and then attacked the C atom of CO₂ to form a C-O bond because of the acidity of CO₂. Finally, propylene carbonate was produced by the intramolecular substitution of the halide anion.

Spherical polystyrene-supported ammonium salts containing different linking chains between the support and ammonium group were prepared as efficient and easily reusable heterogeneous catalysts for the cycloadditions of CO₂ and epoxides. The results from experiments and DFT calculations indicated that compared with a short linking chain, a long chain could make the halogen anion more negative and provide a larger contact area for the catalysts with the reactants, thus enhancing the reaction kinetics. The hydroxyl group could stretch the C-O bonds of epoxides, providing more favorable reaction thermodynamics. As a result, for the cycloaddition of propylene oxide, the yield of propylene carbonate was much higher for the catalyst with a long linking chain (yield: 91.4%) compared with that for a short chain (yield: 70.9%), and was further increased in the presence of pendent hydroxyl groups (yield: 98.5%). The selectivity was always above 99%. The catalyst also showed high catalytic activity at mild temperature. In addition, the catalyst exhibited a good reusability (yield ≥ 96% for 10 cycles). Hence, the catalysts prepared here are promising for the large-scale production of cyclic carbonates.
