Synthetic natural gas (SNG) with high heating value from coal gasification has attracted intense attention as a result of the growing demand for natural gas as an energy carrier as well as the desire for clean utilization of coal resource [1-4]. However, during the SNG production, the CO methanation step, expressed by the equation 3H2 + CO → CH4 + H2O, is associated with a highly exothermic process and thus leads to serious deactivation of catalysts [5]. Therefore, extensive efforts have been devoted to develop high-performance catalysts, which should show high catalytic activity at low temperature while retain excellent catalytic stability against sintering and carbon deposition at high temperature for CO methanation. Among the catalysts being explored, precious metal-based catalysts such as Ru and Rh have been found to exhibit excellent catalytic performance for CO methanation at lower temperature [6-10]. Unfortunately, these precious metals are expensive and rare in resources, so they do not have the economic feasibility relative to the non-noble metals for large-scale commercial applications [11]. Among non-noble metal-based catalysts, Ni-based catalysts are regarded as the most promising materials for CO methanation owing to their low price and high abundance [12-16]. However, for traditional Ni-based catalysts, they are prone to be quickly deactivated resulting from the aggregation of Ni nanoparticles and the formation of coke on the surface of the catalysts at high temperature [17, 18].
Recently, extensive investigations have been made to explore highly efficient Ni-based catalysts combining excellent catalytic performance and high catalytic stability using mesoporous silica sieves with high specific surface area and uniform mesoporous structure as the supports, such as SBA-15 [19-21] and MCM-41 [22-24]. As reported by Tao et al. [19], during CO methanation, Ni-based catalyst using SBA-15 as the support displayed superior catalytic performance due to the good dispersion of Ni nanoparticles. Moreover, it has been also reported that Ni-based catalyst supported on MCM-41 for CO methanation possessed good catalytic activity, but Ni species were vulnerable to sintering after high temperature reduction and calcination [22]. Therefore, it is still a significant challenge to achieve excellent catalytic performance while hindering the coking and sintering of Ni nanoparticles.
Promoter often has a significant impact on catalytic performance by means of modifying active metal dispersion, crystallite size and thermal stability of the catalyst [18, 25-30]. Consequently, it is a promising strategy to enhance the catalytic performance by incorporation of a proper promoter species. Liu et al. [25] investigated Ni-V2O3/Al2O3 catalyst and revealed that the addition of V species facilitated the enhancement of catalytic activity due to larger H2 uptake and higher Ni dispersion. It has been also reported that for Ni/γ-Al2O3 catalysts, doping of Ce species, promoted CO methanation due to high Ni dispersion and small Ni nanoparticles [26]. Furthermore, Zhi et al. [27] demonstrated that Ni-La/SiC possessed high catalytic activity and good catalytic stability, which were attributed to the formation of smaller Ni nanoparticles with high metal dispersion, the stronger interaction with the support resulting from the addition of La species. In addition, Mn species was reported to improve catalytic activity and stability due to the formation of relative small Ni nanoparticles [18]. It is well acknowledged that the rate-determining step for CO methanation was mainly associated with the hydrogenation of CHx [31], and that small Ni nanoparticles with well-dispersed Ni are conducive to CHx hydrogenation resulting from the increasing surface defects to capture more surface hydrogen for dissociation [32]. Based on the above-mentioned analysis, it is expected that these promoter species, namely V, Ce, La, and Mn, could have similar roles in the enhancement of catalytic performance for the Ni-based catalyst supported on various material for CO methanation. At present, 3D-mesoporous KIT-6 as a novel silica material with higher specific surface area and pore volume consists of two interwoven subnetworks [33, 34], which are conducive to produce more active sites for enhancing catalytic performance. However, to date, it is still not fully understood how the catalytic activity and stability of Ni-based catalyst fixed inside 3D-mesoporous KIT-6 are affected by various promoter species.
In the present work, our aim was to synthesize promoter-modified Ni-based catalysts for CO methanation using 3D-mesoporous KIT-6 as a support modified by ethylene glycol with an incipient-wetness impregnation method, and to further systematically explore the effect of promoter species on catalytic performance. The catalysts were characterized by N2 adsorption-desorption, X-ray diffraction (XRD), hydrogen temperature-programmed reduction (H2-TPR), hydrogen temperature-programmed desorption (H2-TPD), Fourier transformed infrared spectroscopy (FT-IR), transmission electron microscope (TEM), energy-dispersive X-ray spectroscopy (EDX), Raman, and thermal gravimetric analysis (TGA), respectively. Our characterization results revealed that promoter-modified catalysts possessed higher catalytic activity at low temperature relative to that of promoter-unmodified catalyst. Moreover, the catalyst modified by V species exhibited the best catalytic performance with superior stability, which was viewed as a promising candidate for CO methanation.
3D-mesoporous KIT-6 was synthesized based on the previously published method [35]. Typically, 4 g P123 was dissolved into HCl aqueous solution of 150 mL at 35 ℃ with vigorous stirring, followed by the addition of 4.9 mL 1-butanol. Subsequently, silicon source TEOS (9.2 mL) was dripped into the above solution and stirred continuously at 35 ℃ for 24 h. The resulting mixture was then aged at 100 ℃ for 24 h. The solid product obtained by filtration, washing and drying was further calcined in air at 550 ℃ for 4 h with a heating rate of 2 ℃/min for removing the structure directing agent to obtain 3D-mesoporous KIT-6. Next, 3D-mesoporous KIT-6 was pretreated with ethylene glycol using incipient-wetness impregnation prior to the impregnation of Ni precursor and statically kept for 1 h at room temperature. After drying for 12 h at 100 ℃, the modified 3D-mesoporous KIT-6 as a support was dispersed in nickel nitrate aqueous solution of 10 wt% NiO along with various promoters of 2 wt%, including V, Ce, La and Mn, for 10 h at 60 ℃ with stirring, and then stirred continuously to further remove the water. After that, the solid product was dried at 100 ℃ overnight and further calcinated at 550 ℃ for 4 h in a muffle furnace. The final product as a catalyst was named as Ni-M/KIT-6, where M represents promoter species. For comparison, a catalyst without promoter was prepared following the identical procedure, and noted as Ni/KIT-6.
N2 adsorption-desorption isotherms at -196 ℃ were investigated using a surface area and porosity analyzer (Micromeritics Tristar Ⅱ 3000 analyzer). Before N2 adsorption measurement, these samples were initially outgassed at 100 ℃ for 1 h and then at 300 ℃ for 3 h. The specific surface areas of the samples were calculated from N2adsorption data using the Brunauer-Emmett-Teller (BET) method. The pore size of the sample was derived from the Barret-Joyner-Hallender (BJH) method based on N2 desorption branch. XRD patterns in the ranges of 10° to 80° and 0.5° to 5° were collected by a Rigaku D/MAX-2500 diffractometer. The scanning speed for the wide angle and small angle were 8°/min and 5°/min, respectively. The mean size of Ni nanoparticles was estimated according to the Debye-Scherrer equation.
H2-TPR and H2-TPD were performed on a Micromeritics AutoChem 2910 system with a thermal conductivity detector (TCD). H2-TPR was investigated in a mixture gas flow of 30 mL/min (10 vol% H2/Ar) using 50 mg catalyst from room temperature to 800 ℃ with a ramping rate of 10 ℃/min. For H2-TPD, 100 mg catalyst was reduced in situ in a pure H2 flow of 30 mL/min at 550 ℃ for 2 h, and then cooled to 50 ℃. After removing weakly adsorbed hydrogen by purging with Ar, the temperature was raised to 800 ℃ at a heating rate of 10 ℃/min. The released H2 was further measured by the TCD, and the H2-TPD result was used to calculate the number of active Ni sites per unit mass with the assumption of an adsorption 1:1 stoichiometry of H to Ni. The peak area of the H2-TPD curve was calibrated with a standard CuO sample. The Ni dispersion was determined by the simplified expression [36]:
where Vad (mL) represents the chemisorbed H2 volume derived from the TPD test under standard temperature and pressure (STP); M is the mole mass of Ni (58.69 g/mol) and m is the mass of the catalyst sample (g); SF is the stoichiometric factor (the Ni/H molar ratio for chemisorption), which is defined as 1; P is the Ni mass percentage of the sample and Vm is the molar volume of H2 (22414 mL/mol) at STP; dr is the degree of reduction from Ni species calculated by H2-TPR.
FT-IR spectra were recorded within the wavenumber region from 400 to 4000 cm-1. The morphology of the sample was investigated by TEM equipped with EDX using a Philips TECNAI G2F20 instrument at 200 kV. Before the measurement, the analytic sample was dispersed into the ethanol with ultrasonic stirring to obtain uniform suspension. A drop of the resulting suspension was then deposited on a holey carbon-supported grid. Raman spectra data in the range of 200-1400 cm-1 were recorded by a Renishaw inVia Raman spectrometer using an argon ion laser with a wavelength of 514.5 nm. TGA was conducted by a STA449F3 (NETZSCH Corp.) under an air flow of 80 mL/min within a temperature range from room temperature to 800 ℃ at a ramping rate of 10 ℃/min.
CO methanation was conducted in the continuous flow fixed-bed reactor with a quartz tube of inner diameter 6 mm at 250-400 ℃ and 1 atm. For each test, 50 mg catalyst (40-60 mesh) mixed with 500 mg quartz sand (40-60 mesh) homogenously was filled in the quartz tube, and a thermocouple was located in the center of reaction temperature zone to detect temperature. Prior to the performance test, the catalyst was reduced in situ in 40 mL/min gas flow of 50 vol% H2/N2mixture at 550 ℃ for 2 h. After cooling down to the initial reaction temperature in N2, the mixed reactant gas with a mole ratio H2:CO:N2 = 3:1:1 and a total flow rate of 50 mL/min was fed into the reactor accompanied by a weight hourly space velocity (WHSV) of 60000 mL/(g∙h). The outlet gas was cooled by a cold trap to remove any water, and then analyzed on-line by gas chromatograph (GC-SP2100, China) equipped with a TDX-01 and a TCD with Ar as the carrier gas. The 60 h-lifetime test for CO methanation was carried out at atmospheric pressure and 500 ℃ with a WHSV of 60000 mL/(g∙h). The calculation formulas for CO conversion, CH4 selectivity and CH4 yield, were defined as the follows:

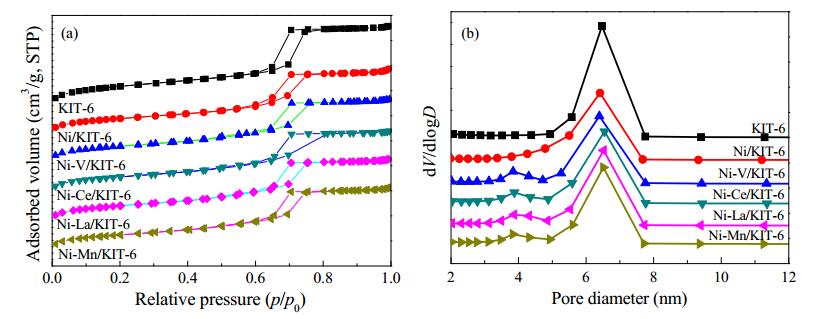

Fig. 1 displayed N2 adsorption-desorption isotherms and the corresponding pore size distribution curves of 3D-mesoporous KIT-6 and the catalysts. As seen from Fig. 1(a), N2 adsorption-desorption isotherms of all samples were in line with typical Ⅳ type isotherms, with an H1 hysteresis loop [37] and a steep capillary condensation step between p/p0 = 0.6-0.8, which were characteristic of large channel-like pores with a narrow range of size [38, 39]. The shapes of the isotherms and hysteresis loops of all catalysts were the same as those of 3D-mesoporous KIT-6, meaning that 3D-mesopores were still maintained after incorporation of various metal species [40]. Fig. 1(b) displayed bimodal pore size distributions for promoter-modified catalysts, corresponding to the small-size aperture at around 4 nm and large-size aperture at around 6.5 nm, while 3D-mesoporous KIT-6 and Ni/KIT-6 showed monomodal pore size distributions with an aperture of about 6.5 nm. Moreover, the physicochemical properties of all samples were summarized in Table 1. It was clearly seen that 3D-mesoporous KIT-6 possessed the largest specific surface area, the highest pore size and pore volume, which were 722.7 m2/g, 5.84 nm and 1.07 cm3/g, respectively, indicating that 3D-mesoporous KIT-6 was quite suitable as a support for CO methanation. By comparison with 3D-mesoporous KIT-6, the BET surface area, pore size and pore volume for all catalysts exhibited significant decrease due to loading of active metal Ni or/and promoter species into 3D-mesopores. Interestingly, there was a slight increase in the surface area of promoter-modified catalyst compared to that of Ni/KIT-6, which was caused by the fact that some promoter species introduced into 3D-mesopores resulted in an increase of surface roughness. However, the average pore sizes and pore volumes of promoter-modified catalysts showed marked decrease relative to Ni/KIT-6, reflecting that both promoter species and active metal Ni were successfully introduced into 3D-mesopores, which were consistent with bimodal pore size distributions, corresponding to the effective confinement effect of 3D-mesopores.

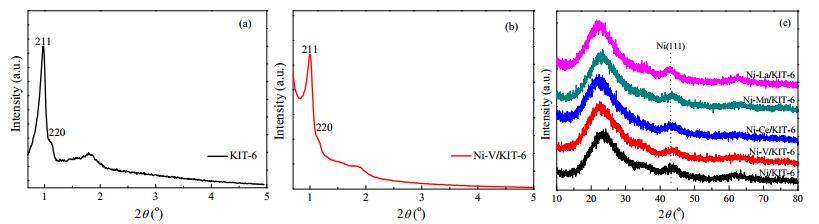

Fig. 2(a) and (b) displayed low-angle XRD patterns of 3D-mesoporous KIT-6 as a support and Ni-V/KIT-6. 3D-mesoporous KIT-6 showed characteristic diffraction peaks of 3D-mesopores with a cubic Ia3d space group, corresponding to the (211) (2θ = 0.97°) and (220) (2θ = 1.10°) planes, respectively [41]. It can be seen that 3D-mesoporous KIT-6 and Ni-V/KIT-6 exhibited similar characteristic peaks, which suggested that 3D-mesopores was still maintained after the addition of active metal Ni and promoter species V. This was in good agreement with the result on N2 adsorption-desorption isotherms. Moreover, wide-angle XRD patterns of all catalysts were also showed in Fig. 2(c). For all catalysts, the faint characteristic diffraction peaks observed at 2θ = 44.3° were indexed as the (111) plane of face centered cubic Ni [19], implying the formation of small Ni nanoparticles. Ni nanoparticle sizes of all catalysts estimated from XRD were listed in Table 1. For promoter-modified catalysts, the mean sizes of Ni nanoparticles were almost the same as that of Ni/KIT-6, suggesting that the formation of fine Ni nanoparticles was due to the effective confinement effect of 3D-mesopores. In addition, the absence of any diffraction peaks associated with the promoter species demonstrated that the promoter species were highly dispersed on 3D-mesoporous KIT-6 as a support.

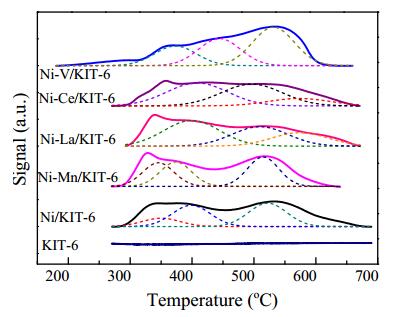

As seen from Fig. 3, the unmodified 3D-mesoporous KIT-6 did not show any reduction peaks in the temperature range from 100 to 800 ℃, which implied that all the hydrogen consumption peaks for other samples belonged to the reduction of NiO. The H2-TPR profiles were fitted using the Gaussian fitting method; for Ni/KIT-6, there were three distinct reduction peaks located at around 349, 397 and 522 ℃, respectively. The low-temperature peak at around 349 ℃ was derived from the reduction of NiO, which showed a weak contact with 3D-mesoporous KIT-6 [42]. The mid-temperature peak at around 397 ℃ originated from the reduction of bulk NiO interacting moderately with 3D-mesoporous KIT-6. The high-temperature peak at around 522 ℃ corresponded to the existence of Ni silicate or small NiO nanoparticles, implying that an intimate interaction occurred between NiO and 3D-mesoporous KIT-6 [43]. In comparison, all reduction peaks of Ni-Mn/KIT-6 displayed a slight shift to lower temperature relative to that of Ni/KIT-6, which was indicative of relatively poor metal-support interaction, suggesting that loading of Mn species was of benefit to produce some more easily reducible species. Apparently, Ni-La/KIT-6 and Ni-Ce/KIT-6 were similar in both shape and position of the reduction peaks, which were broader and shifted to higher temperature (high-temperature peaks extended to 670 ℃) relative to that of Ni/KIT-6, suggesting a stronger interaction with 3D-mesoporous KIT-6 due to the addition of promoter species. For Ni-V/KIT-6, the intensity of the low-temperature peak decreased sharply while the intensity of the high-temperature peak increased remarkably to become the main reduction peak at around 532 ℃. Based on the increase in the total H2-TPR area, an intimate interaction between active metal and support resulted in an improved reducibility of NiO. From the fitting results, we have made a quantitative analysis based on the integrated area below 550 ℃, which was the reduction temperature used in this study. As compared in Table 2, Ni-V/KIT-6 possessed the largest total integrated area with three different reduction peaks below 550 ℃, hence its reducibility was defined as 100%. The relative reducibility of the other catalysts was calculated from the ratio of its total integrated area with reduction peak below 550 ℃ relative to that of Ni-V/KIT-6. Based on the relative reducibility values, all promoter-modified catalysts exhibited higher reducibility than Ni/KIT-6, with Ni-V/KIT-6 showing the highest reducibility.

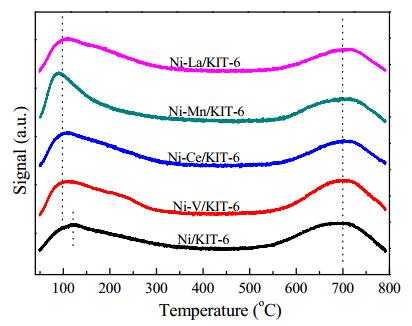

Fig. 4 presented H2-TPD profiles of all catalysts to estimate the hydrogen uptake and Ni dispersion. It was apparent that there were two major H2 desorption peaks in the test temperature range, which were attributed to low-temperature peaks at less than 500 ℃ and high-temperature peaks at around 700 ℃. H2 desorption peaks at low temperature corresponded to the weakly adsorbing hydrogenon the surface of highly dispersed Ni with a large density of surface defects, which acted as hydrogencapture agent [31]. H2 desorption peaks at high temperature arose from strongly adsorbing and/or spillovered hydrogen [44], and exhibited almost no variation in peak position and integrated area for all catalysts. The integrated areas of low-temperature H2 desorption peaks were substantially different for the catalysts with different promoter species. Ni-V/KIT-6 possessed the largest integrated area, suggesting that V species most effectively facilitated Ni dispersion. H2-uptakes and Ni dispersion for all catalysts were summarized in Table 1. Among these catalysts, Ni-V/KIT-6 showed a maximum H2 uptake of 177.6 μmol/g and Ni dispersion of 26.5%, corresponding to the strongest H2 adsorption capacity and the highest Ni dispersion. The explanation was that V species was contributed to the enhancement of hydrogen storage and mobility, ultimately leading to the enhanced catalytic performance. Noting that, both Ni-Ce/KIT-6 and Ni-La/KIT-6 showed a pronounced increase in the low-temperature peak as compared with Ni/KIT-6, implying better Ni dispersion which corresponded to Ni dispersion of 21.6% and 21.9%, respectively. Additionally, Ni-Mn/KIT-6 displayed the lowest Ni dispersion of 19.8% as compared to that of other promoter-modified catalysts, which was caused by the smallest integrated area of the low-temperature H2 desorption peak, but still larger than Ni dispersion of Ni/KIT-6 (15.8%), meaning that Mn species likewise played a role in the enhancement of Ni dispersion.

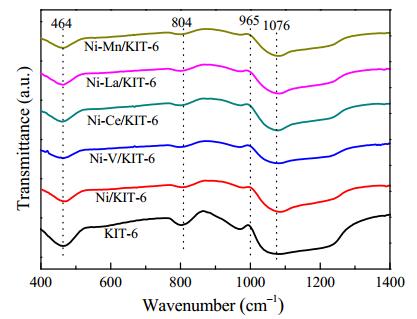

FT-IR spectra of all samples were illustrated in Fig. 5. There were four typical Si-O-Si bands centered at 464, 804, 965 and 1076 cm-1, which were related to the formation of condensed silica framework. The absorption peak at 464 cm-1 was derived from the bending vibrations of Si-O-Si bonds, while the broad absorption peaks at 1076 cm-1and weak absorption peaks at 804 cm-1 were associated with symmetric and asymmetric stretching vibrations of Si-O-Si networks, respectively [45]. The absorption peaks corresponding to asymmetric stretching vibrations of Si-OH bonds were observed at 965 cm-1. For all catalysts, the absorption peaks at 1076 cm-1displayed a slight shift to lower wavenumbers as compared to that of unmodified 3D-mesoporous KIT-6, which was taken as an indication of Ni and promoter species incorporated into 3D-mesopores. Moreover, the intensities of the absorption peaks at 965 cm-1showed a slight decreasecorresponding to the structural change of silanol group on the surface after introducing Ni and promoter species, indicating that silanol groups were partly converted to Si-O-M (V [46], Ce [47], La [48], or Mn [49]).

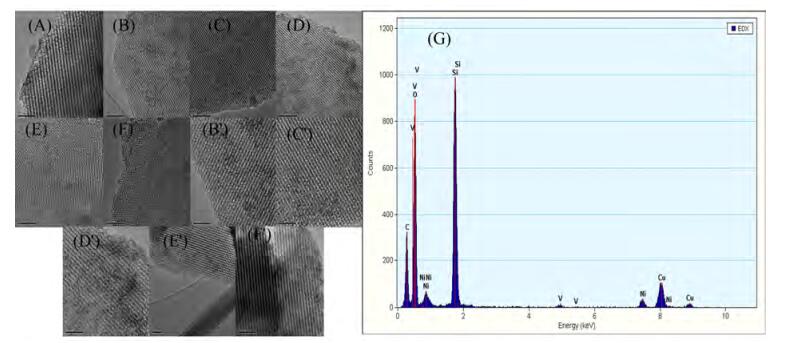

TEM images of 3D-mesoporous KIT-6 and all catalysts were displayed in Fig. 6. It can be seen that 3D-mesoporous KIT-6 presented highly-ordered cubic 3D-mesoporous channels, in good agreement with the observation of well-defined (211) and (220) planes in the low-angle XRD pattern as well as N2 adsorption-desorption isotherm. After the incorporation of Ni and promoter species, 3D-mesoporous channels were still regular and uniform, suggesting that the addition of metal species did not destroy 3D-mesopores, as shown in Fig. 6(B-F). Moreover, the dark spots given by Fig. 6(B'-F') representing Ni nanoparticles on the catalysts were evenly anchored over the internal surface of 3D-mesopores with a nanoparticle size of rough 2~3 nm that was less than the average pore size, meaning highly dispersion of Ni nanoparticles. However, there was no obvious observation of promoter species in all promoter-modified catalysts, which was caused by highly dispersion of promoter species. This was consistent with the result of XRD, and further proven by EDX profile, as shown in Fig. 6(G). It was noted that these elements, namely Ni, V, Si and O, were observed in EDX spectrum, reflecting the successful introduction of these elements into 3D-mesopores of Ni-V/KIT-6. Furthermore, TEM analysis confirmed that both Ni and V species were highly dispersed into 3D-mesopores, leading to the generation of small Ni nanoparticles. Similarly, other promoters were also well dispersed into 3D-mesopores and played a critical role in enhancing catalytic activity and stabilizing Ni nanoparticles, as described next.

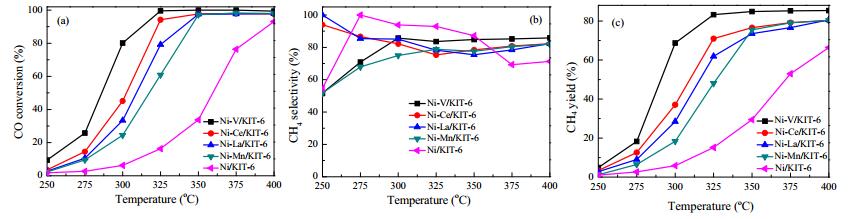

In order to explore the effect of promoter species on catalytic performance, CO methanation reactions from 250 to 400 ℃ over Ni/KIT-6 and all promoter-modified catalysts were performed at 1 atm with a WHSV of 60000 mL/(g∙h), and the results were described in Fig. 7. For Ni/KIT-6, both CO conversion and CH4 yield were relatively poor below 325 ℃, and CO conversion achieved the maximum value of 93% when the temperature rose to 400 ℃. Comparing with Ni/KIT-6, the addition of promoter species enhanced the low-temperature catalytic activities and the thermodynamics equilibrium for CO conversion was reached between 325 and 400 ℃. Ni-V/KIT-6 possessed the best catalytic performance at the entire reaction temperature range, and its maximal CO conversion and CH4 yield reached 100% and 85%, respectively, at a relatively low reaction temperature of 350 ℃. Similarly, Ni-Ce/KIT-6, Ni-La/KIT-6 and Ni-Mn /KIT-6 also showed better catalytic activities with CO conversion of around 97% and CH4 yield of rough 75% at 350 ℃, while the corresponding CO conversion and CH4 yield over Ni/KIT-6 were 33% and 29%, respectively, at the same reaction temperature. Therefore, the addition of promoter species could substantially boost the low-temperature catalytic activity, and V species displayed the best promoter effect. Based on the characterization results discussed earlier, the superior catalytic performance for Ni-V/KIT-6 could be explained by the largest H2 uptakes (177.6 μmol/g), highest dispersion of Ni nanoparticles (26.5%), the favorable reducibility of NiO for the generation of the most Ni active sites. Furthermore, the formation of the Si-O-V linkage, as described next with Raman results, as well as an enhanced confinement effect of 3D-mesopores were favorable to the generation of small Ni nanoparticles and high dispersion of Ni nanoparticles, thereby leading to the enhanced catalytic performance with good high-temperature stability. In addition, Ni-Ce/KIT-6 and Ni-La/KIT-6 showed better catalytic activity than that of Ni/KIT-6 at temperature below 350 ℃, which was mainly due to their larger H2 uptakes and better Ni dispersion accompanied by a strong metal-support interaction. The addition of Mn as a promoter also improved the catalytic performance relative to that of Ni/KIT-6, which was attributed to high dispersion of Ni nanoparticles. Additionally, CH4 selectivity of all catalysts with various promoters remained relatively steady than that of Ni/KIT-6 at above 325 ℃, indicating that the promoter species also played an important role in inhibiting the occurrence of some side reactions, such as the water-gas shift reaction (CO + H2O → CO2 + H2) as well as the reversed CH4 and CO2 reforming reaction (2CO + 2H2 → CO2 + CH4), which would result in a lower CH4 selectivity. Overall, promoter-modified catalysts possessed better catalytic activity as compared with Ni/KIT-6, and Ni-V/KIT-6 exhibited the best catalytic performance for CO methanation among all catalysts.

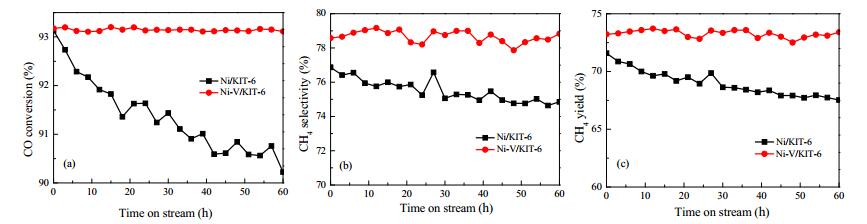

Lifetime test was very important in acquiring excellent catalyst during CO methanation with higher catalytic activity and better catalytic stability under severe reaction condition. Therefore, a lifetime test for Ni-V/KIT-6 was conducted at 500 ℃, 1 atm and a WHSV of 60000 mL/(g∙h). Ni/KIT-6 was also evaluated with the identical condition as a comparison. As shown in Fig. 8, there were nearly no change during the entire 60h-lifetime test for CO conversion, CH4 selectivity and CH4 yield of Ni-V/KIT-6, corresponding to 93%, 78% and 73%, respectively. In comparison, Ni/KIT-6 displayed an obvious drop, with corresponding CO conversion of 90%, CH4 selectivity of 74% and CH4 yield of 67%, suggesting that Ni-V/KIT-6 possessed higher catalytic activity and better catalytic stability at high temperature.

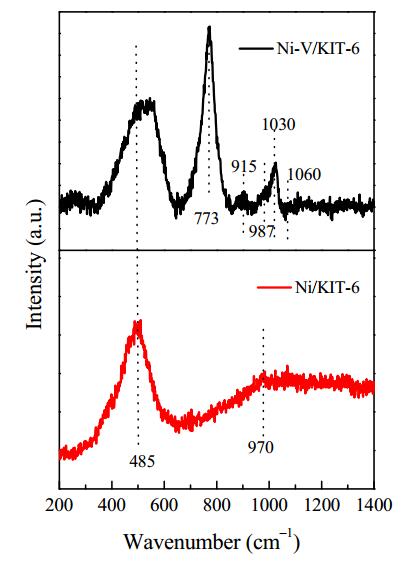

To further understand the relationship between structure and performance, Ni/KIT-6 and Ni-V/KIT-6 were characterized by Raman, and the results were displayed in Fig. 9. For Ni/KIT-6, two characteristic bands were observed at 485 and 970 cm-1, which arose from the symmetric and antisymmetric stretching of the Si-O-Si vibrations, respectively [50]. The distinct Raman band at 773 cm-1was associated with the presence of the VOx species on the surface of Ni-V/KIT-6 [51]. The sharp Raman peak observed at 1030 cm-1, which was close to 1036 cm-1 derived from the V=O stretching vibration of isolated VO4 species according to the previous report [52]. Meanwhile, a weak shoulder peak appeared at 987 cm-1, close to a 995 cm-1 mode, that was originated from polymeric vanadyl species in diverse environments, indicating that some V species were highly dispersed on 3D-mesoporous KIT-6. In addition, two new Raman peaks were observed at 915 and 1060 cm-1, which were considered as the formation of the V-O-Si stretching mode [53, 54], confirming a strong interaction with 3D-mesoporous KIT-6 as indicated from the previous result of H2-TPR analysis.
Based on the analysis mentioned above, the excellent catalytic performance of Ni-V/KIT-6 was because fine Ni nanoparticles were introduced into 3D-mesopores and anchored on the internal surface of 3D-mesoporous KIT-6. Due to loading of V species, an enhanced confinement effect of 3D-mesopores and the strong interaction with 3D-mesoporous KIT-6 from the formation of the Si-O-V linkage between 3D-mesoporous KIT-6 and V species effectively resisted sintering and coking of Ni nanoparticles, leading to higher catalytic activity and better catalytic stability.

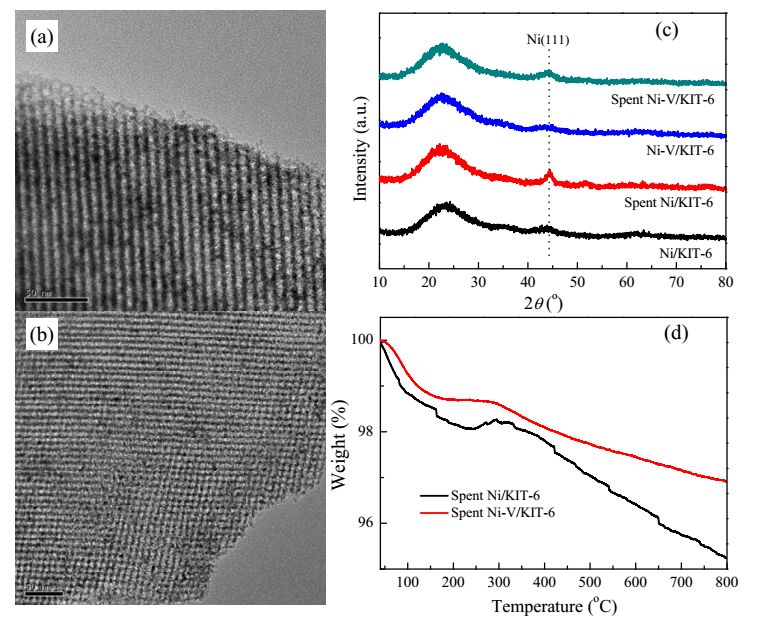

The spent Ni/KIT-6 and Ni-V/KIT-6 were further measured using TEM, XRD and TGA after 60 h-lifetime test, and the results were depicted in Fig. 10. As seen from TEM images of the spent Ni/KIT-6 and Ni-V/KIT-6 in Fig. 10(a) and (b), well-ordered 3D-mesopores of the spent Ni-V/KIT-6 was still regular, and Ni nanoparticles with an average size of around 3 nm were anchored into 3D-mesopores, which was considered as a favorable factor of better catalytic stability and anti-sintering property of Ni-V/KIT-6. However, the spent Ni/KIT-6 exhibited relatively serious agglomeration of Ni nanoparticles, leading to the formation of larger Ni nanoparticles (more than 5 nm by TEM), which was caused by the easy migration of Ni nanoparticles from a relatively weak interaction between active metal and support. As shown in Fig. 10(c), the spent Ni-V/KIT-6 presented a similar XRD diffraction peak of Ni nanoparticles compared with those of Ni-V/KIT-6, and the average Ni nanoparticle size of the spent Ni-V/KIT-6 was almost equal to that of the corresponding Ni-V/KIT-6. In contrast, the spent Ni/KIT-6 displayed a fairly sharp diffraction peaks than Ni/KIT-6, with the average Ni nanoparticle size of 5.8 nm estimated by XRD. There was no signal corresponding to deposited carbon in XRD and TEM, indicating that deposited carbon probably was amorphous or with very low concentration. Furthermore, the amounts of carbon deposited on the spent Ni/KIT-6 and Ni-V/KIT-6 were analyzed by TGA, and the results were illustrated in Fig. 10(d). The weight loss percentage from the spent Ni/KIT-6 was larger than that of the spent Ni-V/KIT-6, reflecting better anti-coking property of Ni-V/KIT-6.
Ni-based catalysts modified by various promoters were successfully synthesized using 3D-mesoporous KIT-6 as a support modified by ethylene glycol with an incipient-wetness impregnation method. Compared to Ni/KIT-6, promoter-modified catalysts exhibited better low-temperature catalytic activity for CO methanation at 1 atm, 250-400 ℃ and a relatively high WHSV of 60000 mL/(g∙h), and Ni-V/KIT-6 possessed the best catalytic performance with its maximal CO conversion of 100% and CH4 yield of 85% at a relatively low reaction temperature of 350 ℃. In a 60 h-lifetime test conducted at 500 ℃, 1 atm and WHSV of 60000 mL/(g∙h), Ni-V/KIT-6 displayed an excellent resistance to Ni nanoparticles sintering and coke formation. The catalysts were measured by N2 adsorption-desorption, XRD, H2-TPR, H2-TPD, FT-IR, Raman, TEM, EDX and TGA, and the results revealed that the enhanced catalytic performance of Ni-V/KIT-6 was due to the highest dispersion of Ni nanoparticles (26.5%) accompanied by improved reducibility to produce the most Ni active sites, the intimate interaction with support from the formation of Si-O-V linkage and an enhanced confinement effect of 3D-mesopores leading to the formation of small Ni nanoparticles. Similarly, Ni-Ce/KIT-6, Ni-La/KIT-6, and Ni-Mn/KIT-6 possessed larger H2 uptakes and higher dispersion of Ni nanoparticles than those of Ni/KIT-6. Additionally, the formation of the Si-O-V linkage and and enhanced confinement effect of 3D-mesopores by the addition of V species were favorable to generate small size of Ni nanoparticles and further prevent the aggregation of Ni nanoparticles during high-temperature reduction and CO methanation. As a result, our current work suggested that Ni-V/KIT-6 with excellent catalytic performance and stability should be considered as a promising candidate for CO methanation.
The authors gratefully acknowledge financial supported by the Fundamental Research Funds for the Central Universities (No.2015XKMS061), and sincerely appreciate Prof. Xinbin Ma from Tianjin University for his suggestion on the experiment.
